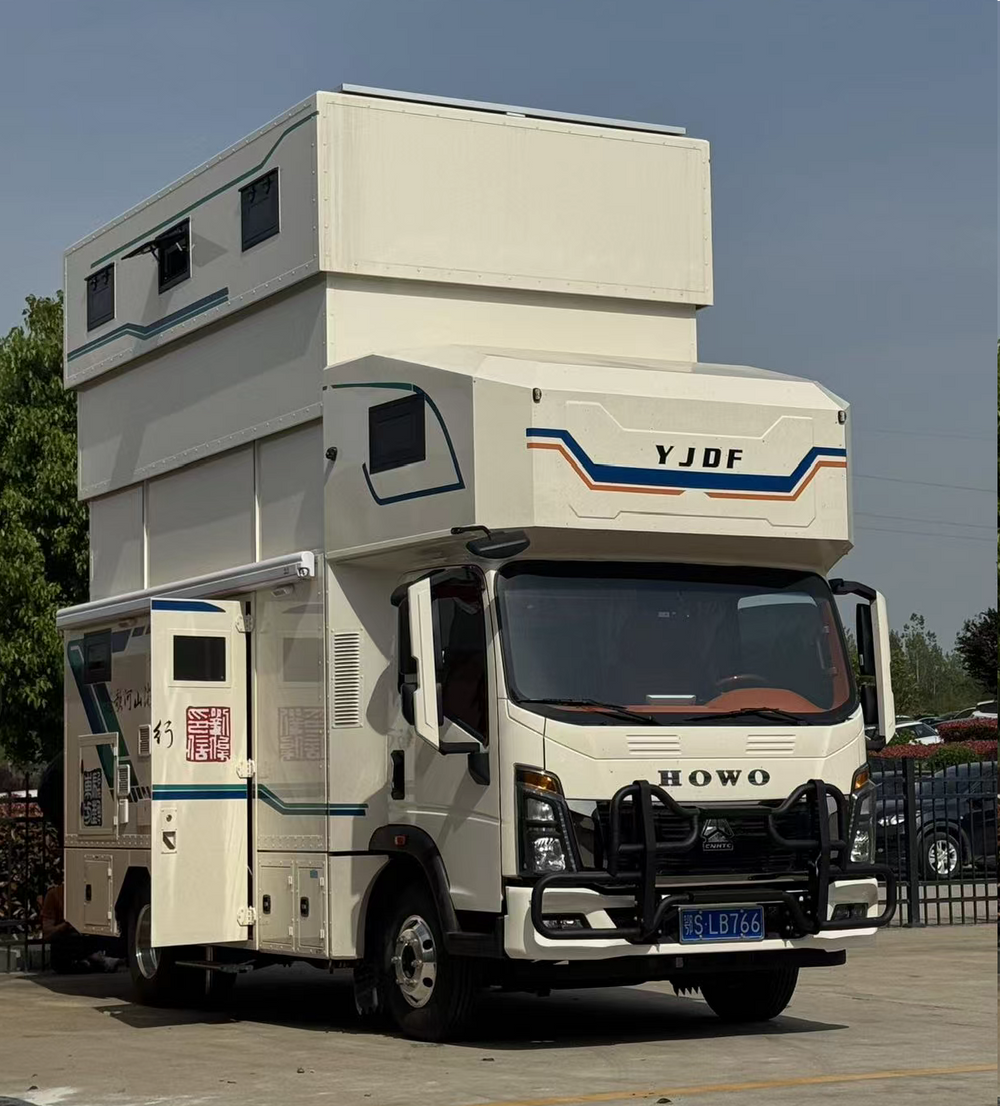

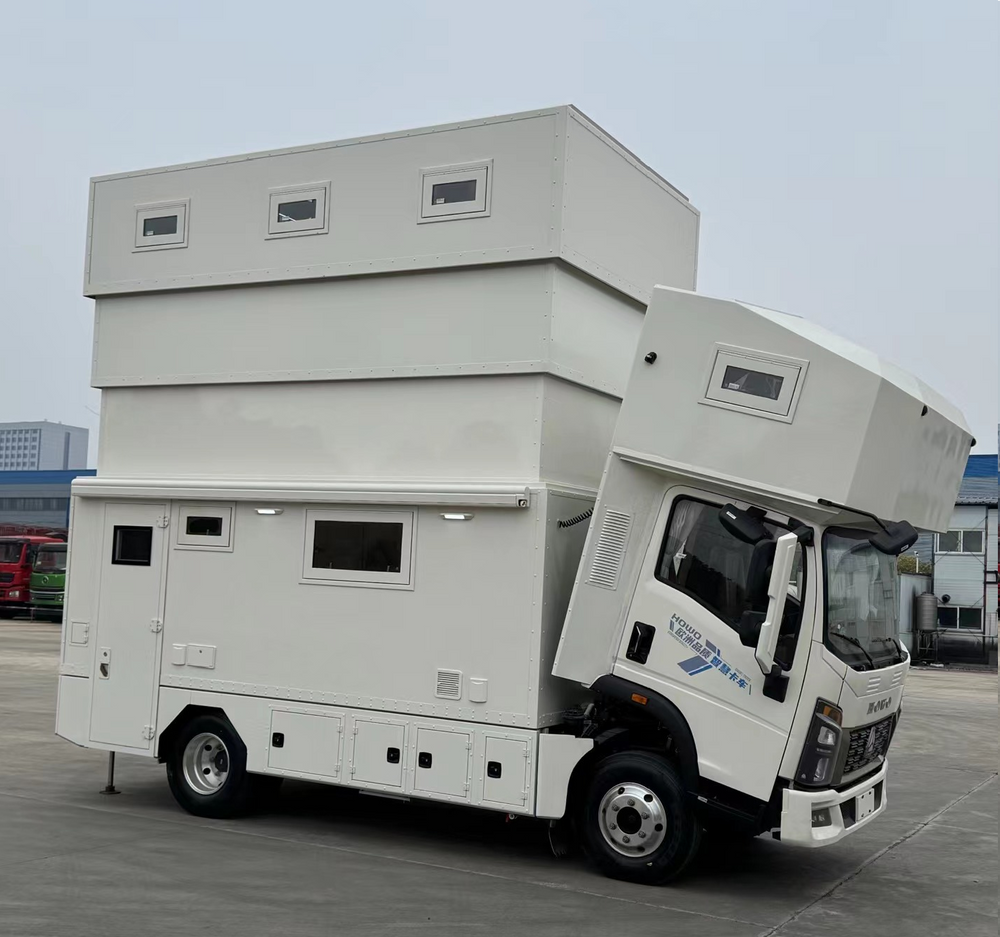

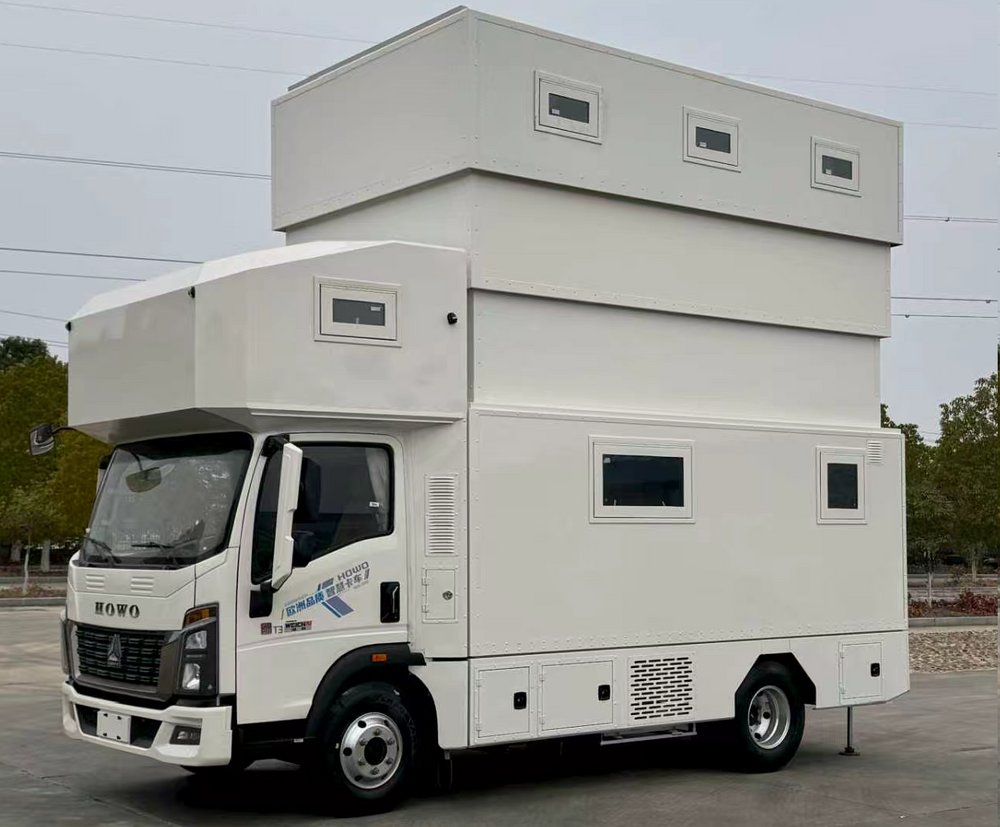

Howo T Shuai Medium‑ring Pop‑top Camper Van
| Item | Specification | Item | Specification |
|---|---|---|---|
| Announcement Model | CL5071XLJ6ASX | Chassis Model | ZZ1077F3315F174 |
| Body Color | Optional | Overall Dimensions (mm) | 5995×2490×3400 |
| Curb Weight (kg) | 6087 | GVW (kg) | 7360 |
| Wheelbase (mm) | 3280 | Interior Height (mm) | 1900 |
| Tire Spec | 7.50R16LT | Seats | 6 |
| Engine Model | WP2.5NQ160E61 | Displacement (mL) | 2.5 |
| Power (kW) | 118 | Horsepower (PS) | 160 |
| Max Speed (km/h) | 105 | Torque (N·m) | 480 |
| Emission Standard | China VI | Fuel Tank (L) | 120 |
| Fuel Type | Diesel | Urea Tank (L) | 20 |
| Gearbox | 8AT Automatic | Drive Type | 4×2 |
| Front Suspension | Front Transverse Leaf Spring | Rear Suspension | Steel Leaf Spring Non-independent |
| Steering Assist | Hydraulic Power | Braking System | Air Brake |
| Driver/Passenger Power Windows | ● | ESP | ● |
| Central Lock + Remote Key | ● | Cab A/C | ● |
| Item | Specification |
|---|---|
| Hard-top / Off-road Style | High-strength Aluminum Alloy Body |
| Steel Structure Reinforced Compartment | Electric Step |
| RV Aluminum Alloy Screen Door (Sliding Door) | External 220V Power Socket |
| Outdoor Light | External Water Fill Port |
| Indoor Ladder | 4m Awning |
| Corporate Logo Sticker | Roof-mounted Vent Fan |
| Privacy Curtain | Driver/Passenger Seat Leather Cover |
| Multimedia All-in-one | Mechanical Key |
| Electronic Handbrake | Cruise Control / Multi-function Steering Wheel |
| Wide Rear-view Mirror | — |
| Item | Specification |
|---|---|
| E0 Grade RV Special Board | Living Area Privacy Curtain |
| Top Interior Decoration Panel | Whole Vehicle Thermal & Noise Insulation |
| Home Fabric Sofa (subject to actual vehicle) | Wear-resistant Waterproof Floor Leather |
| Locker, Hanging Cabinet, Shoe Cabinet | Screen Window (anti-mosquito, sunshade, privacy) |
| Self-made Card Seat / Ring-shaped Card Seat | Special Bed Mattress |
| Seat Storage Box | — |
| Item | Specification |
|---|---|
| Induction Cooker (AC220V) 2000W | RV Special Water Tank 170L |
| Home Washing Basin | Microwave Oven |

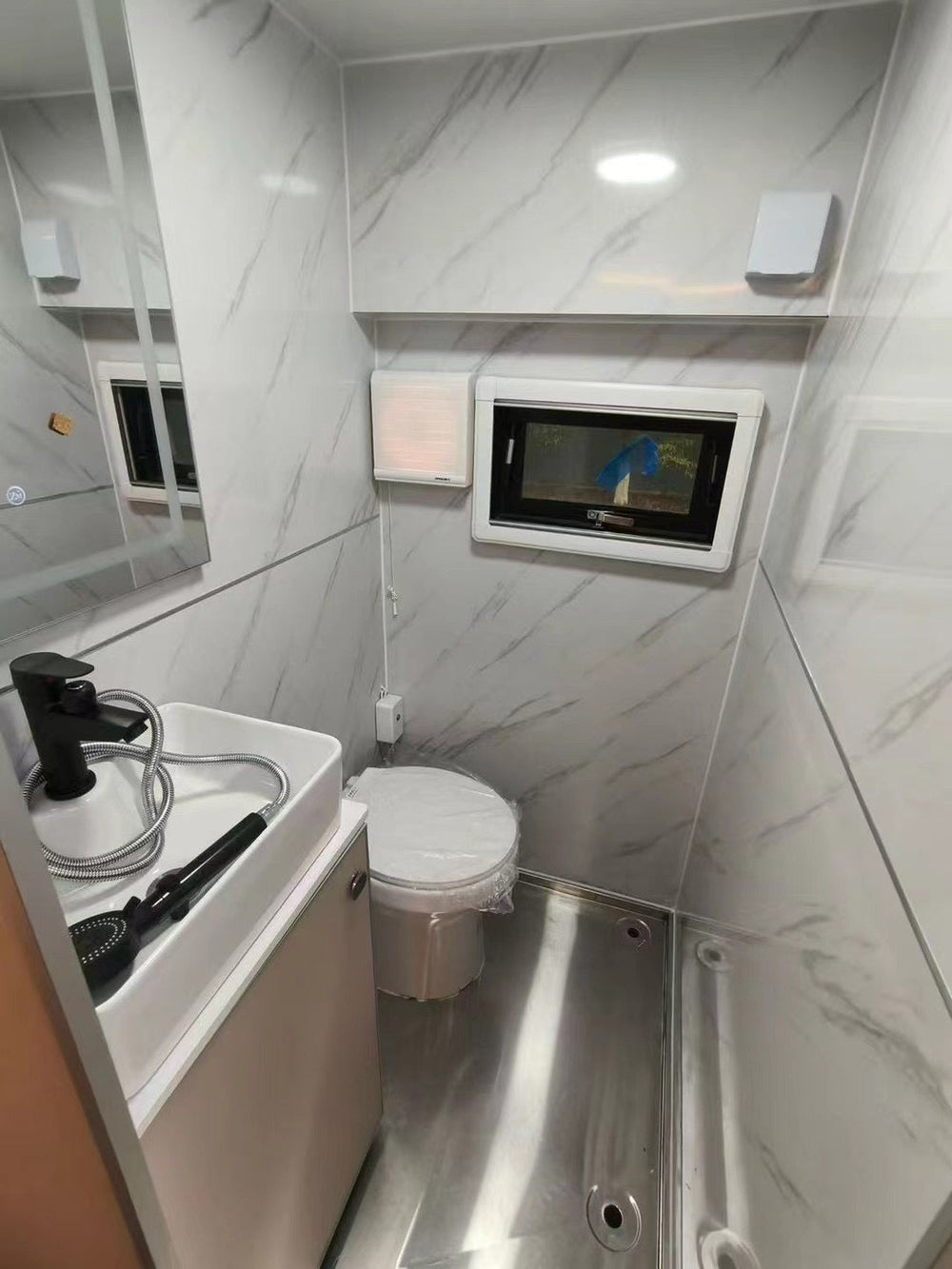

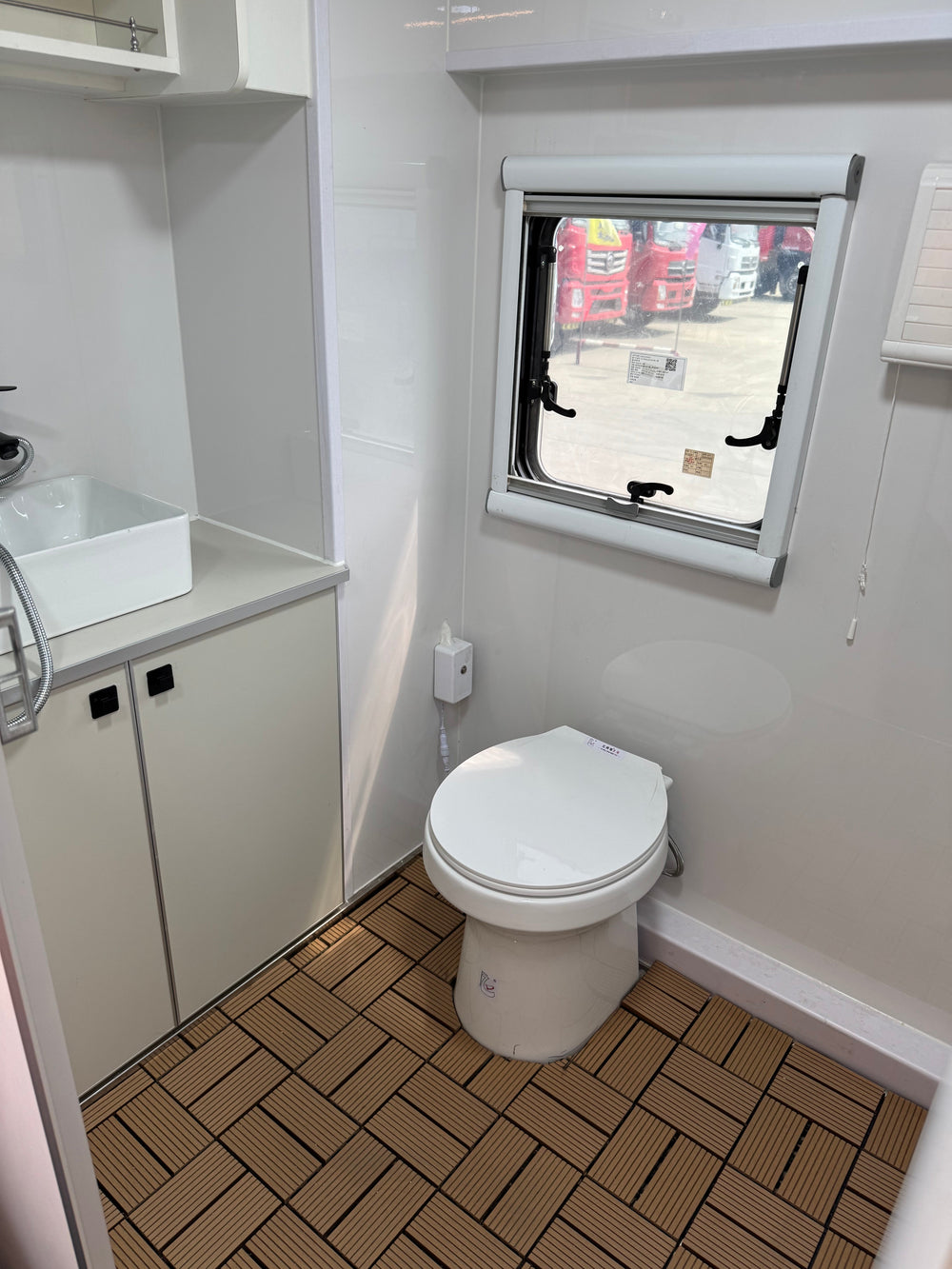

| Item | Specification |
|---|---|
| Bathroom Integrated | Bathroom Stainless Steel Floor Drain |
| Bathroom Exhaust Fan | Bathroom Lighting |
| Upper Hand Wash Basin | Dressing Mirror |
| Independent Toilet | Toiletries Rack + Towel Rack |
| Anti-slip Waterproof Floor | 40L Electric Water Heater |
| Electric Crushing Toilet | Shower + Shower Bracket |
| Item | Specification |
|---|---|
| Whole Vehicle Wiring Harness | Dimmable LED Ceiling Light |
| Reading Light / Aisle Light | USB Charging Port |
| 32A Leakage Protector | Low Voltage Protector |
| Dual Battery Isolator | Overload Protector |
| Power Switch Panel | Deluxe Total Control Panel |
| 220V/12V DC Power Socket | Independent Audio System |
| Voltmeter, Water Level Gauge, Odometer | Pop-top Lighting |
| 32-inch Smart TV | 8kg Inverter Washing Machine |
| 24V 6kW Inverter Charger All-in-one | 24V 600Ah Lithium Battery |
| 1800W Solar Panel | — |
| Item | Specification |
|---|---|
| Whole Vehicle Water System Assembly | PPR Water Pipe |
| Diaphragm Water Pump (12V) | Drain Valve |
| Stainless Steel Clear Water Tank 380L | Grey Water Tank 120L + Black Water Tank 80L |
| Water Tank Insulation | External Shower |
| External Water Connection 10m | Random Tools |
| Fire Extinguisher | Smoke Alarm |
| Safety Belt | — |
| Item | Specification |
|---|---|

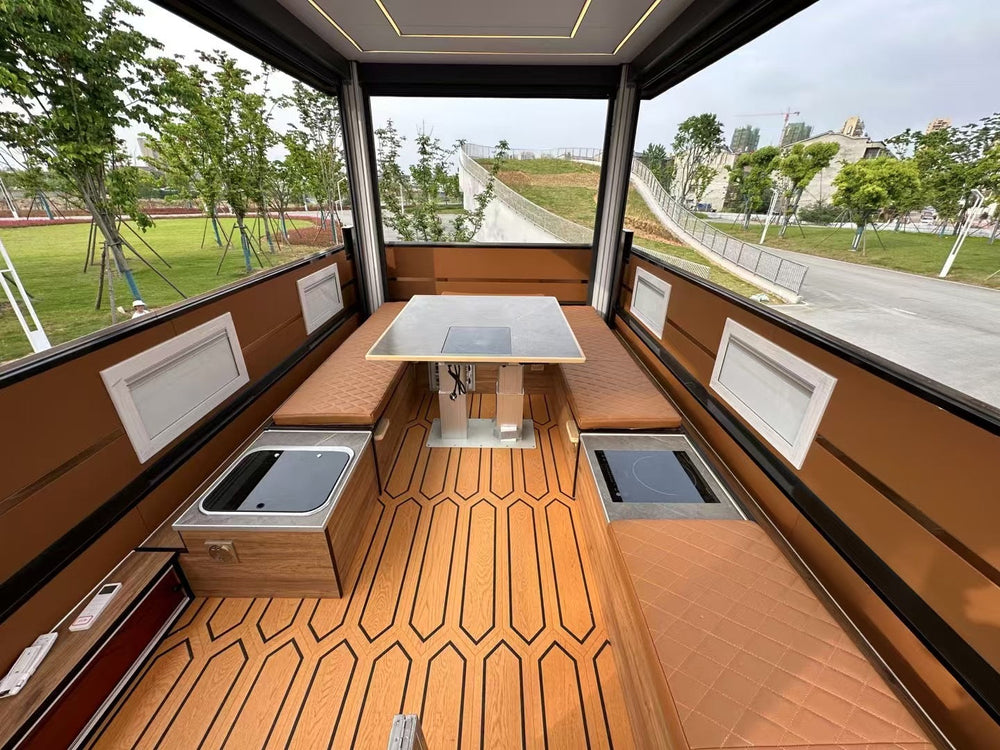

| Roof Pop-top Structure (Hydraulic System, Lights, Legs) | Second-floor Folding Bed + Electric Lifting Dining Table |
