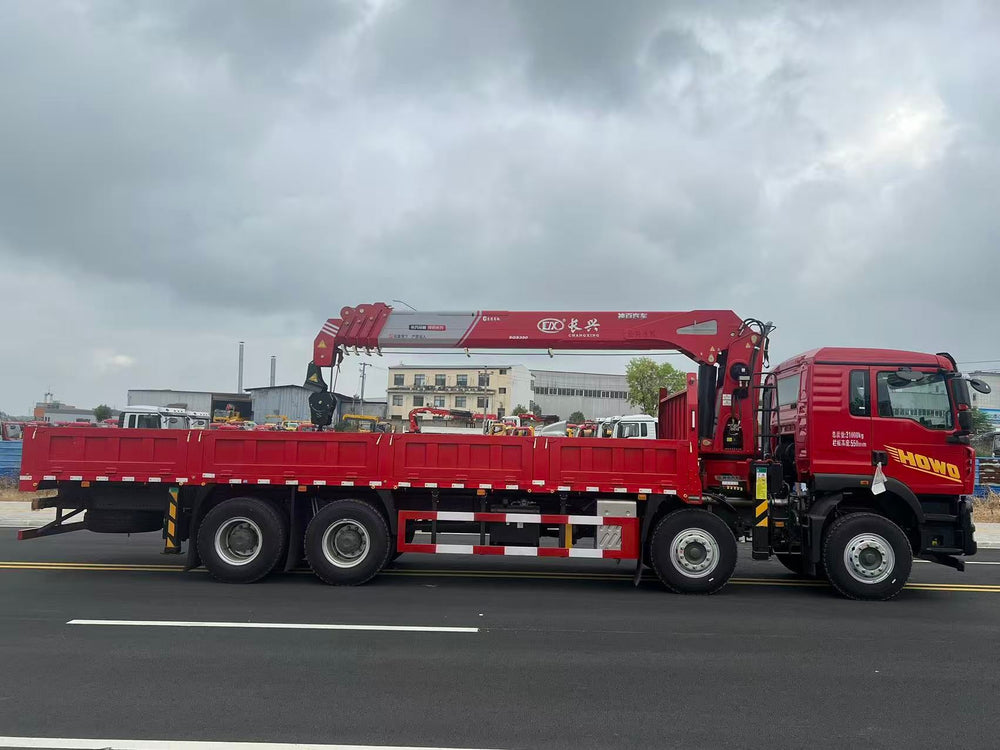

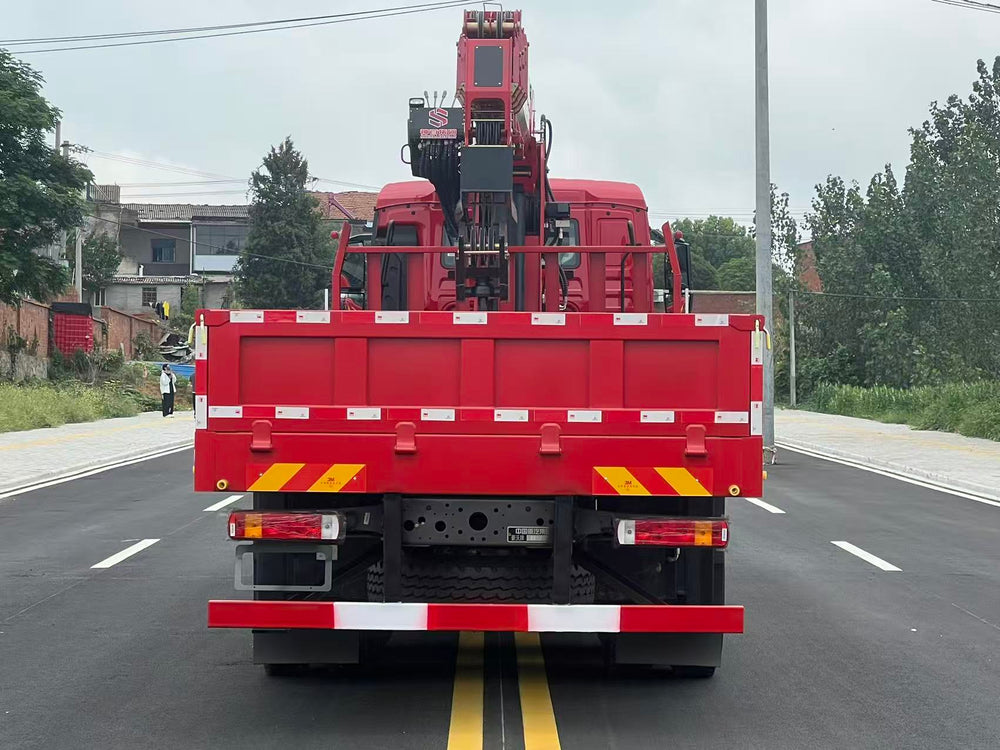

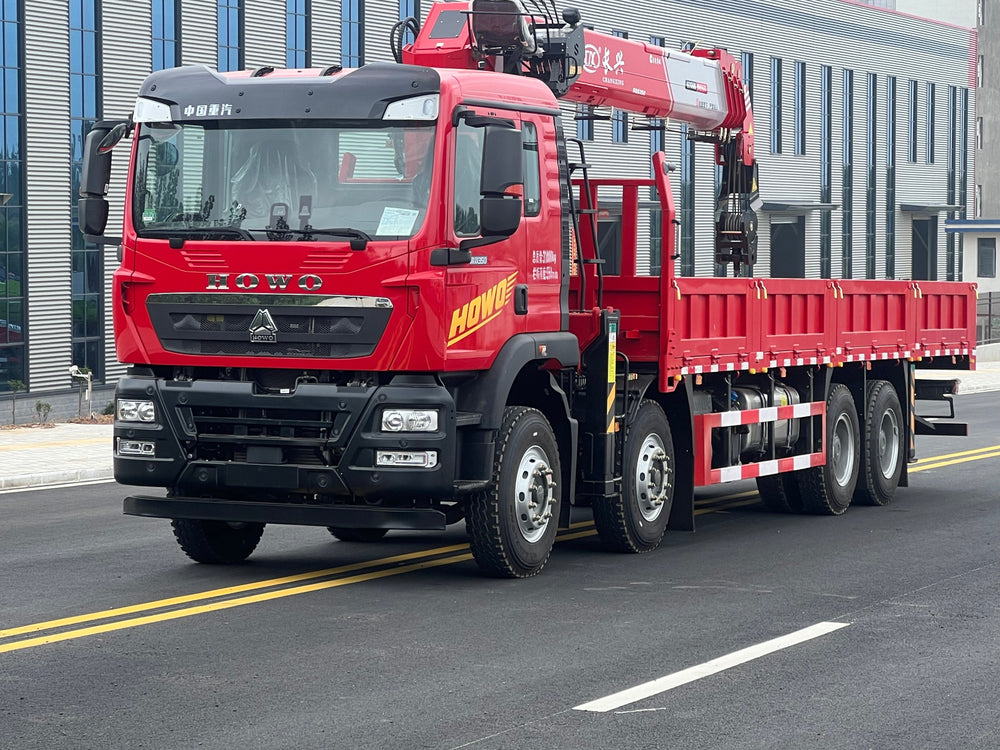

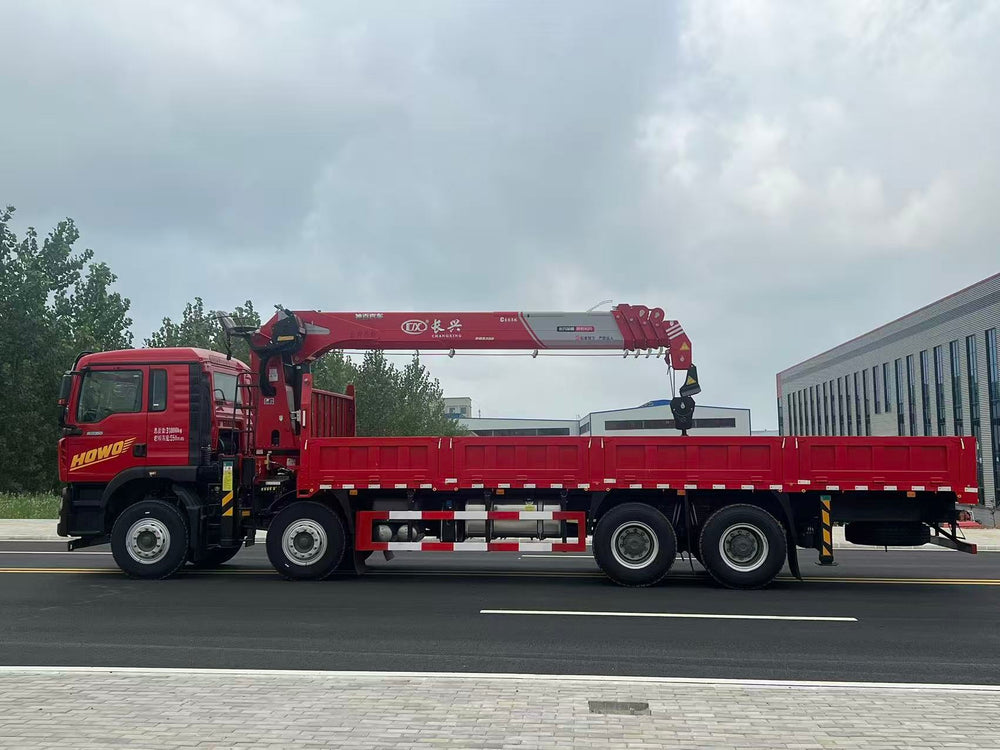

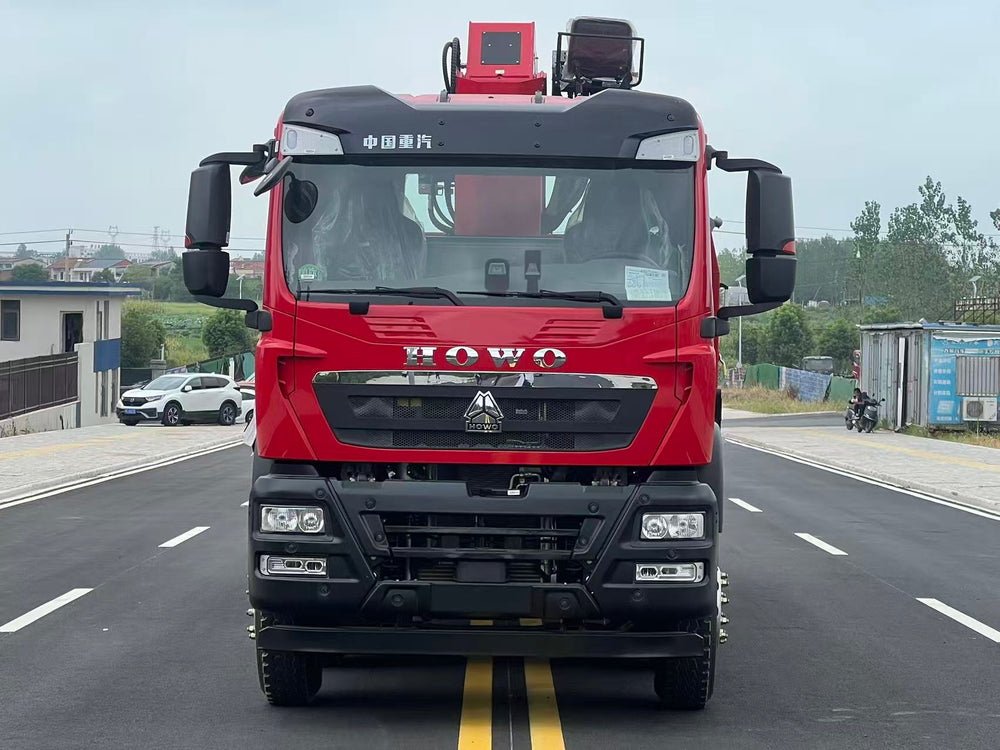

HOWO TX 8x4 380HP Crane Truck with Changxing 14-Ton 5-Section Straight Boom Crane

Chassis Specifications

Standard Equipment

• Multi-function steering wheel
• Electric heated rear-view mirrors
• Driver airbag seat (aviation-grade air suspension) + co-pilot simplified seat + middle seat
• 10.1-inch Full HD LCD center console (MP5)
• High-position all-metal three-section bumper
• Manual cab tilt
• 4-point floating cab with international-standard collapsible safety technology
• Optional under-cab start/stop switch

Key Advantages

• Weichai 8T 380HP engine — powerful, fuel-efficient, integrated engine-gearbox-axle development for superior vehicle compatibility
• Genuine German MAN-origin cab structure
• Triple-layer frame (8+5+8/318) with engineering-grade leaf springs and 4-bolt saddle clamps — best-in-class torsional rigidity on complex terrain
• V-type thrust rod for optimal body stability under heavy loads
• SINOTRUK proprietary dual 16-ton wheel-side reduction rear axles with triple differential lock — handles all complex road conditions with ease
• 4-point floating cab with collapsible safety technology for occupant protection in emergencies
• Aviation-grade air suspension driver seat with multi-directional adjustment and lumbar support

Superstructure — Changxing 14-Ton 5-Section Straight Boom Crane

• Crane brand: Changxing
• Lifting capacity: 14 tons
• Boom: 5-section straight telescopic boom, synchronized extension
• Max boom length: 19.9 meters
• Max lifting height: 21.3 meters
• Upper cab operation
• Gear dual-pump confluence hydraulic system
• Single slewing
• Double-section outriggers
• Winch: cycloid motor
• Full through-beam structure
