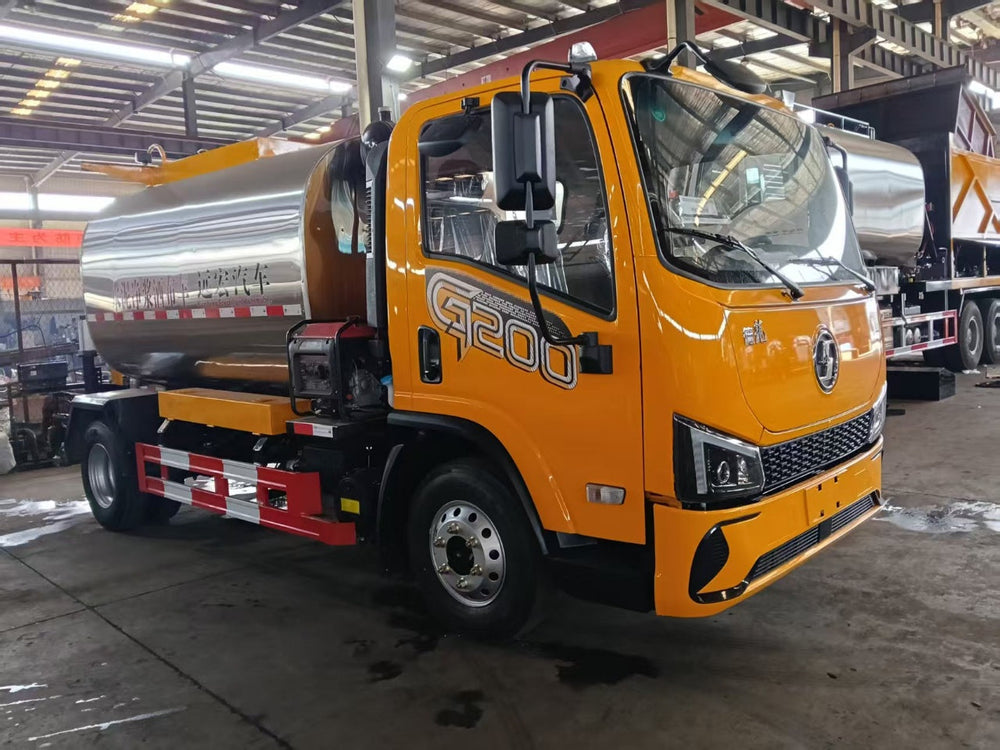

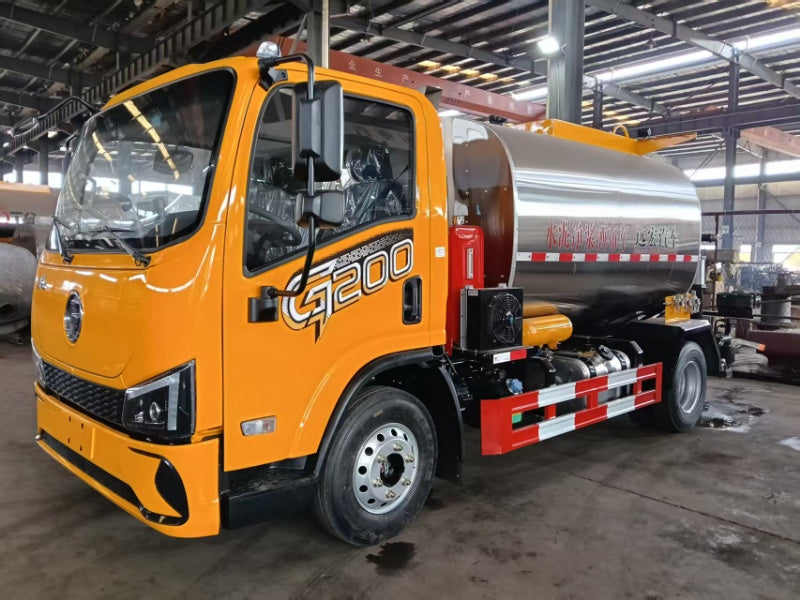

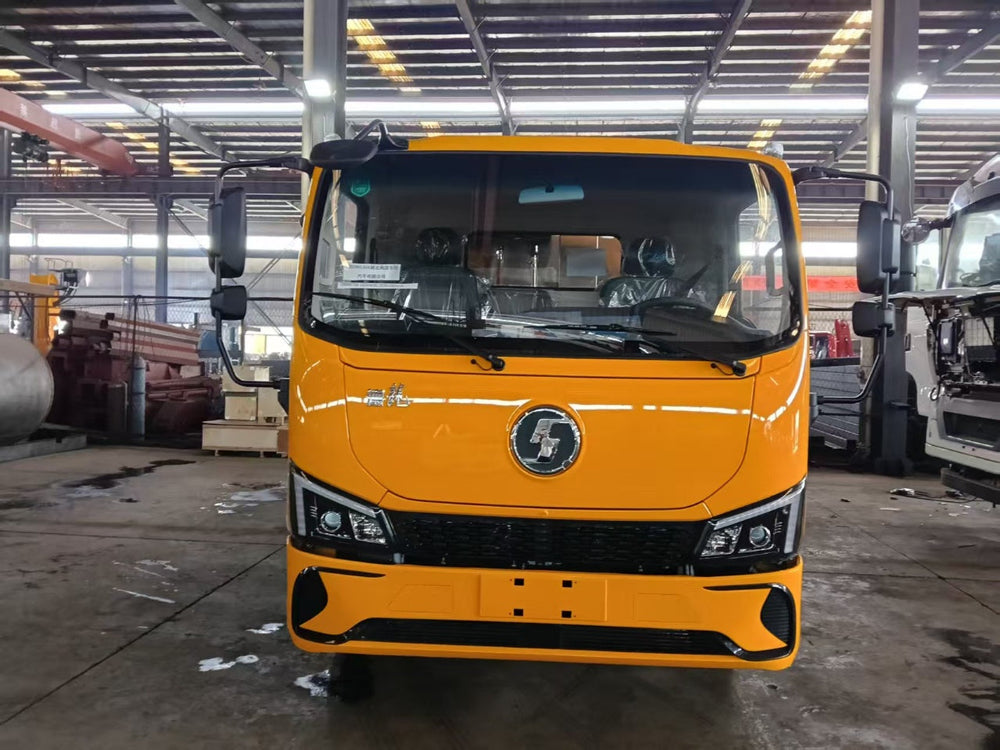

SHACMAN 6T Asphalt Distributor Truck

1 / 3

1. Chassis Configuration

Parameter	Value
Engine Model	YN25PLUS160A (Yunnei)
Engine Power	160 HP
Transmission	C6J45TB Aluminum Gearbox
Frame Specification	180mm / 4.5mm Single-Layer Frame
Front Axle	HDZ 2.2 Ton, Maintenance-Free
Rear Axle	5 Ton Rated Load, Final Drive Ratio 4.875, Maintenance-Free
Fuel Tank	120L Aluminum Fuel Tank
Tire Specification	7.50R16LT / 14PR
Cab Type	G200 Single-Row 2020 Cab
Driver Seat	Fixed Driver Seat
Cab Interior	Electric Windows, Manual Air Conditioner
Instrument Panel	4.5-inch Color Combination Instrument
Steering Wheel	Multifunctional Steering Wheel with Cruise Control
Door Lock	Central Door Locking
Rearview Mirror	Lever-Type Rearview Mirror
Headlights	Halogen Headlights
Remote Lock	T-Box Remote Vehicle Lock
Suspension	Fixed Suspension
Sun Visor	Driver-Side Sun Visor
PTO	Equipped with Power Take-Off
Brake System	Air-Over-Hydraulic Spring Brake
Spare Tire	Equipped
PTO Reminder	PTO Buzzer Warning

Parameter	Value
Tank Material	Carbon Steel Plate
Tank Volume	6 m³
Insulation Structure	Three-Layer Insulation
Outer Insulation Layer	Stainless Steel Cladding
Internal Insulation Filling	Flame-Retardant Rock Wool
Insulation Thickness	30 mm

Parameter	Value
Asphalt Pump Type	Insulated Asphalt Pump RCB18/0.6-65F-T
Asphalt Pump Capacity	18 m³/h
Asphalt Pump Drive Motor	Cycloidal Motor 2K-80
Hydraulic Pump	F563 Full Cast Iron Gear Pump
Hydraulic Flow Control	Imported Electro-Hydraulic Proportional Flow Regulating Valve (USA)

Parameter	Value
Burner Brand & Model	Riyadh G10 (Imported from Italy)
Heating Method	Full-Process Heat-Conducting Oil Heating (Tank & Pipelines)
Temperature Control Module	Imported PLC Temperature Control Module, Computer Control (Taiwan)
Heat-Conducting Oil Pump	BRY20-20-125 (Botou, Hebei)
Radiator	AH1012-CD24-A
Auxiliary Power	3500W Gasoline Generator

Parameter	Value
Spray Width Range	0.2 m – 4 m (triple overlap)
Spray Volume Range	0.2 – 2 kg/m²
Pneumatic Cylinders	22 sets of stainless steel full-pneumatic cylinders
Nozzles	Pure copper nozzles with imported seals (leak-proof)
Spray Bar Design	Synchronized same-layer spray bar with through rotary joint heating; asphalt circulation on both sides; recyclable asphalt; no metal hoses

Parameter	Value
Spray Volume Controller	Intelligent Integrated Controller (IP67 protection grade)
Control Feature	Spray volume automatically linked with vehicle speed
In-Cab Display	Kunlun Tongtai 10-inch Touch Screen Control System
Pressure Control	Computer-automatic hydraulic pressure distribution
Pump Speed Control	Adjustable asphalt pump speed
Temperature Controller	Independent temperature controller
Air Pressure Display	Equipped
Spray Cylinder Control	One cylinder per valve (one-to-one control)

Feature	Description
Full Asphalt Circulation	Full-vehicle asphalt circulation, one-key asphalt pump suction/discharge function
Automatic Cleaning	One-key asphalt return, nozzle cleaning and hand-gun cleaning function via operation screen
Level Gauge	Float-type level gauge installed inside tank
Tank Thermometer	Bimetal thermometer installed outside tank body
Pump Thermometer	External metal thermometer on asphalt pump
Fastener Standard	All fasteners, connectors, transmission parts, support parts, sealing parts and elastic parts comply with GB/T national standards
