What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

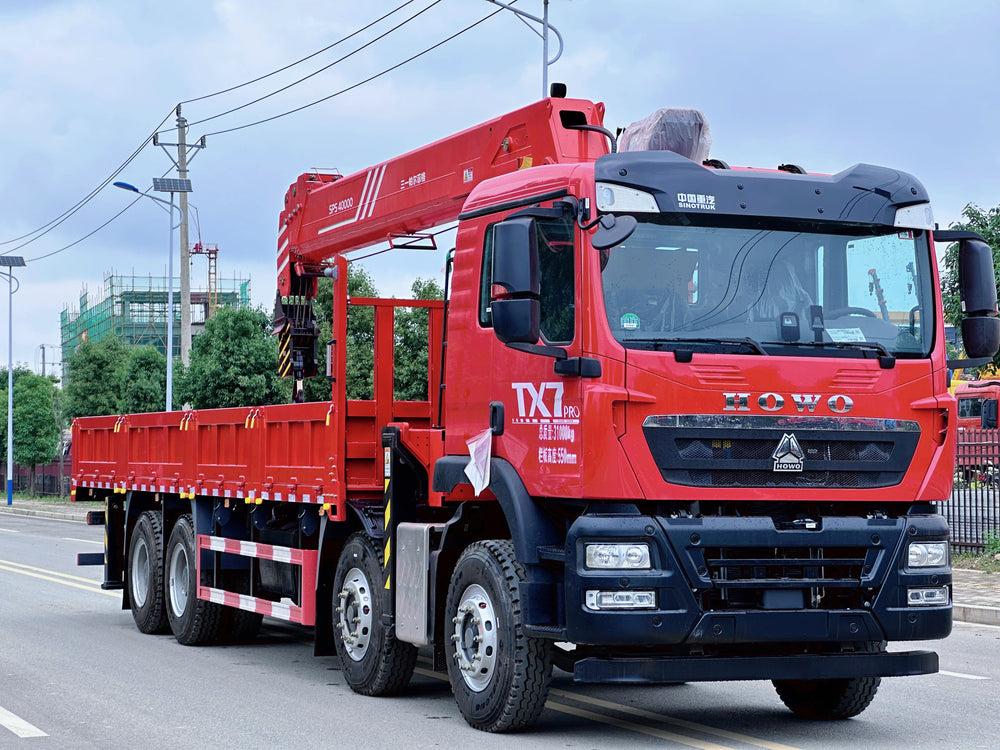

Sinotruk Howo Sany 16-ton 5-section boom truck crane

Name: Sinotruk Howo Sany 16-ton 5-section boom truck crane
Brand: Shenbai Auto
Availability: OutOfStock

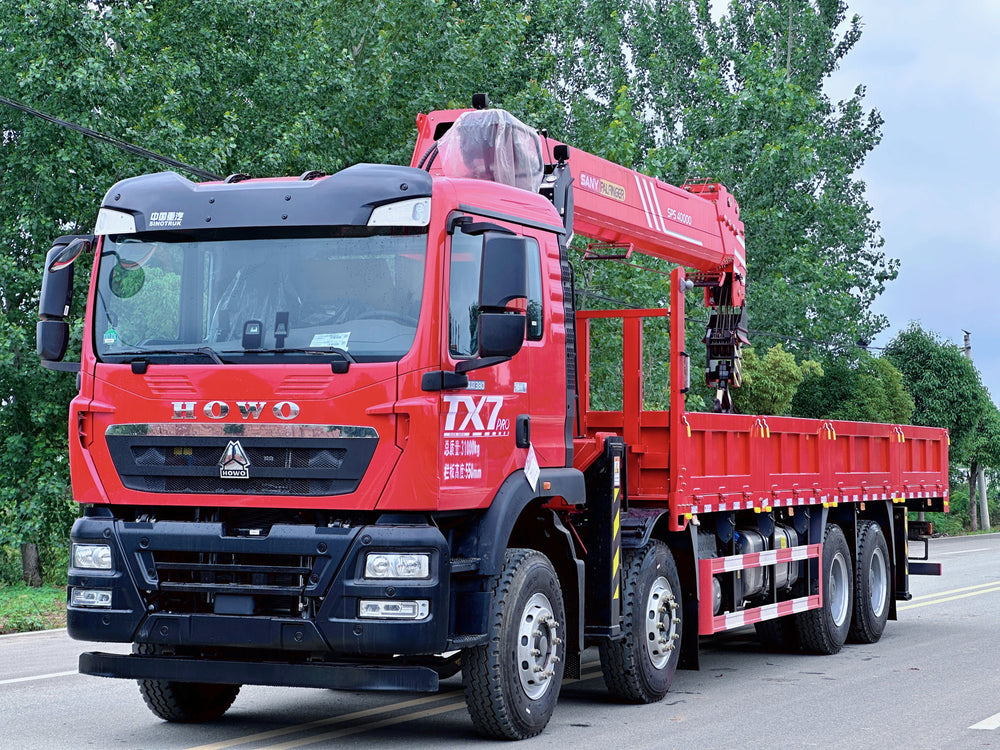

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 2 - SHENBAI Auto

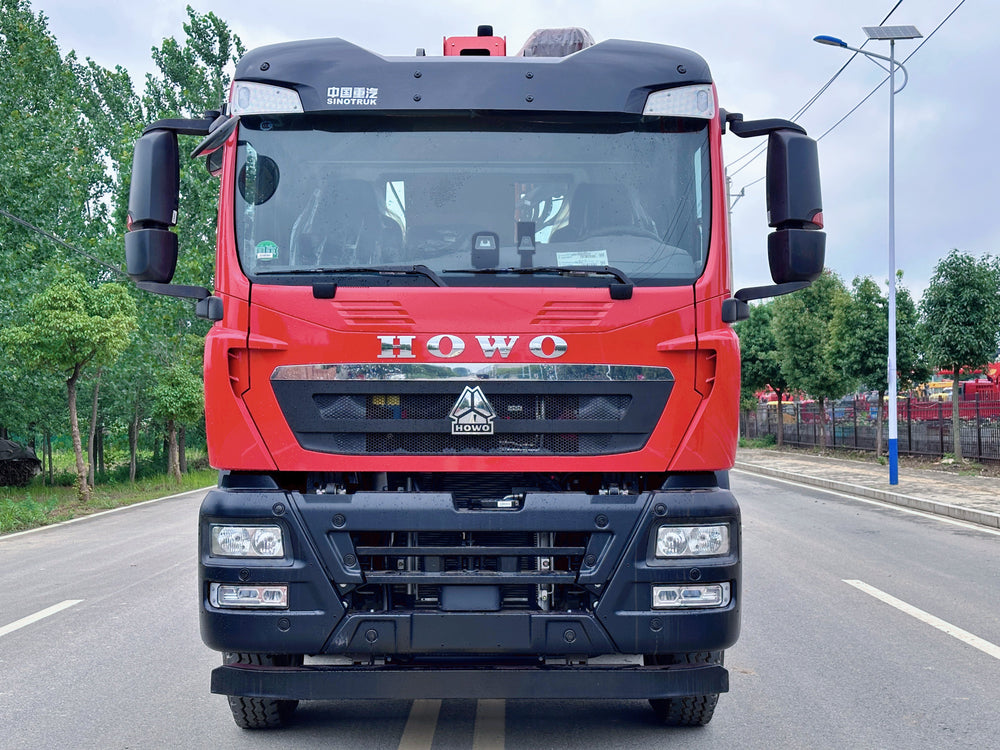

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 3 - SHENBAI Auto

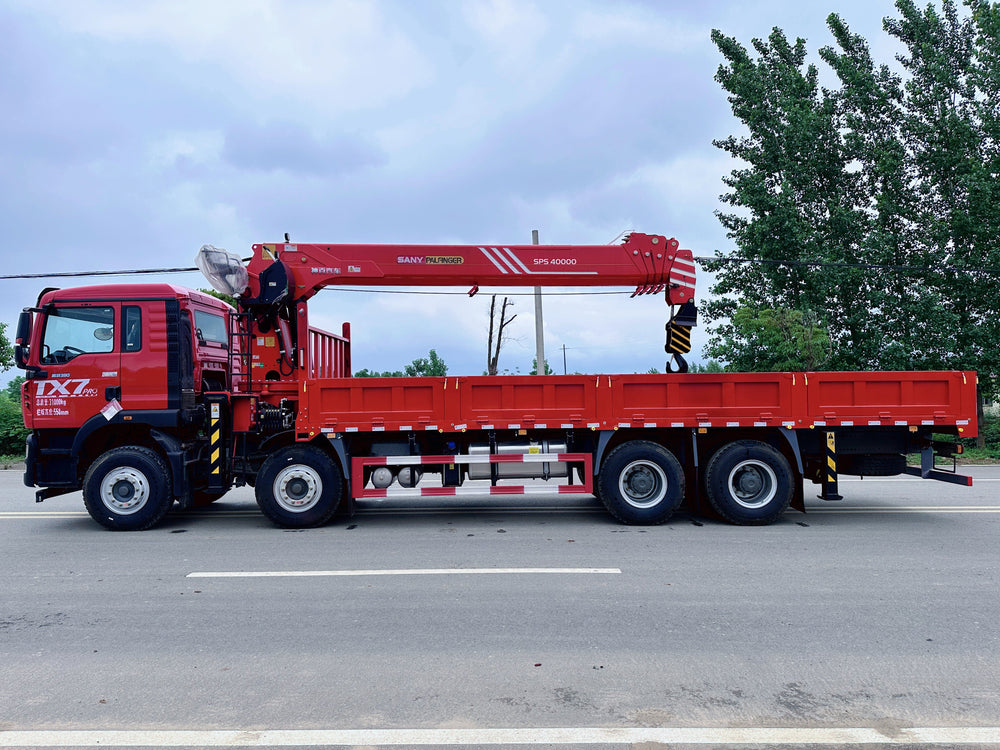

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 4 - SHENBAI Auto

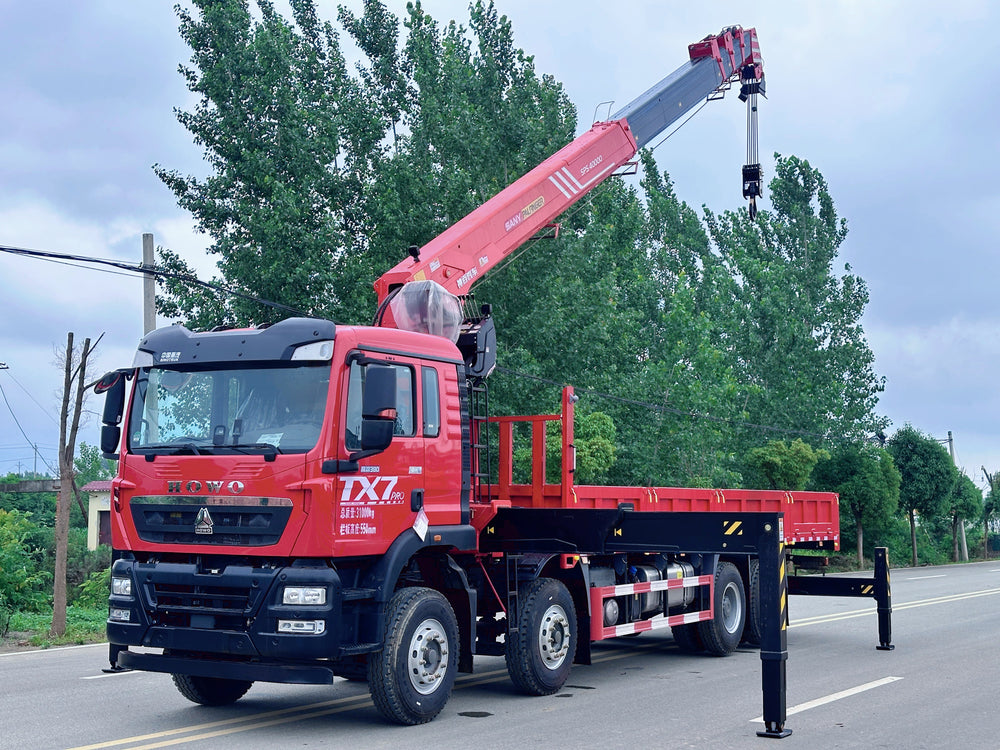

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 5 - SHENBAI Auto

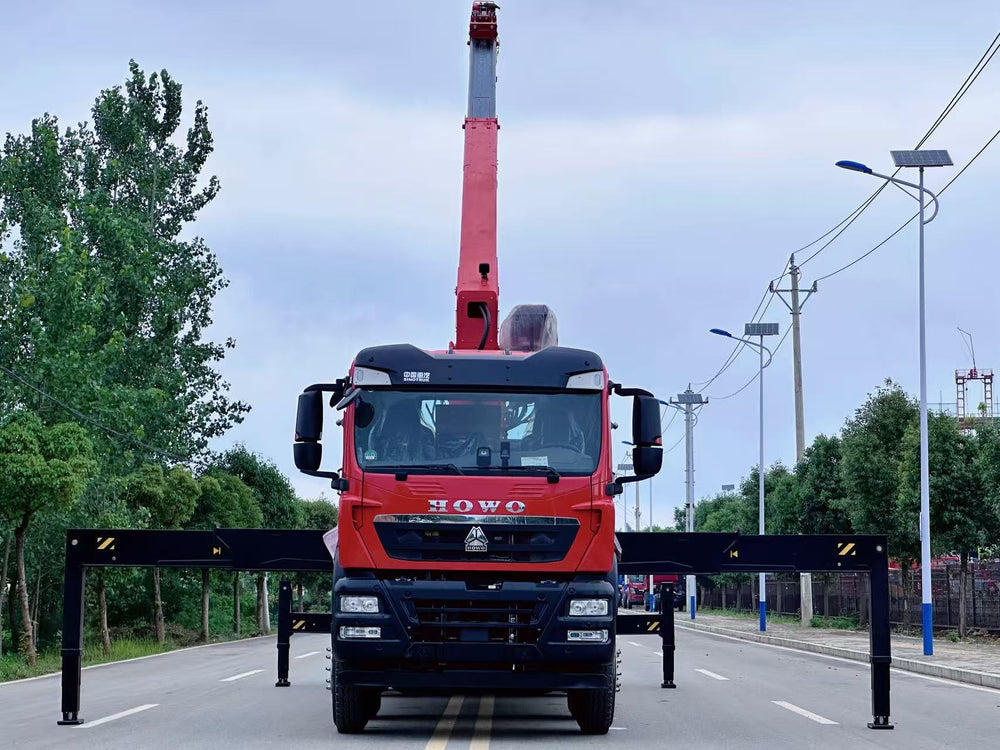

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 6 - SHENBAI Auto

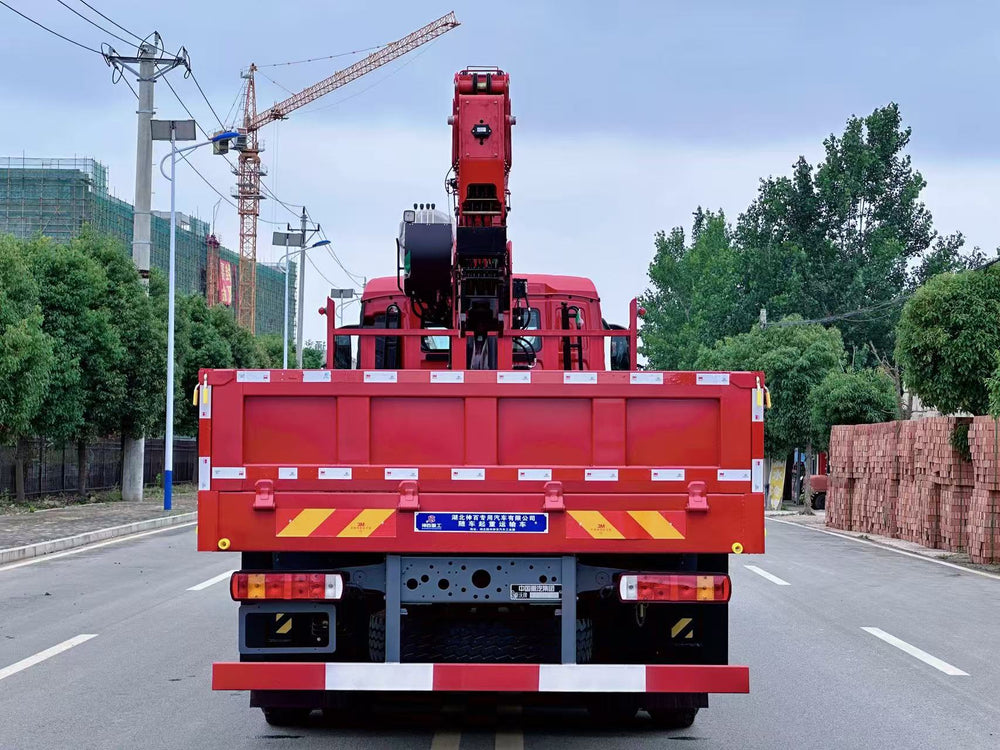

Sinotruk Howo Sany 16-ton 5-section boom truck crane - View 7 - SHENBAI Auto

1 / 7

Sinotruk Howo Sany 16-ton 5-section boom truck crane

I. Basic Vehicle Parameters
Gross Vehicle Weight	31000kg
Rated Load Capacity	14000kg
Curb Weight	16800kg
Emission Standard	China VI
Rated Passenger Capacity	3 Persons
Maximum Speed	90km/h
Wheelbase	1800+4600+1350mm
Overall Vehicle Dimensions	12000×2550×3950mm
Approach Angle/Departure Angle	19°/12°
Minimum Turning Diameter	24m
II. Chassis Core Parameters
Engine Model	Weichai WP8.380E61
Engine Rated Horsepower	380HP
Engine Displacement	7.8L
Engine Maximum Torque	1500N·m
Transmission Model	Sinotruk HW19710C
Transmission Type	Manual 10-speed, with synchronizer, high/low gear
Front Axle Model	Sinotruk 7.5-ton dual front axles
Rear Axle Model	Sinotruk 16-ton dual reduction rear axles (tandem axles)
Differential Lock Configuration	Front axle + middle axle + rear axle, 3 differential locks
Frame Structure	Full three-layer high-strength steel frame, locally reinforced, frame thickness 8+5+8mm
Suspension System	Front few-leaf spring, rear multi-leaf spring, with lateral stabilizer bar
Tire Specification	12.00R20 18PR all-steel radial tire
Fuel Tank Capacity	400L aluminum alloy fuel tank
Braking System	Dual-circuit air brake, ABS anti-lock braking system, ASR drive anti-slip, exhaust brake, retarder
Steering System	Hydraulic power steering, with steering damper
Clutch	Φ430mm pull-type diaphragm spring clutch
III. Upper Mounted Crane Core Parameters
Crane Brand	Sany Heavy Industry
Crane Model	SPS16000-5
Rated Maximum Lifting Capacity	16 Tons
Boom Structure	5-section telescopic boom, high-strength HG785 steel material
Maximum Boom Extension Length	21.6m
Maximum Lifting Height	23.6m
Slewing Mechanism	360-degree full slewing, dual slewing reducers, planetary gear structure
Slewing Speed	0-2.2r/min
Hydraulic System	Load-sensitive hydraulic system, dual pump confluence, pressure compensation
Hydraulic Pump Model	High-pressure piston pump, displacement 100ml/r
Hydraulic Oil Tank Capacity	140L
Hydraulic System Rated Pressure	31.5MPa
Outrigger Structure	H-type double-chamber outriggers, front and rear bidirectional telescopic, vertical outriggers with floating function
Outrigger Span	Horizontal 7.2m, Longitudinal 6.8m
Operation Mode	Upper operation + lower operation dual operation mode, standard wireless remote control
Safety Protection Devices	Load moment limiter, over-wind protection, over-lower protection, outrigger locking device, anti-tipping protection, hydraulic overload protection
Cooling System	Hydraulic oil radiator, air-cooled type
IV. Cargo Box and Other Configurations
Cargo Box Internal Dimensions	8200×2450×600mm
Cargo Box Structure	Full-folded steel engineering cargo box, side 3mm thick, bottom 5mm thick, high-strength steel plate
Gantry Configuration	Heightened and reinforced gantry, with anti-slip ladder, reinforced crane mounting base
Standard Configuration	Central lock, electric doors and windows, original factory air conditioning, multi-function steering wheel, cruise control, driving recorder, reversing image, airbag seat, aluminum alloy air reservoir
Optional Configuration	Air conditioning radiator, hydraulic oil radiator, tool box, anti-slip plate, rear tow arm, on-board tools, auxiliary fuel tank, water shower, ladder, guardrail
