SINOTRUK HOWO TX7 350HP 8×4 Flammable Liquid Fuel Tanker

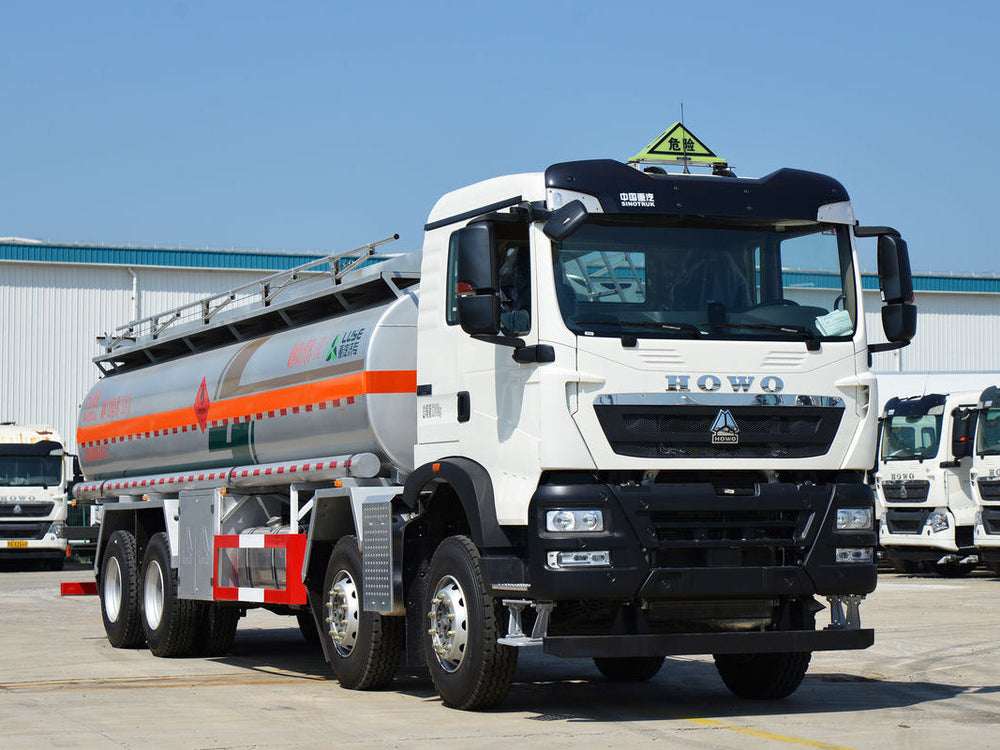

Sinotruk HOWO TX7 Flammable Liquid Tank Truck - Front 3/4 View

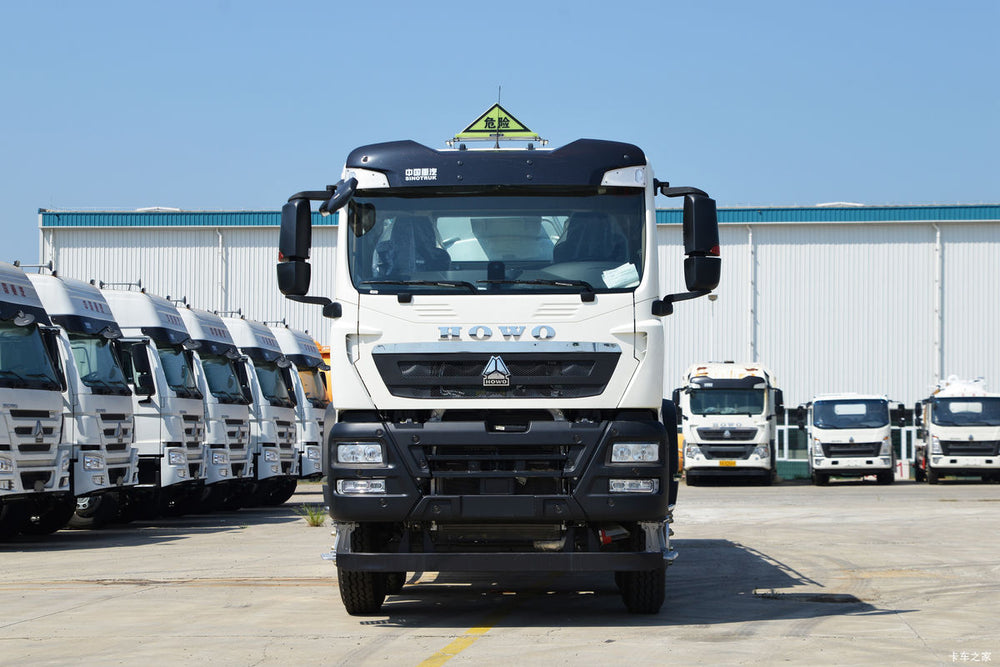

Sinotruk HOWO TX7 Flammable Liquid Tank Truck - Front View

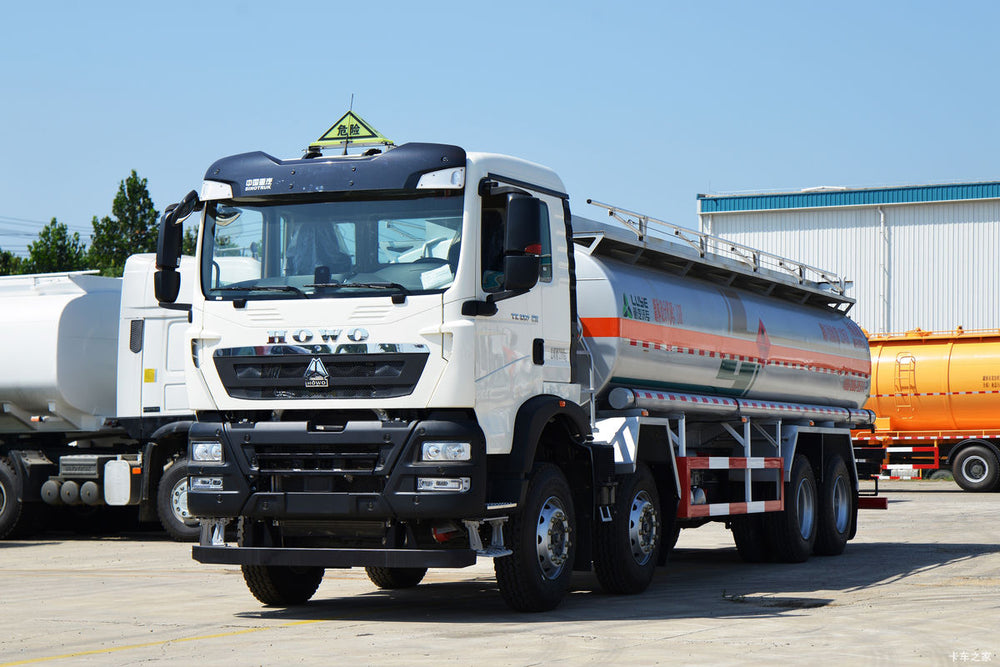

Sinotruk HOWO TX7 Flammable Liquid Tank Truck - Front 3/4 Side View

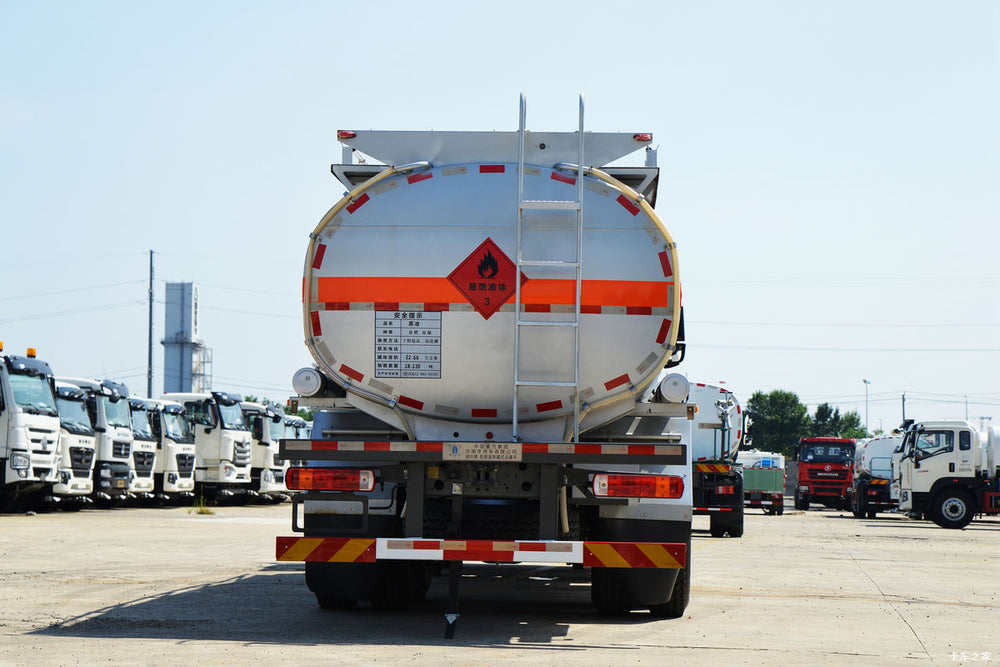

Sinotruk HOWO TX7 Flammable Liquid Tank Truck - Rear View with Hazmat Labels

1 / 5

Category	Item	Detailed Specifications
1. Basic Chassis Parameters	Chassis Model	SINOTRUK HOWO TX7 8×4 Heavy Duty Dangerous Goods Chassis
Drive Layout	8×4 (2 front steering axles, 2 rear driving axles)
Gross Vehicle Weight	31000 kg
Rated Payload	18.135 tons
Vehicle Type	Class 3 Flammable Liquid Tanker (Crude Oil, Diesel, Gasoline Transport)
Transport Medium	Crude oil, gasoline, diesel fuel and other Class 3 flammable petroleum liquids
Tank Overall Dimension	8.55m × 2.25m × 1.55m
Nominal Tank Volume	22.66 m³
2. Powertrain Assembly	Engine Model	Weichai WP9H350E62 National VI Diesel Engine
Rated Horsepower	350 HP
Emission Standard	National VI / Euro VI
Transmission Gearbox	12-speed Manual Heavy-duty Gearbox
Fuel Type	Light Diesel Oil
Fuel Tank	Large capacity aluminum alloy fuel tank
3. Aluminum Alloy Tank Superstructure	Tank Material	Lightweight high-strength aluminum alloy plate, integral one-time rolling forming
Internal Structure	Multi independent compartments + anti-wave baffles, reduce liquid sloshing during driving
Top Standard Fittings	Full aluminum anti-slip walkway, surrounding safety guardrail, sealed manhole cover, overflow prevention valve, vapor recovery port
Loading & Unloading System	Explosion-proof fuel pump, large-caliber quick disconnect pipelines, bottom loading & unloading valves
Safety Markings	UN Class 3 flammable liquid warning diamond sign, orange reflective warning strip around tank body, full circle red-white reflective markers
Rear Tank Accessories	Aluminum climbing ladder, rear operation platform, combined rear taillights
4. Professional Dangerous Goods Safety Configuration	Static Protection	Complete static grounding device, anti-static conductive belt
Emergency Safety	Emergency cut-off valve for liquid pipeline, leakage collecting tray, special fire extinguisher bracket, safety warning notice board
Explosion-proof Design	All electrical components adopt explosion-proof standard, dangerous goods warning triangle lamp on cab roof
Auxiliary Safety	Red-white alternating anti-collision side guards, full axle mudguards, side marker warning lights
5. Chassis & Running Gear System	Suspension System	Reinforced multi-leaf spring suspension with heavy-duty hydraulic shock absorbers
Brake System	Full air brake system, ABS anti-lock braking system + exhaust auxiliary brake
Wheel Configuration	Single front tires, dual rear tires, heavy-duty steel wheel hubs
6. Cab Standard Configuration	Cab Type	Single row wide-body luxury heavy-duty cab, white body with black wind deflector
Exterior Features	Split large wide-angle rearview mirrors, integrated composite headlights, HOWO triangular logo on front grille
Interior Equipments	Fabric upholstered seats, multi-speed windshield wipers, central storage boxes, standard air conditioning, optional radio audio system
7. Core Product Selling Advantages	Highlights	1. 8×4 four-axle heavy-duty chassis with 22.66m³ large aluminum tank, high single-trip transport efficiency for oil logistics 2. Weichai 350HP high-power engine with strong torque, stable power output and low fuel consumption for long-distance highway transport 3. Lightweight aluminum alloy tank reduces dead weight, improves effective loading capacity, anti-rust and long service life 4. Multi-compartment design supports separate transportation of different oil products without cross-contamination 5. Complete explosion-proof, anti-static and emergency shut-off safety devices fully meet national dangerous goods transport regulations 6. Mature HOWO heavy-duty chassis with nationwide after-sales service network, ideal for oil station, crude oil mine and petroleum logistics enterprises
