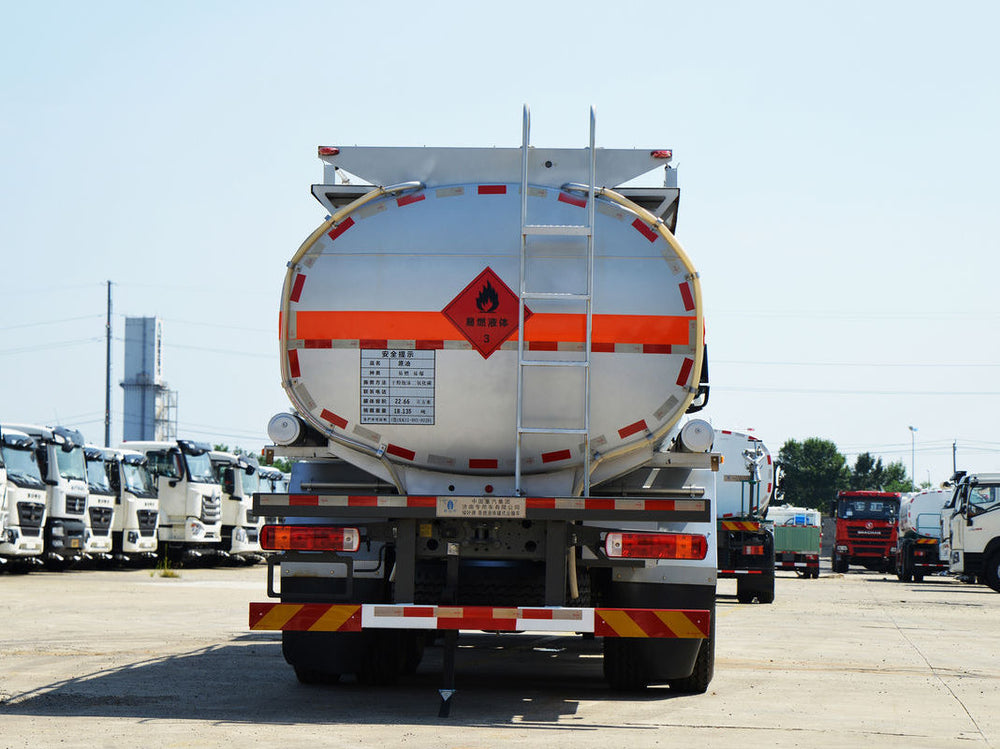

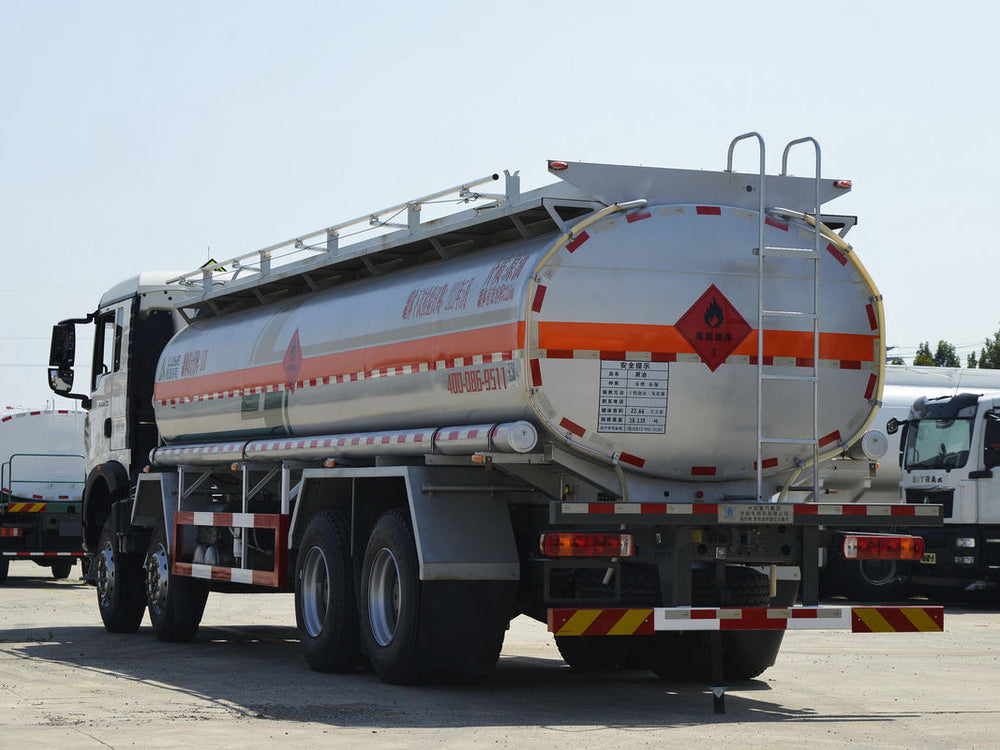

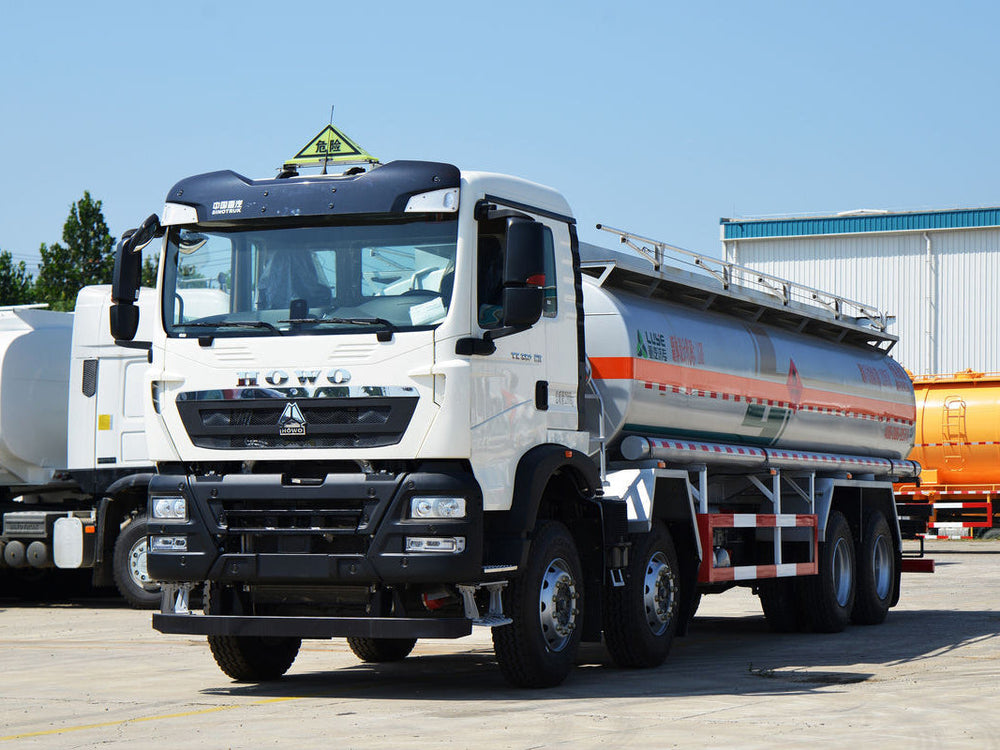

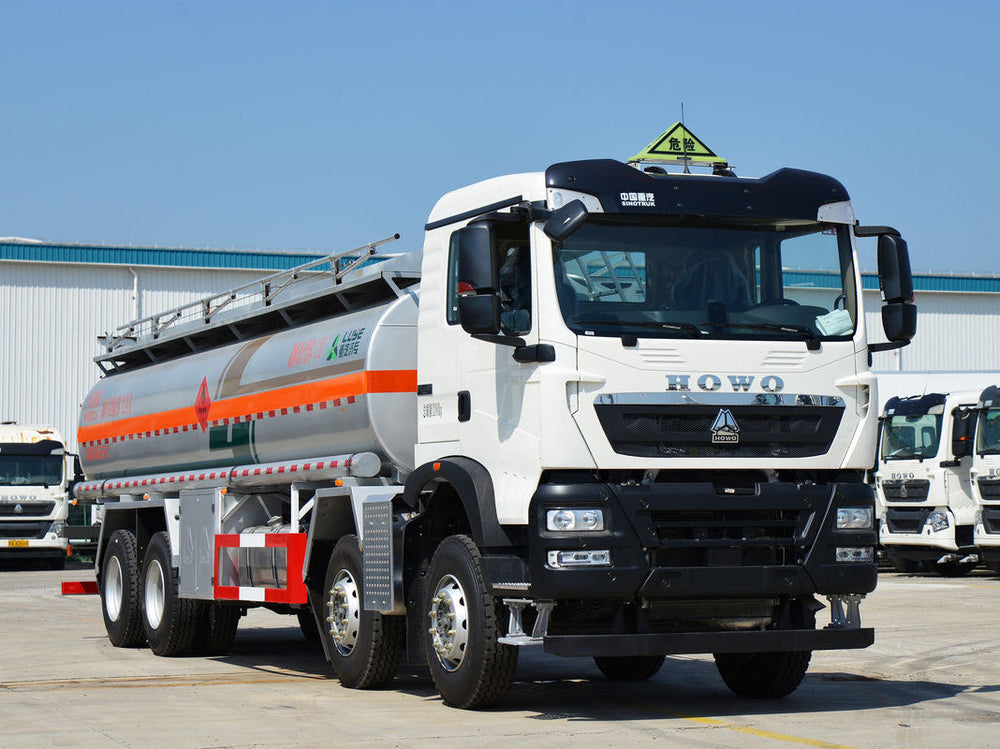

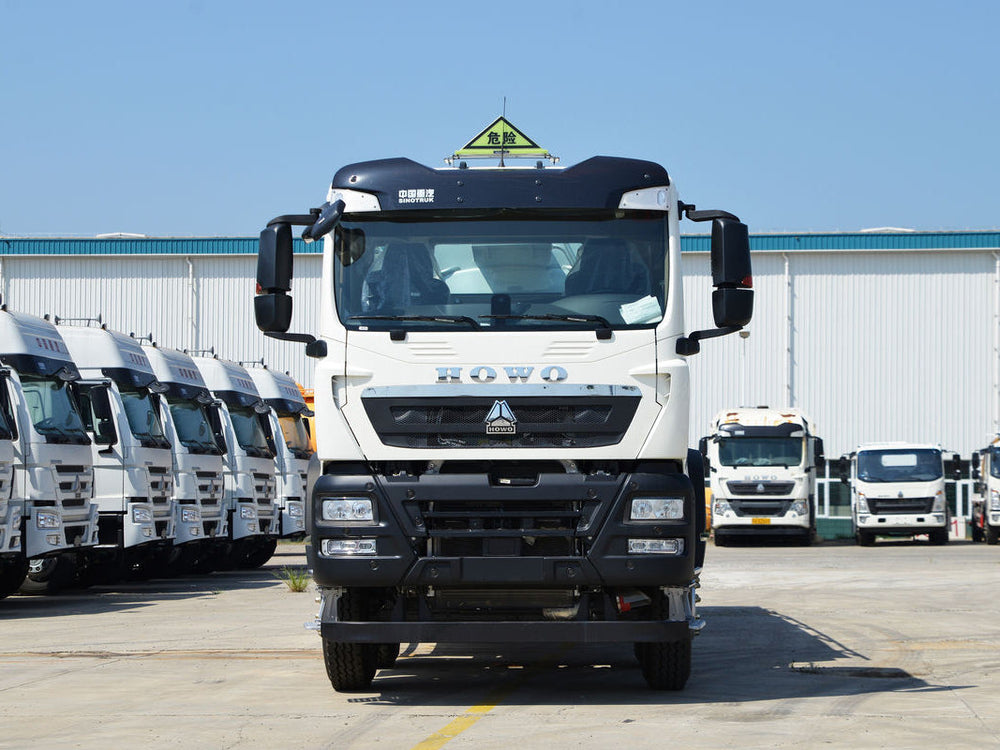

Sinotruk HOWO TX7 350HP 8×4 Flammable Liquid Tanker

1 / 5

Category	Item	Specification	Remarks
Chassis Configuration	Chassis Brand & Model	Sinotruk HOWO TX7 8×4 Heavy-duty Dangerous Goods Special Chassis	4 axles, 8×4 drive, for hazardous material transportation
	Engine Model	Sinotruk MC11.35-50 Diesel Engine	350HP, Max Torque 1800N·m, Euro V/Euro VI emission standard optional
	Transmission	HW19710 10-Speed Manual Transmission	Full synchromesh, optimized for heavy load operation
	Drive Type	8×4 (2 front steering axles, 2 rear driving axles)	Superior carrying capacity and driving stability
	Wheelbase	1800+4500+1350mm	Customizable upon request
	Tire Specification	12R22.5 Tubeless Tires, 12 Units	Heavy-duty radial tires for long-distance transportation
	Cabin	HOWO TX7 Flat Roof / High Roof Double Berth Dangerous Goods Special Cabin	Equipped with central door lock, power windows, heating & cooling air conditioning
	Brake System	Dual-circuit Pneumatic Brake System	Standard with ABS, ASR, Exhaust Brake
	Steering System	Hydraulic Power Steering	Lightweight and precise control
Tank Body Configuration	Tank Material	5052 Aluminum Alloy / High Quality Carbon Steel	Corrosion-resistant, optional material based on transported medium
	Tank Volume	22.55m³	Customizable volume, multi-compartment design available for different media
	Applicable Medium	Class 3 Flammable Liquids (Gasoline, Diesel, Crude Oil, etc.)	Compliant with UN dangerous goods transportation standards
	Tank Structure	Oval Cross-section, Reinforced Anti-wave Baffles	Anti-impact, effectively prevent liquid sloshing during driving
	Manhole & Inlet	Standard European-style Manhole Cover with Breathing Valve	Anti-overflow, automatic pressure relief function
	Loading & Unloading System	Submarine Emergency Shut-off Valve, Pneumatic Oil Discharge Valve, Oil Delivery Hose	Fast loading/unloading, emergency cut-off function for safety
	Tank Accessories	Top Safety Guardrail, Climbing Ladder, Operation Platform, Mechanical Liquid Level Gauge	Convenient for daily operation and maintenance
Safety & Explosion-proof System	Hazard Identification	Full Set of Class 3 Flammable Liquid Reflective Markings, Warning Triangles	Compliant with GB 13392 and UN dangerous goods transport regulations
	Explosion-proof Configuration	Explosion-proof Electrical System, Spark Arrester, Static Grounding Strap	Prevent static spark, eliminate fire and explosion risks
	Emergency Devices	Emergency Shut-off Valve, Emergency Pressure Relief Device, 4kg Dry Powder Fire Extinguisher x2	Standard for hazardous material emergency response
	Protection Devices	Front/Rear Anti-collision Buffer Device, Side Protection Fence, High-visibility Reflective Strips	Meet road transportation safety requirements
Standard Equipment	Cabin Interior	Central Door Lock, Power Windows, Heating & Cooling Air Conditioning, Multi-function Steering Wheel	Standard factory configuration
	Lighting System	Full LED Headlights, Hazard Warning Lights, Clearance Lights, Side Marker Lights	Meet global road lighting requirements
	Tank Standard Accessories	Manhole Cover, Breathing Valve, Liquid Level Gauge, Oil Discharge Valve, Oil Delivery Hose, Static Grounding Strap	Standard factory configuration
	Safety Standard Configuration	ABS, ASR, Exhaust Brake, Fire Extinguisher, Warning Triangle, Full Set of Hazardous Goods Markings	Standard factory configuration
Optional Upgrades	Tank Material Upgrade	304 Stainless Steel Lining, Titanium Alloy Anti-corrosion Coating	For special corrosive flammable media
	Loading/Unloading System Upgrade	High-flow Oil Pump, Digital Flow Meter, Automatic Fueling Hose Reel	Improve loading and unloading efficiency
	Safety System Upgrade	Tire Pressure Monitoring System (TPMS), Lane Departure Warning System (LDWS), Forward Collision Warning (FCWS)	Meet higher global safety certification requirements
	Cabin Upgrade	High Roof Double Berth, Leather Seats, GPS Navigation, Reverse Camera	Improve long-distance driving comfort
	Global Customization	Right-hand Drive (RHD) Modification, Overseas Emission Standard Adaptation, Custom Tank Volume, Multi-compartment Design	For global market export, full export documents support
