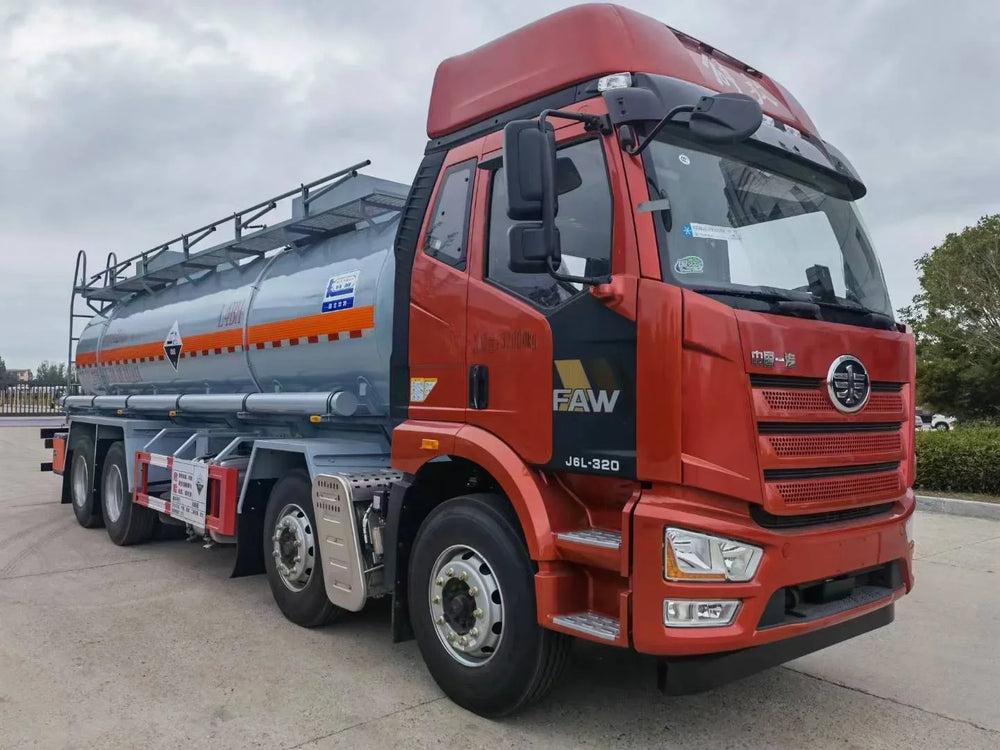

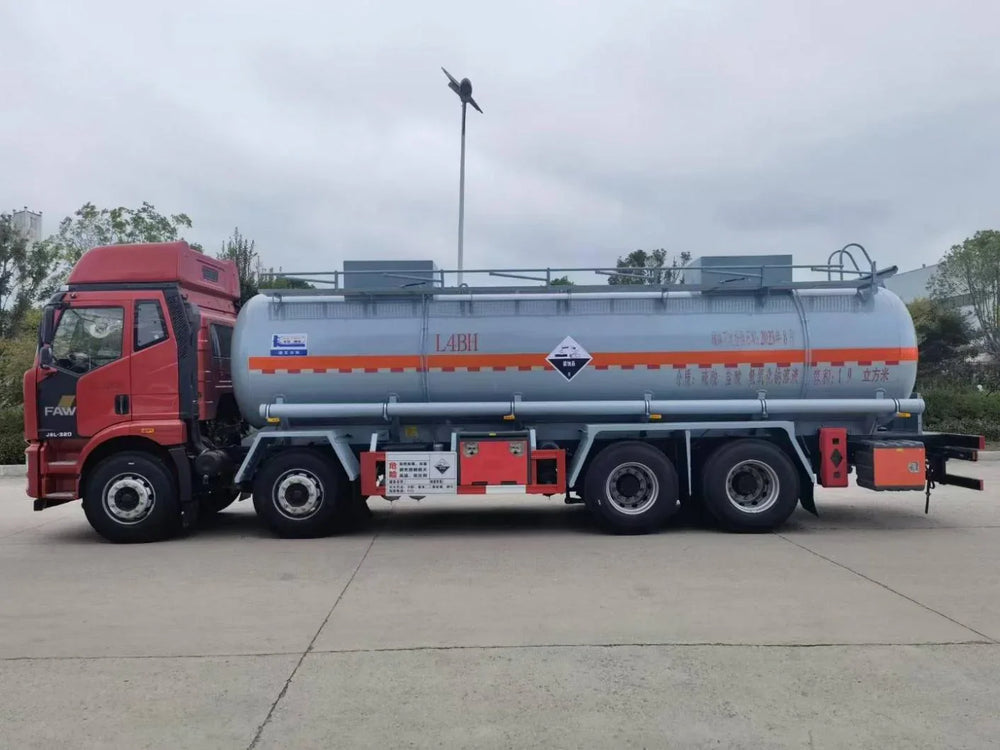

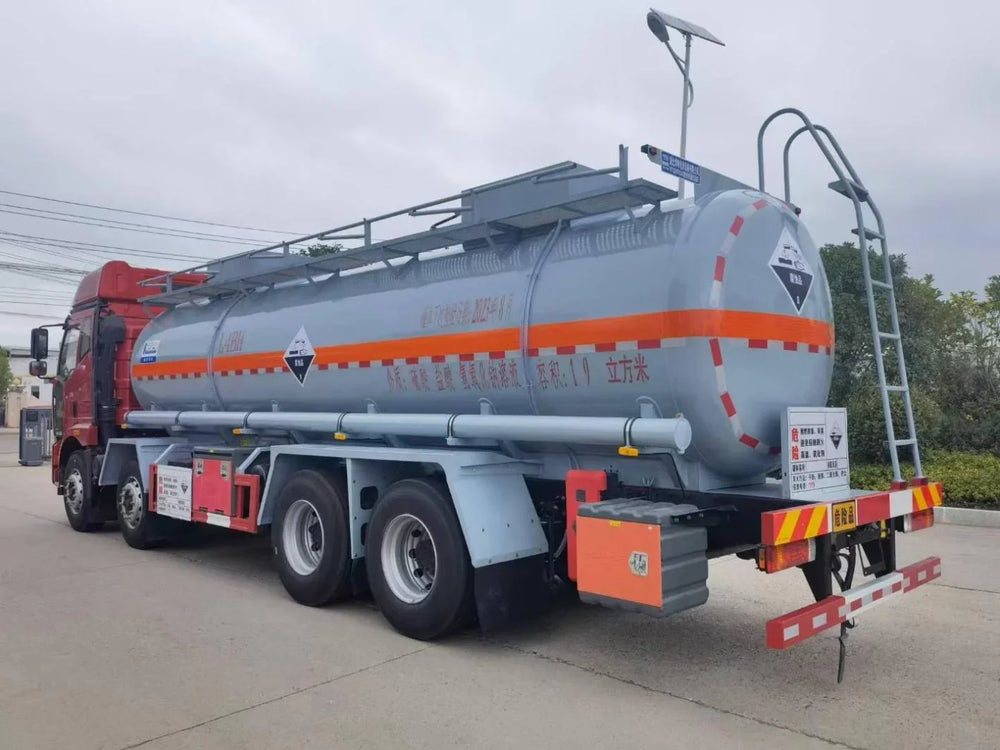

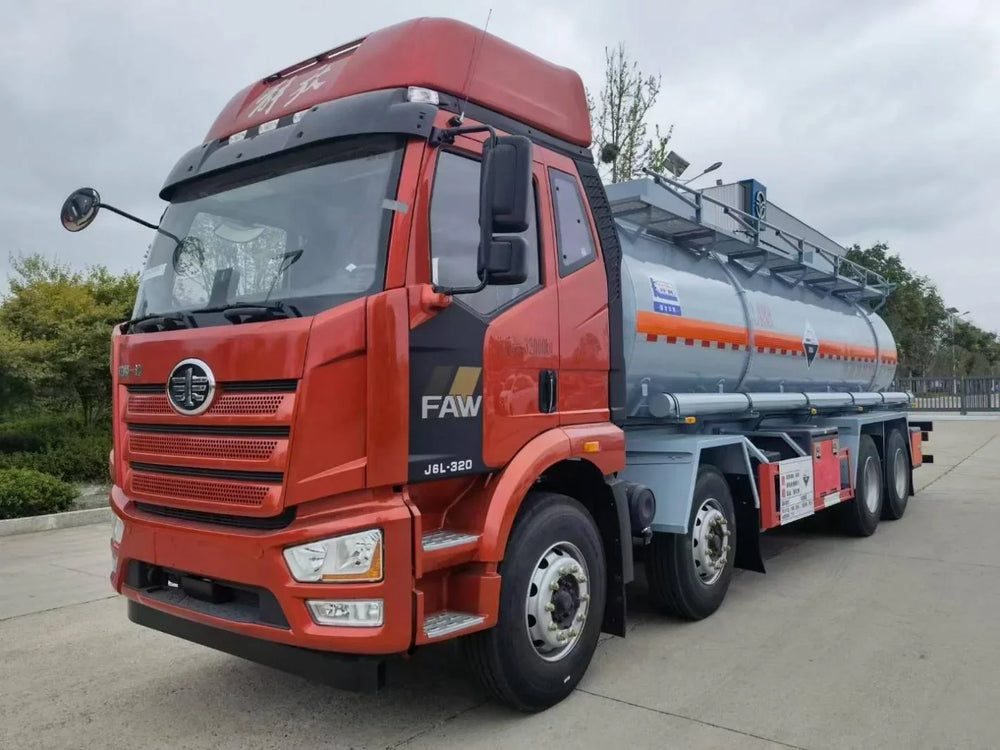

20 cubic chemical liquid transport truck

20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck
1 / 4
20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck
20 cubic chemical liquid transport truck

20 Cubic Meter Chemical Liquid Transport Truck – Key Specifications



Parameter Specification
Vehicle Type Chemical Liquid Tanker / Flammable Liquid Transport Vehicle
Chassis Options Dongfeng Tianlong, SINOTRUK HOWO, FAW Jiefang
Drive Configuration 6×4 / 6×2

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) 9,600 – 10,300 × 2,496 – 2,550 × 3,350 – 3,510 mm
Wheelbase 4,350+1,300 mm / 1,995+5,000 mm
GVWR (Total Mass) 24,980 – 26,000 kg
Curb Weight (Kerb Mass) 9,805 – 12,405 kg
Payload Capacity (Rated Load) 12,700 – 15,565 kg

Engine & Drivetrain



Parameter Specification
Engine Options Cummins ISDe230 30 (230 HP) / MC07.28-50 (280 HP) / WD615.87
Displacement 6.7 L / 6.87 L
Emission Standard Euro V / China VI
Transmission 7-speed / 8-speed / 10-speed manual
Fuel Type Diesel

Chassis & Axles



Parameter Specification
Axles 3
Tire Specification 10.00R20 / 11.00R20 / 12R22.5 / 295/80R22.5
Tire Count 8 – 10
Brake System Front disc brakes, ABS / EBS
Suspension Leaf springs / Air suspension (rear axle optional)

Tank & Safety Equipment



Parameter Specification
Effective Tank Volume 19.3 – 20.4 m³
Tank Dimensions (L×W×H / L×Diameter) ~7,200×2,350×1,400 mm / 7,500×φ1,920 mm
Tank Material Carbon steel (Q235/Q235B) / Stainless steel / Aluminum alloy
Transport Media Chemicals, acids, alkalis, gasoline, methanol, ethanol
Hazard Class Class 3 (Flammable Liquid) / FL-type
Safety Features Speed limiter (80 km/h), GPS tracking, front exhaust pipe, front disc brakes, anti-static grounding strap, emergency shut-off valve

Cab & Performance



Parameter Specification
Cab Capacity 2 – 3 persons
Air Conditioning Standard
Max Speed 80 – 90 km/h (governed)
