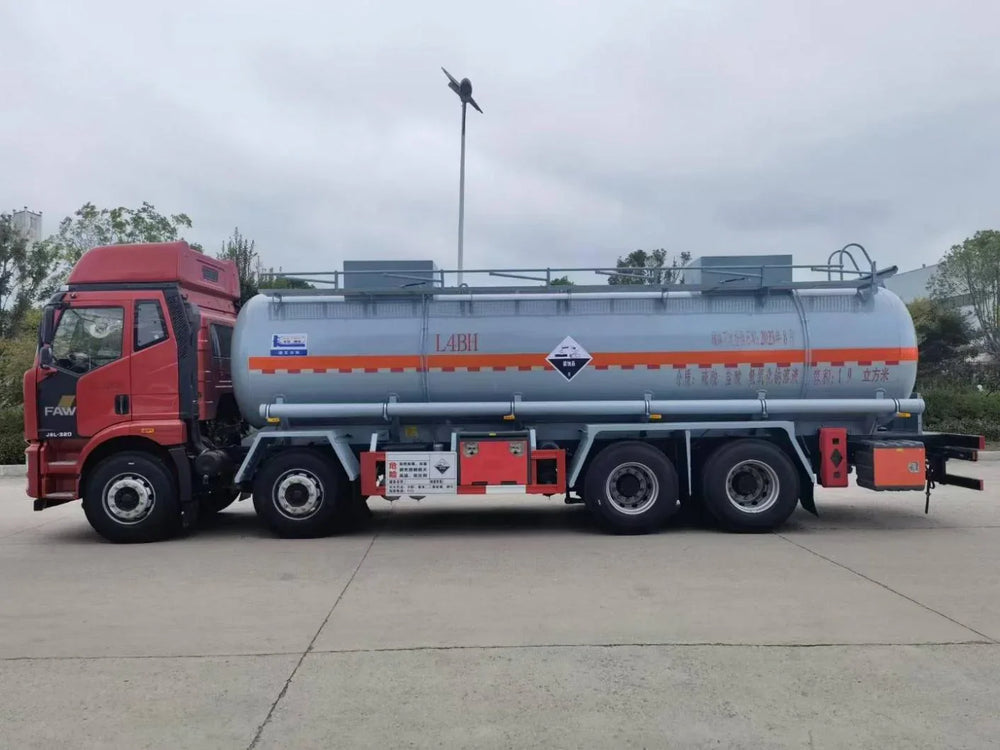

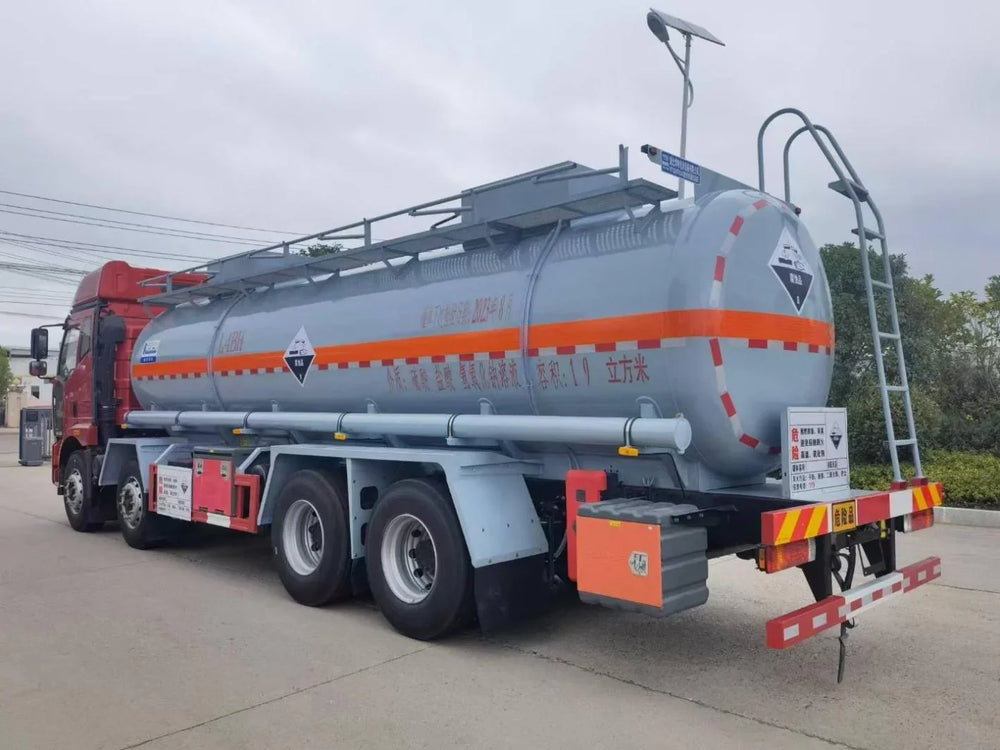

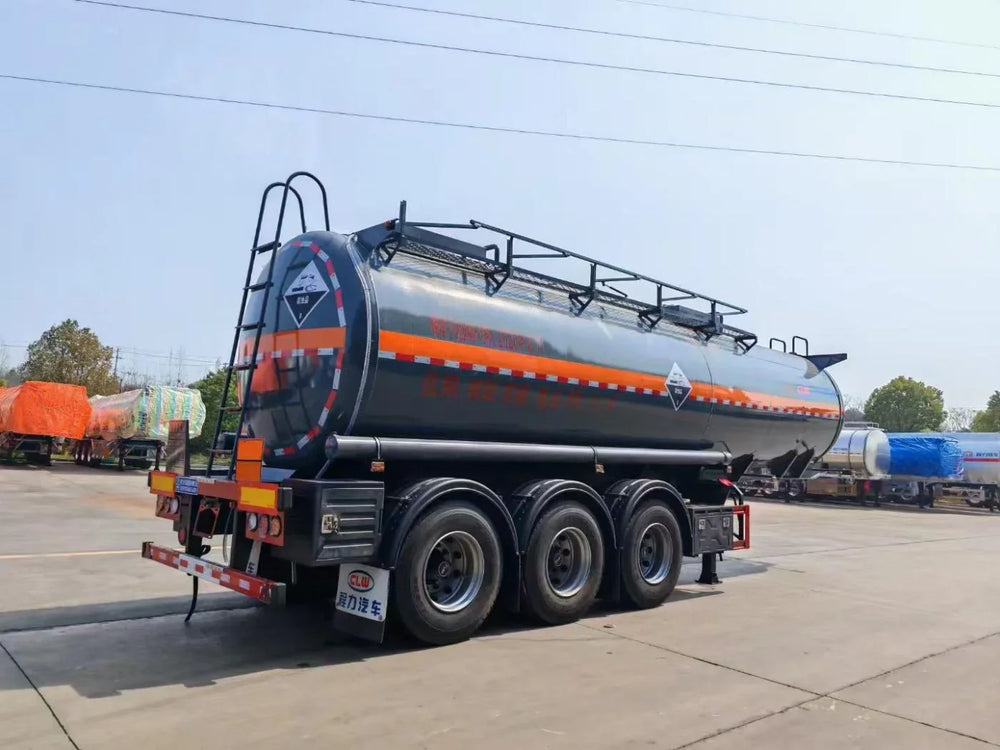

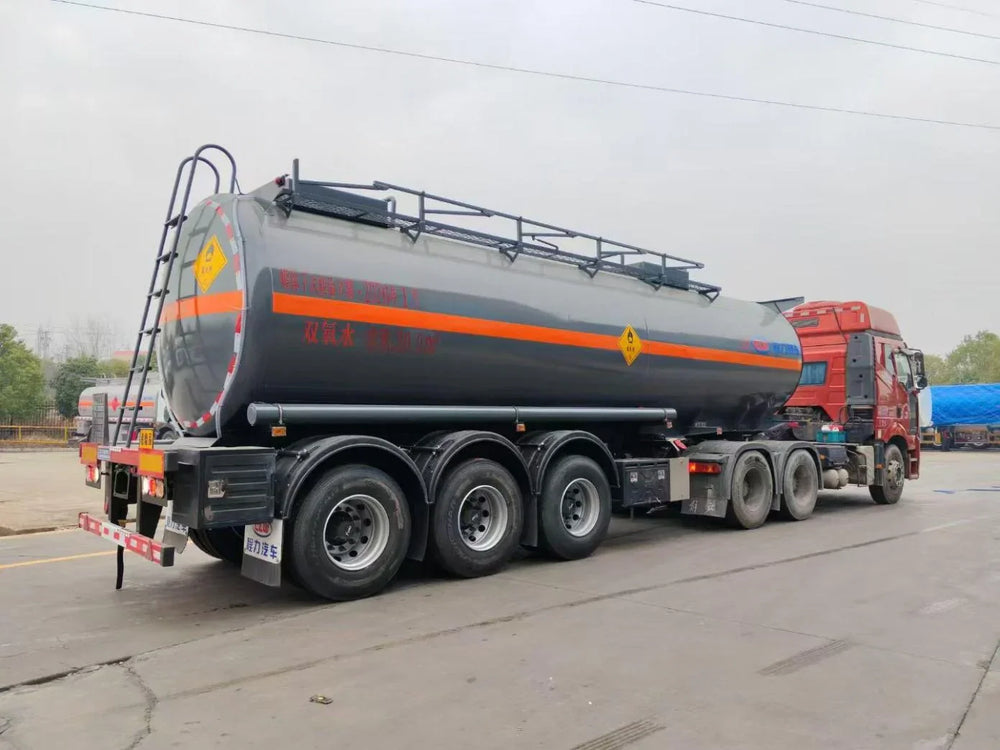

40-60 cubic chemical liquid transport truck
40–60 Cubic Meter Chemical Liquid Transport Truck – Key Specifications
| Parameter | Specification |
|---|---|
| Vehicle Type | Chemical Liquid Tanker / Flammable Liquid Transport Semi-Trailer |
| Chassis Options | SINOTRUK HOWO, SHACMAN, Dongfeng, FAW |
| Drive Configuration | 6×4 / 8×4 (tractor) + semi-trailer |
Dimensions & Weight
| Parameter | Specification |
|---|---|
| Overall Dimensions (L×W×H) | 11,900 – 13,000 × 2,496 – 2,550 × 3,650 – 3,990 mm |
| Wheelbase | 5,500+1,310+1,310 mm / 6,300+1,320+1,320 mm |
| GVWR (Total Mass) | 40,000 – 55,000 kg |
| Curb Weight (Kerb Mass) | 8,000 – 11,500 kg |
| Payload Capacity | 30,000 – 40,000+ kg |
Engine & Drivetrain
| Parameter | Specification |
|---|---|
| Engine Options | WEICHAI, CUMMINS, MAN |
| Max Horsepower | 340 – 430 HP |
| Emission Standard | Euro V / China VI |
| Transmission | 9-speed / 10-speed / 12-speed manual |
| Fuel Type | Diesel |
Chassis & Axles (Semi-Trailer)
| Parameter | Specification |
|---|---|
| Axles | 3 – 4 axles |
| Axle Capacity | 13T – 20T (FUWA / BPW) |
| Tire Specification | 11.00R20 / 12R22.5 |
| Tire Count | 12 |
| Suspension | Mechanical / Air suspension (optional) |
| Brake System | Dual-line ABS / EBS, WABCO valves |
| Kingpin | 2" (50mm) or 3.5" (90mm) |
Tank & Safety Equipment
| Parameter | Specification |
|---|---|
| Effective Tank Volume | 40 – 60 m³ (40,000 – 60,000L) |
| Tank Dimensions (L×W×H / L×Diameter) | 11,750×2,500×2,090 mm / 12,400×φ2,600 mm |
| Tank Material | Carbon steel (Q235/Q345) / Stainless steel / Aluminum alloy |
| Tank Wall Thickness | 5 – 8 mm |
| Compartments | 1 – 5 compartments (customizable) |
| Transport Media | Chemicals, acids, alkalis, gasoline, diesel, methanol, ethanol, LPG |
| Hazard Class | Class 3 (Flammable Liquid) / FL-type |
| Safety Features | Speed limiter, GPS tracking, front exhaust pipe, anti-static grounding strap, emergency shut-off valve, anti-wave baffles, explosion-proof manhole covers |
Cab & Performance
| Parameter | Specification |
|---|---|
| Cab Capacity | 2 – 3 persons |
| Air Conditioning | Standard |
| Max Speed | 80 – 89 km/h (governed) |
