What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

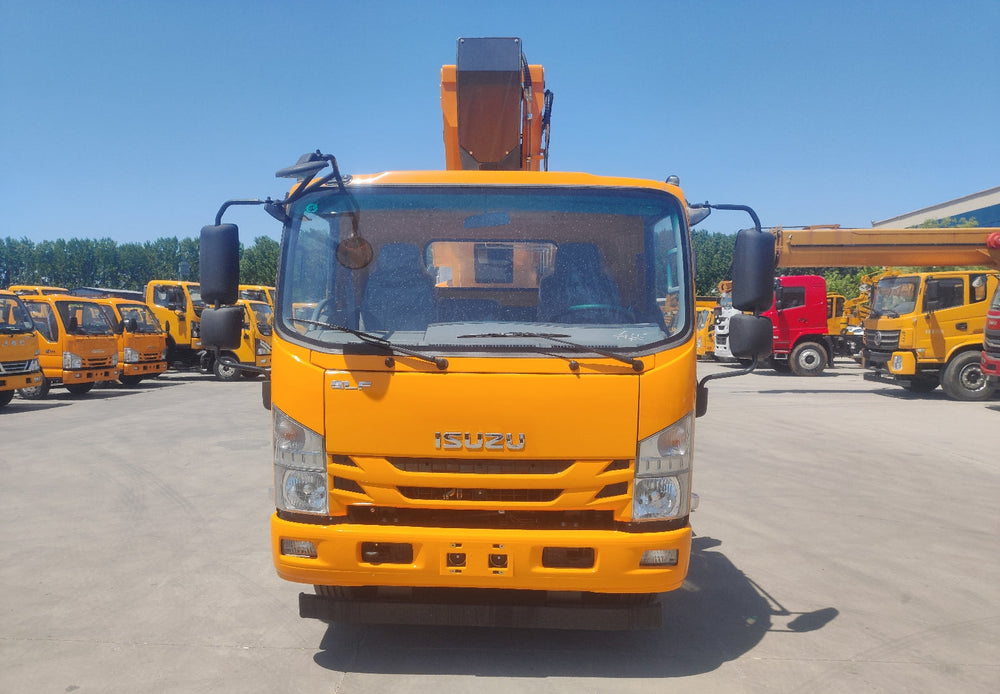

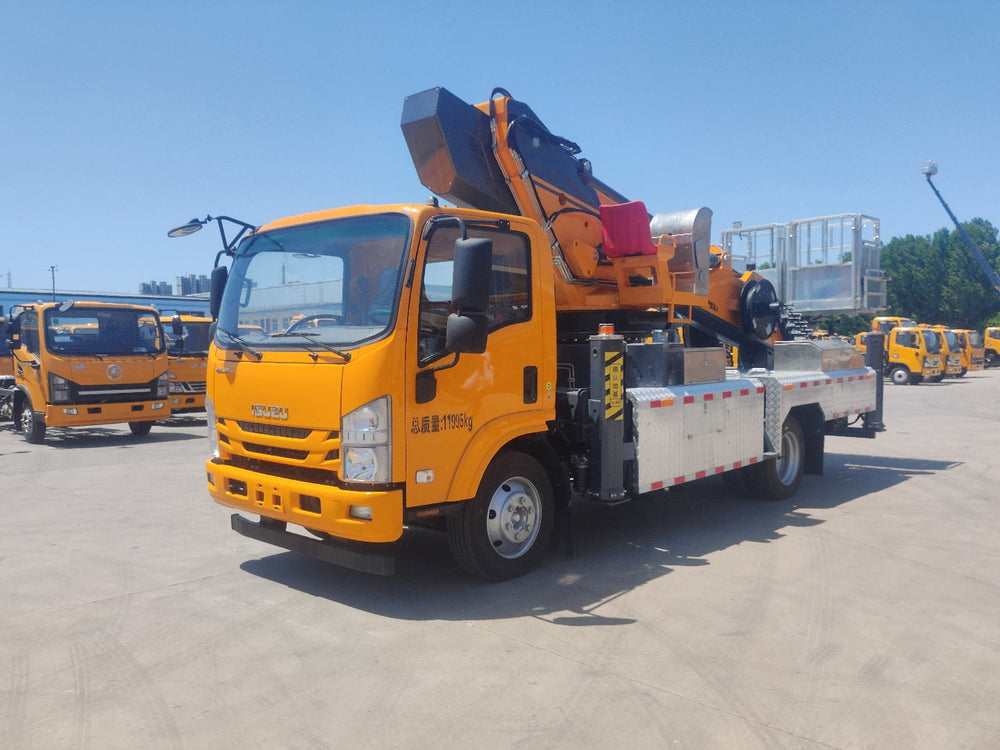

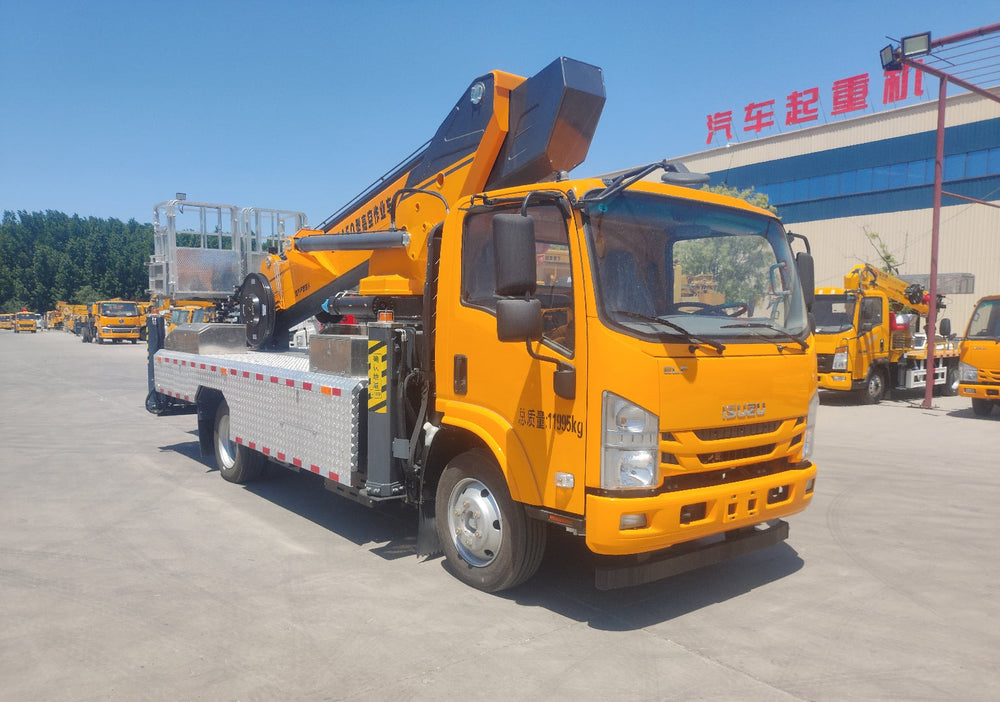

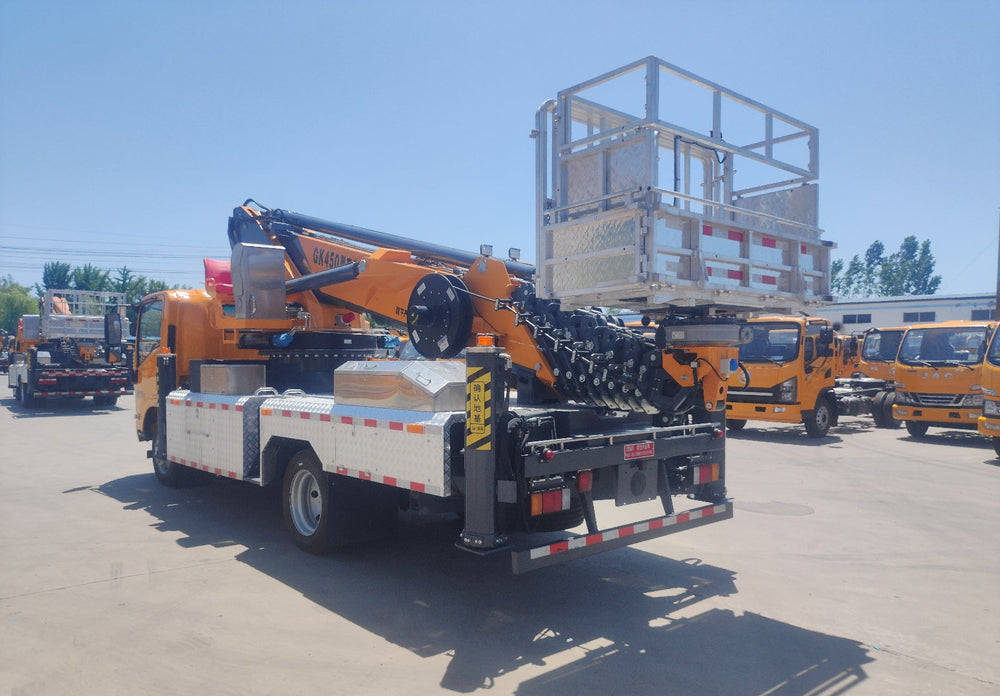

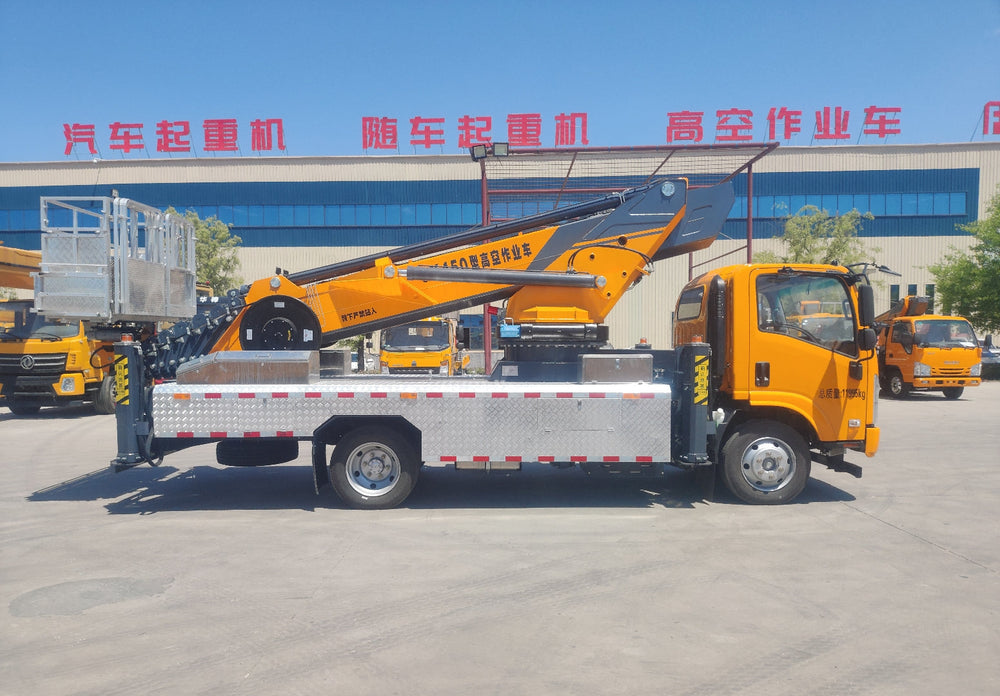

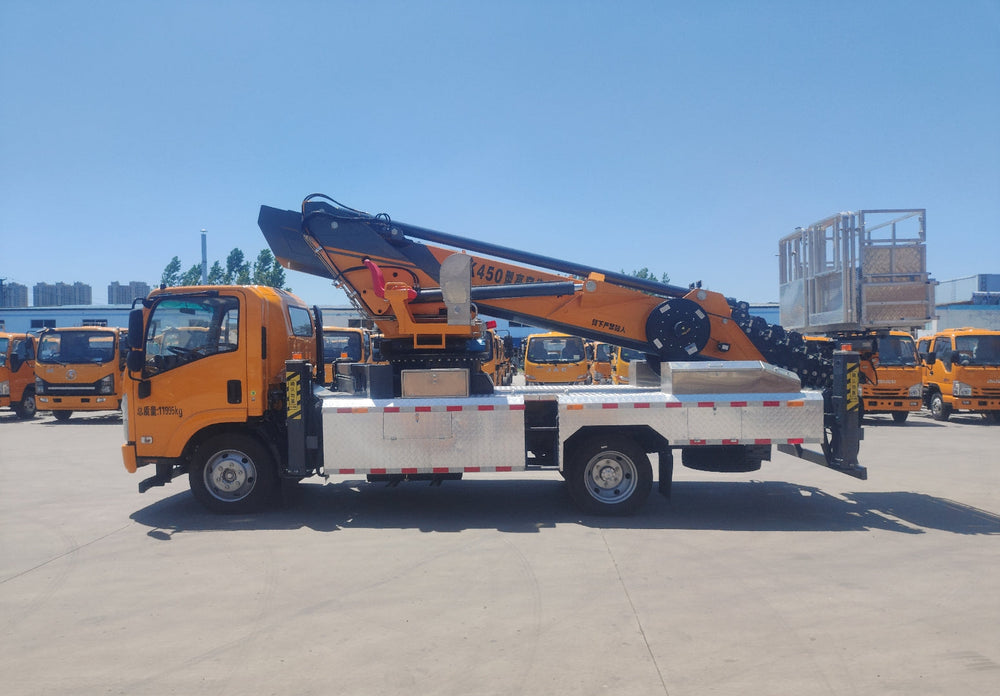

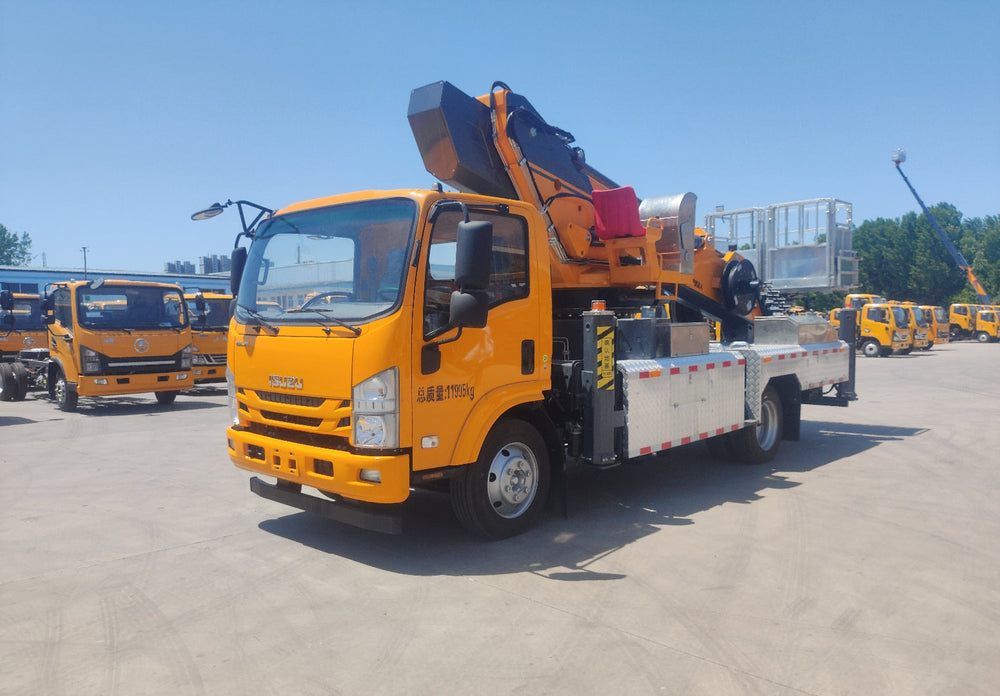

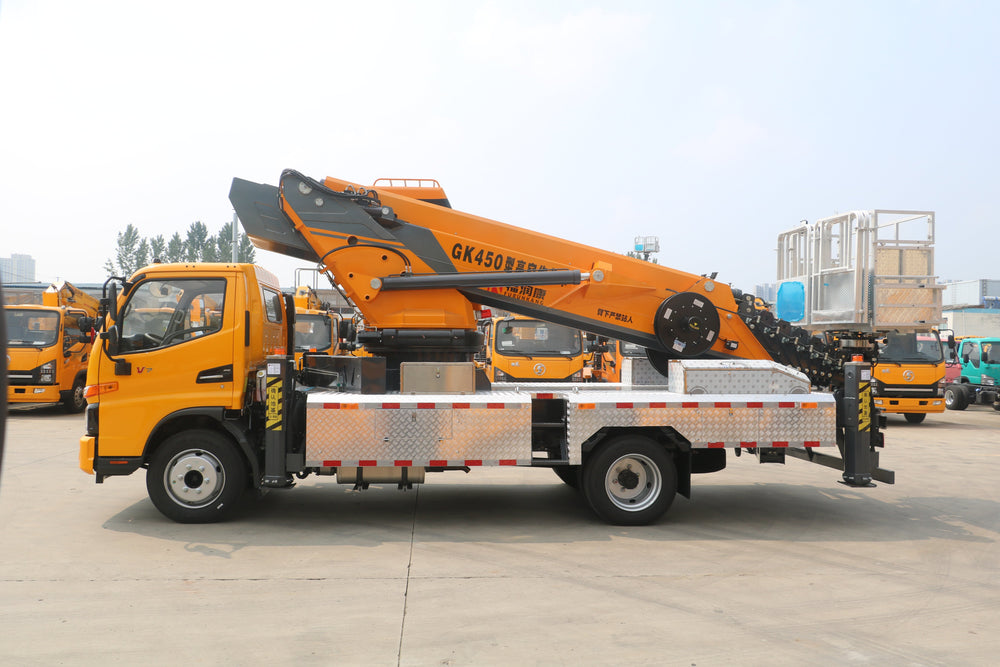

45M Aerial Work Truck

Name: 45M Aerial Work Truck
Brand: Shenbai
Availability: OutOfStock

1 / 8

2.Basic parameters of vehicle
Truck Brand	ISUZU-100P
Drive Type	Left Hand Drive
G.V.W	11995KG
Net weight	11800KG
Engine power	190HP
Engine Model	4KH1-TCG61
Transmission	Isuzu MLD-6Q -speed
Wheelbases	3765mm
Overall dimensions	*8220mm2450mm3250mm*
Tires	245/70R19.516PR
Engine capacity	5.2
Front and rear axles	4T/7T
3. Upper Configuration
Maximum working height	45meters
Maximum working radius	25meters
Platform rated load	300KG
Boom slewing angle	360 degrees
Platform size	*3200mm1000mm1100mm*
Platform Slewing Range	Infinite 360 degree rotation
maximal arm	9-section arm, 8-section synchronised telescopic
operating system	Domestic well-known electronic control system, equipped with wireless remote control, three-party operation
hydraulic system	Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source
Hydraulic outriggers	X-shaped legs, 4 3-section legs, individually adjustable
aisle plate	4 extra large steel tool boxes, steel non-slip walkway
safety device	Interlocking for getting on and off the vehicle, limit protection, soft leg protection, tilt alarm, emergency power source, two-way hydraulic balance valve, weight detection protection, wind speed sensor protection, outrigger length protection

4. Advantage: The first of its kind in China, with 9-section booms and a length of 45 meters

l The whole vehicle is not overweight! Adopted Baosteel 960 high strength plate

l 3-section outriggers, vertical and horizontal span 7700mm/7300mmMulti-section Boom design (9-section boom, 8 sections synchronously retractable), lifting height 45 meters

l Dual lift cylinder design

l 1.4 metre folding basket (2 metres unfolded)

l Box frame

l Overall vehicle height 3.25 metres

l Working radius 25metres

l Small radius of gyration, rotary table does not come out of the car body
