What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

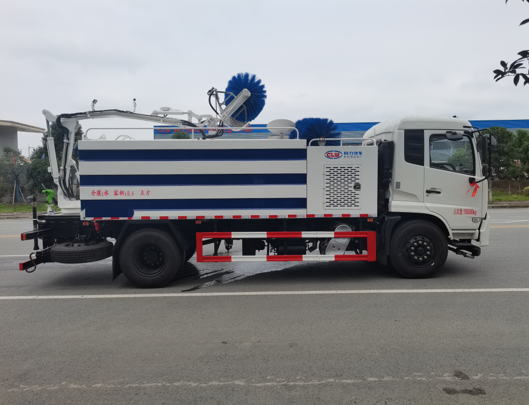

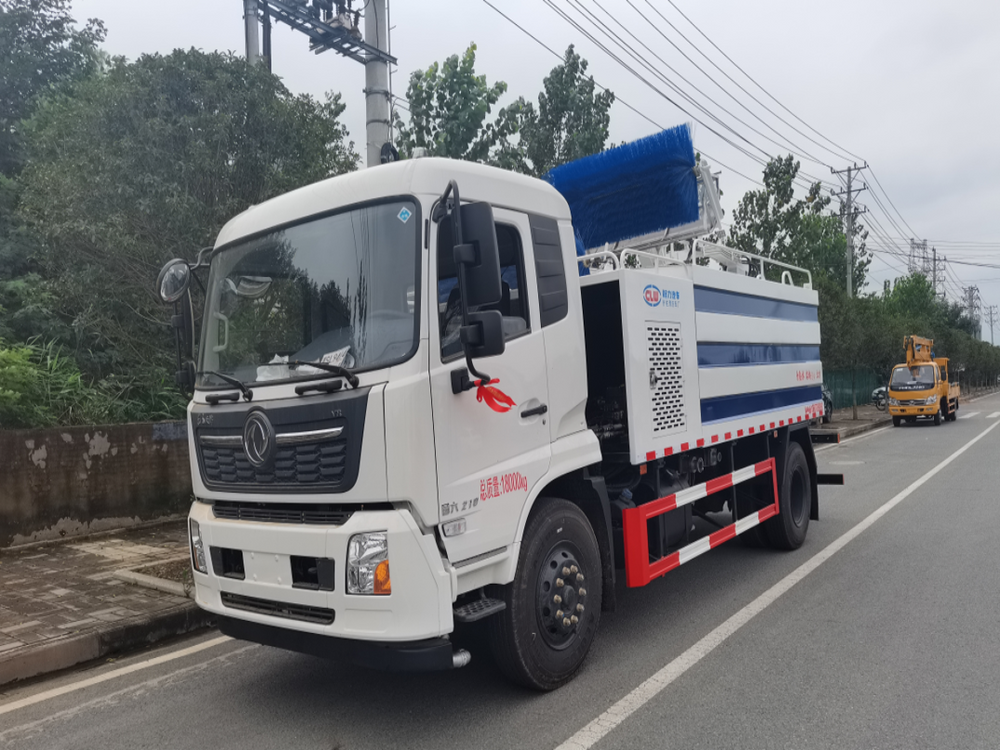

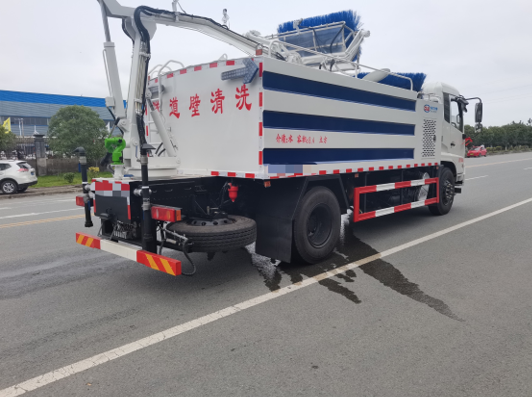

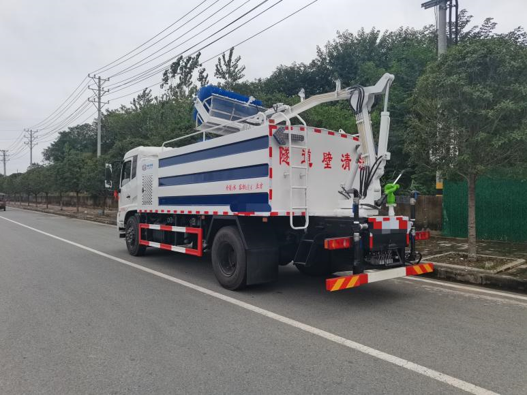

DongFeng 12m³ Tunnel Cleaning Truck

Name: DongFeng 12m³ Tunnel Cleaning Truck
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

DongFeng 12m³ Tunnel Cleaning Truck - View 2 - SHENBAI Auto

1 / 2

1. Complete Vehicle Basic Parameters

Parameter	Value
Vehicle Type	Tunnel Cleaning Truck
Complete Vehicle Model	CL5181GQXHL6
Gross Vehicle Weight	18000 kg
Rated Load Capacity	8005 kg / 8070 kg
Curb Weight	9800 kg
Number of Axles	2
Axle Load Distribution	6500 kg / 11500 kg
Cab Seating Capacity	2 persons / 3 persons
Fuel Type	Diesel
Maximum Speed	89 km/h
Chassis Model	DFH1180EX8

2. Dimension & Wheel Parameters

Parameter	Value
Overall Dimension (L×W×H)	8400 × 2500 × 3700 mm
Tank External Dimension	3800 × 2500 × 1350 mm
Wheelbase	4700 mm
Front Overhang / Rear Overhang	1430 mm / 2270 mm
Approach Angle / Departure Angle	15° / 10°
Front Track Width	1914 mm
Rear Track Width	1840 mm
Tire Specification	10.00R20 18PR
Number of Tires	6

3. Powertrain System

Parameter	Value
Engine Model	B6.2NS6B230
Engine Power	Cummins 230 HP
Transmission	Shaanxi Fast 8-speed Gearbox

4. Water Tank & Sprinkler System

Parameter	Value
Tank Volume	8.405 m³ (expandable up to 12 m³)
Tank Material	Q235 Carbon Steel
Tank Wall Thickness	4 mm
Splash Guard Thickness	3 mm
Standard Functions	Universal front flush, rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, rear work platform, suction hose, arrow warning light
Optional Accessory	High-pressure water gun

5. Auxiliary Engine & Dual Pump System

Parameter	Value
Auxiliary Engine Model	Yunnei Auxiliary Engine
Auxiliary Engine Rated Power	64 kW / 3600 r/min
Auxiliary Engine Working Speed	1500 – 1700 r/min
High-Pressure Pump Brand	PinFu High-Pressure Water Pump
High-Pressure Pump Pressure	10 – 20 MPa
High-Pressure Pump Speed	800 (900) r/min
High-Pressure Water Flow	50 L/min
High-Pressure Nozzle Type	High-pressure washing type
Mist Nozzle Type	Fine atomization type
Low-Pressure Pump Model	Tianyi 50-110
Low-Pressure Pump Speed	1480 r/min
Low-Pressure Pump Lift	110 m
Low-Pressure Water Flow	50 m³/h
Self-Priming Performance	1.5 min / 4 m
Water Gun Range	35 m

6. Tunnel Cleaning Brush & Arm System

Parameter	Value
Cleaning Brush Quantity	1 cylindrical brush
Cleaning Brush Diameter	800 mm
Cleaning Brush Length	1500 mm
Cleaning Brush Material	Polyethylene pentagonal filament
Cleaning Brush Rotation Speed	300 – 450 rpm
Cleaning Roller Size	1500 mm
Cleaning Arm Ground Height Range	0 – 6.5 m
Maximum Cleaning Wall Height	6 m
Cleaning Arm Left-Right Rotation	90°
Cleaning Brush Up-Down Adjustment	120°
Cleaning Brush Left-Right Adjustment	180°
Cleaning Brush Side Extension	0.5 m – 1 m
Spray Water Flow Range	0 – 42.3 L/min
System Working Pressure	4 – 16 MPa
System Flow Rate	40 L/min
Hydraulic Oil Tank Capacity	65 L
Working Cleaning Speed	2 – 20 km/h
Control Mode	In-cab operation + wireless remote control
Standard System Accessories	Hydraulic oil tank, filter, water cooling system, hydraulic pump, hydraulic motor, solenoid valve, oil cylinder, hydraulic hoses, reducer, air blower
