What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

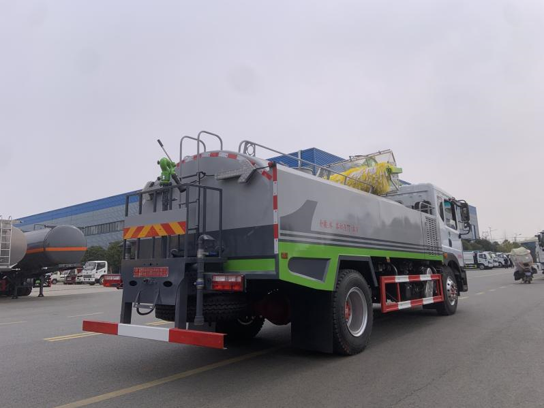

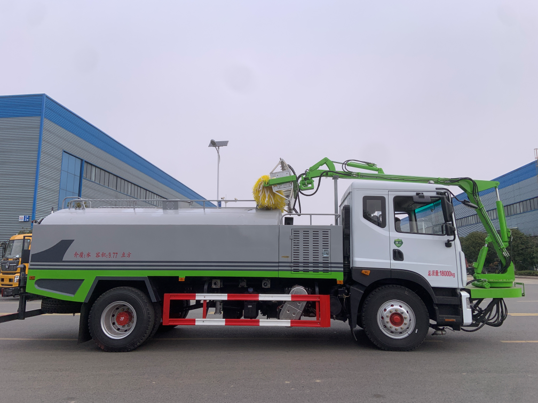

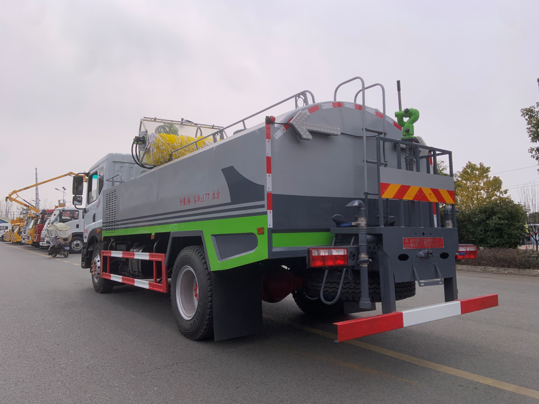

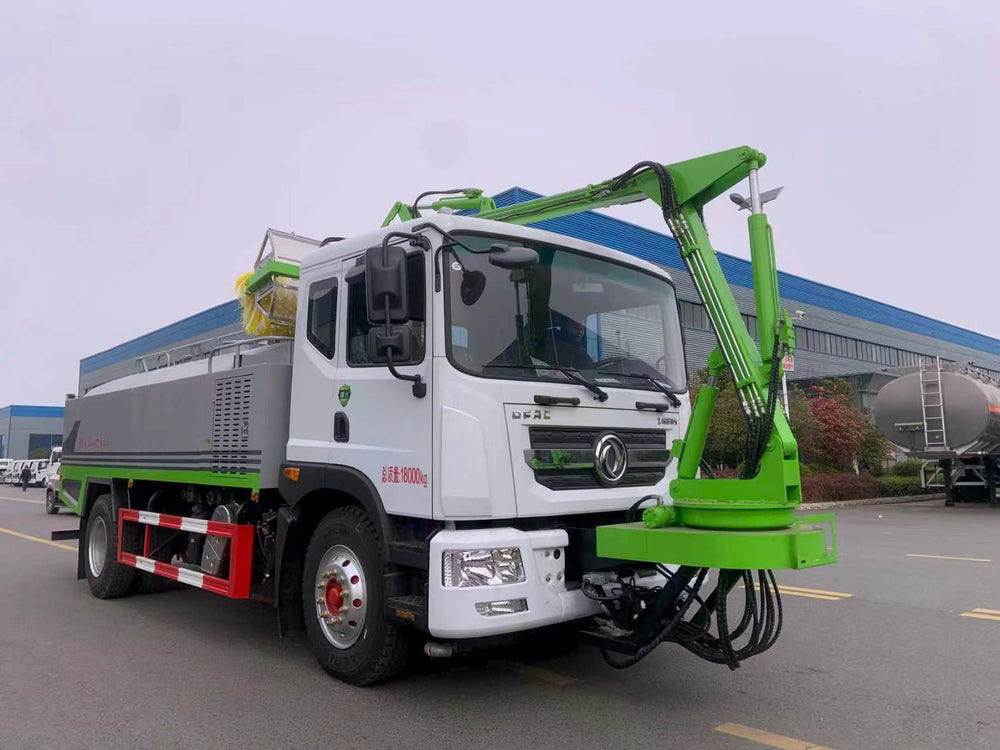

DongFeng 12m³ Tunnel Cleaning Truck

Name: DongFeng 12m³ Tunnel Cleaning Truck
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

1 / 1

1. Complete Vehicle Basic Parameters

Parameter	Value
Vehicle Type	Tunnel Cleaning Truck
Complete Vehicle Model	CL5185GQX6HL
Gross Vehicle Weight	18000 kg
Rated Load Capacity	9305 kg
Curb Weight	8500 kg
Number of Axles	2
Axle Load Distribution	6500 kg / 11500 kg
Cab Seating Capacity	3 persons
Fuel Type	Diesel
Maximum Speed	105 km/h
Chassis Model	EQ1185LJ9CDE

2. Dimension & Wheel Parameters

Parameter	Value
Overall Dimension (L×W×H)	9250 × 2500 × 3700 mm
Tank External Dimension	4200 × 2500 × 1250 mm
Wheelbase	4500 mm / 4700 mm
Front Overhang / Rear Overhang	1260 mm / 2290 mm
Approach Angle / Departure Angle	10° / 12°
Front Track Width	1862 / 1933 / 1949 mm
Rear Track Width	1806 / 1865 mm
Tire Specification	10.00R20 18PR
Number of Tires	6

3. Powertrain System

Parameter	Value
Engine Model Options	B6.2NS6B230 / D4.0NS6B195
Engine Power Options	Cummins 230 HP / Cummins 195 HP
Transmission	Shaanxi Fast 8-speed Gearbox

4. Water Tank & Sprinkler System

Parameter	Value
Tank Volume	Approx. 12 m³
Tank Material	Q235 Carbon Steel
Tank Wall Thickness	4 mm
Splash Guard Thickness	3 mm
Low-Pressure Sprinkler Pump	Tianyi 50-110 Water Pump
Low-Pressure Pump Speed	1480 r/min
Low-Pressure Water Flow	50 m³/h
Low-Pressure Pump Lift	110 m
Low-Pressure Self-Priming Performance	1.5 min / 4 m
Standard Functions	Opposite flush (optional universal duckbill nozzle), rear spray, S-type high-pressure water cannon, fire hose connection, tank anti-corrosion coating, side protection, climbing ladder, rear work platform, suction hose, arrow warning light

5. Optional High-Pressure Cleaning System

Parameter	Value
Auxiliary Engine (Optional)	Jiangling 4-cylinder / Lifan twin-cylinder
Auxiliary Engine Working Speed	180 – 250 r/min
High-Pressure Pump Brand (Optional)	Domestic Well-Known Brand
High-Pressure Pump Pressure	3 – 5 MPa
High-Pressure Water Flow	55 L/min

6. Tunnel Cleaning Brush & Arm System

Parameter	Value
Cleaning Brush Quantity	1 cylindrical brush
Cleaning Brush Diameter	800 mm
Cleaning Brush Length	1500 mm
Cleaning Brush Material	Polyethylene pentagonal filament
Cleaning Brush Rotation Speed	300 – 450 rpm
Cleaning Arm Ground Height Range	0 – 6.5 m
Cleaning Arm Left-Right Rotation	90°
Cleaning Brush Up-Down Adjustment	120°
Cleaning Brush Left-Right Adjustment	180°
Spray Water Flow Range	0 – 42.3 L/min
System Working Pressure	4 – 16 MPa
System Flow Rate	40 L/min
Working Cleaning Speed	2 – 20 km/h
Control Mode	In-cab operation
Standard System Accessories	Hydraulic oil tank, filter, hydraulic pump, hydraulic motor, distribution valve, oil cylinder, hydraulic hoses, reducer

7. Chassis Standard Configuration

Parameter	Value
Cab Color	Sheep Fat White
Axle Brand	Dana Axles
Front Axle Rated Load	4.5 Tons
Rear Axle Rated Load	10 Tons
Frame Specification	250 mm Frame
Cab Interior	Original factory air conditioner, electric windows, central door locking
Brake System	ABS anti-lock braking system, air-over-hydraulic spring brake, exhaust brake
