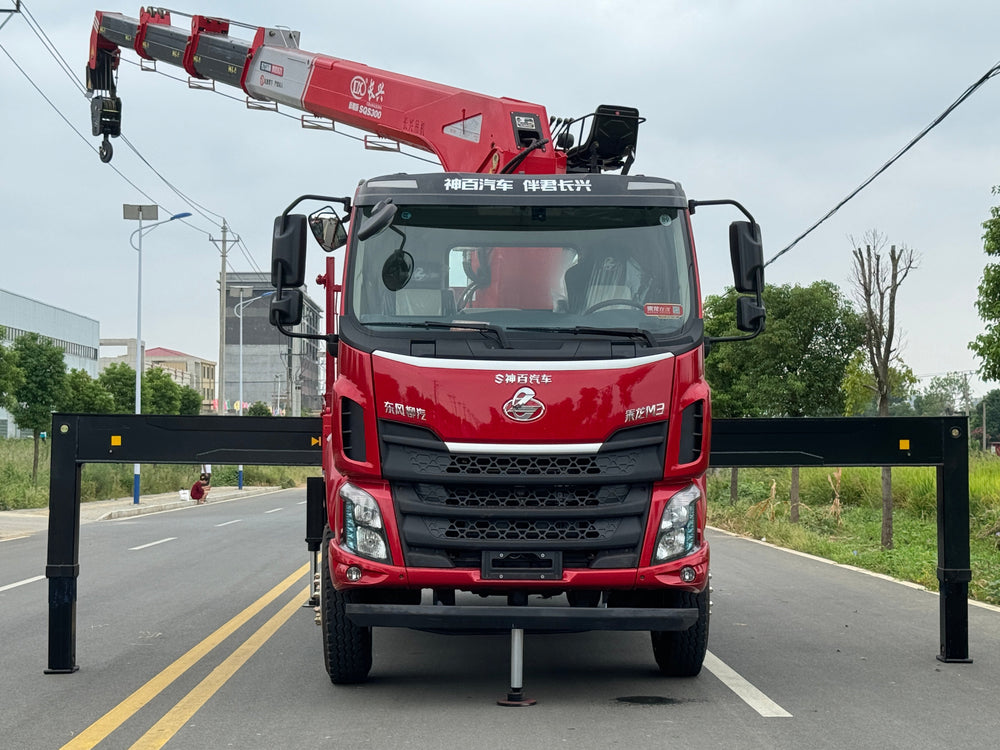

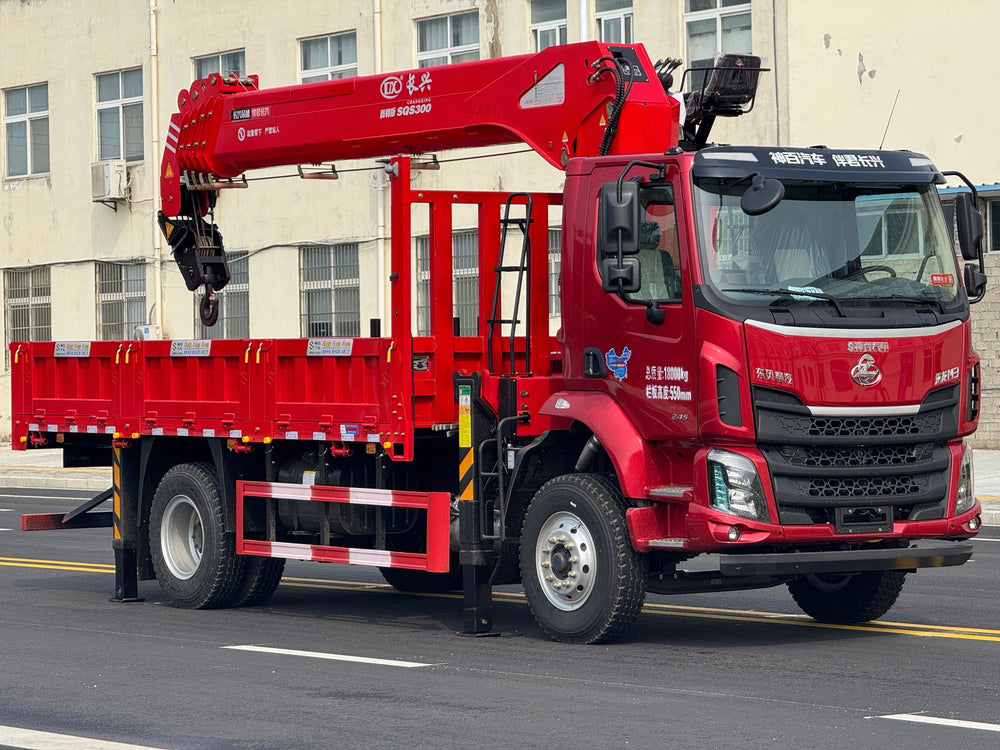

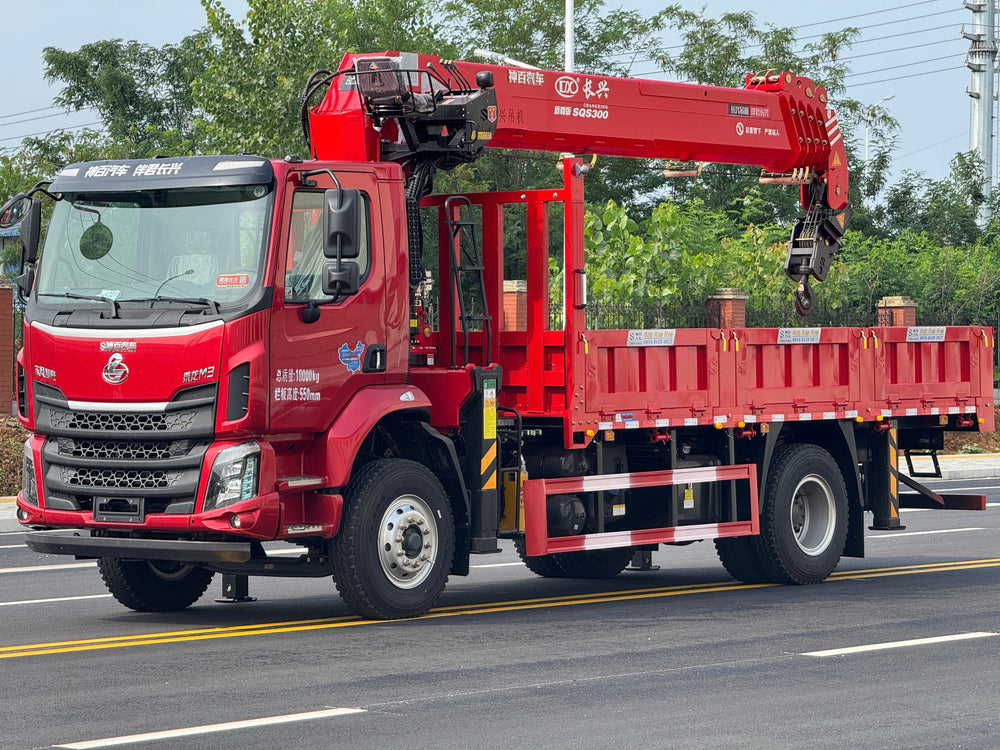

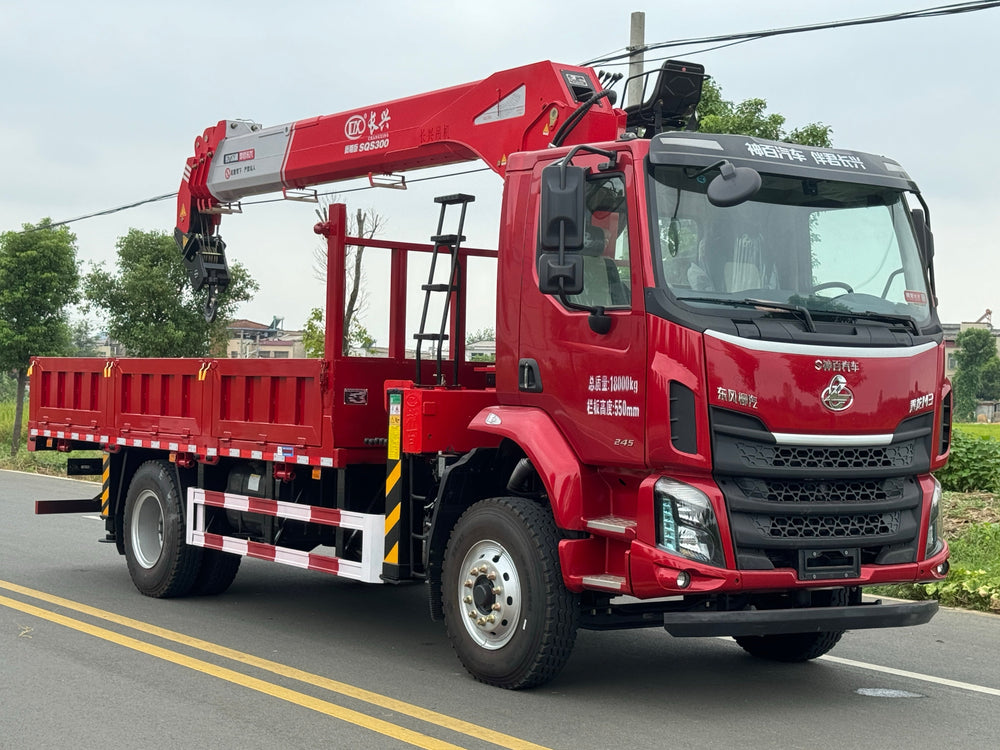

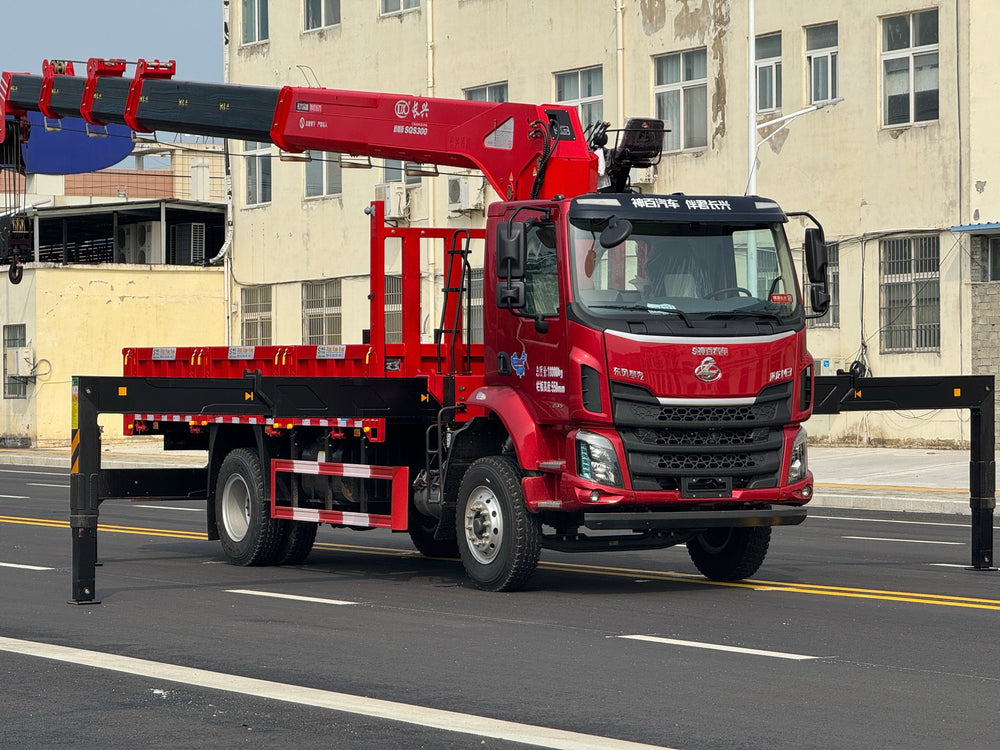

DongFeng 245HP Telescopic Boom Crane
1. Overall Mass Parameters
| Parameter | Value |
|---|---|
| Gross Vehicle Weight | 18000 KG |
| Optional Curb Weight | 14000KG / 12900KG / 12000KG / 11500KG / 11000KG |
| Crane Mounting Approval Range | 8–12 tons, complete official filing documents for all domestic truck-mounted cranes, easy license registration |
| Wheelbase Options | 5100 mm, 4500 mm |

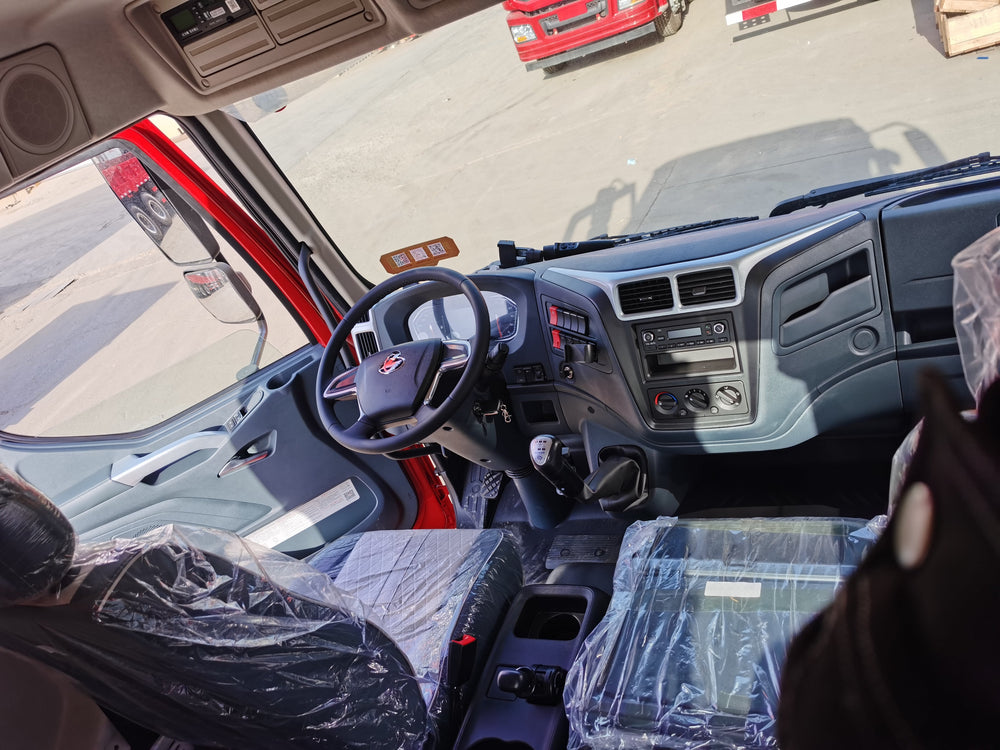

2. Cab Configuration
| Parameter | Value |
|---|---|
| Cab Suspension | Semi-floating suspension structure |
| Cab Tilting Mode | Manual hydraulic tilting system |

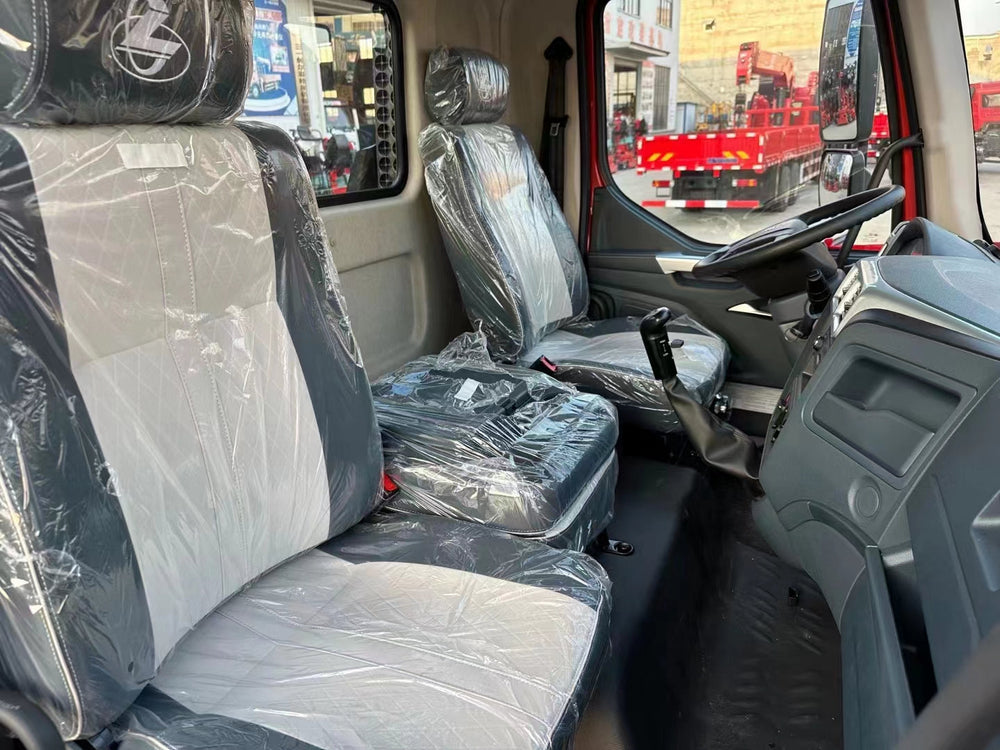

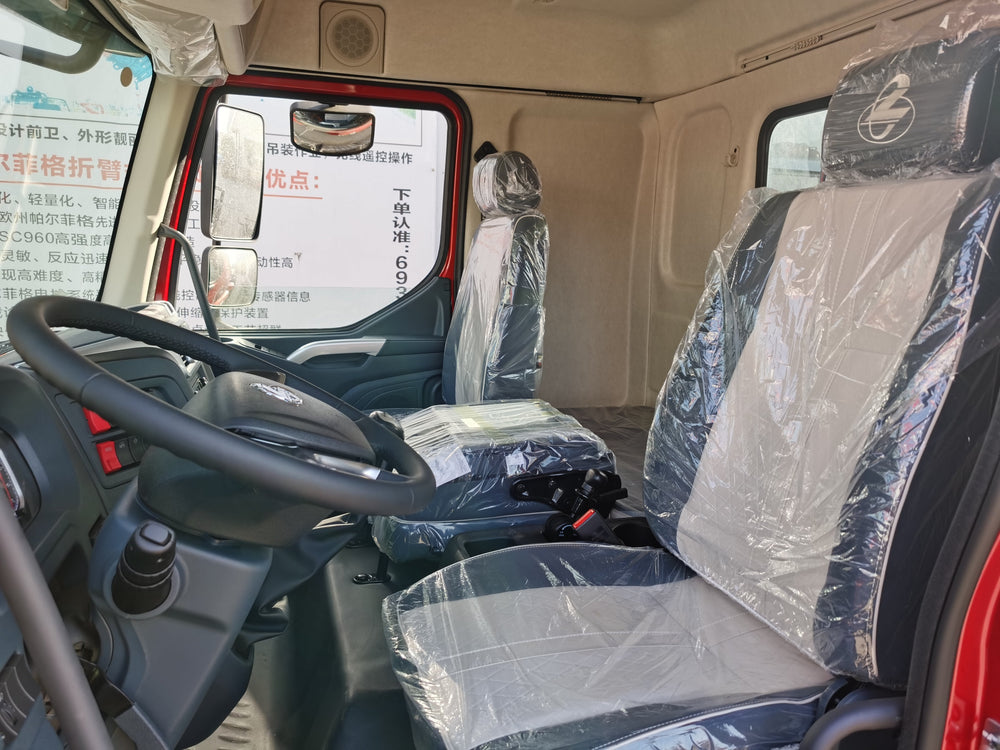

| Driver Seat | New type knitted fabric seat |
| Window System | Electric window lifters |
| Lock System | Remote control central locking |
| Air Conditioning | Equipped with air conditioner |
| On-board Terminal | Driving recorder, compatible with Beidou & GPS positioning |
| External Accessory | External sun visor |
| Control Switch | Multi-state switch |
| Safety Function | Right turn reminder system |
| Fuel Tank Volume | 160 L fuel tank |
| Power Take-off | Power take-off unit equipped |
| Throttle Control | Remote accelerator, knob-type remote accelerator |
| Brake System | ABS, automatic brake slack adjusters |
| Battery Type | Maintenance-free battery |
| Cooling Fan | Electronically controlled silicone oil fan |
| Auxiliary Function | Under-chassis start & stop function |
| Exterior Parts | Body-colored front bumper and fenders |
3. Chassis & Powertrain Configuration
| Parameter | Value |
|---|---|
| Engine Specification | Model YCS06, 245 horsepower, 6-cylinder diesel engine |
| Optional Cab Type | Single-row cab / Single-and-a-half row cab |
| Transmission Model | 8JS95E-C gearbox with spline power take-off |
| Rated Front Axle Load | 5.5 tons |
| Rated Rear Axle Load | 10 tons |
| Main Frame | 282mm integrated pressed frame, one-piece forming by 6300-ton hydraulic press, nicknamed "Dragon Spine Frame" |
| Tire Specification | 10.00R20 steel wire radial tire |
4. Overall & Cargo Body Dimensions
| Parameter | Value |
|---|---|
| Overall Length (5100mm Wheelbase) | 9000 mm |
| Cargo Box Length (5100mm WB, Single-row Cab) | 6000 mm |
| Cargo Box Length (5100mm WB, Single-and-a-half Row Cab) | 5600 mm |
| Overall Length (4500mm Wheelbase) | 8420 mm |
| Cargo Box Length (4500mm WB, Single-row Cab) | 5400 mm |
| Cargo Box Length (4500mm WB, Single-and-a-half Row Cab) | 5000 mm |
5. Upper Crane Assembly Options (Changxing Brand)
| Model Specification | Technical Configuration & Performance Data |
|---|---|
| 8 Ton, 4-section Ultimate Version Crane | Working radius: 13.5m, Lifting height: 15.5m, Top operation, radiator, single gear pump |
| 8 Ton, 5-section Synchronous Telescopic Fortune Version Crane | Boom length: 18.1m, Lifting height: 19.6m, Top operation, radiator, single gear pump, double-section composite front outriggers |
| 8 Ton, 5-section Synchronous Telescopic Ultimate Version Crane | Boom length: 18.1m, Lifting height: 19.6m, Top operation, through sub-frame, radiator, double gear pump, double-section composite front outriggers |
| 8 Ton, 5-section Boom Crane | Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section |
| 8 Ton, 5-section Pro Version Crane | Working radius: 18.1m, Lifting height: 20.1m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section, dual slewing, double-section composite front outriggers |
| 8 Ton, 6-section Boom Crane | Working radius: 20m, Lifting height: 22m, Top operation, through sub-frame, radiator, independent extension of 2nd & 3rd boom sections, dual slewing, double-section front outriggers |
| 10 Ton, 5-section Boom Crane | Working radius: 16.3m, Lifting height: 18.5m, Top operation, through sub-frame, radiator, double gear pump, independent extension of second boom section |
| 10 Ton, 6-section Boom Crane | Working radius: 22m, Lifting height: 24m, Top operation, through sub-frame, radiator, independent control for second boom, dual slewing, double-section front outriggers |
| 12 Ton, 4-section Boom Crane | Working radius: 15.2m, Lifting height: 17.2m, Top operation, radiator, single gear pump |
| 12 Ton, 5-section Boom Crane | Working radius: 19.9m, Lifting height: 21.3m, Top operation, radiator, double-section |
