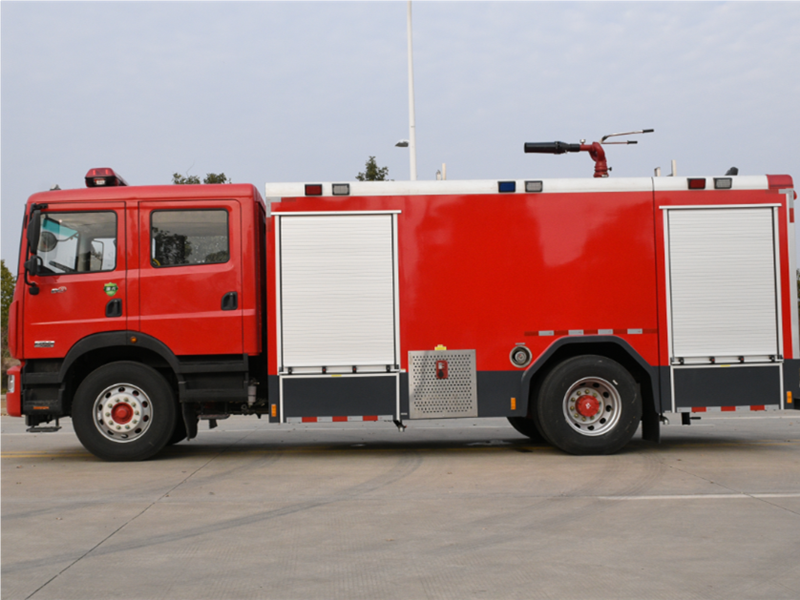

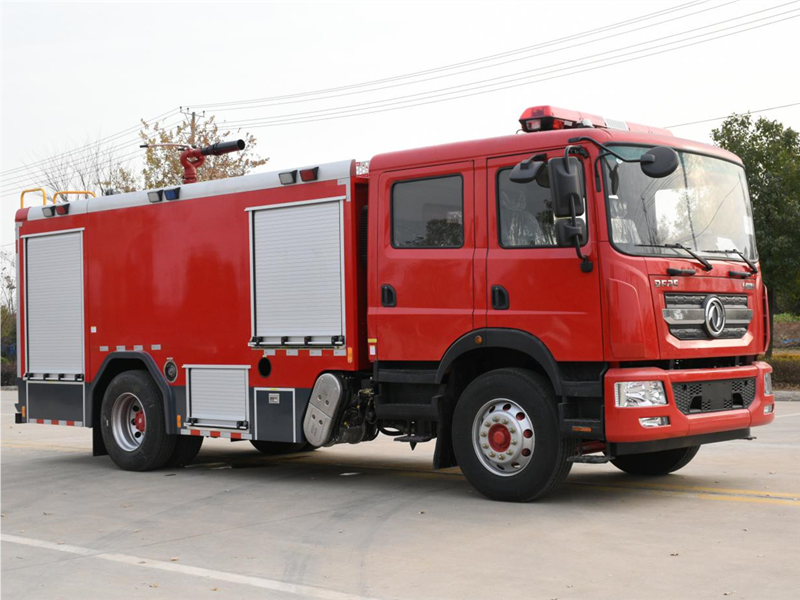

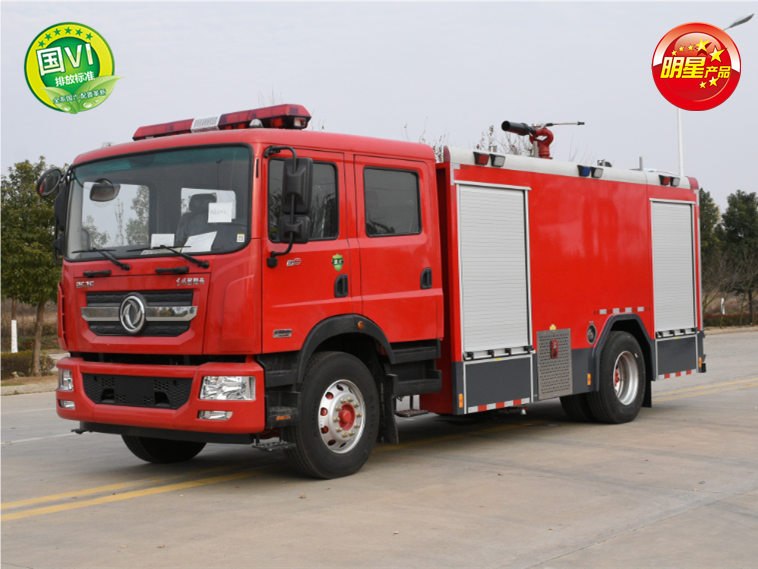

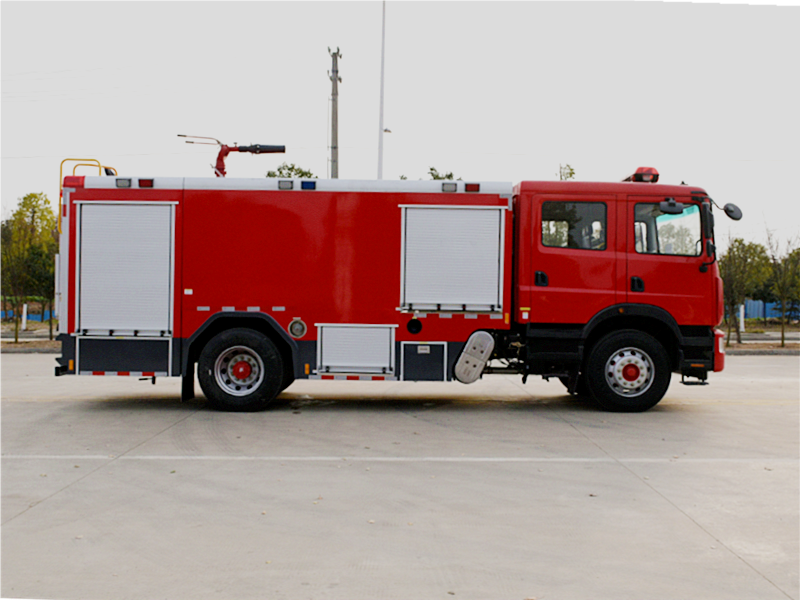

DONGFENG 8 TON WATER TANK FIRE TRUCK
| Item | Specification |
|---|---|
| 1. CHASSIS BASIC PARAMETERS | |
| Chassis Brand & Model | Dongfeng Duolika D9, EQ1125SJ8CDC |
| Drive Type | 4×2 Rear Wheel Drive |
| Cab Type | Double Row 4-door Crew Cab, 6 Seats Total |
| Wheelbase | 3800 mm |
| Overall Dimension (L×W×H) | 7200 × 2400 × 3100 mm |
| Tire Specification | 9.00R20 Heavy Duty Radial Tire, 6 tires |
| Transmission Gearbox | 6-speed Manual Transmission |
| Steering System | Hydraulic Power Steering |
| Brake System | Full Air Brake with ABS Anti-lock System |
| Max Travel Speed | 90 km/h |
| Emission Standard | Euro VI |
| 2. ENGINE PARAMETERS | |
| Engine Model | Dongfeng Cummins B6.2NS6B195 |
| Fuel Type | Diesel |
| Rated Power | 143 kW / 195 HP |
| Displacement | 6.2 L |
| Intake Mode | Turbocharged & Intercooled |
| Cooling Mode | Water Cooling |
| 3. VEHICLE WEIGHT & LOAD CAPACITY | |
| Gross Vehicle Weight (GVW) | 12490 kg |
| Curb Weight | 4490 kg |
| Rated Water Loading Capacity | 8000 kg (8 Ton) |
| Front Overhang | 1210 mm |
| Rear Overhang | 2190 mm |
| 4. TANK & LIQUID CAPACITY | |
| Water Tank Volume | 8000 L (8 CBM) |
| Tank Material | High-strength Carbon Steel with Full Anti-corrosion & Anti-rust Treatment |
| Tank Structure | Built-in Wave Baffles, Reinforced Tank Body, Float-type Liquid Level Indicator |
| Tank Thickness | 4mm Tank Body, 5mm Tank Head |
| Drain Valve | 3-inch Stainless Steel Ball Valve |
| Manhole | 500mm Diameter Sealed Manhole with Access Ladder |
| 5. FIRE FIGHTING CORE PERFORMANCE | |
| Fire Pump Model | Self-priming Centrifugal Fire Pump |
| Rated Pump Flow | 35 L/s |
| Rated Working Pressure | 0.8 MPa |
| Suction Depth | ≥ 6 m |
| Self-priming Time | ≤ 30 s |
| Fire Monitor | PS35 Water Cannon |
| Rated Monitor Flow | 35 L/s |
| Water Jet Range | ≥ 58 m |
| Monitor Rotation | 360° Horizontal Rotation, -30°~+45° Vertical Pitch |
| Power Take-off (PTO) | Independent Full Power PTO for Pump Drive |
| Pump Control System | In-cab + Pump Room Dual Manual Control System |
| 6. STANDARD EQUIPMENT | |
| Fire Fighting Accessories | Full set of fire hoses, suction pipes, quick couplings, spray nozzles & fire hydrant connectors |
| Warning & Lighting System | Roof red warning light, 80W high-decibel alarm siren, LED work lights for pump room & tool compartment |
| Compartment Structure | Full aluminum alloy pump room & lockable tool compartments, anti-slip walking platform |
| Safety Protection Devices | Emergency stop device, pump overload protection, pressure safety valve & anti-freeze device |
| Rescue Hand Tools | Complete fire rescue hand tools, fire axe, crowbar, fire spade & 5m fire ladder |
| Pump System Accessories | Water filter, check valve, high-precision pressure gauge & flow meter |
| 7. CERTIFICATION & AFTER-SALES TERMS | |
| Main Certificates | CCC, CE, ISO9001, Vehicle Official Road Announcement Certificate |
| Warranty Period | 12 months or 20,000 km from delivery date (whichever comes first) |
| Standard Production Lead Time | 15–20 working days |
| Standard Loading Port | Shanghai Port / Wuhan Port, China |
| Optional Upgrade Items | Imported fire pump, wireless remote monitor control, foam proportion mixing system, front flush & rear spray sprinkler system |
