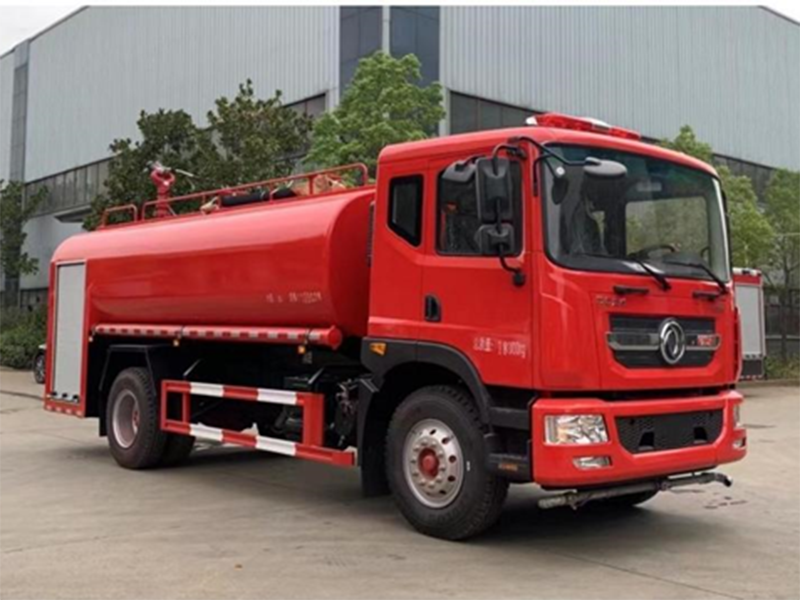

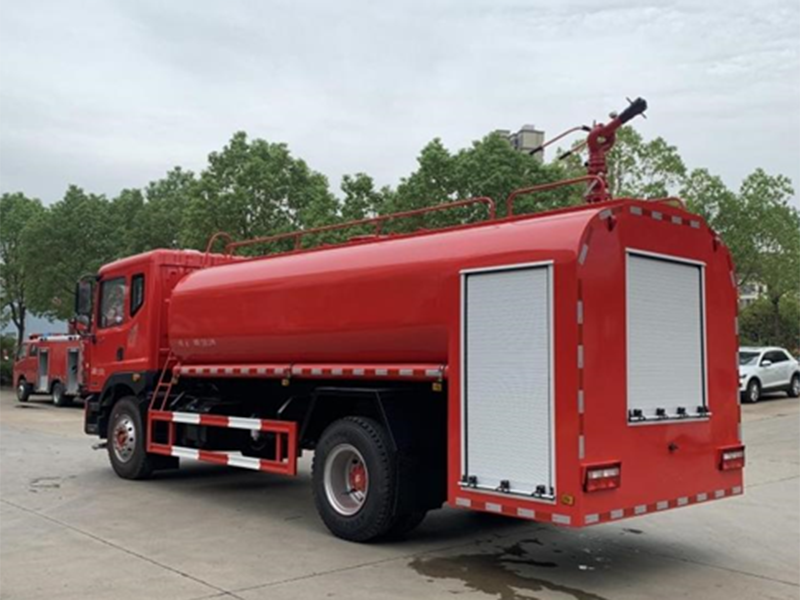

DONGFENG D9 12 CBM FIRE SPRINKLER TRUCK TECHNICAL
| Item | Specification |
|---|---|
| 1. CHASSIS BASIC PARAMETERS | |
| Chassis Brand & Model | Dongfeng D9, EQ1165LJ9CDE |
| Drive Type | 4×2 Rear Wheel Drive |
| Cab Type | Single Row 3-seat Cab (Optional Double Row Crew Cab) |
| Wheelbase | 3950 mm |
| Overall Dimension (L×W×H) | 7900 × 2480 × 3150 mm |
| Tire Specification | 10.00R20 Heavy Duty Radial Tire, 6 tires |
| Transmission Gearbox | 6-speed Manual Transmission |
| Steering System | Hydraulic Power Steering |
| Brake System | Full Air Brake with ABS Anti-lock System |
| Max Travel Speed | 90 km/h |
| Emission Standard | Euro VI |
| 2. ENGINE PARAMETERS | |
| Engine Model | Dongfeng Cummins B6.2NS6B210 |
| Fuel Type | Diesel |
| Rated Power | 154 kW / 210 HP |
| Displacement | 6.2 L |
| Intake Mode | Turbocharged & Intercooled |
| Cooling Mode | Water Cooling |
| 3. VEHICLE WEIGHT & LOAD DATA | |
| Gross Vehicle Weight (GVW) | 16000 kg |
| Curb Weight | 8200 kg |
| Rated Loading Capacity | 7800 kg |
| Front Overhang | 1230 mm |
| Rear Overhang | 2720 mm |
| 4. TANK & LIQUID CAPACITY | |
| Water Tank Volume | 12000 L (12 CBM) |
| Tank Material | High-strength Carbon Steel with Full Anti-corrosion & Anti-rust Treatment |
| Tank Structure | Built-in Wave Baffles, Reinforced Tank Body, Float-type Liquid Level Indicator |
| Tank Thickness | 4mm Tank Body, 5mm Tank Head |
| Drain Valve | 3-inch Stainless Steel Ball Valve |
| Manhole | 500mm Diameter Sealed Manhole with Access Ladder |
| 5. FIRE FIGHTING & SPRINKLING CORE PERFORMANCE | |
| Fire Pump Model | Self-priming Centrifugal Fire Pump |
| Rated Pump Flow | 40 L/s |
| Rated Working Pressure | 0.8 MPa |
| Suction Depth | ≥ 6 m |
| Self-priming Time | ≤ 30 s |
| Fire Monitor | PS40 Water Cannon |
| Rated Monitor Flow | 40 L/s |
| Water Jet Range | ≥ 60 m |
| Monitor Rotation | 360° Horizontal Rotation, -30°~+45° Vertical Pitch |
| Sprinkling System | Front Flush, Rear Spray, Side Spray, Top Water Cannon |
| Sprinkling Width | ≥ 14 m |
| Flushing Range | ≥ 30 m |
| 6. STANDARD EQUIPMENT | |
| Fire Fighting Accessories | Full set of fire hoses, suction pipes, quick couplings, spray nozzles & fire hydrant connectors |
| Warning & Lighting System | Roof red warning light, 80W alarm siren, LED work lights for tank & pump room |
| Compartment Structure | Full aluminum alloy pump room & tool compartments with lockable doors |
| Safety Protection Devices | Emergency stop device, pump overload protection, pressure safety valve & anti-freeze device |
| Rescue Hand Tools | Complete fire rescue hand tools, fire axe, crowbar, fire spade & 6m fire ladder |
| Pump Drive & Control System | Independent PTO (Power Take-off) for pump drive, in-cab pump control system |
| Pump System Accessories | Water filter, check valve, pressure gauge & flow meter for pump system |
| 7. CERTIFICATION & AFTER-SALES TERMS | |
| Main Certificates | CCC, CE, ISO9001, Vehicle Road Announcement Certificate |
| Warranty Period | 12 months or 20,000 km from delivery date (whichever comes first) |
| Standard Production Lead Time | 15–20 working days |
| Standard Loading Port | Shanghai Port / Wuhan Port, China |
| Optional Upgrade Items | Imported fire pump, wireless remote monitor control, foam proportion mixing system, double row crew cab |
