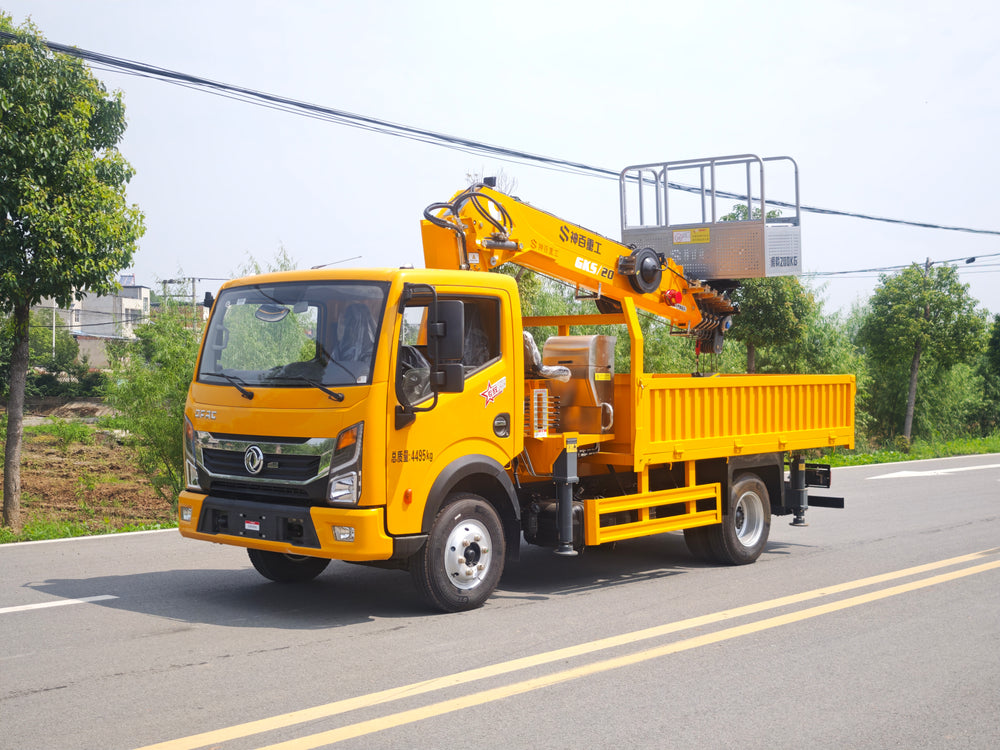

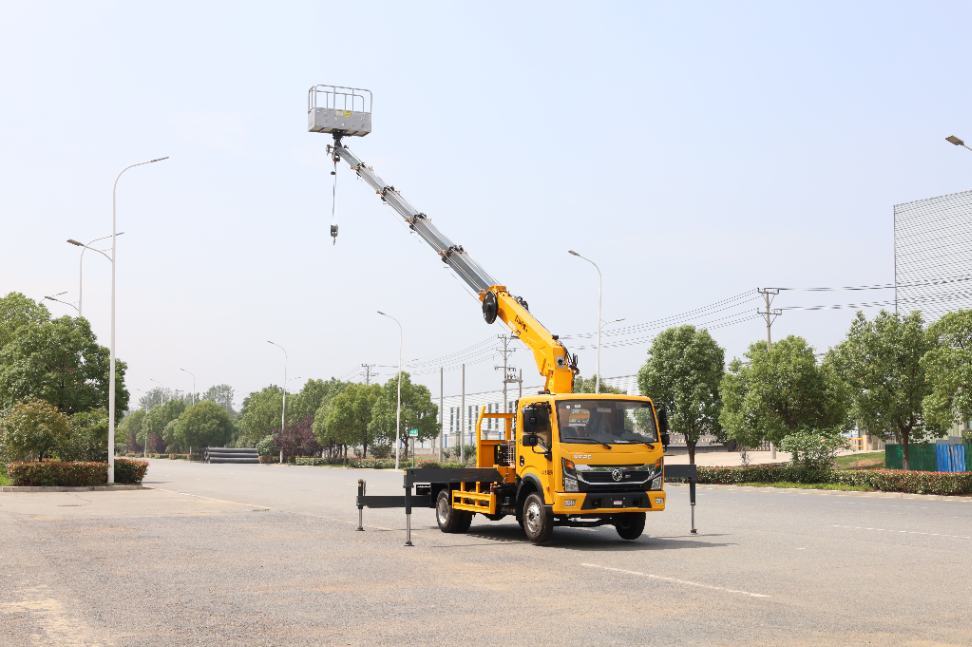

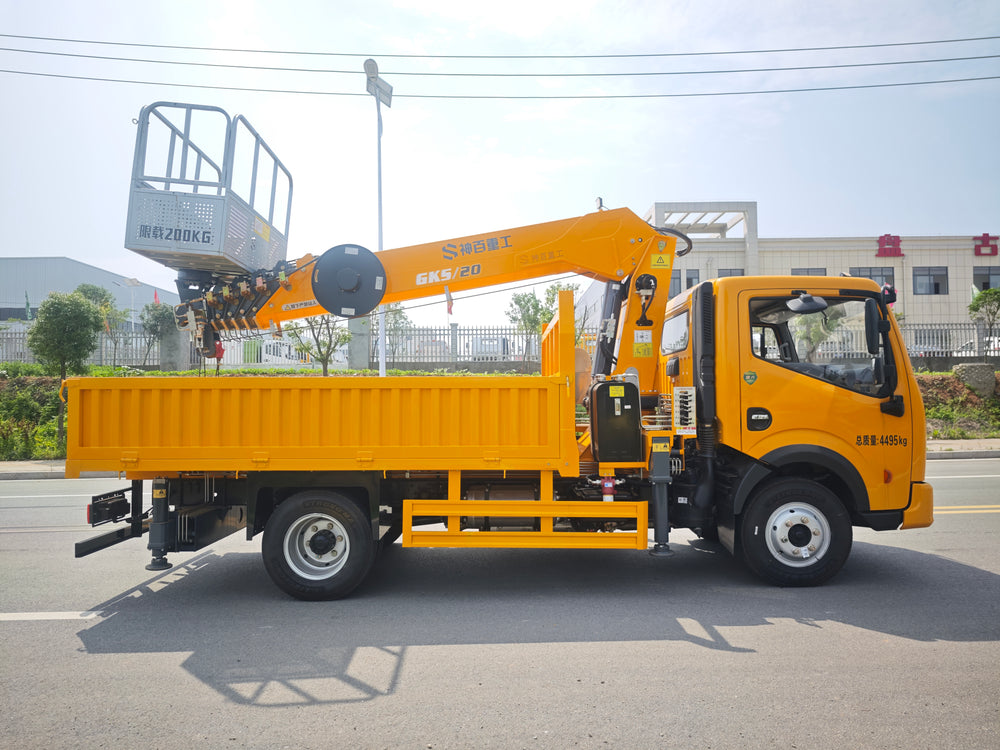

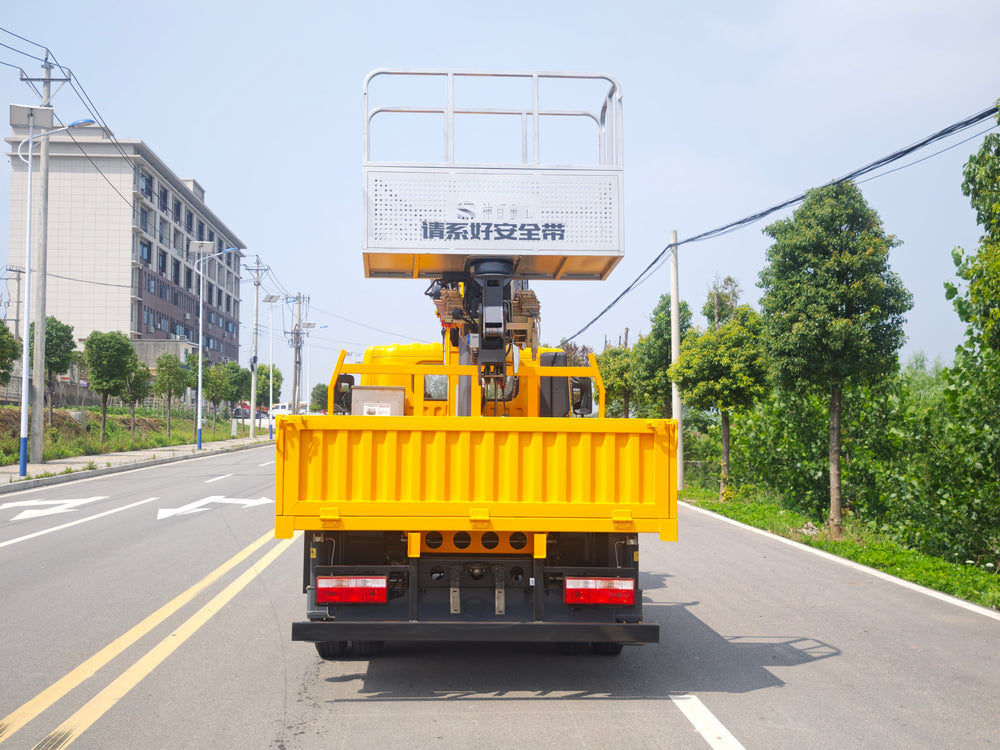

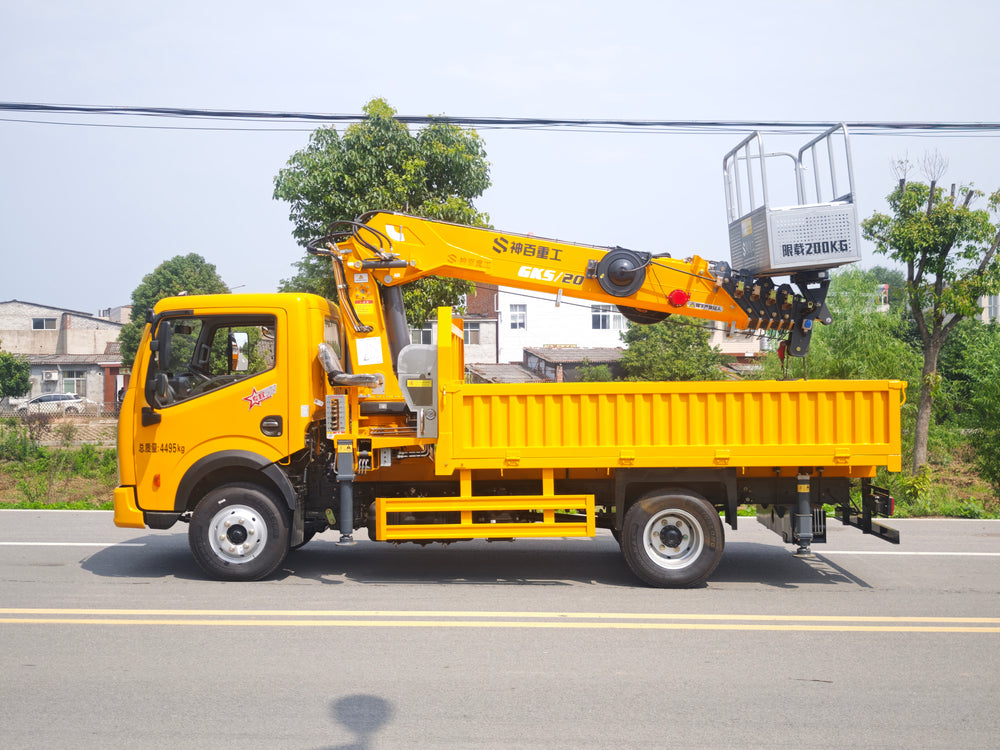

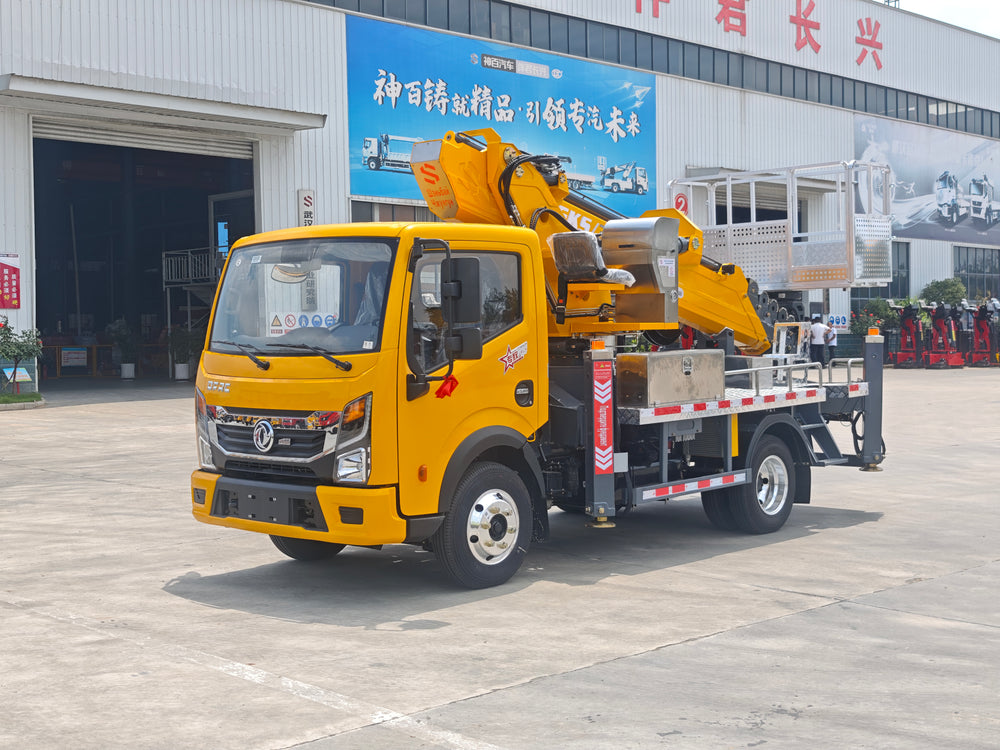

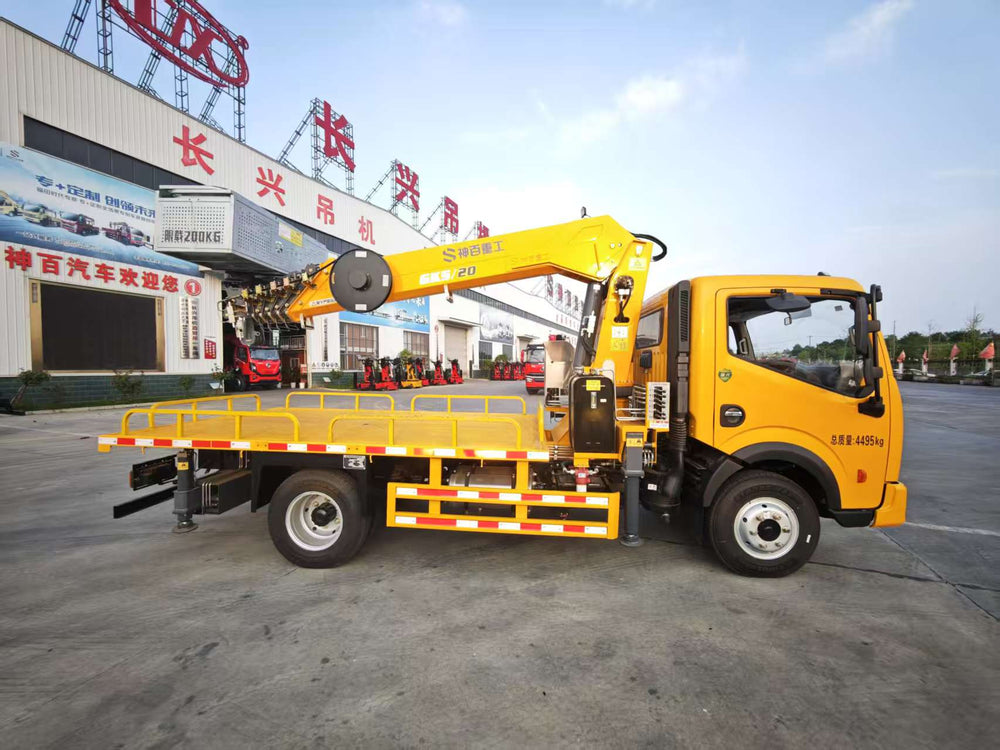

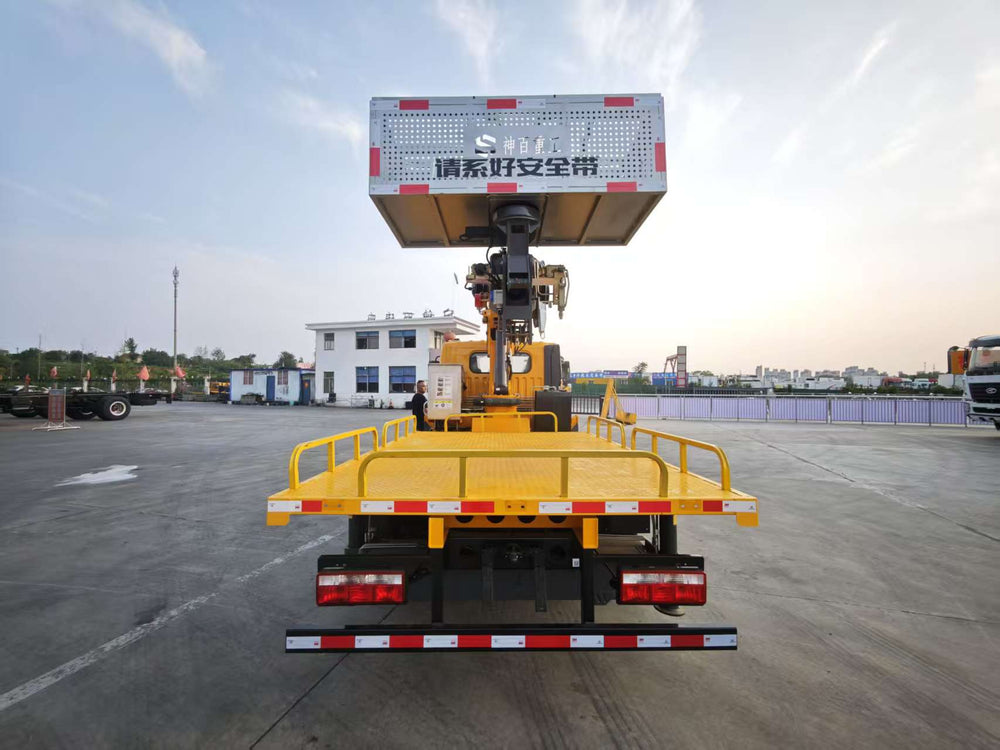

Dongfeng Dolica 20m Multifunctional Aerial Work Vehicle
| Item | Specification |
|---|---|
| Vehicle Name | Dongfeng Dolica Heavy Duty 160HP 20m Multifunctional 3-in-1 Truck-mounted Aerial Work Vehicle |
| Approved Model | ABC5045JGKE6 Truck-mounted Aerial Work Vehicle |
| Gross Vehicle Weight | 4495KG |
| Curb Weight | 4300KG |
| Gearbox | 8-speed gearbox with synchronizer |
| Number of Axles | 2 |
| Wheelbase | 3308mm |
| Tire Size | 7.00R16 8PR |
| Engine Model | YN25PLUS160B |
| Engine Manufacturer | Kunming Yunnei Power Co., Ltd. |
| Displacement | 2499ml |
| Rated Power | 114KW |
| Gear Ratio | 4.785 |

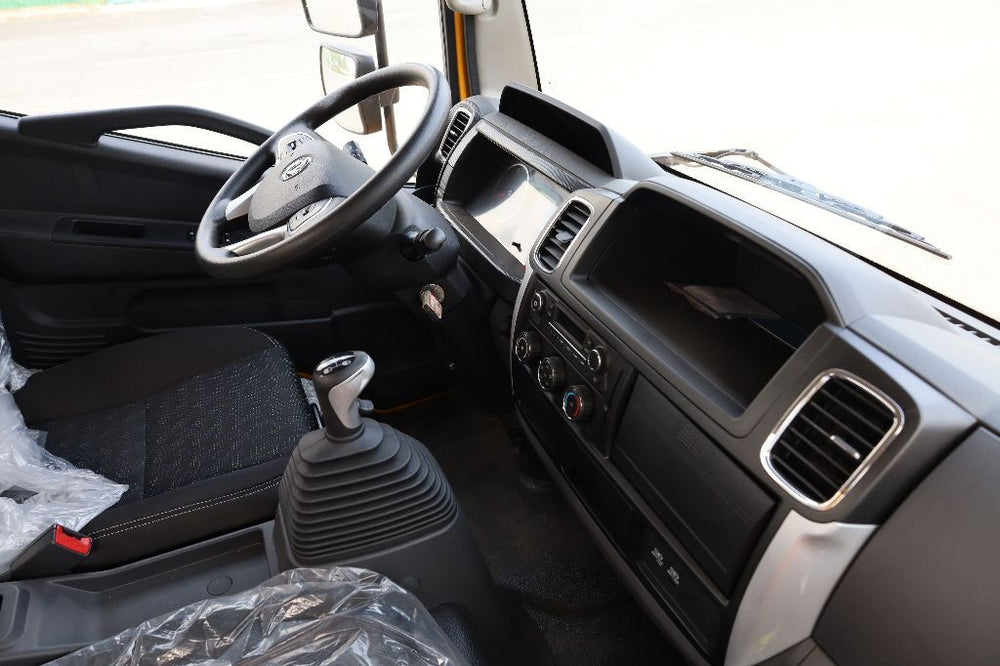

| Basic Chassis Configuration | D6 single row 1900mm cab, double-layer straight-through frame, 6-ton rear axle, ABS, central locking, electric windows, air conditioner |
| Outrigger Transverse Span | 5150mm / 4500mm |
| Outrigger Longitudinal Span | 3400mm |
| Upper Equipment Model | GKS20 |

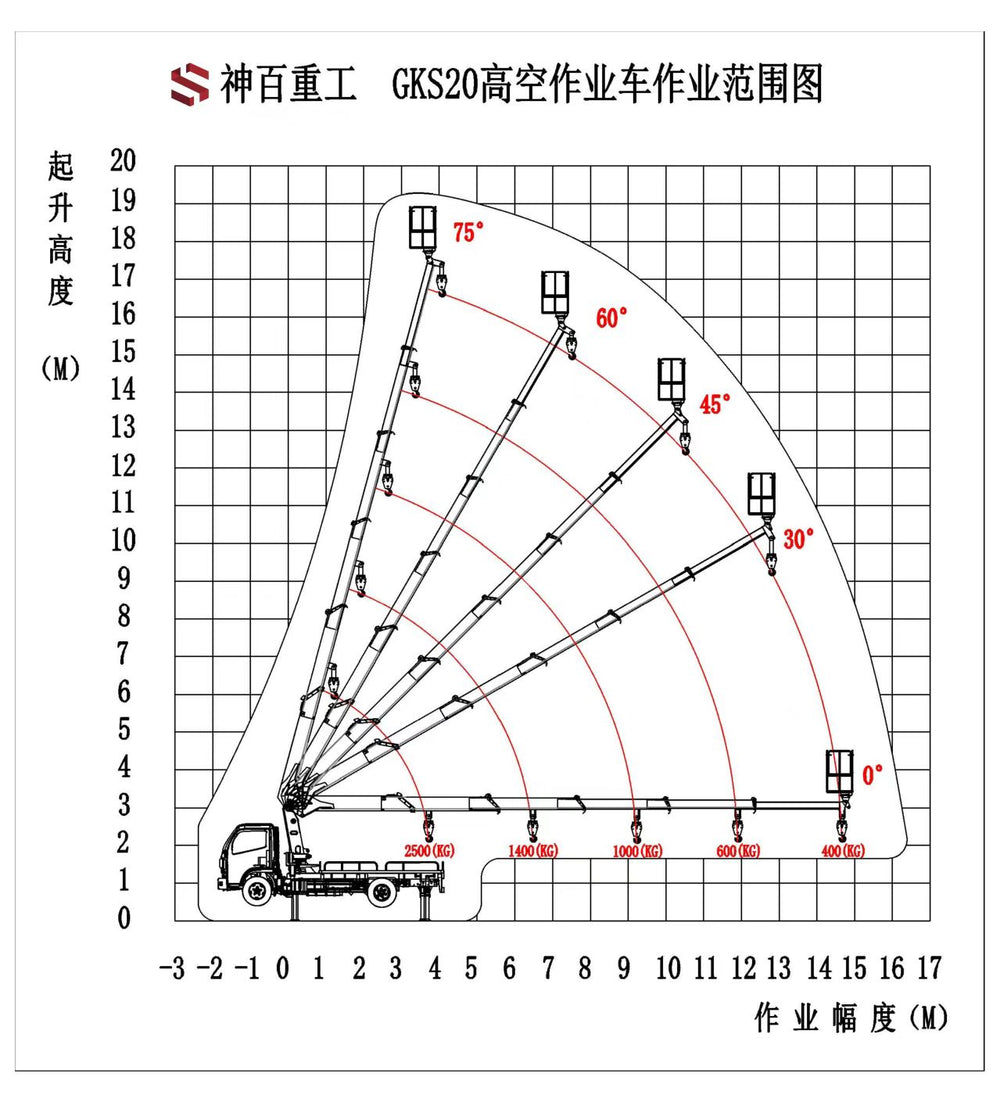

| Maximum Working Height | 19.2m |
| Maximum Working Radius | 12m |
| Rated Platform Load | 200KG |
| Boom Slewing Angle | 360° |
| Platform Dimension | 1500mm700mm1100mm |
| Platform Rotation Range | ±180° |
| Boom Structure | 6-section boom, 5 sections synchronous telescoping, fitted with standby steel wire rope for safe descent |

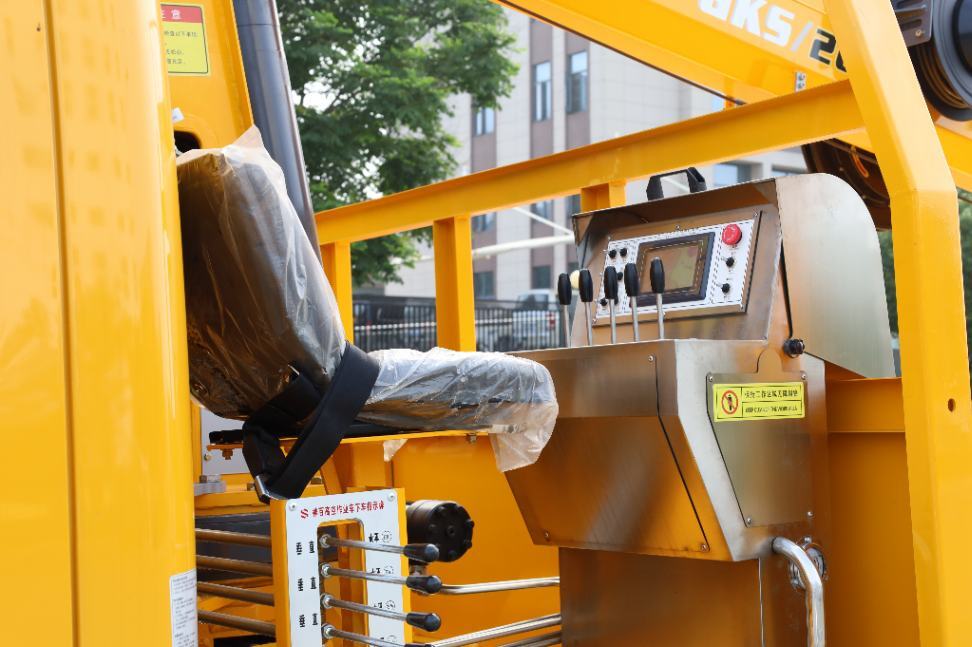

| Control System | Well-known domestic electric control system, wireless remote control, middle operation with display screen |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation |
| Hydraulic Outrigger | H-type four telescopic outriggers, independently adjustable for higher stability |
| Safety Devices | Upper and lower operation interlock, limit protection, two-way hydraulic balance valve |

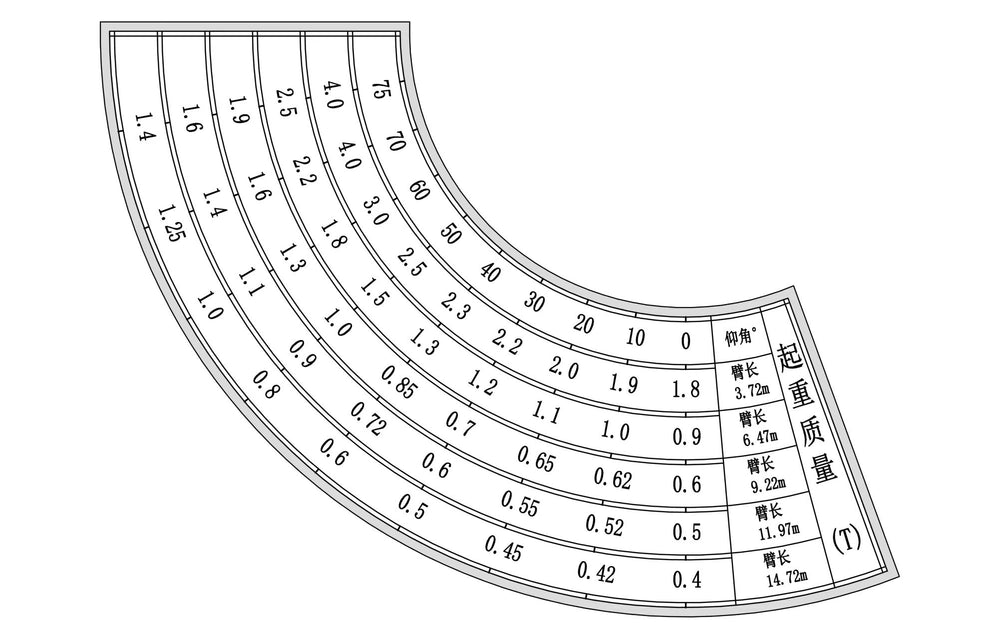

| Max Lifting Capacity | 5000kg |
| Main Winch | 5 Ton |
| Crane Boom | 6-section inner rope boom |
| Max Lifting Height | 17m |
| Slewing Mode | 360° full rotation |
| Power Pump | Single pump |
| Cargo Box Size | 3300mm*2200mm |
| Operation Mode | Middle operation & intelligent remote control |
