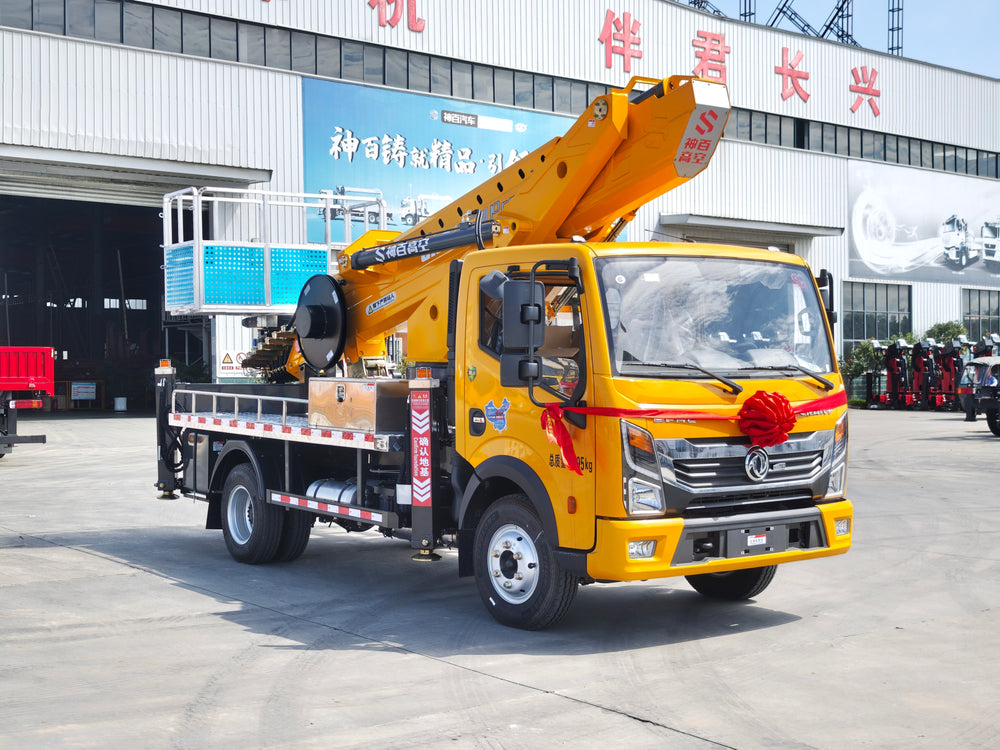

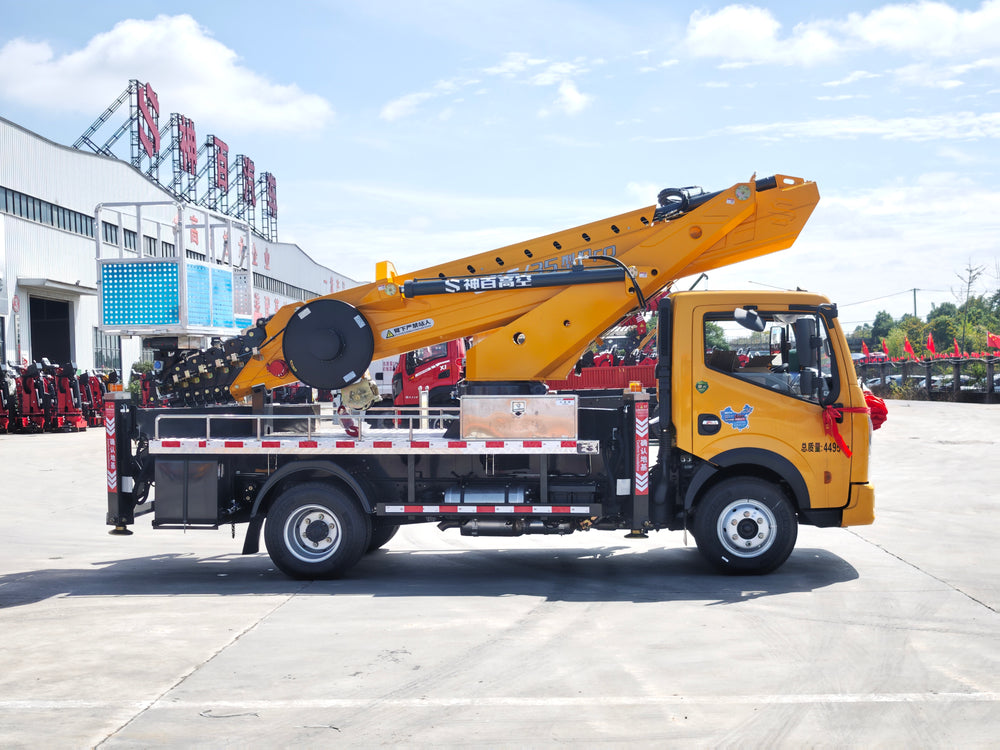

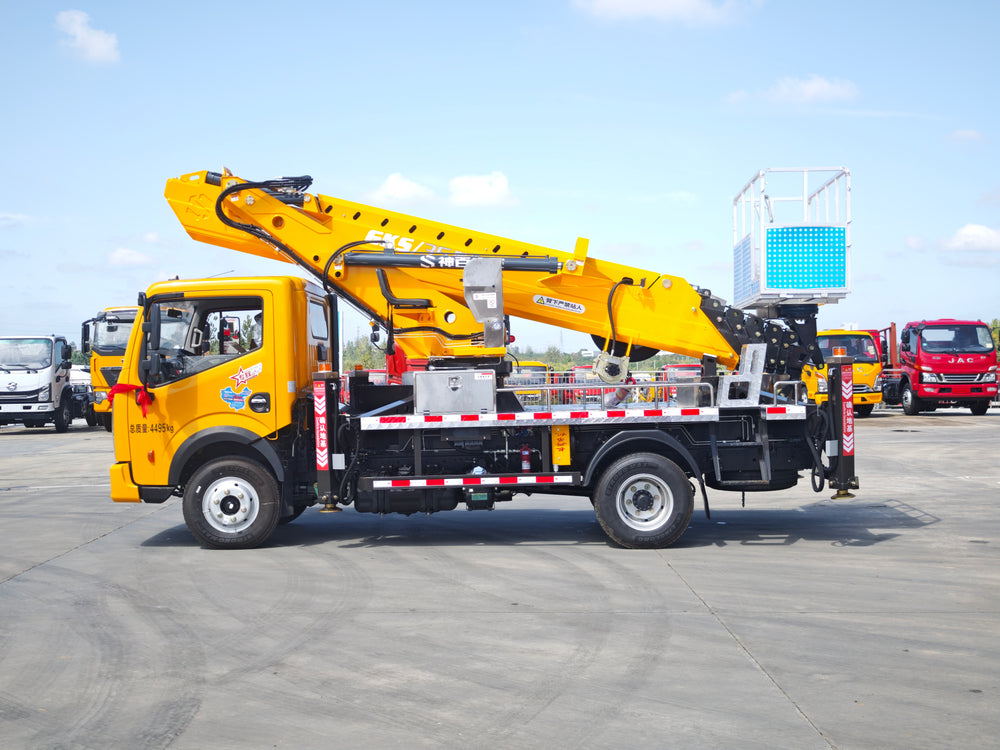

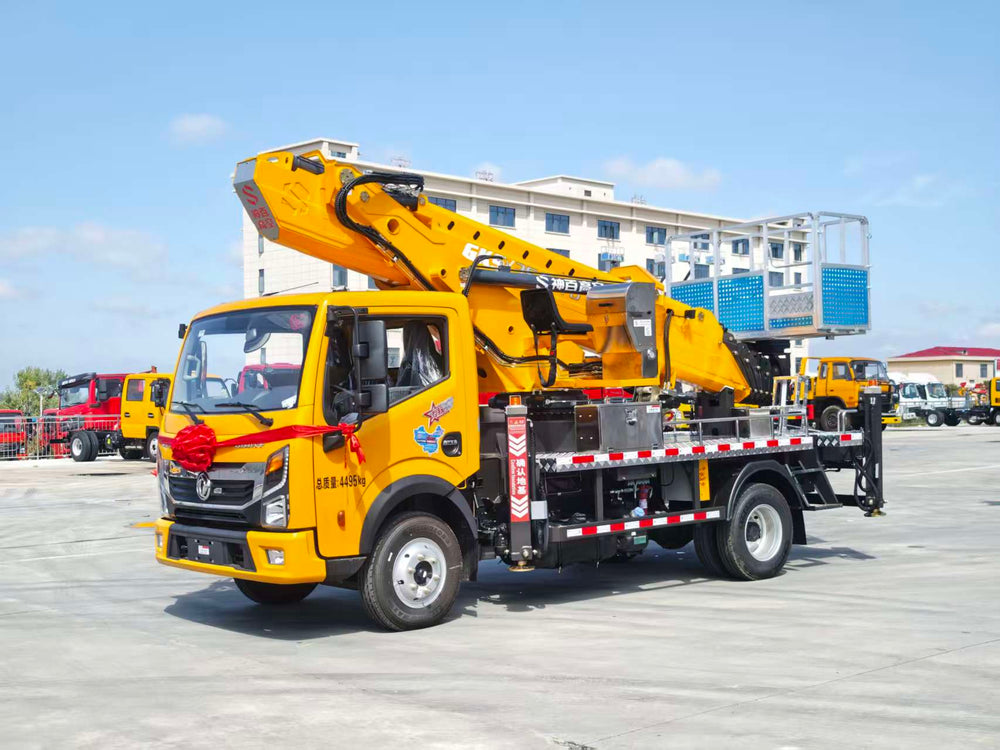

Dongfeng Kaput GKS35 Pro Aerial Work Vehicle
| Item | Specification |
|---|---|
| Vehicle Name | Dongfeng Kaput GKS35 Pro Aerial Work Vehicle |
| Product Feature | 34m working height vehicle with genuine heavy-duty engineering-grade chassis, Dongfeng Nebula Cab |
| Approval Model | ABC5045JGKE6 Aerial Work Vehicle |
| Core Advantage | Nationwide exclusive model with engineering-grade heavy-duty chassis, 7-section boom blue plate, max working height 33.8m |
| Main Advantages | 1. Adopt lightweight 960 high-strength steel plate
|

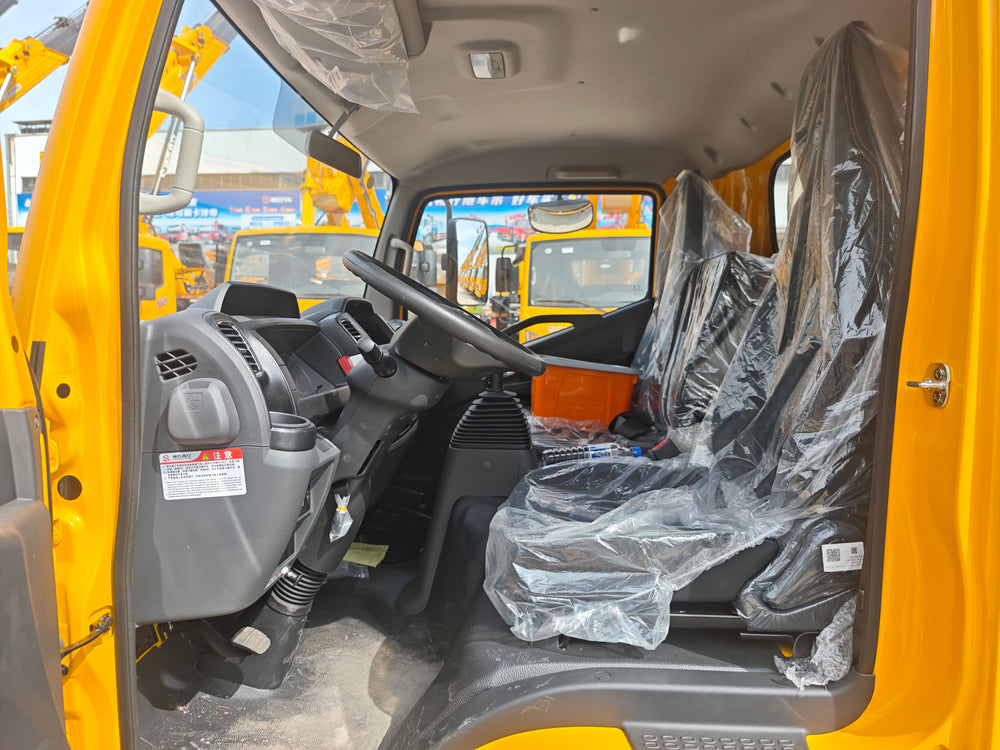

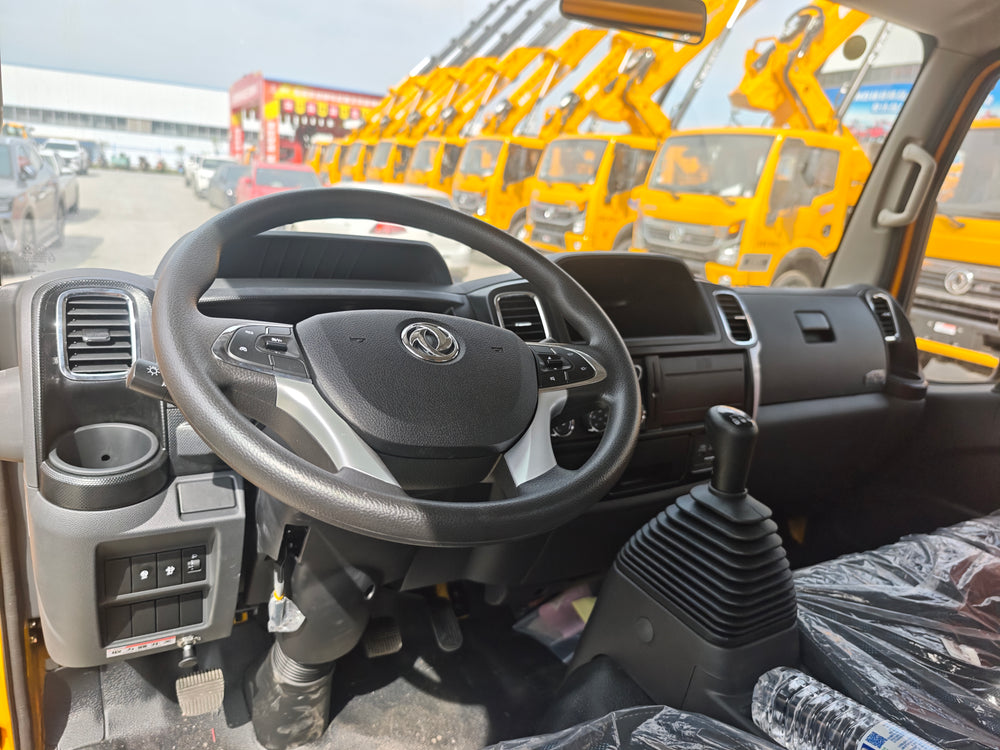

| Chassis Configuration | Dongfeng heavy-duty Nebula 1900 cab, engineering vehicle chassis |
| Gross Vehicle Weight | 4495KG |
| Curb Weight | 4300KG |
| Engine | Yunnei 160HP |
| Transmission | Changtai 8-speed gearbox with synchronizer |
| Wheelbase | 3308mm, double-layer widened frame, 6-ton rear axle |
| Overall Dimension | 5995mm2200mm3150mm |
| Tire Specification | 700R16LT |
| Brake System | Air brake |
| Standard Equipments | Electric windows, air conditioner, central control lock |
| Upper Body Model | GKS35 Pro |

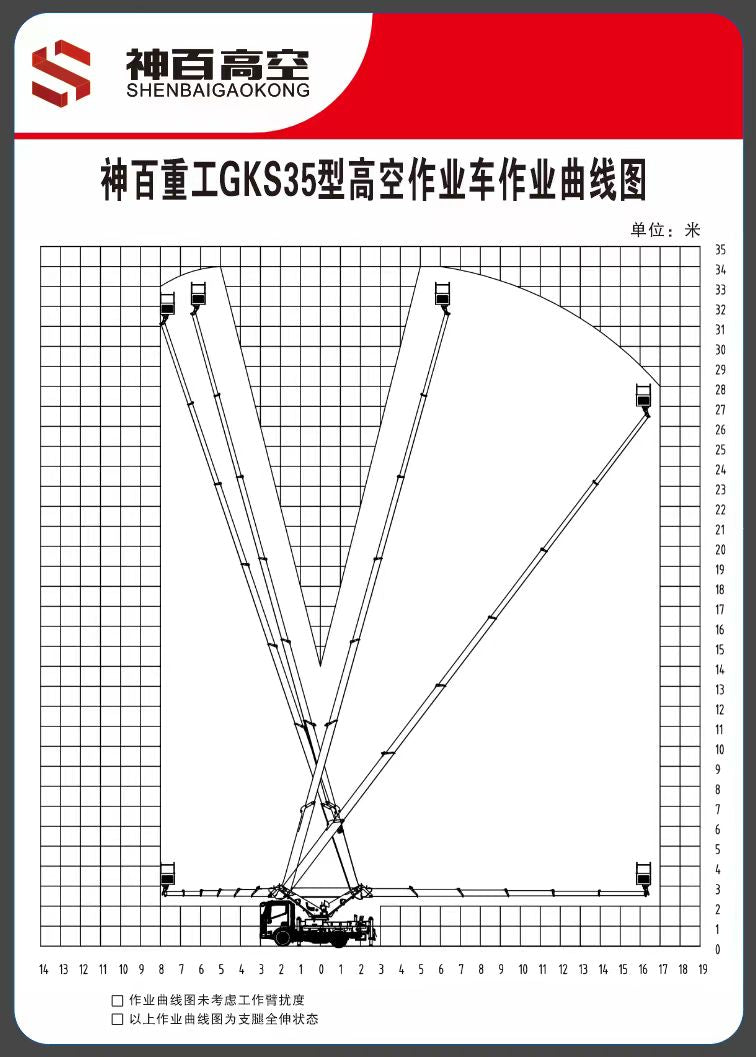

| Max Working Height | 33.8m |
| Max Working Radius | 16.5m |
| Rated Platform Load | 200KG |
| Boom Slewing Angle | 360° |
| Platform Size | 1800mm700mm1000mm (with flip plate) |

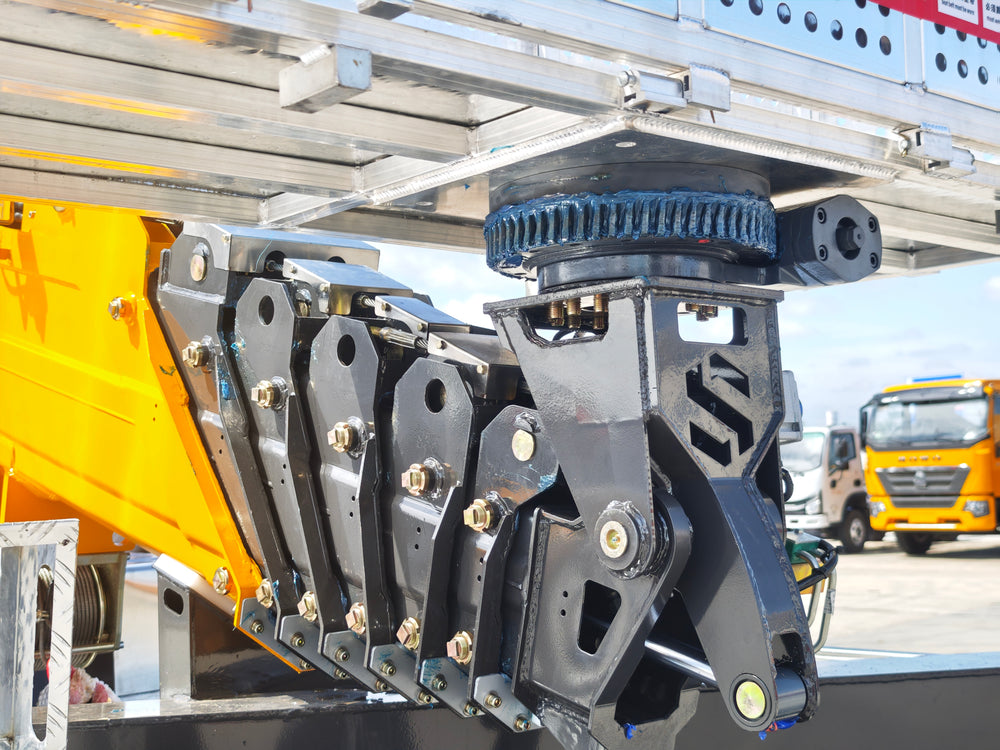

| Platform Rotation Range | 360° unlimited rotation |
| Boom Structure | 7-section boom with 6 sections synchronous telescoping, equipped with standby steel wire rope for safe descent |

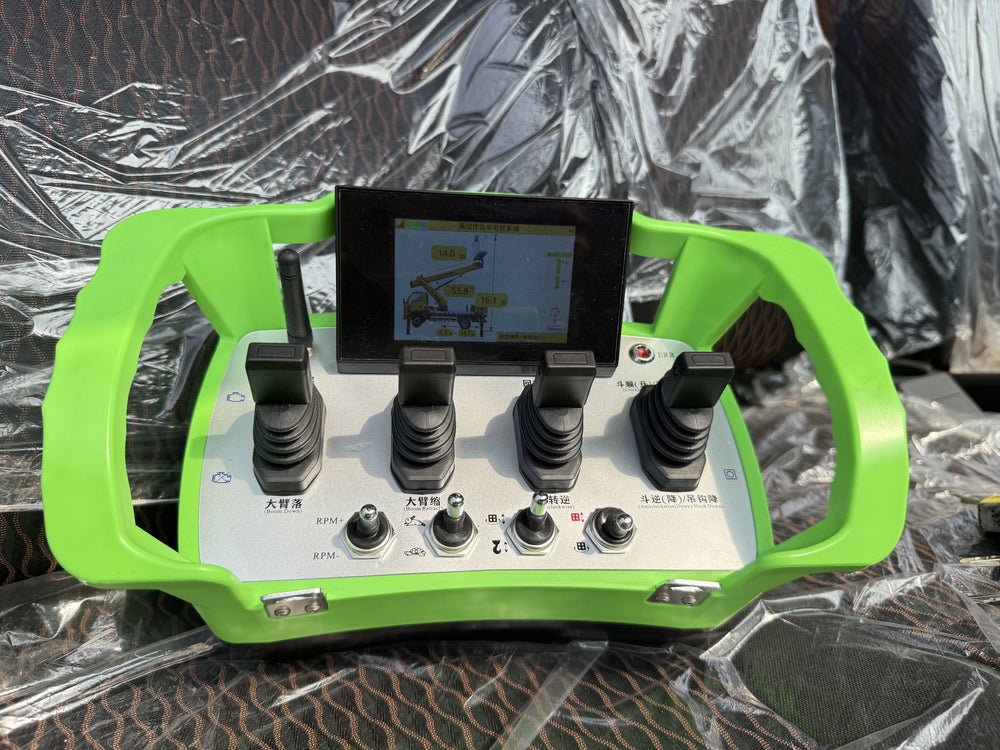

| Control System | Famous domestic electric control system, wireless remote control, middle operation with display screen |

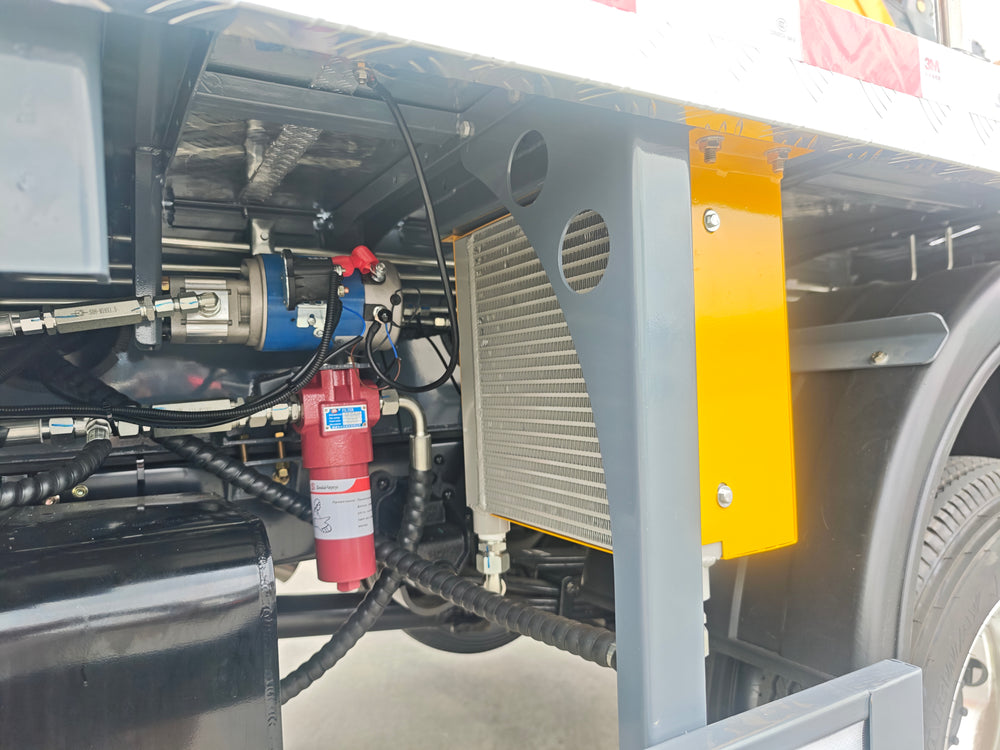

| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation, equipped with emergency power source |

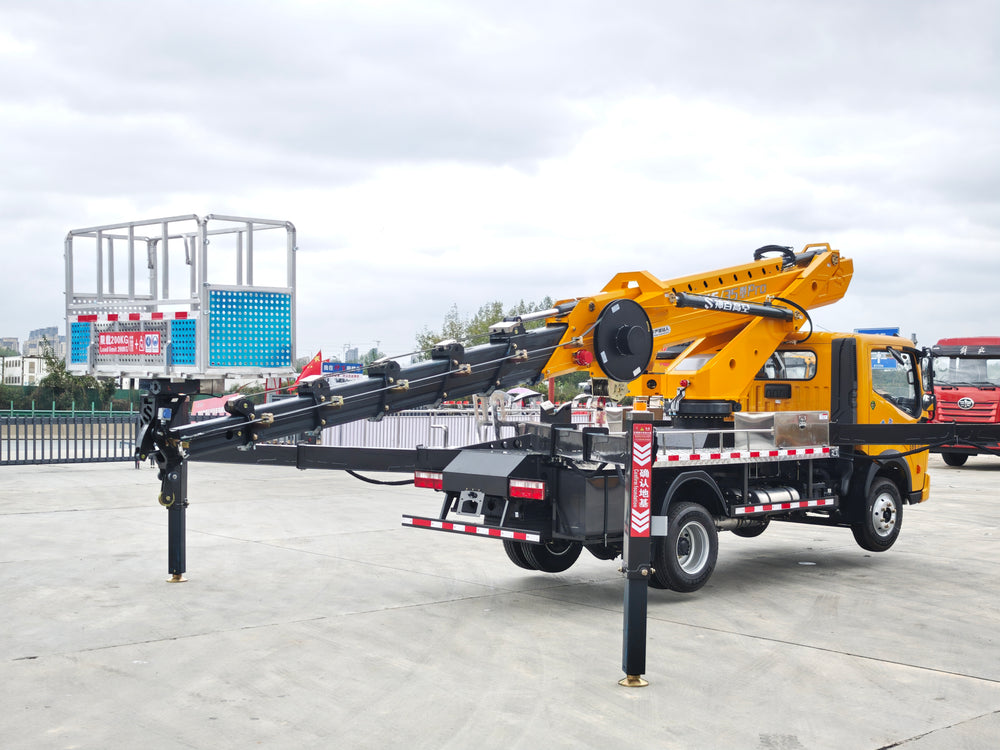

| Hydraulic Outrigger | X-type 4 double-section independently adjustable outriggers |
| Walkway Plate | Aluminum alloy anti-slip walkway plate |
| Safety Devices | Upper and lower operation interlock, emergency power source, two-way hydraulic balance valve, soft leg protection, radiator, 220V external power supply |
| Optional Parts | 1-ton winch, upper operation cab |
