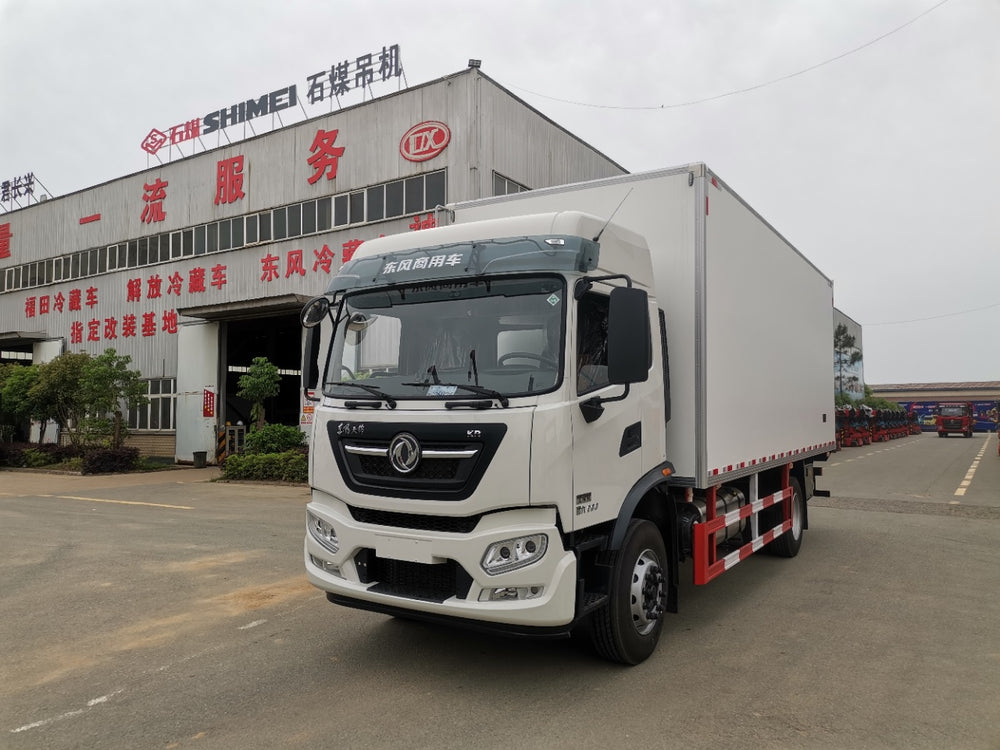

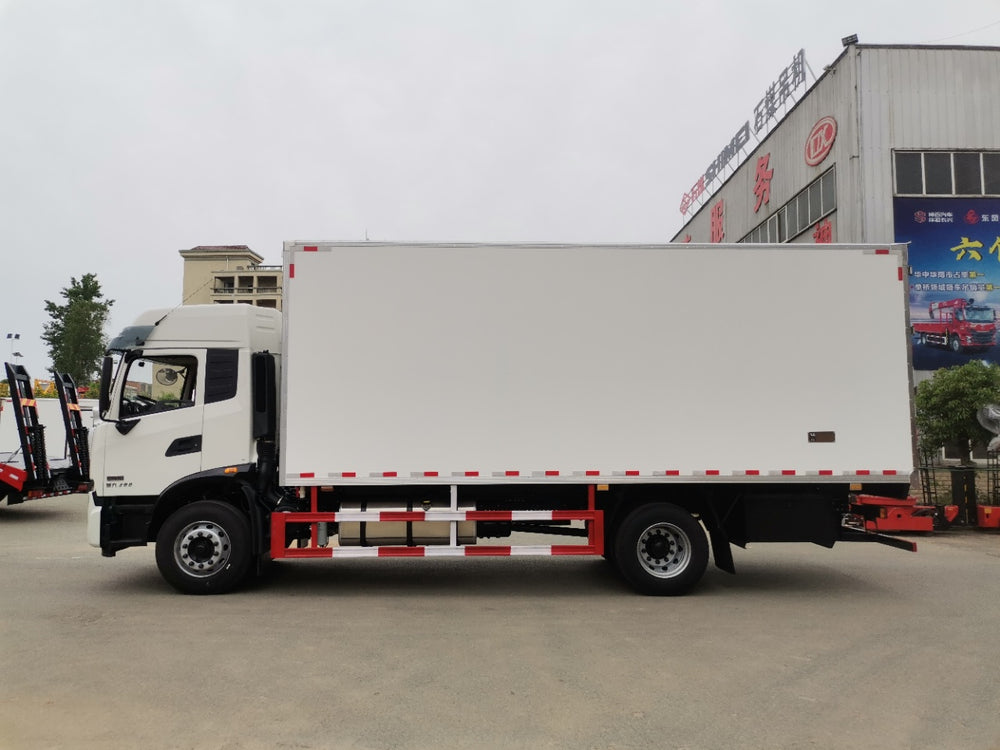

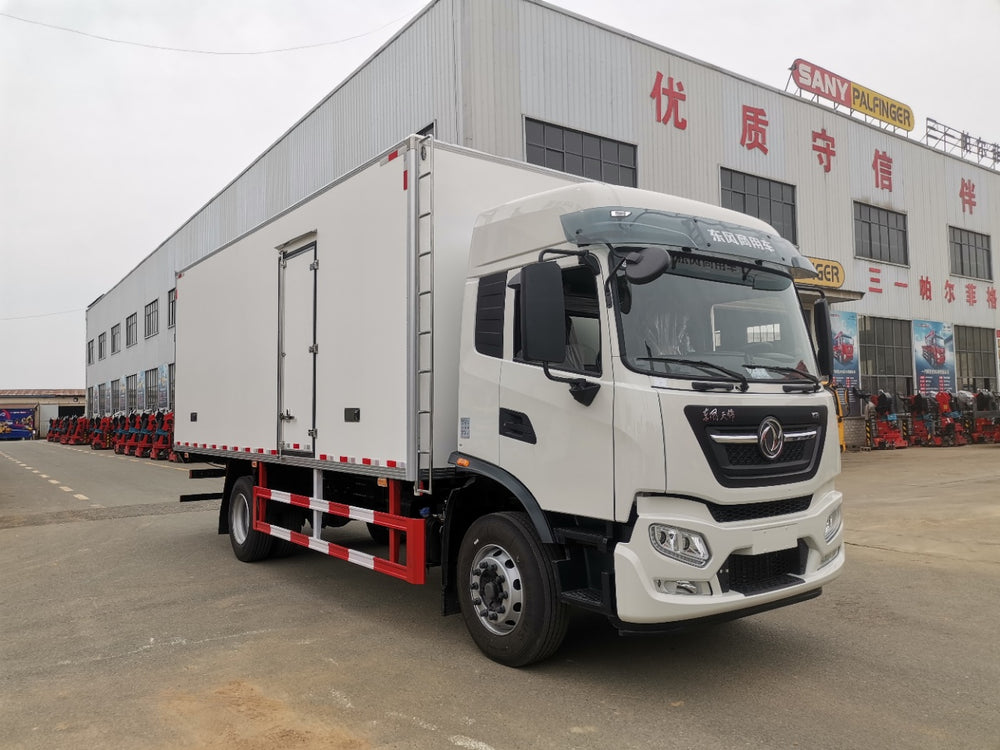

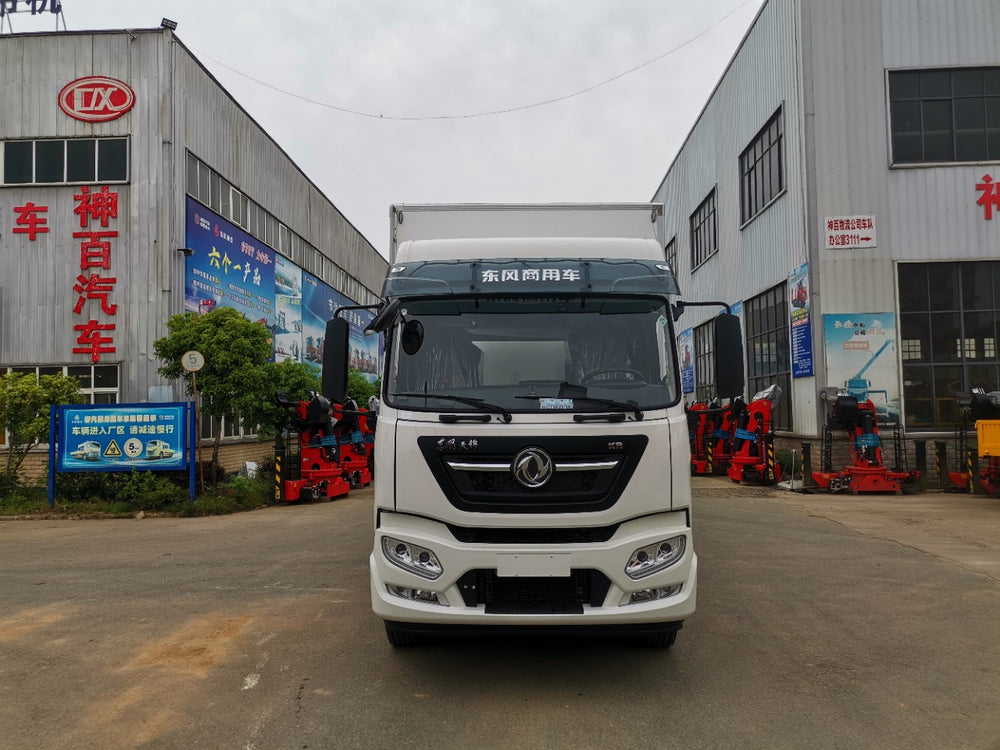

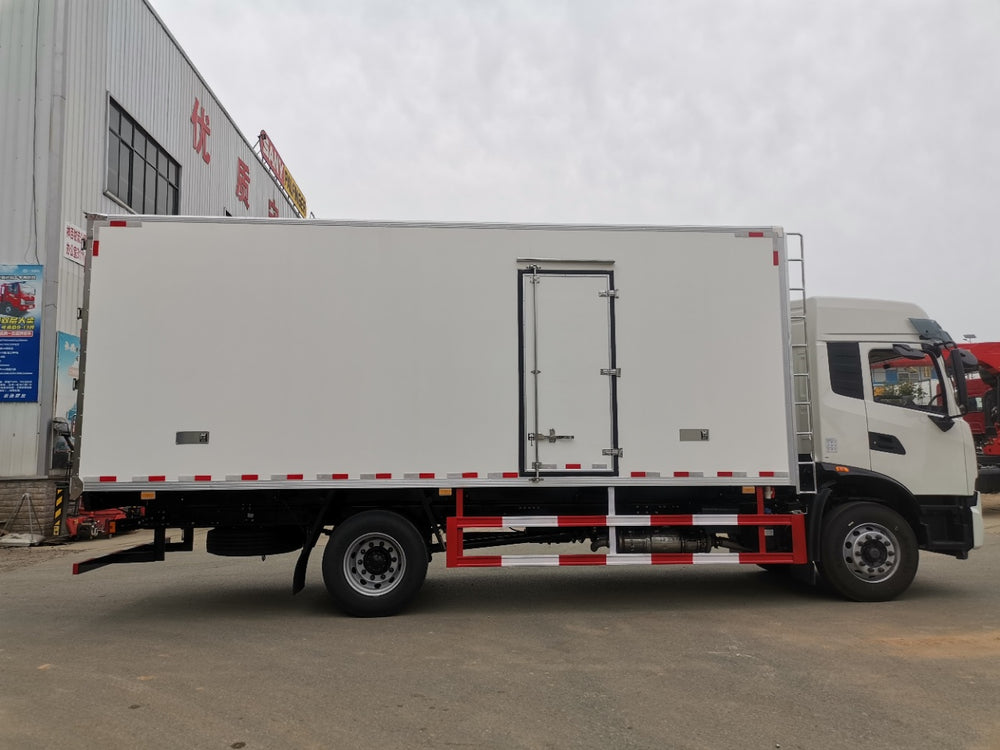

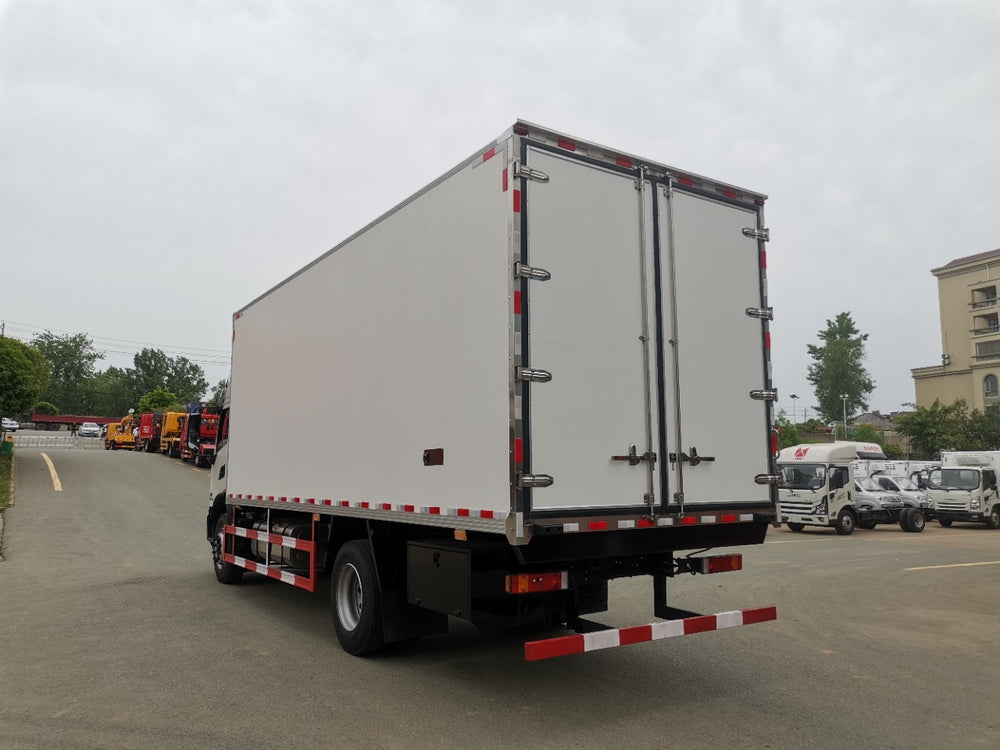

Dongfeng Kinland KR Star Edition 6.8m Refrigerated Truck｜Cummins 290HP
| Category | Specification Details |
|---|---|
| 整车基础 Basic Chassis | |
| Complete Model | DFH5180XLCEX7 (China National VI Yellow Plate) |
| Overall Dimension | 9200×2600×3960 mm |
| Inner Refrigerated Box | 6800×2440×2500 mm，Volume≈41.5 CBM |
| Wheelbase | 5000 mm |
| GVW/Curb/Payload | 18000KG / 7880KG / 9990KG |
| Drive | 4×2 RWD |
| Fuel | Diesel |
| Max Speed | 89 km/h |
| 发动机 Engine | |
| Model | Cummins B6.2NS6B290, Inline-6 Turbo Diesel |
| Displacement | 6.2L |
| Power/Torque | 213kW(290HP) / 1150N·m@1200-1700rpm |
| Emission | China National VI (Euro6 equivalent, DOC+DPF+SCR+ASC) |
| Fuel Tank | 400L Aluminum Fuel Tank / 35L Urea Tank |
| 传动底盘 Transmission & Chassis | |
| Gearbox | Fast 8JSX110TM 8-speed Manual Aluminum Gearbox |
| Brake | Full Air Brake, ABS+EBD+Exhaust Brake |
| Tyre | 275/80R22.5 18PR Tubeless Steel Radial Tire (6pcs) |
| Axle | Front 4.5T / Rear Dongfeng Dana 9T, Final Ratio:3.64/3.91 Optional |
| Frame | 220×75×7mm High-strength Steel Chassis |
| Suspension | Front 8-leaf + Rear 10+8 Multi-leaf Spring |

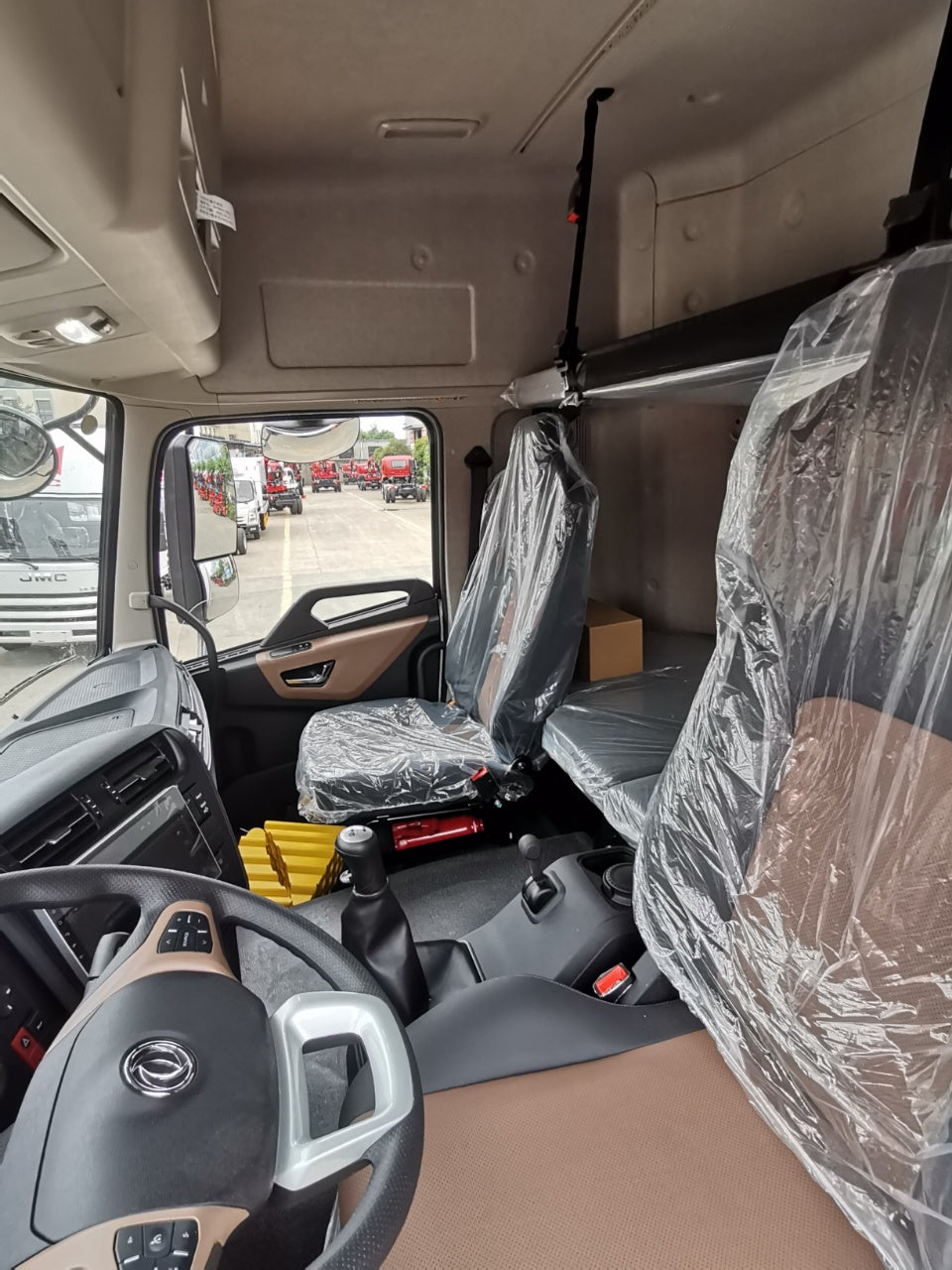

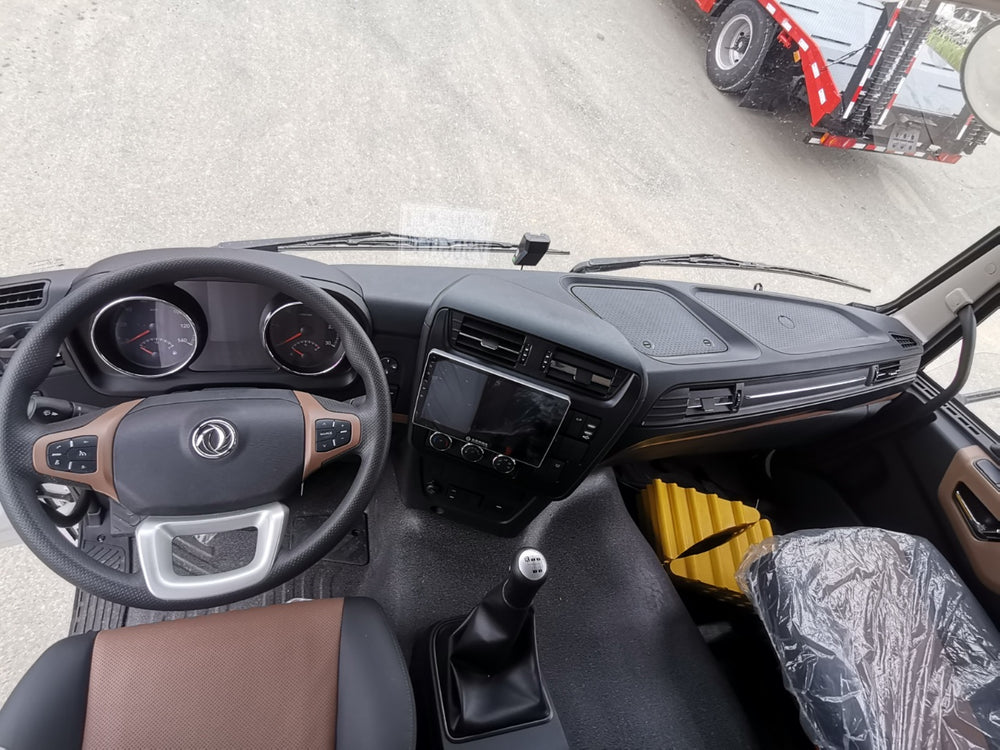

| 驾驶室 Cabin（KR Star High-roof Double Sleeper） | |
| Cabin Spec | 2200mm Wide High-top Double Berth, 2-passenger |
| Standard Equip | Airbag Adjustable Driver Seat, Factory A/C, Power Window, Central Lock, Multi-function Steering, Cruise Control, Heated Rearview Mirror, 10-inch Multimedia Screen, 4-way Surveillance Camera, Hydraulic Cab Tipping |
| Optional | Original Parking Air Conditioner |

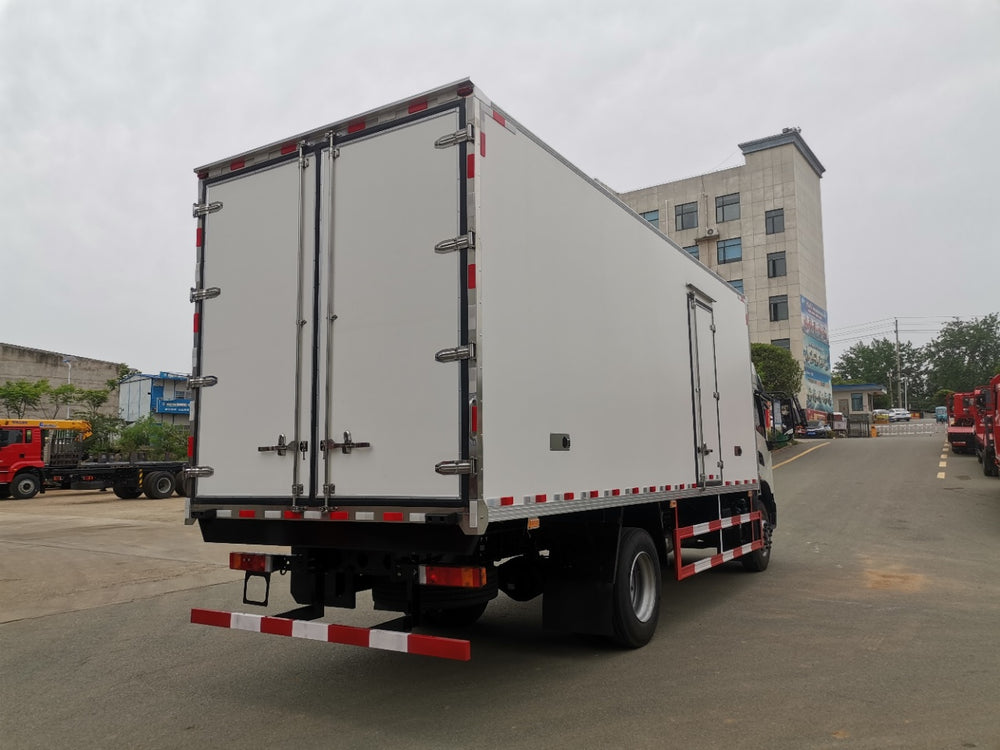

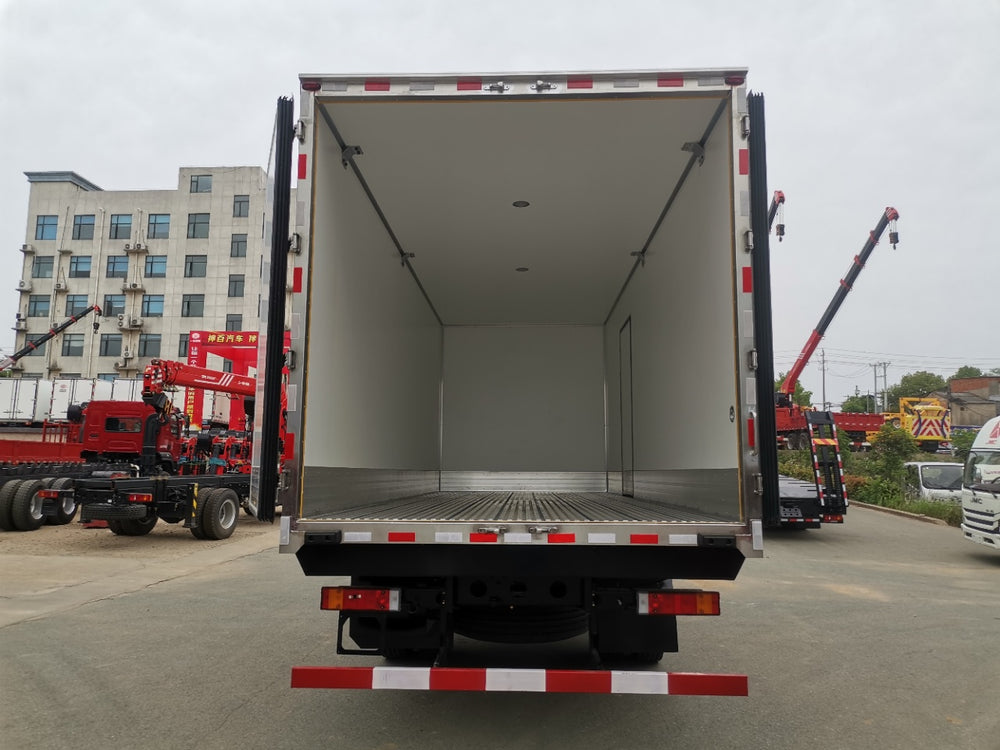

| 冷藏厢体 Insulated Cargo Box | |

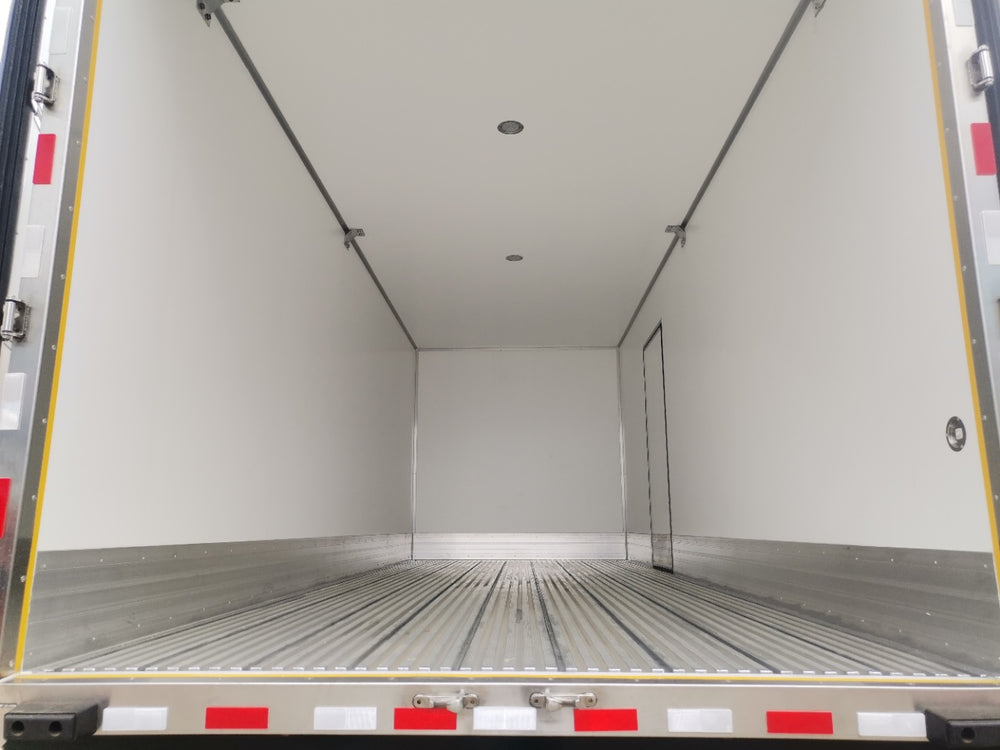

| Craft | Vacuum Integrated Sandwich Panel, 80mm A-grade PU Insulation, Bridge-break Heat Insulation |
| Material | Inner & Outer FRP + High Density PU Foam Core |
| Floor | Anti-slip Aluminum Checkered Plate + Full Sunken Air Duct |

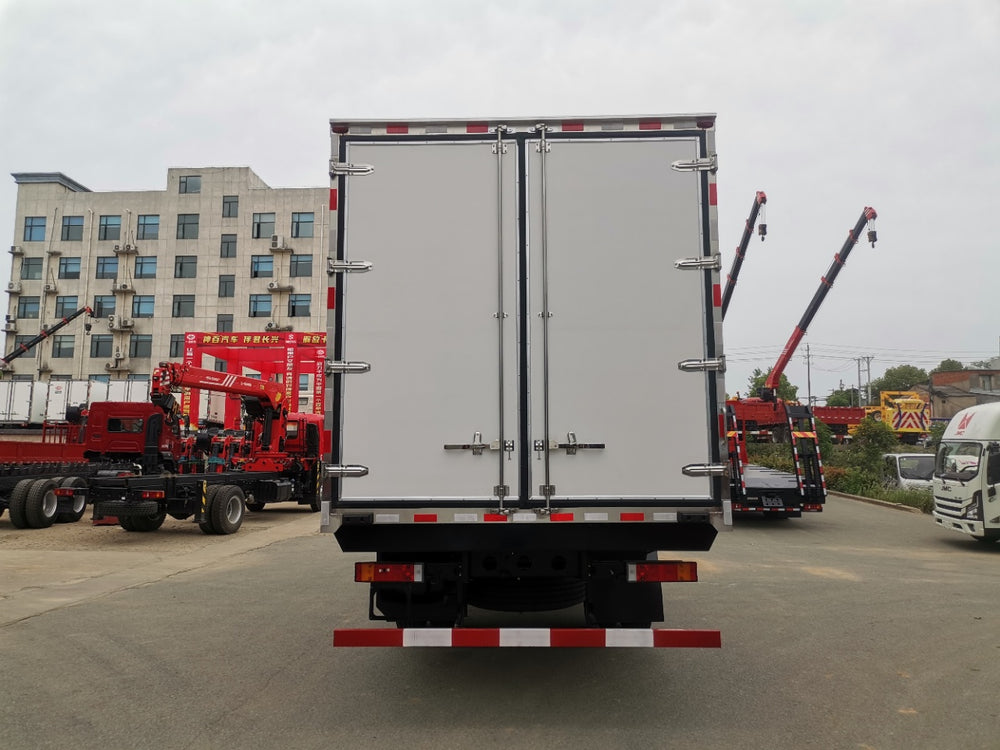

| Standard Fitting | Aluminium Wrap Edge, Stainless Steel Hinge&Lock, Labyrinth Seal, Inner LED Lamp, Rear Double Door |
| Optional Upgrade | Side Service Door, Meat Hanging Rails, Multi-layer Air Duct |
| 制冷机组 Refrigeration Unit | |
| Standard | Domestic Engine-driven PTO Refrigeration Unit |
| Import Option | Carrier / Thermo King Independent Cooling Unit |
| Temp Range | -18℃ ~ +25℃ Adjustable, R404A Refrigerant |
