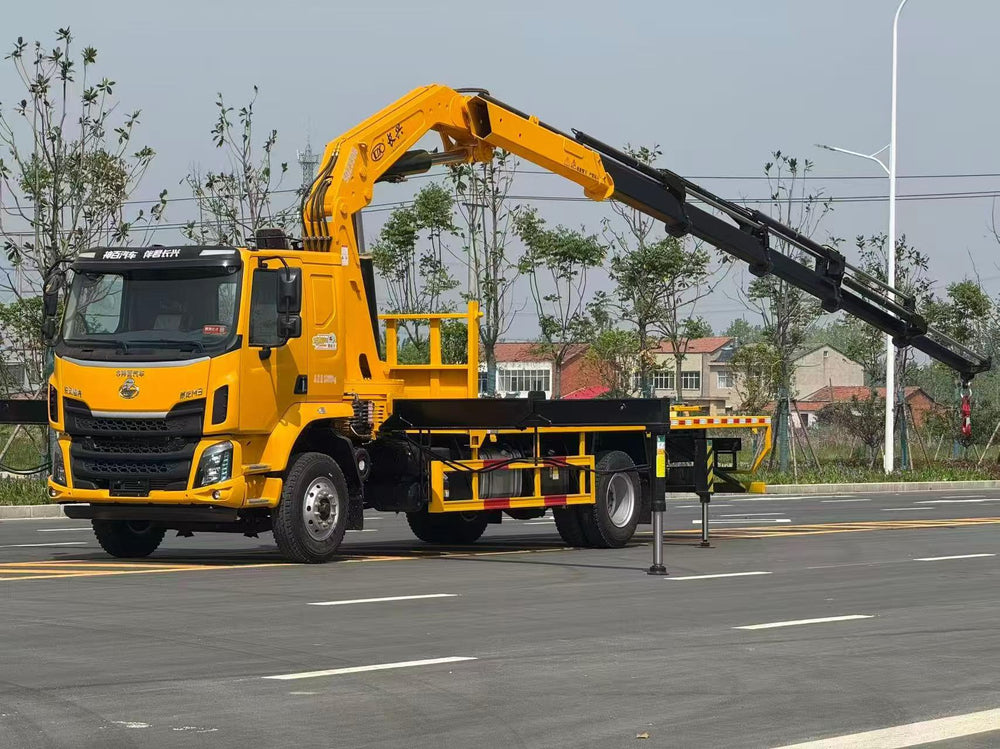

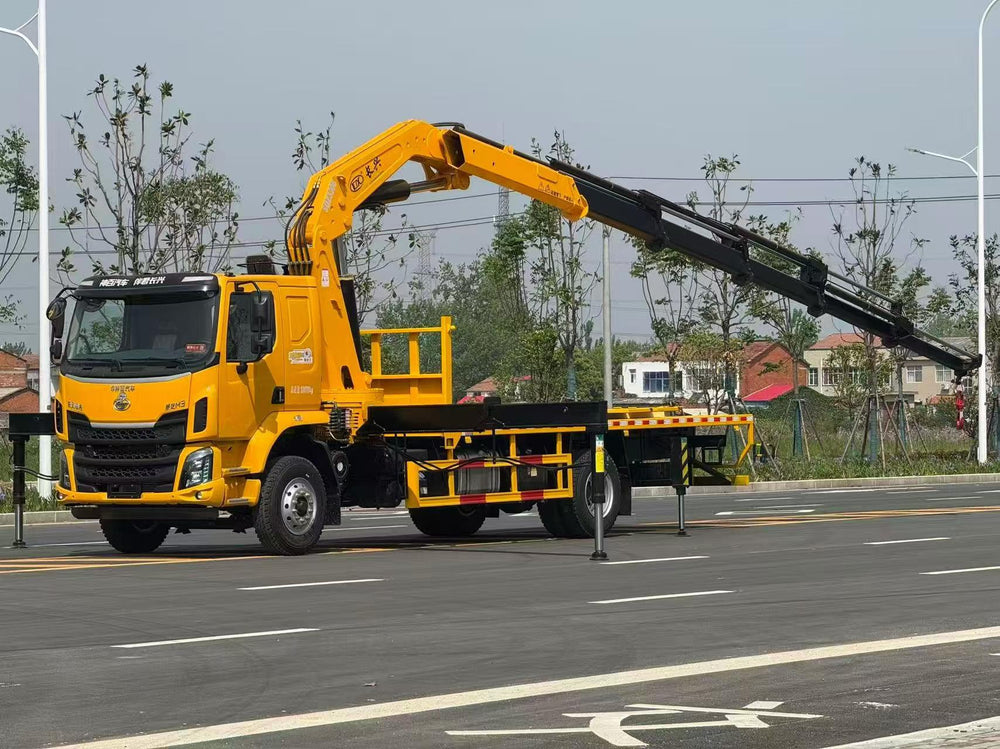

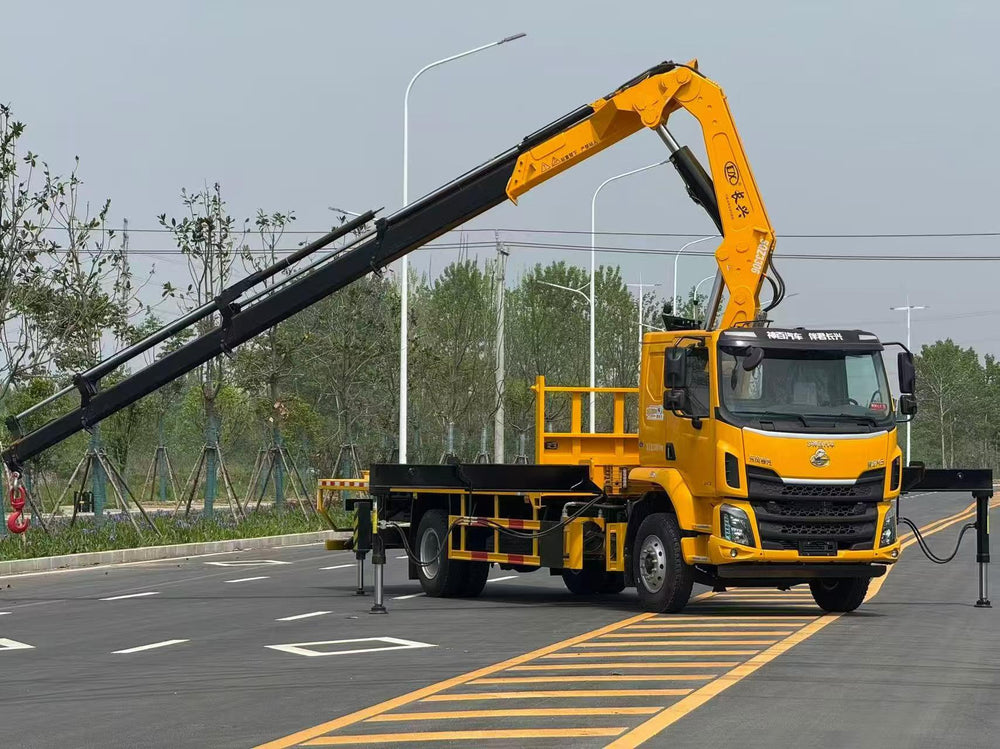

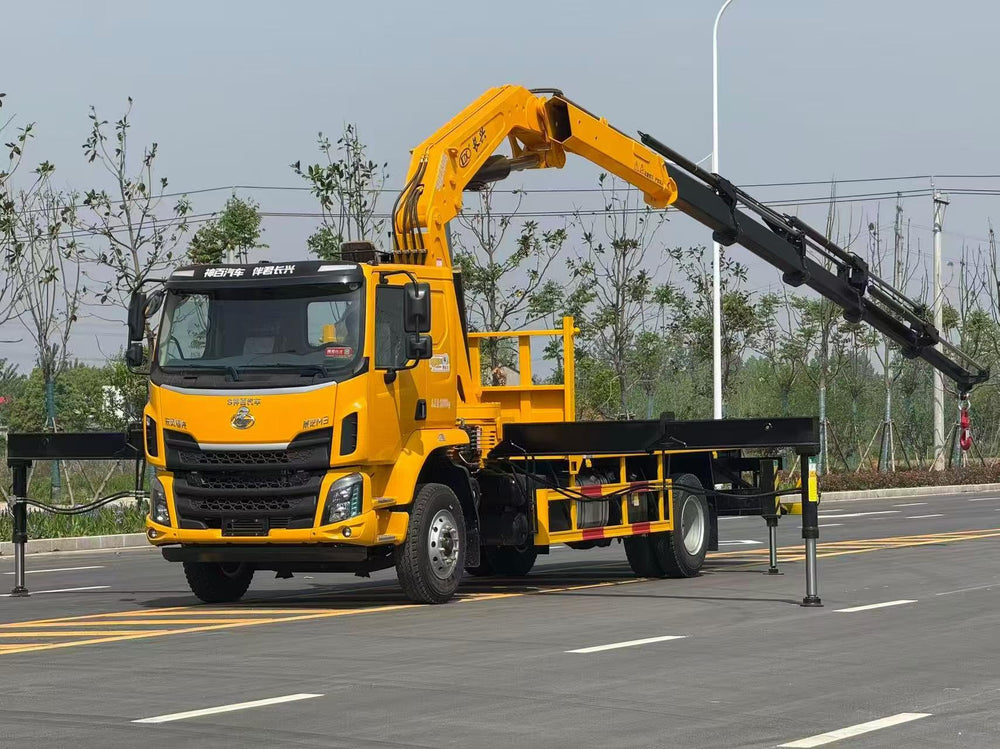

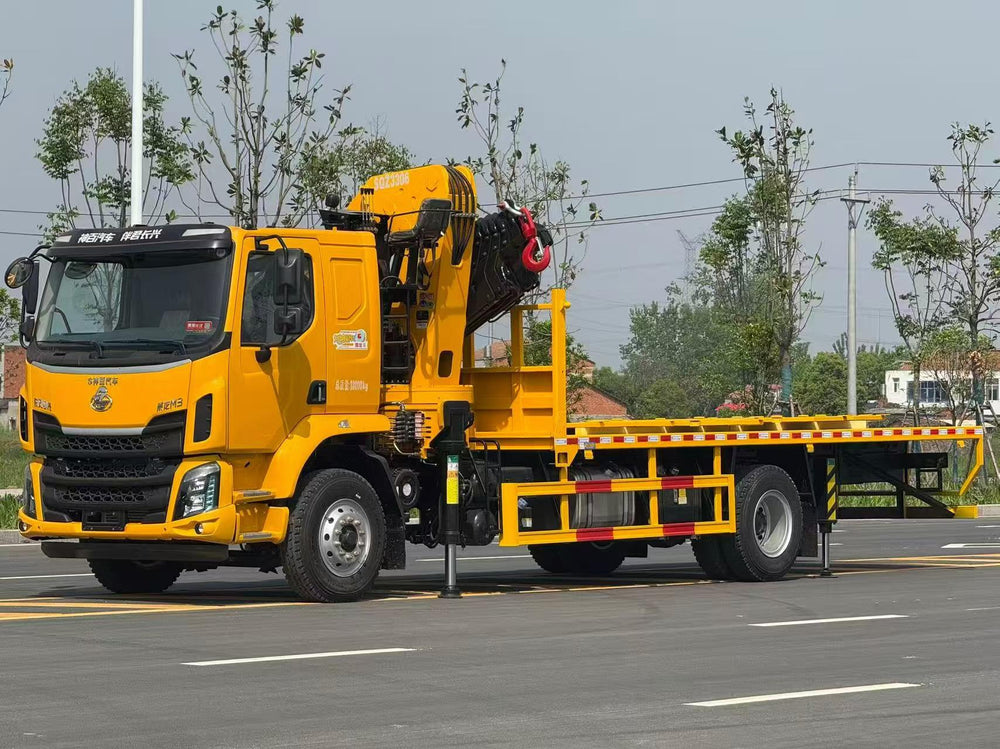

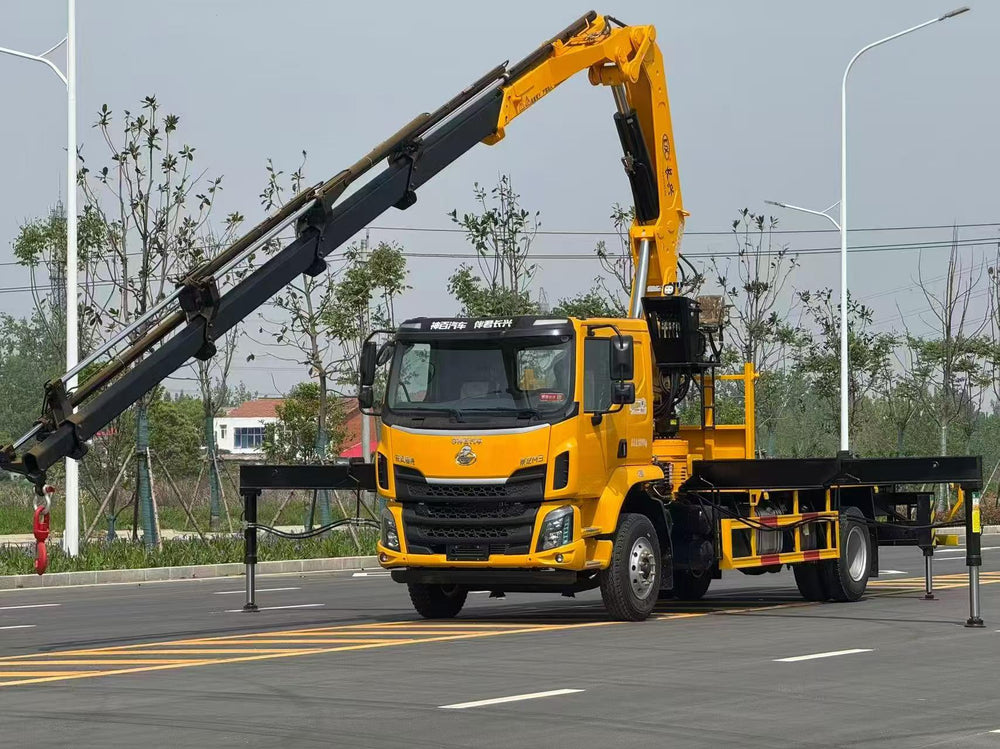

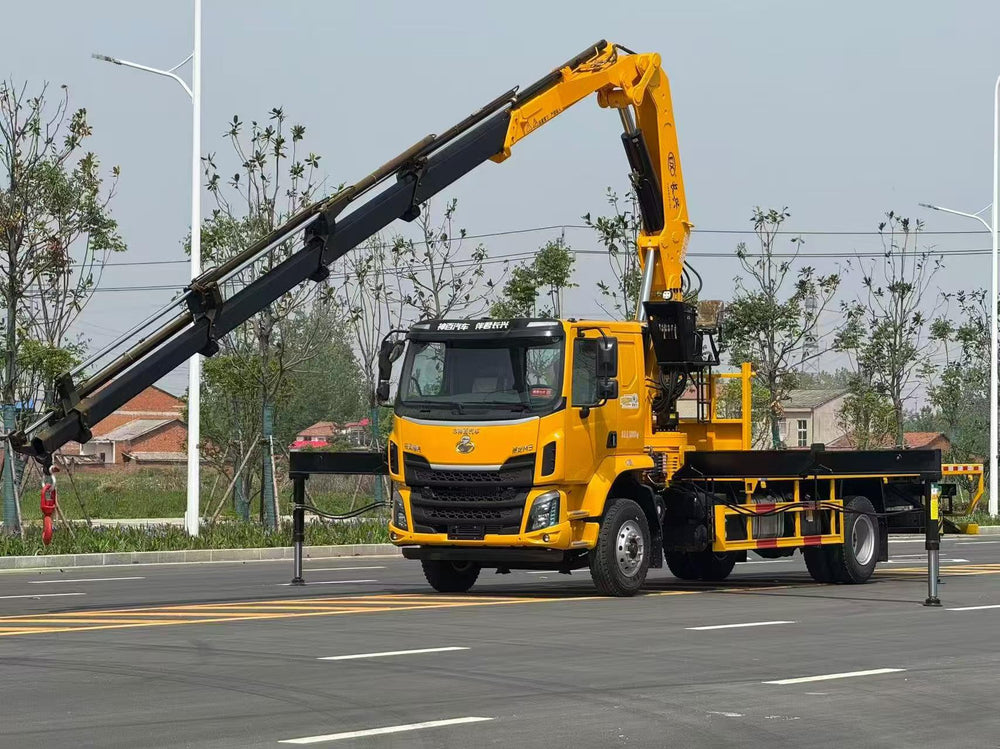

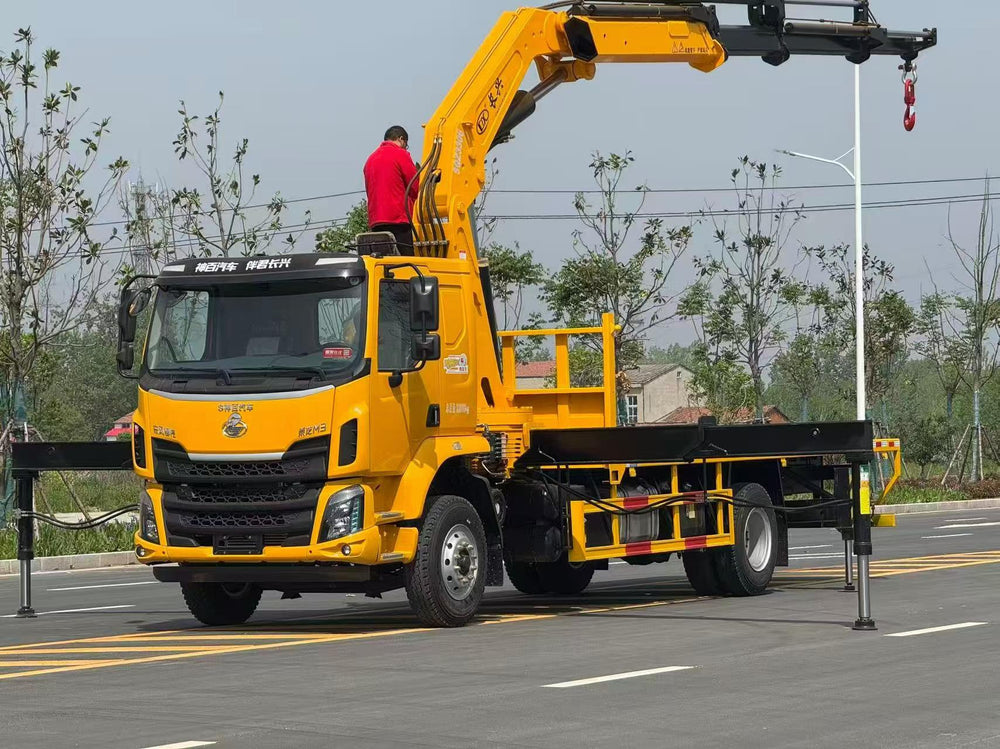

Dongfeng Liuzhou 16T Changxing Folding Boom Lorry Crane
| Configuration Category | Detailed Parameters |
|---|---|
| Vehicle Unit | Dongfeng Liuzhou Chenglong M3 4×2 (single axle) truck with Changxing SQZ3306 (CXSQZ330) 16-ton 6-section knuckle boom crane |
| Chassis Model | Dongfeng Liuzhou Chenglong M3 LZ5185JSQM3AC2, National VI (Euro VI) emission |
| Drive Type | 4×2 (single front axle + single rear axle) |
| Engine | Yuchai YC6JA245-60, 245HP (180kW), 6.87L, max torque 950N·m; optional Cummins 260HP |
| Transmission | Fast 8JS95E-C 8-speed manual (with synchronizer) |
| Wheelbase | 5700mm (for 7.2m cargo box) |
| Overall Dimensions (L×W×H) | Approx. 10100×2550×3780mm |
| GVW / Curb Weight / Rated Payload | 18000kg / Approx. 10500kg / Approx. 7500kg |
| Crane Model | Changxing (Shenbai) SQZ3306 (CXSQZ330) knuckle boom crane |
| Max Lifting Moment | 330kN·m (≈32t·m) |
| Max Rated Capacity | 16000kg (16 tons) @2m radius |
| Telescopic Sections | 6-section knuckle + telescopic (synchronous) |
| Max Hydraulic Boom Length | Approx. 16.2m |
| Max Working Radius | Approx. 16.0m |
| Max Lifting Height | Approx. 18.2–18.8m |
| Slewing Angle | 360° continuous rotation |
| Outriggers | Hydraulic telescopic, 2-stage double cylinder, composite front outriggers |
| Outrigger Span (retracted/extended) | 2300mm ~ 7200mm |
| Working Pressure / Flow | 30MPa / 80L/min |
| Hydraulic Tank / Cooler | 200L tank + standard oil cooler |
| Operation | Wireless remote + manual; optional high seat |
| Safety | Moment limiter, overload protection, E-stop, anti-rebound, balance valves |
| Crane Weight | Approx. 4.8 tons |
| Mounting | Mid-mount / rear-mount (rear-mount preferred) |
| Cargo Box (engineering) | 7.2m×2.45m×0.6m, high-strength manganese steel |
| Cabin | M3 single/half row, A/C, air suspension seat |
| Tires / Rear Axle | 10.00R20 steel tires, 10-ton rear axle |
