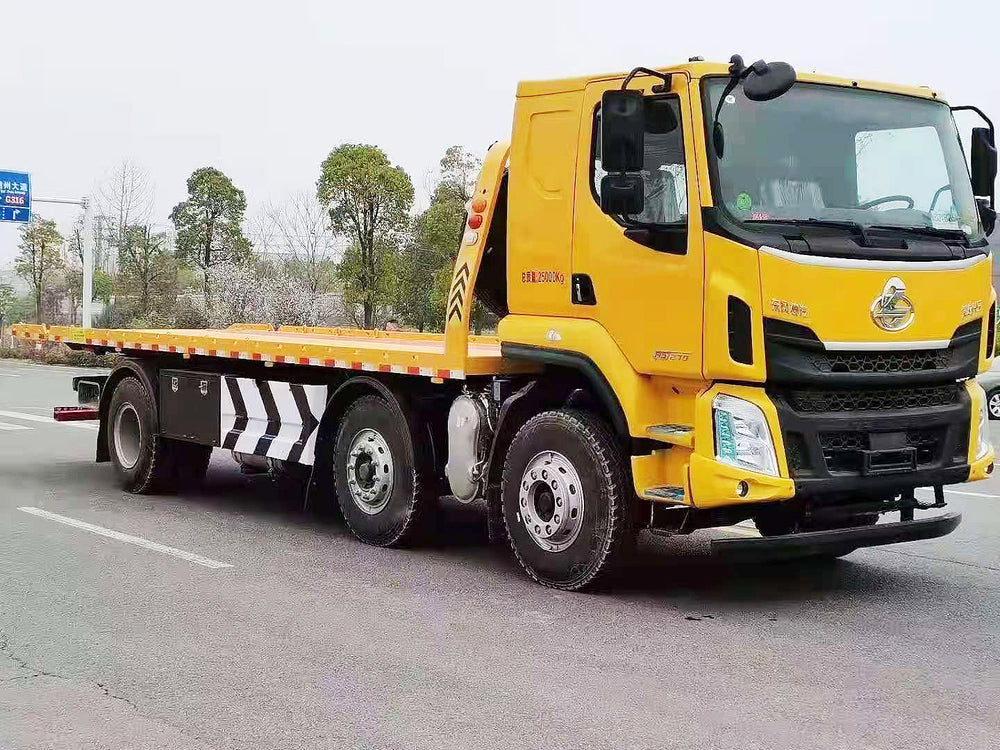

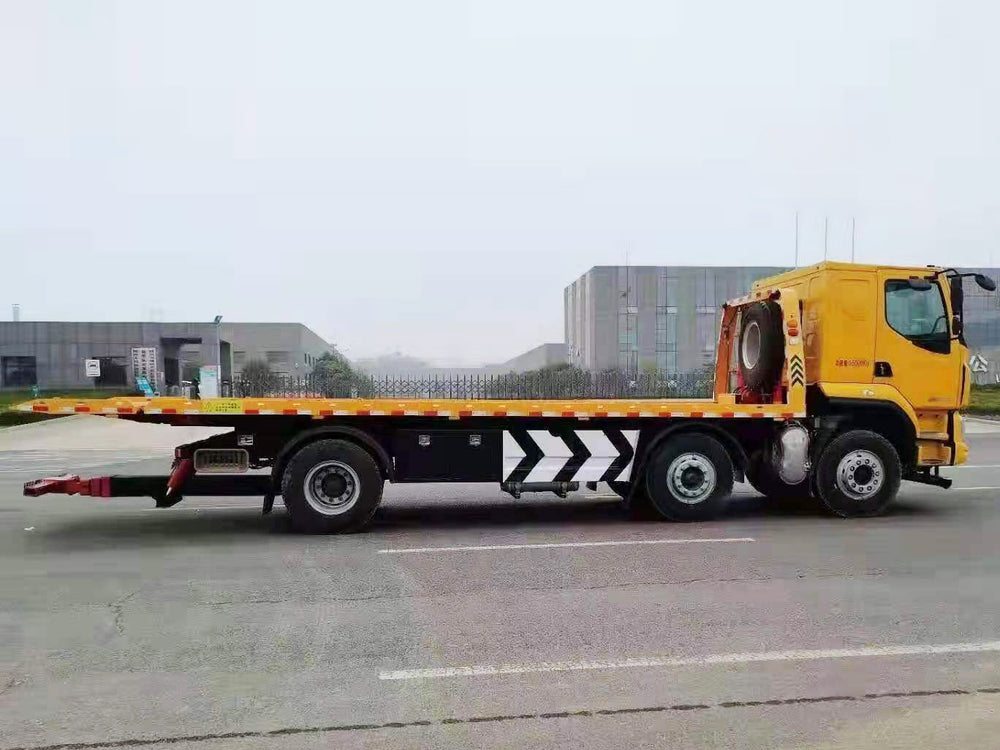

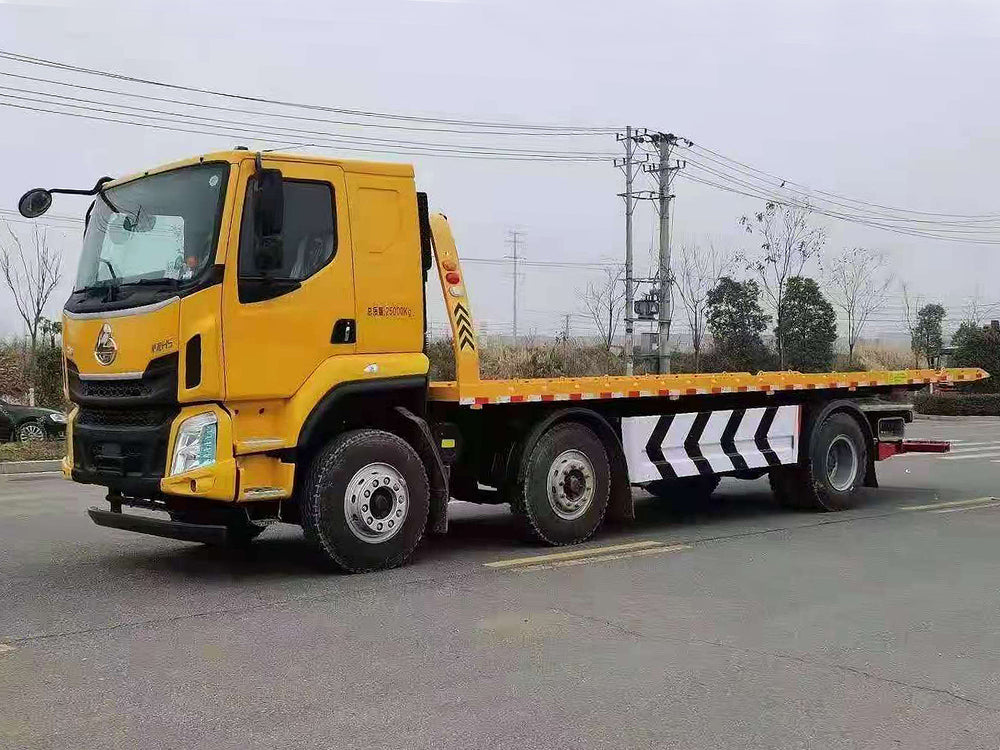

DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Wrecker Truck
| Configuration Item | Parameter Value |
|---|---|
| 1. Basic Vehicle Parameters | |
| Product Name | DONGFENG LIUZHOU MOTOR 6×2 (3-AXLE) Integrated Tow & Crane Wrecker Recovery Truck |
| Gross Vehicle Weight | 24500kg |
| Curb Weight | 14800kg |
| Overall Dimensions | 12345×2550×3150mm |
| Wheelbase | 2050+5350mm |
| Maximum Design Speed | 89km/h |
| Maximum Gradeability | 30% |
| Emission Standard | China VI |
| Cab Capacity | 3 Persons |
| Approach Angle / Departure Angle | 20° / 6° |
| Front Overhang / Rear Overhang | 1445mm / 3500mm |
| Axle Configuration | 6×2 (3-Axle, 1 front steering axle + 1 steering drive axle + 1 rear drive axle) |
| 2. Chassis Configuration | |
| Chassis Model | LZ1253H5CCT |
| Engine Model | Yuchai YCK05260-61 |
| Engine Type | Inline 4-cylinder, 4-stroke, Water-cooled, Turbocharged Intercooled Diesel Engine |
| Maximum Horsepower | 260HP (191kW) |
| Maximum Torque | 950N·m @ 1200-1600rpm |
| Gearbox Model | Fast JS95TE-C 9-speed Manual Gearbox with Overdrive |
| Power Take-off (PTO) | Flange-type Hydraulic PTO, Matched with Gearbox |
| Front Axle | 2×4.2T Forged I-beam Steering Front Axle, Disc Brake |
| Rear Axle | 153/4.444 Single-stage Reduction Rear Drive Axle, 10-ton Grade, Drum Brake |
| Axle Ratio | 4.444 |
| Frame Structure | Double-layer Reinforced Frame (8+8mm Thickness, 264mm Width) |
| Suspension System | Front and Rear Reinforced Multi-leaf Springs (11/11/12+9 Leaves) |
| Tire Specification | 10.00R20 18PR Steel Radial Tires |
| Braking System | Dual-circuit Air Brake System, ABS (4S/4M), Automatic Brake Adjusting Arm |
| Steering System | Hydraulic Power Steering with Integral Steering Gear |
| Fuel Tank | 350L Aluminum Alloy Fuel Tank |
| Cab Configuration | Liuzhou Motor M31B Wide-body Row-half Cab, Mechanical Semi-floating Suspension, Leather Airbag Driver's Seat, Factory Air Conditioning, Electric Windows, Central Locking, Electric Heated Rearview Mirrors, Multifunctional Steering Wheel, Cruise Control, Driving Recorder, V+ Telematics 3.0 System |
| 3. Superstructure Special Configuration | |
| Superstructure Model | 16T Integrated Wrecker and Crane Superstructure |
| Crane Boom | 2-section Hexagonal High-strength Steel Plate Telescopic Boom, 360° Full Rotation, Planetary Reduction Mechanism |
| Maximum Lifting Capacity of Crane | 16 Tons |
| Maximum Working Radius of Crane Boom | 12.5m |
| Tow Arm | 3-section Telescopic and Liftable Tow Arm, High-strength Steel Welded Structure |
| In-situ Lifting Capacity of Tow Arm | 16 Tons |
| Maximum Lifting Capacity at Full Extension | 6.5 Tons |
| Maximum Towing Capacity | 25 Tons |
| Maximum Traction Capacity of Drawbar | 50 Tons |
| Effective Length of Tow Arm | 1350mm-2800mm |
| Telescopic Stroke of Tow Arm | 1750mm |
| Hydraulic System | Imported Hydraulic Valve Group and Seals, Bilateral Linkage Operation Device, Wireless Remote Control Operation, Overload Protection Device |
| Hydraulic Winch | 2 Sets of 10-ton Hydraulic Winches, 45m Steel Wire Rope (Diameter 18mm), with 20-ton Safety Hooks |
| Outriggers | 4 Double-cavity Hydraulic Outriggers, Front Outriggers are Foldable, with Mechanical Locking Device |
| Flatbed | 12P12 Pattern Steel Flatbed (8mm Thickness), Main Board Tail Can Be Hydraulically Flipped, Total Length 9.2m, Width 2.55m |
| Compartment | Split-type Tool Compartment, Welded with High-strength Steel Plate, with Lockable Doors |
| Counterweight | 1.5-ton Counterweight Installed on Front Bumper |
| Standard Configuration | 1 Set of U-type Tire Holding Device, 5 Pairs of Tow Forks, 1 Pair of Tow Fork Seats, 2 Chain Hooks, 1 Hand Wash Box, 1 Set of Auxiliary Light Assembly, 1 Set of Auxiliary Brake Air Pipe Assembly, 1 LED Long-row Engineering Warning Light, Reversing Image System, 1 Set of On-board Special Tools, 4 Nylon Binding Belts, 2 Auxiliary Small Wheels |
| 4. Performance Parameters | |
| Maximum Lifting Height of Crane Boom | 11.5m |
| Slewing Angle of Crane Boom | 360° Full Continuous Rotation |
| Upward/Downward Inclination Angle of Tow Arm | 7° / -7° |
| Folding Angle of Tow Arm | -7° ~ 90° |
| Maximum Ground Clearance of Fully Retracted Tow Arm Upper Surface | 850mm |
| Minimum Limiting Speed of Steel Wire Rope | 5m/min |
| Rated Working Pressure of Hydraulic System | 16MPa |
| Maximum Flow Rate of Hydraulic System | 80L/min |
| Operating Temperature Range | -20℃ ~ +45℃ |
