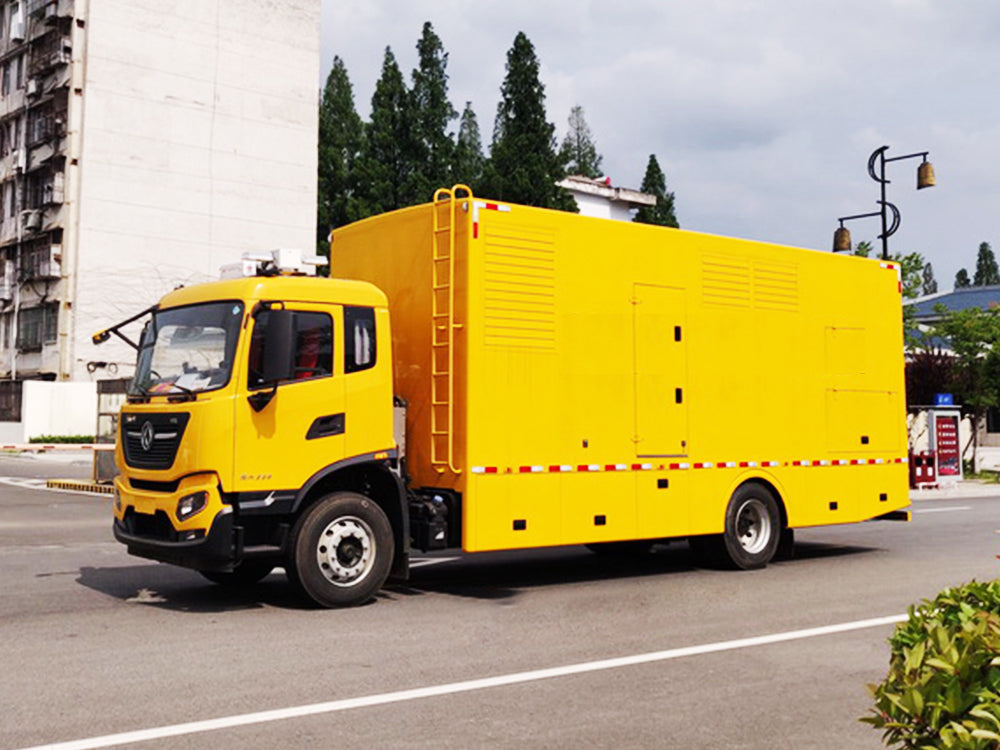

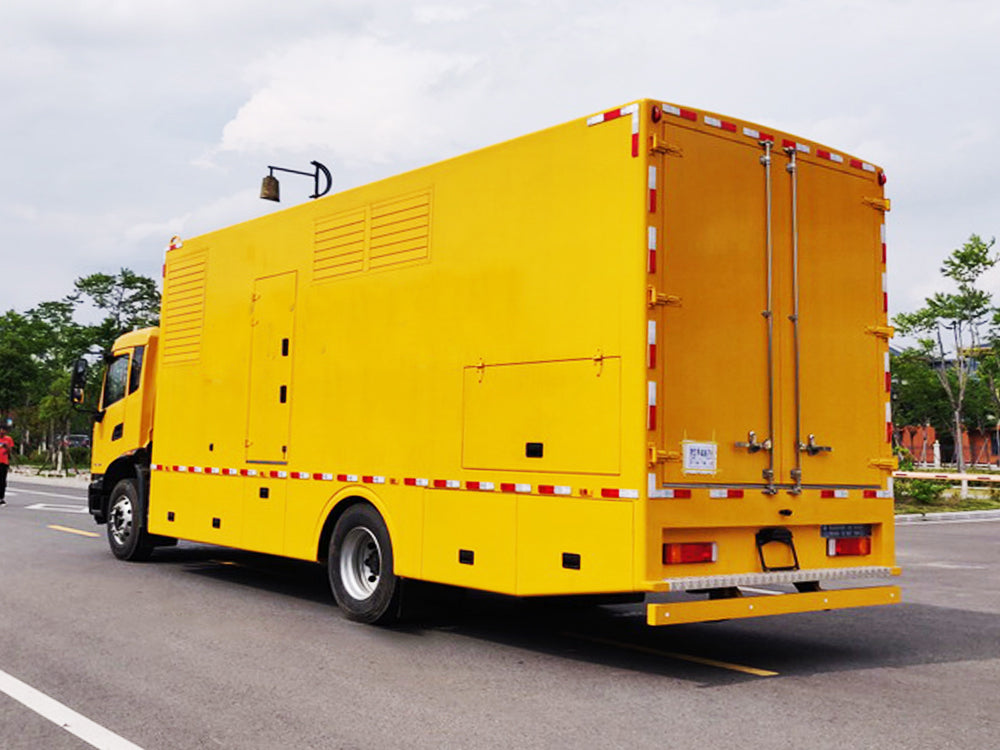

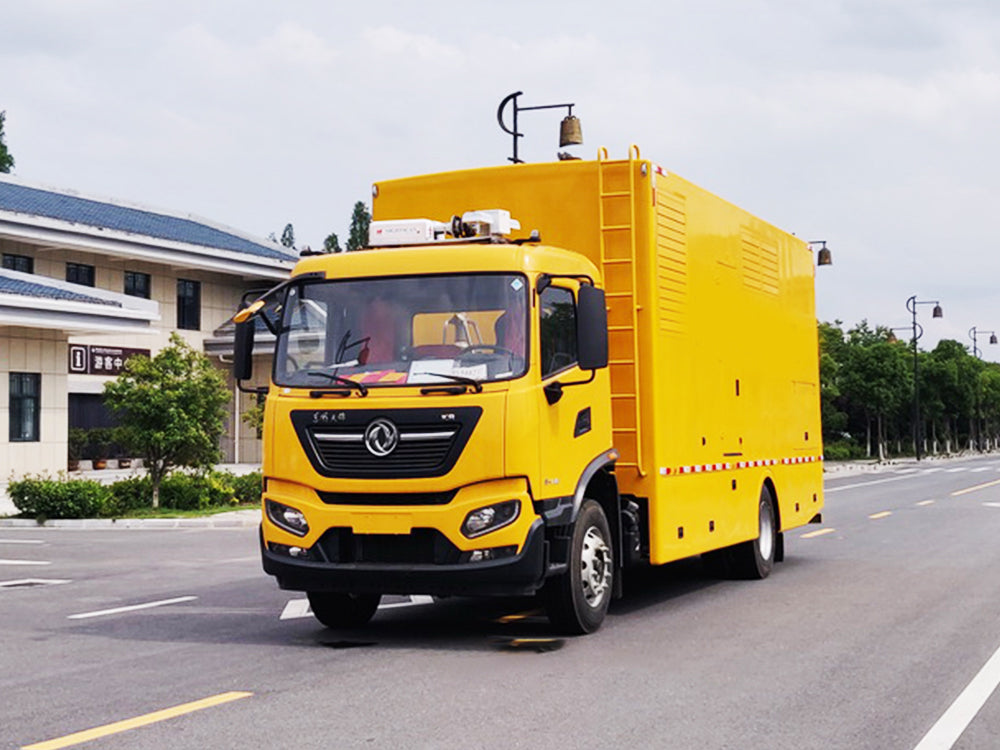

Dongfeng Tianjin 4×2 Drainage & Rescue Vehicle
| Configuration Item | Specification & Parameter |
|---|---|
| Vehicle Basic Parameters | |
| Vehicle Model | Dongfeng Tianjin 4×2 Drainage & Rescue Vehicle |
| Rated Drainage Flow | 300m³/h ~ 1000m³/h (Optional) |
| Maximum Suction Lift | ≥ 6m |
| Rated Head | ≥ 20m |
| Drive Type | 4×2 (Single Rear Axle) |
| Overall Dimensions (L×W×H) | ≤ 9500mm × 2550mm × 3600mm |
| Curb Weight | ≤ 12500kg |
| Gross Vehicle Weight | ≤ 18000kg |
| Maximum Speed | ≥ 90km/h |
| Minimum Turning Radius | ≤ 8.5m |
| Gradeability | ≥ 25% |
| Operating Temperature Range | -40℃ ~ +50℃ |
| Chassis System | |
| Chassis Model | Dongfeng Tianjin DFL1180BX6 |
| Cab Type | D530 Integrated Cab, Air Suspension Seat, Air Conditioning |
| Number of Axles | 2 |
| Wheelbase | 4200mm |
| Tire Specification | 11.00R20 Radial Tires (6+1 Spare) |
| Front Axle Rated Load | ≤ 6500kg |
| Rear Axle Rated Load | ≤ 11500kg |
| Suspension System | Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar |
| Brake System | Dual Circuit Air Brake, ABS, ASR, Exhaust Brake |
| Steering System | Hydraulic Power Steering |
| Engine System | |
| Engine Brand | Dongfeng Cummins / Dongfeng Chaochai (Domestic Top Tier) |
| Engine Type | 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine |
| Number of Cylinders | Inline 6 Cylinders |
| Displacement | ≥ 6.7L |
| Rated Power | 180KW ~ 320KW @ 2200rpm |
| Rated Speed | 2200rpm |
| Maximum Torque | ≥ 1100N·m @ 1200-1600rpm |
| Fuel System | Electronic Fuel Injection, High Pressure Common Rail |
| Cooling System | Forced Water Cooling, Large Capacity Radiator |
| Air Intake System | Dry Air Filter, Double Stage Filtration |
| Exhaust System | Vertical Exhaust Pipe, Spark Arrestor, Muffler |
| Fuel Tank Capacity | ≥ 300L |
| Fuel Consumption | ≤ 195g/KW·h |
| Emission Standard | China VI / Euro V (Optional) |
| Drainage & Pumping System (Core) | |
| Pump Brand | Domestic Top Tier Pump Manufacturer / Imported Brand (Optional) |
| Pump Type | Self-Priming Centrifugal Pump, Non-Clogging Design |
| Impeller Material | High Chromium Cast Iron / Stainless Steel (Optional) |
| Pump Casing Material | Ductile Iron |
| Rated Flow | 300m³/h / 500m³/h / 800m³/h / 1000m³/h (Optional) |
| Rated Head | 20m / 25m / 30m (Optional) |
| Maximum Suction Lift | 6m (Static Water) |
| Self-Priming Time | ≤ 60s (For 6m Suction Lift) |
| Drive Mode | Engine Direct Drive / Hydraulic Drive (Optional) |
| Pipeline System | Large Diameter Suction & Discharge Pipes, Quick Connect Couplings |
| Pipe Diameter | DN200 / DN250 / DN300 (Corresponding to Flow) |
| Valve System | Electric Control Gate Valves, Check Valves, Ball Valves |
| Filter System | Suction Strainer, Double Stage Filtration, Anti-Clogging Design |

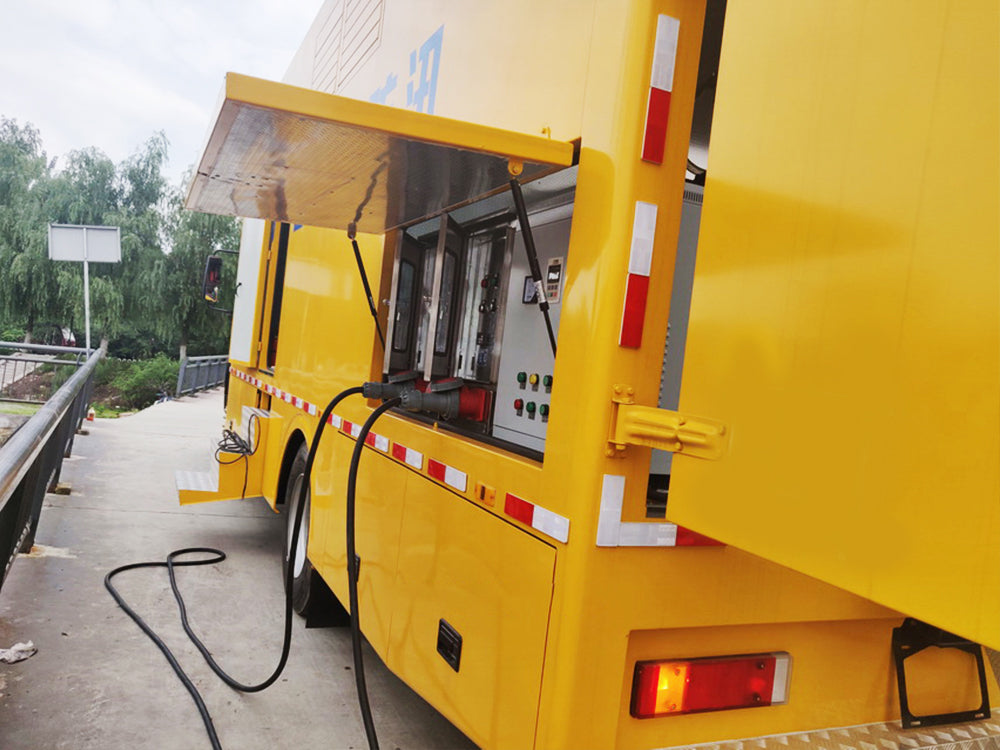

| Power Distribution & Control System | |
| Control System Type | Intelligent Digital Integrated Control System |
| Display Unit | 7-inch Color Touch Screen, Real-time Data Display |
| Monitoring Parameters | Engine Speed, Oil Pressure, Water Temperature, Fuel Level, Pump Flow, Pressure, Vacuum Degree, Battery Voltage |
| Protection Functions | Overpressure, Underpressure, Overflow, Low Oil Pressure, High Water Temperature, Over Speed, Suction Loss Protection, Pipeline Blockage Protection |
| Alarm Functions | Sound & Light Alarm for Abnormal Parameters, Fault Code Display |
| Starting System | 24V DC Electric Starting, Dual Battery Pack (≥ 150Ah) |
| Emergency Stop | Multiple Emergency Stop Buttons (Cab, Compartment, Outside) |
| Operation Mode | Local Manual Operation, Remote Operation, Automatic Operation (Optional) |
| Remote Monitoring | Support 4G Remote Monitoring, GPS Positioning, Operation Data Upload (Optional) |
| Compartment & Installation System | |
| Compartment Structure | All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation |
| Compartment Material | Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton |
| Sound Insulation Performance | Noise Level ≤ 78dB(A) @ 1m, Rated Load |
| Ventilation System | Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust and Water Proof Filters |
| Rainproof Design | Rainproof Louvers, Sealed Compartment Doors, Drainage System, Anti-Ponding Design |
| Installation Structure | High Strength Steel Chassis Frame, Vibration Damping Mounts for Pump Unit and Engine |
| Compartment Doors | Double Opening Rear Doors, Side Maintenance Doors, Lockable, Anti-Theft Design |
| Lighting System | LED Interior Lighting, Work Lights, Emergency Lighting, Flood Lights for Night Operation |
| Hose Management | Hose Compartment, Hose Reels, Quick Coupling Storage, Fixing Brackets |
| Lifting Points | Multiple Lifting Lugs for Whole Vehicle Lifting |
| Safety & Protection System | |
| Fire Protection System | Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers |
| Grounding System | Reliable Grounding Device, Grounding Cable, Grounding Rod for Static Elimination |
| High Pressure Protection | Pressure Relief Valve, Pipeline Burst Protection, Overpressure Alarm |
| Anti-Corrosion Protection | Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint, Salt Spray Resistant |
| Lightning Protection | Lightning Protection Device for Electrical System |
| Safety Marking | Standard Safety Warning Signs, Operation Instructions, Reflective Markings, Anti-Slip Stickers |
| Cab Safety | Airbag, Seat Belt, Crash Protection Structure, Rollover Protection |
| Operation Safety | Interlock Protection for Pump and Engine, Safety Guard for Rotating Parts |
| Optional Configuration | |
| Pump Upgrade | Higher Flow Pump (up to 2000m³/h), Higher Head Pump, Stainless Steel Pump for Corrosive Water |
| Operation System | Wireless Remote Control, Automatic Drainage Control, PLC Intelligent Control System |
| Hose Configuration | Large Diameter Suction & Discharge Hoses, Quick Connect Couplings, Hose Reels, Hose Storage Rack |
| Power Supply System | On-board Generator Set (5KW-30KW), Independent Power Supply for Auxiliary Equipment |
| Low Noise Package | Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m |
| Fuel Tank Upgrade | Large Capacity Fuel Tank (≥ 500L), Long Endurance Operation |
| Cold Climate Package | Engine Pre-Heating System, Compartment Heating System, Battery Insulation, Anti-Freezing System for Pipes |
| Hot Climate Package | Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating, Heat Insulation Upgrade |
| Video Monitoring System | Interior & Exterior Cameras, DVR, Display, Night Vision Camera |
| Auxiliary Equipment | Water Quality Detection Device, Sludge Suction Device, High Pressure Cleaning Device, Lighting Tower |
