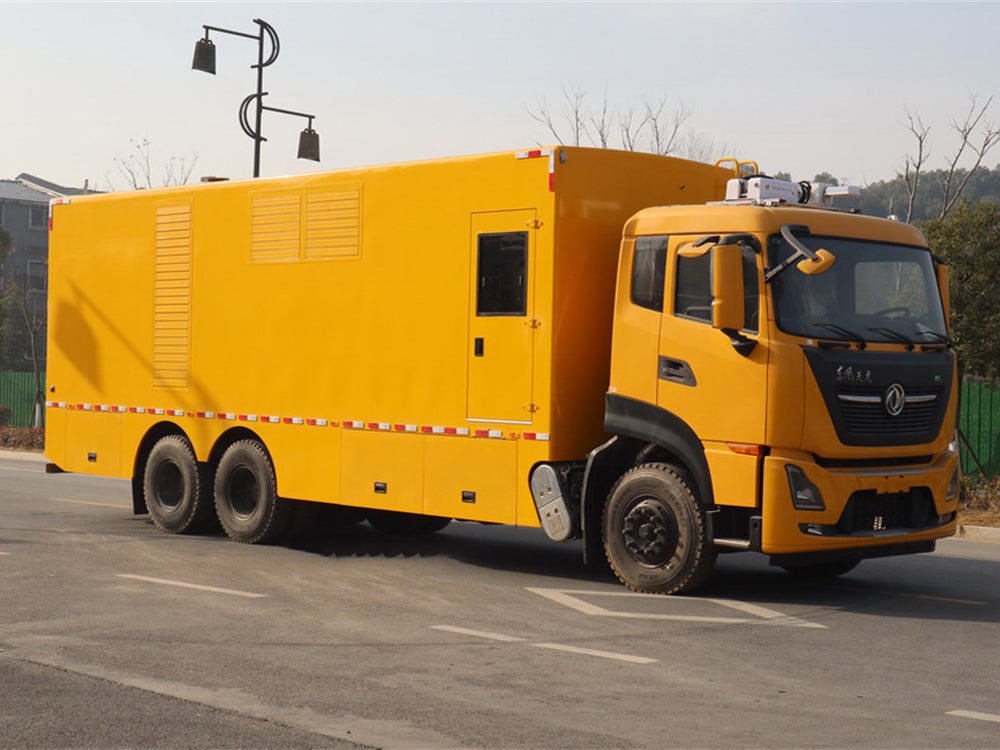

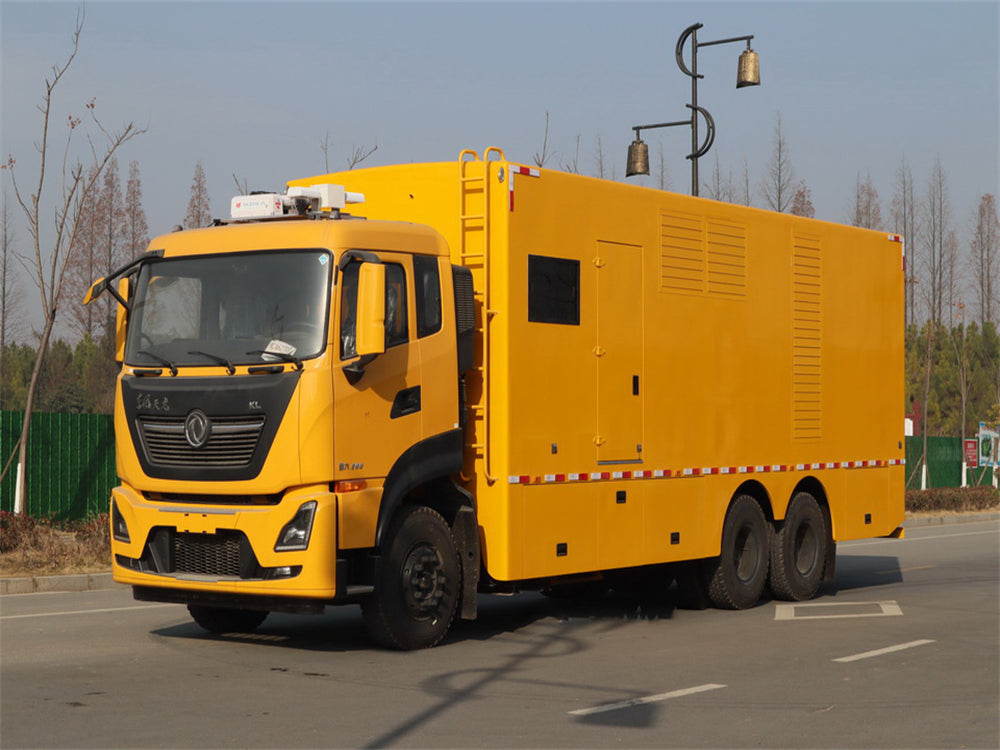

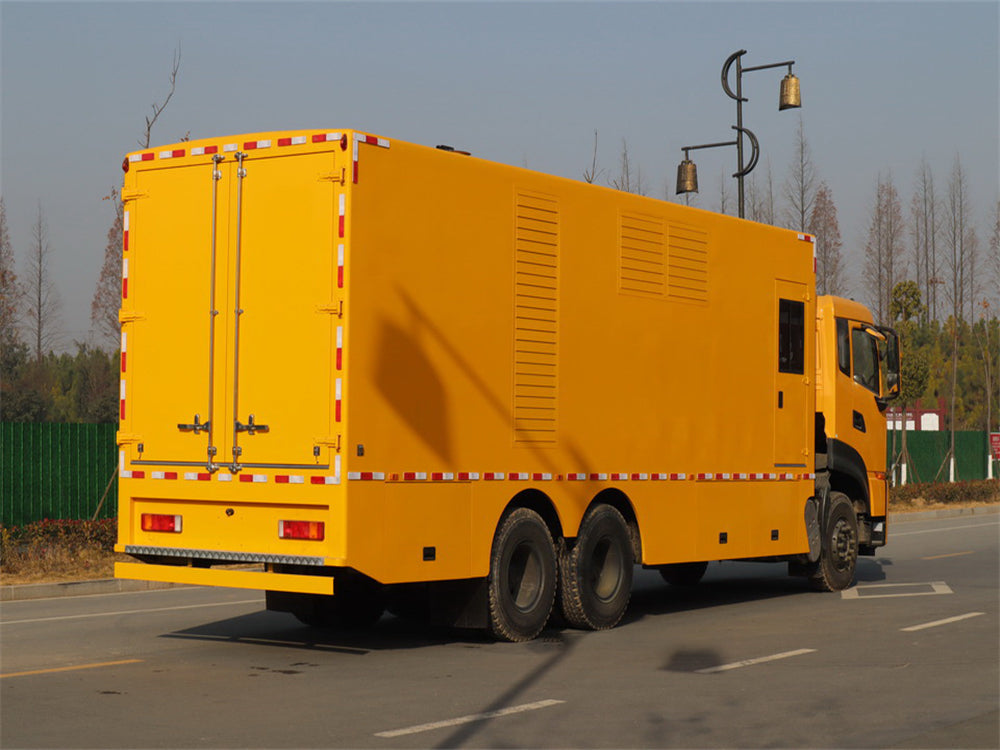

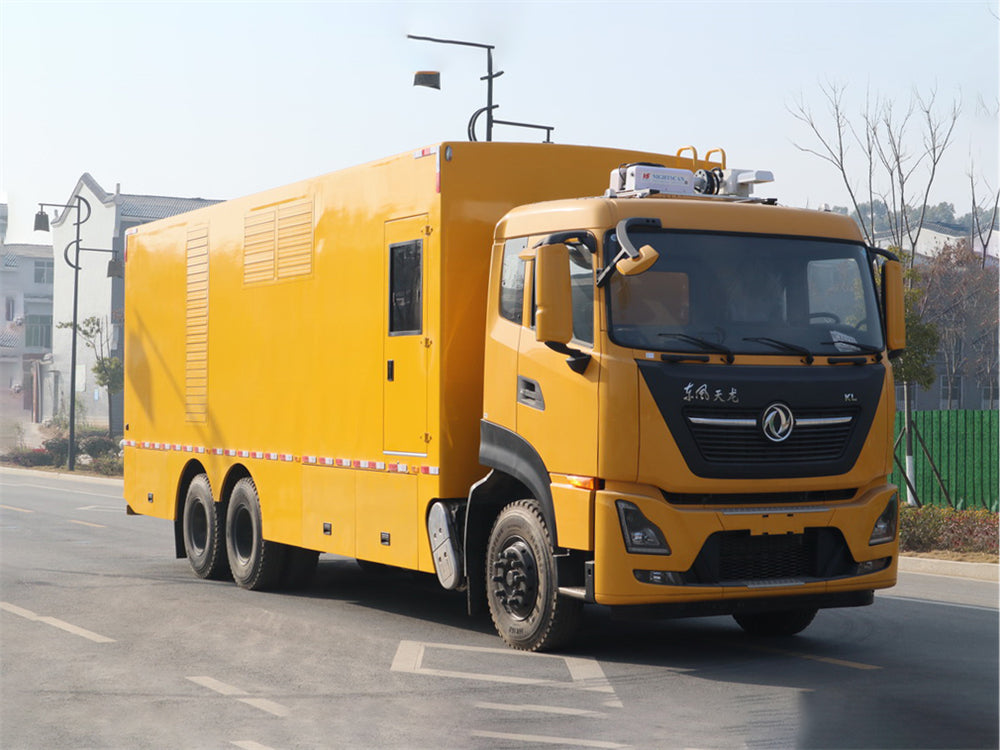

Dongfeng Tianlong Rear Double Axle Power Vehicle
| Configuration Item | Specification & Parameter |
|---|---|
| Vehicle Basic Parameters | |
| Vehicle Model | Dongfeng Tianlong Rear Double Axle Power Vehicle |
| Rated Power Range | 500KW - 800KW |
| Drive Type | 6×4 (Rear Double Axle) |
| Overall Dimensions (L×W×H) | ≤ 12000mm × 2550mm × 3800mm |
| Curb Weight | ≤ 18000kg |
| Gross Vehicle Weight | ≤ 32000kg |
| Maximum Speed | ≥ 90km/h |
| Minimum Turning Radius | ≤ 9.5m |
| Gradeability | ≥ 30% |
| Operating Temperature Range | -40℃ ~ +50℃ |
| Chassis System | |
| Chassis Model | Dongfeng Tianlong DFL1320A |
| Cab Type | D320 Integrated Cab, Air Suspension Seat |
| Number of Axles | 3 |
| Wheelbase | 4350+1350mm |
| Tire Specification | 12.00R20 Radial Tires (10+1 Spare) |
| Front Axle Rated Load | ≤ 7500kg |
| Rear Axle Rated Load | ≤ 24500kg |
| Suspension System | Front: Leaf Spring + Shock Absorber; Rear: Leaf Spring + Stabilizer Bar |
| Brake System | Dual Circuit Air Brake, ABS, ASR |
| Steering System | Hydraulic Power Steering |
| Engine System | |
| Engine Brand | Domestic Top Tier Brand / Imported Brand (Optional) |
| Engine Type | 4-Stroke, Water-Cooled, Turbocharged, Intercooled Diesel Engine |
| Number of Cylinders | V12 / Inline 6 Cylinders |
| Displacement | ≥ 15L |
| Rated Power | 550KW ~ 880KW @ 1500rpm |
| Rated Speed | 1500rpm |
| Maximum Torque | ≥ 3500N·m @ 1000-1200rpm |
| Fuel System | Electronic Fuel Injection, High Pressure Common Rail |
| Cooling System | Forced Water Cooling, Large Capacity Radiator |
| Air Intake System | Dry Air Filter, Double Stage Filtration |
| Exhaust System | Vertical Exhaust Pipe, Spark Arrestor, Muffler |
| Fuel Tank Capacity | ≥ 500L |
| Fuel Consumption | ≤ 205g/KW·h |
| Emission Standard | China VI / Euro V (Optional) |
| Generator Set System | |
| Generator Brand | Domestic Top Tier Brand / Imported Brand (Optional) |
| Generator Type | Brushless, Self-Excited, 3-Phase AC Synchronous Generator |
| Rated Power Output | 500KW / 600KW / 700KW / 800KW (Optional) |
| Rated Voltage | 400V / 230V (3-Phase 4-Wire) |
| Rated Current | 900A ~ 1440A (Corresponding to Power) |
| Rated Frequency | 50Hz |
| Power Factor | 0.8 (Lagging) |
| Insulation Class | H Class |
| Protection Level | IP23 |
| Voltage Regulation Accuracy | ≤ ±0.5% |
| Frequency Regulation Accuracy | ≤ ±0.5% |
| Maximum Transient Voltage Deviation | ≤ ±15% |
| Maximum Transient Frequency Deviation | ≤ ±10% |
| Excitation System | Automatic Voltage Regulation (AVR) |
| Power Distribution & Control System | |
| Control System Type | Intelligent Digital Integrated Control System |
| Display Unit | 7-inch Color Touch Screen, Real-time Data Display |
| Monitoring Parameters | Voltage, Current, Frequency, Power, Oil Pressure, Water Temperature, Speed, Fuel Level, Battery Voltage |
| Protection Functions | Overvoltage, Undervoltage, Overfrequency, Underfrequency, Overload, Short Circuit, Low Oil Pressure, High Water Temperature, Over Speed, Phase Loss, Reverse Power |
| Alarm Functions | Sound & Light Alarm for Abnormal Parameters, Fault Code Display |
| Starting System | 24V DC Electric Starting, Dual Battery Pack (≥ 200Ah) |
| Emergency Stop | Multiple Emergency Stop Buttons (Cab, Compartment, Outside) |
| Power Distribution Panel | Copper Busbar Design, Main Circuit Breaker, Output Terminals |
| Output Interface | Multiple Industrial Sockets / Hard Wiring Terminals, Customizable |
| Parallel Operation Capability | Support Multi-unit Parallel Operation (Optional) |
| Remote Monitoring | Support 4G Remote Monitoring, GPS Positioning (Optional) |
| Compartment & Installation System | |
| Compartment Structure | All-Steel Welded Frame, Waterproof, Dustproof, Soundproof, Heat Insulation |
| Compartment Material | Outer: Cold Rolled Steel Plate; Inner: Galvanized Steel Plate; Middle: Fireproof Sound-Absorbing Cotton |
| Sound Insulation Performance | Noise Level ≤ 75dB(A) @ 1m, 70% Load |
| Ventilation System | Forced Ventilation with Large Capacity Fans, Air Inlet/Outlet with Dust Filter |
| Rainproof Design | Rainproof Louvers, Sealed Compartment Doors, Drainage System |
| Installation Structure | High Strength Steel Chassis Frame, Vibration Damping Mounts for Generator Set |
| Compartment Doors | Double Opening Rear Doors, Side Maintenance Doors, Lockable |
| Lighting System | LED Interior Lighting, Work Lights, Emergency Lighting |
| Cable Management | Cable Compartment, Cable Reel (Optional), Cable Fixing Brackets |
| Lifting Points | Multiple Lifting Lugs for Whole Vehicle Lifting |
| Safety & Protection System | |
| Fire Protection System | Automatic Fire Detection & Suppression System, Dry Powder Fire Extinguishers |
| Grounding System | Reliable Grounding Device, Grounding Cable, Grounding Rod |
| High Voltage Protection | Insulation Monitoring, High Voltage Interlock Protection |
| Anti-Corrosion Protection | Whole Vehicle Sandblasting, Anti-Rust Primer, Anti-Corrosion Paint |
| Lightning Protection | Lightning Protection Device for Electrical System |
| Safety Marking | Standard Safety Warning Signs, Operation Instructions, Reflective Markings |
| Cab Safety | Airbag, Seat Belt, Crash Protection Structure |
| Optional Configuration | |
| Power Output Interface | Customized Industrial Sockets, Quick Connectors, Cable Reels |
| Parallel Operation System | Multi-unit Parallel Cabinet, Synchronization Control System |
| Remote Monitoring System | 4G DTU, GPS Module, Cloud Platform Monitoring |
| Low Noise Package | Super Soundproof Compartment, Muffler, Noise Reduction to ≤ 68dB(A) @ 1m |
| Fuel Tank Upgrade | Large Capacity Fuel Tank (≥ 1000L), Long Endurance |
| Cold Climate Package | Engine Pre-Heating System, Compartment Heating System, Battery Insulation |
| Hot Climate Package | Enhanced Cooling System, Compartment Ventilation, Sun Protection Coating |
| Automatic Transfer Switch (ATS) | Dual Power Automatic Switching System |
| Insulation Test Device | High Voltage Insulation Resistance Tester |
| Video Monitoring System | Interior & Exterior Camera, DVR, Display |
