What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

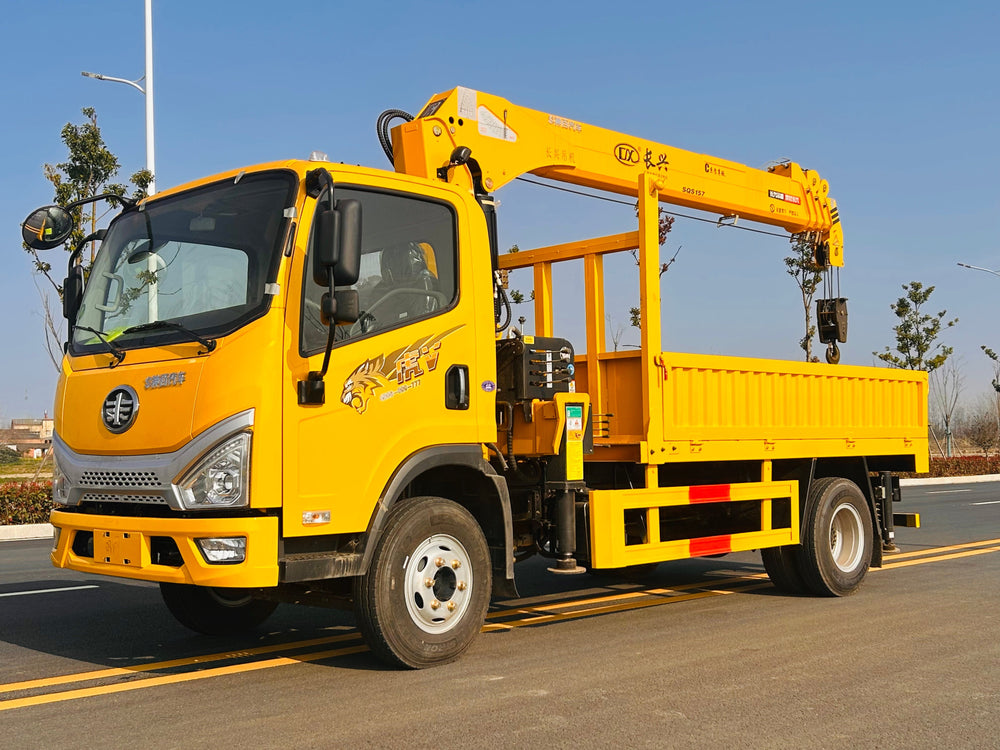

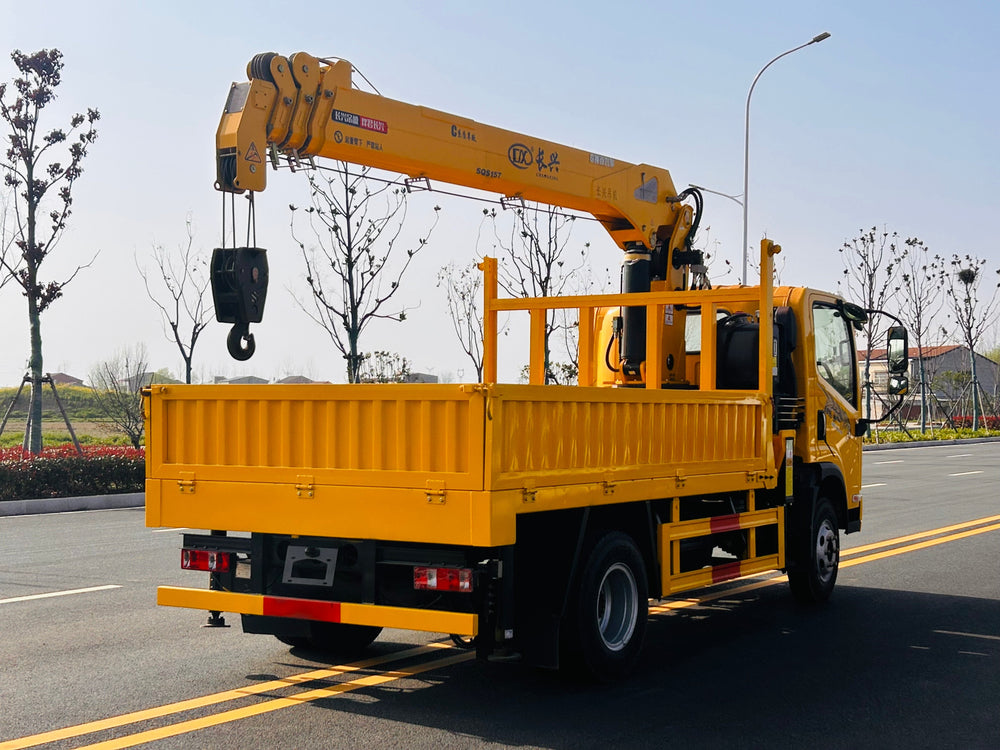

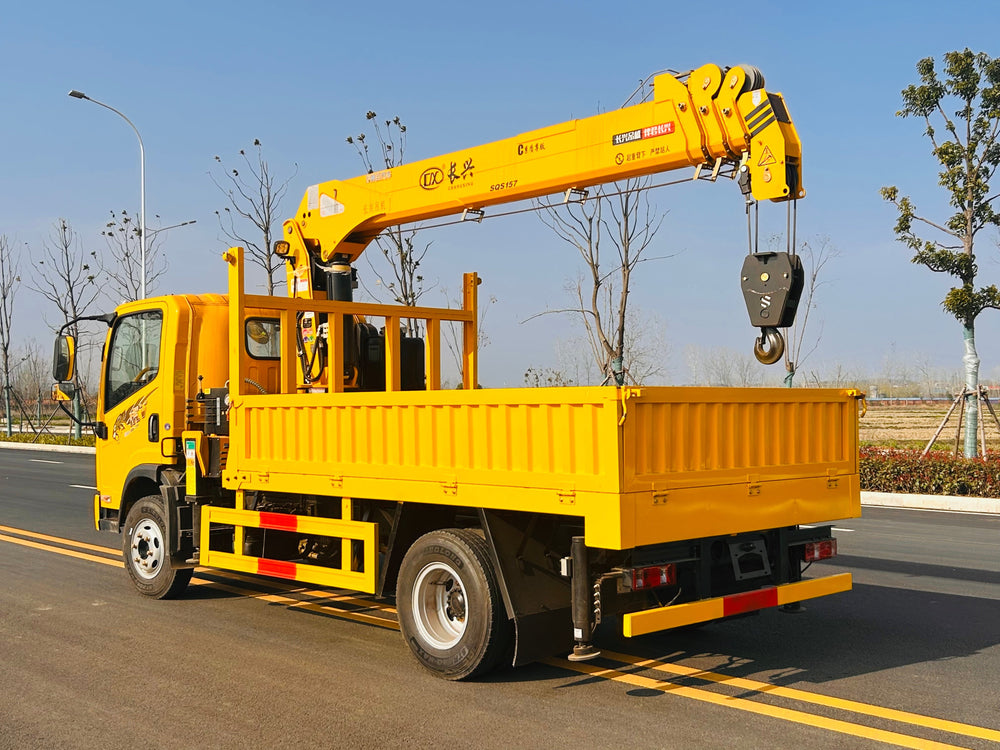

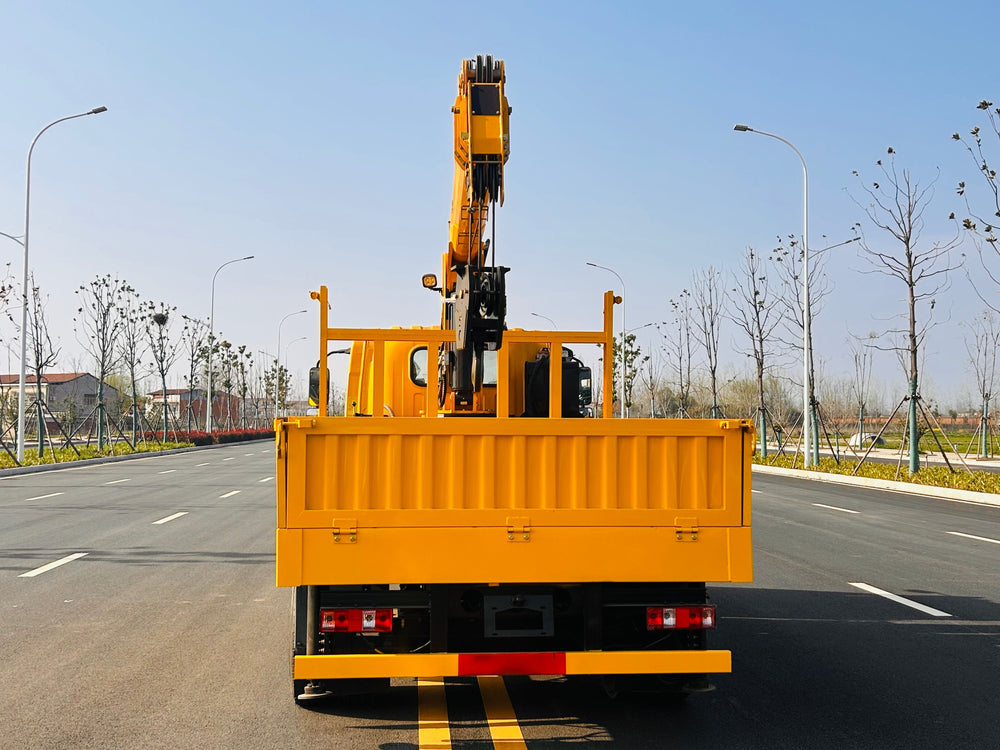

FAW 180HP Telescopic Boom Crane

Name: FAW 180HP Telescopic Boom Crane
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

FAW 180HP Telescopic Boom Crane - View 2 - SHENBAI Auto

FAW 180HP Telescopic Boom Crane - View 5 - SHENBAI Auto

FAW 180HP Telescopic Boom Crane - View 6 - SHENBAI Auto

FAW 180HP Telescopic Boom Crane - View 7 - SHENBAI Auto

FAW 180HP Telescopic Boom Crane - View 8 - SHENBAI Auto

1 / 6

1. Product Selling Points

No.	Description
1	Three optional vehicle versions: Heavy-duty King, Heavy-duty King Youth Edition, Heavy-duty King Mountain Version
2	Powertrain configuration: Yunnei 180HP engine + Shaanxi Gear 8/10-speed high-torque transmission + thickened drive shaft + original FAW 8T/9T widened heavy-duty rear axle + 200/220mm double-layer 10mm thick main frame + original 7.50R16 / 8.25R16 all-steel radial tires
3	Wide-body luxury cab equipped with air suspension seat, multifunctional steering wheel, electrically heated rearview mirror, automatic headlamps
4	Maximum compatible with 7-ton 5-section boom crane, pre-reserved mounting position for front outriggers in front of cab

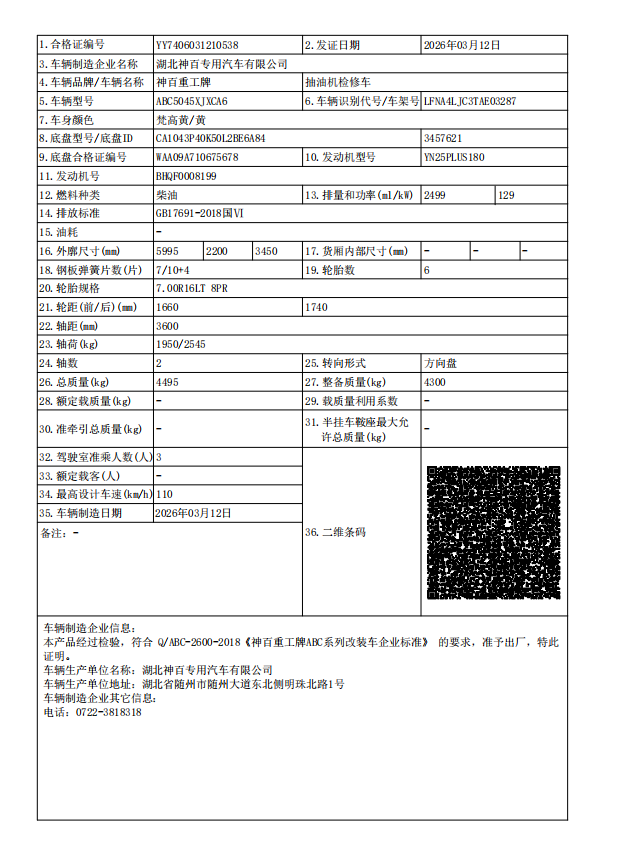

2. Basic Chassis Parameters

Parameter	Value
Complete Vehicle Model	ABC5045XJXCA6
Chassis Model	CA1043P40K50L2BE6A84
Cab Type	New Tiger V Single-row Cab
Engine Model & Power	Yunnei YN25PLUS180, 180 Horsepower
Transmission Options	Shaanxi Gear 8-speed / Shaanxi Gear 10-speed

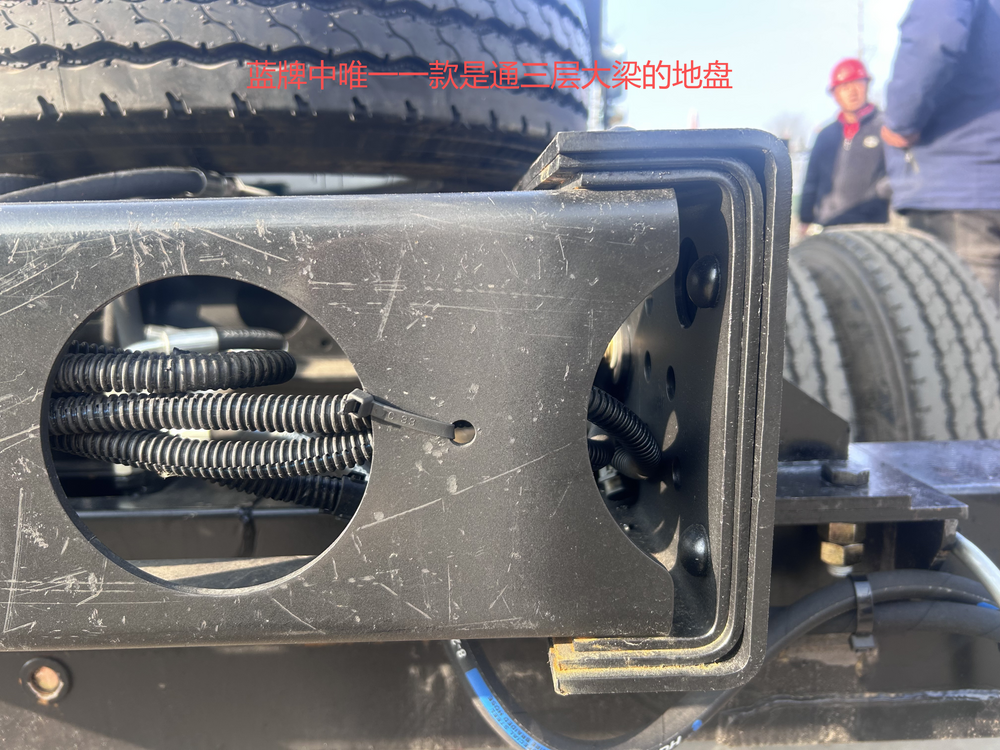

Main Frame Size	200mm / 220mm Optional
Tire Size Options	7.50R16 / 8.25R16
Wheelbase	3600 mm

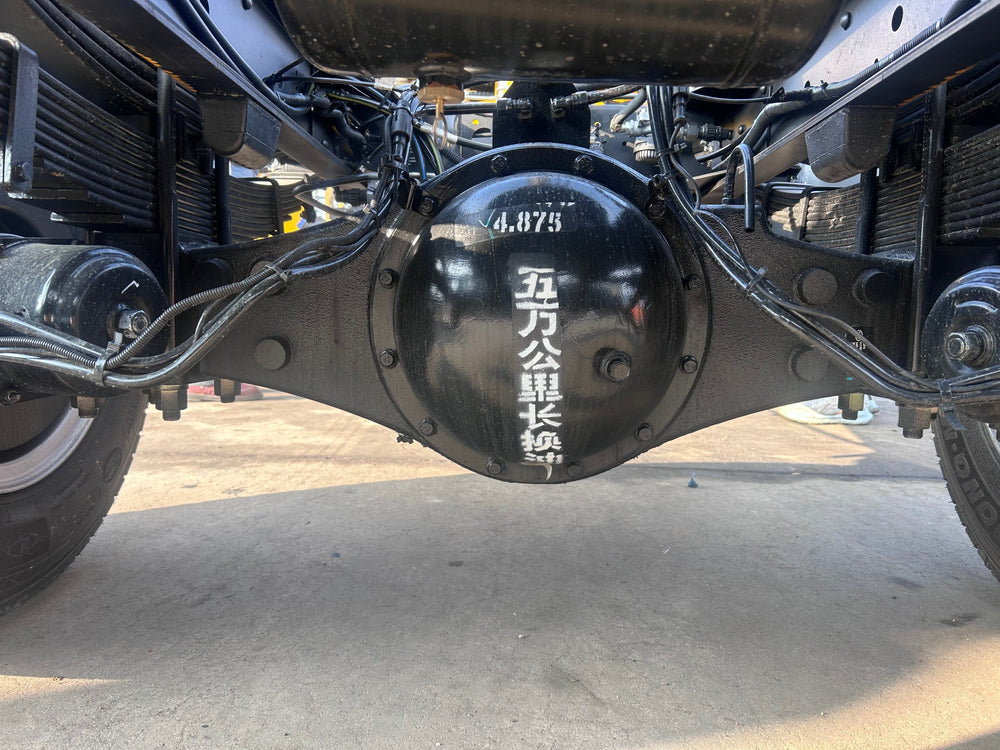

Rear Axle Spec	Original FAW Heavy-duty 8 Ton / 9 Ton Optional Rear Axle
Clutch Diameter	Φ325
Overall External Dimension	5995mm × 2200mm × (2750~3200)mm
Cargo Box Length	3m ~ 3.4m (customized according to crane model)
Curb Weight	4365 KG
Gross Vehicle Weight	4495 KG

3. Chassis Auxiliary Configuration

Parameter	Value
Vehicle Application	Special engineering chassis dedicated for truck-mounted crane
Brake System	Equipped with ABS, wedge brake
Suspension Structure	Leaf spring 7/10+4 layout, enlarged air reservoir
Interior & Electric Accessories	Air conditioner, electric window lifters, central locking, air horn, multifunctional steering wheel, automatic headlamps
Power Take-off Assembly	Internal spline power take-off with control mechanism
Reserved Interface	Pre-reserved under-chassis start & flameout control interface

4. Crane Upper Assembly Optional Models

Crane Model	Performance & Structural Configuration
SQS125-4, 5 Ton 4-section Boom Crane	Lifting height: 11.6m, Boom length: 9.6m, Outrigger span: 4.6m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
SQS157-4, 6.3 Ton 4-section Boom Crane	Lifting height: 13.8m, Boom length: 12m, Outrigger span: 4.6m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
SQS175-4, 7 Ton 4-section Boom Crane	Lifting height: 14.3m, Boom length: 12.5m, Outrigger span: 5.3m, Single gear pump, dual-operation single pump valve, 360° full rotation single-section outriggers, winch & orbit motor with half-length subframe
SQS175-5, 7 Ton 5-section Boom Crane	Lifting height: 16.9m, Boom length: 14.8m, Outrigger span: 6.2m, Single gear pump, dual-operation single pump valve, double-section outriggers, winch & orbit motor, full-length through subframe, radiator & integrated control panel
