What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

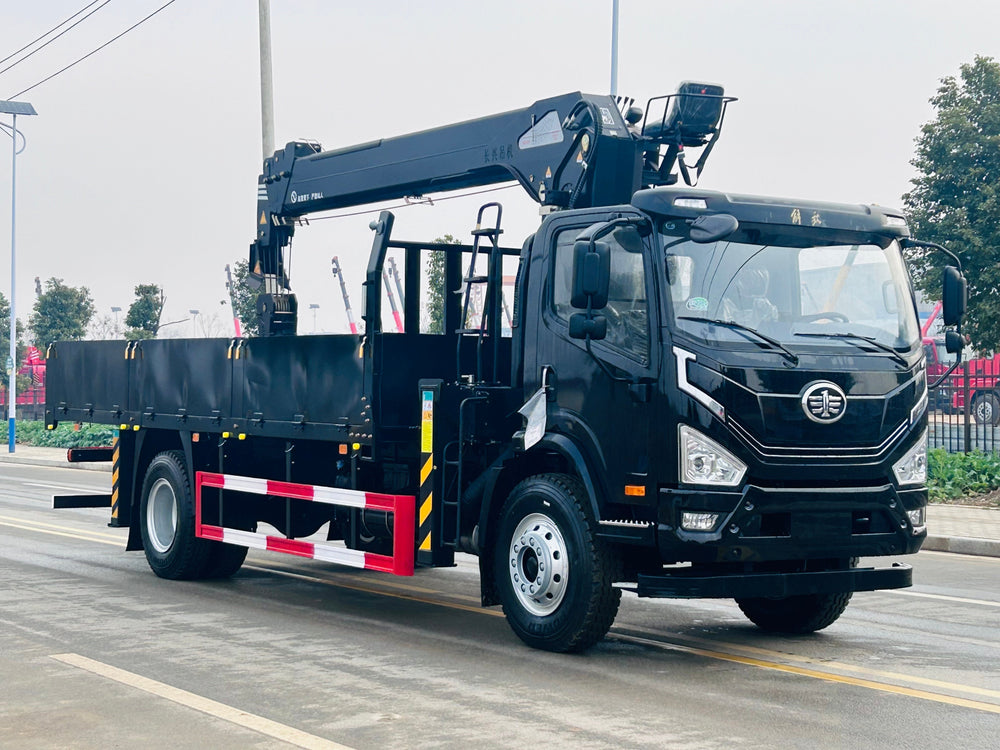

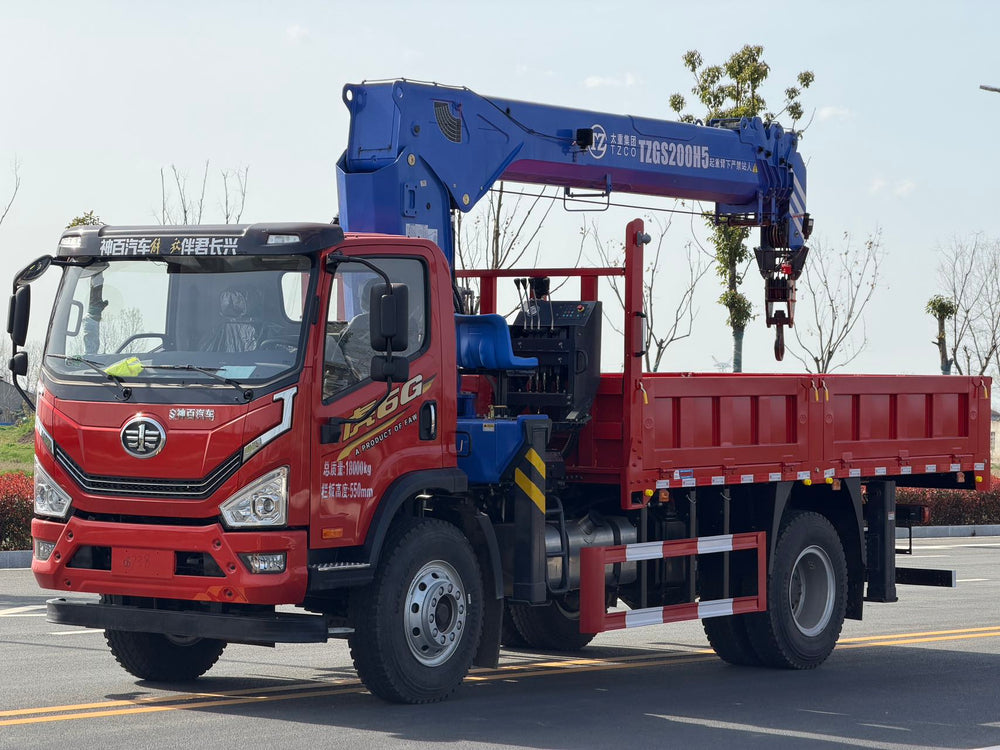

FAW 220HP 8-10T Telescopic Boom Crane

Name: FAW 220HP 8-10T Telescopic Boom Crane
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

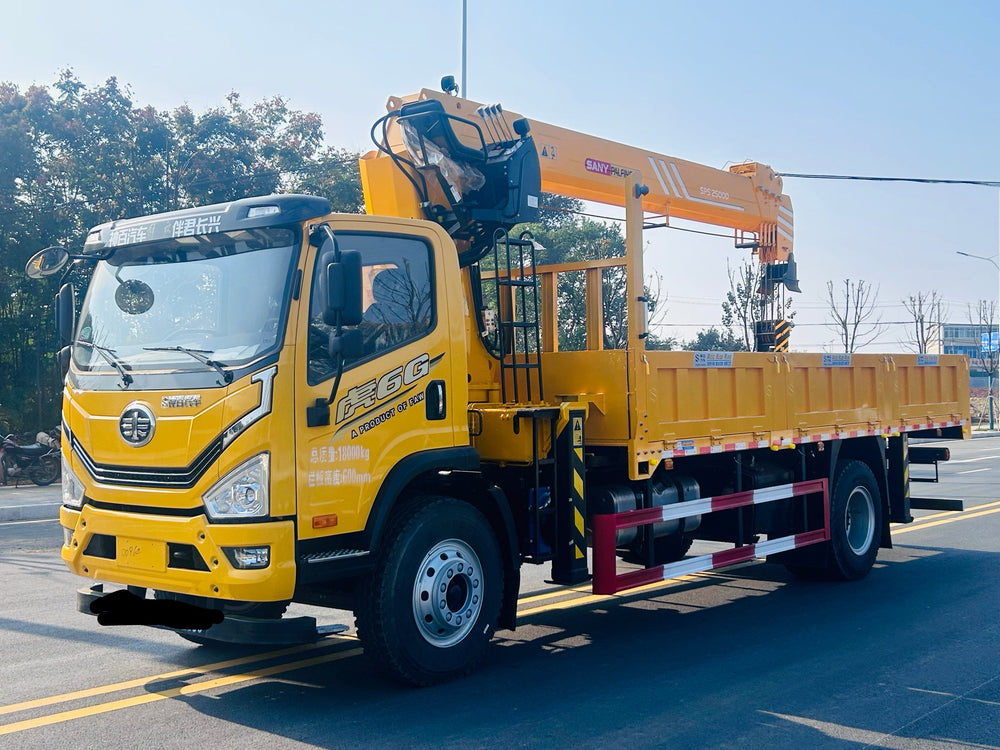

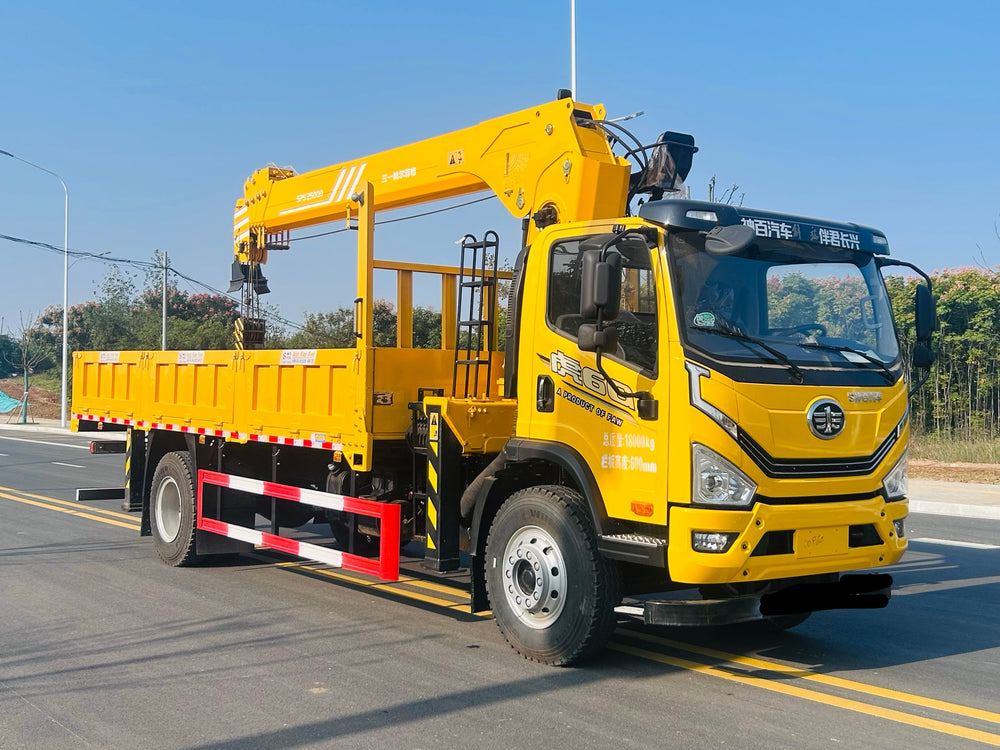

FAW 220HP 8-10T Telescopic Boom Crane - View 2 - SHENBAI Auto

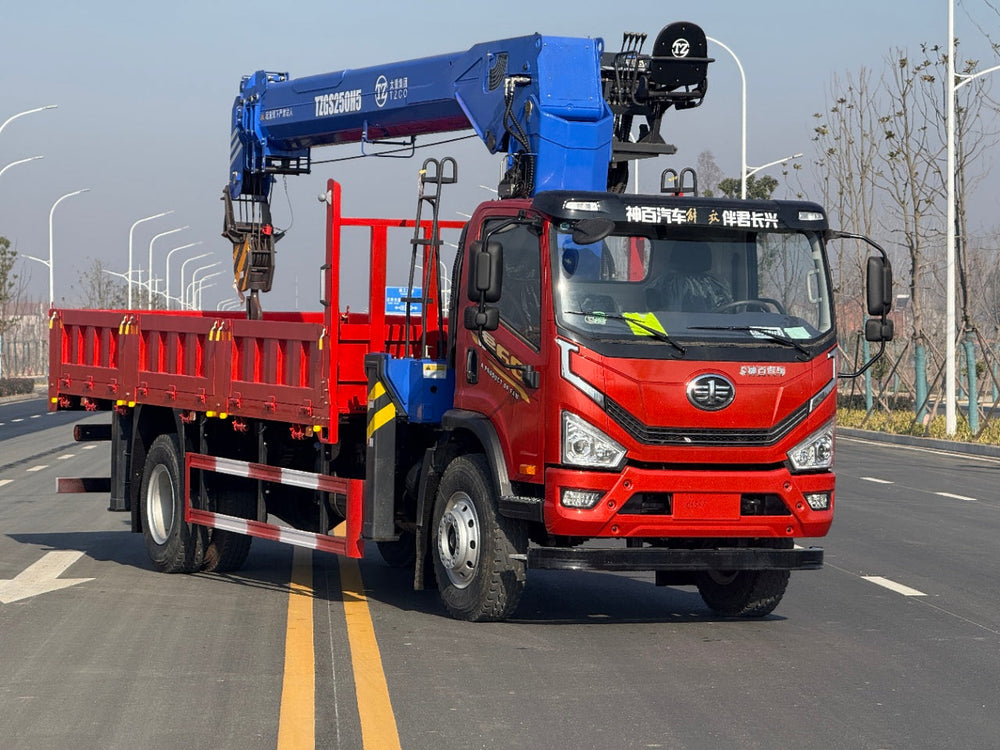

FAW 220HP 8-10T Telescopic Boom Crane - View 3 - SHENBAI Auto

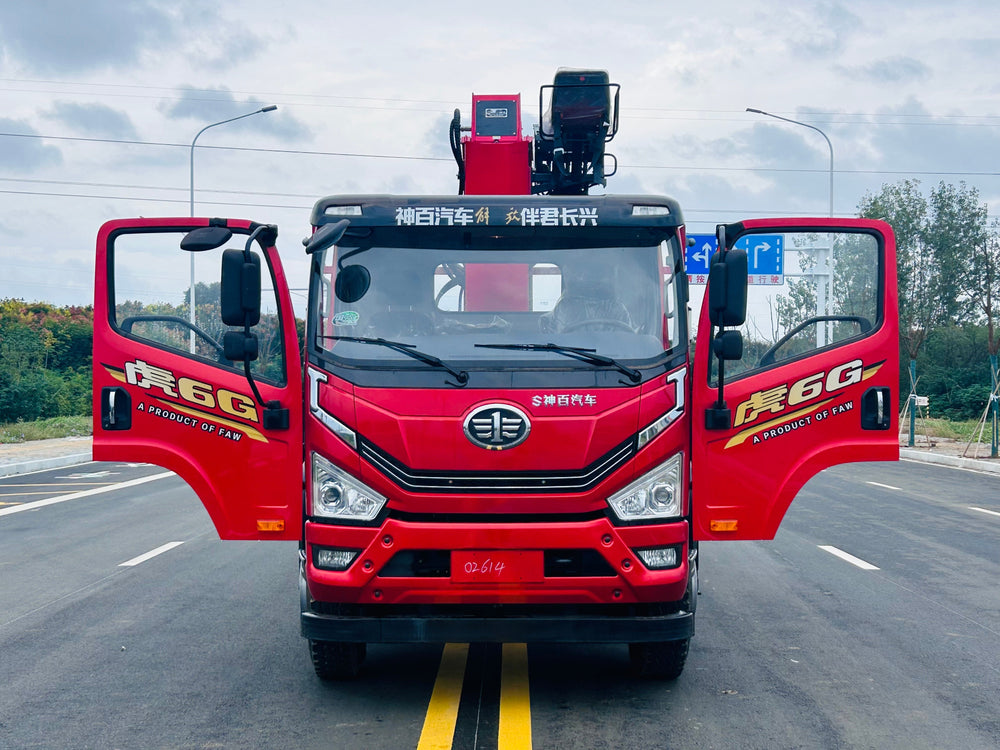

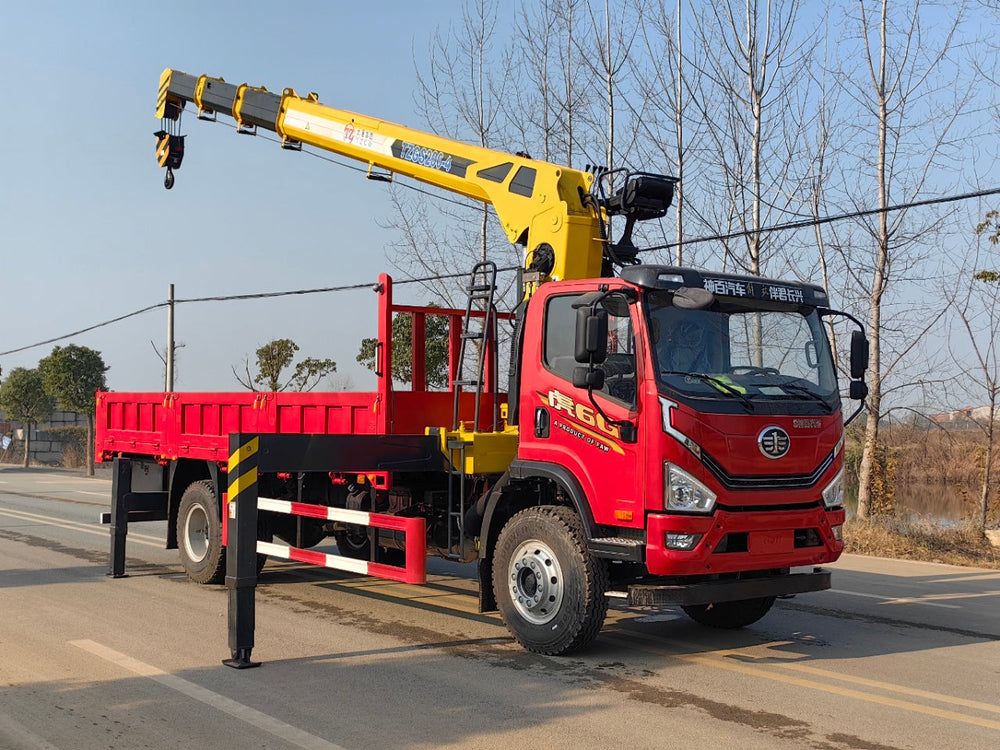

FAW 220HP 8-10T Telescopic Boom Crane - View 6 - SHENBAI Auto

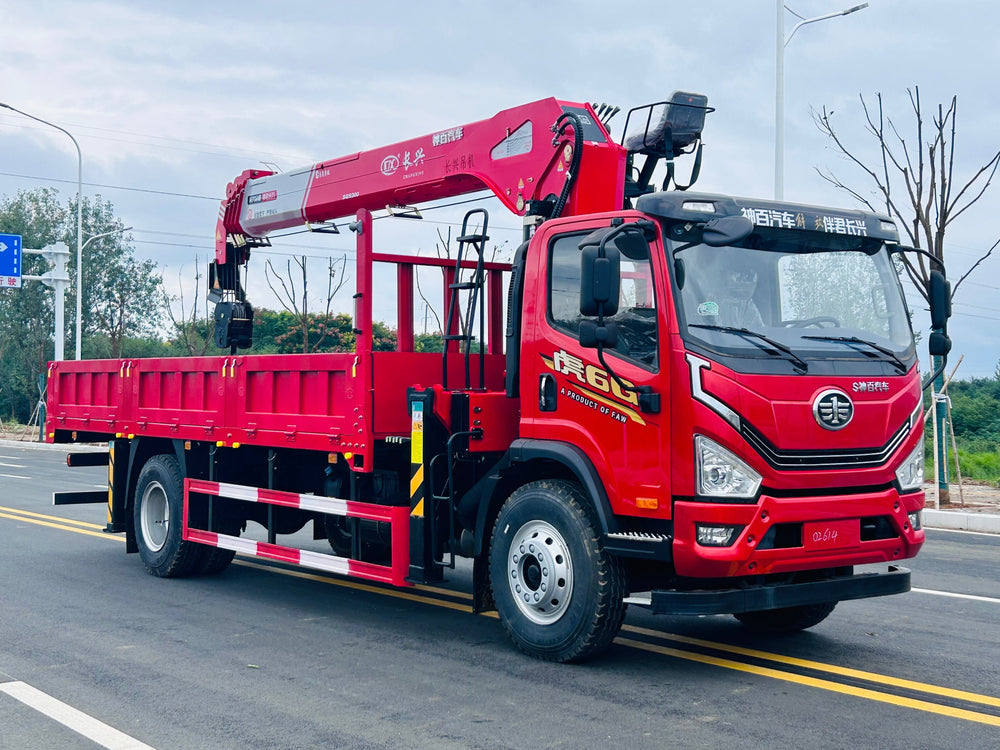

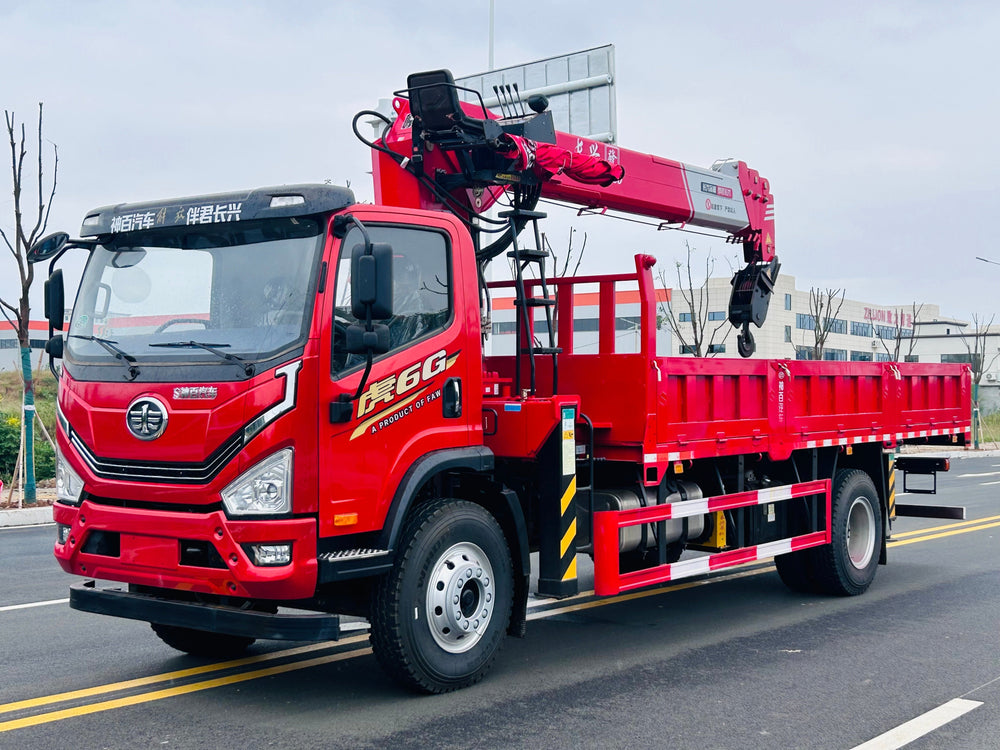

FAW 220HP 8-10T Telescopic Boom Crane - View 7 - SHENBAI Auto

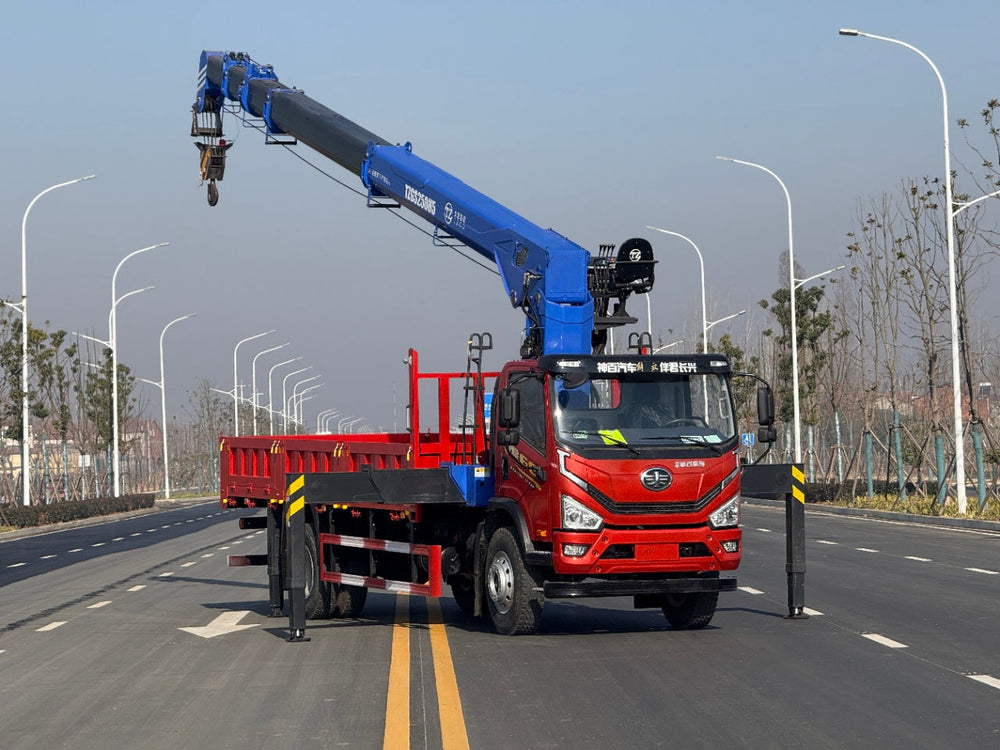

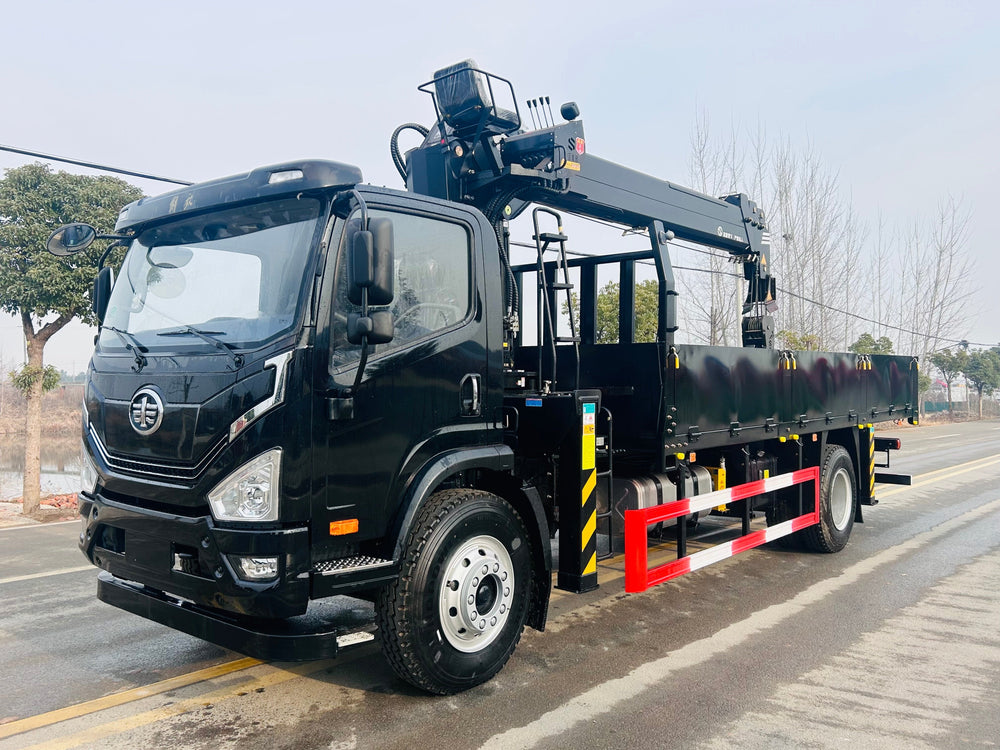

FAW 220HP 8-10T Telescopic Boom Crane - View 8 - SHENBAI Auto

FAW 220HP 8-10T Telescopic Boom Crane - View 9 - SHENBAI Auto

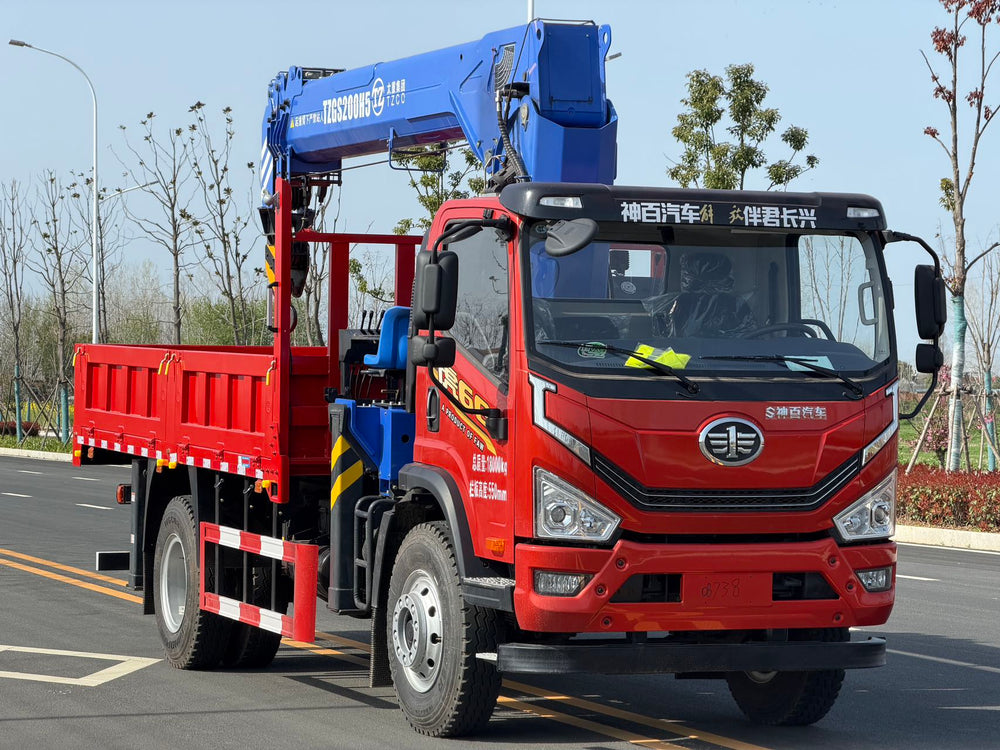

FAW 220HP 8-10T Telescopic Boom Crane - View 10 - SHENBAI Auto

FAW 220HP 8-10T Telescopic Boom Crane - View 12 - SHENBAI Auto

FAW 220HP 8-10T Telescopic Boom Crane - View 13 - SHENBAI Auto

1 / 10

1. Model & Weight Parameters

Parameter	Value
Complete Vehicle Approval Model Options	ABC5186J / ABC5185 / ABC5180 / 5181SQC6
Chassis Approval Model	CA1180P40K8L4BE6A90
Optional Curb Weights	12600KG / 12000KG / 11500KG / 11000KG / 10000KG
Separate Curb Weight Option	12800KG
Gross Vehicle Weight	18000KG

2. Cab & Dimension Parameters

Parameter	Value
Cab Basic Type	Wide-body Single-row Cab
Optional Wheelbase Configurations	5100mm / 4500mm / 4250mm / 3900mm / 3600mm (5 options)
Optional Final Drive Ratio	4.875 / 5.286
Optional Rear Axle Rating	9 Ton / 10 Ton (2 options)
Overall Dimension Options	Length: 9000mm / 8280mm / 7980mm, Width×Height: 2550mm×3880mm
Cargo Box Dimension	Length: 4900~6100mm, Width×Height: 2550mm×550mm

3. Powertrain, Frame & Tire Spec

Parameter	Value
Engine Specification	Yuchai 220 HP, customizable to 240 HP
Transmission	Shaanxi Fast 8-speed Gearbox
Main Frame Structure	280mm Through-type Three-layer Frame
Tire Specification	10.00R20

4. Complete Cab Interior & Exterior Configuration

Parameter	Value
Cab Structure	Hu6G flat-roof wide-body single-row cab, mechanical semi-floating shock absorption, manual lever tilting mechanism
Exterior Accessories	Sun visor, non-integrated rearview mirror, LED daytime running light + halogen automatic headlight, steel front bumper

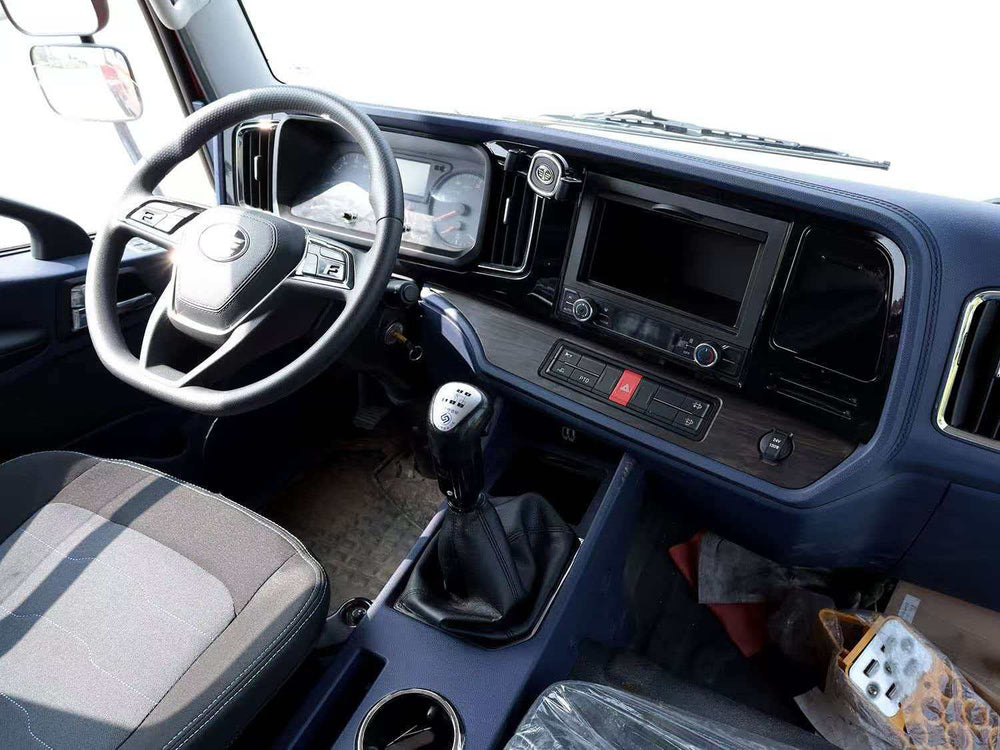

Instrument Panel	Surround-style dashboard (Star Ocean Blue color + walnut wood water transfer printing on middle panel)
Steering & Instrument	Multifunctional steering wheel, mechanical instrument panel, Bluetooth radio receiver
Interior Electric Configuration	Automatic air conditioner, electric window lifters, central locking system, phone bracket, 2×USB charging ports
Intelligent Systems	Vehicle internet system, driving video recorder, cruise control

5. Optional Upper Crane Assembly Models

Crane Serial No.	Crane Model & Technical Parameters
1	Changxing 8 Ton, 4-section Boom F-series Crane Boom length: 13.5m, Lifting height: 15.5m, Single gear pump, dual-operation single pump valve, 360° full rotation
2	Changxing 8 Ton, 5-section Synchronous Telescopic C-series Crane Boom length: 17.9m, Lifting height: 19.3m, Dual gear pump confluence, single slewing, double-section front outriggers
3	Sany 8 Ton, 4-section Boom Crane Boom length: 14.3m, Plunger pump, planetary slewing (plunger motor), winch (plunger motor)
4	Sany 8 Ton, 5-section Boom Crane Boom length: 18.1m, Independent extension of second boom section, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
5	Sany 8 Ton, 5-section Boom Crane Boom length: 18.7m, Synchronous telescopic boom, double-cylinder double-section front outriggers, plunger pump, planetary slewing (plunger motor), winch (plunger motor)
6	TaiZhong 8 Ton, 4-section Boom Crane Synchronous telescopic boom length: 15.5m, full through subframe, dual gear pump, top operation, proportional valve, inclined shaft plunger motor winch, temperature-controlled radiator, automatic hook retraction, one-key start-stop, work lamp, horn
7	TaiZhong 8 Ton, 5-section Boom Crane Dual-side operator seats, upper crane operation + lower front/rear outrigger operation on both sides, synchronous telescopic boom length: 16.2m, planetary slewing reducer, plunger pump, inclined shaft plunger motor winch, original single-chamber hydraulic rear outriggers, automatic hook retraction, alarm, work lamp
8	TaiZhong 10 Ton, 5-section Boom Crane Boom length: 18.8m, Independent extension of second boom section, double-section composite front outriggers, outrigger span: 7.6m, planetary dual-slewing reducer, large-flow plunger pump, proportional valve, inclined shaft plunger motor winch, temperature-controlled radiator, automatic hook retraction, one-key start-stop, work lamp, horn, limit alarm
