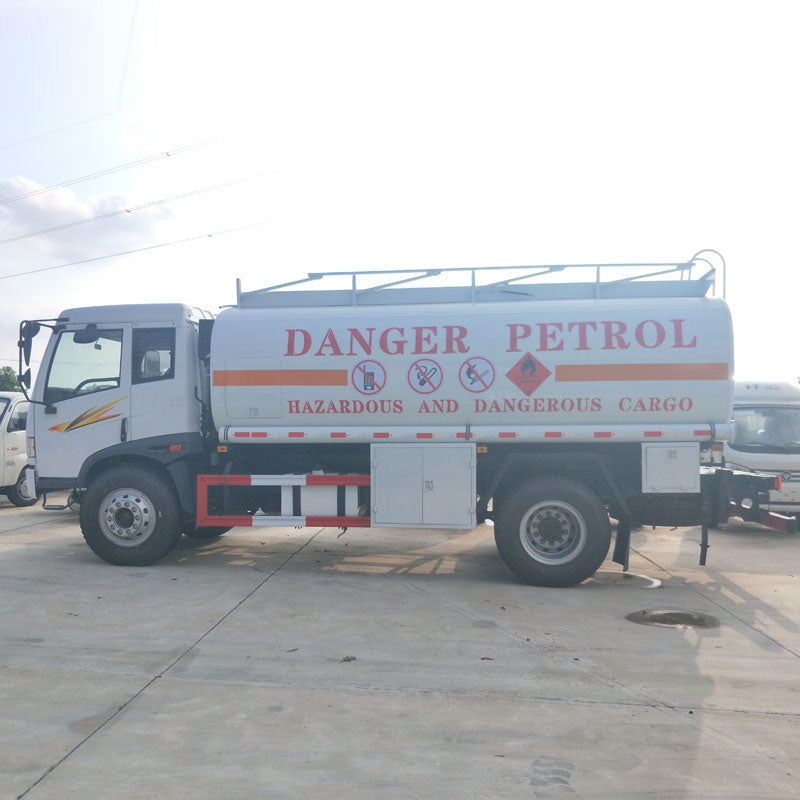

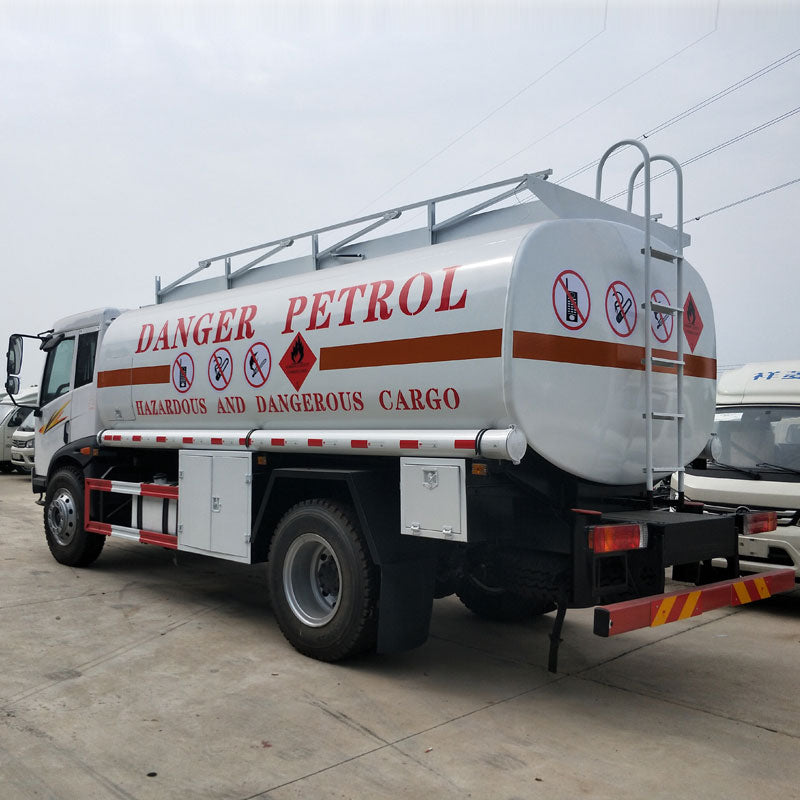

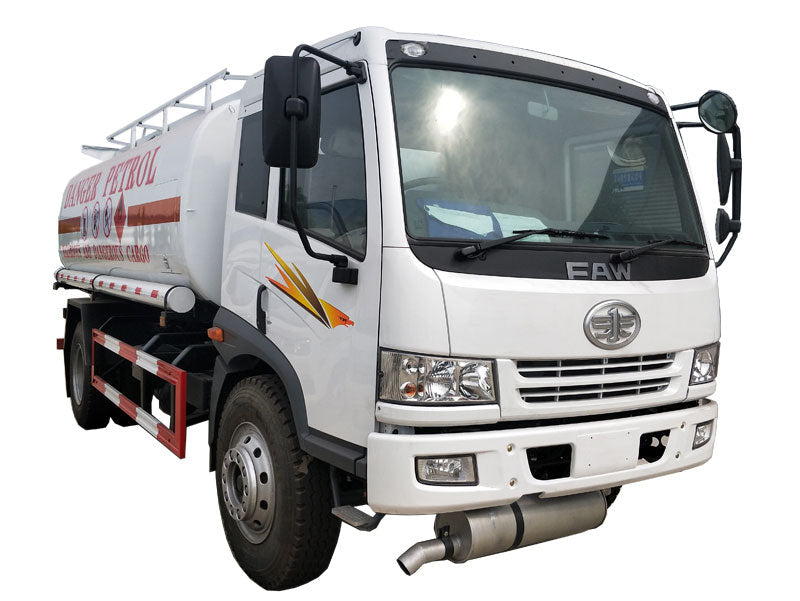

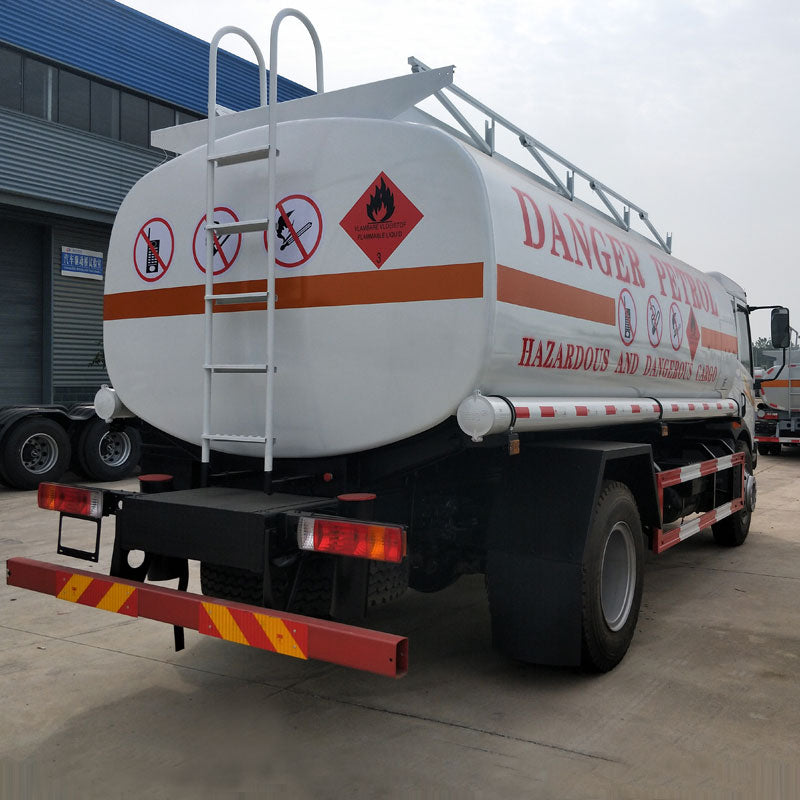

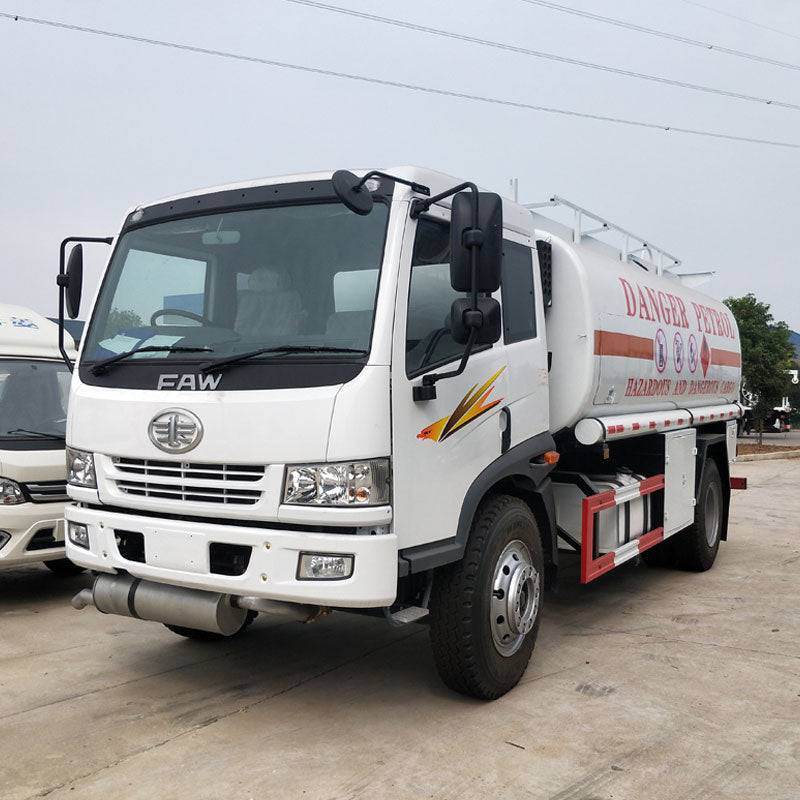

FAW 4*2 8000L oil tank truck

1 / 5

Oil tank truck: also known as mobile refueling truck, computer tax-controlled refueling truck, oil tank truck, oil loading truck, oil transport truck, oil pulling truck, oil transport truck, edible oil transport truck, mainly used for the transportation and storage of oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar and other oil products).
According to different uses and use environment there are various functions of refueling or oil transporting, with functions of oil absorption, oil pumping, multiple oil dividing, dividing and releasing, etc. The special part of the oil truck is composed of tank, extractor, transmission shaft, gear oil pump, pipe network system and other components. The pipe network system is composed of oil pump, three-way four-position ball valve, two-way ball valve, strainer and pipe.

Model:	CLW5091GJYC	Volume:	8000L
Total Weight:	9100kg	Curb Weight:	4100kg
Size of Outter:	626521652700(mm)	Suction Pump:	oil Pump
WheelBase:	3600mm	Tire Size:	7.50R16
Transmission:	6-Speed	Tire Number:	6+1
Front/Rear Axle:	2.2T/5T	Brake System:	Air Brake
Fuel Type:	Diesel	Emission Standard:	Euro 3
Engine Model:	CA4DB1-14E68	Power:	100kw/136HP
Displacement:	2207ml

Oil tank truck Standard Equipments:

Tank body 4.5mm , head 5mm , single tank with pump, Pump in and Pump out, European standard tank port, with subsea valve.3 inches Aluminum alloy emergency shut-off valve with automatic closing device.
