What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

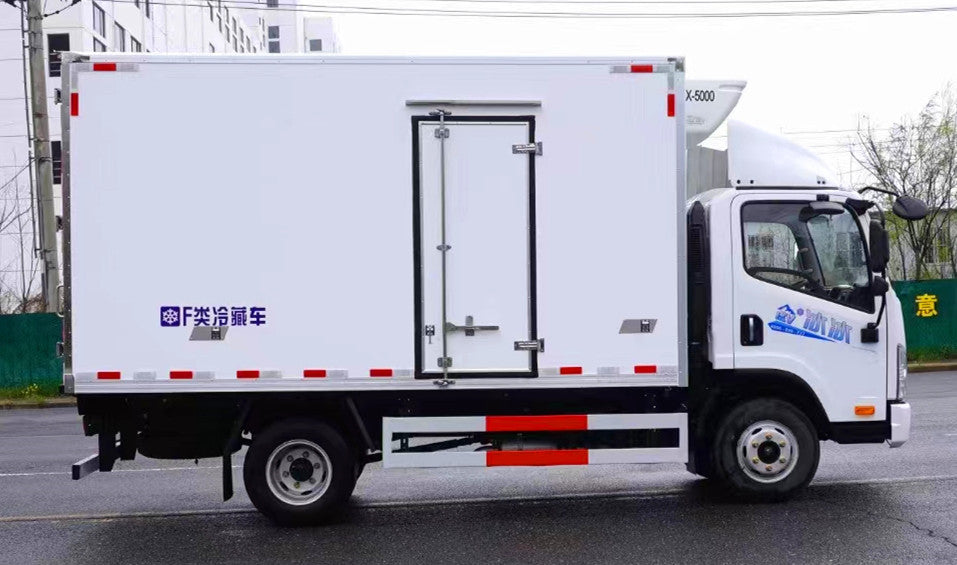

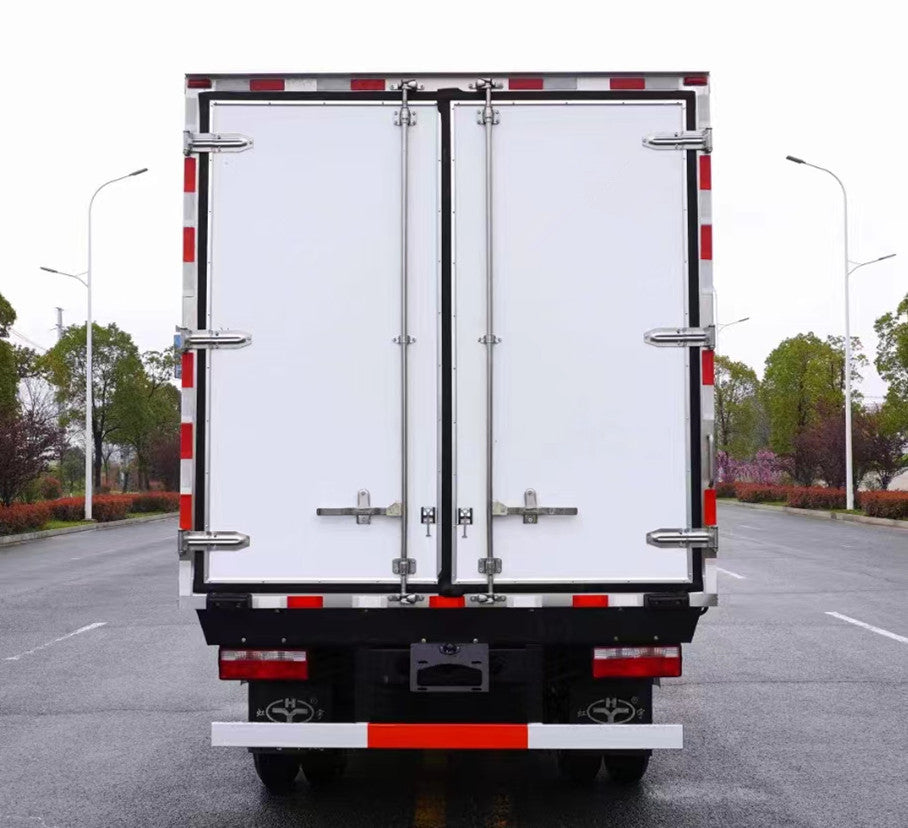

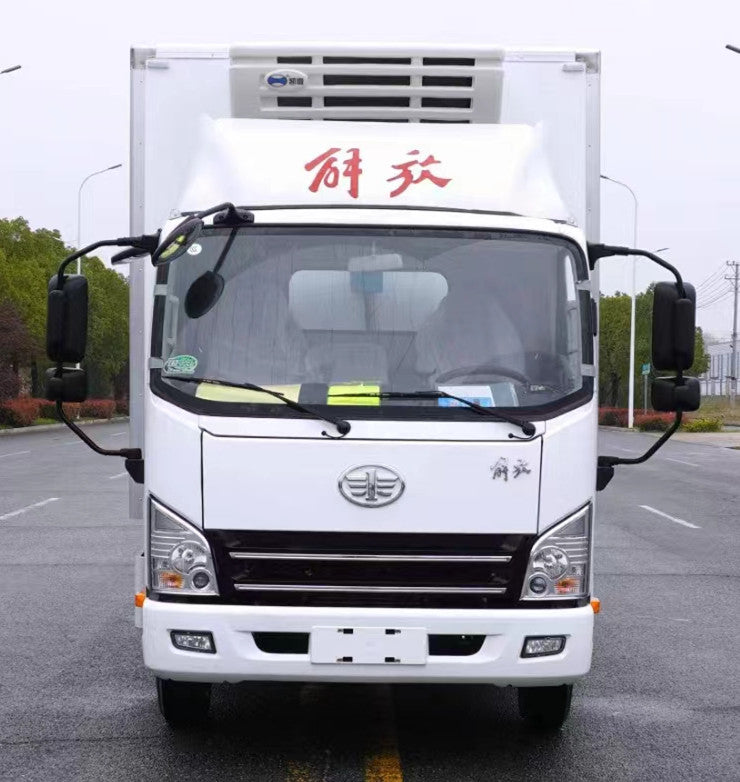

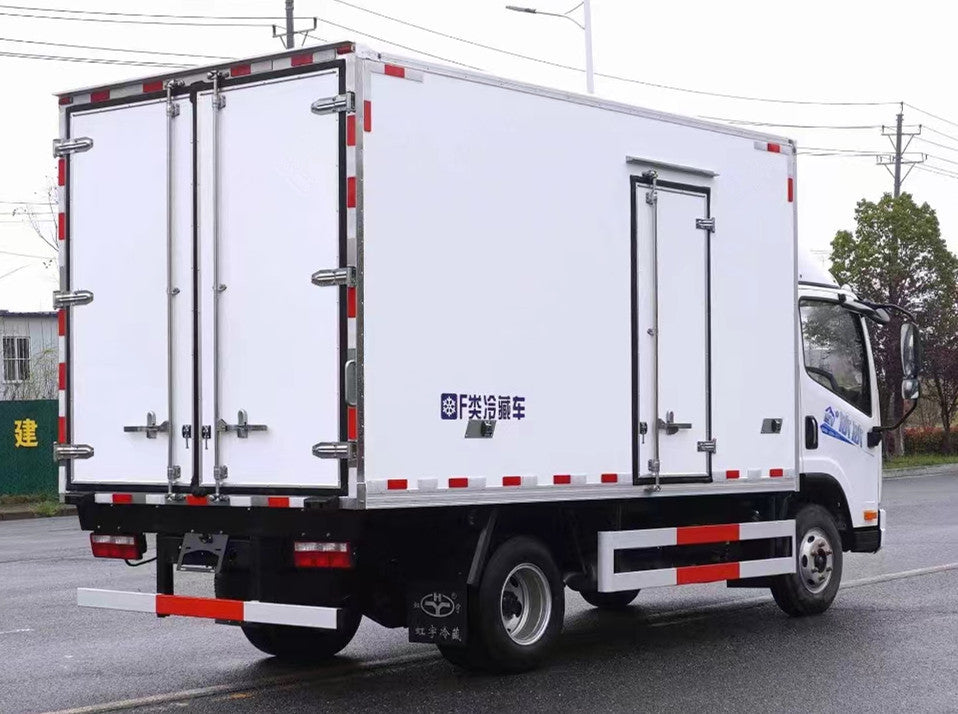

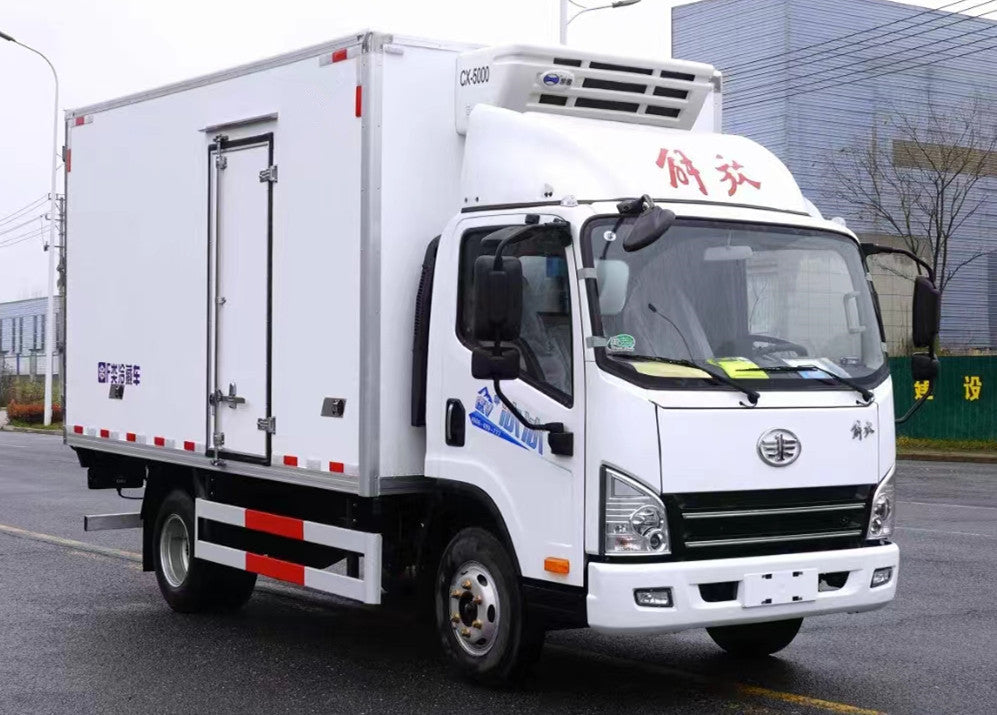

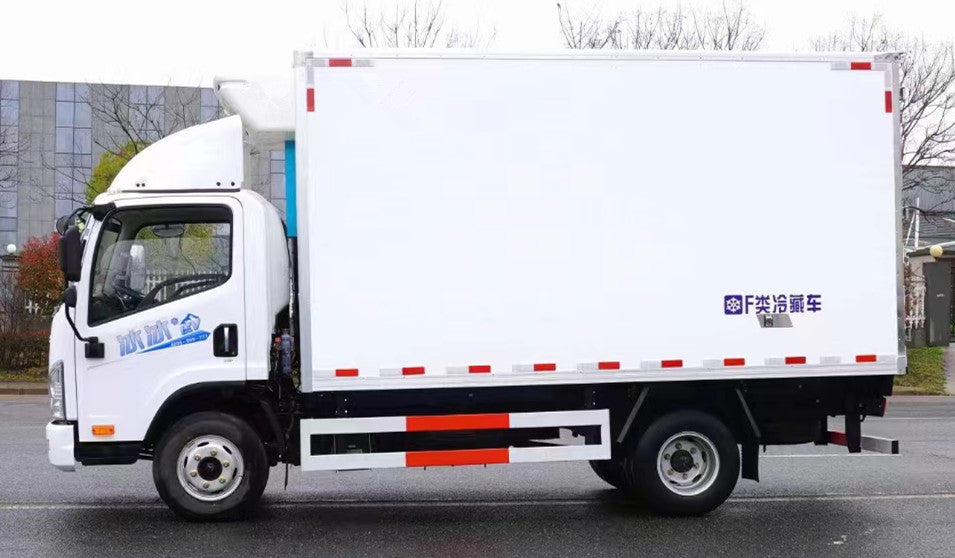

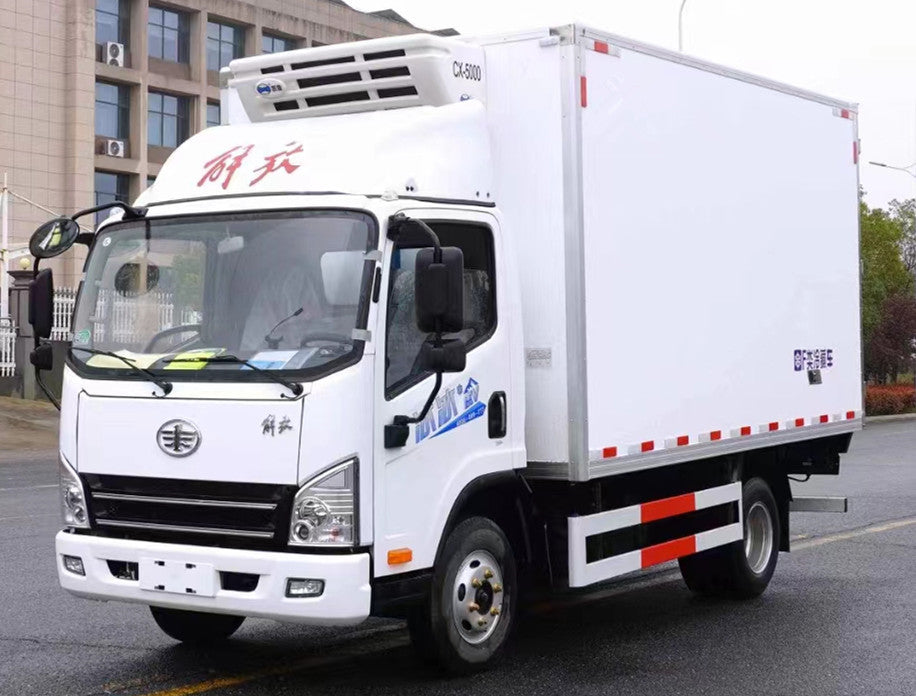

FAW 4×2 Refrigerated Truck – Detailed Configuration

Name: FAW 4×2 Refrigerated Truck – Detailed Configuration
Brand: Shenbai Truck Mounted Crane
Availability: InStock

1 / 8

Product Overview

The Jiefang FAW 4×2 4.5T Blue Label Refrigerated Truck is a compact and efficient cold chain transport solution designed for urban and suburban delivery. Built on the reliable FAW Hu VN chassis with Euro 6 emission standard, this refrigerated truck offers excellent maneuverability while maintaining superior temperature control for fresh produce, dairy, and pharmaceutical transport. The high-quality insulated body with FRP panels ensures optimal thermal performance.

Technical Specifications

Item	Specification
Chassis Parameters
Chassis Model	CA5041XLCP40K61L2E6A84 (FAW Hu VN)
Drive Type	4×2, Left Hand Drive
Engine Brand	Weichai Power
Engine Model	WP2.3NQ130E61
Engine Power	130 HP (96 kW)
Emission Standard	Euro 6 (China VI)
Transmission	Manual, 6-Forward Gears
Wheelbase	3,300 mm
Overall Dimensions (L×W×H)	5,995×2,310×3,380 mm
Gross Vehicle Weight	4,495 kg
Rated Payload	1,100 kg
Kerb Weight	3,200 kg
Tire Specification	7.00R16
Fuel Tank Capacity	120 L

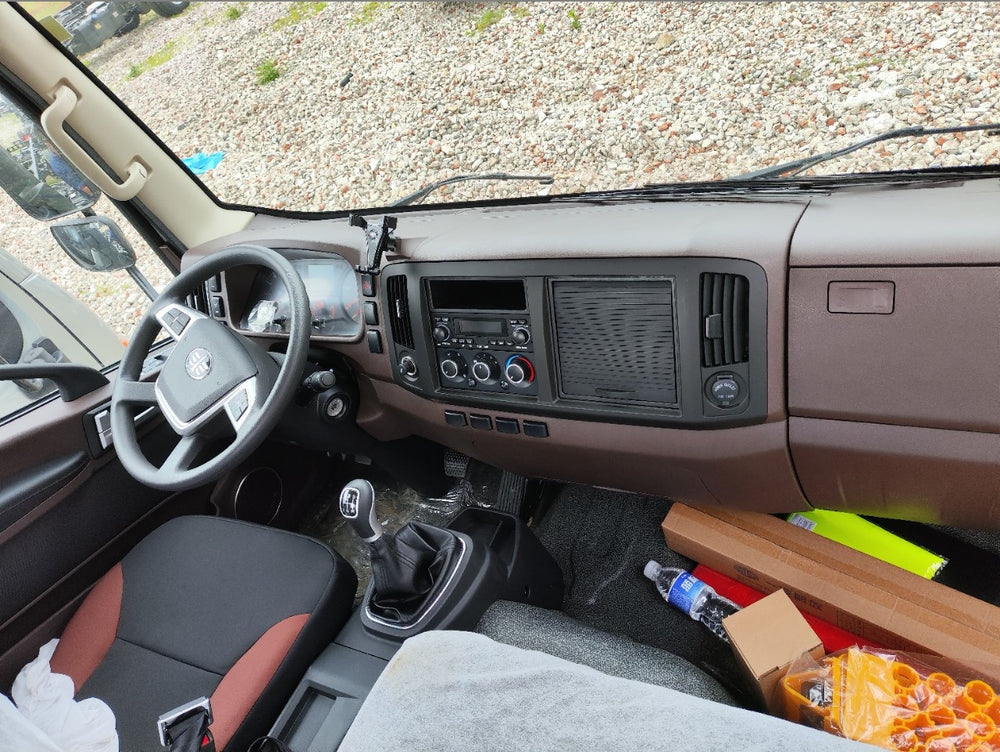

Cab Type	Single row, 3 passengers
Box Body Parameters
Box Body Dimensions (L×W×H)	4,130×2,100×2,100 mm
Box Body Material	FRP (Fiberglass Reinforced Plastic) interior and exterior
Insulation Material	Polyurethane foam, 80mm thickness
Insulation Performance	National Grade A standard, temperature rise ≤1.8°C in 8 hours
Box Body Type	Sandwich panel construction
Door Type	Rear double doors, optional side door
Floor	Anti-slip aluminum plate
Seal	Labyrinth rubber sealing strips
Refrigeration System
Refrigeration Unit	Optional: Hanxue, Carrier, Thermo King
Temperature Range	-18°C to +8°C (adjustable)
Cooling Capacity	Standard unit suitable for fresh and frozen goods
Power Source	Engine-driven via PTO

Key Features

High-Quality Insulation: 80mm polyurethane foam with FRP panels for superior thermal performance
Reliable Chassis: Proven FAW Hu VN chassis with fuel-efficient Weichai engine
Blue Label Compliance: Meets all blue label vehicle regulations, C1/C2 license compatible
Flexible Configuration: Optional side door, meat hooks, temperature monitoring system
Professional Seal: Labyrinth rubber sealing ensures tight closure and temperature retention
Easy Maintenance: Widely available parts and service network
