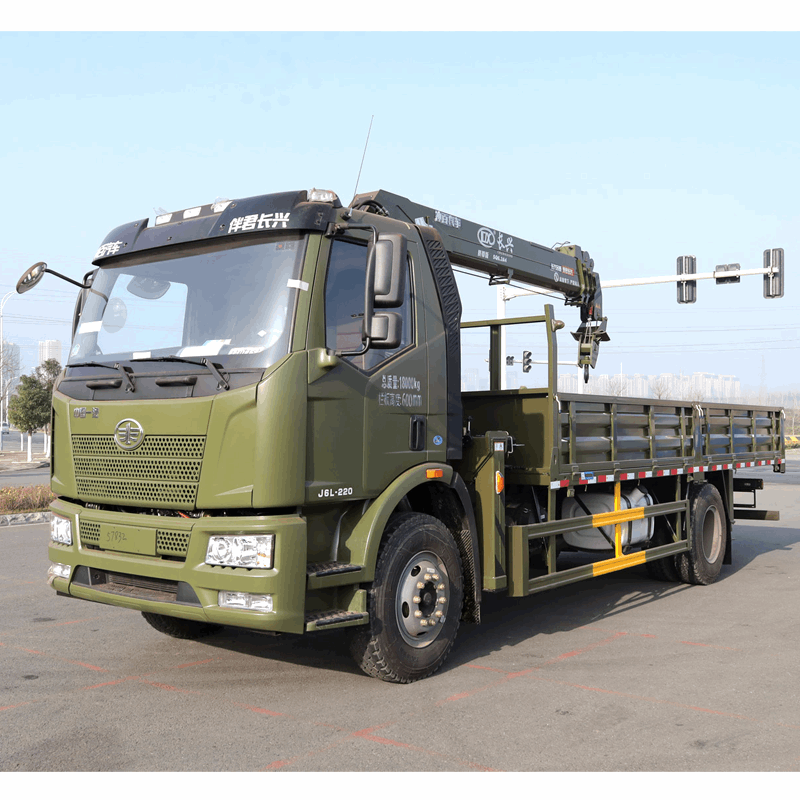

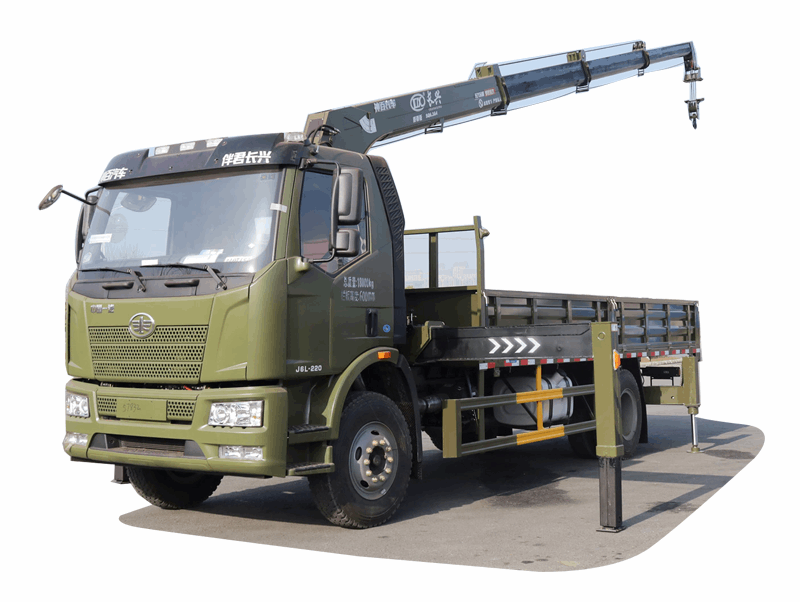

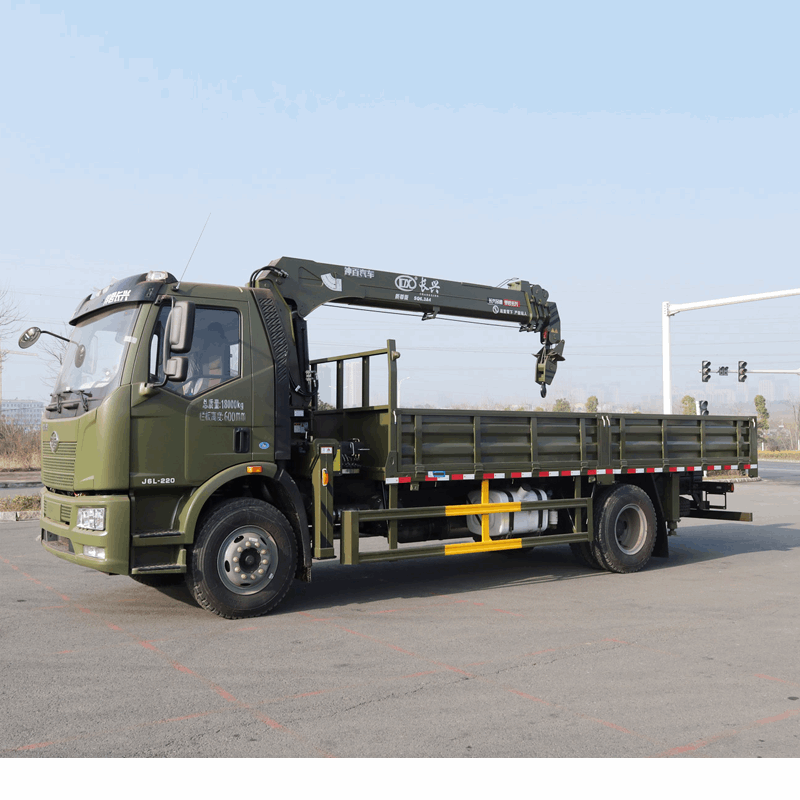

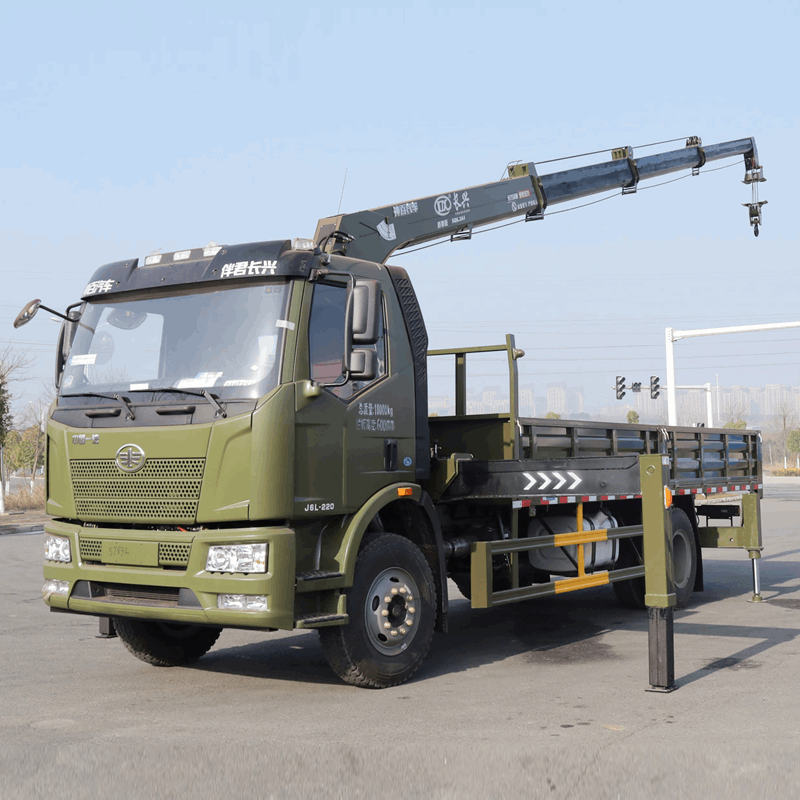

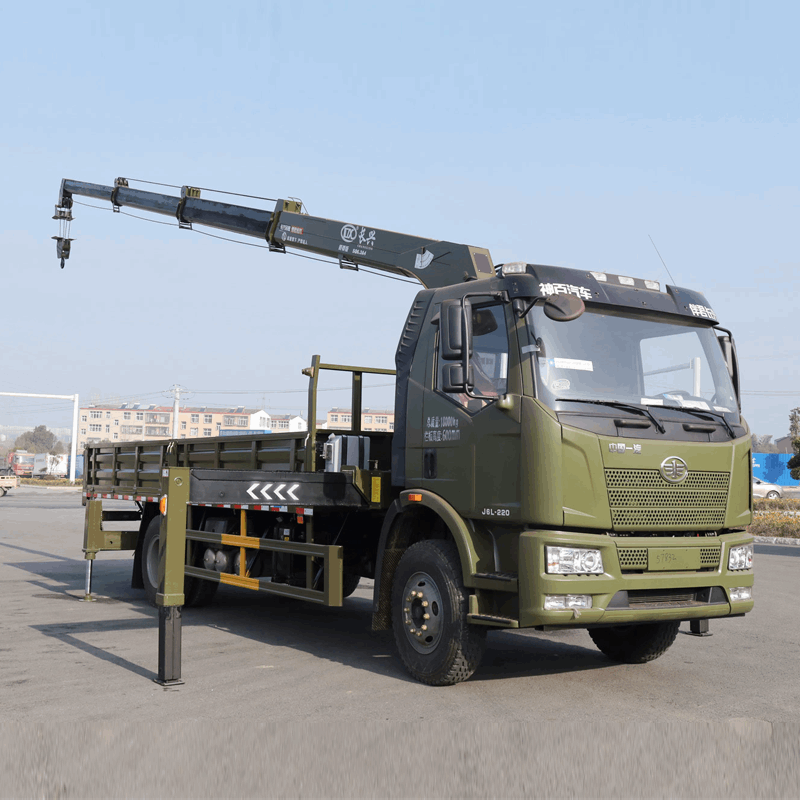

FAW 4x2 Truck-mounted Crane

1 / 5

It is widely used in municipal construction, coal mine engineering, landscaping and other infrastructure materials and other equipment lifting and transportation. The crane can be operated left and right, can be rotated 360 degrees, and can also be rotated in all directions. Adopting military quality production, reliable quality, long life, and fast working speed. The relevant models are 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, 30 tons, 80 tons, 140 tons, and the cranes can be chosen from straight-arm or folding-arm cranes. Truck with crane is a kind of transport vehicle which is combined with crane and chassis.

Model:	CLW5128JSQDJ3	BOX size :	up to 6m
Total Weight:	18000kg	Curb Weight:	11000kg
Size of Outter:	835025503580(mm)	adapted crane arm:	5T-10T
WheelBase:	4170mm	Tire Size:	10.00R2016
Transmission:	CA6TB085M	Tire Number:	6+1
Front/Rear Axle:	435 Punch Welding Bridge	Brake System:	Air Brake
Fuel Type:	Diesel	Emission Standard:	Euro 2
Engine Model:	WP4.165E32	Power:	132kW/180HP
Displacement:	7255ml

Standard Equipments:

It is composed of lifting arm, turntable, frame, outrigger and other parts. The mechanical action of the truck with crane is realized through the action of the mechanism of luffing, telescoping, slewing and winching, and the lifting operation is realized through the combination of different actions.
