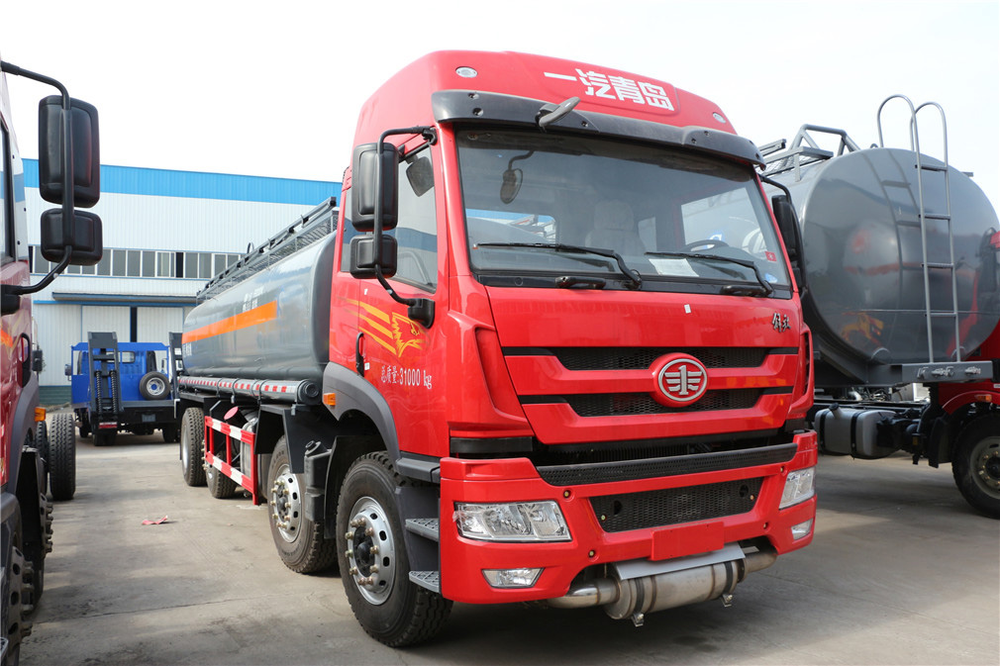

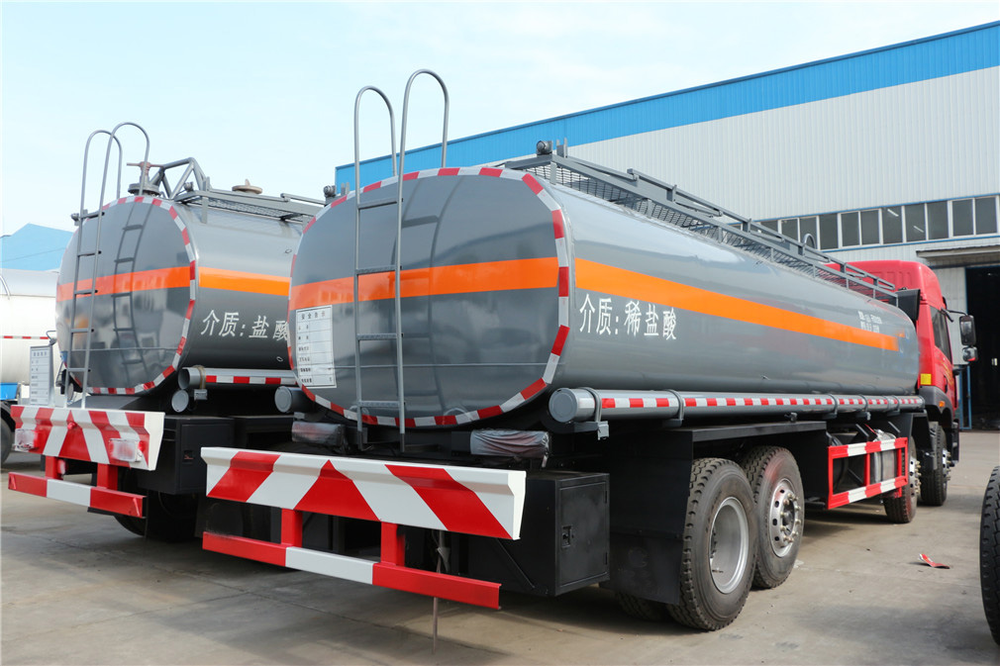

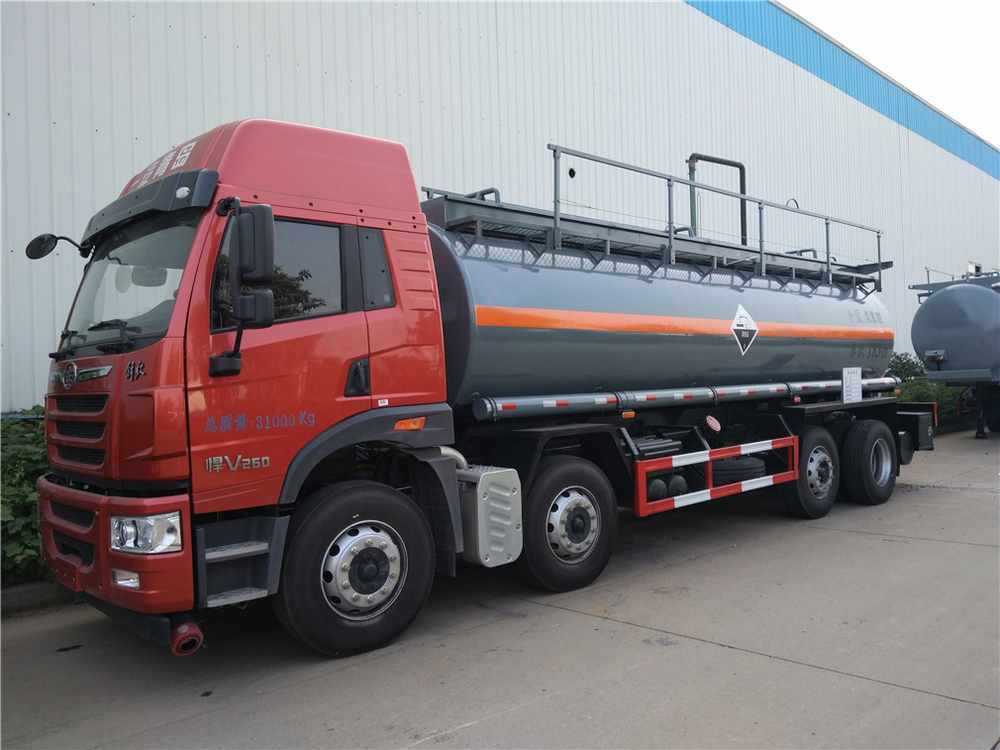

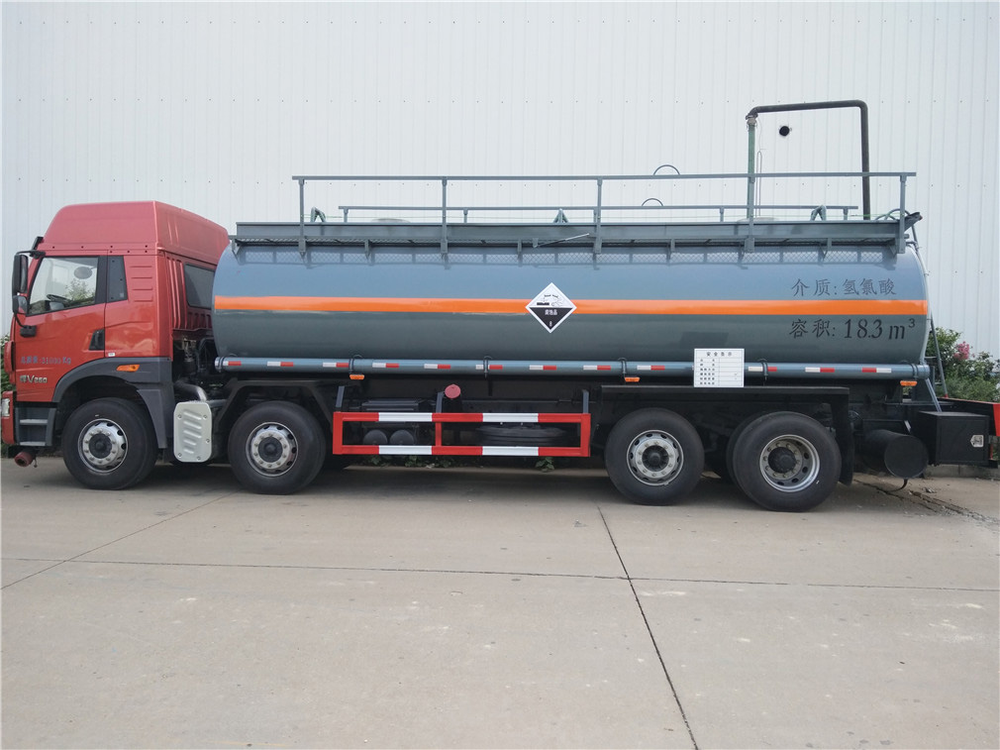

FAW HanV CLW5314GFWC5 Tank Truck for Corrosive Goods
| Category | Item | Specification |
|---|---|---|
| Basic Info | Vehicle Model | CLW5314GFWC5 |
| Announcement Batch | 286 | |
| Overall Dimensions (mm) | 10940×2500×3400 | |
| Tank Volume | 18.1 m³ (Effective Volume) | |
| Weight Parameters | Gross Vehicle Weight (kg) | 31000 |
| Rated Payload (kg) | 18105, 18170 | |
| Curb Weight (kg) | 12700 | |
| Axle & Passenger | Front Row Passengers | 2 / 3 persons |
| Axle Load (kg) | 6500/6500/6500/11500 | |
| Tax & Performance | Tax Exemption | No |
| Max Speed (km/h) | 80 | |
| Fuel Vehicle | Yes | |
| Fuel Consumption (L/100km) | 39.9 | |
| Environmental Certification | No | |
| Fuel & Emission | Fuel Type | Diesel |
| Emission Standard | China National V | |
| Remarks | Transport Application | For hazardous chemicals transportation |
| Transported Media & Density | Sodium hypochlorite (1050kg/m³), liquid caustic soda (1040kg/m³), hydrochloric acid (1047kg/m³), sulfuric acid (1045kg/m³), ammonia water (990kg/m³); Hazard Class: Class 8 | |
| Tank Outer Dimension (Length × Diameter, mm) | 8200 × Φ1800 | |
| Protection Material & Connection | Q235A carbon steel; left, right and rear guards welded to frame | |
| Rear Guard Section Size (mm) | 120×50 | |
| Rear Guard Ground Clearance (mm) | 520 | |
| Chassis Requirements | Chassis equipped with radial tires and ABS; front wheels fitted with disc brakes; front exhaust pipe layout |
