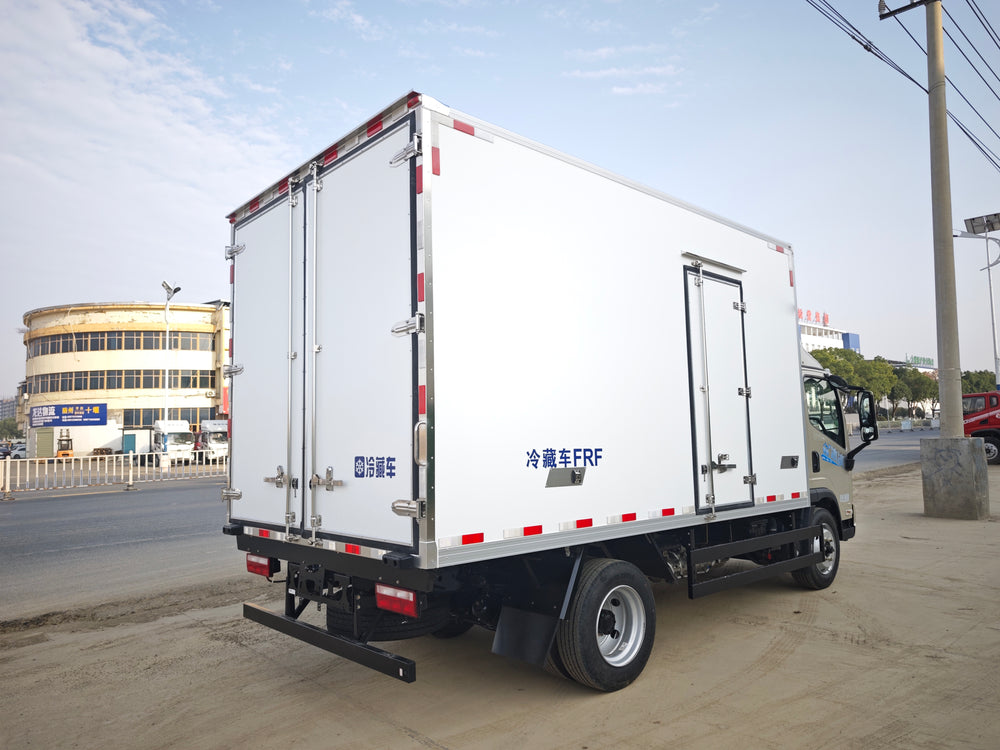

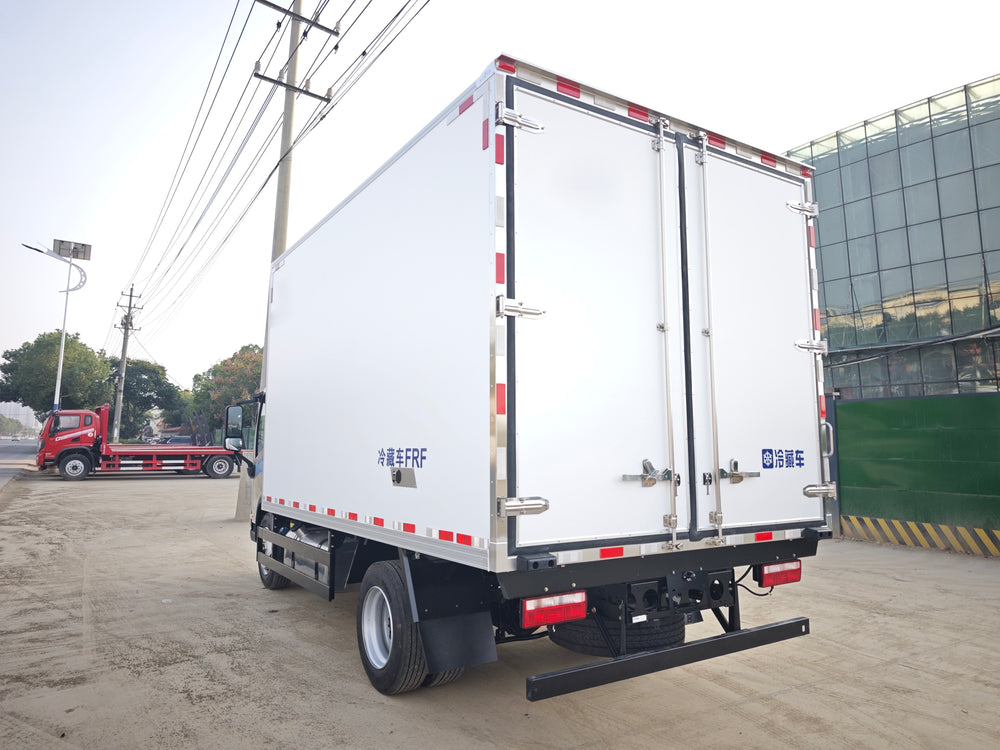

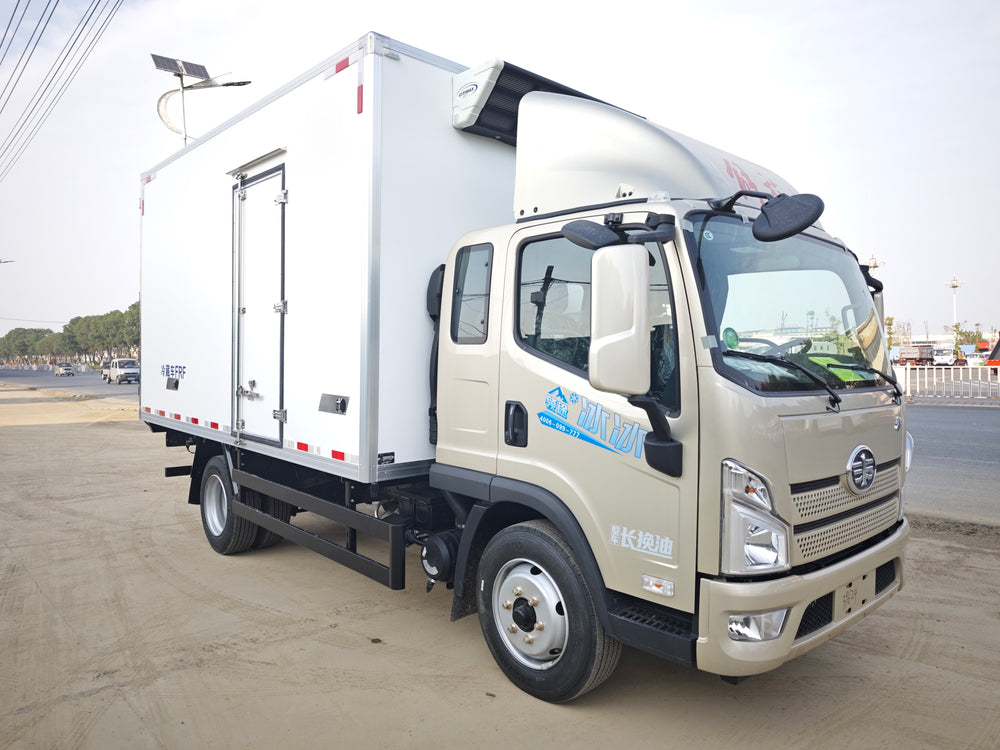

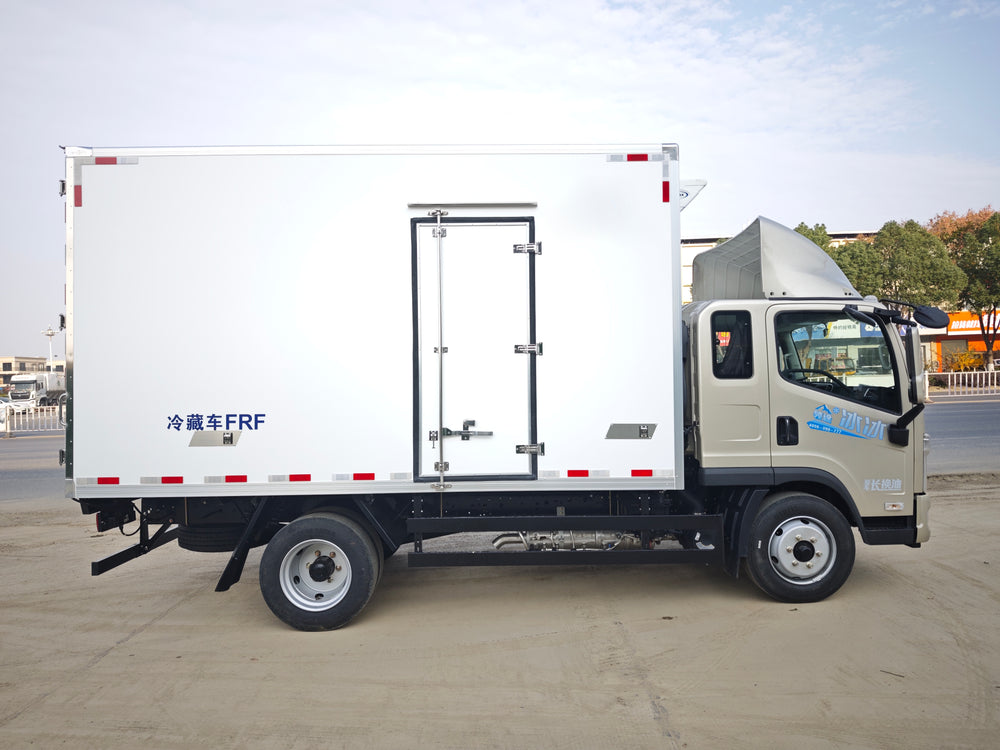

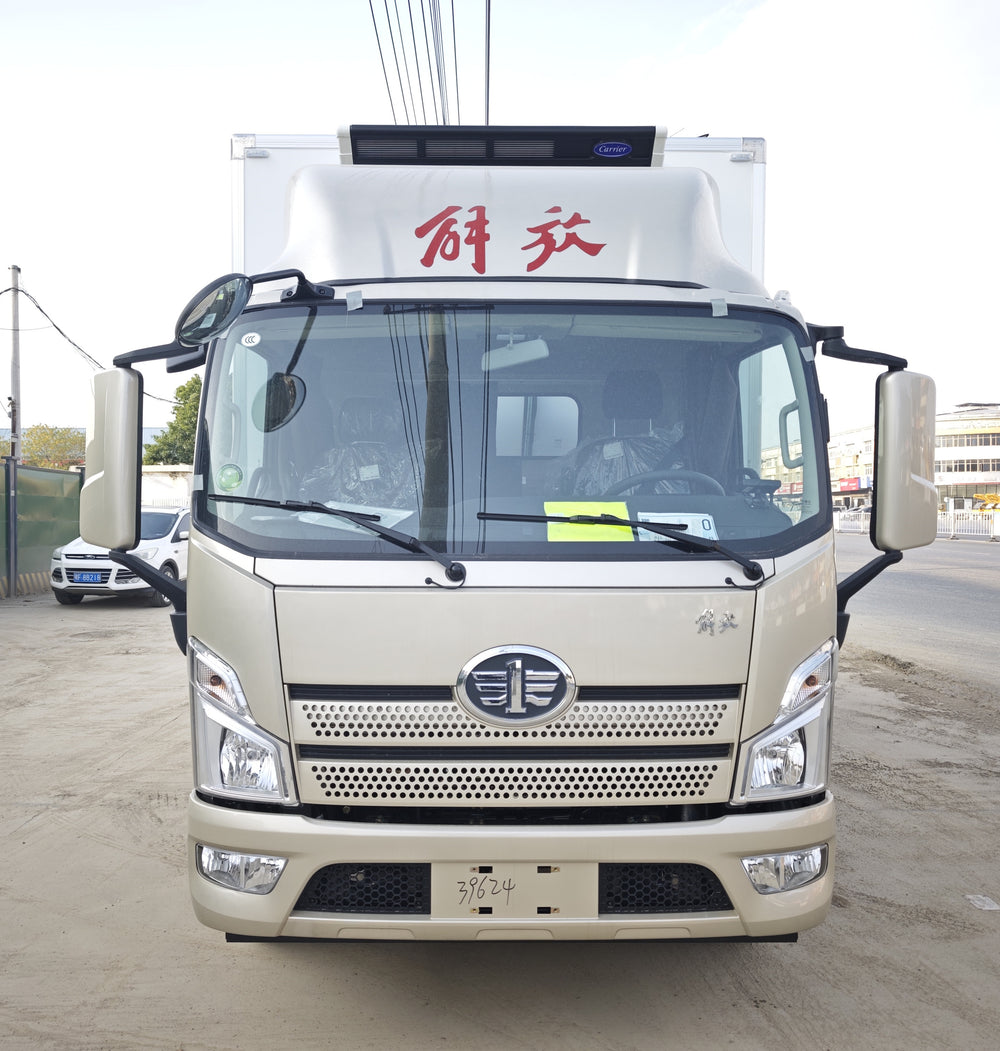

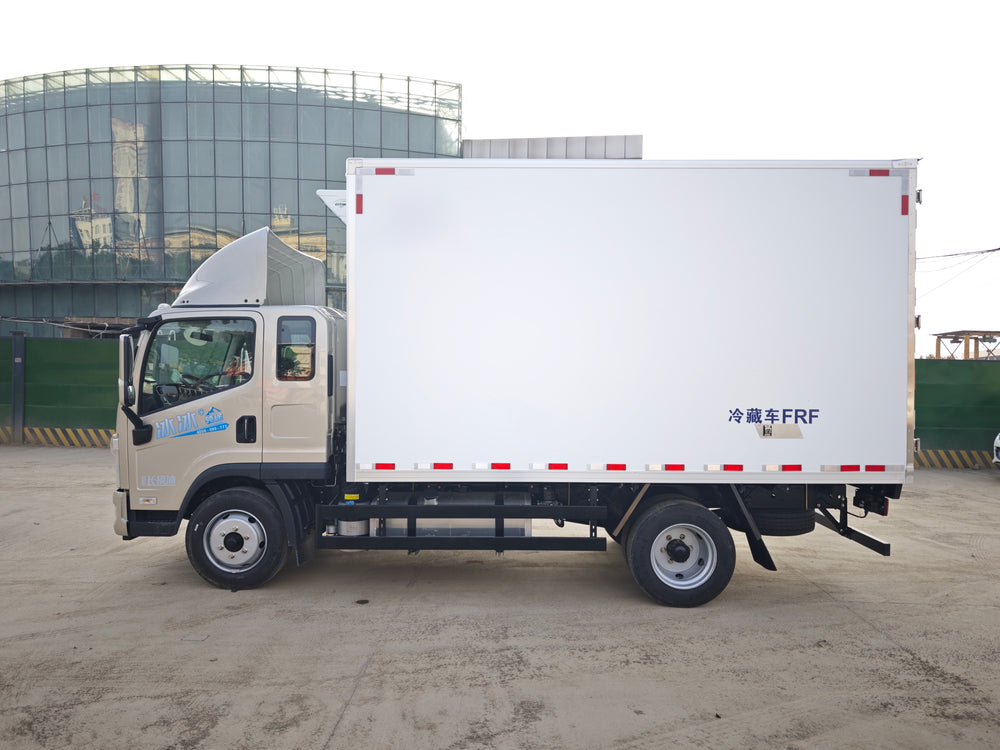

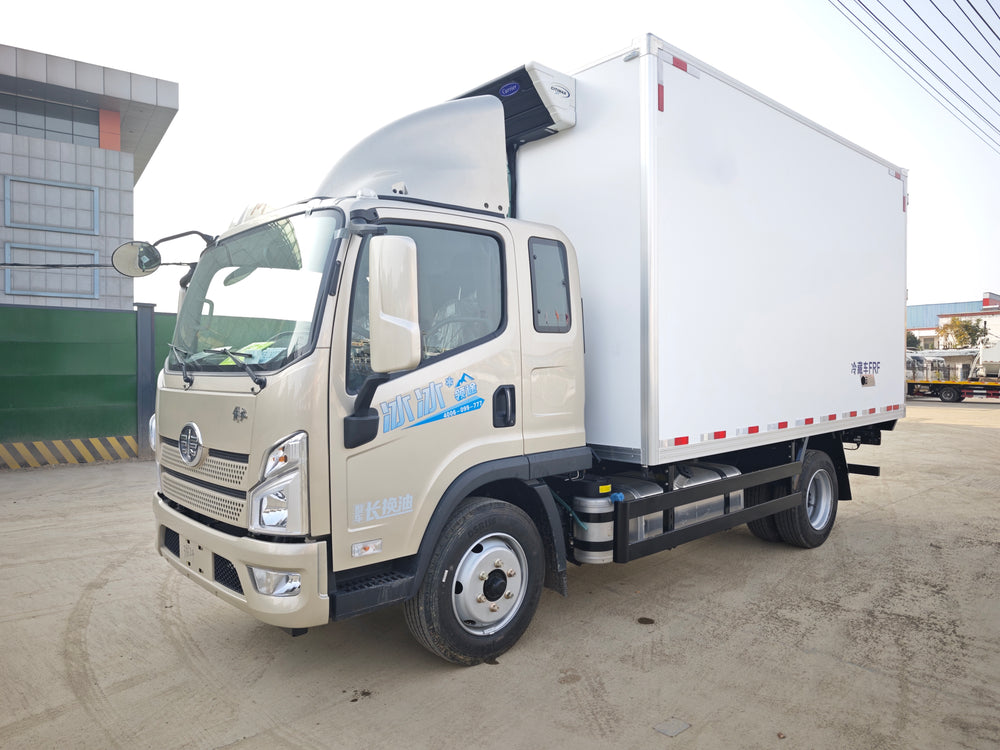

FAW Jiefang Refrigerated Truck
| Category | Specification Details |
|---|---|
| Chassis Basic Info | |
| Complete Model | CA5121XLCP40K42L2E6A84（Yellow Plate 12Ton GVW） |
| Overall Dimension | 6455×2600×3540 mm |
| Inner Refrigerated Box | 4180×2440×2300 mm，Total Volume≈23.5 CBM |
| Wheelbase | 3800mm（3300/3900mm） |
| GVW/Curb/Payload | 12000KG / 4000KG / 7800KG |
| Drive Layout | 4×2 Rear Wheel Drive |
| Fuel Type | Diesel |
| Max Speed | 100km/h |
| Policy Advantage | No mandatory BD terminal, unlimited driving speed/time, flexible urban access |
| Engine | |
| Engine Model | DDE CA4DD2-18E6 Inline4 Turbo Diesel 3.2L |
| Displacement | 3198cc |
| Power/Torque | 132kW(180HP) / 550N·m@1400rpm |
| Emission | China National VI b (Euro6 Equivalent,DOC+DPF+SCR+ASC) |
| Fuel/Urea Tank | 300L Aluminum Fuel Tank / 22L Urea Tank |
| Transmission & Chassis | |
| Gearbox | Fast 8JS75TC 8-speed Aluminum Manual Gearbox |
| Final Drive Ratio | 4.333 Optional |
| Brake System | Full Air Brake + ABS+EBD+Exhaust Brake |
| Tire Spec | 245/70R19.5 Tubeless All-steel Tire（6pcs） |
| Axle | Front 3.5T / Rear 7T Heavy-duty Cast Axle |
| Suspension | Front 3-Leaf + Rear10+4 Reinforced Multi-leaf Spring |
| Cold Special Config | Original factory dual compressor bracket,24V high-output alternator,PTO interface |

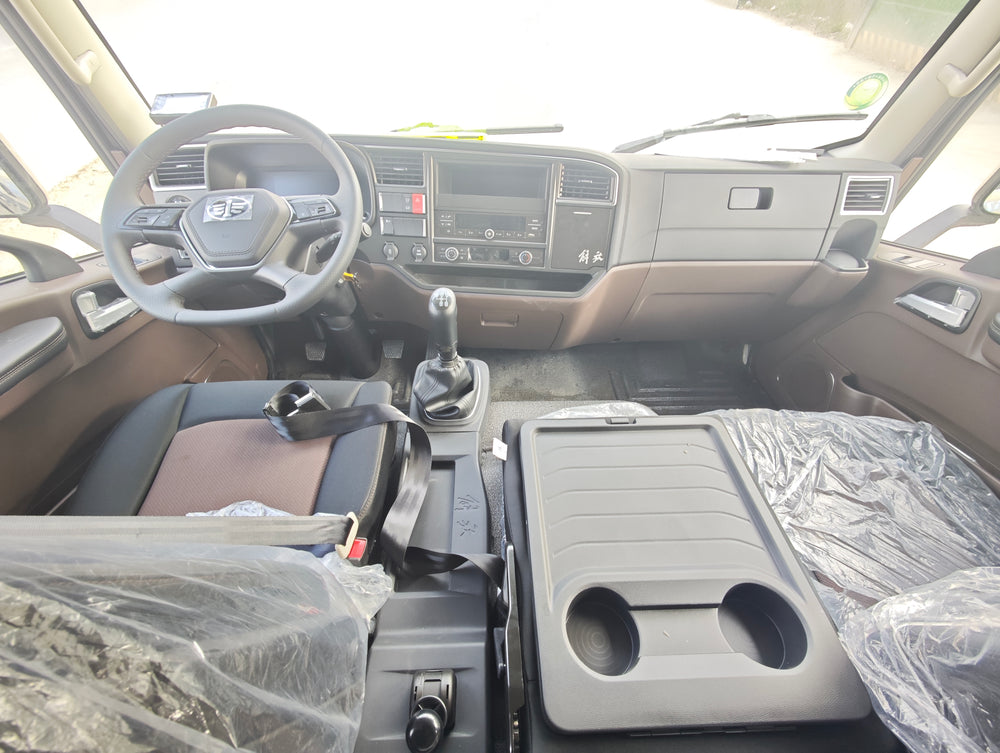

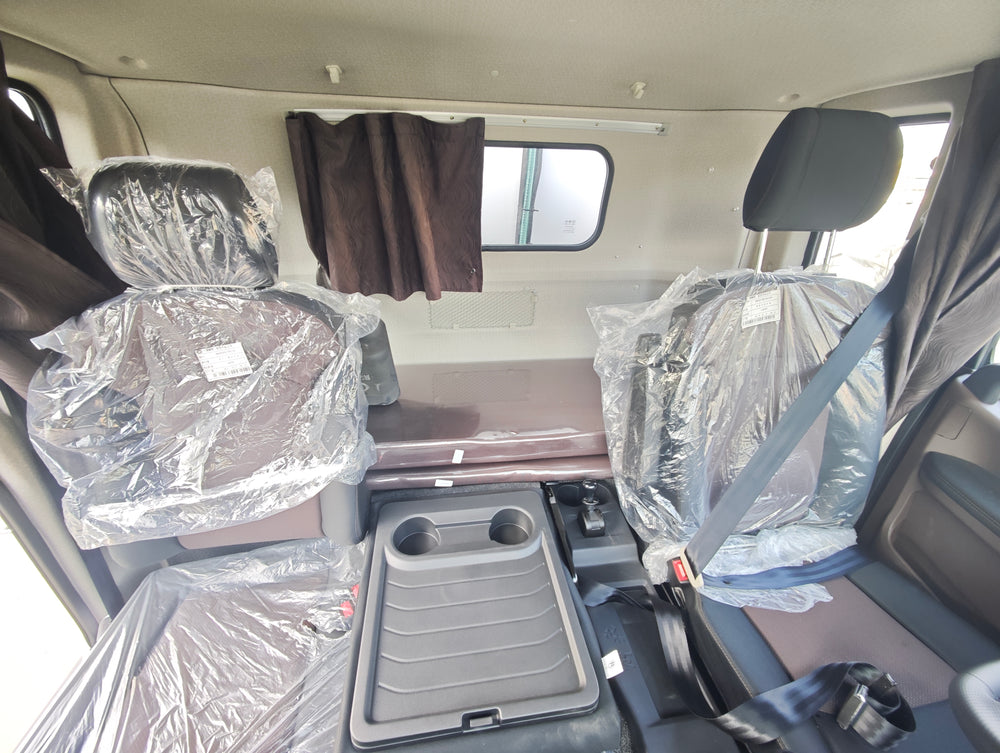

| 驾驶室 Cabin (Bingbing Edition Wide Cab with Sleeper) | |

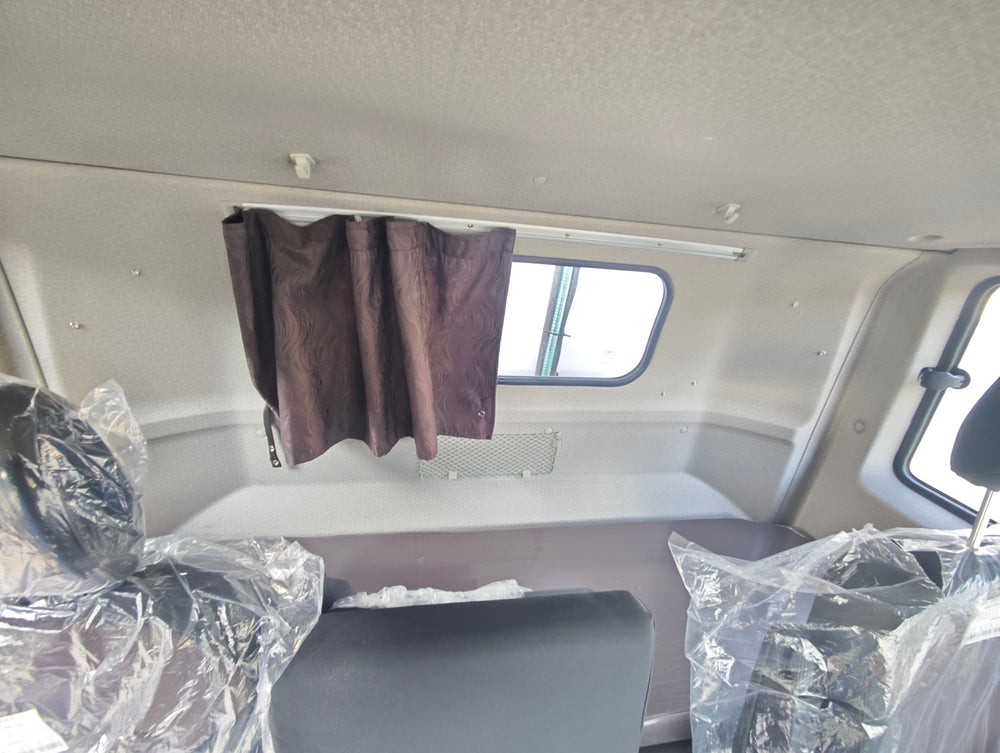

| Cabin Type | 2100mm Wide Half-row Single Sleeper,3-passenger seat |

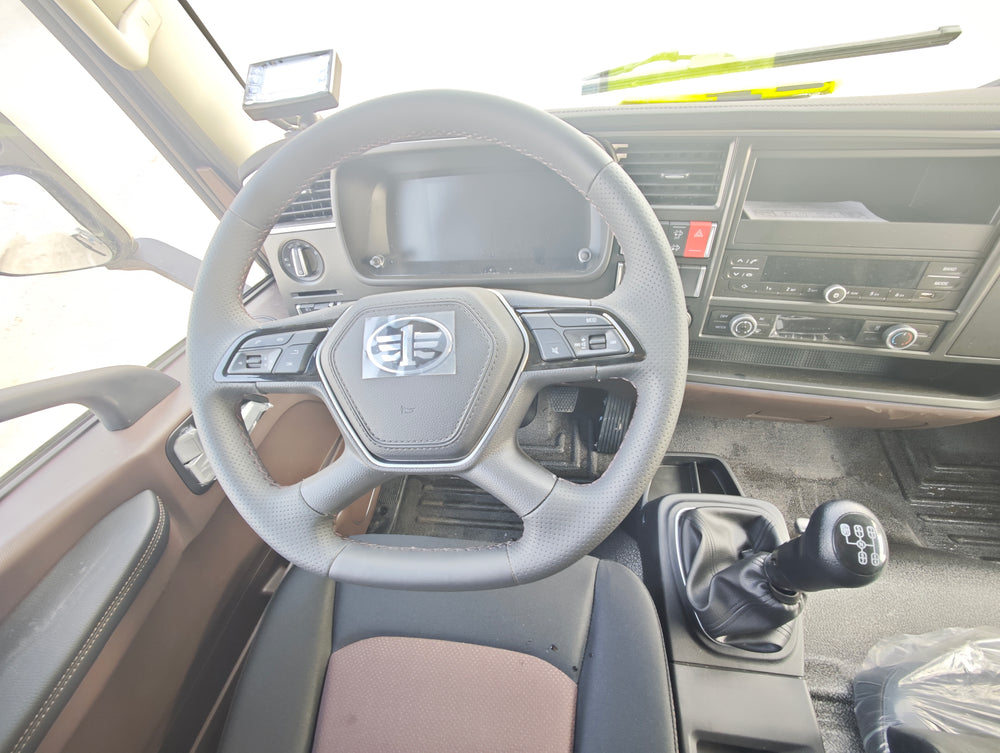

| Standard Equip | Airbag driver seat+Ventilation+Heating+Lumbar support, Factory A/C, Power window, Central lock+Remote key, Multi-function steering,Cruise control,Heated rearview mirror,LED DRL,LCD instrument,Privacy curtain |
| Optional | Android Touch Screen, Reverse camera |
| Insulated Cargo Box | |
| Craft | Vacuum Integral Sandwich Panel,80mm Grade A PU Insulation,Bridge-break thermal insulation |
| Material | Inner&Outer FRP + High-density PU Foam Core |
| Floor | Anti-slip Aluminum Checkered Plate |

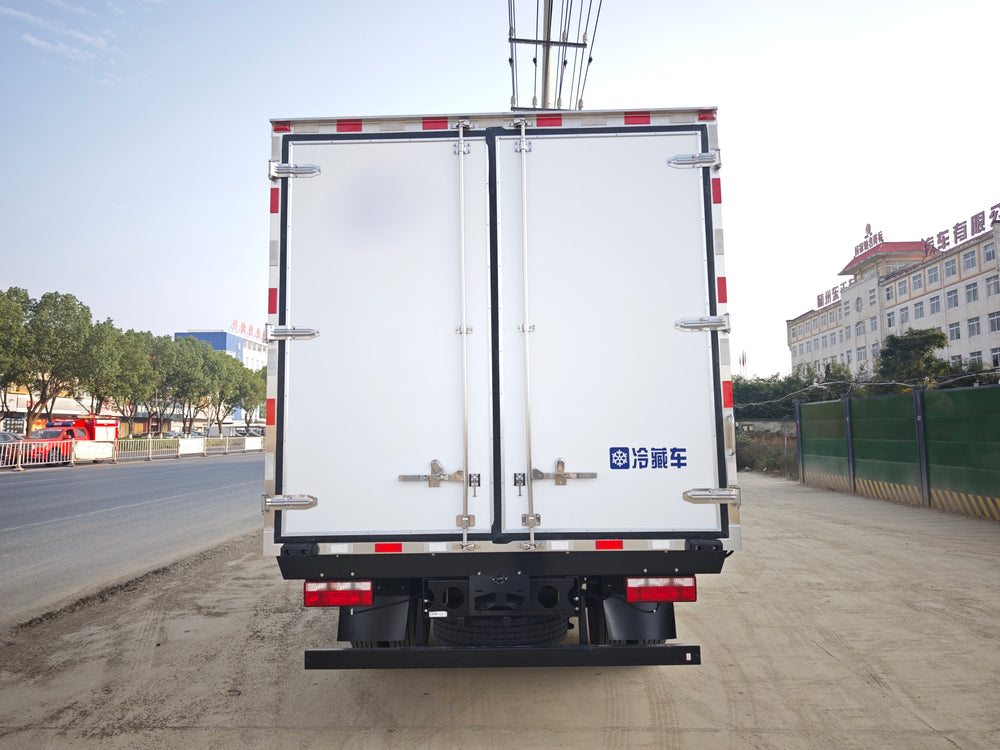

| Standard Fitting | Aluminum wrap edge,Stainless steel hinge&lock,Labyrinth rubber seal,Inner LED lamp,Rear double door |
| Optional Upgrade | Side access door,Full underfloor air duct,Meat hanging rails |
| Refrigeration Unit | |
| Standard | Domestic PTO-driven refrigeration unit |
| Import Option | Carrier / Thermo King independent cooling unit |
| Temp Range | -18℃ ~ +25℃ Adjustable,R404A refrigerant |
