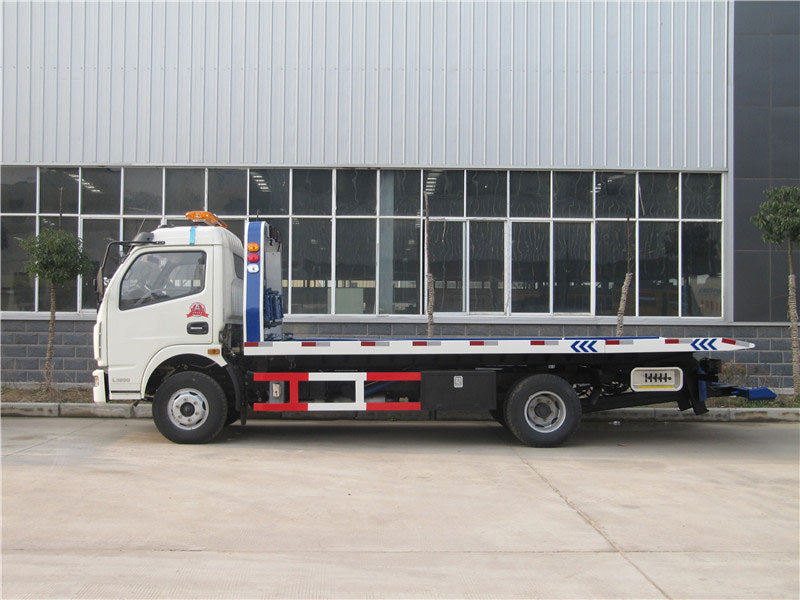

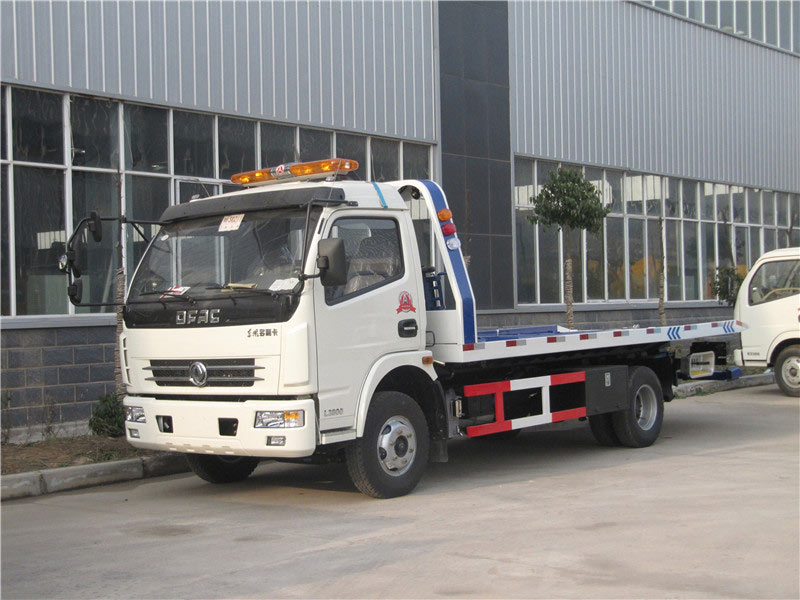

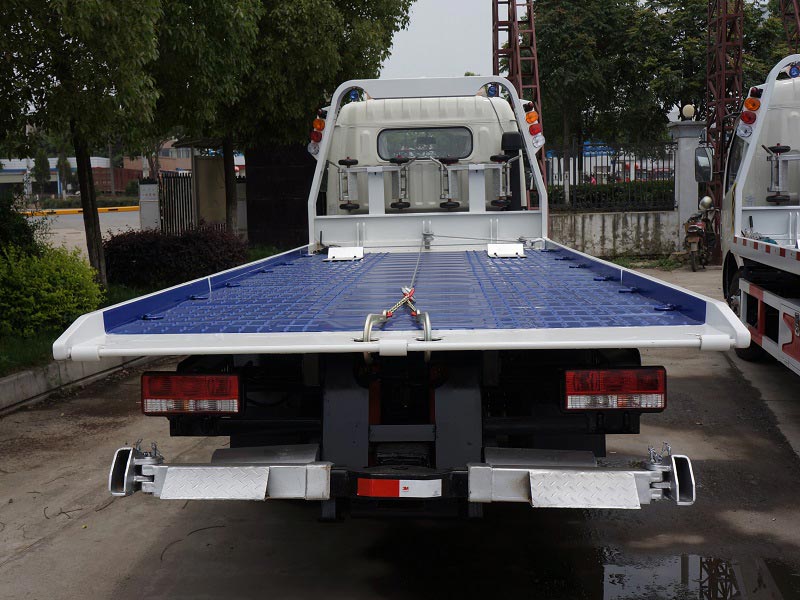

Dongfeng flatbed Truck 4X2

Description

Dongfeng One Carry Two Recovery Truck

Drive Model

4x2

Vehicle Main Dimensions

Dimensions(L x W x H)mm

7420X2300X2540

Wheel base (mm)

3800

Overhang (front/rear) (mm)

1180/2440

Wheel track (front/rear) (mm)

1835/1640

Approach/Departure angle(°)

20/10

Weight in KGS

Curb Weight

5495

GVW.

7490

Max. driving speed(km/h)

90

Engine

Model

CY4102

Type

4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

120HP

Emission standard

Euro II

Gearbox

5 forwards & 1 reverse

Clutch

Reinforced diaphragm clutch

Steering Gear

Power steering, hydraulic steering with power assistance

Fuel tank (L)

180

Tire

7.50R16 , 6pcs + 1 spare tire

Brakes

Exhaust brake

UPPER

Platform Organ

LXW(mm)

5400x2100

Platform power stroke(mm)

2680

Min angle(°)

7.6

Max lifting capacity(kg)

3000

Winch rating pulling capacity(kg)

4000

Length of steel(m)

21

Hoisting Organ

Max under-hoisting capacity(mm)

1300

Rating under-hoisting capacity(mm)

1005

Fully extended max under-hoisting capacity(mm)

700

Rating under-pulling capacity(kg)

5000

With auxiliary wheels, hooks, bundling belt, automatic sliding plate;
