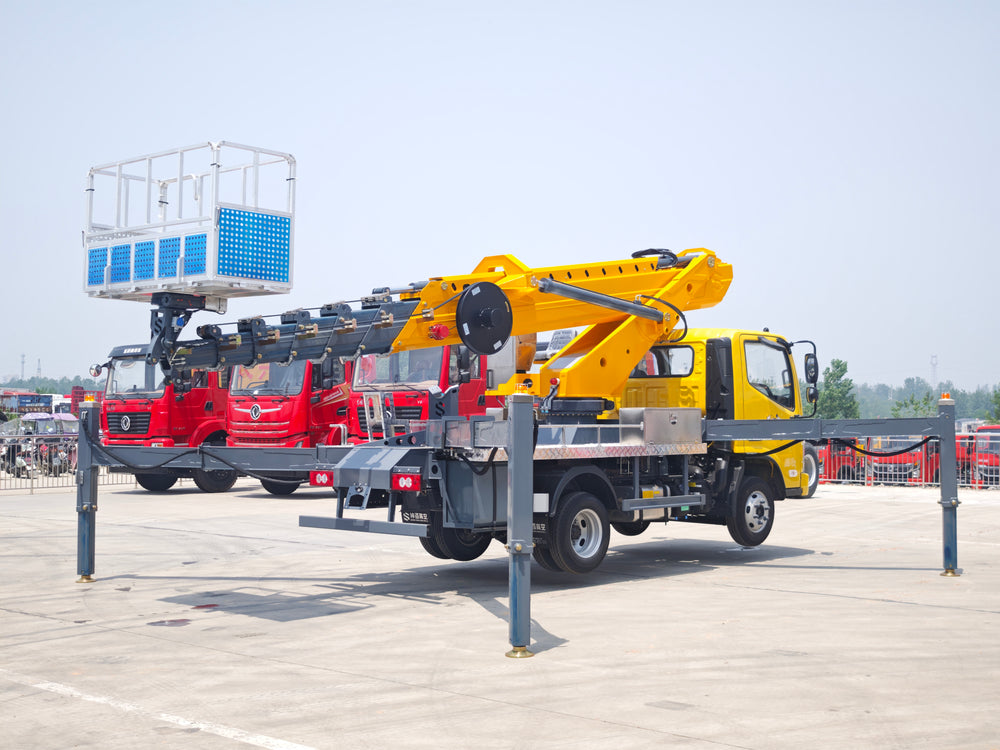

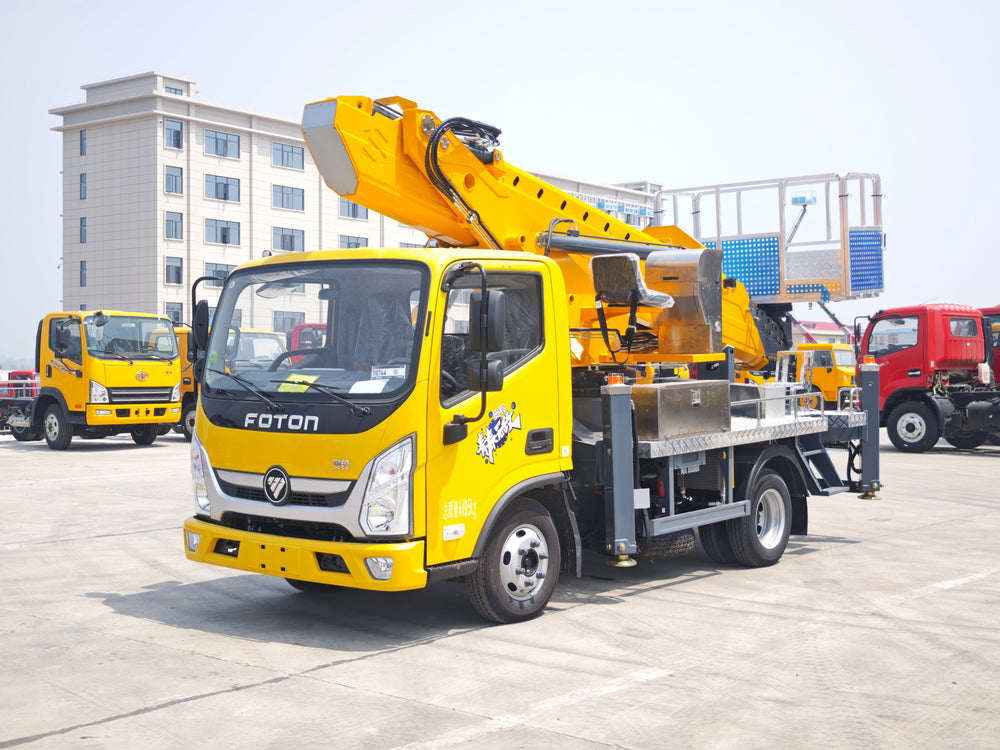

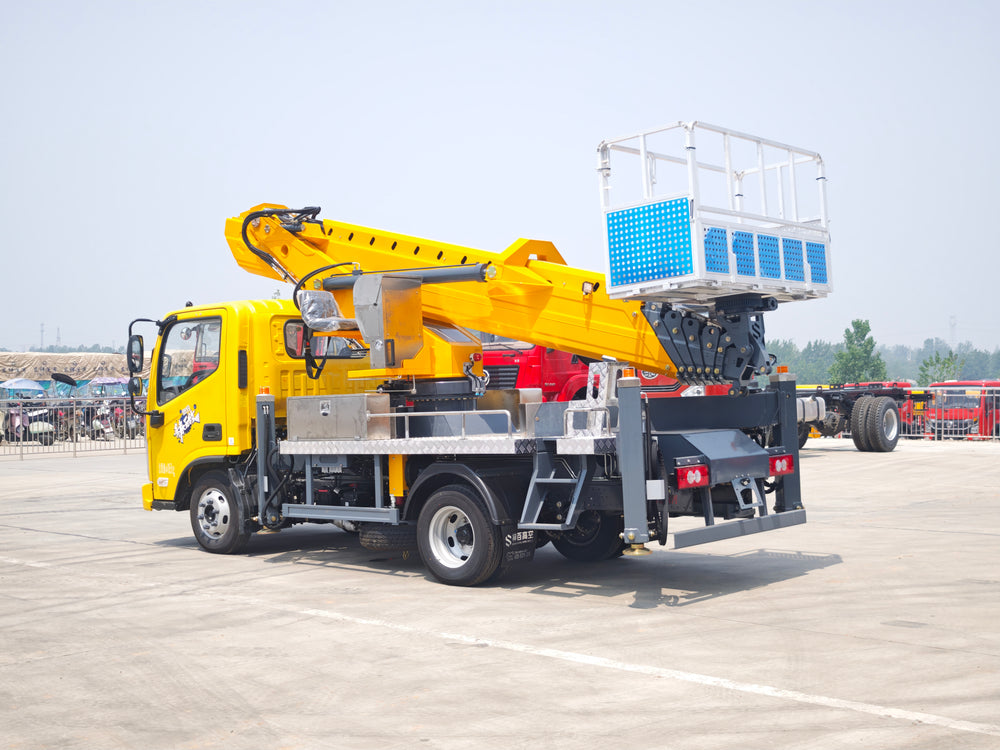

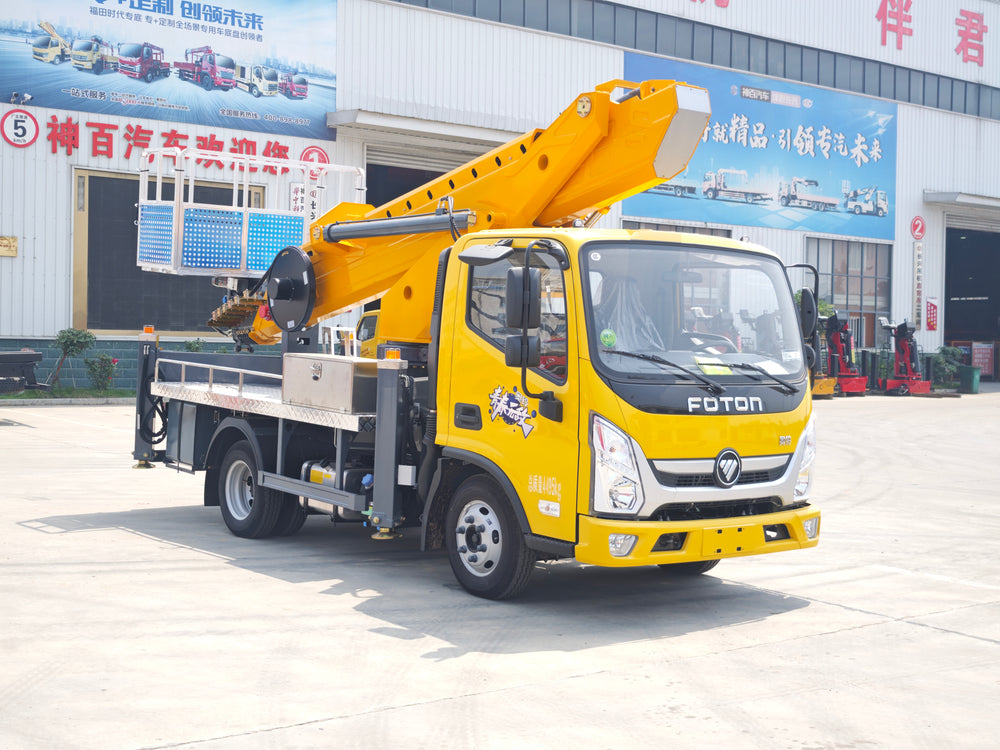

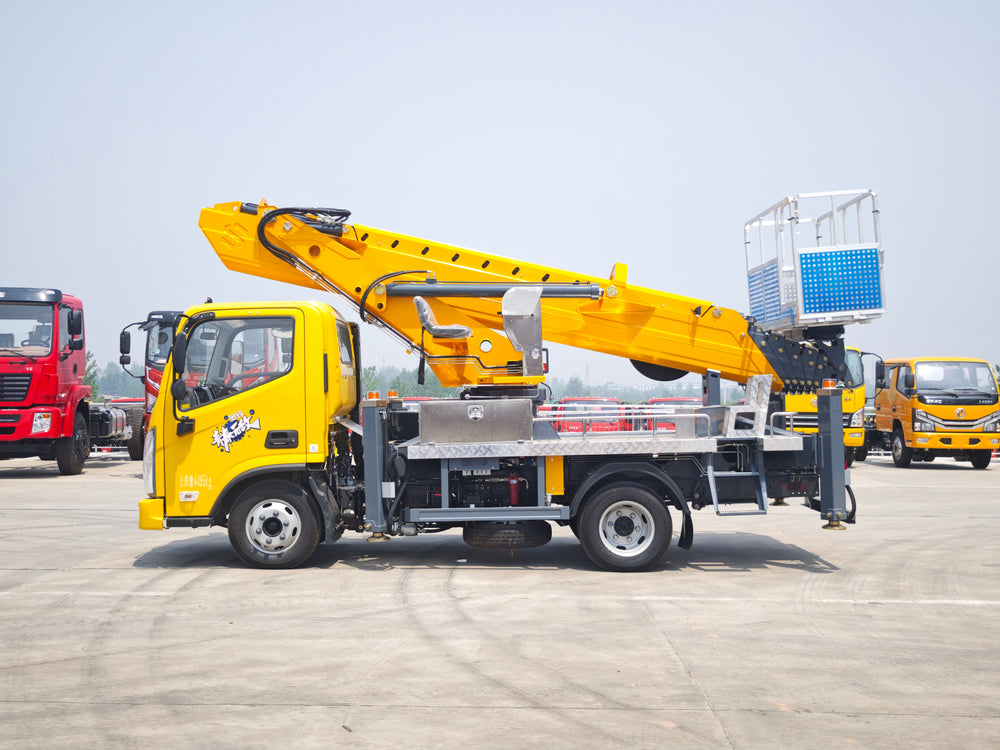

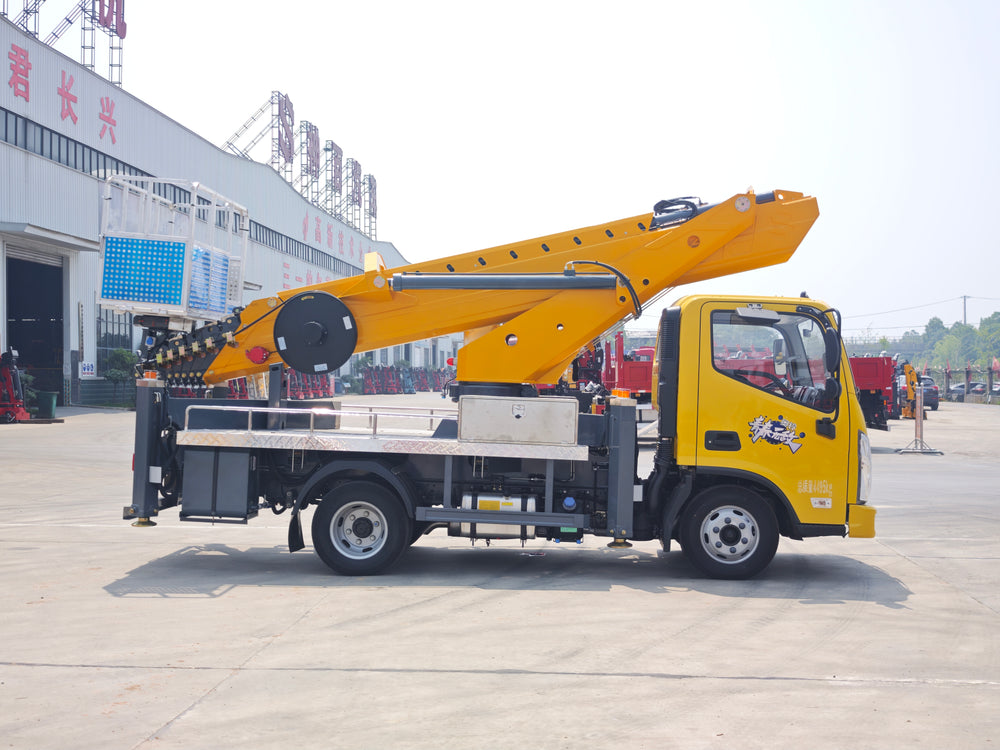

Foton Aoling Youth Invincible GKS35 Pro Aerial Work Vehicle
| Item | Specification |
|---|---|
| Vehicle Name | Foton Aoling Youth Invincible GKS35 Pro Aerial Work Vehicle |
| Core Features | Minimum turning radius, heavy duty version, sedan-like driving comfort |
| Approved Model | ABC5041JGKBJ6 Aerial Work Vehicle |
| Main Advantages | Minimum turning radius, blue plate heavy duty, 7-section boom, max working height 33.8m |
| Technical Highlights | 1. Adopt lightweight 960 high-strength steel plate
|
| Chassis Model | Foton Aoling Youth Invincible Heavy Duty Short Wheelbase |
| Gross Vehicle Mass | 4495KG |
| Curb Weight | 4300KG |
| Engine | Yunnei 151HP |
| Transmission | Wanliyang 8-speed gearbox |
| Wheelbase | 2800mm, original double-layer widened beam, 5-ton rear axle |
| Overall Dimension | 5995mm2200mm3150mm |
| Tire Size | 6.50R16 / 7.00R16 |
| Brake System | Air brake |

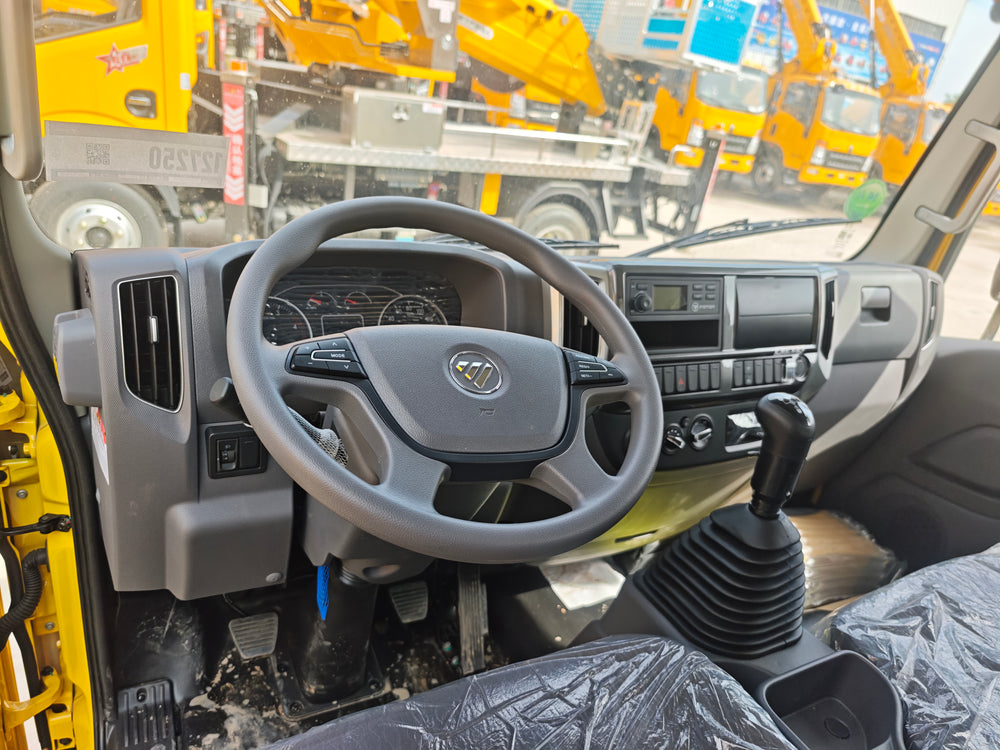

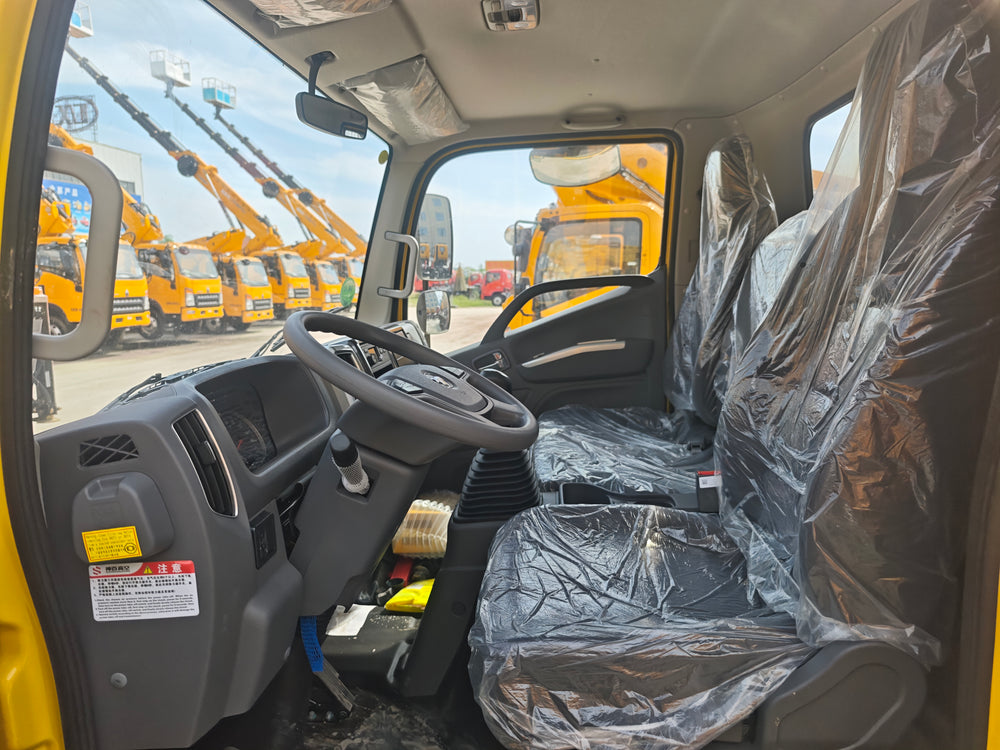

| Cab Configuration | Electric windows, air conditioner, central control, multifunctional steering wheel |
| Upper Body Model | GKS35 |

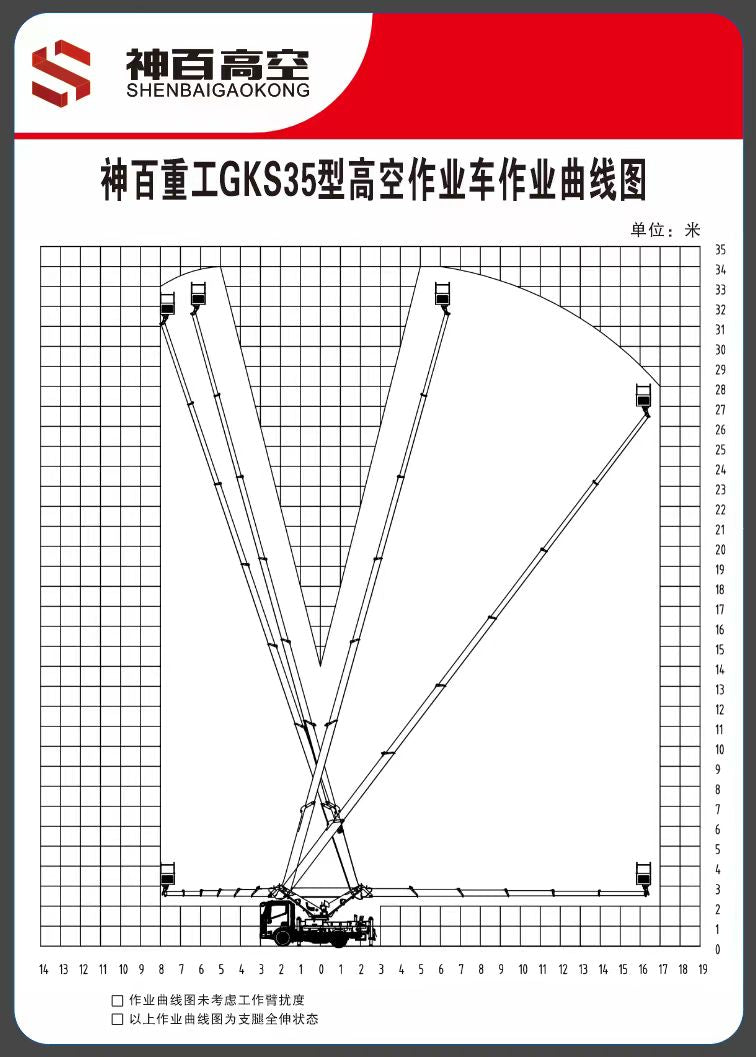

| Max Working Height | 33.8m |
| Max Working Radius | 16.5m |
| Rated Platform Load | 200KG |

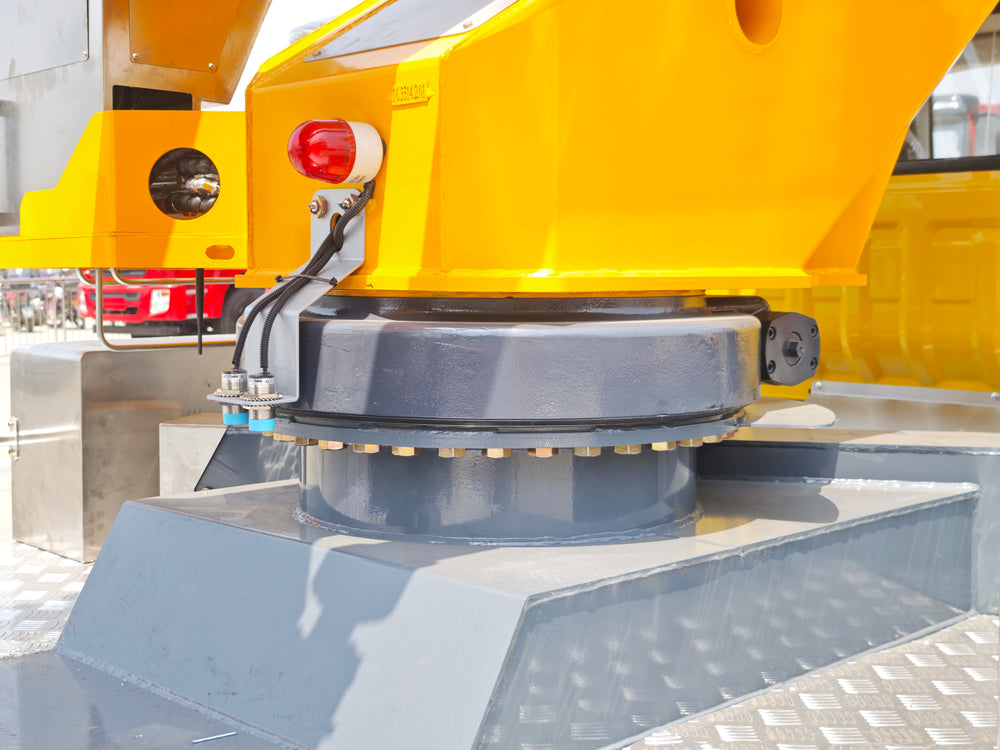

| Boom Slewing Angle | 360° |
| Platform Size | 1800mm700mm1000mm (extended to 3.8m) |
| Platform Rotation | 360° unlimited rotation |
| Boom Structure | 7-section boom, 6 sections synchronous telescoping, equipped with standby steel wire rope for safe descent |
| Control System | Famous domestic electric control system, wireless remote control, upper operation with display screen |

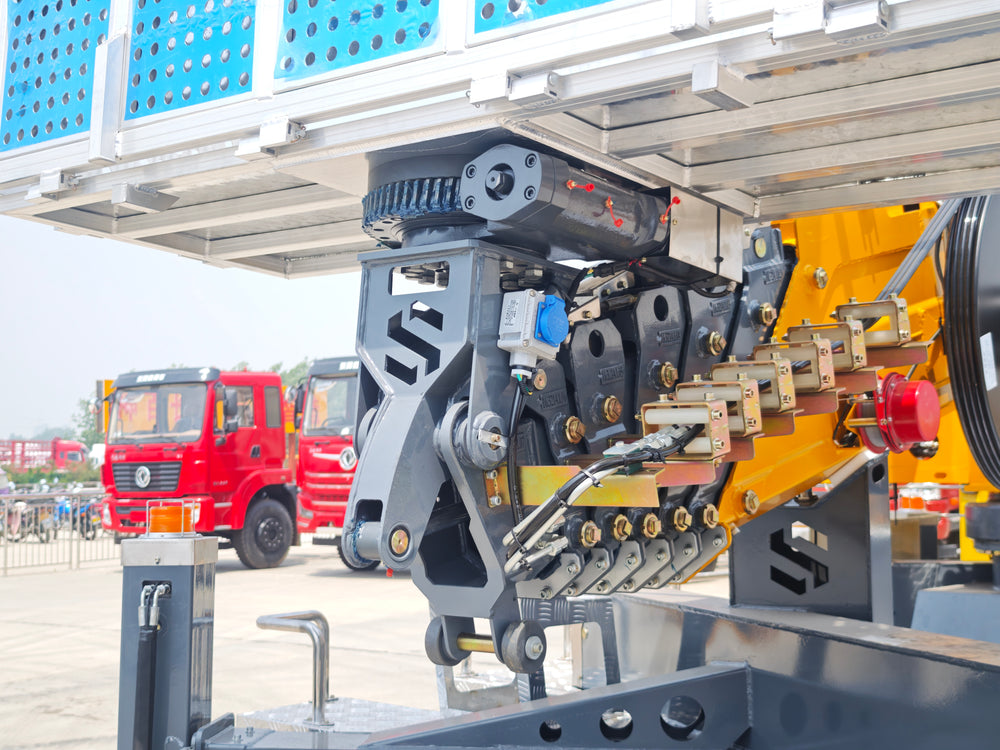

| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation, emergency power source equipped |
| Hydraulic Outrigger | X-type 4 independent adjustable double-section outriggers with soft leg protection |
| Walkway Plate | Aluminum alloy anti-slip plate with stainless steel guardrail |
| Safety Devices | Upper and lower operation interlock, emergency power source, two-way hydraulic balance valve, soft leg protection |
| Optional Accessories | Upper operating cab, 1-ton winch |
