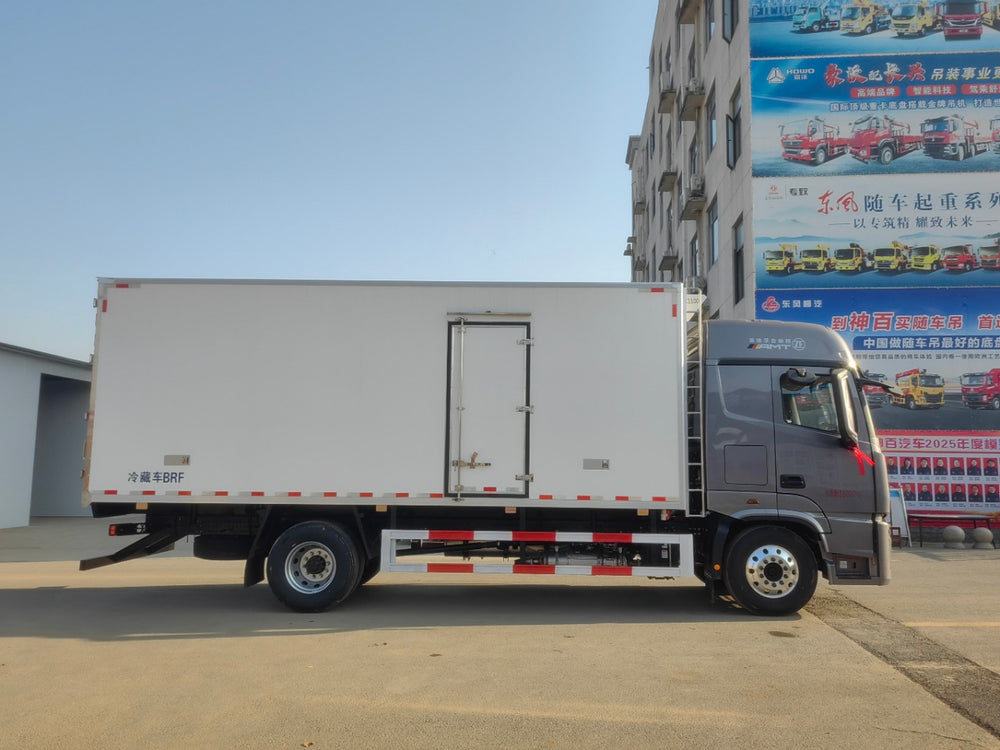

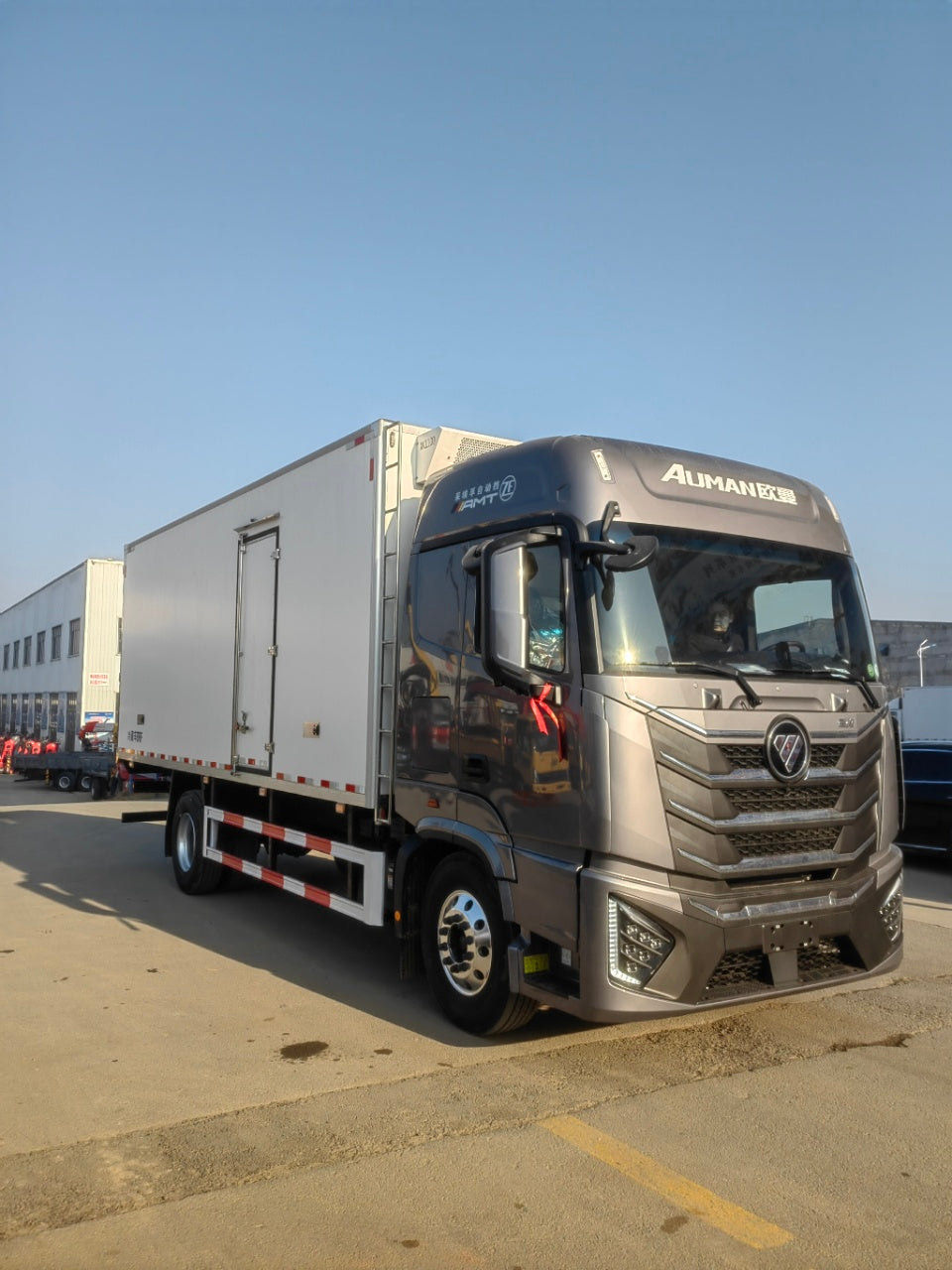

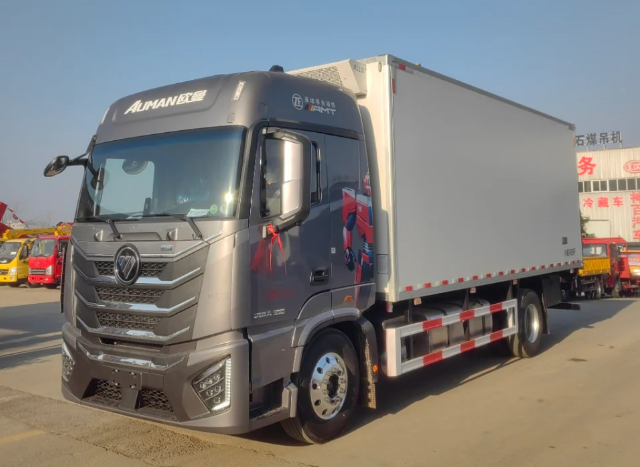

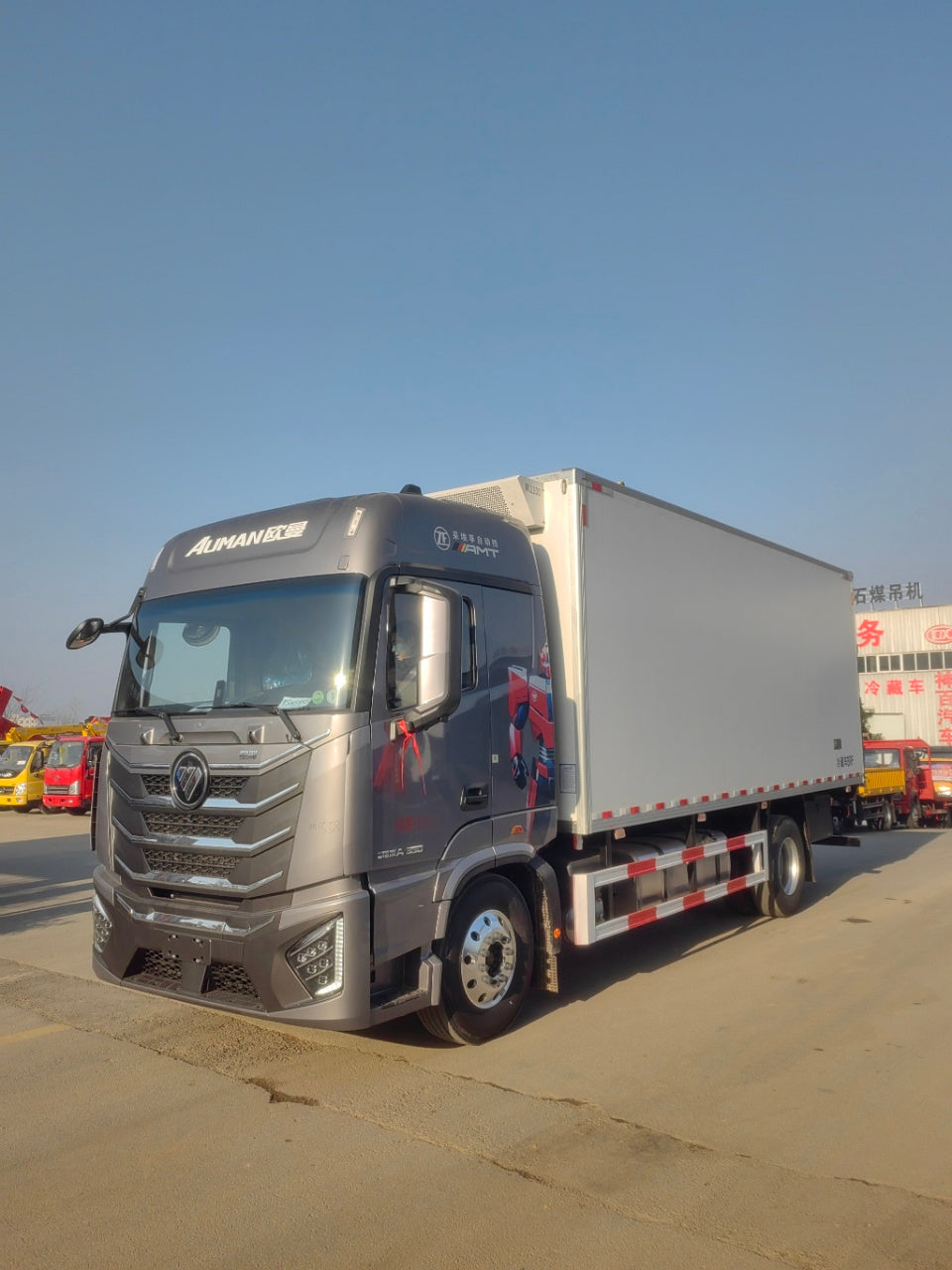

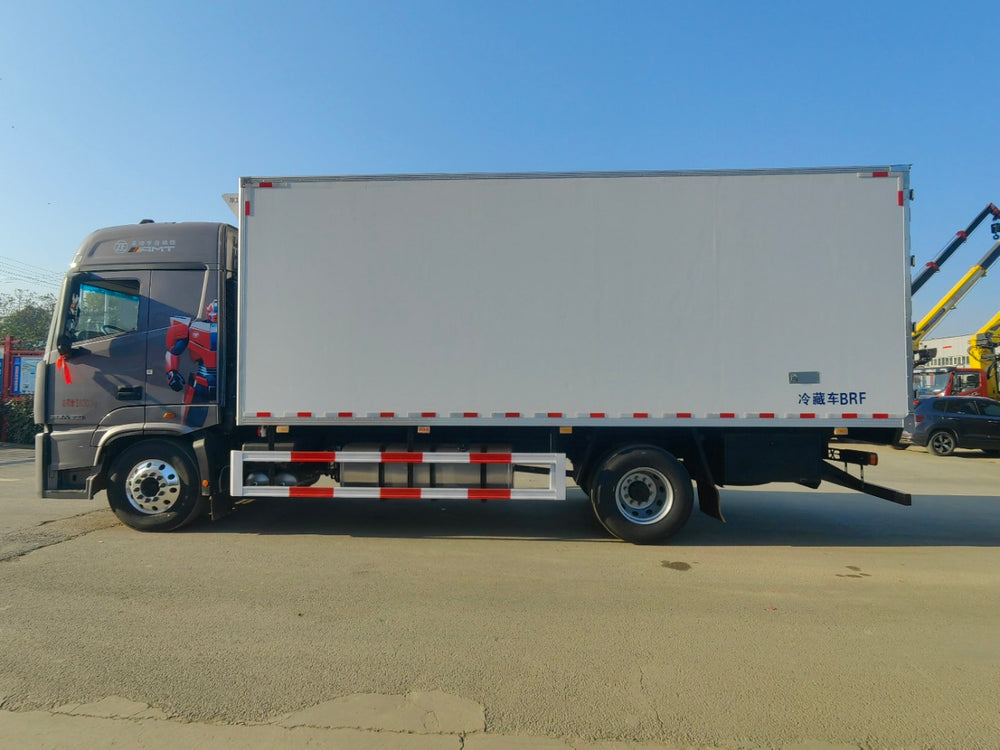

FOTON AUMAN GTL 6.8M REFRIGERATED TRUCK FULL SPEC TABLE
| Category | Item | Specification |
|---|---|---|
| Chassis Basic Info | Complete Vehicle Model | BJ5189XLCY6ANL-06 |
| Chassis Model | BJ1189Y6ANL-08 | |

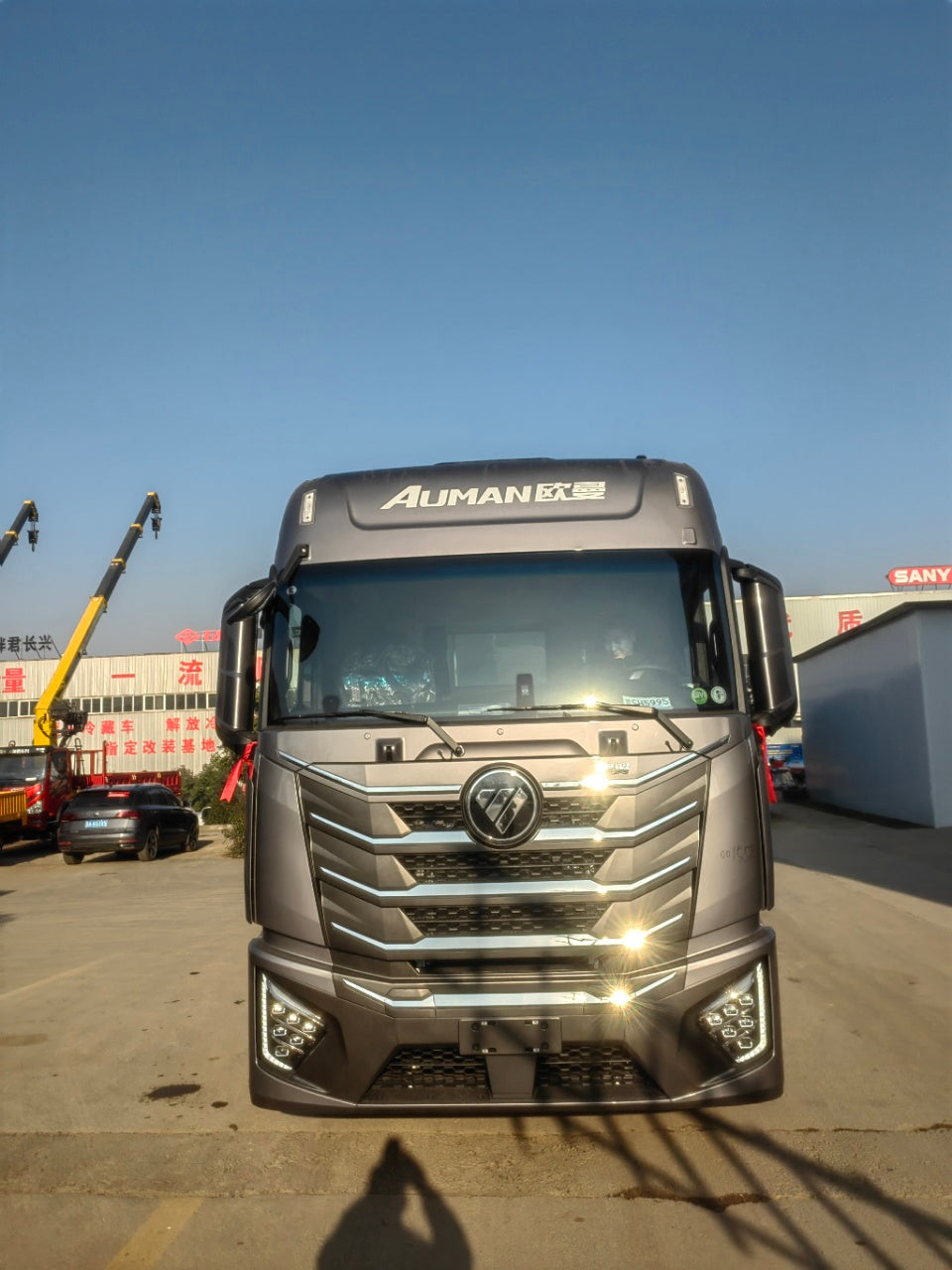

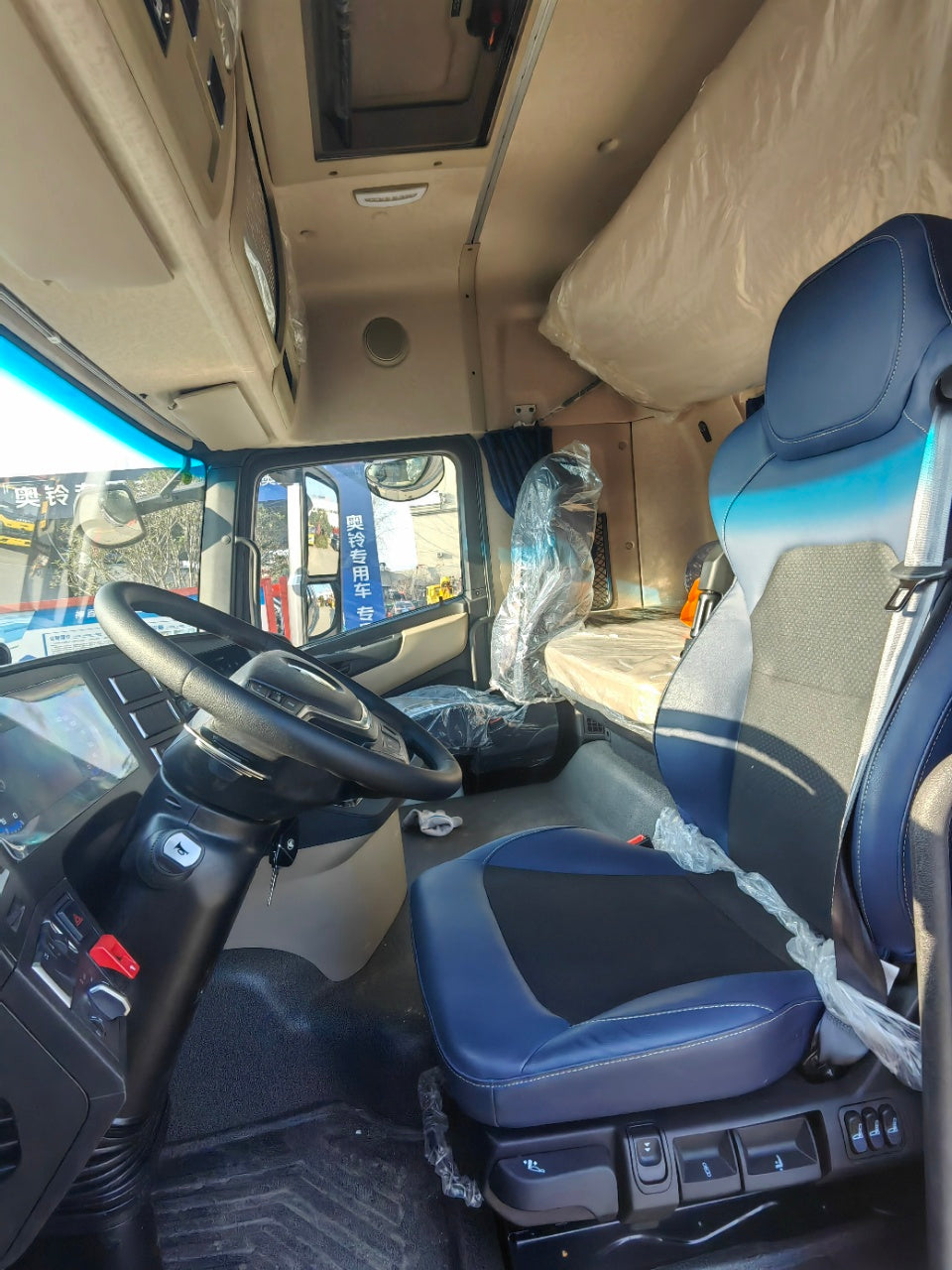

| Cabin Type | High-roof Double Sleep GTL Starwing Pro Cabin | |
| Wheelbase | 5300 mm | |
| Overall Dimension(L×W×H) | 9400×2600×3950 mm | |
| GVW / Curb Weight / Rated Payload | 18000kg / 8070kg / 9800kg | |
| Drive Mode | 4×2 Single Rear Axle | |
| Front / Rear Axle Load | 5.5T Front Axle, 9T(368) Rear Axle | |
| Final Drive Ratio | 3.364 / 3.7 Optional | |
| Tire Size | 295/80R22.5 18PR | |
| Fuel Tank | 600L Aluminum Alloy Fuel Tank | |
| Urea Tank | 50L | |
| Powertrain System | Engine Model | Cummins A7NS6B350 |
| Displacement | 7.0L Diesel | |
| Max Power / Horsepower | 257kW / 350HP | |
| Max Torque | 1450N·m | |
| Emission Standard | China National VI (Euro 6) | |
| Transmission | ZF 9AS1517TO 9-speed AMT Automatic Gearbox | |
| Fuel Type | Diesel | |
| Standard Cabin Configuration | Suspension | Full-floating 4-airbag Cabin Suspension |
| Steering & Brake | Hydraulic Steering + ABS Automatic Slack Adjuster | |

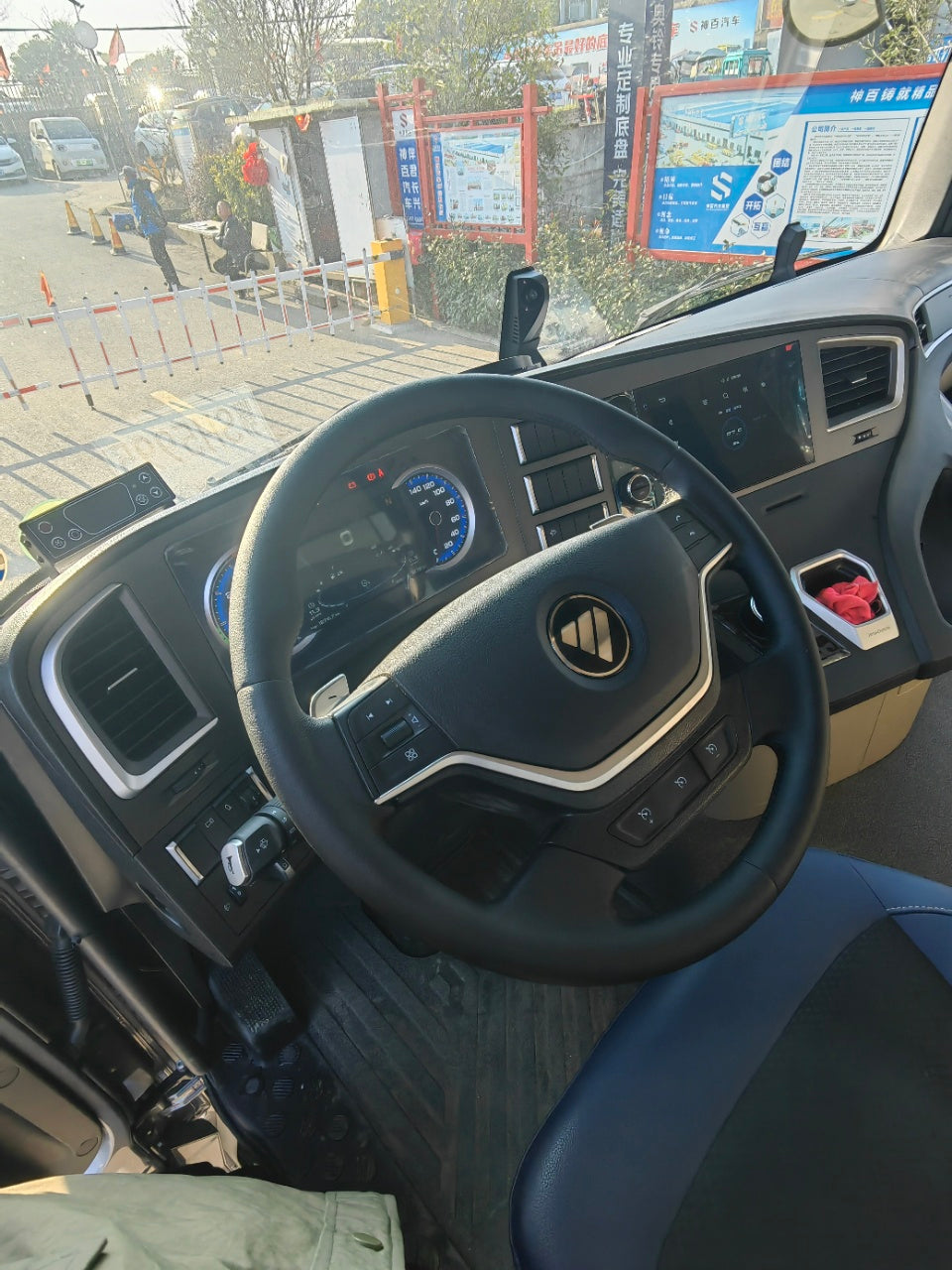

| Aux Equipment | Electric Heated Rearview Mirror, Multifunction Steering Wheel, Cruise Control, Electric Parking Brake, 7-inch LCD Instrument, MP5 Multimedia, 300W Inverter, 165Ah MF Battery, 4-way Surround View Monitor, Pneumatic Driver Air Suspension Seat with Lumbar Support, Factory Original A/C | |

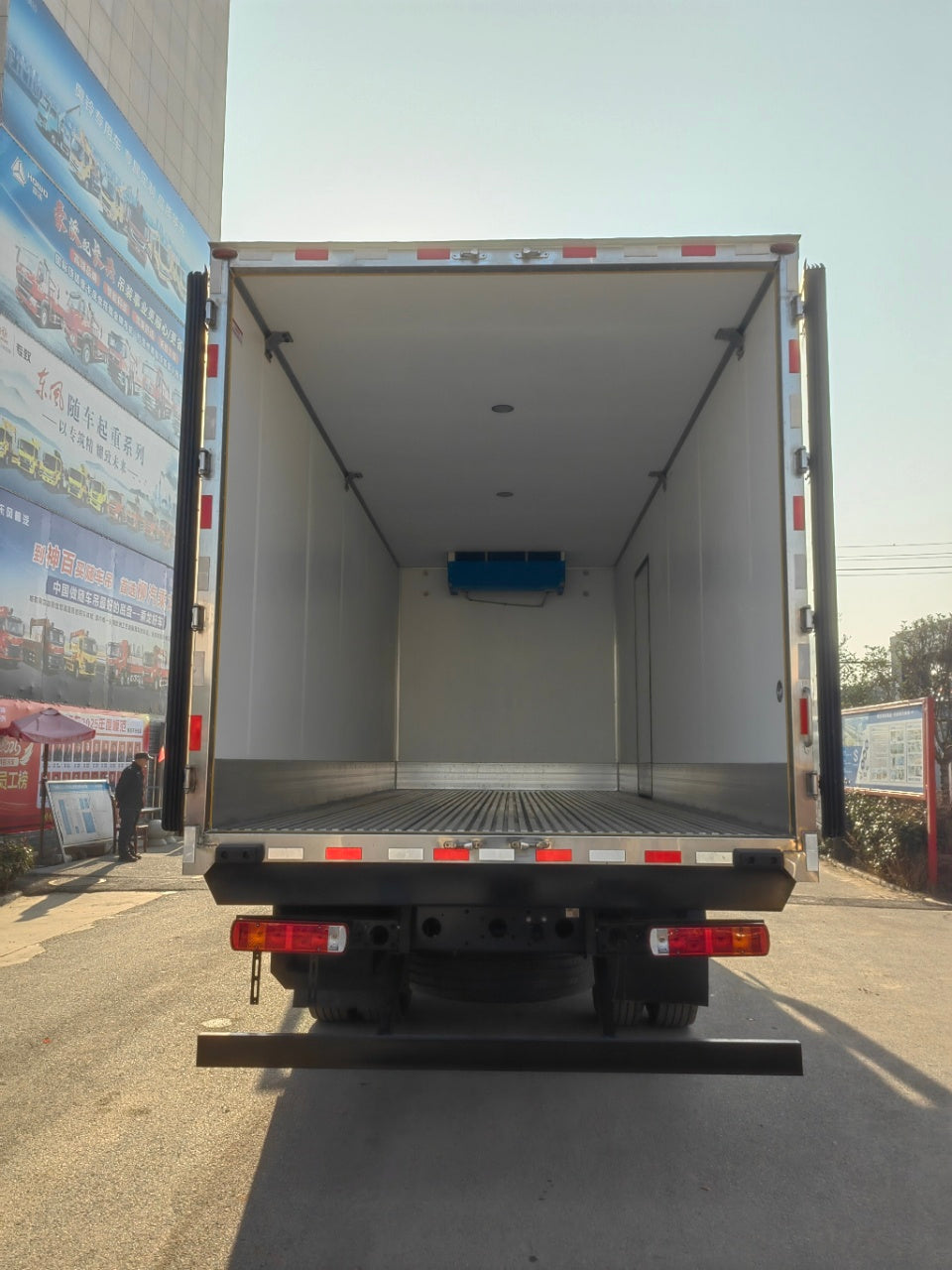

| Insulated Refrigerated Cargo Box | Inner Cargo Dimension(L×W×H) | 6800×2450×2600 mm |
| Box Total Volume | ≈43.5 CBM | |
| Box Construction | Inner & Outer FRP + 80mm High-density PU Sandwich Insulation Panel | |
| Floor | Anti-slip Aluminum Pattern Plate | |

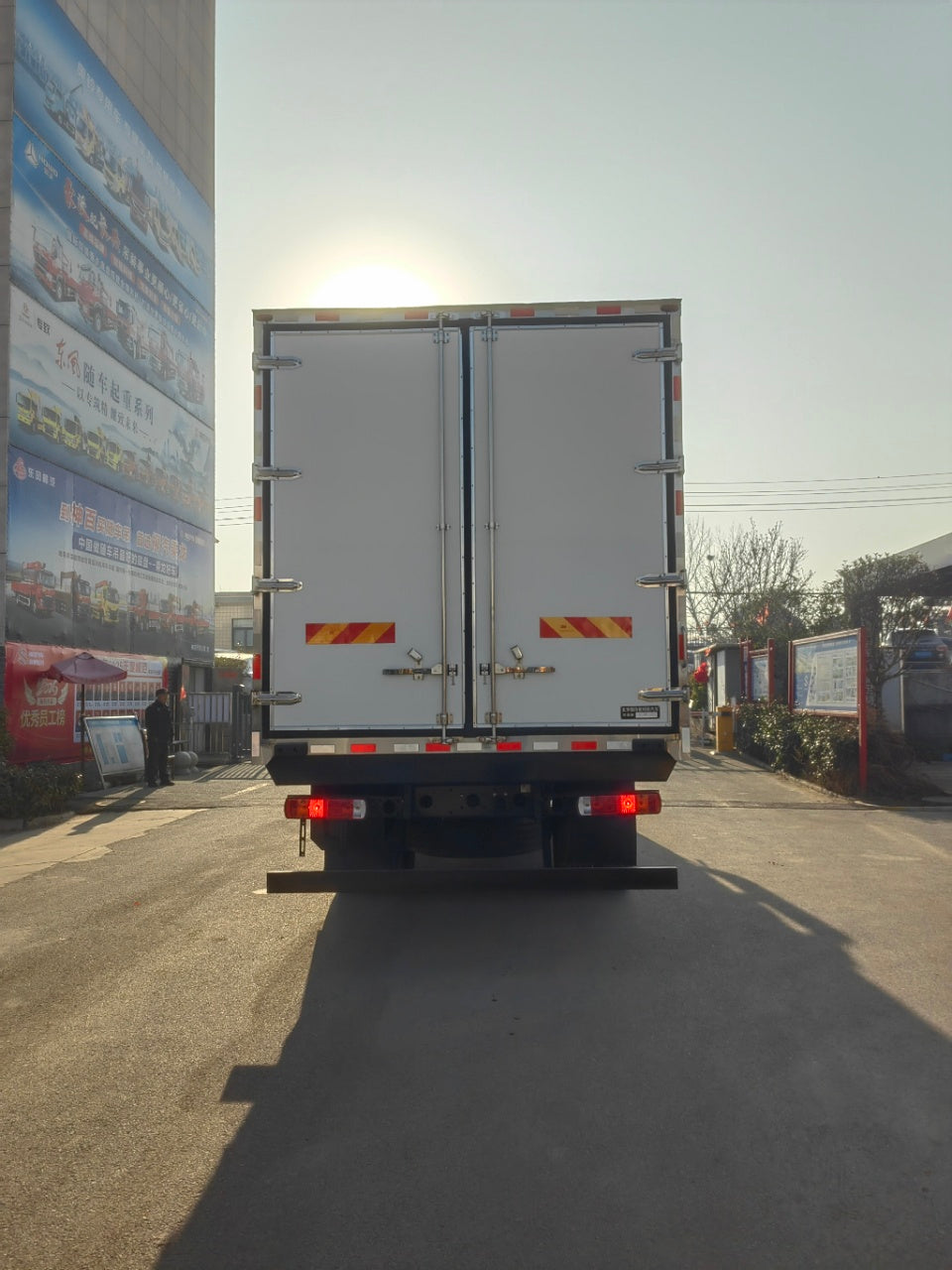

| Fittings | Aluminum Alloy Edge Wrap, Stainless Steel Hinges & Lock, Rear Double Door, Labyrinth Rubber Sealing Strip | |
| Optional Refrigeration Unit | Domestic Economy Unit | Kaixue / Hanxue, Temp Range: -5℃ ~ -15℃ |
| Import Premium Unit | Carrier / Thermo King, Temp Range: -18℃ ~ +25℃ | |
| Optional Dual-temperature Unit | Cooling & Heating Available (+25℃ ~ -20℃) | |
| Optional Extra Accessories | Optional Fittings | Meat Hanging Rail, Full-air Duct, Digital Temperature Recorder, External 220V/380V Standby Power, Air Suspension Rear Axle |
