What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

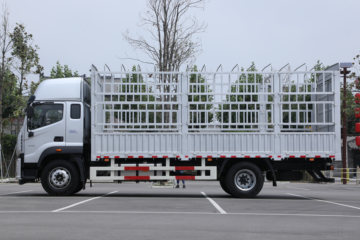

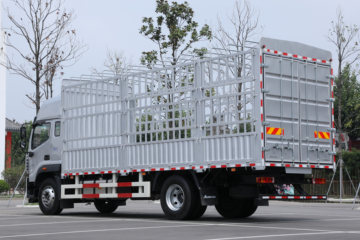

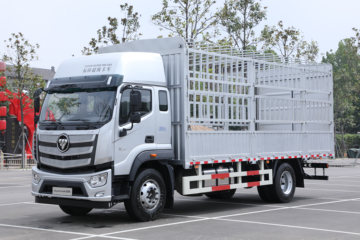

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck

Name: Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck - View 2 - SHENBAI Auto

Foton Aumark R Series 220 HP 4x2 6.8m Grid-Type Cargo Truck - View 4 - SHENBAI Auto

1 / 3

Category	Item	Specification
Basic Vehicle Information	Announcement Model	BJ5166CCY-1A
	Vehicle Type	Stake Cargo Truck
	Drive Type	4×2
	Wheelbase	5150mm
	Cargo Box Length Class	6.8m
	Overall Length	9m
	Overall Width	2.55m
	Overall Height	3.95m
	Front Track	1955mm
	Rear Track	1800mm
	Curb Weight	7.975 tons
	Rated Payload	7.895 tons
	Gross Vehicle Weight	16 tons
	Maximum Speed	89km/h
	Origin	Changping, Beijing
	Tonnage Class	Medium-duty Truck
	Required Driving License	A1, A2, B2
	Approach Angle	18°
	Departure Angle	9°
	Front Overhang / Rear Overhang	1.27m / 2.58m
	Energy Type	Diesel
	Remarks	Optional Fast 8JS85E transmission, 4.875/4.111 rear axle ratio, 450L/600L aluminum alloy fuel tank, air suspension seat
Engine Parameters	Engine Brand	Foton Cummins
	Engine Model	Foton Cummins F4.5NS6B220
	Engine Series	Foton Cummins F4.5
	Number of Cylinders	4
	Fuel Type	Diesel
	Cylinder Arrangement	Inline
	Displacement	4.46L
	Emission Standard	China National VI
	Max Output Power	162kW
	Max Horsepower	220 HP
	Max Torque	820N·m
	Max Torque Speed Range	1300–1500rpm
	Rated Speed	2300rpm
	Aftertreatment Technical Route	SCR+DOC+DPF
Transmission Parameters	Transmission Model	Fast 8JS85TE
	Transmission Brand	Fast
	Shift Mode	Manual
	Forward Gears	8
	Reverse Gears	2
Cargo Box Parameters	Cargo Box Type	Stake Body
	Cargo Box External Length	6.8m
	Cargo Box External Width	2.45m
	Cargo Box Internal Width	2.45m
Cab Parameters	Cab Type	Extended Half Row High Roof Cab
	Cab Suspension	Four-point mechanical suspension
	Cab Width	2200mm
	Cab Tilt Mode	Manual Tilt
	Rated Passengers	2 persons
	Seat Layout	Extended Half Row
	Driver Seat Type	Mechanical shock-absorbing seat
Fuel Tank	Fuel Tank Material	Aluminum Alloy
	Fuel Tank Capacity	300L
Chassis Parameters	Front Axle Rating	3.6t
	Front Axle Allowable Load	5600kg
	Frame Size	Longitudinal beam section height 234mm
	Rear Axle Rating	8t
	Rear Axle Allowable Load	10400kg
	Rear Axle Gear Ratio	4.333
	Suspension Leaf Spring Configuration	10/10+8 pieces
	Front & Rear Suspension Type	Front and rear leaf spring suspension
Tire Parameters	Tire Specification	10R22.5 16PR
	Number of Tires	6 pcs
