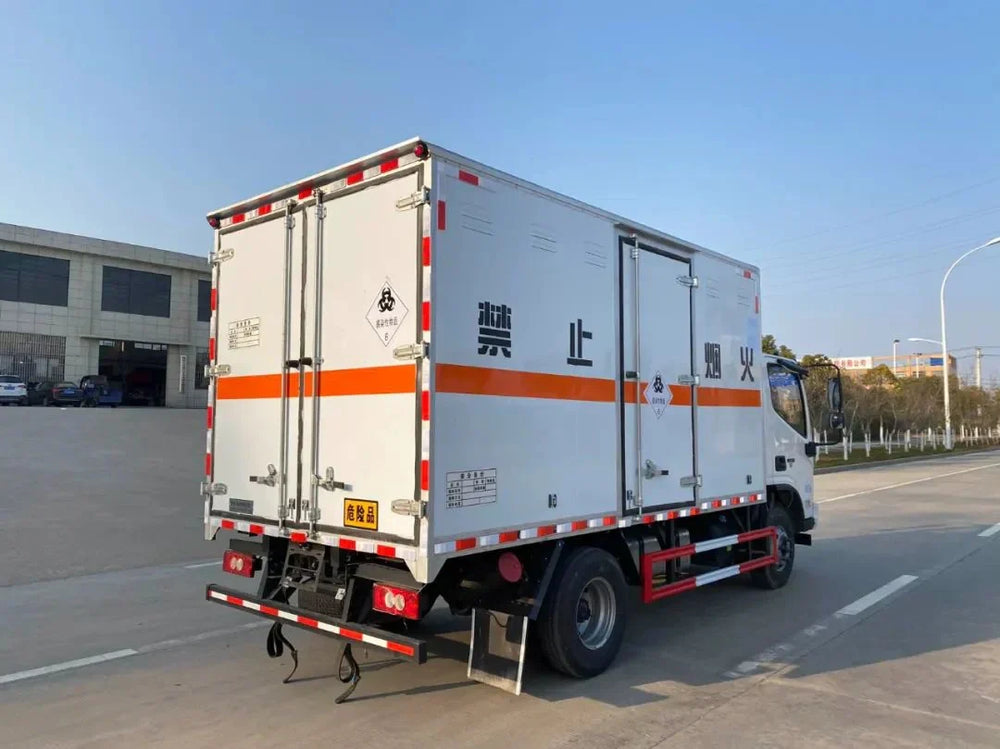

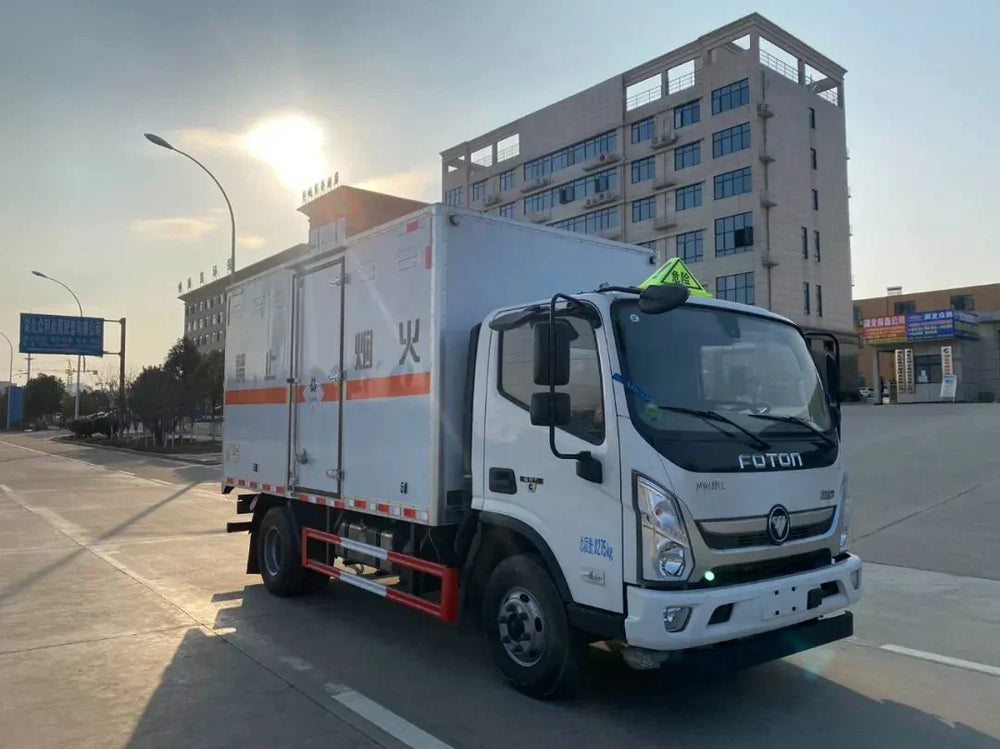

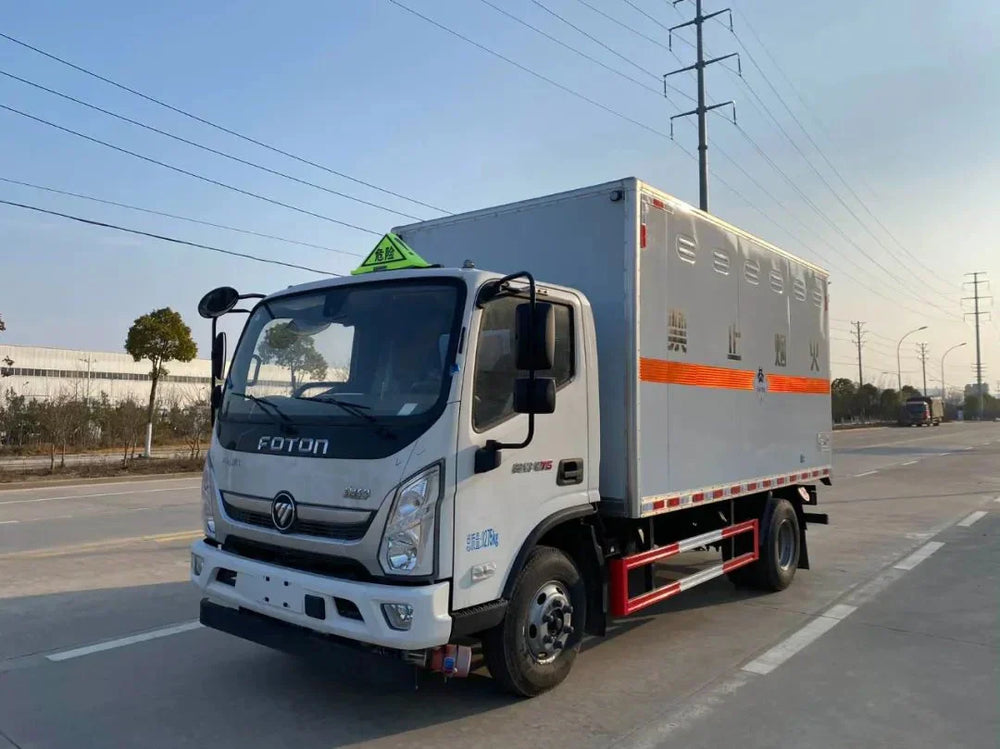

Foton Olin blasting equipment transport vehicle

Foton Olin blasting equipment transport vehicle
Foton Olin blasting equipment transport vehicle
Foton Olin blasting equipment transport vehicle
1 / 3
Foton Olin blasting equipment transport vehicle
Foton Olin blasting equipment transport vehicle
Foton Olin blasting equipment transport vehicle

The Foton Olin Explosives Transport Vehicle is a robust and versatile solution engineered for the safe and efficient transportation of explosives and hazardous materials. Complying with stringent China VI emission standards, it delivers an optimal balance of performance, reliability, and environmental responsibility. With a durable chassis from Foton and powerful engine options from industry-leading manufacturers like Cummins and Chaochai, this vehicle ensures dependable operation across diverse working conditions. Its adaptable design, including multiple configuration options for body dimensions, makes it an ideal choice for global clients in mining, construction, and logistics sectors seeking a cost-effective and compliant partner for secure cargo transport.

Foton Olin (Aoling) Blasting Equipment Transport Vehicle – Key Specifications (Light Cargo Van)



Parameter Specification
Vehicle Type Light-Duty Blasting Equipment Transport Van / Explosive Goods Carrier
Chassis Series Foton Olin (Aoling) CTS / CTX
Drive Configuration 4×2
Chassis Model BJ1048V9JDA-AB3 / BJ1088VFJEA-AB1

Dimensions & Weight



Parameter Specification
Overall Dimensions (L×W×H) ~5,995 × 2,100–2,430 × 2,640–3,200 mm
Cargo Box Dimensions (L×W×H) 4,080–4,145 × 2,000–2,160 × 1,800–2,000 mm
Wheelbase 3,360 mm
Total Mass (GVWR) 4,495 – 8,275 kg
Curb Weight (Kerb Mass) ~3,780 – 4,160 kg
Payload Capacity (Rated Load) 1.65 – 4.30 tons

Engine & Drivetrain



Parameter Specification
Engine Options Foton Cummins ISF3.8s5154 / F3.8NS6B156 / Foton 4J28TC
Horsepower 110 – 156 HP
Displacement 2.77 – 3.8 L
Emission Standard Euro V / VI (China VI)
Transmission 5-speed / 6-speed manual (WLY6T120)

Chassis & Axles



Parameter Specification
Front Track 1,530 – 1,730 mm
Rear Track 1,485 – 1,615 mm
Tire Specification 7.00R16 / 7.50R16LT
Tire Count 6
Brake System ABS, front disc brakes
Suspension Leaf spring (3+1/6+7, 9/11+7)

Cargo Box & Safety Equipment



Parameter Specification
Box Type Fully enclosed insulated van with double-layer metal structure
Interior Material Aluminum alloy panels, flame-retardant insulation layer
Floor Anti-static conductive rubber mat
Safety Features Gas alarm, anti-theft alarm, fire extinguishers, spark arrester, static grounding strap
Exterior Markings Orange reflective tape + explosive diamond hazard signs

Cab & Features



Parameter Specification
Cab Type Olin CTS single-row / optional sleeper cab
Cab Capacity 3 persons
Air Conditioning Standard
Power Windows Standard
Central Locking Standard
Multifunction Steering Wheel Standard
Cruise Control Standard
Safety Systems FCWS (Forward Collision Warning) + LDWS (Lane Departure Warning)

Performance



Parameter Specification
Max Speed 80 km/h (governed)
Fuel Type Diesel
