What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

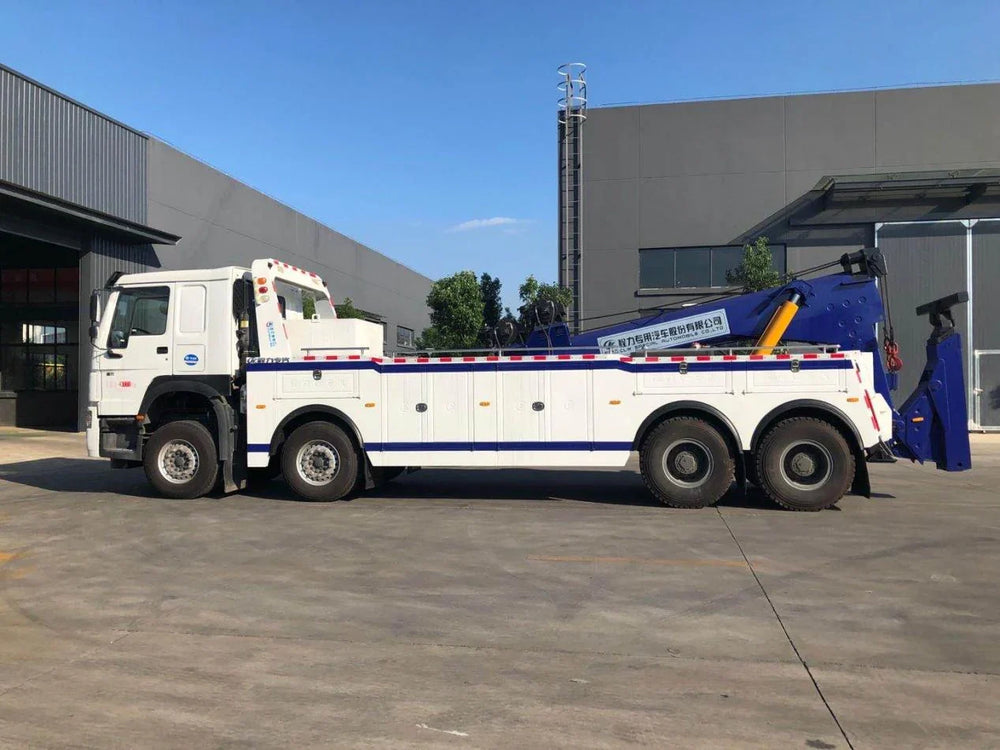

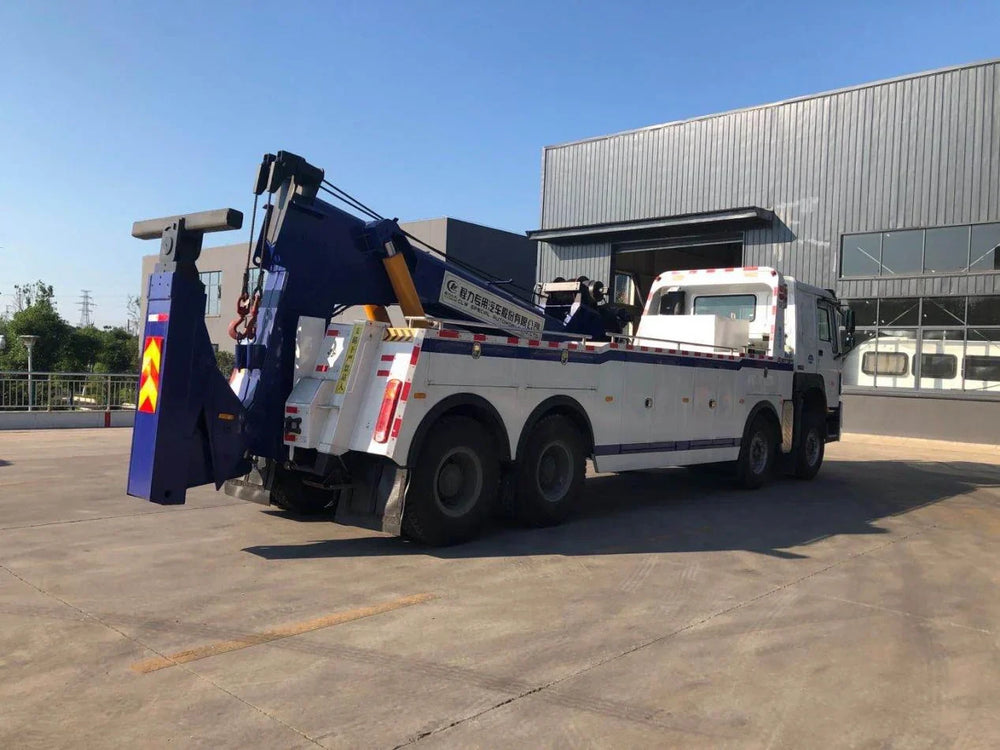

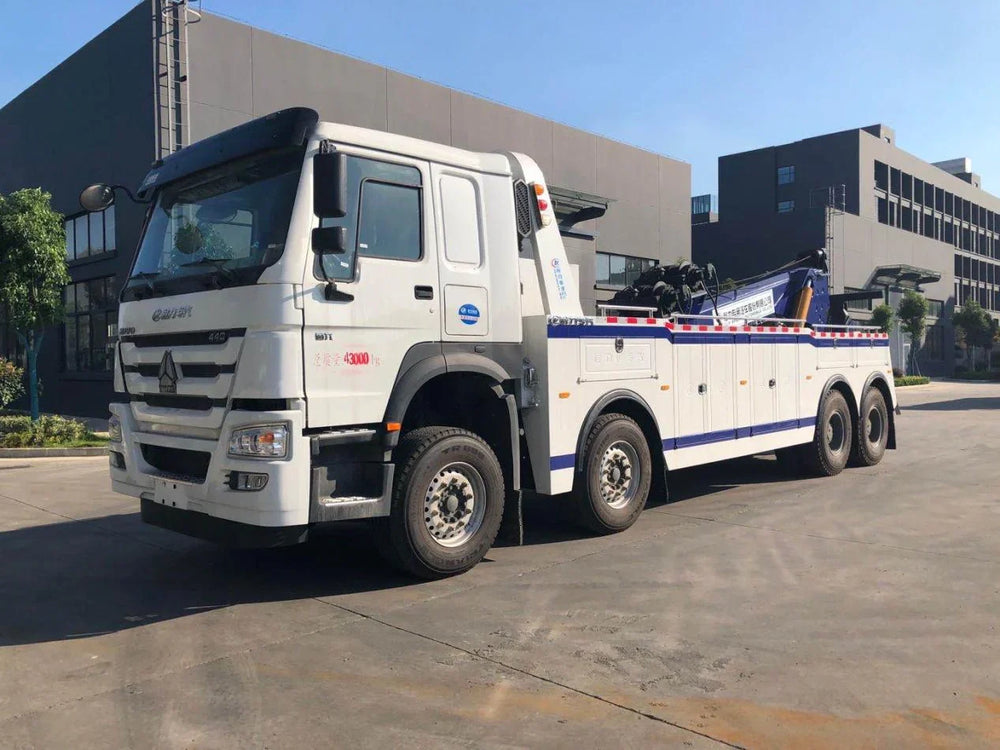

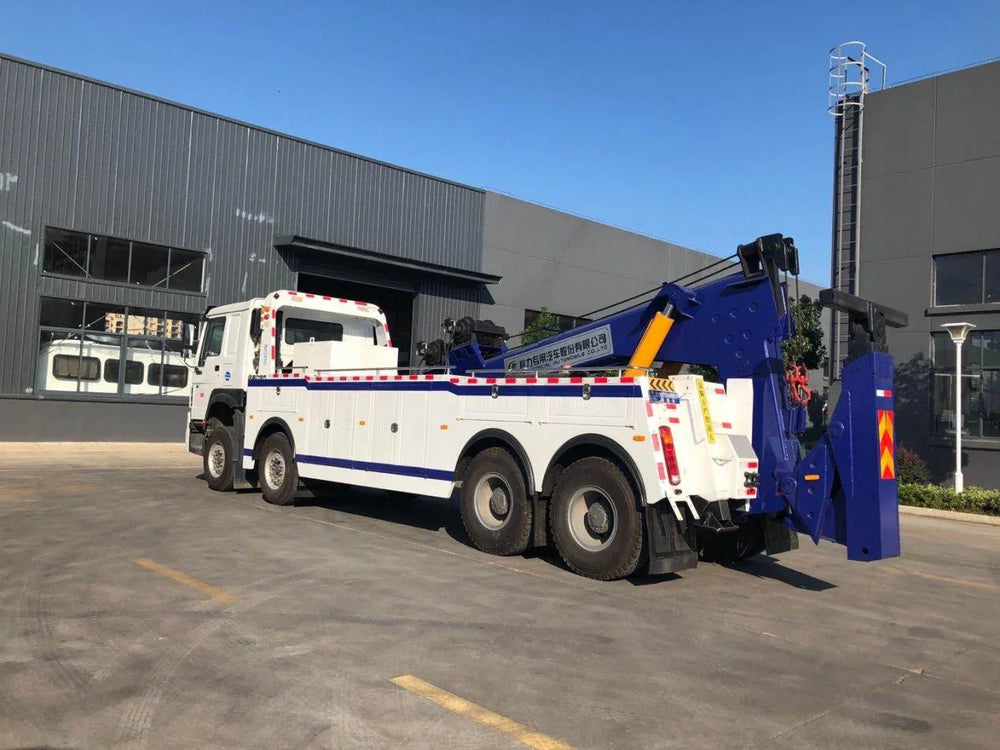

Heavy Duty Tow Truck (25T)

Name: Heavy Duty Tow Truck (25T)
Brand: Factory Direct Supply of Shenbai Special Purpose Trucks
Availability: InStock

Heavy Duty Tow Truck (25T) - View 2 - SHENBAI Auto

Heavy Duty Tow Truck (25T) - View 3 - SHENBAI Auto

1 / 3

Shenbai FAW TOW Truck (25T) – Standard Specification Sheet

1. VEHICLE BASIC INFORMATION

Parameter	Specification
Vehicle Name	Shenbai FAW TOW Truck (25T)
Vehicle Type	Heavy-Duty Towing & Recovery Wrecker (Tow-Drag Integrated Type)
Overall Dimensions (L×W×H)	10,620 × 2,500 × 3,360 mm
Total Mass (GVW)	25,000 kg (25 tons)
Curb Weight (Kerb Mass)	18,720 kg
Fuel Type	Diesel
Emission Standard	China V (GB17691-2005, GB3847-2005)
Drive Type	6×4 (Rear Dual Axle)

2. CHASSIS PARAMETERS

Parameter	Specification
Chassis Brand	FAW Jiefang J6
Chassis Model	CA5250JSQP63K1L5T1E5
Cab Type	FAW J6M Flat Roof Cab / J6L Flat Roof Cab
Axle Configuration	3 axles (Rear Dual Axle)
Wheelbase	5,800 + 1,350 mm
Tire Specification	10.00R20 (11 tires including spare)
Brake System	Spring Brake (Air Brake with ABS)
Front Axle Capacity	5 tons
Rear Axle Capacity	10 tons

3. ENGINE PARAMETERS

Parameter	Specification
Engine Model	CA6DK1-28E5
Manufacturer	FAW (China First Automobile Works)
Displacement	7,146 ml
Horsepower	285 HP
Emission Standard	China V / Euro V equivalent

4. TRANSMISSION PARAMETERS

Parameter	Specification
Transmission Type	Manual
Transmission Model	10-speed (FAW 10-speed transmission)
Alternative	8-speed (Shaanxi Tooth 8-speed)

5. TOWING & RECOVERY EQUIPMENT (UPPER BODY)

Parameter	Specification
Upper Body Type	25T Integrated Tow-Drag Body (or 20T optional upgrade)
Maximum Towing Capacity	25 tons
Maximum Lifting Capacity	18 tons
Maximum Lifting Height	6,500 mm
Boom Type	2-section Hexagonal Boom
Towing Arm Type	3-section Towing Arm
Winch	2 × 10-ton Hydraulic Winches
Wire Rope Length	45 meters
Wire Rope Diameter	18 mm
Hydraulic System	Imported hydraulic system
Control System	Remote control + Dual-side linkage operation

6. STANDARD EQUIPMENT & ACCESSORIES

Item	Quantity
Steel Forks	4 sets
Tow Fork Set	1 set
Steel Plate Lifting Tow Fork	1 set
Tire Clamping Device	1 set
Long Row Engineering Warning Light	1 set (Yellow LED)
Auxiliary Light Set	1 set
Auxiliary Air Pipe Set	1 set
Binding Chains	2 pieces
Tool Kit	1 set

7. PERFORMANCE FEATURES

Feature	Description
Boom Structure	Hexagonal boom design – superior strength and stability vs. square-section booms
Hydraulic Technology	Italian multi-way valves & balance valves; German technology hydraulic cylinders & fittings
Seals	Full imported sealing components
Chassis Reinforcement	Reinforced cross-member fixation for enhanced load capacity
Cab Comfort	Factory air conditioning, power steering, ABS standard

Notes:

Specifications may vary depending on the specific configuration, upper body option (20T vs 25T), and production batch.
Emission standards can be upgraded to China VI / Euro VI upon request.
Dimensions and weights are approximate and subject to final manufacturing tolerances.
The 25-ton rating refers to the maximum towing capacity; actual performance depends on road conditions and the weight of the vehicle being towed.

Shenbai (Hubei Shenbai Special Automobile Co., Ltd.) is a manufacturer of special-purpose vehicles including truck-mounted cranes, wreckers, and low-bed trailers
