What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

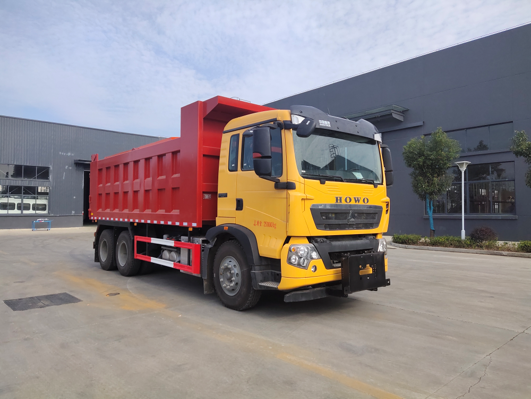

HOWO 12m³ 290HP Snow Removal Truck

Name: HOWO 12m³ 290HP Snow Removal Truck
Brand: Direct Factory Sales of Shenbai Truck-mounted Cranes
Availability: InStock

HOWO 12m³ 290HP Snow Removal Truck - View 2 - SHENBAI Auto

HOWO 12m³ 290HP Snow Removal Truck - View 3 - SHENBAI Auto

HOWO 12m³ 290HP Snow Removal Truck - View 5 - SHENBAI Auto

HOWO 12m³ 290HP Snow Removal Truck - View 6 - SHENBAI Auto

1 / 5

1. Basic Vehicle & Chassis Specifications

Parameter	Value
Vehicle Type	Snow Removal Truck
Complete Vehicle Model	CL5250TCX6HL
Gross Vehicle Weight	25000 kg
Rated Load Capacity	10370 kg / 10305 kg
Curb Weight	14500 kg
Number of Axles	3
Leaf Spring Configuration	11 / 10 leaves
Cab Seating Capacity	2 / 3 persons
Approach / Departure Angle	17°/19°, 17°/18°
Axle Load (Tandem Rear Axle)	7000 kg / 18000 kg
Chassis Model	ZZ1257N464GF1
Engine Model	MC07.25-61
Engine Power	MAN 290 HP
Fuel Type	Diesel
Overall Dimension	8750mm / 9530mm × 2550mm × 3360mm / 3650mm
Tire Specification	11.00R20
Number of Tires	10
Wheelbase	4600+1350 mm
Front Overhang / Rear Overhang	1430/1420mm, 1500/1350mm, 1430/1900mm
Maximum Speed	89 km/h / 110 km/h
Front Track Width	2035 mm
Rear Track Width	1850 mm / 1850 mm
Hopper Body Material	Q235 Carbon Steel
Spreader Body Material	4mm Carbon Steel

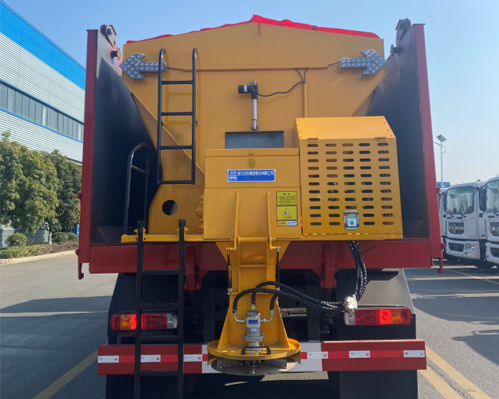

2. Deicing Agent Spreader Specifications

Parameter	Value
Spreader Hopper Volume	12 m³
Power Take-off Mode	Chassis PTO-driven
Material Conveying Type	Scraper chain conveyor
Spreader Disc Material	Stainless Steel
Spreader Disc Diameter	550 mm
Hydraulic Working Pressure	≥ 16 MPa
Spreading Width	2 – 15 m (adjustable)
Deicing Agent Application Rate	20 – 300 g/m² (adjustable)
Working Speed	5 – 30 km/h
Control Mode	Wired remote control
Dump Body Dimension	Length 6000mm, body height 1700mm, top height 2100mm, width 2550mm, with self-dumping function
Standard Accessories	Arrow warning light, tarpaulin, filter screen, rear access ladder

3. Structural Features & Advantages

Item	Description
Uniform Feeding	Filter screen installed on the spreader prevents large particles and debris from entering the system, ensuring safety of equipment, pedestrians and vehicles
Easy Loading & Storage	Detachable dedicated lifting support system for the spreader, convenient for storage in non-operating state
Reliable Discharging	V-shaped hopper with simple and reliable structure, ensures automatic falling and complete discharging of deicing agent with no residue

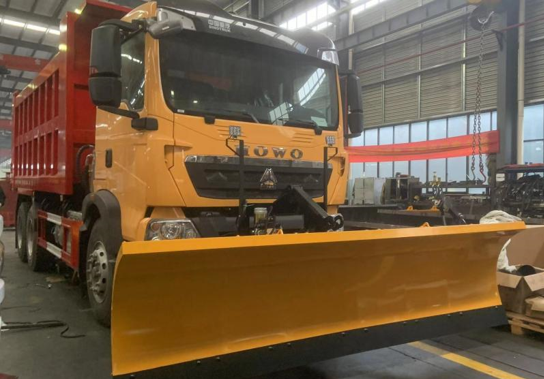

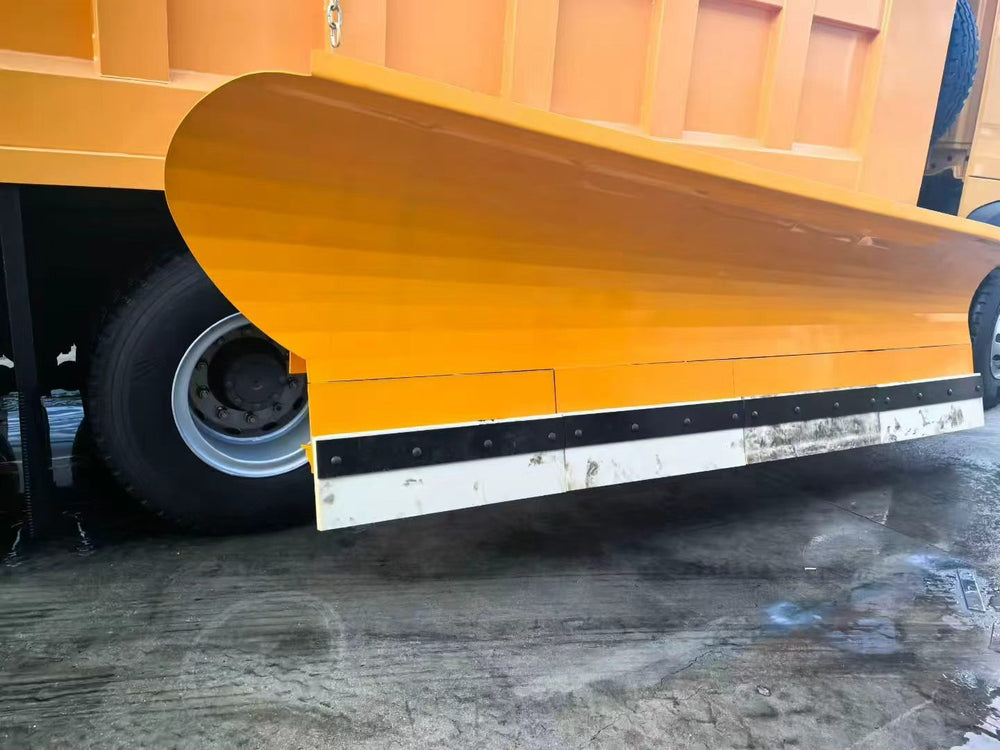

4. Optional 3.5m Snow Plow Parameters

Parameter	Value
Snow Clearing Width	3.5 m
Left-right Adjustment Angle	± 30°
Working Speed	≥ 30 km/h
Obstacle Clearance Height	150 mm
Control Mode	Wired remote control
Drive System	Independent hydraulic unit

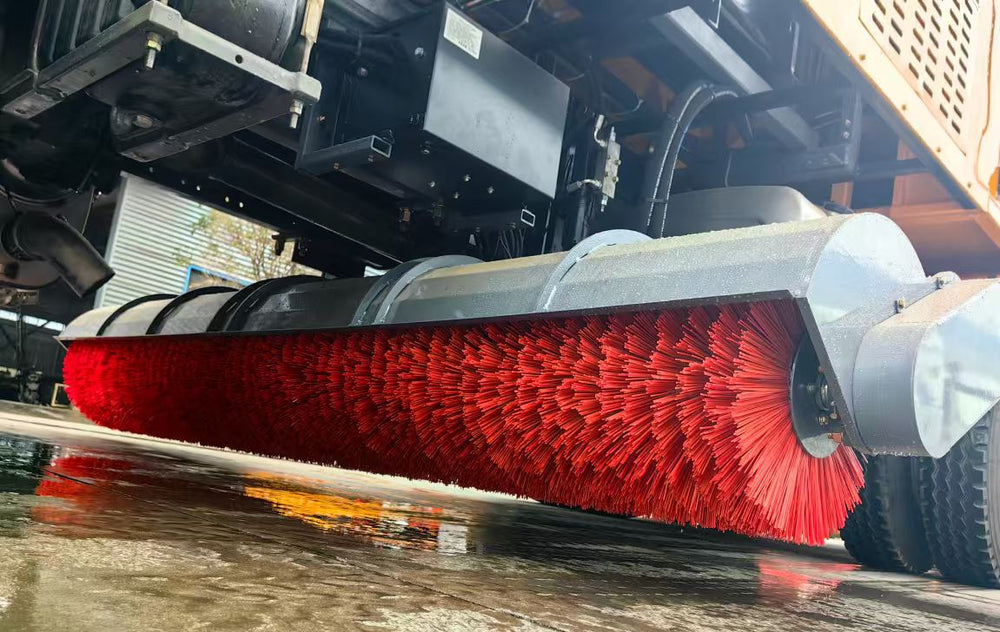

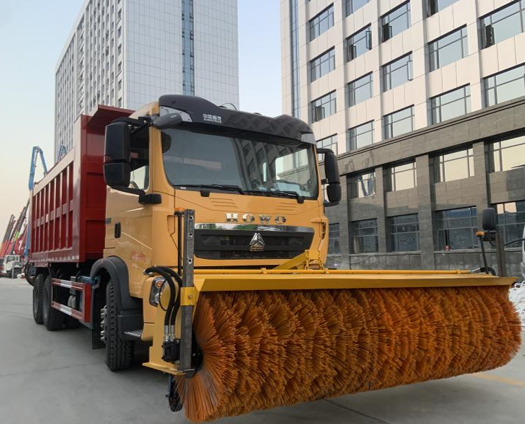

5. Optional 3.5m Snow Roller Brush Parameters

Parameter	Value
Sweeping Width	3.5 m
Brush Diameter	800 mm
Left-right Adjustment Angle	± 30°
Working Speed	5 – 30 km/h
Obstacle Clearance Height	250 mm
Vertical Deflection Angle	6.5°
Control Mode	Remote control
Drive System	Independent hydraulic unit
Brush Material	Polypropylene mixed with elastic steel wire
Support Wheels	2 universal load-bearing wear-resistant support wheels
Additional Protection	Support rods on both ends to protect brush blades from crushing damage; warning light for brush head position monitoring during operation
