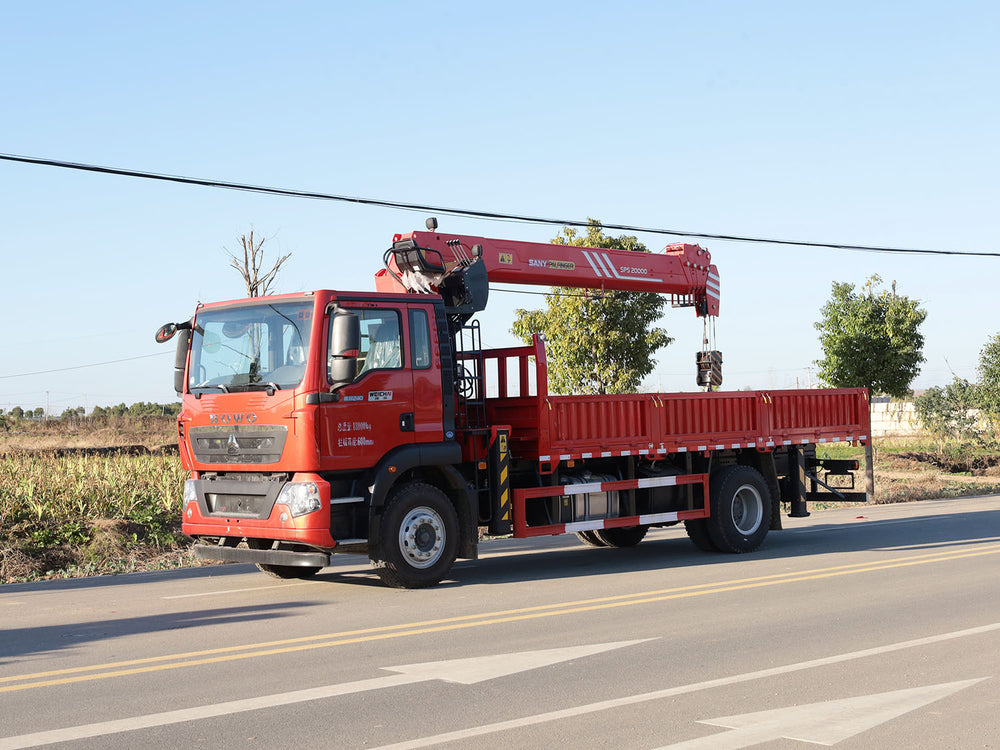

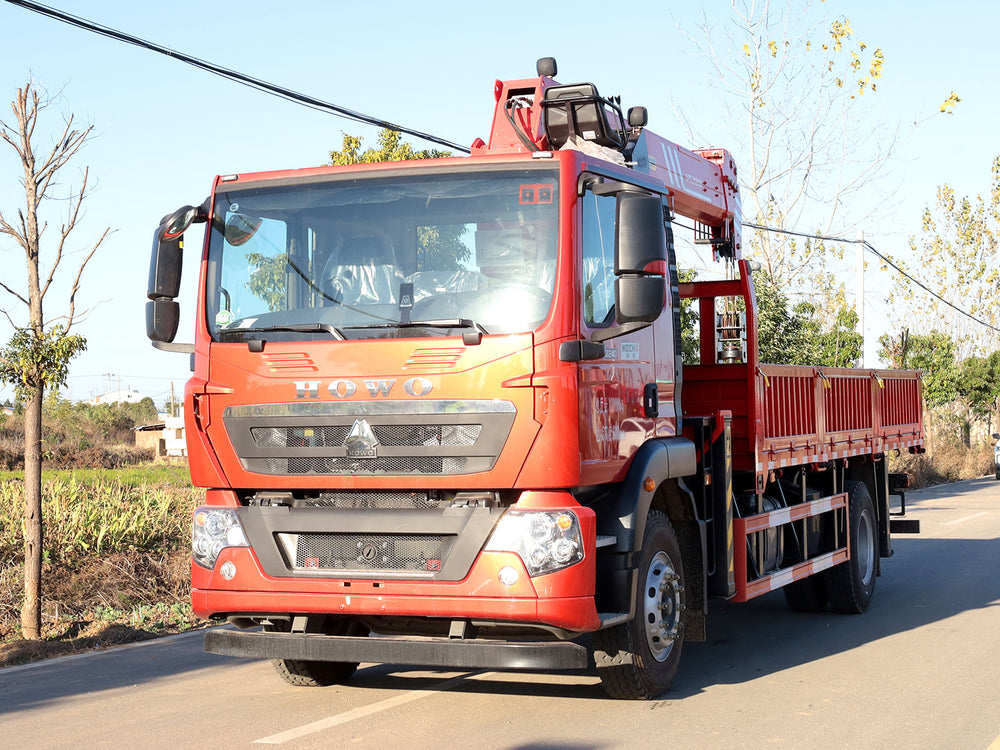

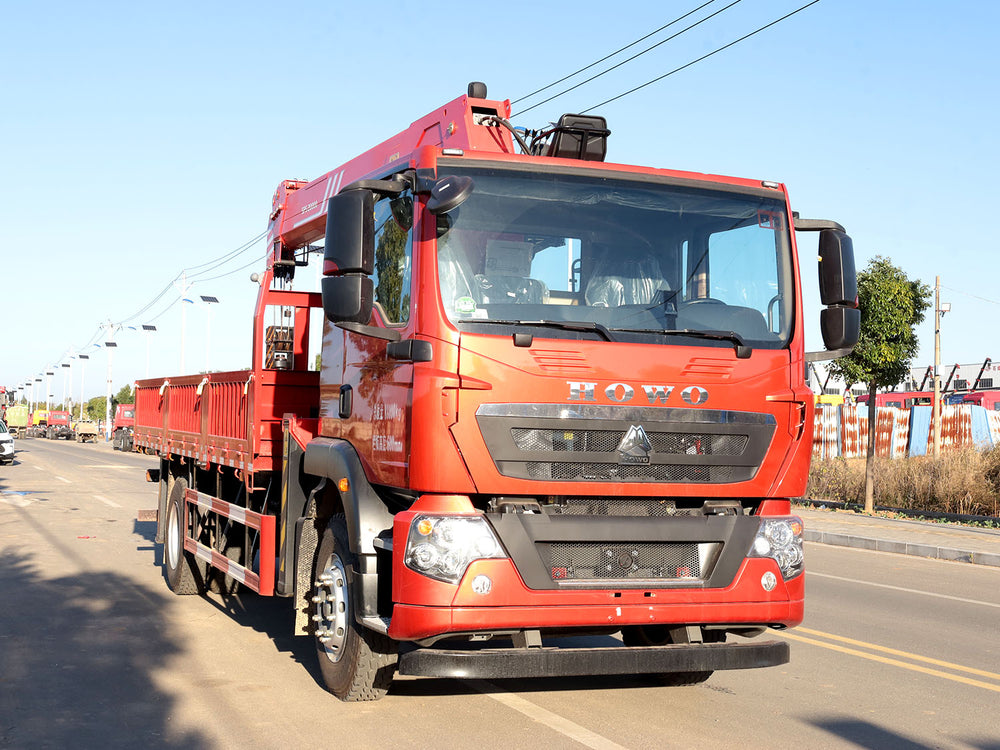

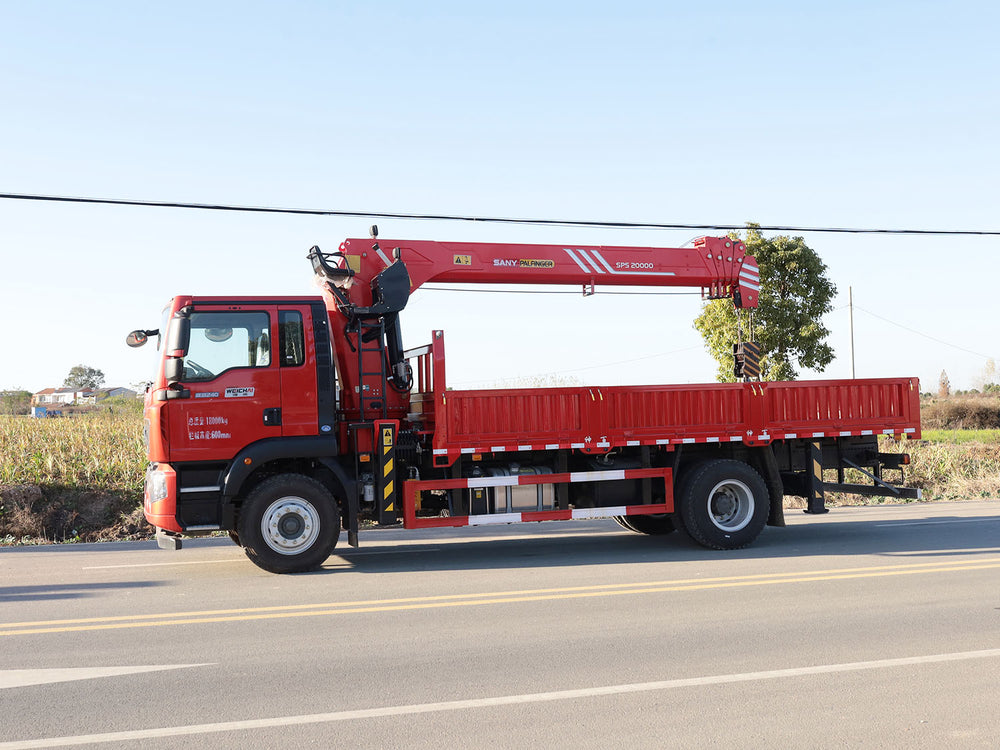

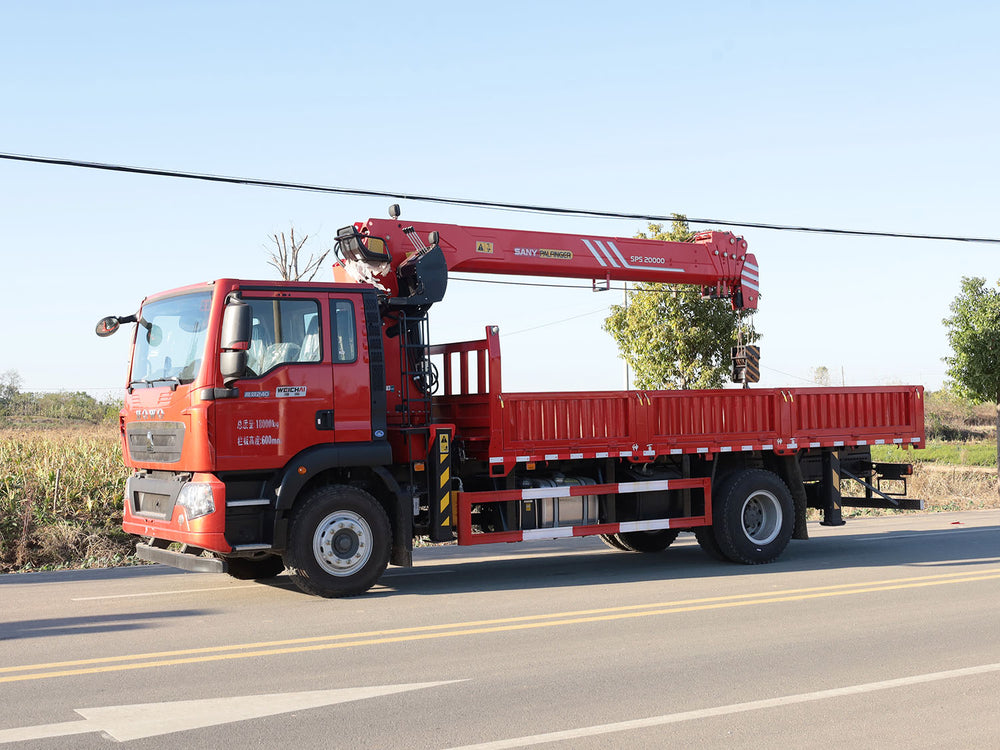

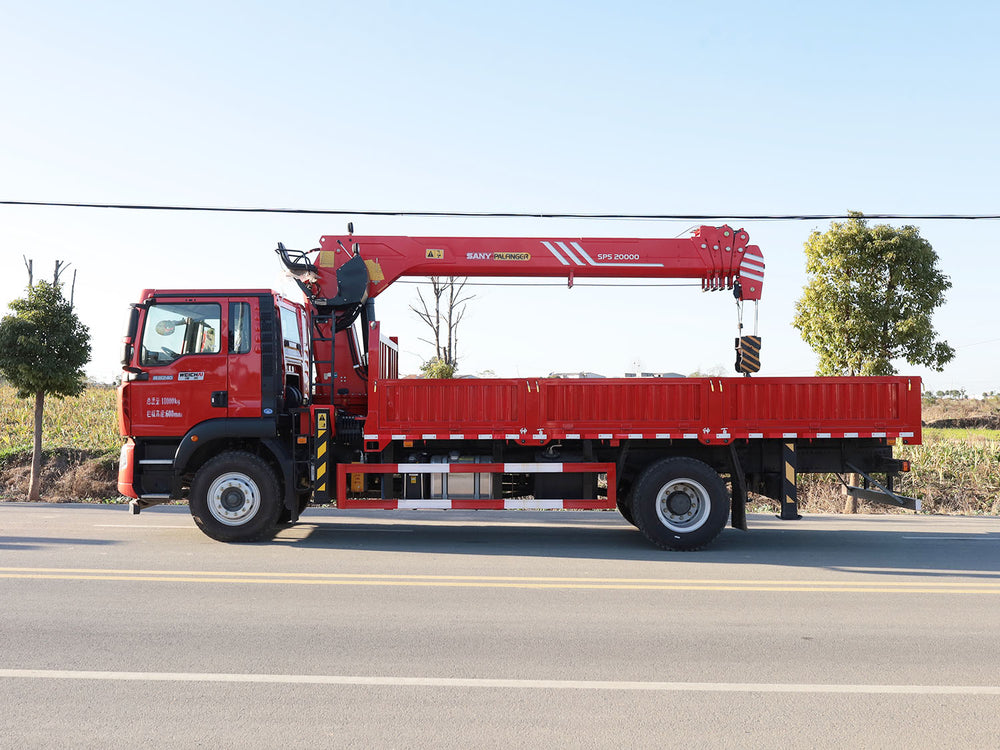

Howo Sany 8 Ton Truck Mounted Crane
| Item | Specification |
|---|---|
| Chassis Model | ZZ1187K501GF1 |
| Engine | Weichai 240HP, 4.6L Displacement |
| Wheelbase | 5000mm / 4700mm / 4500mm |
| Gear Ratio | 5.29 (4.63 Optional) |
| Transmission & PTO | HW95508STC2 Transmission + HW45ZC Flange Type Power Take-off |
| Front & Rear Axle | 7-ton Front Axle, 13-ton Engineering Rear Axle |
| Frame | Integral Three-layer Frame (8+5+5/303) |
| Leaf Spring Configuration | 11/9+8 |
| Tire | 10.00R20 Mixed Tread, 18PR |
| Complete Chassis Configuration | Howo TX5, TX-D Cab; Multifunctional Steering Wheel; Manual Rearview Mirror; Main Airbag + Auxiliary Standard Seat; WP4.6NQ240E62 Engine; 8-speed Howo Transmission with Synchronizer; 1094 Self-adjusting Drum Front Axle; MCJ09BGY Self-adjusting Drum Single Rear Axle; Standard Multi-leaf Spring; Cab Spring Shock Absorption Front & Rear; Highway Standard Air Intake System; Speed Limit 89km/h; ABS (4S/4M); 7-inch Full HD LCD MP5 Screen; Full Metal Middle Bumper; 200L Fuel Tank; Cable Control PTO; Sinotruk Intelligent Connect D Version; Cab Middle Seat; Mechanical Main Power Switch; 120AH Storage Battery |
| Superstructure Configuration | Sany 8-ton 5-section Boom, Top Control Operation, Second Boom Single Extension; Plunger Pump; Plunger Motor for Slewing and Winch; 3.5m Span Single Chamber Rear Outrigger; Full Length Auxiliary Frame; Radiator; Engineering Cargo Box with 2 Side Reinforcements and 4 Bottom Reinforcements |
| Product Advantages | Equipped with Weichai 240HP engine, the powerful 4-cylinder power unit. Matched with Howo 8-speed synchronizer transmission, integrated matching of engine, transmission and axle for higher overall adaptation. Adopts genuine German MAN technology cab with four-point suspension and advanced crash energy absorption structure, effectively protecting driver and passenger safety in emergency. Luxury aviation airbag driver seat with multi-direction adjustment and lumbar support, humanized safety belt design for comfortable driving experience. Heavy-duty three-layer frame, engineering leaf spring, 7.5-ton front axle and 13-ton rear axle, strong load-bearing capacity for heavy duty operation. |
