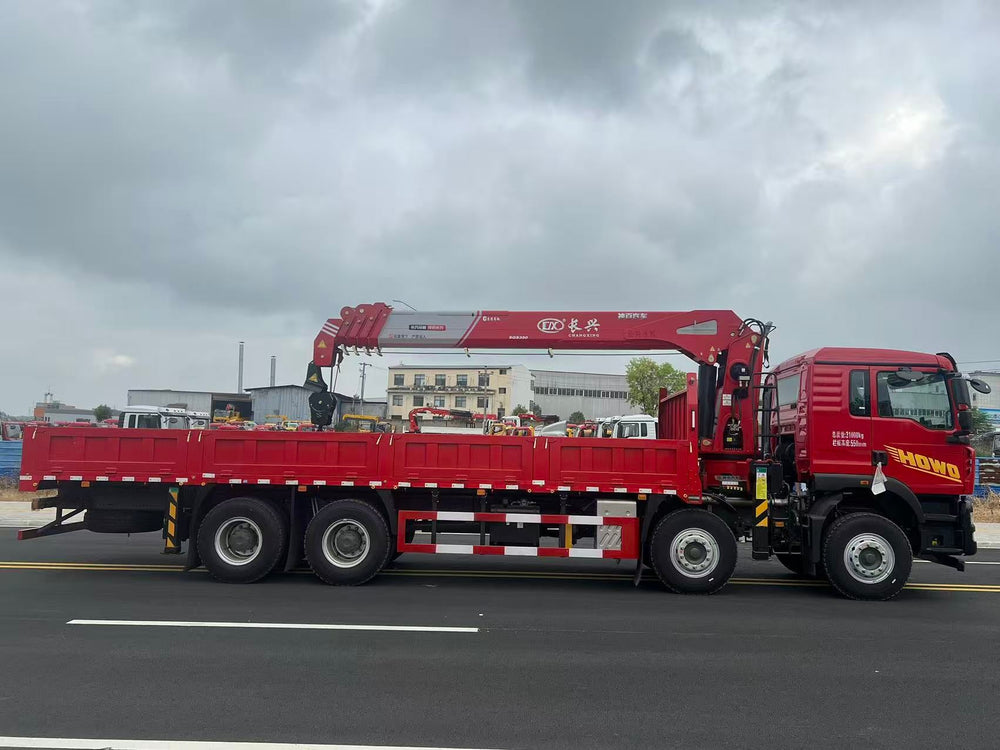

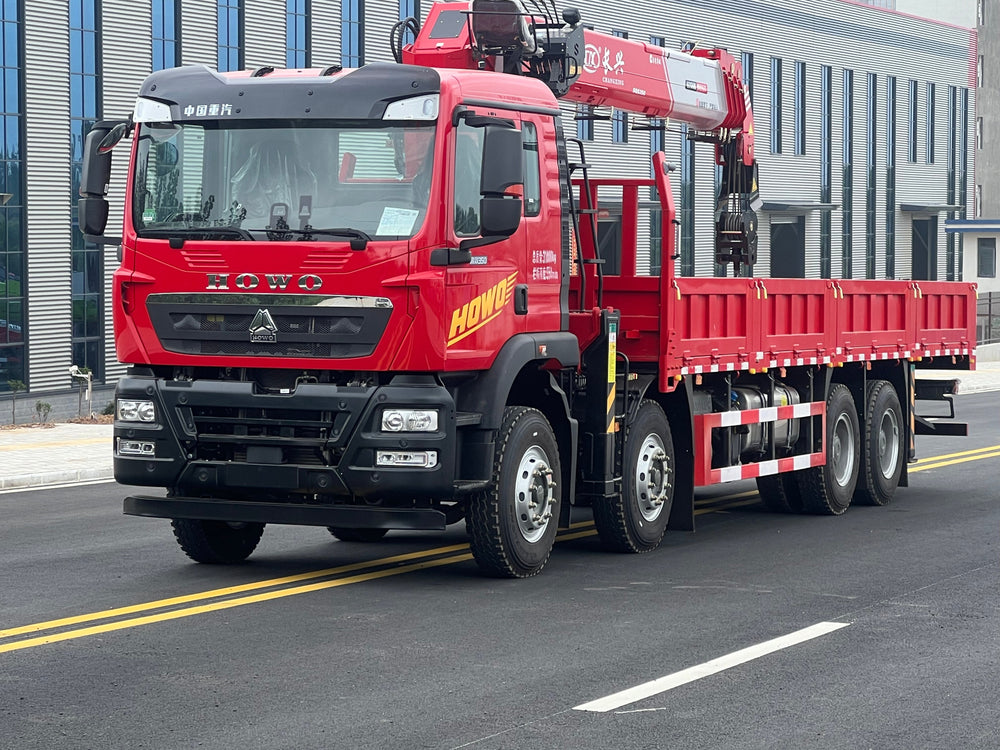

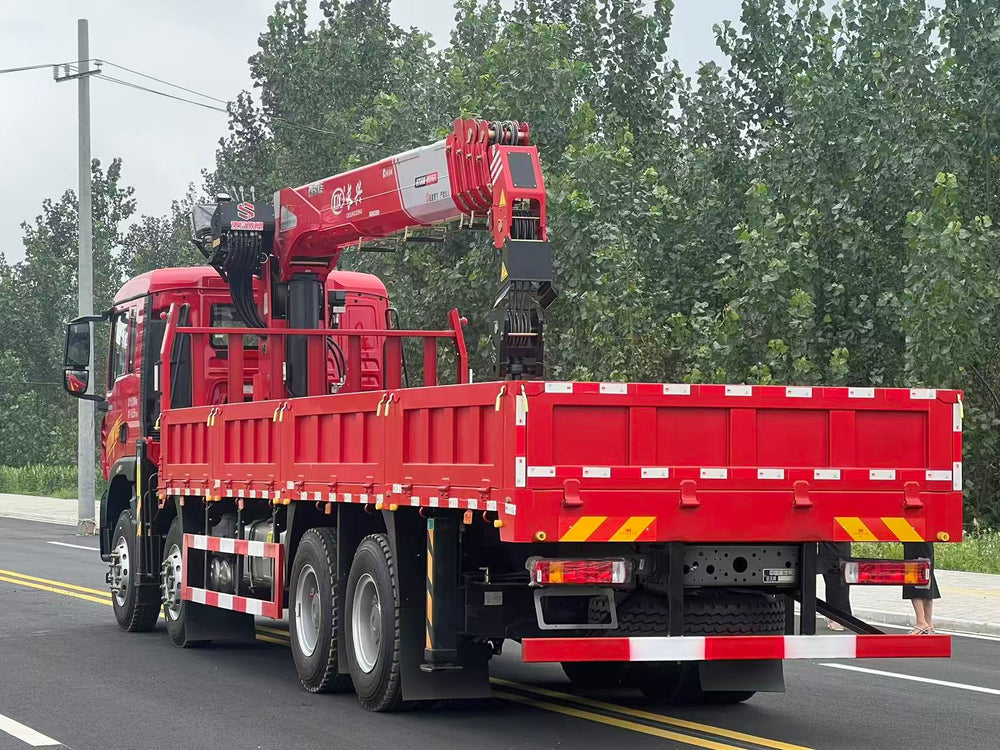

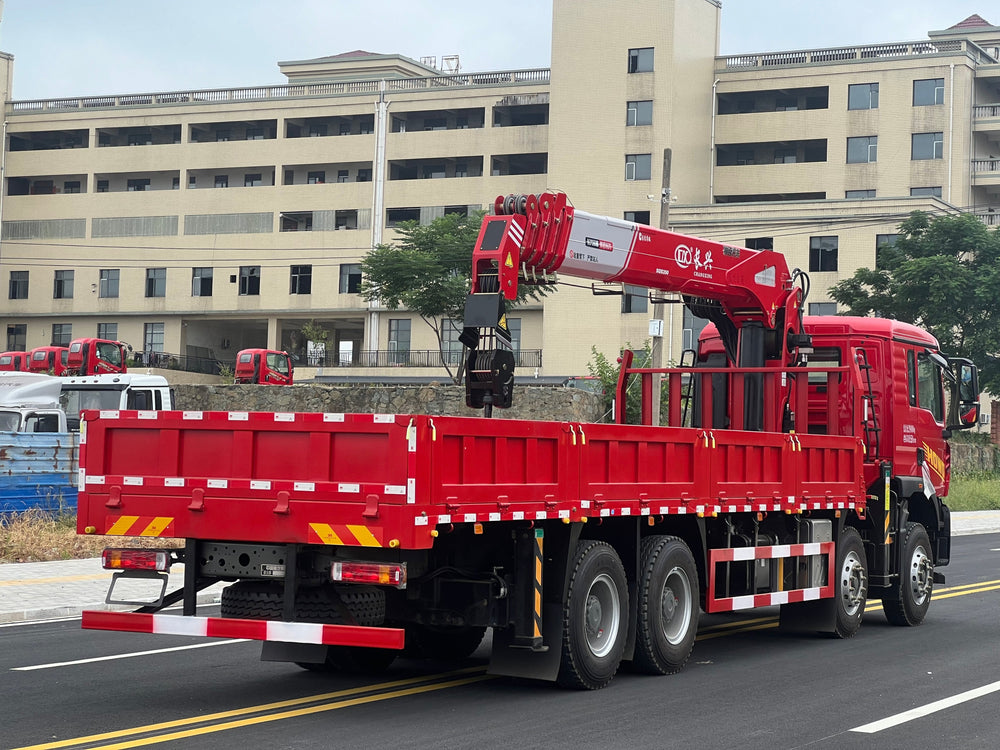

Howo 8x4 truck with Weichai 350 horsepower engine - Changxing 14-ton five-section crane arm
Premium Heavy-Duty 8x4 Truck Mounted Crane | Full Factory High Configuration
This SINOTRUK HOWO 8x4 heavy-duty truck mounted crane is professionally customized for global heavy-load engineering, high-altitude lifting, and long-distance heavy transportation. It adopts a full high-end factory configuration, including aWeichai 7.8L 350HP large-displacement diesel engine, upgraded HW14712XSTCL heavy-duty transmission, HW70 flange-type PTO, 16-ton 3-lock wheel-side reduction axles, reinforced three-layer through frame, andChangxing 14-ton 5-section boom crane. With factory-integrated engine, transmission and axle matching, ultra-stable chassis structure and industry-leading lifting performance, this all-in-one lifting and transport vehicle is perfectly suitable for municipal construction, infrastructure projects, heavy equipment handling, steel cargo transportation and various harsh-site operations.
Power System: Weichai 7.8L 350HP Original Diesel Engine
Equipped with the genuine Weichai WP8.350E62 diesel engine, featuring 7.8L large displacement and 350 horsepower output. The power unit delivers abundant low-speed torque and stable continuous power reserve, with no power attenuation under full-load, long-hour and high-intensity working conditions. It offers excellent climbing performance and strong terrain adaptability, easily coping with mountain roads, muddy construction sites and long-haul heavy transportation, achieving an ideal balance of powerful performance and reliable fuel economy.
Transmission & Professional Flange PTO System
Matched with the upgraded HW14712XSTCL 12-speed heavy-duty manual transmission and original factory HW70 flange-type power take-off (PTO). The professional integrated powertrain realizes smoother gear shifting, higher power transmission efficiency and stronger impact resistance for long-term heavy-duty operation. The high-stability flange PTO provides continuous and sufficient hydraulic power for the crane, ensuring sensitive control response and flexible compound lifting actions, effectively improving overall working efficiency and reducing equipment failure rates.
Heavy-Duty Axle, Brake & Standard Parameters
Front Axle: VGD75 self-adjusting drum front axle Rear Axle: MCX16ZG self-adjusting drum dual rear axles, 16-ton wheel-side reduction heavy-duty axles with 3 differential locks Gear Ratio: 4.803 Wheelbase: 2100+4300+1350 / 2100+3800+1350
Featured with SINOTRUK independently developed 16-ton three-differential-lock wheel-side reduction rear axles, the truck obtains powerful torque amplification and superior off-road passability, easily conquering steep slopes, muddy roads and complex rugged construction terrains. The full self-adjusting drum brake system automatically optimizes brake clearance to ensure stable and uniform braking force during long-term heavy-load operation. Equipped with AEBS, ABS (4S/4M) and ESC full vehicle stability control system, it provides comprehensive active safety protection for both driving and lifting operations.
Reinforced 3-Layer Frame & Heavy-Duty Suspension System
Built with 8+5+8mm thick three-layer integral through frame (318mm height), the chassis possesses ultra-high torsion resistance, compression resistance and deformation resistance. Cooperated with standard heavy-duty multi-leaf springs (11/11/12 pieces), four-bolt fixing structure and high-stability V-type thrust rod, the vehicle body remains stable and deformation-free under extreme heavy-load and bumpy road conditions. The upgraded engineering-grade suspension greatly enhances overall durability and load-bearing stability, far exceeding ordinary standard crane trucks in harsh working environments.
Tire & Fuel Tank Configuration
Dual tire options are available: 11.00R20 18PR mixed-pattern heavy-duty tires or 12.00R20 18PR mixed-pattern heavy-duty tires, both wear-resistant, anti-slip and puncture-proof for complex construction roads. Equipped with a 400L large-capacity fuel tank to support long-distance continuous operation and reduce frequent refueling downtime.
TX-K Half Row Woying Edition Cab | Safety & Comfort Upgrade
Adopting authentic German MAN technology cab with four-point suspension damping and advanced crash fracture protection technology, which effectively protects drivers and passengers in emergency situations. The cab is equipped with a multi-adjustable main airbag seat with waist support, auxiliary seat and middle spare seat. Standard configurations include multifunctional steering wheel, electric heating rearview mirrors, 10.1-inch full HD MP5 central control screen, full-metal high-position bumper, manual cab lifting, and optional under-chassis start-stop switch, bringing humanized and comfortable driving experience.
Core Lifting System: Changxing 14Ton 5-Section Boom Crane
Fitted with genuine Changxing 14-ton 5-section straight-arm crane, equipped with professional synchronous telescopic system, gear dual-pump confluence hydraulic system, single slewing mechanism, double-section hydraulic outriggers, cycloid motor winch and full-through beam reinforcement structure for ultra-high operational stability.
Max Boom Length: 19.9m Max Lifting Height: 21.3m
This Changxing high-tonnage crane features fast telescopic response, accurate positioning and stable lifting without shaking. It supports flexible compound operating movements, perfectly adapting to high-altitude installation, heavy equipment hoisting, steel structure handling, tree transplantation, power engineering construction and municipal maintenance, covering all medium and large-scale lifting operation scenarios.
Core Product Advantages
This HOWO 8x4 crane truck adopts the premium golden combination ofWeichai 350HP 7.8L large-displacement engine, 12-speed heavy-duty transmission, 16-ton 3-lock wheel-side reduction axles, reinforced three-layer frame and Changxing 14-ton 5-section boom crane. The factory-integrated engine-transmission-axle matching ensures higher compatibility, lower failure rate, stronger load-bearing capacity and better overall stability. It is a super cost-effective and reliable heavy-duty lifting and transport equipment for global engineering contractors and fleet operators.
