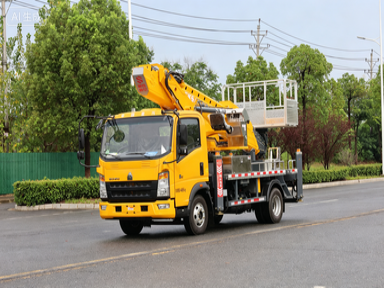

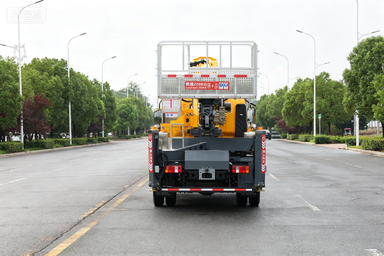

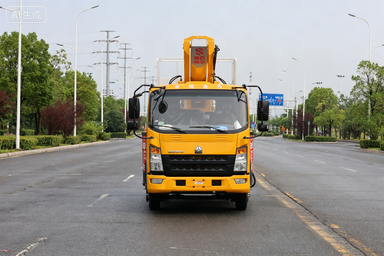

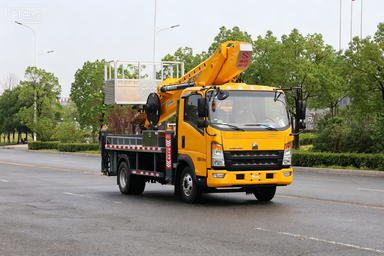

HOWO GKS32 pro Aerial Work Platform Truck
- Chassis Configuration
| Item | Parameter |
|---|---|

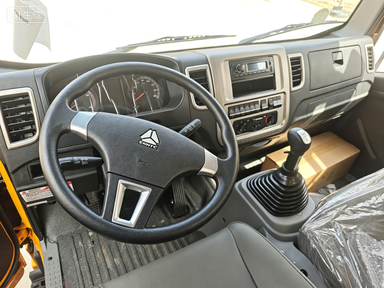

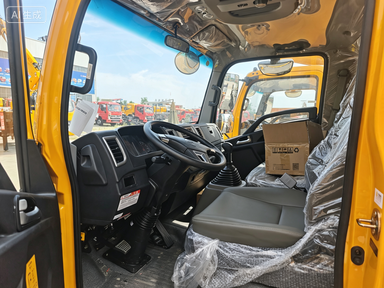

| Cab | Howo Rich Edition Cab |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Engine | Weichai WP25Q160E62 |
| Transmission | Wanliyang 6-speed / Small 8-speed (oil change every 120,000km) |
| Wheelbase | 3280 mm |
| Overall Dimension | 5995×2200×3100 mm |
| Tire Spec | 700R16LT 10PR |
| Brake | Air Cut-off Brake |
| Standard Fittings | Power Window, Air Conditioner, Central Door Lock |
2. Superstructure (GKS32 Pro)
| Item | Parameter |
|---|---|
| Max Working Height | 30.6 m |
| Max Working Radius | 17 m |
| Rated Platform Load | 200 kg |
| Boom Slewing | 360° Full Rotation |
| Platform Size | 1800×700×1000 mm (with flip plate) |
| Platform Rotation | Unlimited 360° Rotation |
| Boom Structure | 7-section boom, 6-section synchronous extension; spare steel cable for emergency lowering |
| Main Material | 960 High-strength Steel Plate |
| Outrigger | X-type, 4 double-stage independently adjustable legs; Trans/Long span:5770mm/6120mm |
| Lifting Cylinder | Dual-lifting Cylinder Design |
| Subframe | Exclusive Box-type Subframe + 3-layer Trapezoidal Slewing Support |

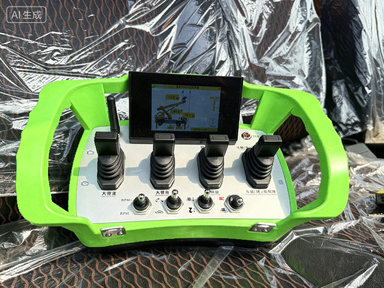

| Control System | Famous Domestic ECU, Wireless Remote + Central Control with Display |

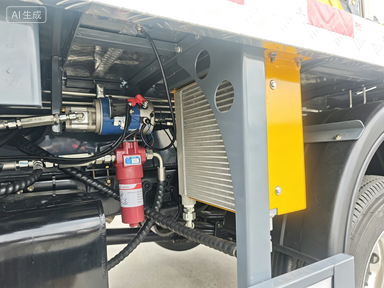

| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed + Emergency Power Unit |
| Walkway | Anti-slip Aluminum Alloy Walkboard |
| Safety Devices | Upper-lower Interlock, Emergency Power, Bi-directional Hydraulic Balance Valve, Leg Protection, Radiator, 220V External Power Supply |
| Optional Parts | Upper Control Cabin, 1T Winch |
| Advantage | 7-section boom, stable structure for 30.6m working height under blue-plate certification |
