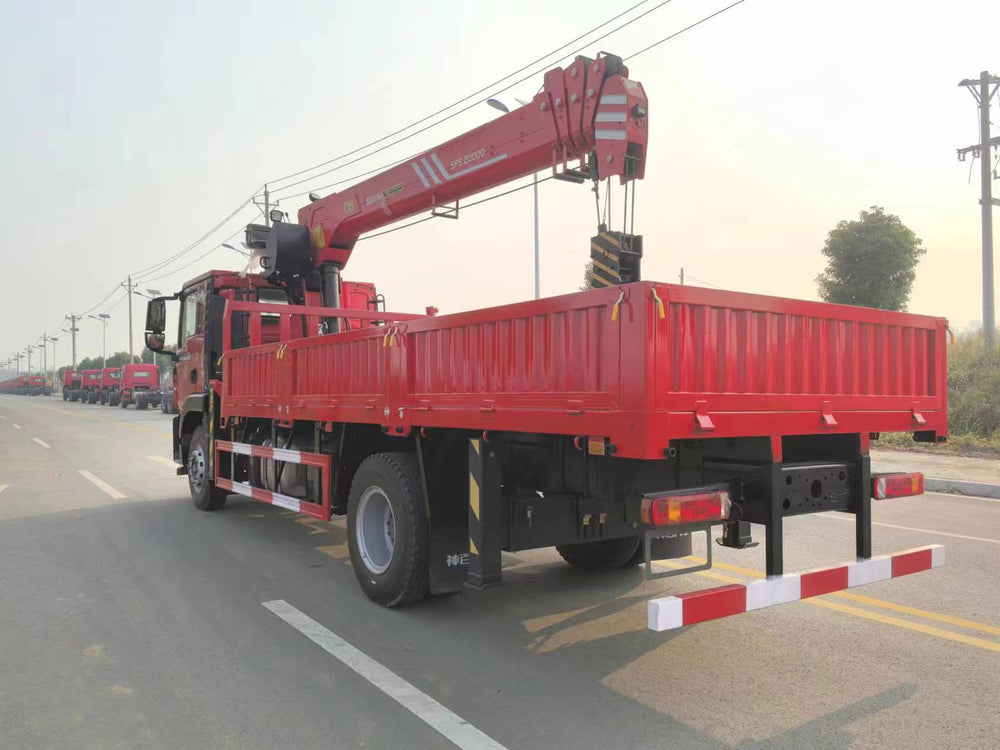

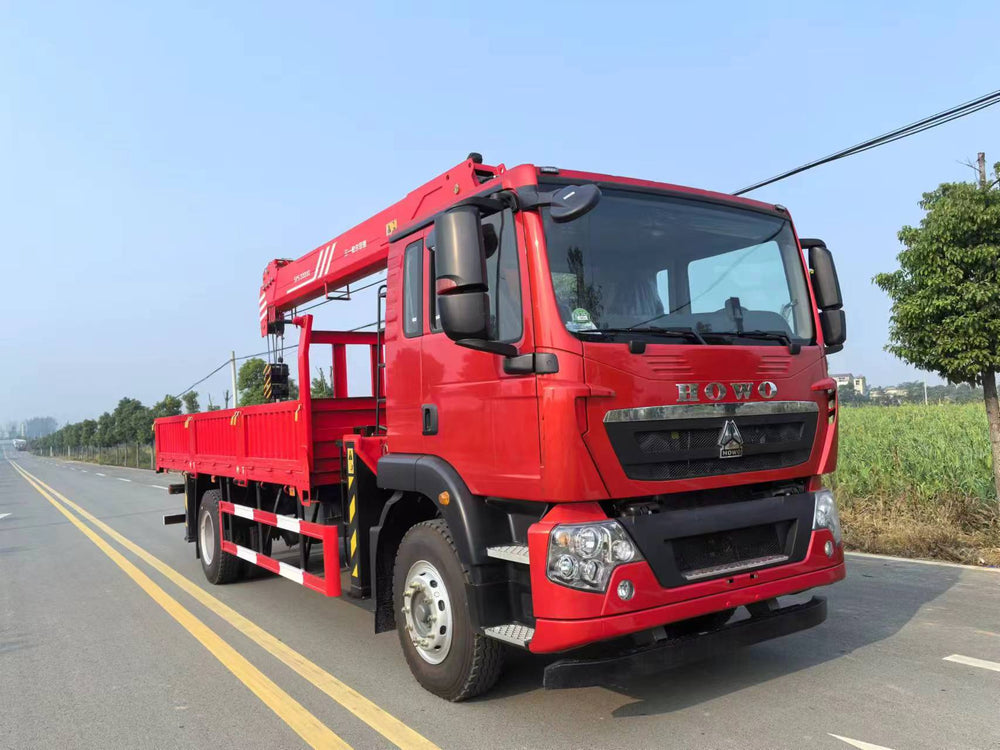

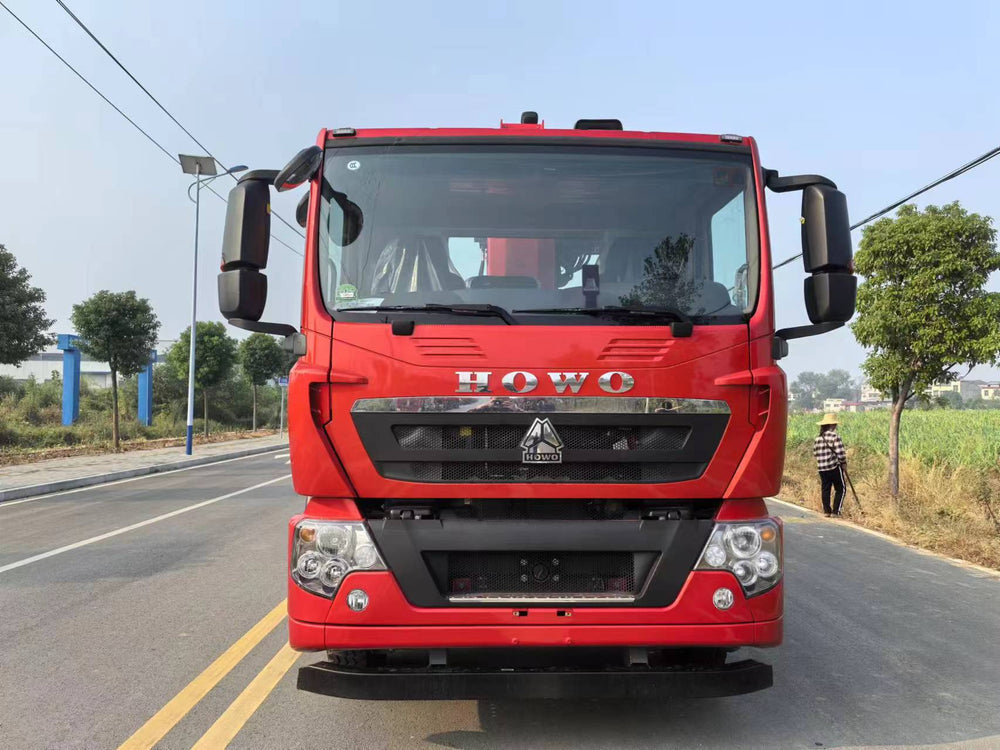

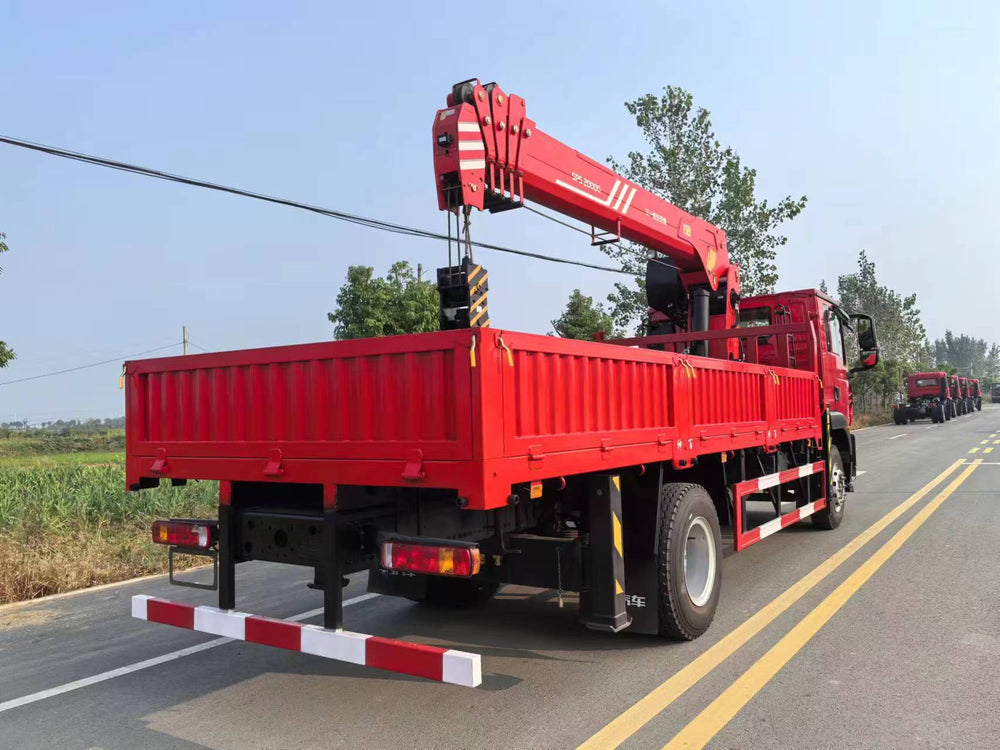

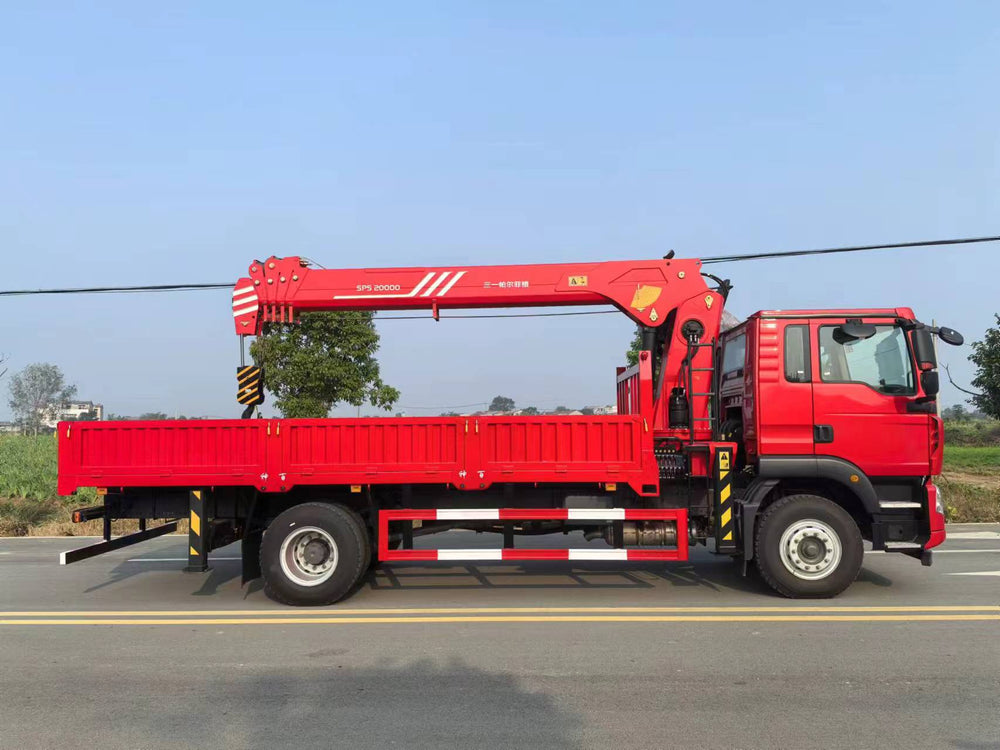

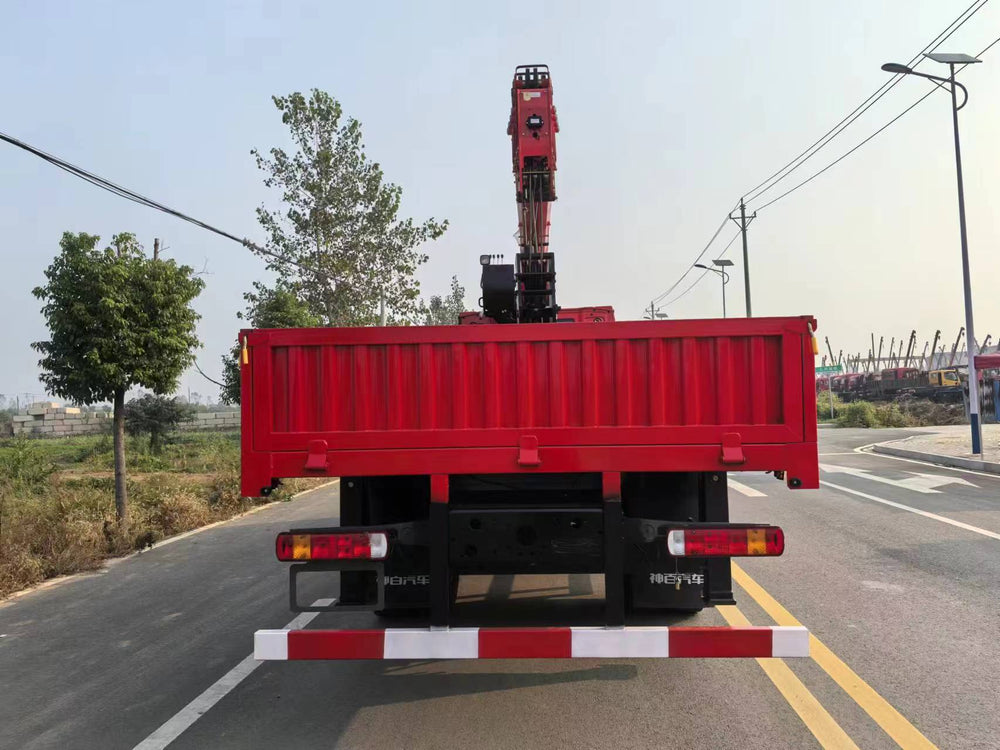

HOWO Sany 10-ton 5-section Boom Truck mounted Crane
| Item | Specification Details |
|---|---|
| Chassis Announcement Model | ZZ1187K501GF1 |
| Engine | Weichai 240HP, 4.6L Displacement |
| Wheelbase | 5000mm / 4700mm / 4500mm |
| Rear Axle Gear Ratio | 5.29 (Optional 4.63) |
| Transmission & PTO | HW95508STC2 Transmission + HW45ZC Flange Type Power Take-off |
| Front / Rear Axle | 7-ton Front Axle, 13-ton Engineering Rear Axle |
| Frame | Full Three-layer Frame (8+5+5/303) |
| Leaf Spring | 11/9+8 |
| Tire Specification | 10.00R20 Mixed Pattern Tire, 18PR |

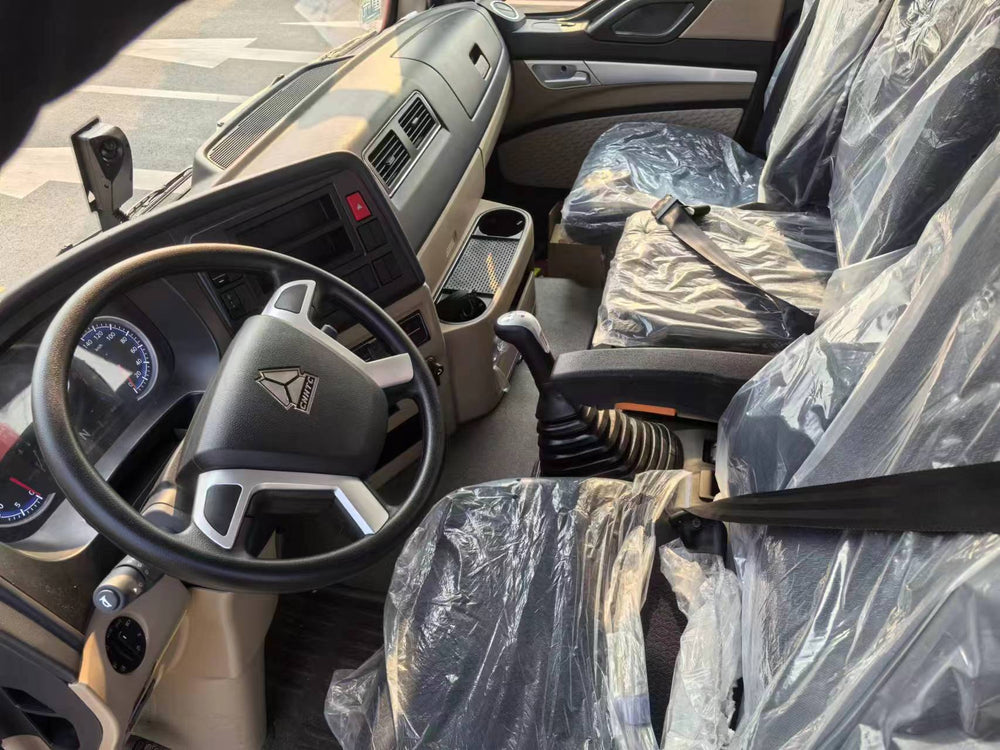

| Cab Type | HOWO TX5, TX-D Cab |
| Steering & Mirror | Multifunctional Steering Wheel, Manual Rearview Mirror |
| Seat Configuration | Main Airbag Seat + Auxiliary Ordinary Seat |
| Engine Model | WP4.6NQ240E62 |
| Gearbox | HOWO 8-speed Transmission with Synchronizer (HW95508STC2) |
| Brake Axle | 1094 Self-adjusting Drum Front Axle; MCJ09BGY Self-adjusting Drum Single Rear Axle |
| Suspension | Cab Front & Rear Spring Shock Absorption |
| Air Intake System | Highway Standard Air Intake |
| Speed Limit | 89km/h |
| Braking System | ABS (4S/4M) |
| Central Control | 7-inch Full HD LCD MP5 Screen |
| Bumper | Middle-mounted Full Metal Bumper |
| Fuel Tank | 200L |
| PTO Type | Cable Operated PTO |
| Intelligent System | Sinotruk Intelligent Connect D Version |
| Auxiliary Configuration | Cab Middle Seat, Mechanical Power Switch, 120AH Battery |
| Crane Brand & Model | Sany 10-ton 5-section Boom |
| Operation Mode | Top Operation, Second Boom Single Extension |
| Boom Parameter | Boom Length 18.1m, Lifting Height 19.9m |
| Hydraulic System | Plunger Pump, Plunger Motor for Slewing & Winch |
| Outrigger | 3.5m Span Single-cylinder Rear Outrigger |
| Auxiliary Beam | Full-length Reinforced Auxiliary Beam |
| Accessory | Hydraulic Radiator Equipped |
| Cargo Box | Engineering Cargo Box, Side 3 Layers / Bottom 5 Layers |
| Core Advantages | 1. Weichai 240HP 4-cylinder high-power engine, matched with original HOWO 8-speed transmission, optimized powertrain matching;
|
