What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

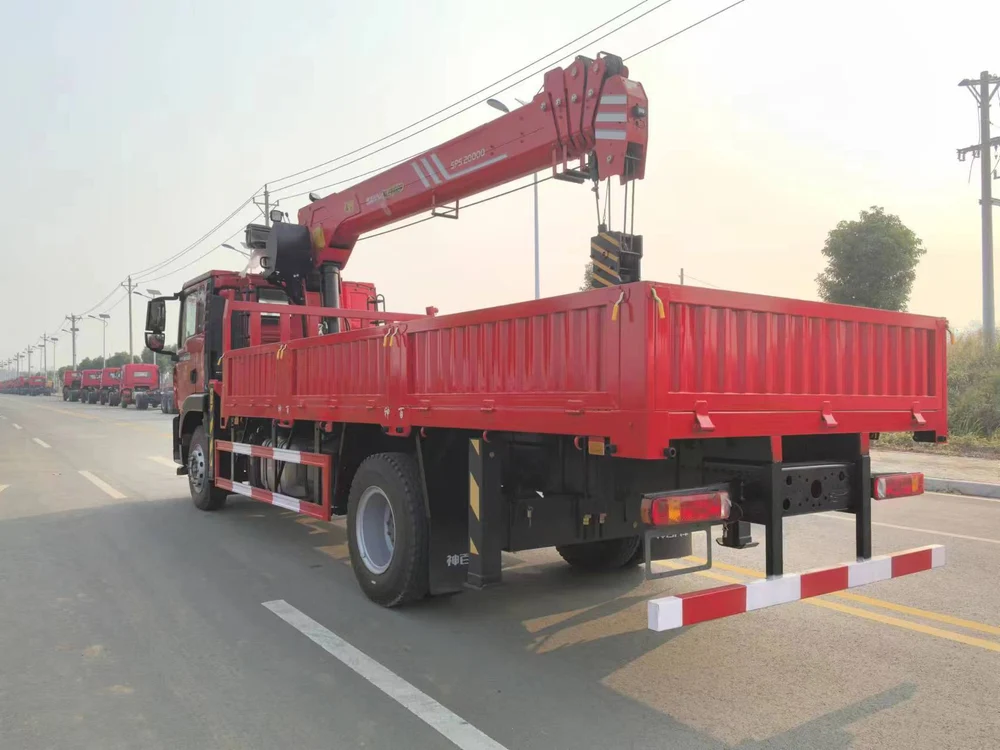

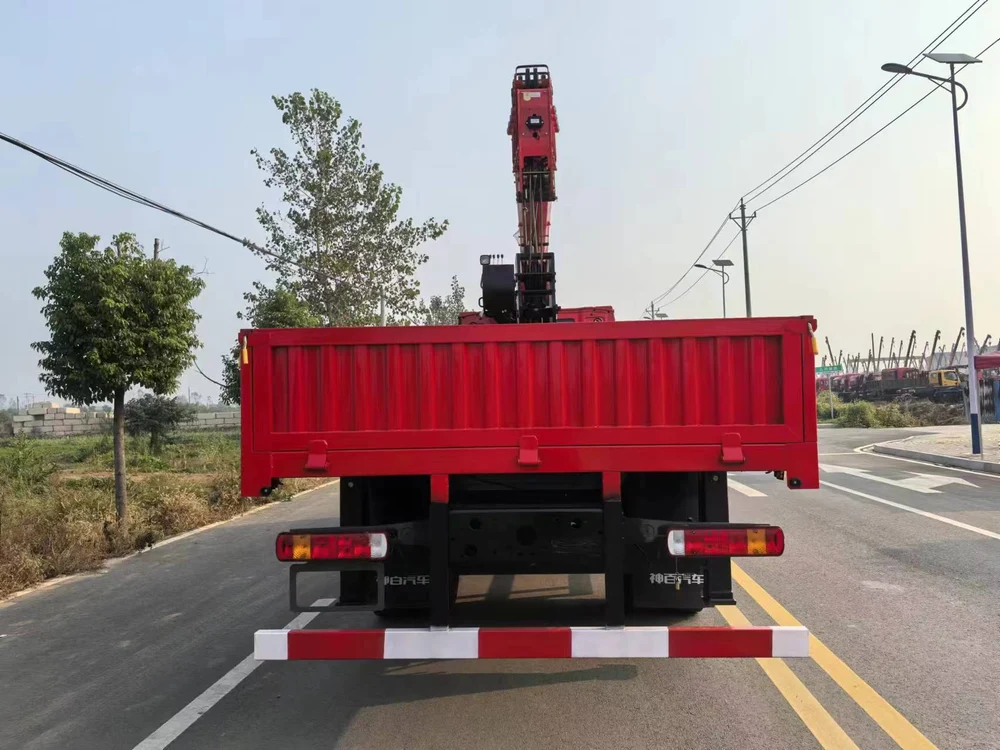

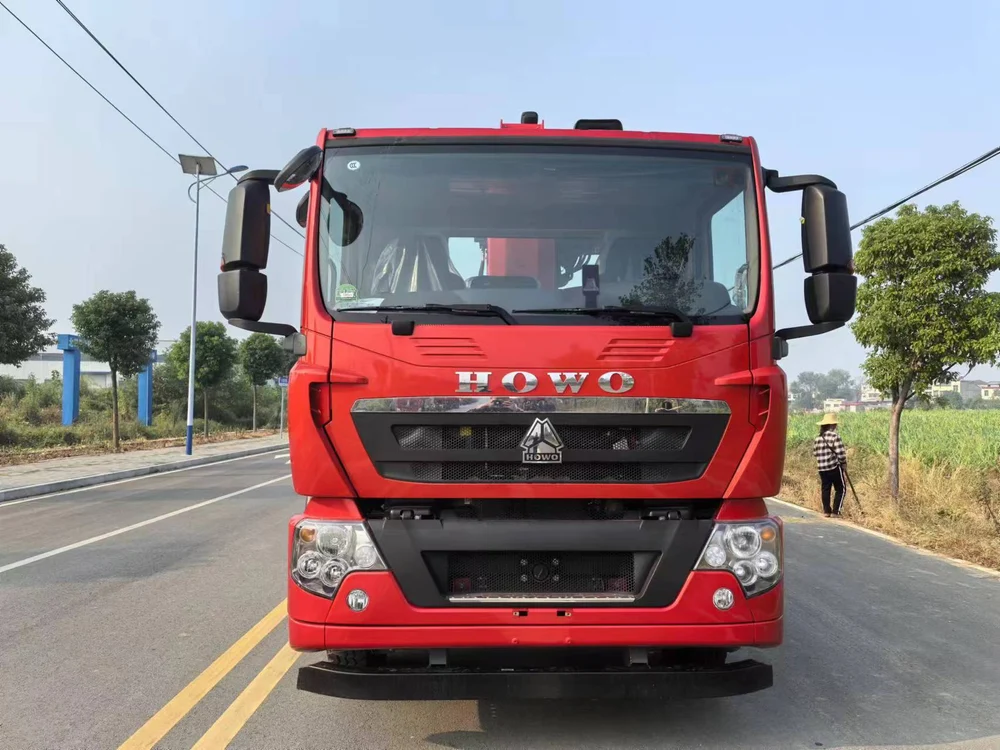

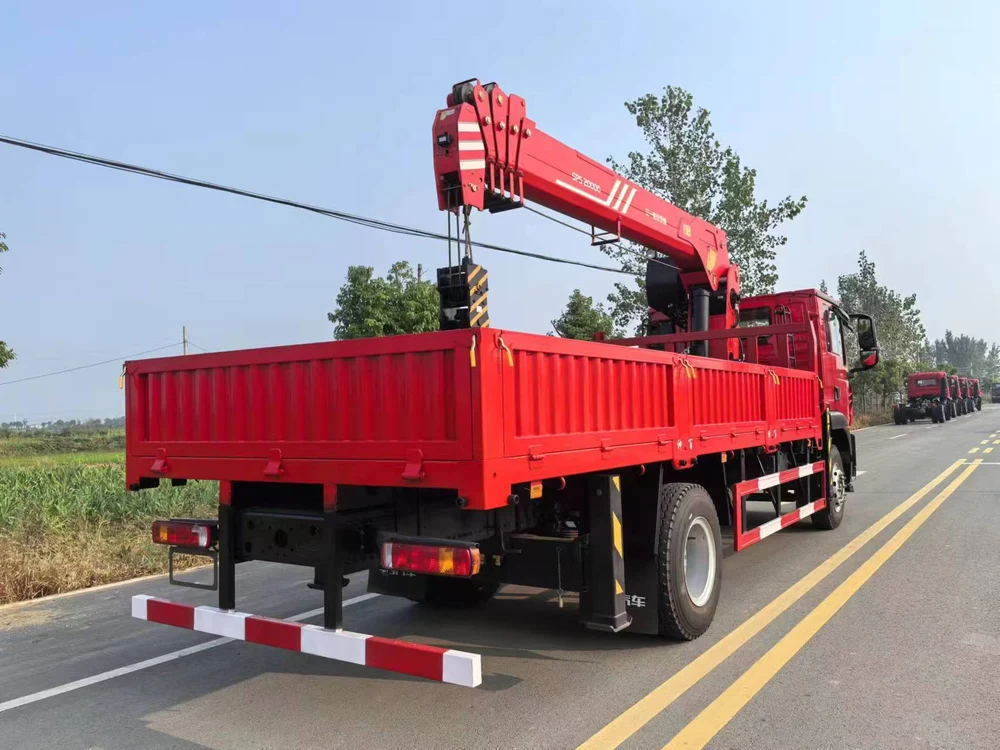

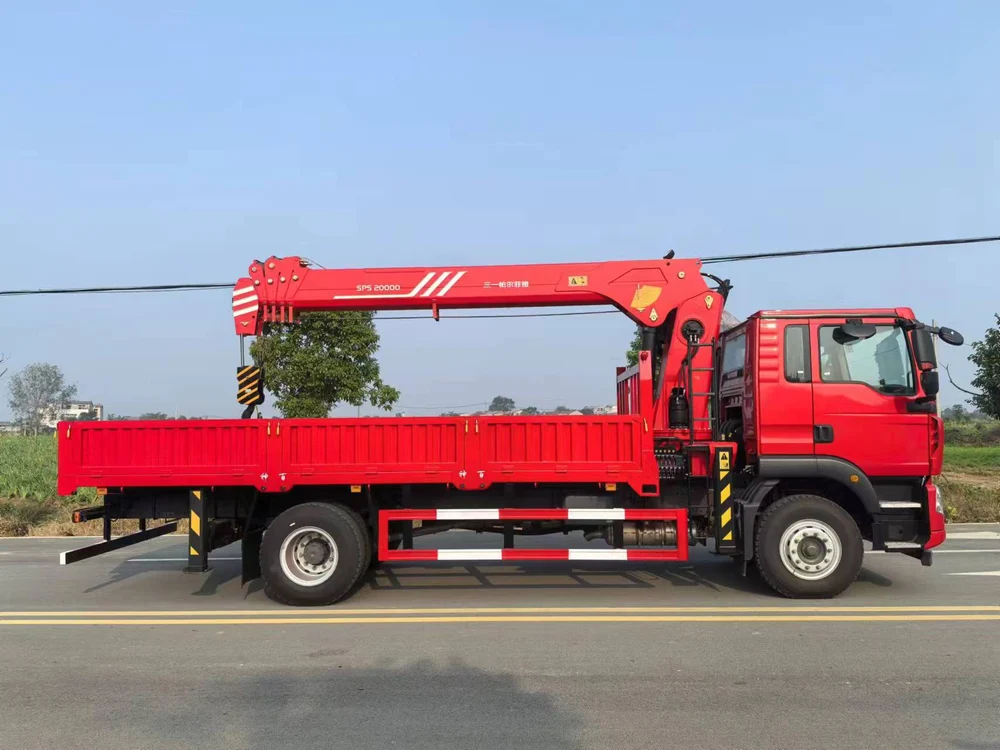

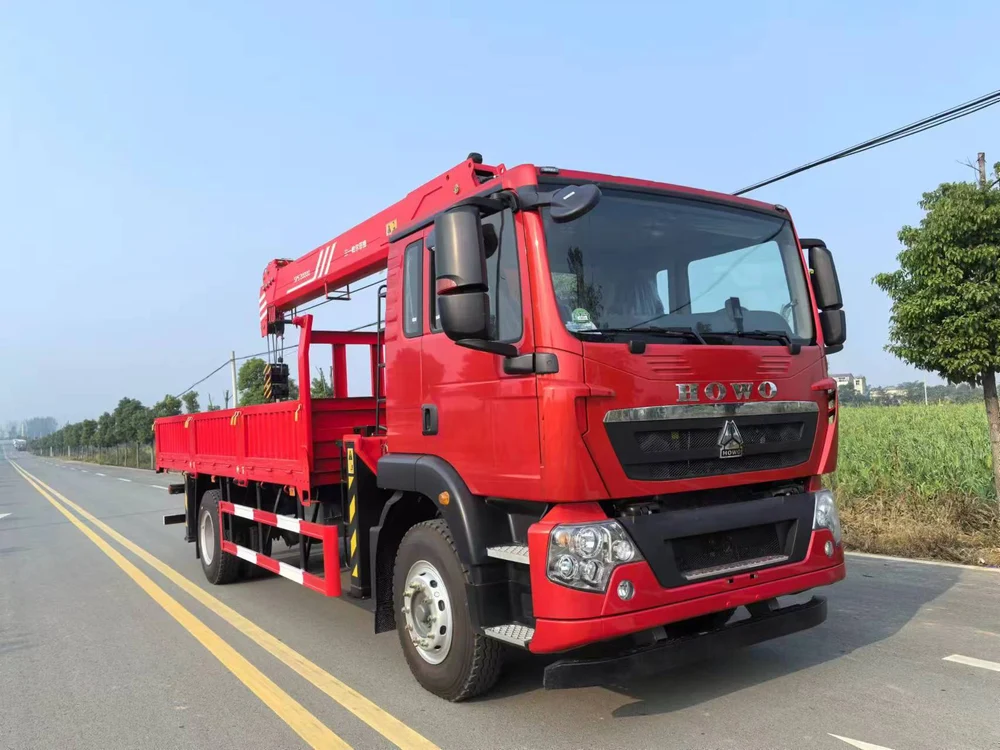

HOWO Sany 10-ton 5-section Boom Truck mounted Crane

Name: HOWO Sany 10-ton 5-section Boom Truck mounted Crane
Brand: SHENBAI
Availability: OutOfStock

HOWO Sany 10-ton 5-section Boom Truck mounted Crane - View 2 - SHENBAI Auto

HOWO Sany 10-ton 5-section Boom Truck mounted Crane - View 3 - SHENBAI Auto

HOWO Sany 10-ton 5-section Boom Truck mounted Crane - View 4 - SHENBAI Auto

HOWO Sany 10-ton 5-section Boom Truck mounted Crane - View 5 - SHENBAI Auto

HOWO Sany 10-ton 5-section Boom Truck mounted Crane - View 6 - SHENBAI Auto

1 / 6

Item	Specification Details
Chassis Announcement Model	ZZ1187K501GF1
Engine	Weichai 240HP, 4.6L Displacement
Wheelbase	5000mm / 4700mm / 4500mm
Rear Axle Gear Ratio	5.29 (Optional 4.63)
Transmission & PTO	HW95508STC2 Transmission + HW45ZC Flange Type Power Take-off
Front / Rear Axle	7-ton Front Axle, 13-ton Engineering Rear Axle
Frame	Full Three-layer Frame (8+5+5/303)
Leaf Spring	11/9+8
Tire Specification	10.00R20 Mixed Pattern Tire, 18PR
Cab Type	HOWO TX5, TX-D Cab
Steering & Mirror	Multifunctional Steering Wheel, Manual Rearview Mirror
Seat Configuration	Main Airbag Seat + Auxiliary Ordinary Seat
Engine Model	WP4.6NQ240E62
Gearbox	HOWO 8-speed Transmission with Synchronizer (HW95508STC2)
Brake Axle	1094 Self-adjusting Drum Front Axle; MCJ09BGY Self-adjusting Drum Single Rear Axle
Suspension	Cab Front & Rear Spring Shock Absorption
Air Intake System	Highway Standard Air Intake
Speed Limit	89km/h
Braking System	ABS (4S/4M)
Central Control	7-inch Full HD LCD MP5 Screen
Bumper	Middle-mounted Full Metal Bumper
Fuel Tank	200L
PTO Type	Cable Operated PTO
Intelligent System	Sinotruk Intelligent Connect D Version
Auxiliary Configuration	Cab Middle Seat, Mechanical Power Switch, 120AH Battery
Crane Brand & Model	Sany 10-ton 5-section Boom
Operation Mode	Top Operation, Second Boom Single Extension
Boom Parameter	Boom Length 18.1m, Lifting Height 19.9m
Hydraulic System	Plunger Pump, Plunger Motor for Slewing & Winch
Outrigger	3.5m Span Single-cylinder Rear Outrigger
Auxiliary Beam	Full-length Reinforced Auxiliary Beam
Accessory	Hydraulic Radiator Equipped
Cargo Box	Engineering Cargo Box, Side 3 Layers / Bottom 5 Layers
Core Advantages	1. Weichai 240HP 4-cylinder high-power engine, matched with original HOWO 8-speed transmission, optimized powertrain matching; 2. German MAN technology cab, four-point suspension + crash energy absorption structure, high safety; 3. Aviation airbag driver seat with lumbar support, comfortable riding; 4. Three-layer reinforced frame + heavy-duty leaf spring, 7T/13T axle, strong heavy-load capacity.
