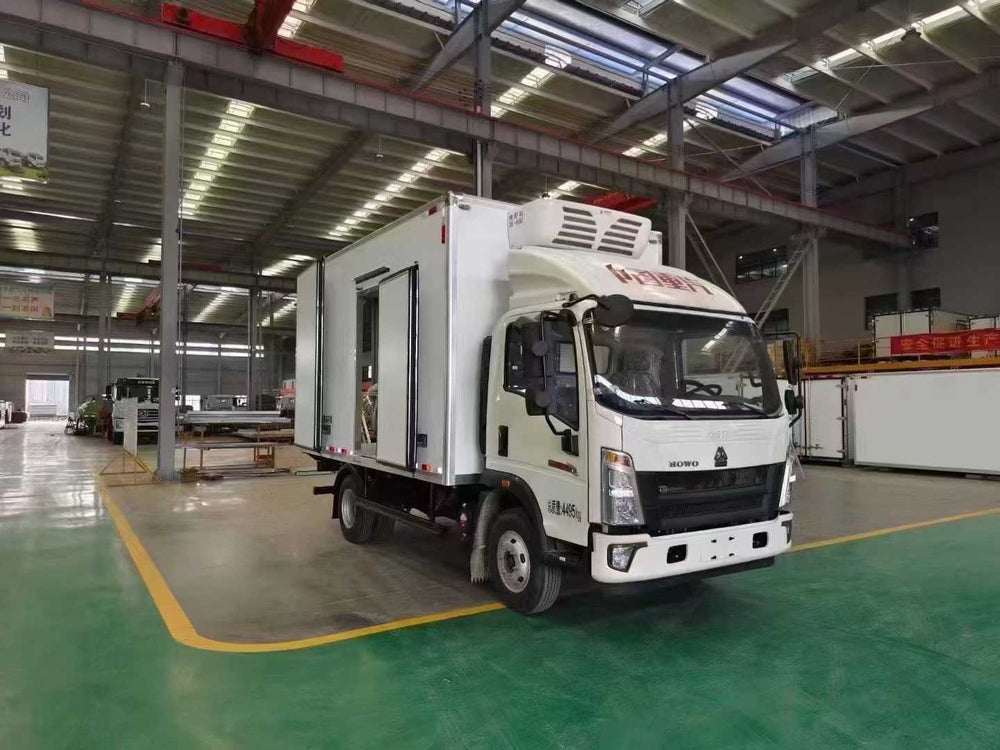

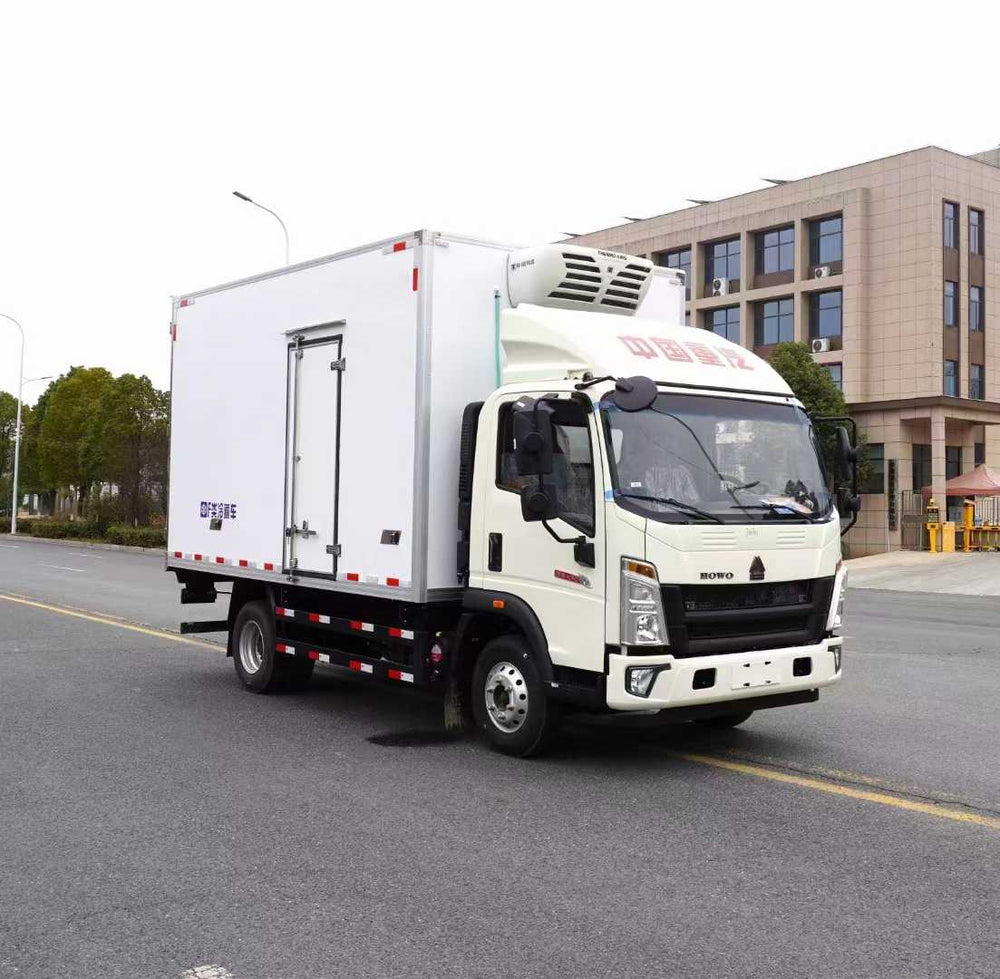

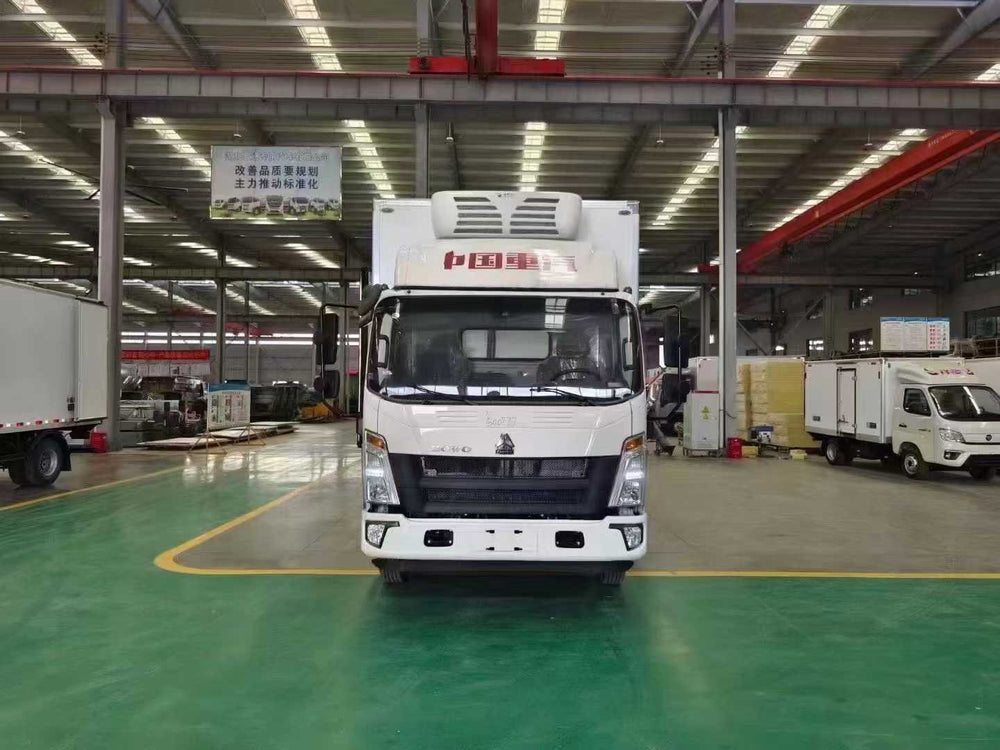

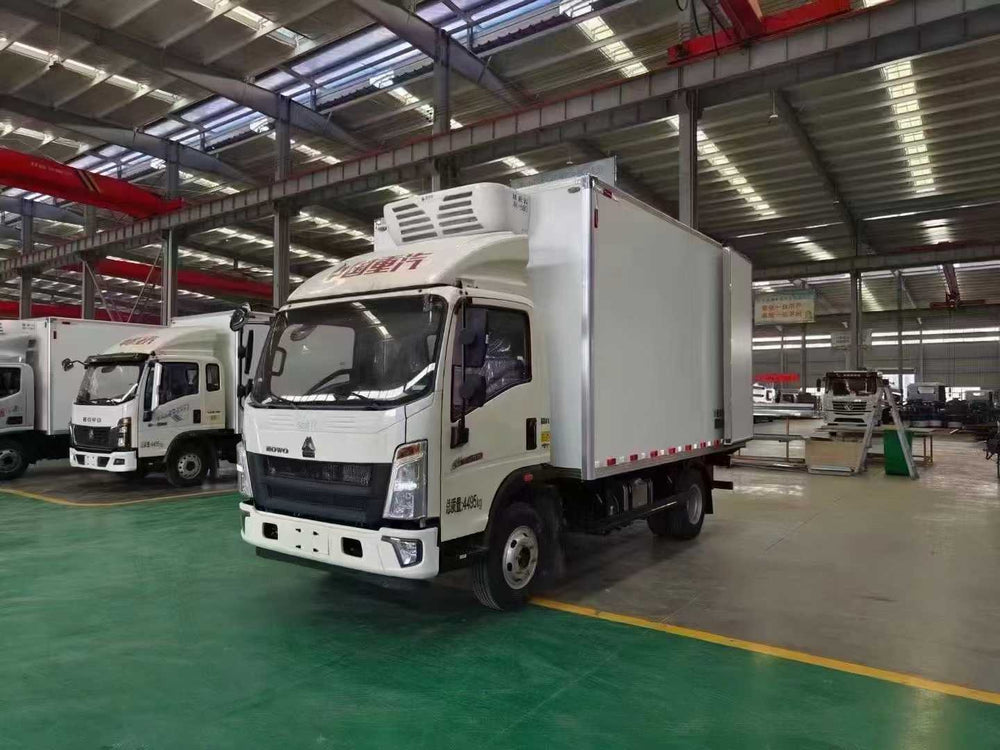

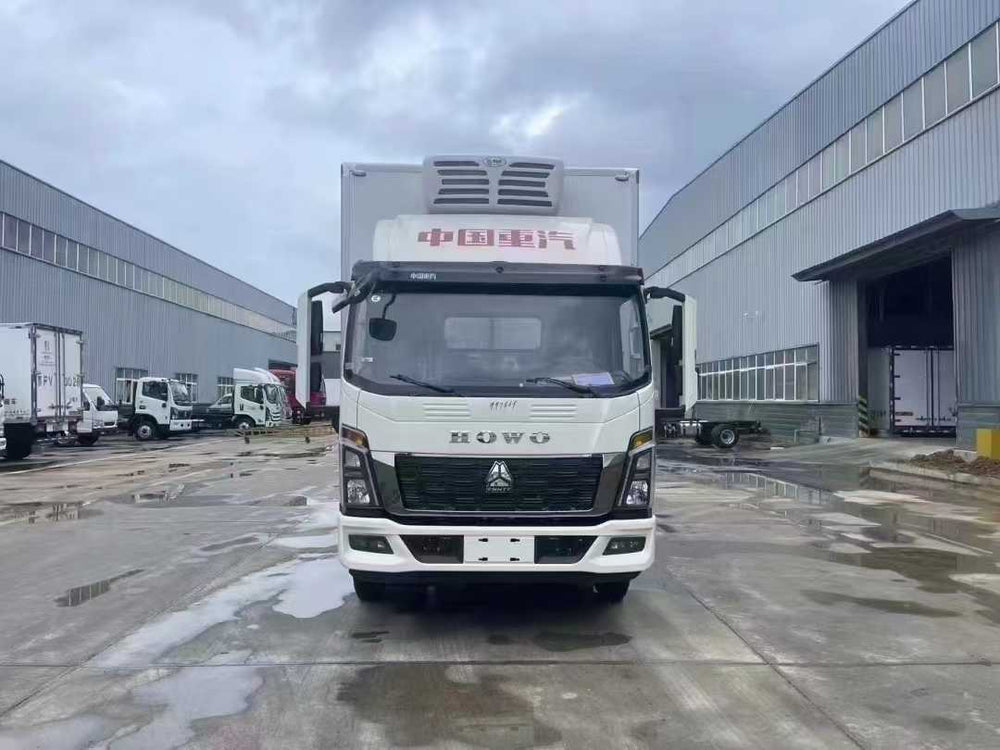

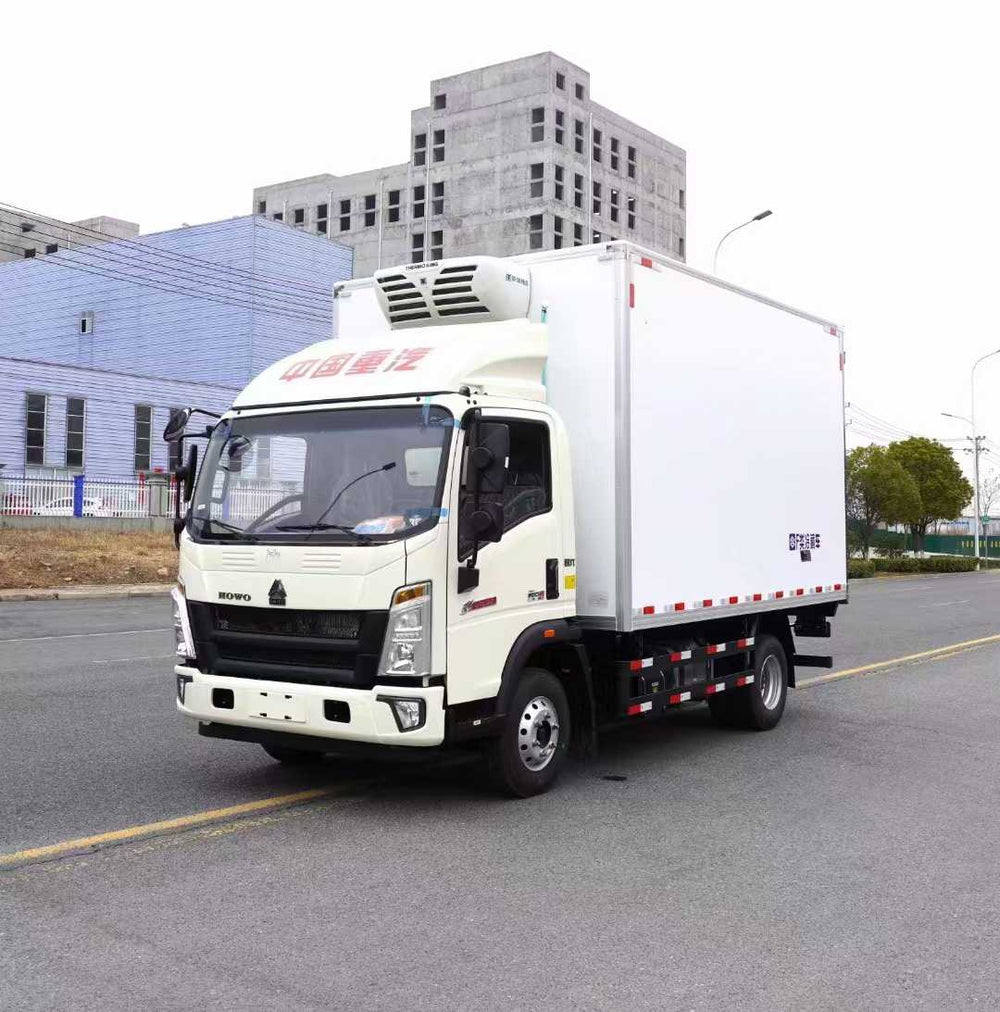

HOWO Sinotruk 4×2 5T Refrigerated Truck with Thermo King Unit
Product Overview
The HOWO Sinotruk 4×2 5T Refrigerated Truck is a premium cold chain transport vehicle built on the proven SINOTRUK HOWO chassis. This reliable refrigerated truck combines excellent cargo capacity with powerful engine options, making it ideal for transporting frozen and fresh products. The professional-grade insulated box with premium refrigeration unit ensures consistent temperature control throughout the journey.
Technical Specifications
| Item | Specification |
|---|---|
| Chassis Parameters | |
| Chassis Model | SINOTRUK HOWO 4×2 Light Duty Chassis |
| Drive Type | 4×2, Left Hand Drive |
| Engine Brand | Weichai Power / Yuchai |
| Engine Power | 130-170 HP |
| Emission Standard | Euro 2 / Euro 3 / Euro 4 (optional) |
| Transmission | Manual, 5-Forward Gears with PTO connection |
| Wheelbase | 3,800 mm |
| Overall Dimensions (L×W×H) | 6,995×2,310×2,570 mm |
| Gross Vehicle Weight | 7,345 kg |
| Rated Payload | 4,895 kg |
| Kerb Weight | 3,550 kg |
| Tire Specification | 8.25-16 LT |
| Number of Tires | 6 tires + 1 spare |
| Max Speed | 90 km/h |
| Fuel Tank Capacity | 150 L |
| Cab Type | Single row, 2 passengers, optional A/C |
| Box Body Parameters | |
| Box Body Dimensions (L×W×H) | 5,100×2,100×1,400 mm |
| Box Body Material | FRP (Fiberglass Reinforced Plastic) interior and exterior |
| Insulation Material | Polyurethane foam, 80mm thickness |
| Insulation Performance | Temperature rise ≤1.8°C in 8 hours |
| Box Body Type | Sandwich panel construction |
| Door Type | Rear double doors with stainless steel locks |
| Floor | Aluminum checkered plate |
| Accessories | Aluminum edge trim, stainless steel corners and hinges |
| Refrigeration System | |
| Refrigeration Unit | Optional: Hanxue, Carrier, Thermo King |
| Temperature Range | -18°C to +8°C (adjustable based on cargo) |
| Cooling Capacity | Standard unit for fresh and frozen goods |
| Power Source | Engine-driven via PTO |
Key Features
- Premium Chassis: Proven SINOTRUK HOWO chassis with excellent reliability
- Powerful Engine Options: Multiple engine choices from 130HP to 170HP
- Professional Insulation: 80mm PU foam with Grade A thermal performance
- Versatile Refrigeration: Optional Thermo King and Carrier units
- Large Cargo Box: 5.1m box length for bulk transport
- Customization Options: Meat hooks, ventilation channels, multi-temperature zones
Applications
This refrigerated truck is ideal for:
- Frozen food distribution (meat, seafood, ice cream)
- Fresh produce transport
- Dairy product delivery
- Pharmaceutical cold chain
- Restaurant and catering supply
- Wholesale market distribution
