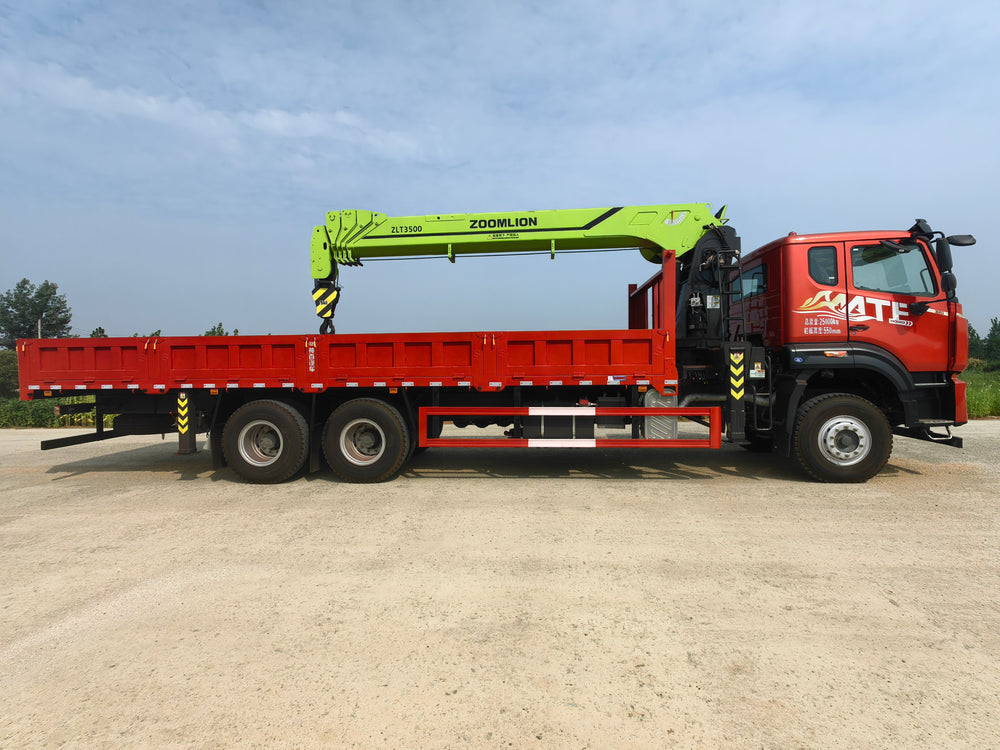

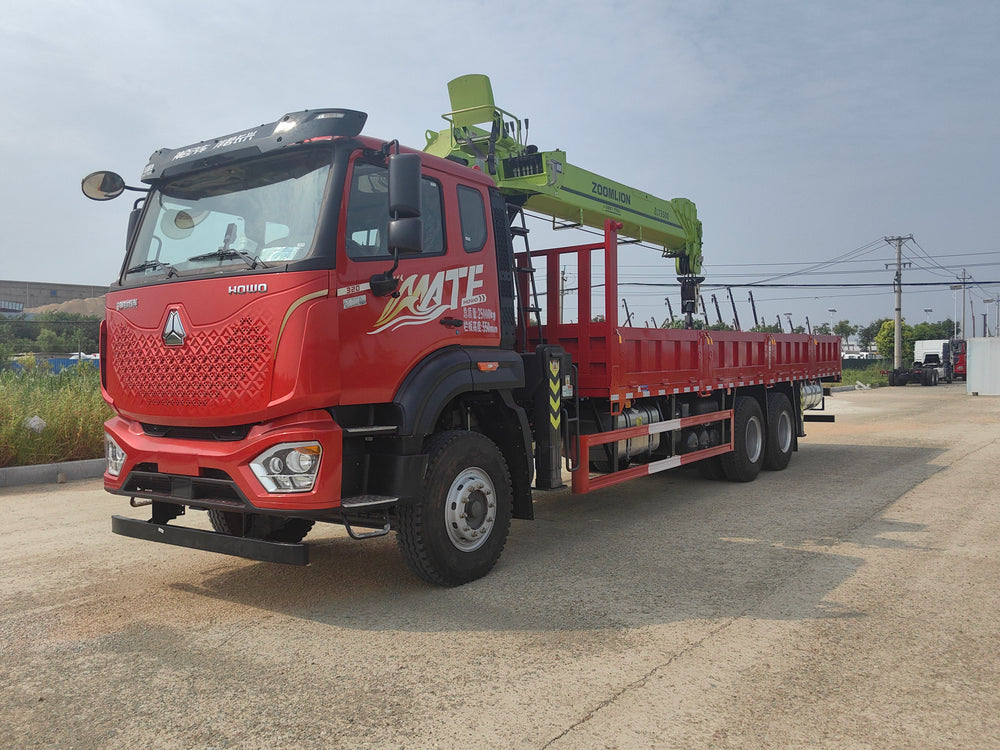

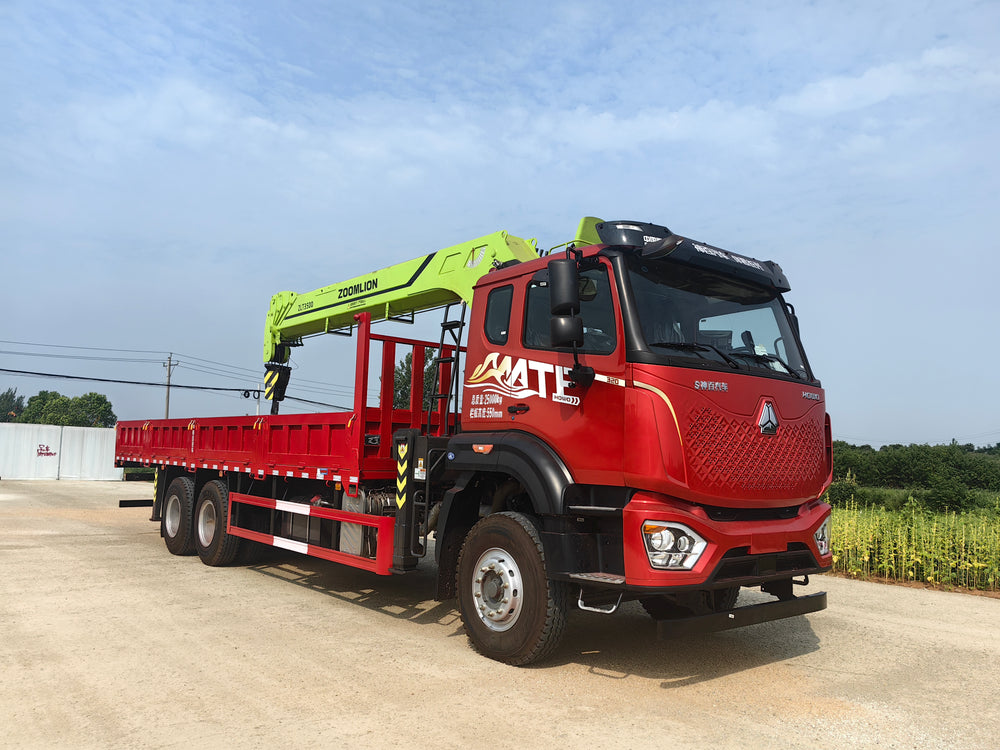

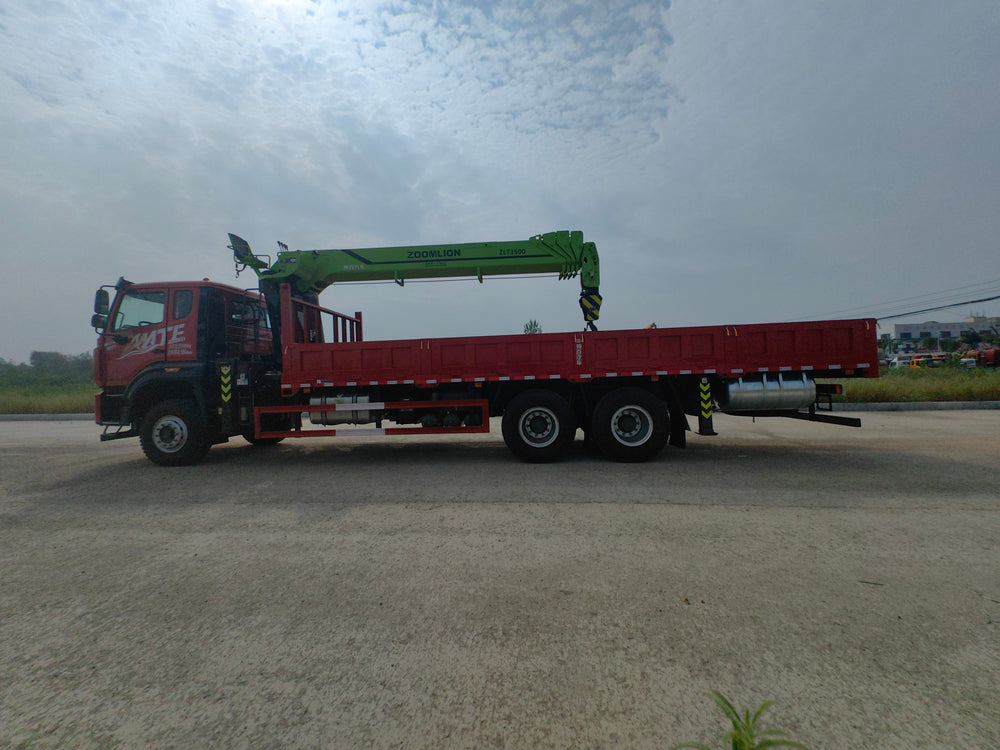

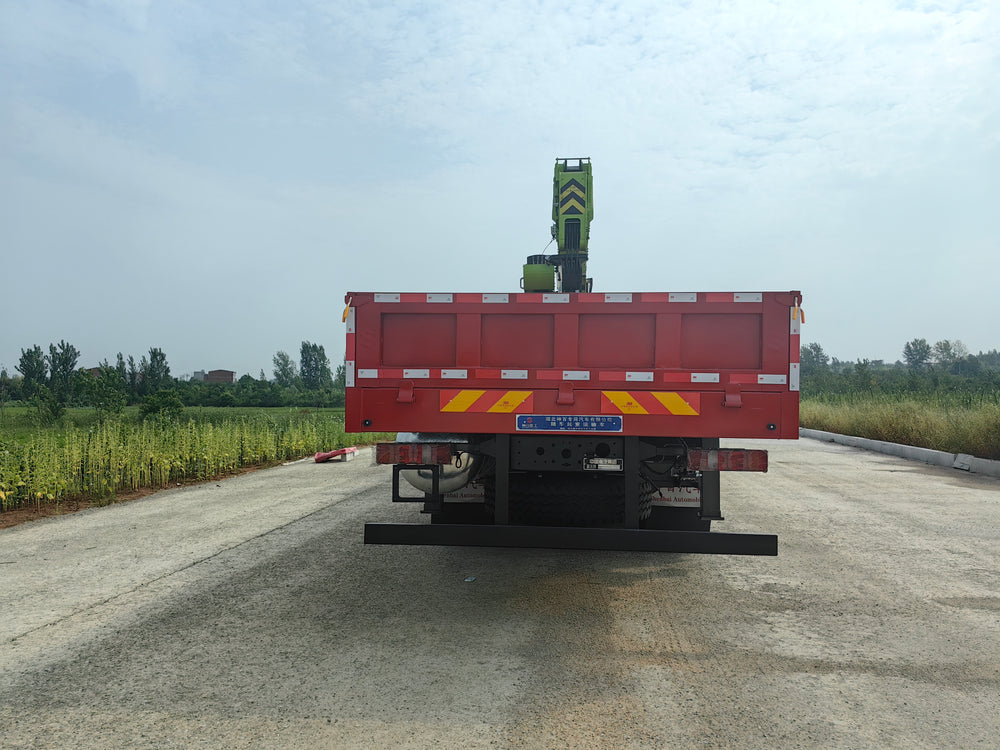

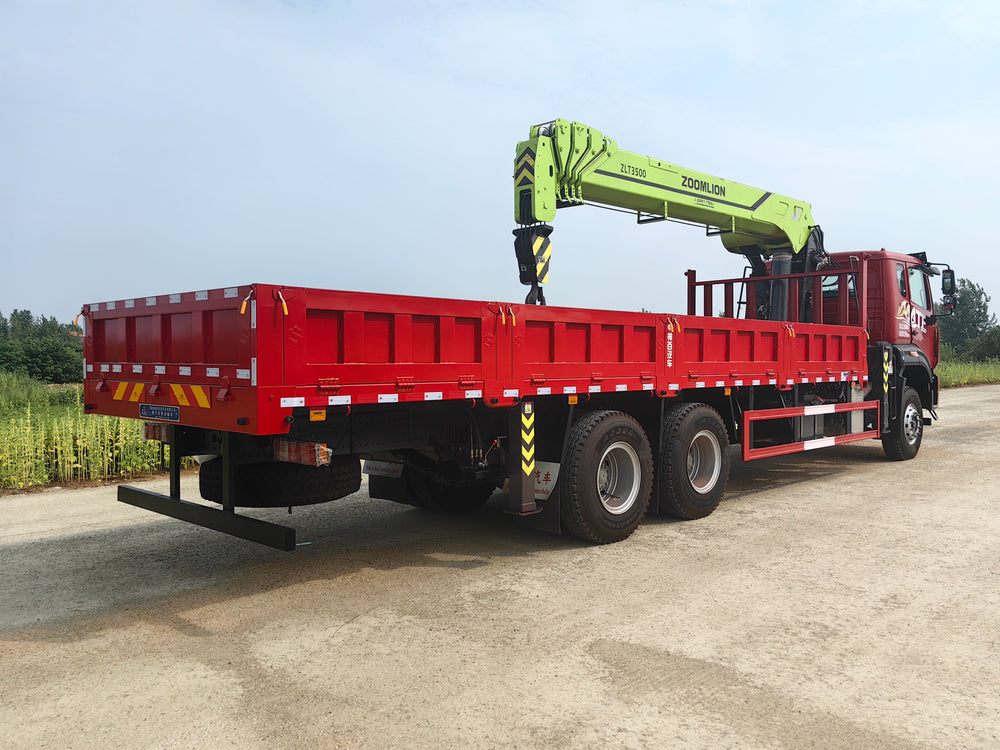

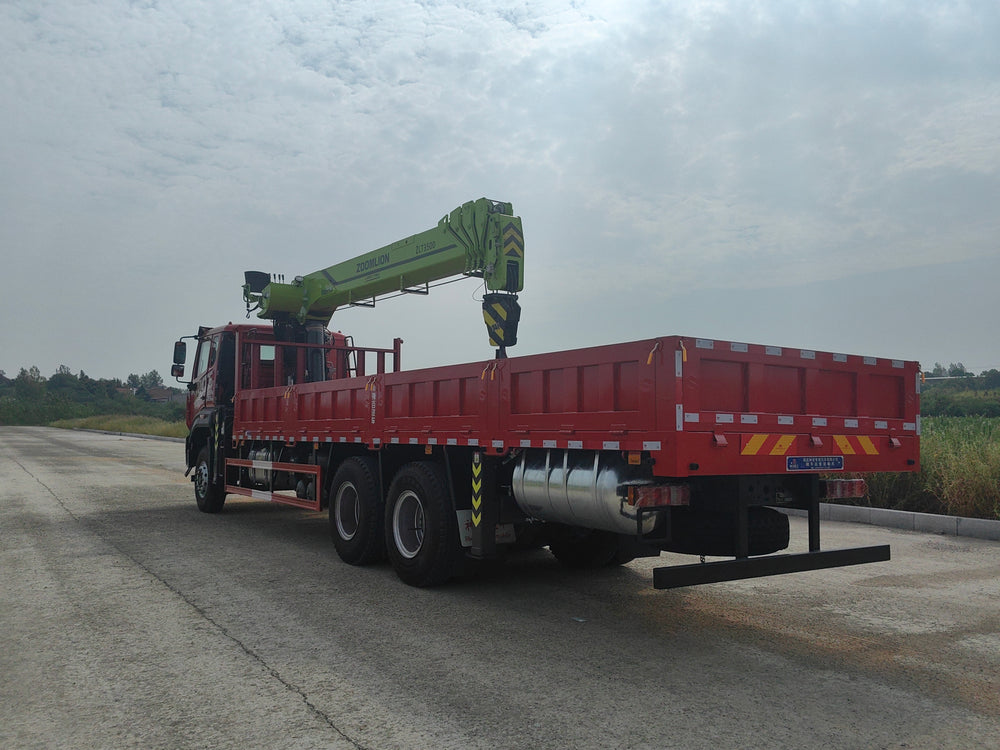

Howo Zoomlion 14-ton Truck Mounted Crane
| Item | Specification |
|---|---|
| Marketing Slogan | Weichai 320 HP, perfectly matched for large crane working demands. High horsepower is essential for large cranes. |
| Whole Vehicle Announcement Model | ABC5257JSQZZ6 |
| Chassis Announcement Model | ZZ1257V584JF1 |
| Engine | Weichai 320 HP |
| Wheelbase | 5825＋1350 mm |
| Transmission & PTO | HW13709XSTC2 Transmission + HW70 Flange Type Power Take-off |
| Front & Rear Axle | VGD71 self-adjusting arm front axle (drum brake); 440B engineering version self-adjusting arm dual rear axle (drum brake) |
| Gear Ratio | 5.143 (4.875 optional) |
| Frame | Integral triple-layer frame (8+5+5/300) |
| Leaf Spring Arrangement | 10/12 pieces |
| Tire Specification | 11.00R20 mixed pattern tire, 18PR |

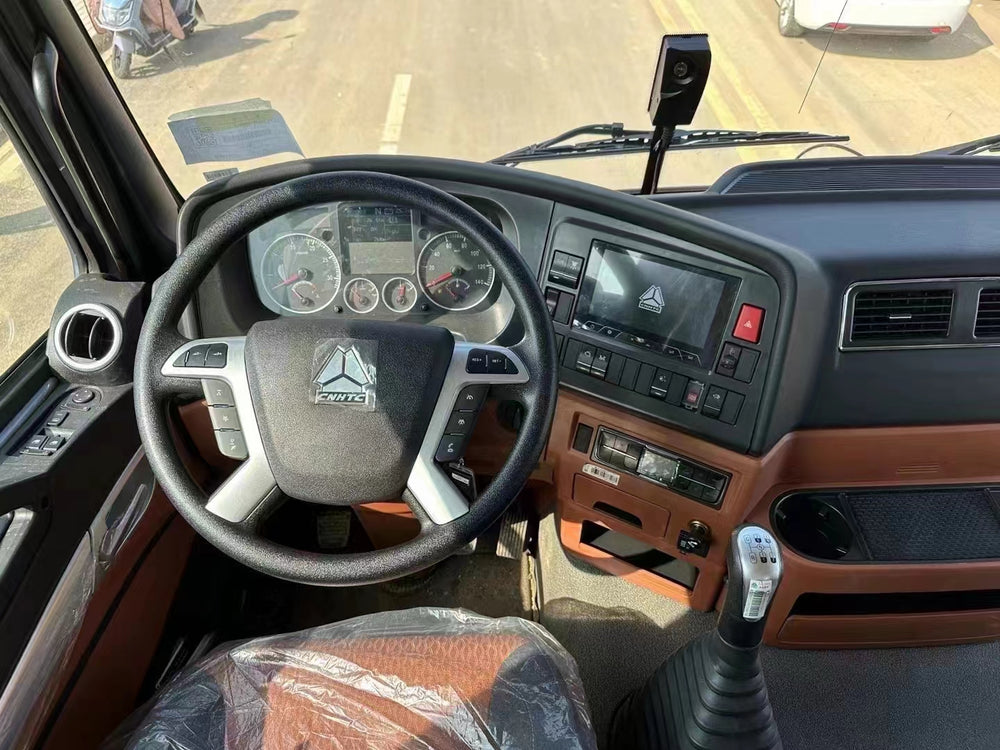

| Full Chassis Configuration | HOWO MATE5, MATE-K Cab Value Edition, multi-functional steering wheel, electric heating rearview mirror, main airbag seat + auxiliary lightweight seat; WP7H320E62 engine; HW13709XSTC2 9-speed transmission with synchronizer; VGD71 self-adjusting arm front axle; 440B self-adjusting arm dual rear axle (7.5/13 ton); gear ratio 5.143 (optional 4.875); manual & electric integrated cab lifting; integral triple-layer frame (8+5+5/300); standard multi-leaf spring 10/12; front and rear cab spring shock absorption; speed limit 89km/h; U-type exhaust system; ABS (4S/4M); high-mounted non-metallic bumper; 300L fuel tank; cable type PTO; Sinotruk Intelligent Connect Version B; middle cab seat; terminal emission monitoring device |
| Vehicle Performance Advantages | Integrated matching design of engine, transmission and axle for better overall coordination. Original Mercedes-Benz cab body with four-point suspension and advanced crash energy absorption technology to protect driver and passenger safety. Aviation-style airbag driver seat with multi-direction adjustment and lumbar support, humanized safety belt design for comfortable driving. Adopts engineering leaf springs and four U-bolts, outstanding torsion resistance on complex road conditions. V-type thrust rod ensures stable driving under heavy load. 13-ton rear axle with three differential locks realizes deceleration and torque increase to adapt to various harsh road conditions |
| Crane Model | Zoomlion 14-ton 5-section boom crane (ZLT3500V5) |
| Boom Structure | 5 sections, second section single extension |
| Boom Total Length | 20 m |
| Lifting Height | 21.5 m |
| Rated Lifting Moment | 350 kN·m |
| Slewing Range | 360° continuous rotation |
| Outrigger Span | 8 m, double front outriggers |
| Crane Overall Dimension | 6215×2540×2580 mm |
| Crane Self Weight | 5750 kg |
| Hydraulic Tank Volume | 270 L |
| Hydraulic Flow | 63+40 L/min |
| Standard Crane Configuration | HG785 high-strength steel plate, double front outriggers, dual telescopic cylinder for second section single extension, dual hydraulic pump, dual boom return rope, high-power radiator, upper platform start-stop system, working lamp, horn, full-length auxiliary subframe |
| Crane Performance Advantages | 1. Hexagonal high-strength steel main body, lightweight design, dual telescopic cylinders and dual boom return rope, stronger telescoping capacity.
|
