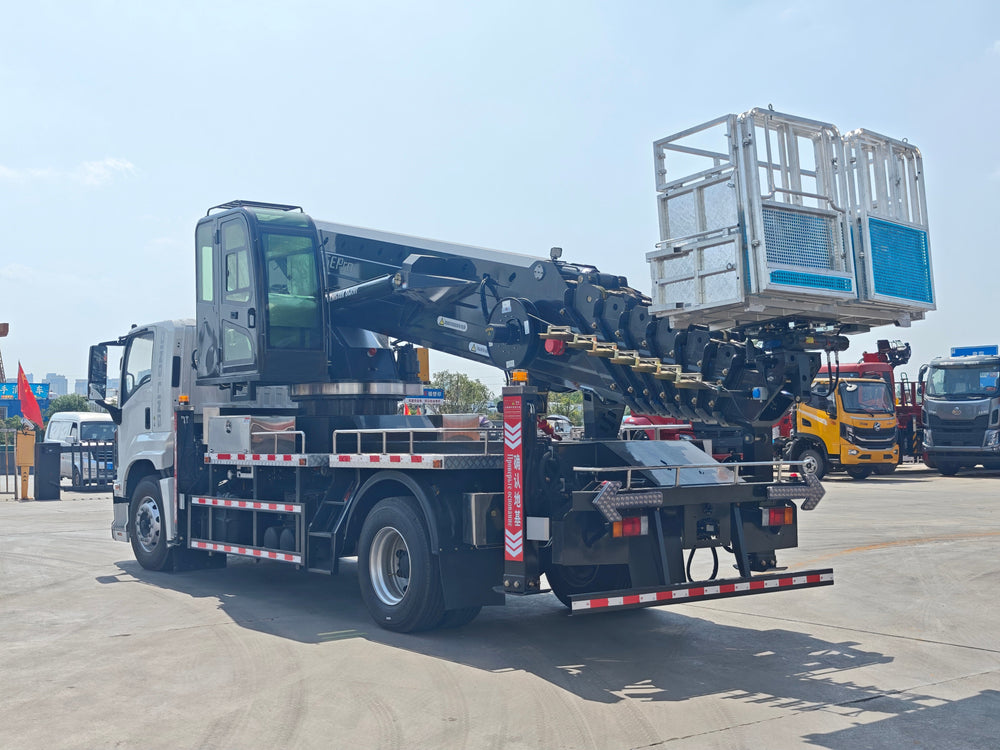

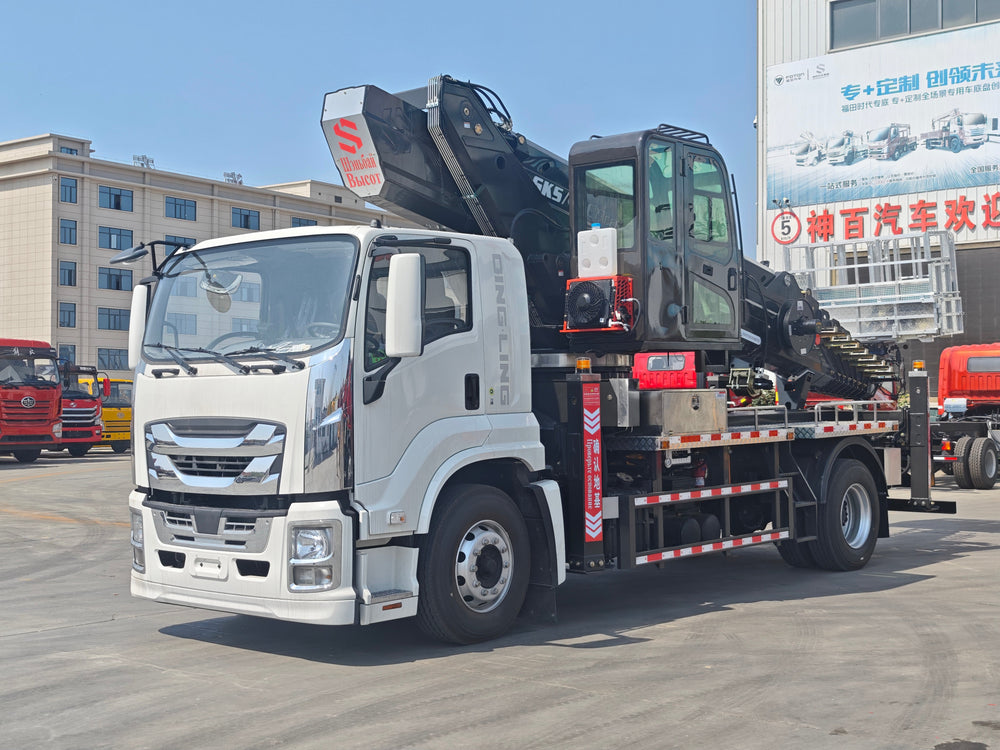

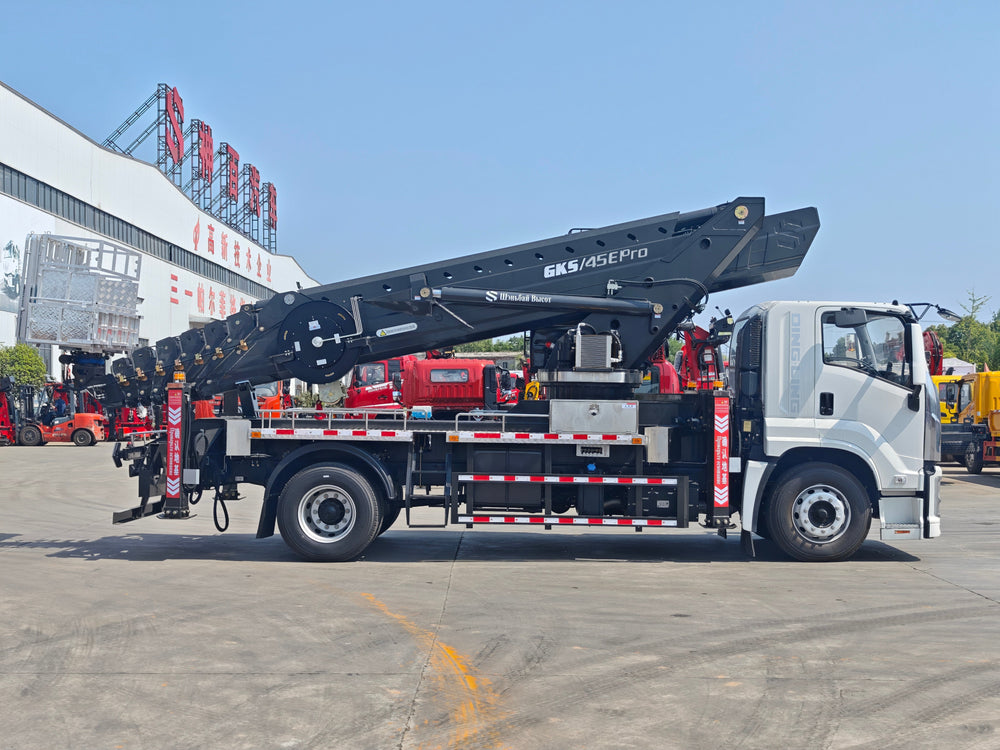

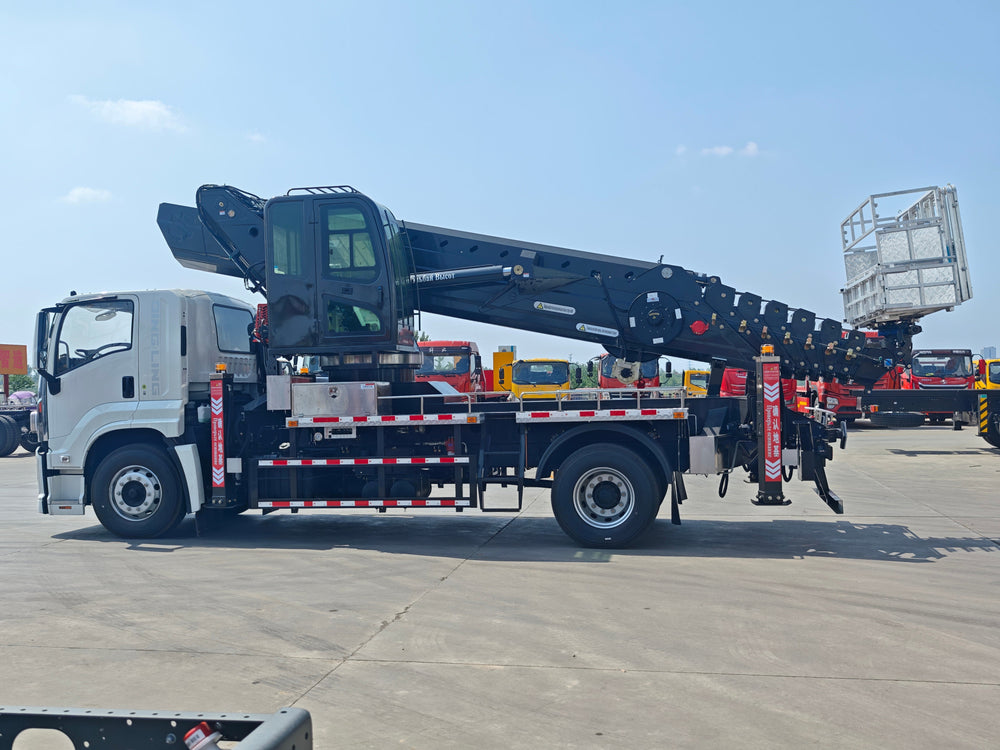

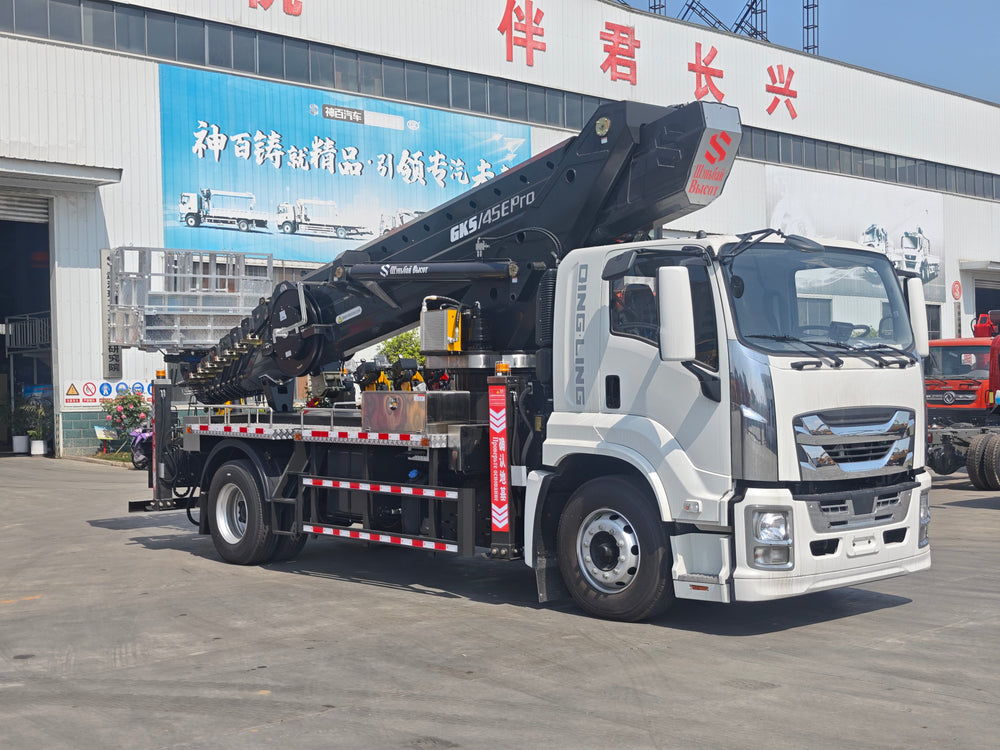

ISUZU GKS45Pro Aerial Work Platform Truck
Chassis
| Item | Specification |
|---|---|
| Cabin | New Isuzu 5X-grade VC61 cabin |
| Engine | 205 HP |
| Transmission | ZF 8-speed ZF8, automatic AMT |
| Wheelbase & Axle | 4500mm; 4×2, front axle 6.3t, rear axle 13t |
| Tire | 295/80R22.5 18PR |
| Brake | Air brake |
| Cab Accessories | AC, power steering, central lock, power window, multifunctional steering wheel, LCD dashboard, ABS |
Superstructure(GKS45 Pro)
| Item | Specification |
|---|---|
| Model | GKS45 Pro |
| Max Working Height | 45m |
| Max Working Radius | 25/22/29/16m (pending confirmation) |
| Rated Platform Load | 200/300/400KG |
| Main Boom Length | 41.2m |
| Boom Slewing Angle | 360° rotation |
| Overall Dimension | 9820×2590×3950mm |
| Total Curb Weight | 17.2t |
| Platform | 3200×1000×1100mm, foldable aluminum basket |

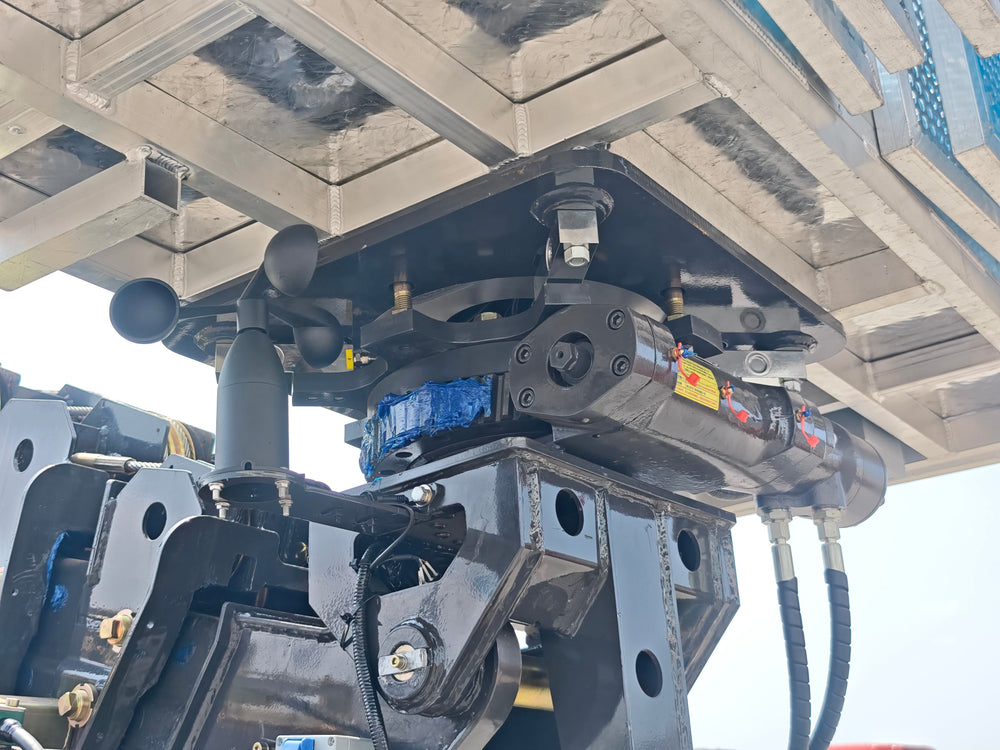

| Platform Rotation | 360° continuous rotation |
| Boom Structure | 8-section boom,7-section synchronous telescoping; backup steel rope for emergency descent |
| Control System | Domestic premium electric control, wireless remote controller & central display screen |
| Hydraulic System | Electro-hydraulic proportional valve, stepless speed regulation, emergency power source |
| Outriggers | 4 sets of 3-stage independently adjustable X-type hydraulic outriggers |
| Walkway | Anti-slip aluminum alloy walkboard |
| Standard Safety Devices | Interlock between cab and platform, emergency power unit, double-way hydraulic balance valve, hose protection, radiator, 220V external power supply |
| Optional Fittings | Gravity sensor, anemometer, cooling & heating air conditioner |
Optional: Air Conditioner / Diesel Heater:
Optional: Working Basket Rated Load 400KG:
Optional: 1-Ton Winch:
Optional: Rear Arrow Warning Light:
