What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

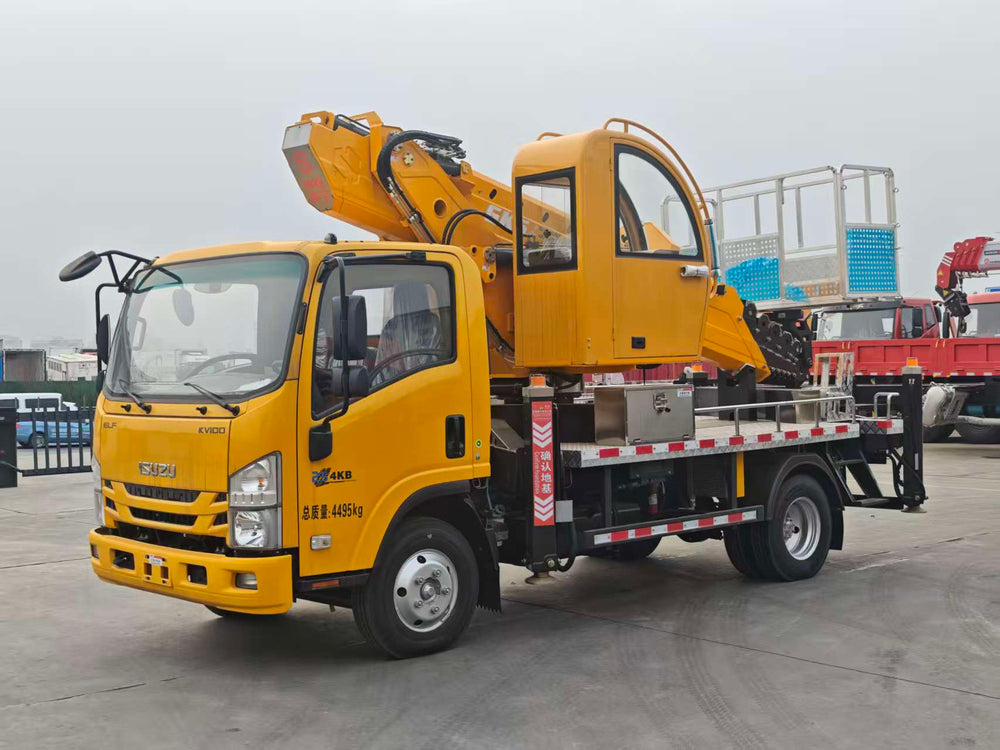

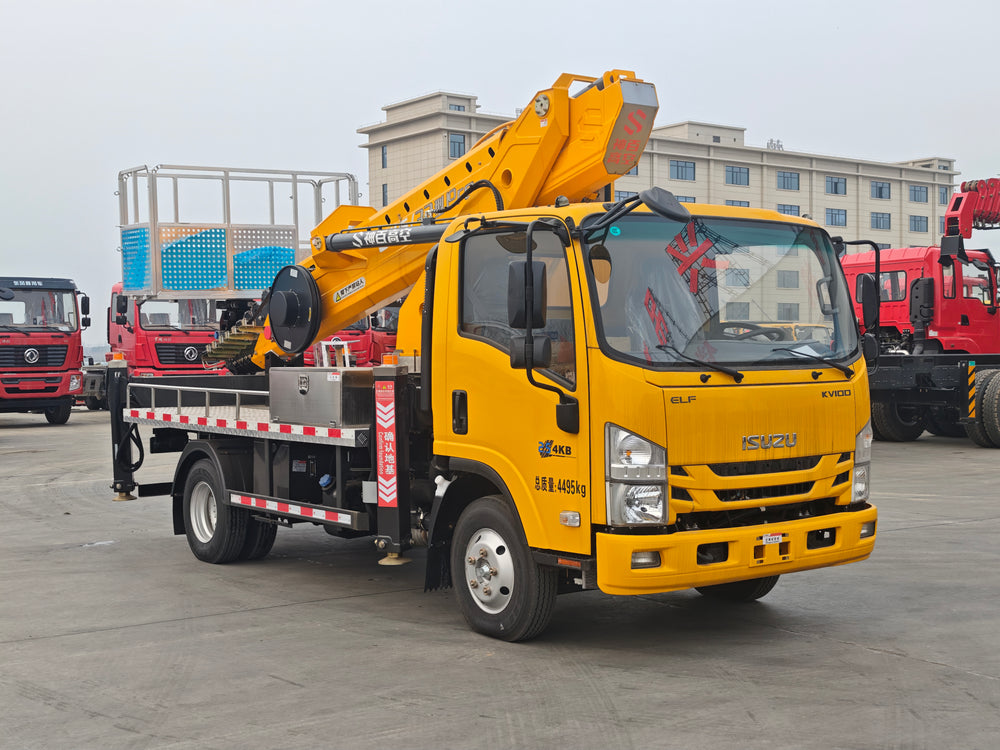

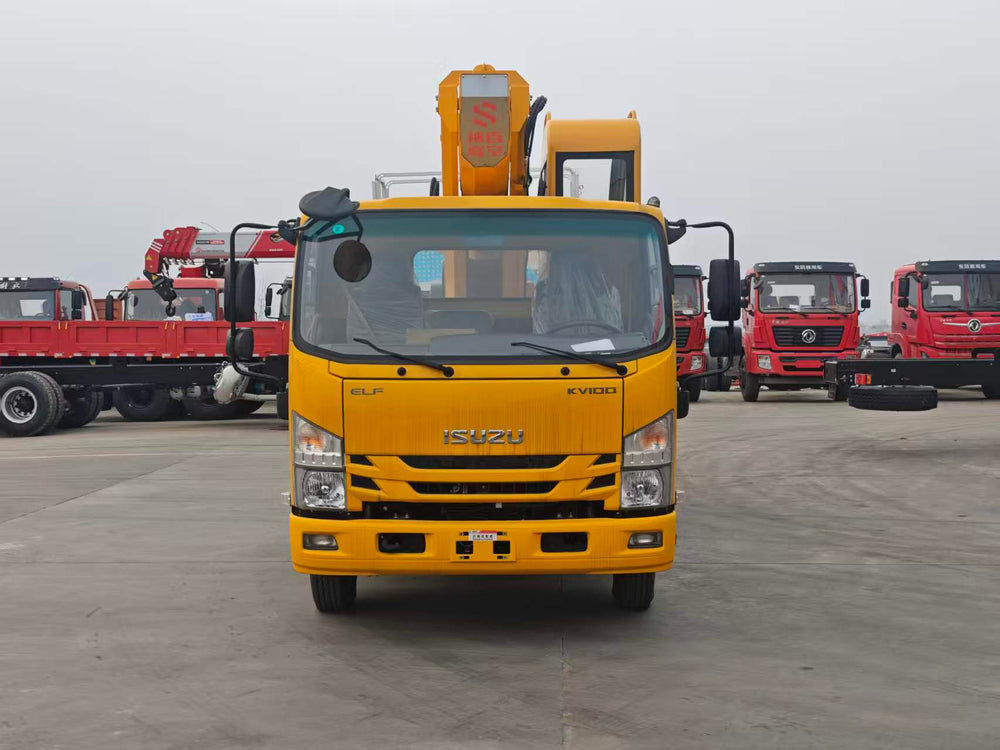

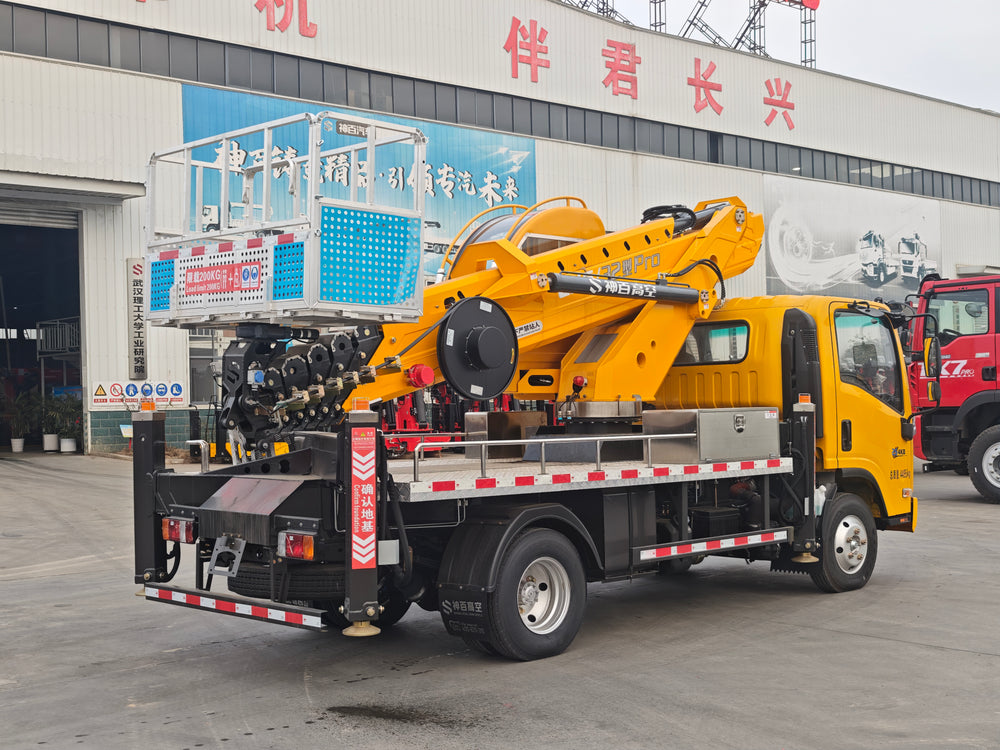

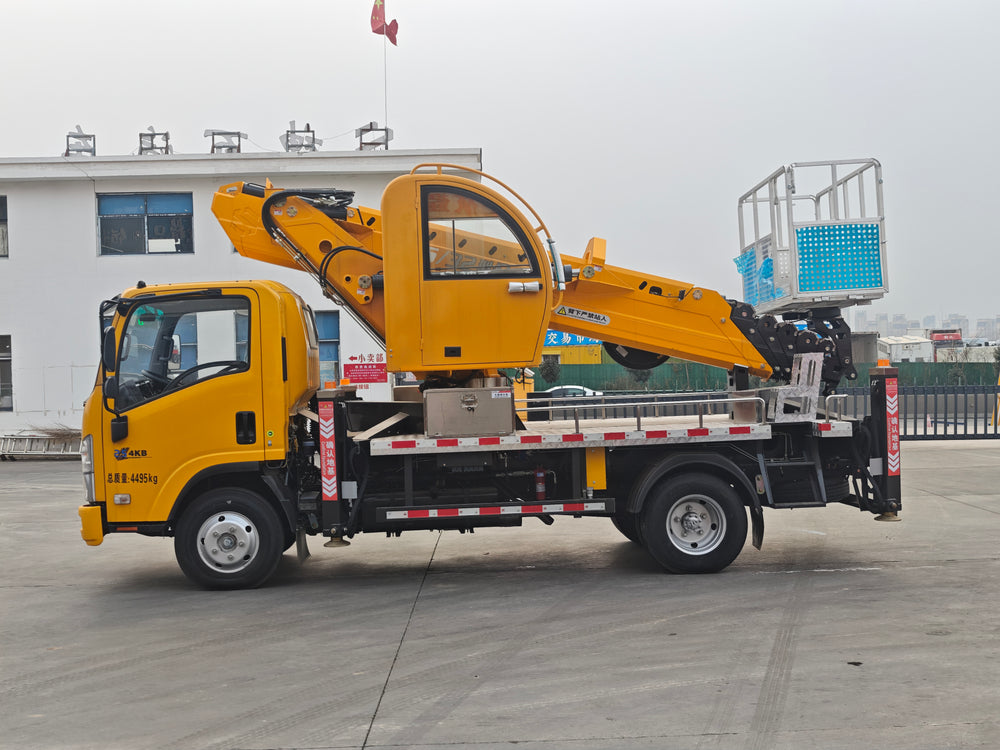

Isuzu KV100 GKS32 Pro Aerial Work Vehicle

Name: Isuzu KV100 GKS32 Pro Aerial Work Vehicle
Brand: Shenbai Truck Mounted Crane
Availability: InStock

1 / 9

Item	Specification
Vehicle Name	Isuzu KV100 GKS32 Pro Aerial Work Vehicle
Approved Model	Aerial Work Vehicle
Core Advantage	7-section boom, blue license plate, max working height 30.6m, stable structure with fewer boom sections
Technical Configuration	1. Made of 960 high-strength steel plate 2. Double-section outriggers, span 5770mm/6120mm 3. 7-section boom with 6-section synchronous telescoping, lifting height 30.6m 4. Equipped with double lifting cylinders 5. Platform size: 1800×700×1000mm 6. Exclusive box beam subframe & trapezoidal three-layer slewing support 7. Overall vehicle height: 3.1m 8. Max working radius: 17m 9. Max working outreach 30.6m, boom length 27m, working radius at max height 5.5m
Chassis Model	Isuzu KV100
Gross Vehicle Weight	4495KG
Curb Weight	/
Engine	130HP 4KB1-TCG60
Transmission	Isuzu 5-speed gearbox
Wheelbase	3360mm
Overall Dimension	5995mm2200mm3100mm
Tire Spec	700R16LT10R
Brake System	Air brake

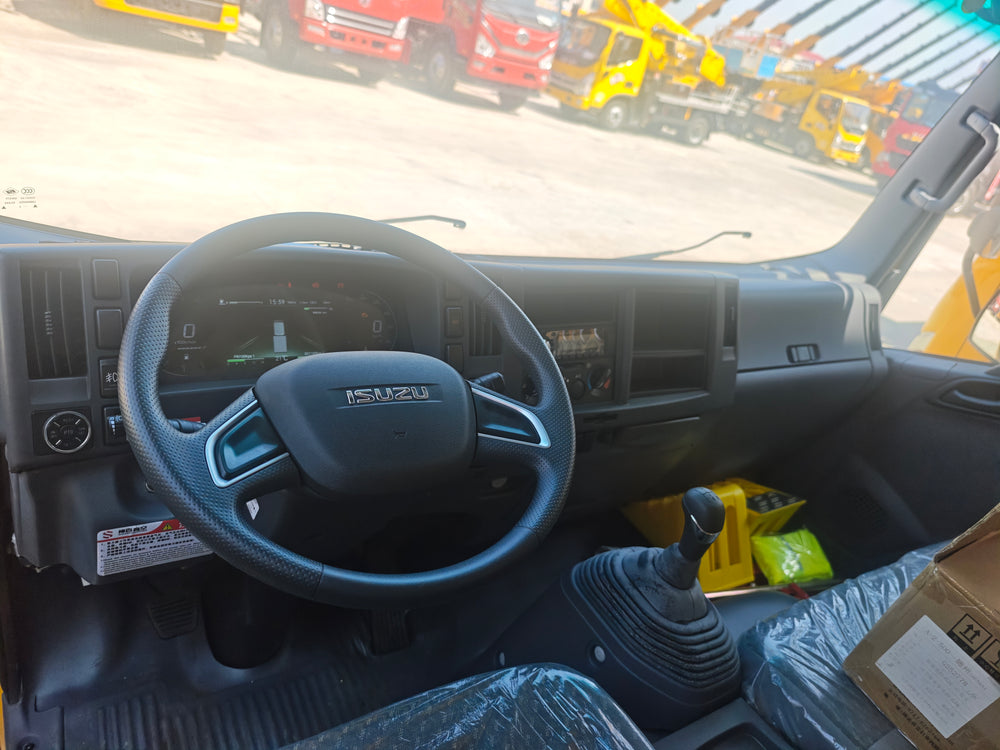

Standard Configuration	Electric windows, air conditioner, central control lock
Superstructure Model	GKS32 Pro

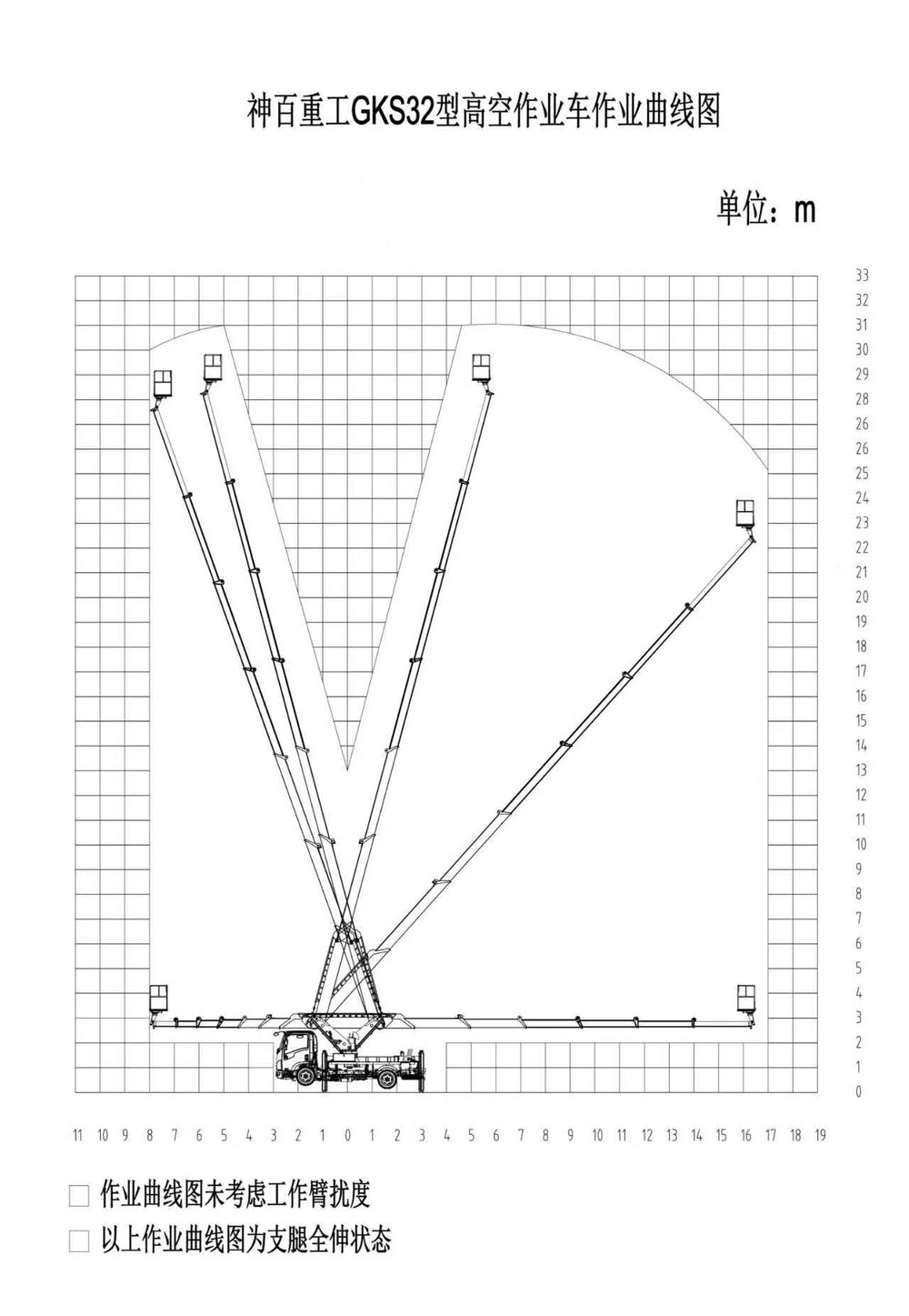

Max Working Height	30.6m
Max Working Radius	17m

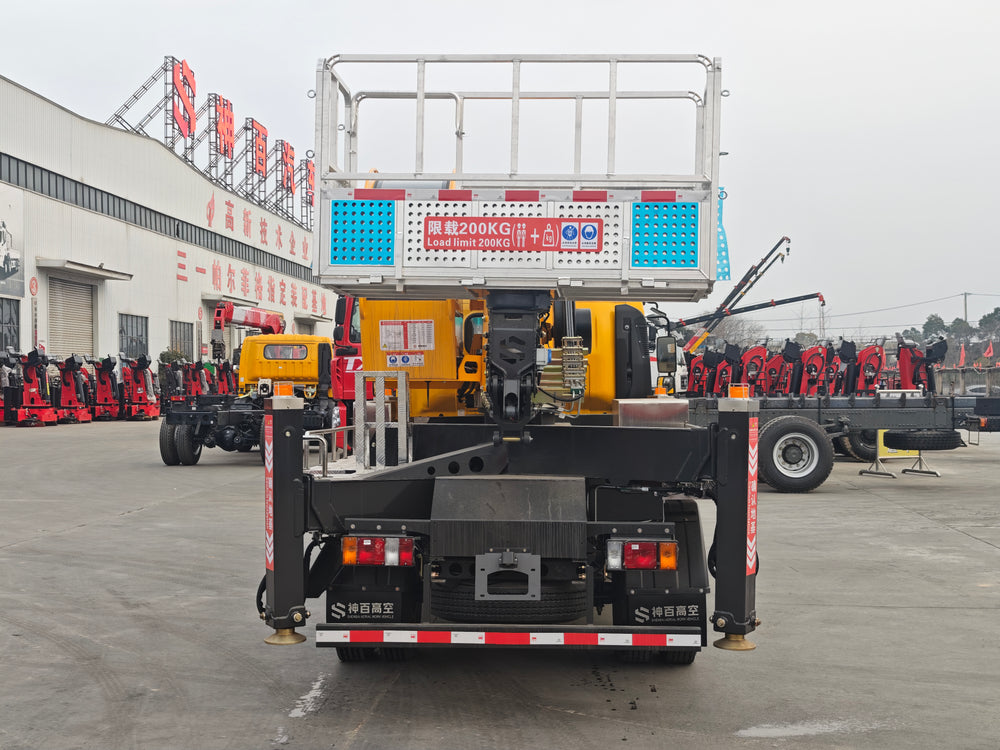

Rated Platform Load	200KG
Boom Slewing Angle	360°
Platform Size	1800mm700mm1000mm (with flip plate)
Platform Rotation	360° unlimited rotation

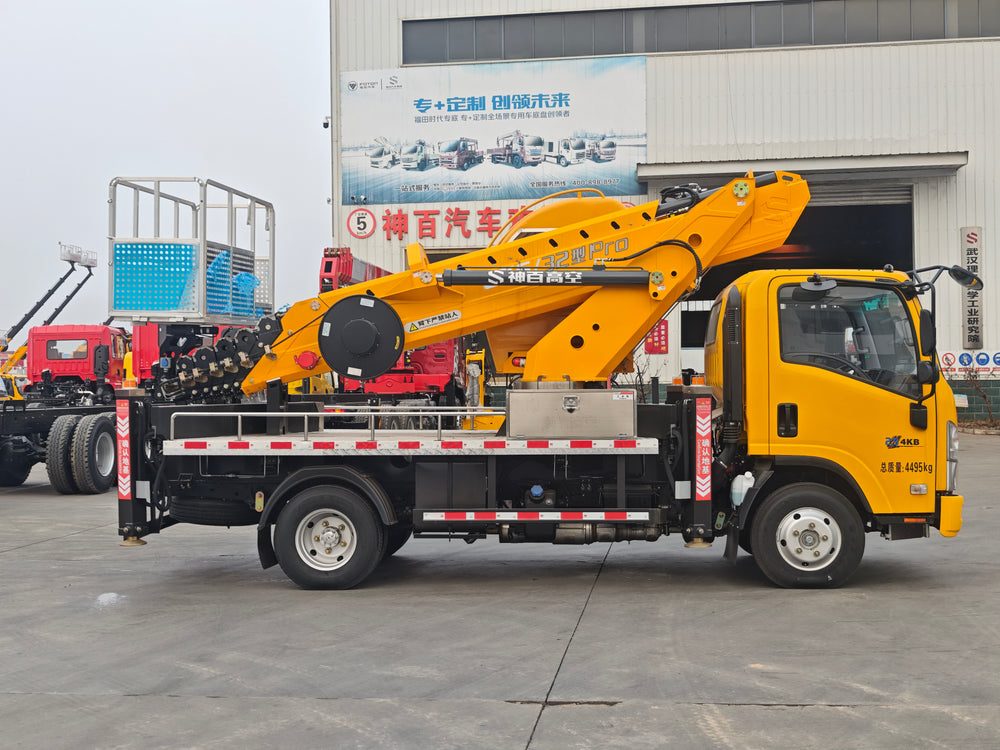

Boom Structure	7-section boom, 6 sections synchronous extension, fitted with standby steel wire rope for safe descending
Control System	Famous domestic electric control system, wireless remote control, middle operation with display screen
Hydraulic System	Electro-hydraulic proportional valve, stepless speed regulation, equipped with emergency power source
Outrigger	X-type 4 double-section independently adjustable outriggers
Walkway Plate	Aluminum alloy anti-slip plate
Safety Devices	Upper & lower operation interlock, emergency power source, two-way hydraulic balance valve, soft leg protection, radiator, 220V external power supply
Optional Parts	Upper operation cab, 1-ton winch
