What is the MOQ for Shenbai cranes?

The minimum order quantity is 1 unit. We support single-unit purchases for sample orders and offer volume discounts for fleet orders of 5+ units.

Which emission standards do your cranes comply with?

Shenbai cranes are available in Euro II, Euro III, Euro IV, Euro V, and Euro VI emission standards. We can configure the chassis and engine to match your country's specific emission requirements.

What is the warranty period for Shenbai cranes?

We provide a standard 12-month or 30,000 km warranty (whichever comes first) covering the crane upper structure. Extended warranty packages are available upon request. Chassis warranty follows the original manufacturer's terms.

Can you customize cranes for special requirements?

Yes. Shenbai offers full customization services including custom boom length, special chassis configurations, left-hand or right-hand drive, custom paint colors and logos, and OEM/ODM manufacturing. Contact our sales team for detailed customization options.

What is the typical delivery time after order confirmation?

Standard models: 15-25 working days after order confirmation. Customized configurations: 30-45 working days. We maintain stock of popular models for faster delivery.

Which shipping methods do you support?

We support sea freight (bulk carrier, container, RoRo), rail transport for CIS countries, and road transport for neighboring countries. FOB, CIF, CFR, and DDP trade terms are all available.

Do you provide after-sales service and spare parts?

Yes. We provide comprehensive after-sales support including remote technical guidance, video-based troubleshooting, and a complete spare parts supply chain. Key components use internationally sourced hydraulic systems for easy local servicing.

What is the difference between straight boom and knuckle boom cranes?

Straight boom (telescopic) cranes offer greater reach and lifting capacity, ideal for construction sites and open areas. Knuckle boom (articulating) cranes provide superior flexibility in confined spaces, can fold compactly, and are preferred for urban applications and truck-mounted installations where space is limited.

Which chassis brands are compatible with Shenbai cranes?

Shenbai cranes are compatible with all major Chinese and international chassis brands including Sinotruk HOWO, Shacman, Dongfeng, FAW J6/FAW J7, Foton, ISUZU, and Mercedes-Benz. We can mount our cranes on customer-supplied chassis or provide complete truck-crane units.

How do I get a quotation for Shenbai cranes?

You can request a quotation through our website contact form, email us at export@howocrane.com, or use the live chat feature. Please specify the crane type, tonnage, boom configuration, chassis preference, and destination country for an accurate quote.

ISUZU Tow Truck (5-10T)

Name: ISUZU Tow Truck (5-10T)
Brand: Factory Direct Supply of Shenbai Special Purpose Trucks
Availability: InStock

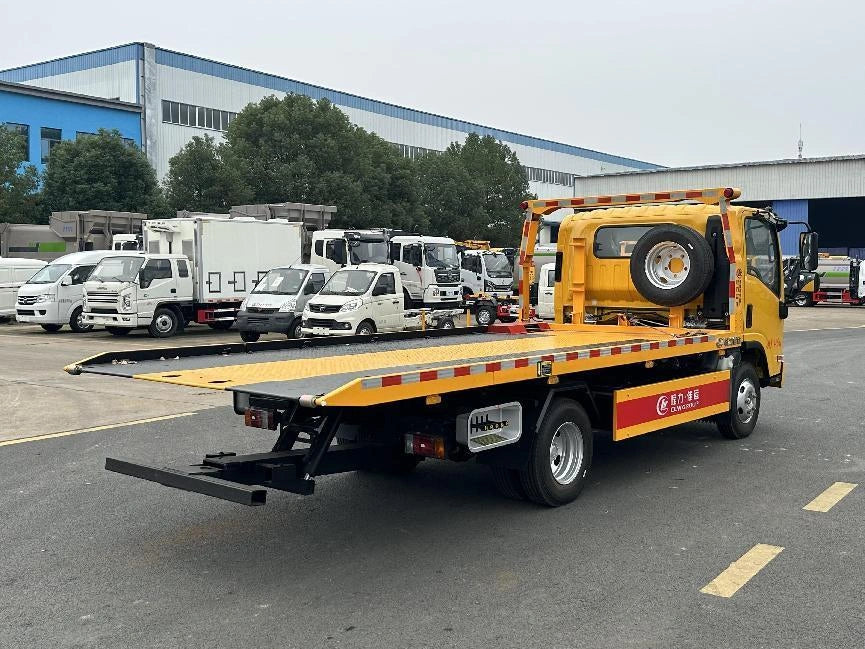

ISUZU Tow Truck (5-10T) - View 2 - SHENBAI Auto

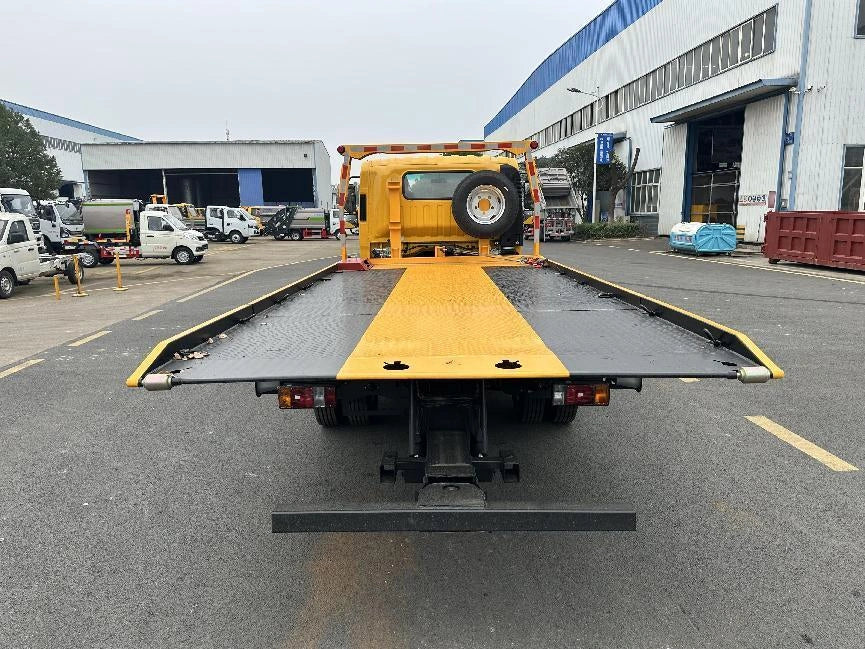

ISUZU Tow Truck (5-10T) - View 4 - SHENBAI Auto

1 / 3

ISUZU Light/Medium-Duty Wrecker / Tow Truck (5–10T) – Key Specifications

Parameter	Specification
Vehicle Type	Light to Medium-Duty Wrecker / Flatbed Recovery Tow Truck
Chassis Series	ISUZU N-Series (NLR / NMR / NPR / NQR) / KV800 / 700P / 100P
Drive Configuration	4×2
GVWR	4,500 – 10,550 kg
Curb Weight	~4,280 – 5,000 kg

Engine & Drivetrain

Parameter	Specification
Engine Model	ISUZU 4KH1CN5HS / 4JZ1-TCG62 / 4HK1-TC51 / 4KB1-TCG60
Horsepower	106 – 180 HP
Displacement	2,999 – 5,000+ cc
Emission Standard	Euro V / VI / China VI
Transmission	ISUZU MSB-5 / MYY-6 speed manual

Performance & Capacity

Parameter	Specification
Max Towing / Loading Capacity	5 – 10 tons
Flatbed Platform Dimensions (L×W)	5,600 – 6,000 × 2,200 – 2,350 mm
Max Speed	110 – 115 km/h

Chassis & Dimensions

Parameter	Specification
Overall Dimensions (L×W×H)	~7,280 – 7,950 × 2,200 – 2,400 × 2,400 – 2,450 mm
Wheelbase	2,475 – 4,475 mm
Tire Specification	7.00R16 / 7.50R16LT
Brake System	Air brake, ABS
Suspension	Leaf spring (8/6+5)

Recovery Equipment

Parameter	Specification
Platform Type	Full-floor flatbed, anti-slip perforated steel deck
Winch	1 × 4-ton hydraulic winch
Wire Rope Length	21 – 25 meters
Rear Support Arm	3.5-ton capacity
Control	Dual-side linkage + wireless remote control
Accessories	Tow forks, L-shaped tire holders, binding straps, chain hook, LED warning lights

Cab & Features

Parameter	Specification
Cab Type	ISUZU KV800 / N-Series single row, 3 seats
Steering	LHD / RHD available
Air Conditioning	Standard
Additional	Hydraulic tailgate, rotary wrecker option available
