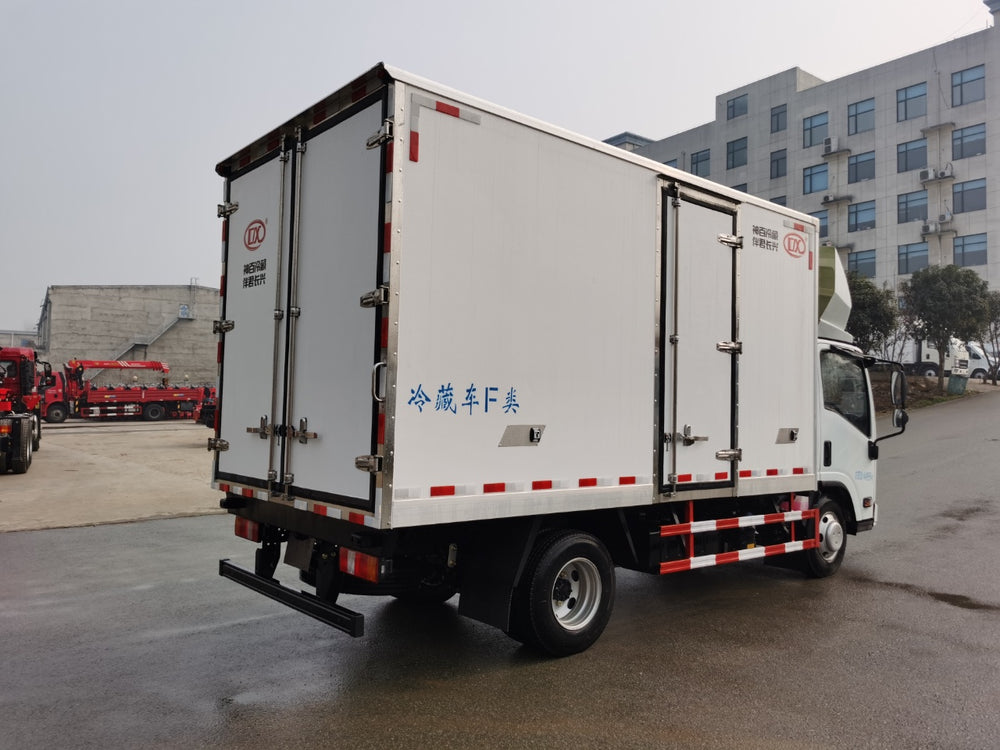

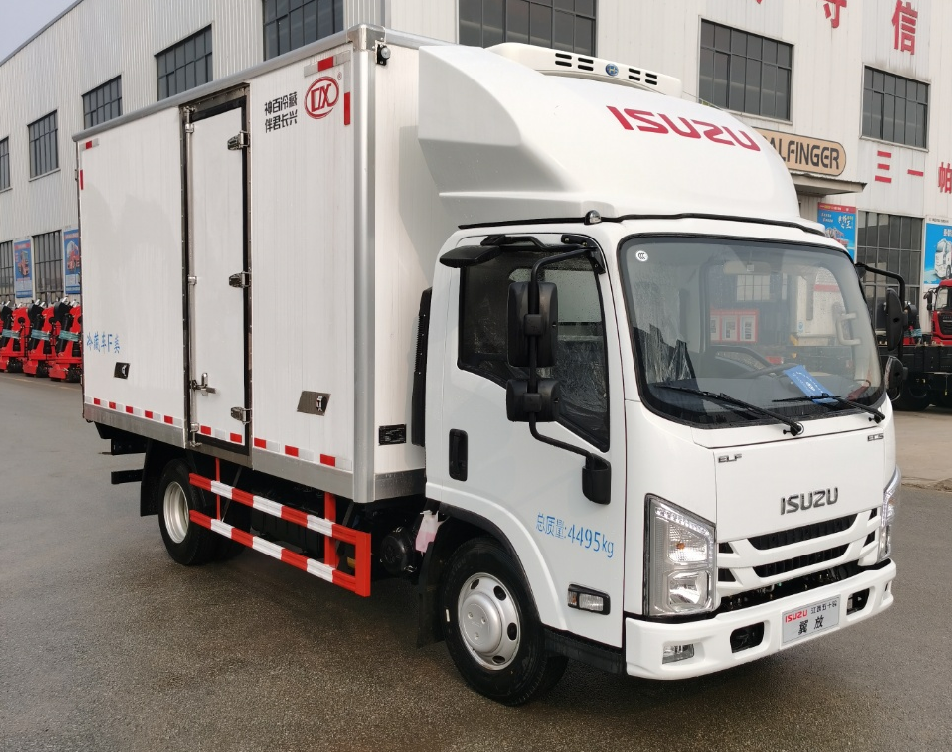

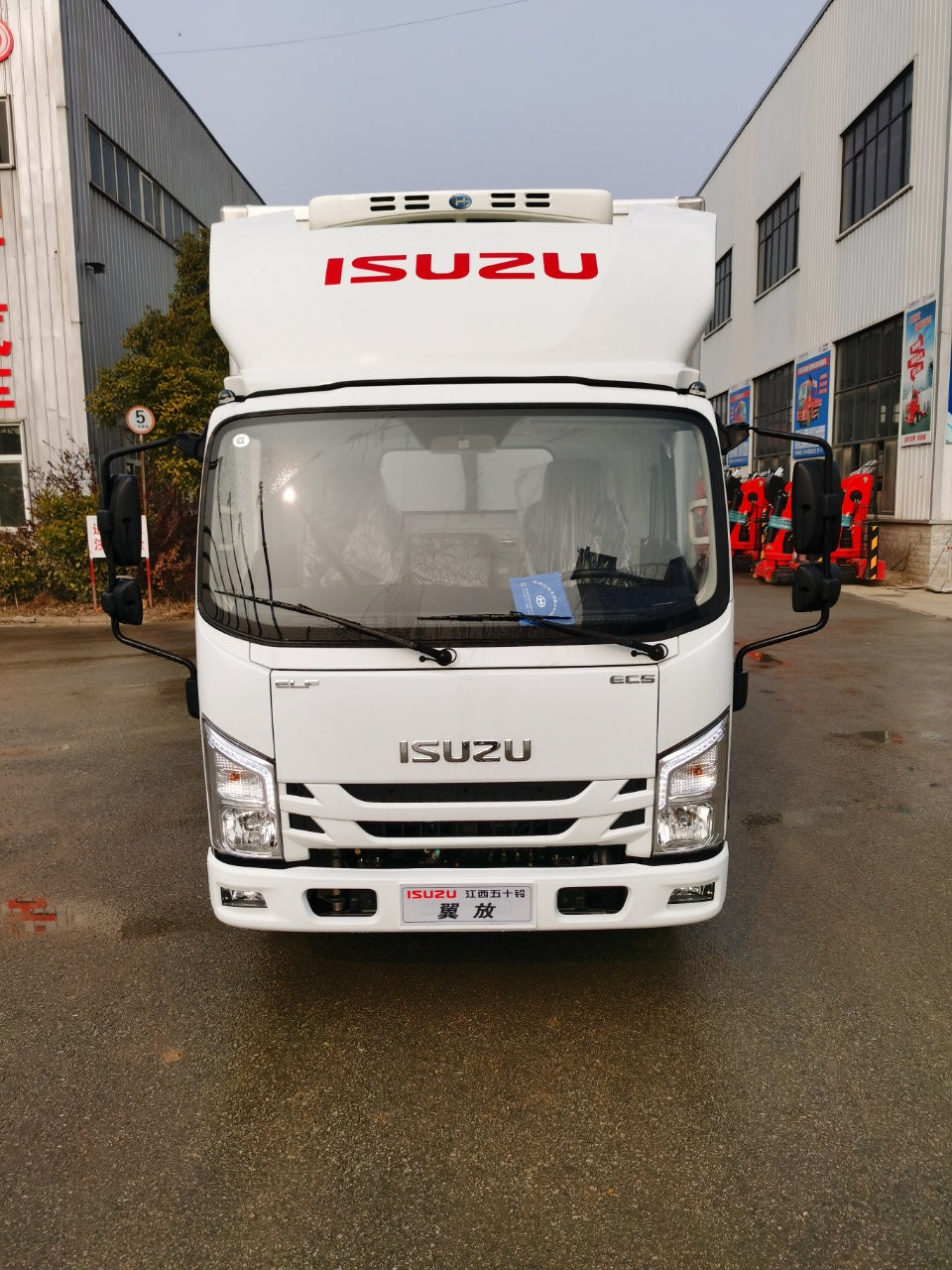

ISUZU Yifang EC5 4.2m Refrigerated Truck Spec Sheet
| Category | Specification Details |
|---|---|
| Basic Chassis Info | |
| Complete Vehicle Model | JMT5049XLCXGA26A, China National VI (Blue License Plate) |
| Overall Dimension | 5995×2150×3090 mm |
| Inner Refrigerated Box Size | 4080×2050×2050 mm, Total Volume ≈17.1 CBM |
| Wheelbase | 3360 mm |
| GVW / Curb Weight / Rated Payload | 4495KG / 3120KG / 1375KG |
| Drive Mode | 4×2 Rear-wheel Drive, Rear Dual Tires |
| Fuel Type | Diesel |
| Max Speed | 112 km/h |
| Engine Configuration | |
| Standard Engine | ISUZU JE493ZLQ6K Inline 4-Cylinder Turbo Diesel, 2499cc Displacement |
| Standard Power | 93kW(127HP) / 350N·m |
| Optional Upgrade Engine | 4JD2 2.5L, 105kW(143HP)/400N·m江西五十铃 |
| Emission Standard | China National VI (Euro6 Equivalent, SCR+DPF Urea Post-processing) |
| Fuel Tank / Urea Tank | 83L Fuel Tank, 16L Urea Tank |
| Transmission & Chassis Parts | |
| Standard Gearbox | Getrag 5-speed Aluminum Manual Transmission |
| Optional Gearbox | 6-speed Manual Gearbox |
| Brake System | Front Disc + Rear Drum Brake, ABS+EBD, Exhaust Brake |
| Tire Spec | 7.00R16LT 8PR All-steel Radial Tire, 6 tires total |
| Rear Axle | 4.5T Rated Load, Final Drive Ratio 4.875(Optional 6.142) |
| Suspension | Front 3-Leaf Spring + Rear 5+2 Multi-leaf Spring, Front Anti-roll Bar |
| Cab Standard Fittings | |

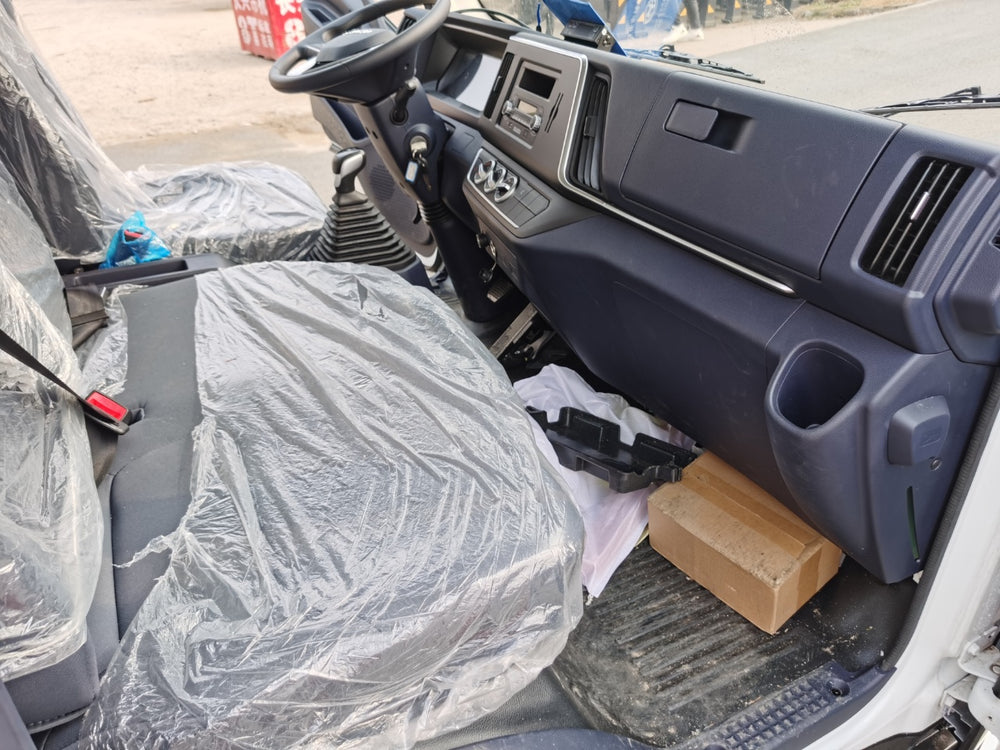

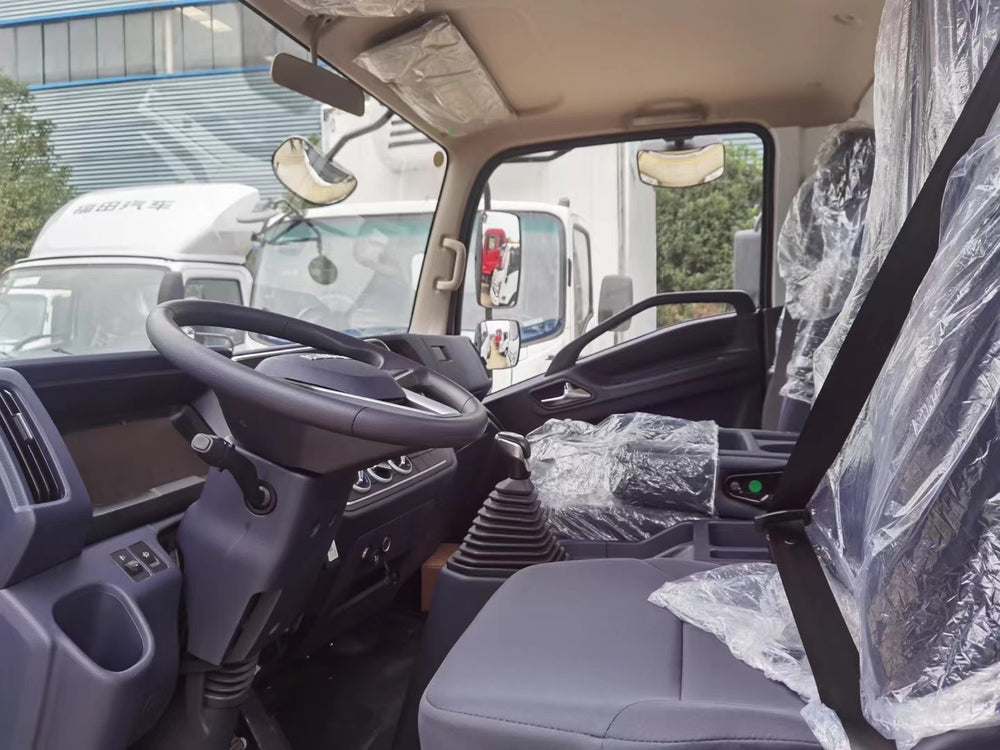

| Cabin Type | 1900mm Medium-width Single Row Cab, 3-passenger Seat |

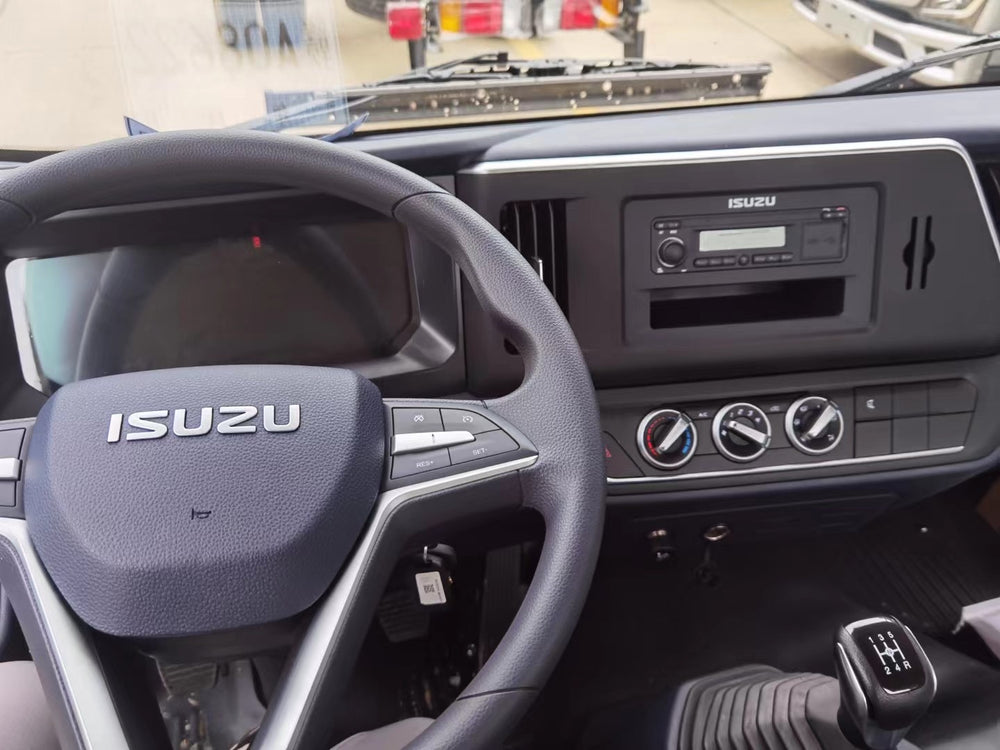

| Standard Equipment | Factory A/C, Power Window, Central Lock & Remote Key, Multifunctional Steering Wheel, Cruise Control, Heated Rearview Mirror, LCD Instrument, Reverse Radar |
| Optional Upgrade | Reverse Camera, Android LCD Multimedia Player |

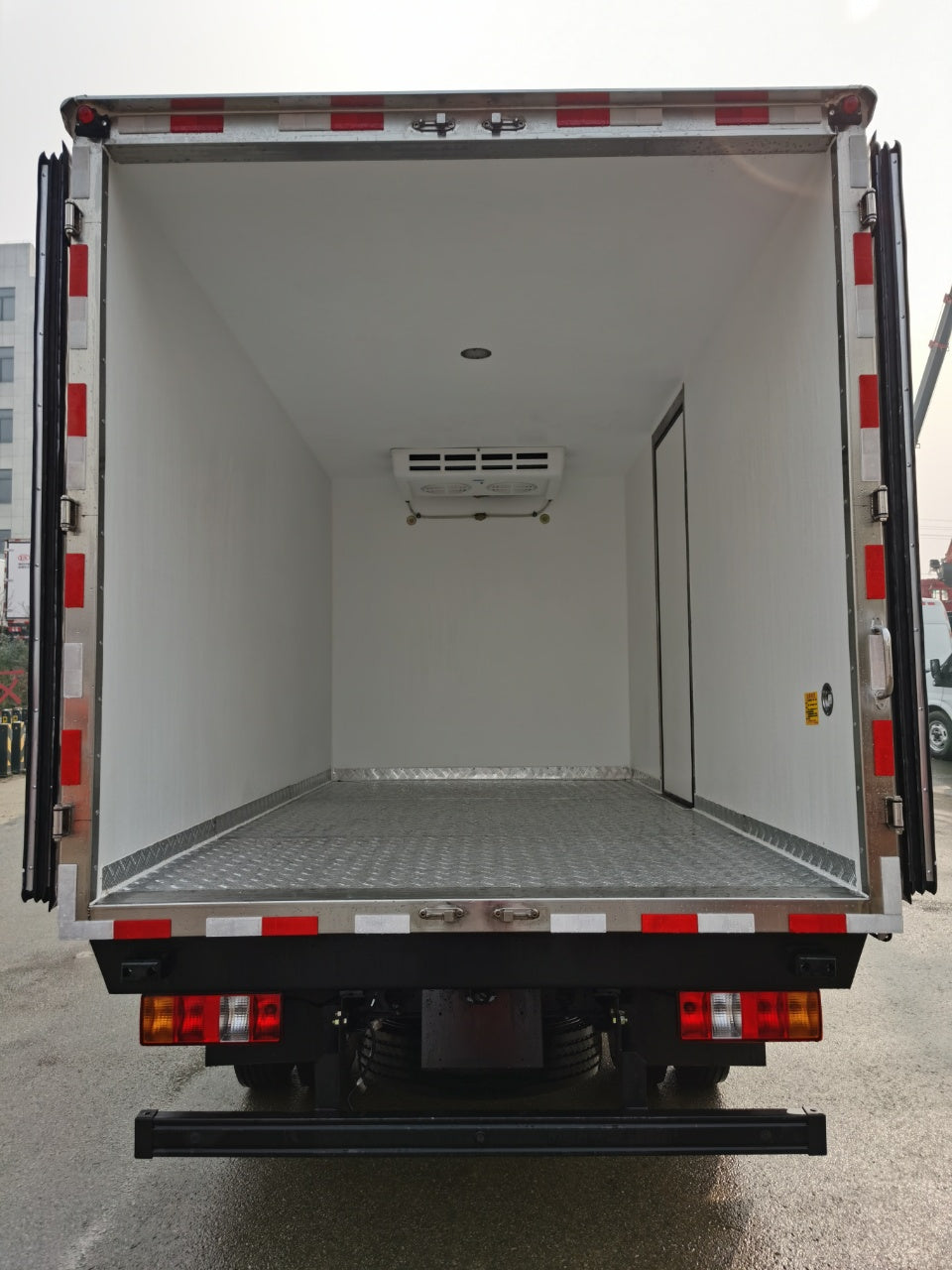

| Insulated Refrigerated Cargo Box | |
| Box Craft | Integral Vacuum Molding Sandwich Panel, Grade A High-density PU Insulation |
| Panel Material | Inner & Outer FRP + 80mm PU Foam Core |
| Floor | Anti-slip Aluminum Checkered Plate |
| Standard Accessories | Aluminum Extrusion Edge Wrap, Stainless Steel Hinge & Lock, Labyrinth Rubber Seal, Inner LED Cargo Lamp, Rear Double Swing Door |
| Optional Extra | Side Service Door, Full Floor Air Duct, Meat Hanging Rails |
| Refrigeration Unit System | |
| Standard Unit | Domestic PTO Driven Refrigeration Unit |
| Optional Import Unit | Carrier / Thermo King Engine-driven Cooling Unit |
| Adjustable Temp Range | -18℃ ~ +15℃ Precise Temperature Control |
| Refrigerant | Eco-friendly R404A |
