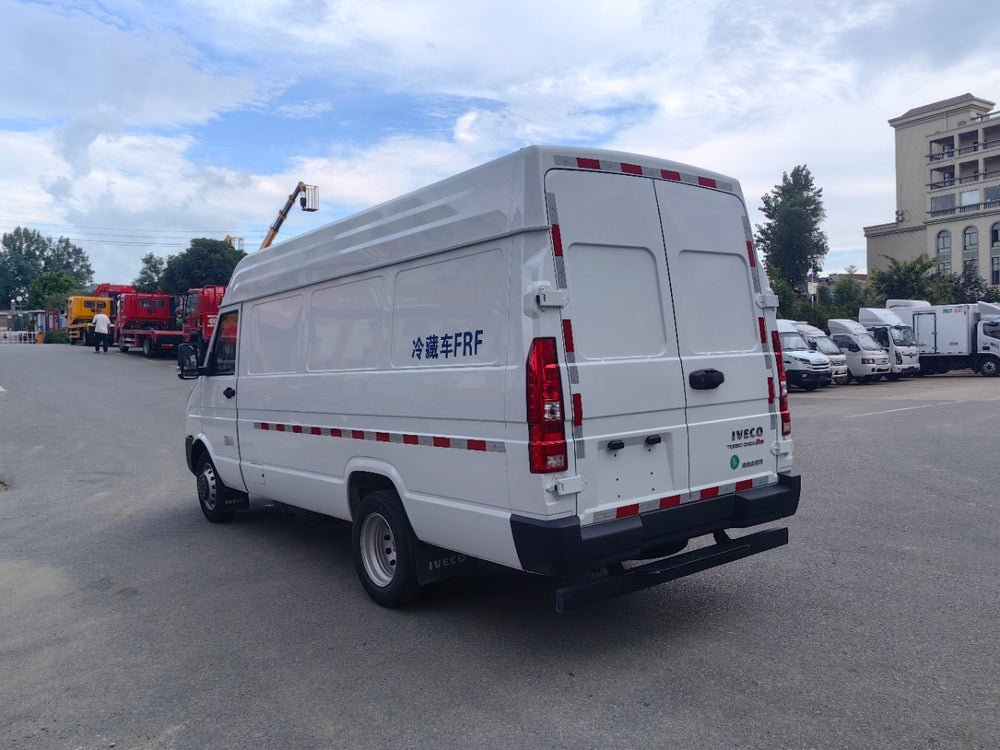

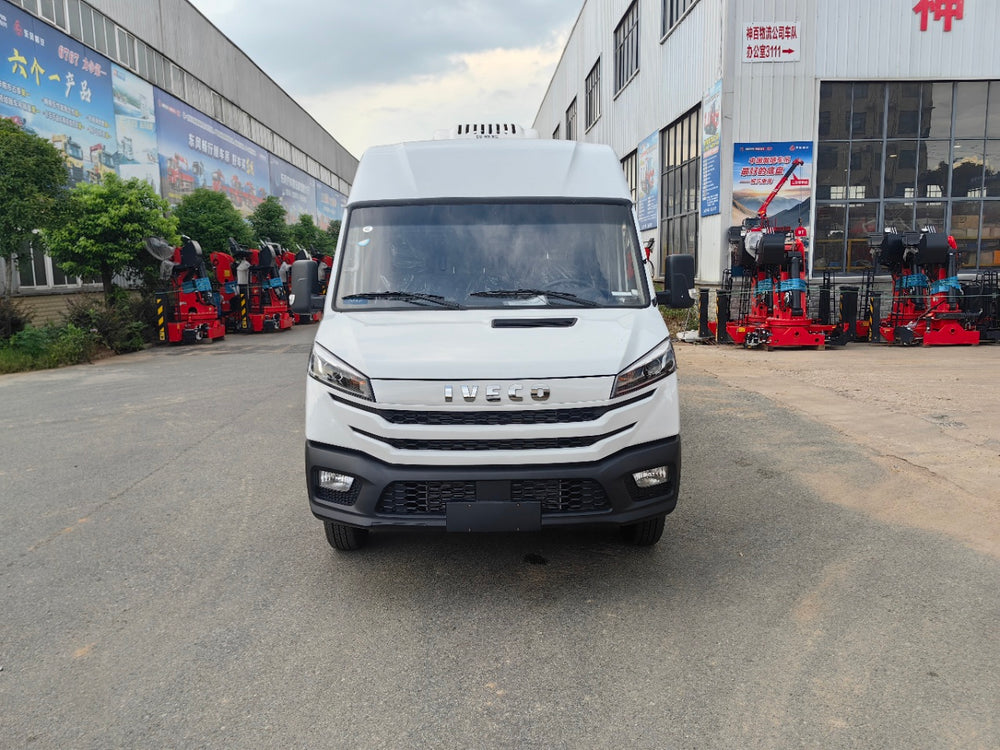

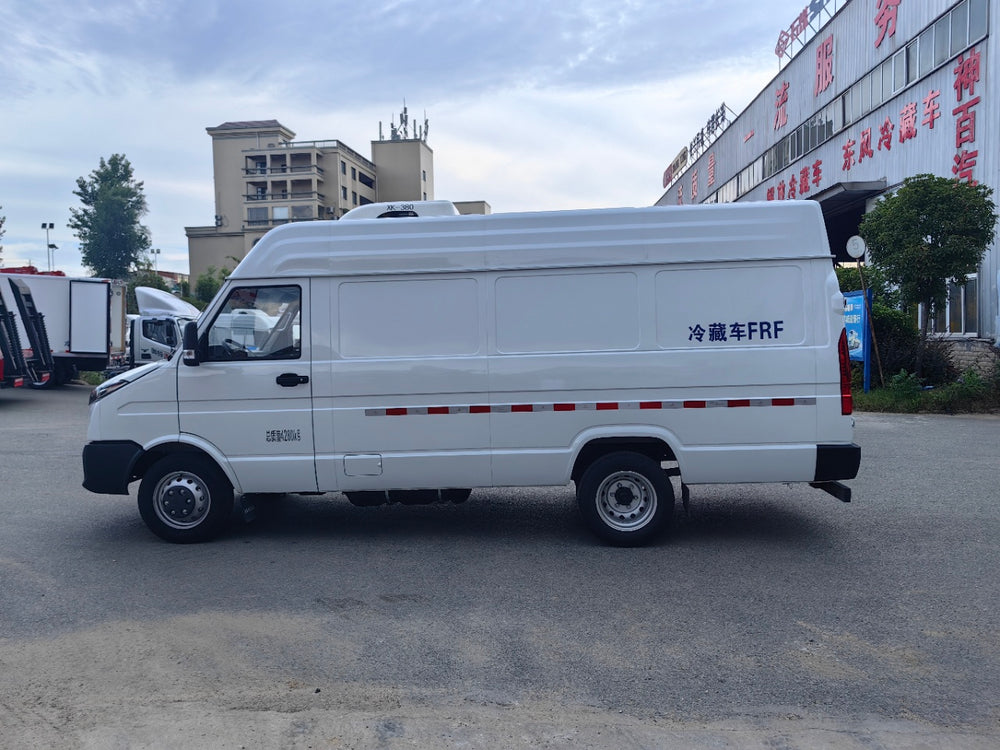

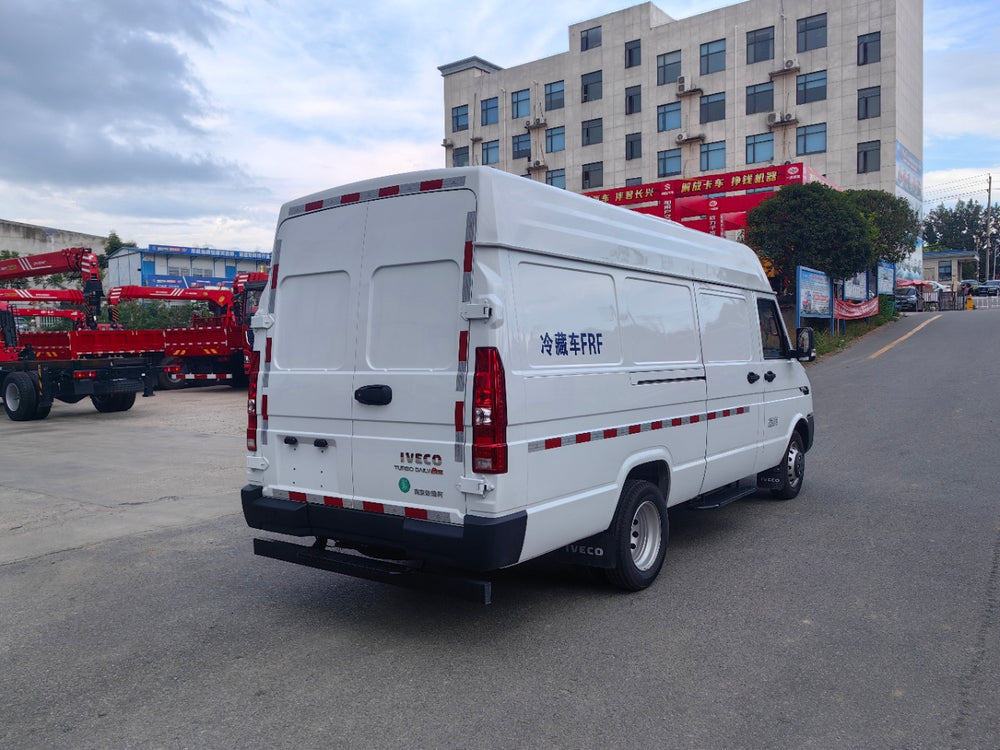

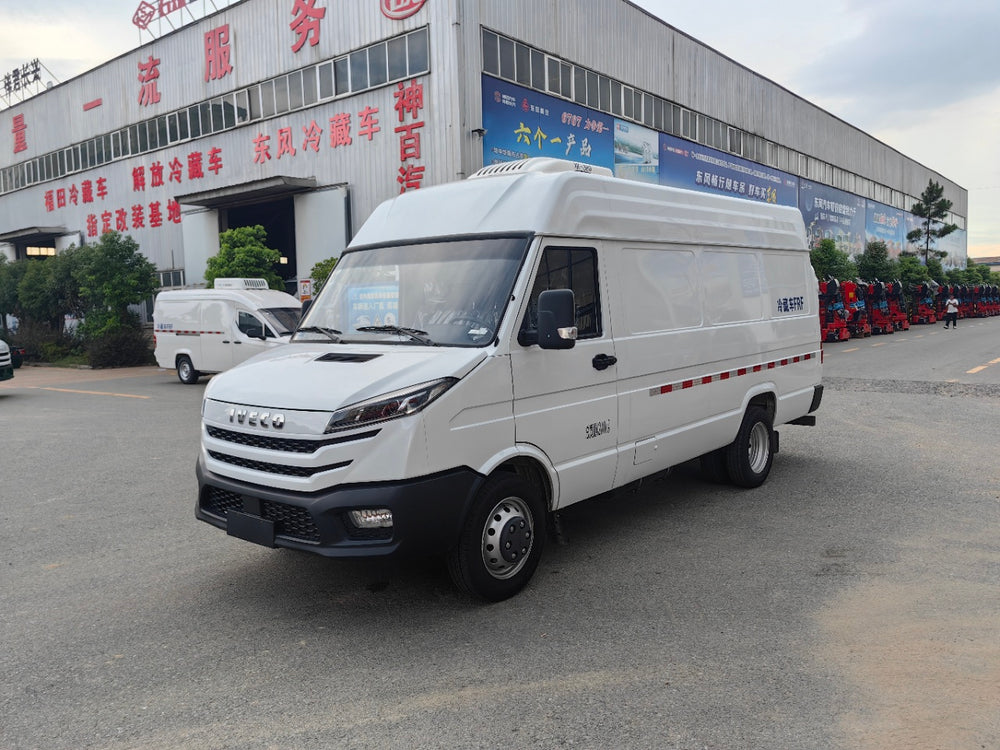

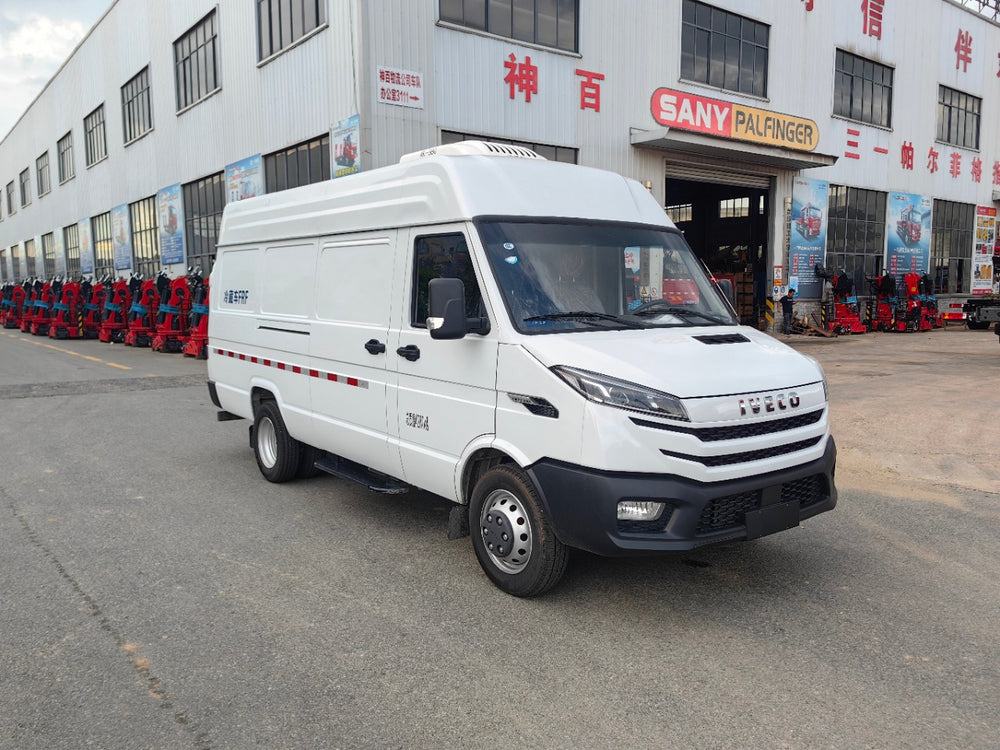

IVECO Long Wheelbase High Roof Refrigerated Van Spec Sheet
| Category | Specification Details |
|---|---|
| Basic Chassis Info | |
| Complete Vehicle Model | CLW5041XLCNJ6 (China National VI) |
| Wheelbase | 3310 mm (Long Wheelbase) |
| Overall Dimension | 5995×2000×2800 mm |
| Inner Refrigerated Box Size | 3360×1640×1550 mm, Total Volume ≈8.5 CBM |
| GVW / Curb Weight / Rated Payload | 4280KG / 2550KG / 1580KG |
| Drive Mode | 4×2 Rear-wheel Drive, Rear Dual Wheels |
| Fuel Type | Diesel |
| Max Speed | 110 km/h |
| Engine System | |
| Standard Engine | SOFIM8140.43S6 2.5T Inline 4-Cylinder Turbo Diesel |
| Displacement | 2798 cc |
| Max Power / Torque | 93kW(122HP) / 320N·m |
| Optional High Power Engine | 110kW(150HP) 2.5L Diesel, Max Torque 350N·m |
| Emission Standard | China National VI (Equivalent Euro 6, with SCR Urea System) |
| Fuel Tank / Urea Tank | 70L Aluminum Fuel Tank / 19L Urea Tank |
| Transmission & Chassis Parts | |
| Standard Gearbox | IVECO 2826.5 5-speed Manual Transmission |
| Brake System | Full Front & Rear Disc Brake + ABS + Hydraulic Power Steering |
| Tire Specification | 195/75R16LT, 6 tires (Rear Double Tyre) |
| Suspension | Front Independent Coil Spring + Rear Multi-leaf Spring |

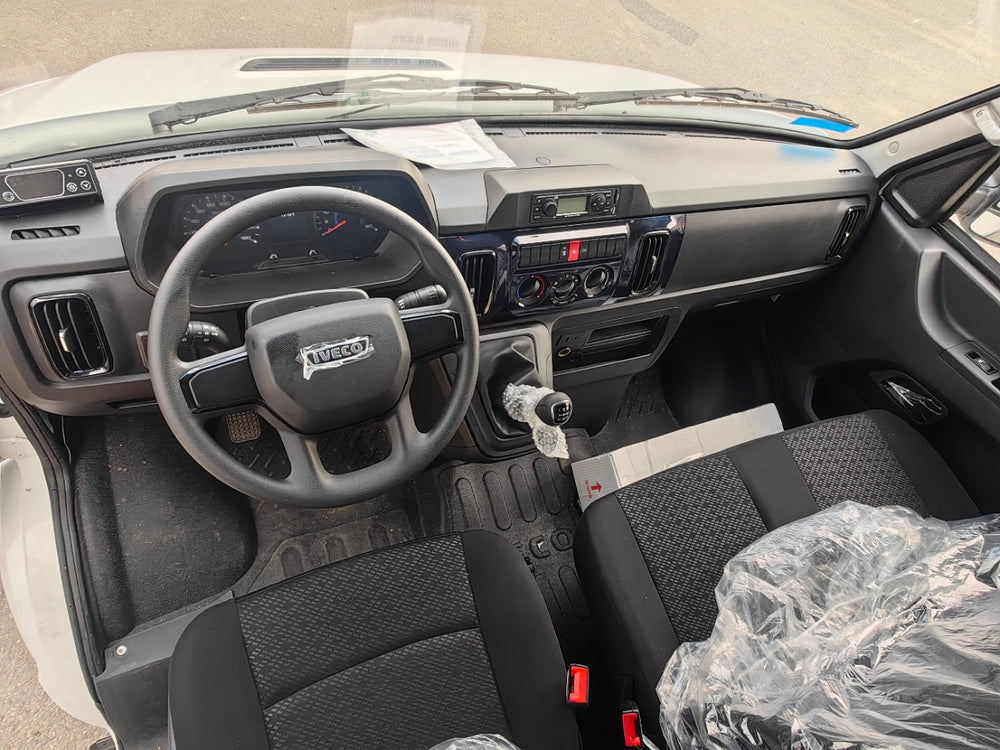

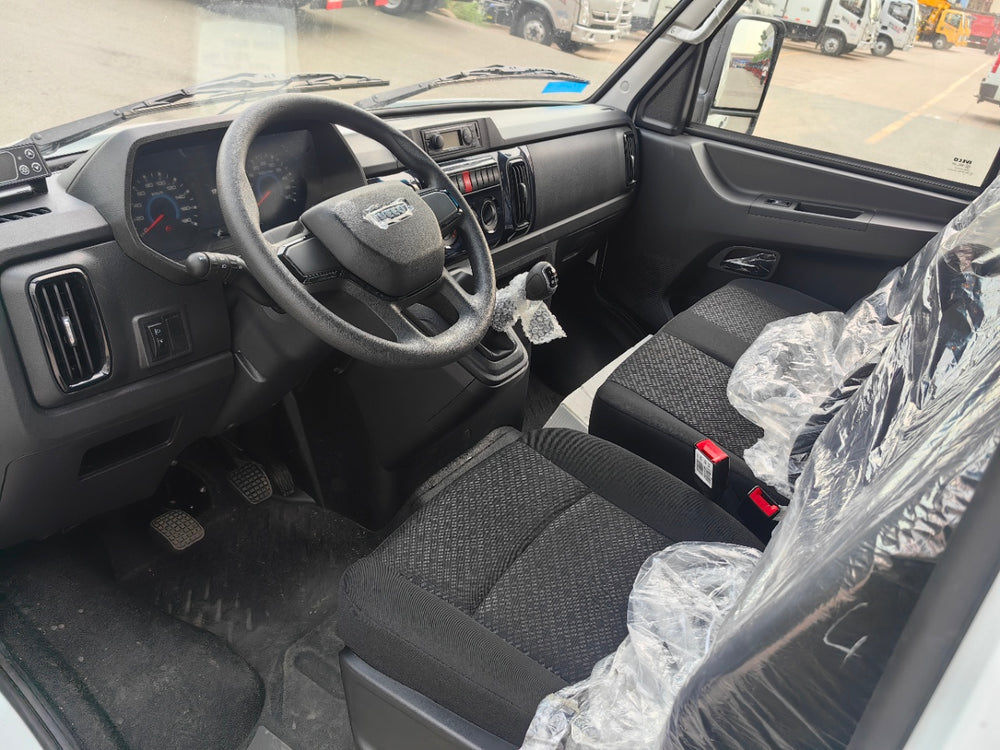

| Cab Standard Configuration | |
| Cabin Type | High Roof Single Row Blind Cargo Van |
| Standard Fittings | Factory Original A/C, Power Window, Central Lock & Remote Key, Rear Parking Radar, 140A Alternator |
| Optional Upgrade | Reverse Camera, Multi-function LCD Display, Heated Rearview Mirror |

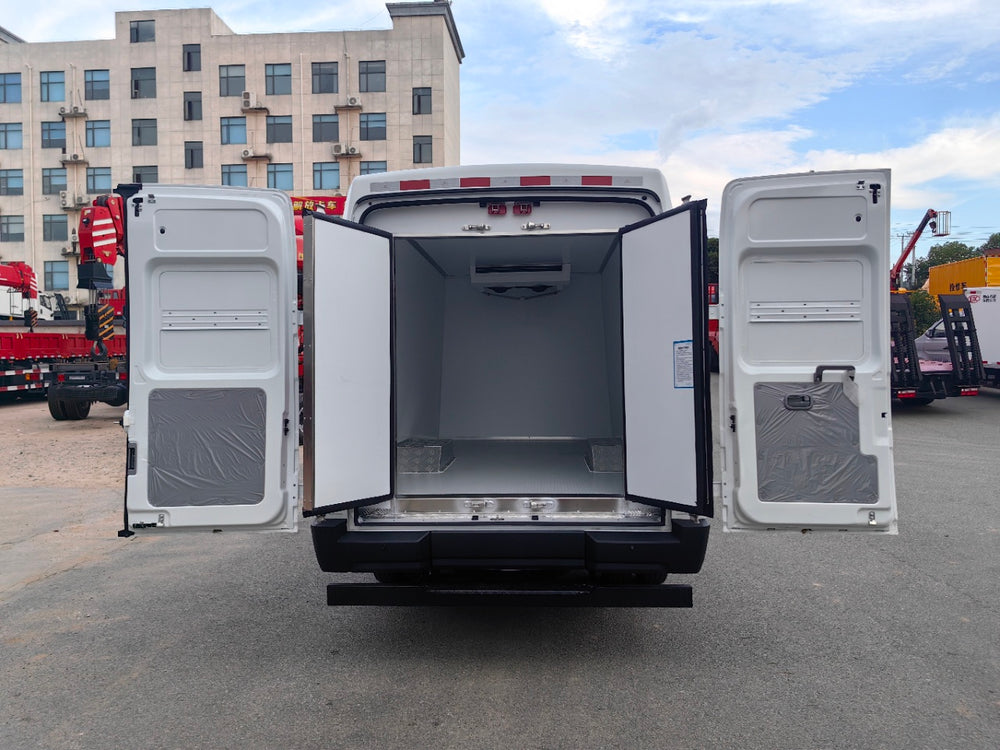

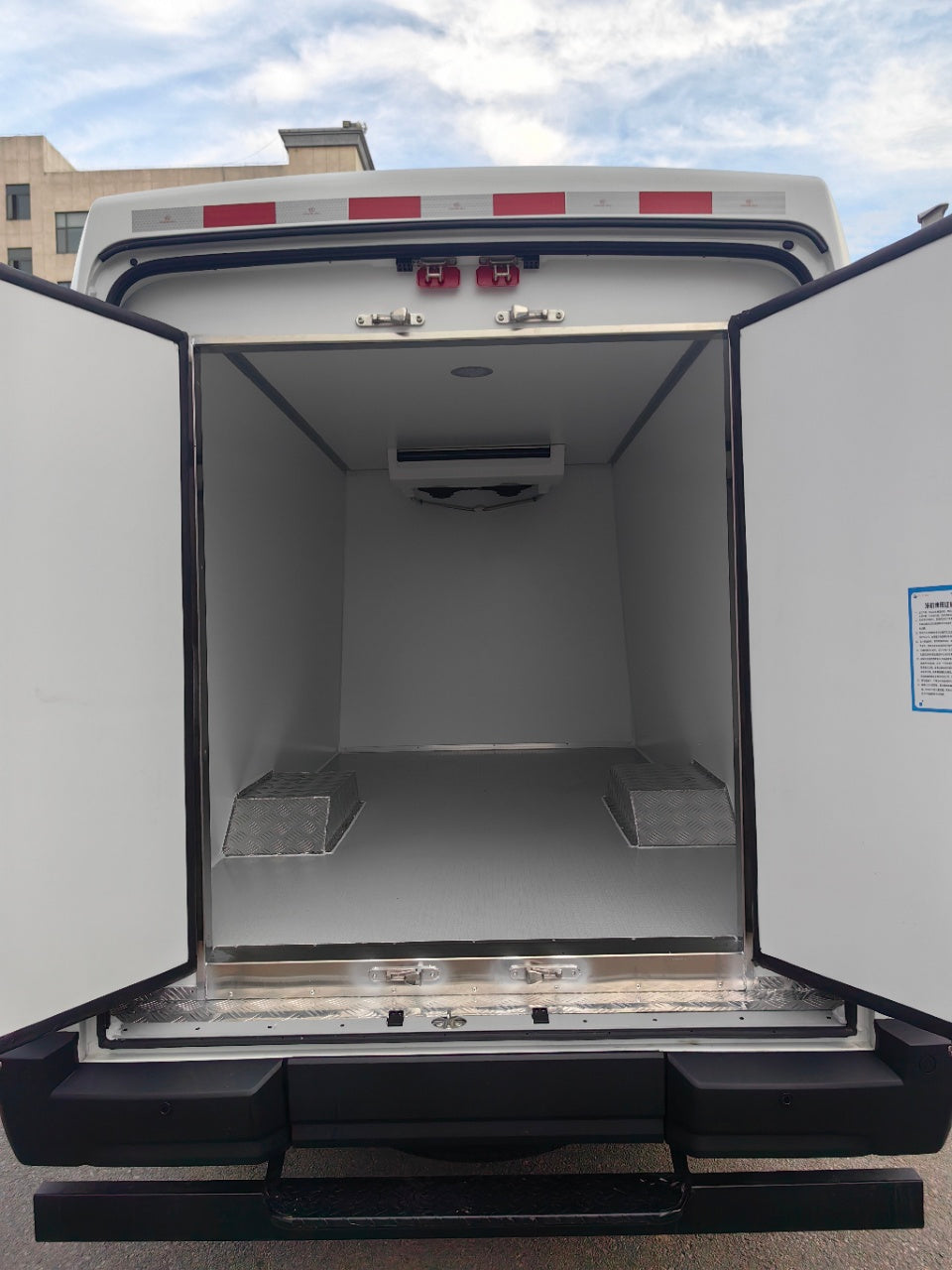

| Insulated Refrigerated Cargo Box | |
| Box Craft | Vacuum Integrated Molding Sandwich Insulated Panel, Grade A Heat Insulation Standard |
| Panel Material | Inner & Outer FRP + 80mm XPS Extruded Foam Insulation Core |
| Floor | Anti-slip Aluminum Checkered Plate |

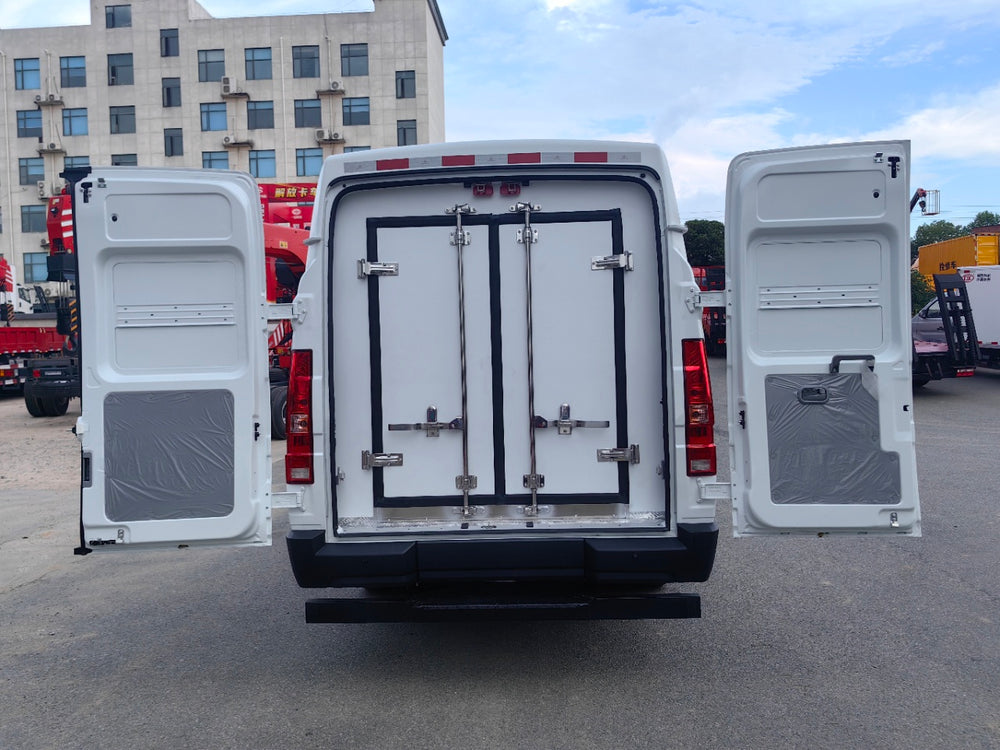

| Standard Accessories | Stainless Steel Hinges & Door Lock, Labyrinth Rubber Sealing Strip, Inner LED Cargo Lamp, Rear Double Swing Door |
| Optional Upgrade | Meat Hanging Rails, Full Air Duct Floor |
| Refrigeration Unit System | |
| Standard Cooling Unit | Domestic KX/XH Engine-driven Refrigeration Unit |
| Optional Import Unit | Carrier / Thermo King Independent Refrigeration Unit |
| Adjustable Temperature Range | -18℃ ~ +15℃ Precise Temp Control |
| Refrigerant | Eco-friendly R404A |
