IVECO LONG WHEELBASE HIGH TOP VAN REFRIGERATED TRUCK FULL SPECIFICATION TABLE
| Category | Item | Specification |
|---|---|---|
| Chassis Basic Info | Complete Vehicle Model | NJ5046XLCEC |
| Chassis Basic Info | Chassis Model | NJ6556EC |
| Chassis Basic Info | Cabin Type | Long Wheelbase High Top Integrated Van Cabin, 3-seater Single Row |
| Chassis Basic Info | Wheelbase | 3950 mm |
| Chassis Basic Info | Overall Dimension (L×W×H) | 5995×2011×2750 mm |
| Chassis Basic Info | GVW / Curb Weight / Rated Payload | 4495kg / 2950kg / 1350kg |
| Chassis Basic Info | Drive Mode | 4×2 Front Engine Rear Wheel Drive |
| Chassis Basic Info | Front / Rear Axle Load | 1950kg Front Axle, 2545kg Rear Axle |
| Chassis Basic Info | Final Drive Ratio | 4.875 |
| Chassis Basic Info | Tire Size | 215/75R16LT 10PR Vacuum Tire |
| Chassis Basic Info | Fuel Tank | 90L Steel Fuel Tank |
| Chassis Basic Info | Urea Tank | 20L |
| Powertrain System | Engine Model | FPT F1CFL411C (IVECO) |
| Powertrain System | Displacement | 3.0L / 2998cc Diesel |
| Powertrain System | Max Power / Horsepower | 107kW / 146HP |
| Powertrain System | Max Torque | 350N·m |
| Powertrain System | Emission Standard | China National VI (Euro 6) |
| Powertrain System | Transmission | 5-speed Manual Gearbox / 8-speed Automatic Gearbox Optional |
| Powertrain System | Fuel Type | Diesel |
| Standard Cabin Configuration | Suspension | Front Independent Suspension, Rear Leaf Spring Suspension |
| Standard Cabin Configuration | Steering & Brake | Hydraulic Power Steering + Hydraulic Brake with ABS + EBD |

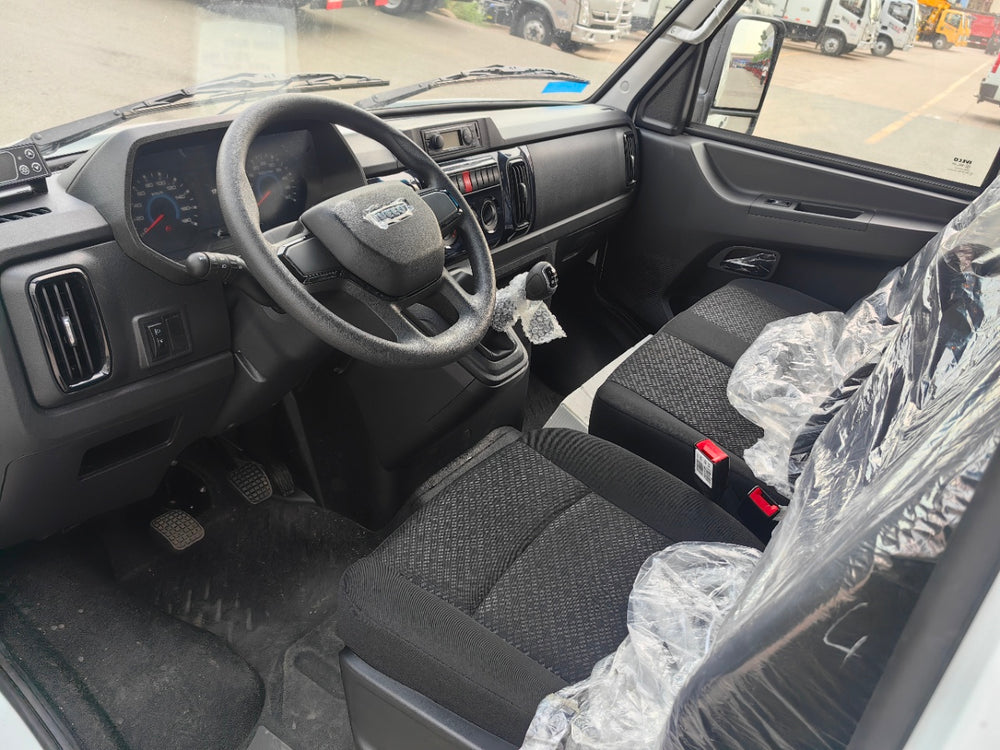

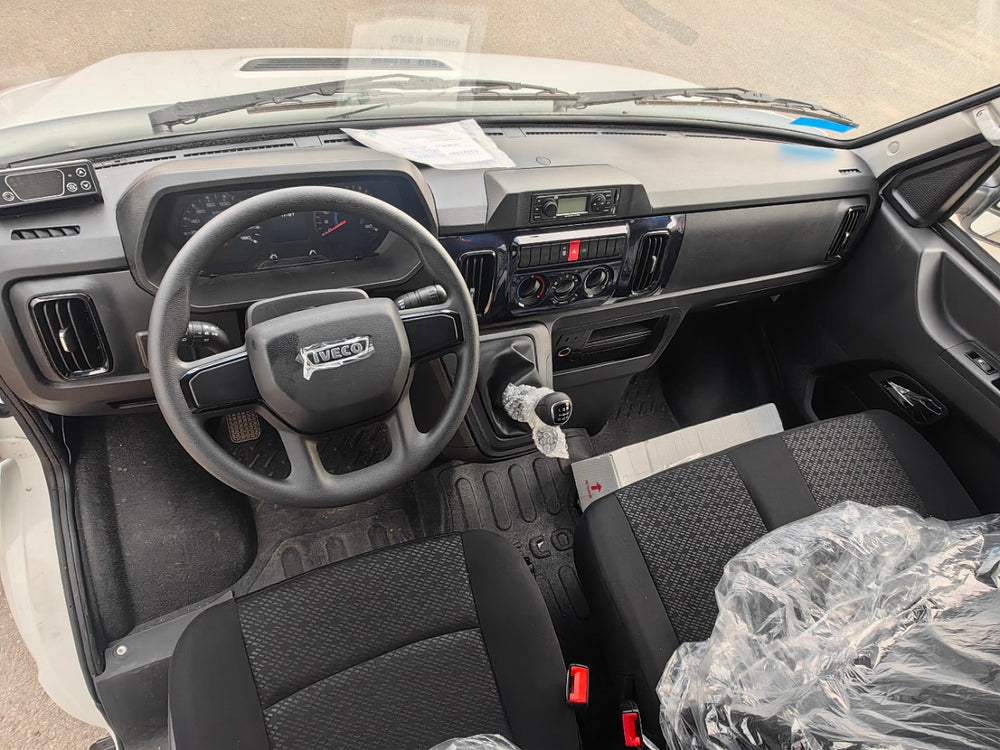

| Standard Cabin Configuration | Aux Equipment | Electric Heated Rearview Mirror, Multifunction Steering Wheel, Cruise Control, Power Window, Central Lock with Remote Key, Factory Original A/C, 12V Power Outlet, LCD Instrument, MP5 Multimedia System, Driver Airbag, Anti-theft Immobilizer System |

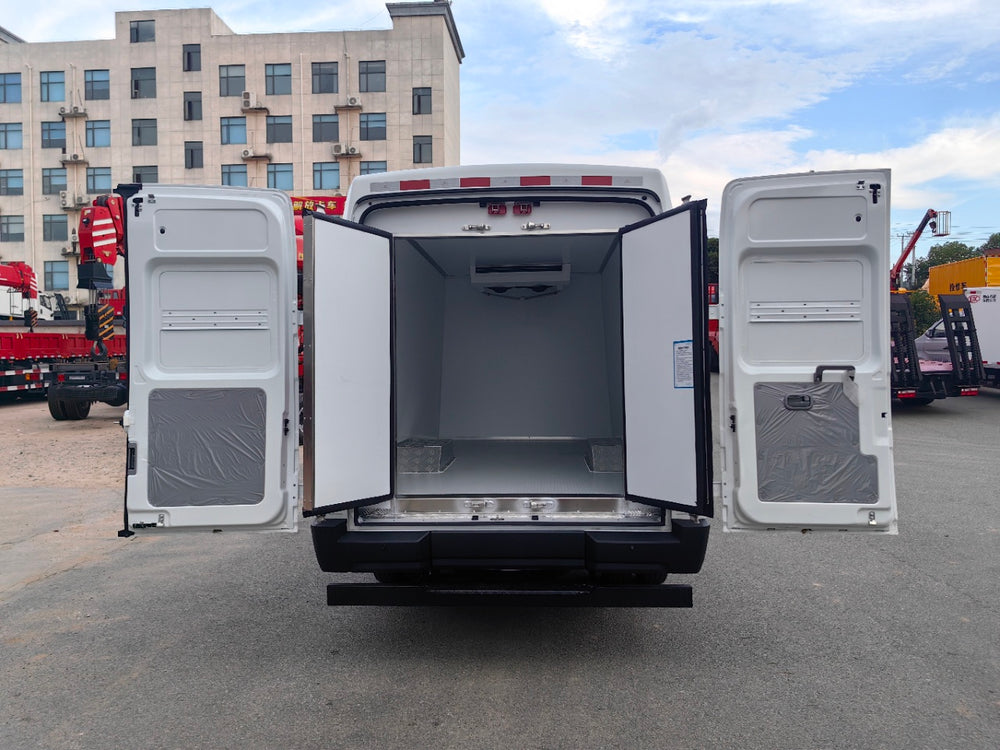

| Insulated Refrigerated Cargo Box | Inner Cargo Dimension (L×W×H) | 3300×1800×1600 mm |
| Insulated Refrigerated Cargo Box | Box Total Volume | ≈9.5 CBM |
| Insulated Refrigerated Cargo Box | Box Construction | Inner & Outer FRP + 80mm High-density PU Sandwich Insulation Panel, Integrated with Van Body |
| Insulated Refrigerated Cargo Box | Floor Material | Anti-slip Aluminum Pattern Plate |

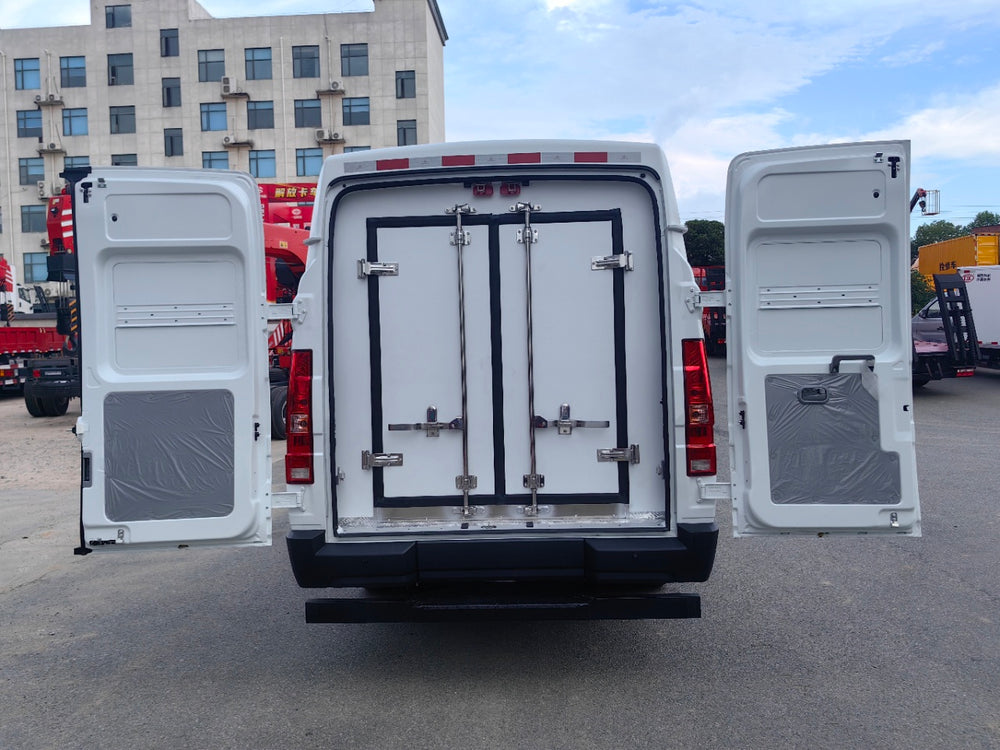

| Insulated Refrigerated Cargo Box | Fittings & Door Design | Rear Double Swing Door, Labyrinth Rubber Sealing Strip, Stainless Steel Lock & Hinge, Aluminum Alloy Edge Wrap |
| Insulated Refrigerated Cargo Box | Partition | Insulated Partition between Cabin and Cargo Box, with Lockable Observation Window Optional |
| Optional Refrigeration Unit | Domestic Economy Unit | Kaixue / Hanxue, Temperature Range: -5℃ ~ -15℃ |
| Optional Refrigeration Unit | Import Premium Unit | Carrier / Thermo King, Temperature Range: -18℃ ~ +25℃ |
| Optional Refrigeration Unit | Dual-temperature Unit (Optional) | Cooling & Heating Available, Temperature Range: +25℃ ~ -20℃ |
| Optional Extra Accessories | Available Optional Fittings | Meat Hanging Rail, Full-air Duct, Digital Temperature Recorder, External 220V Standby Power, Side Opening Door, Cargo Securing Anchors, Insulated Bulkhead for Multi-temperature Zone |
