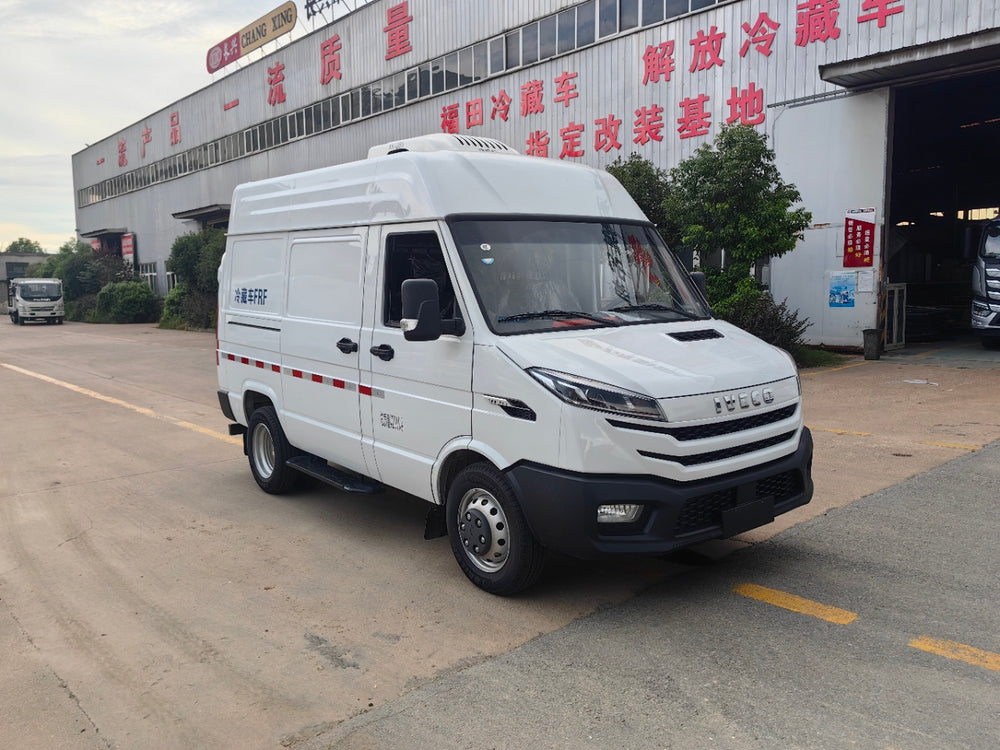

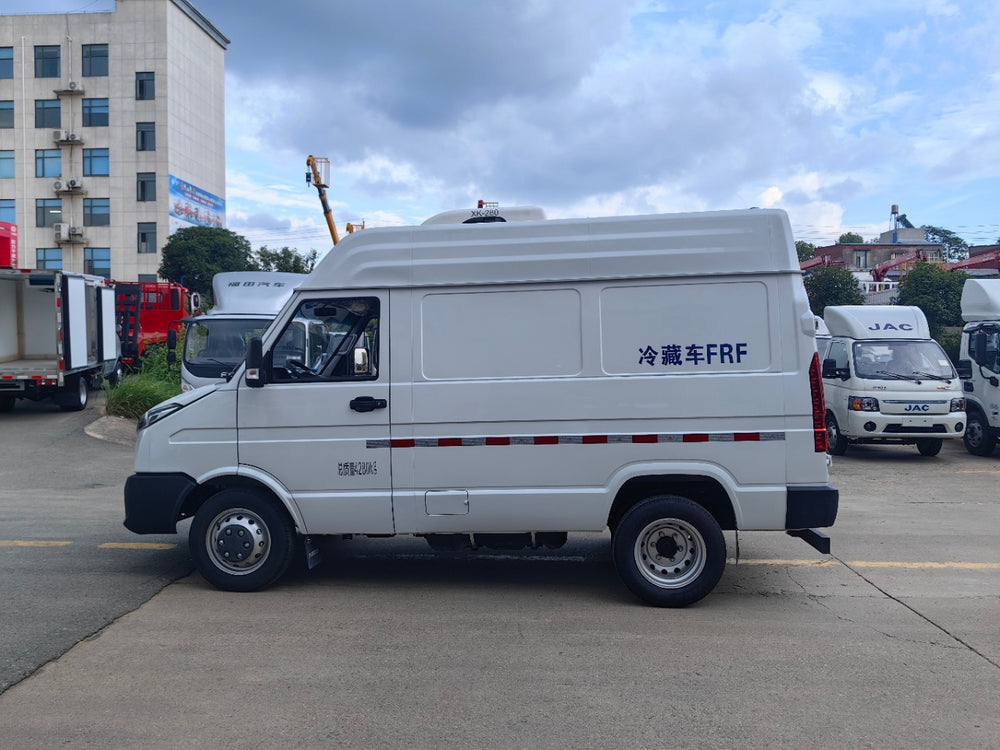

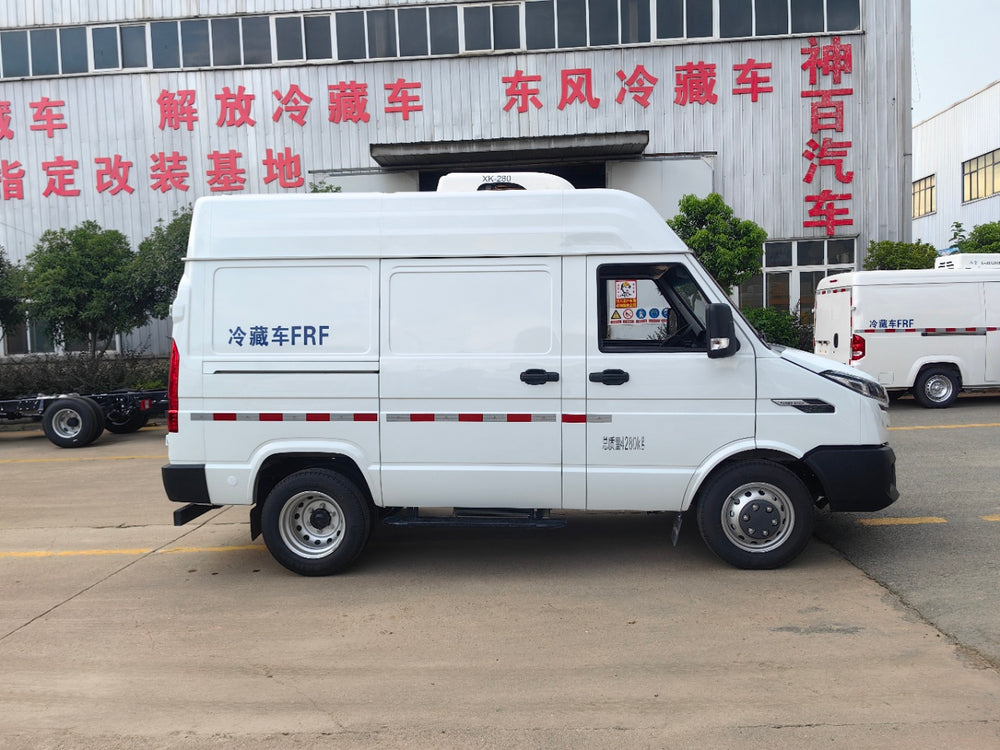

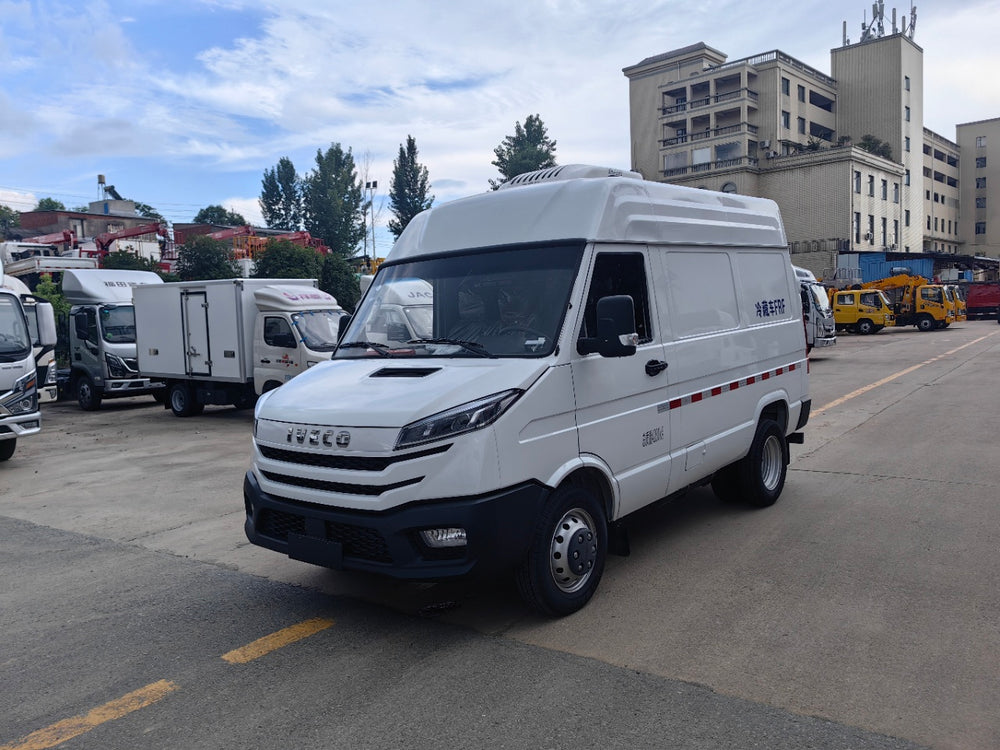

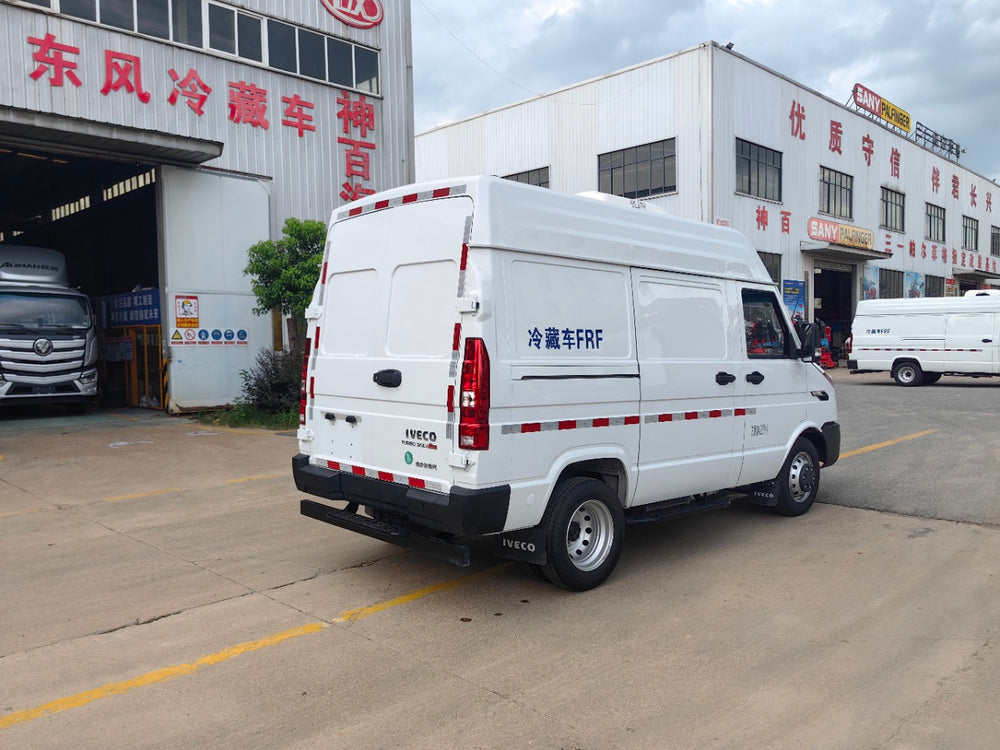

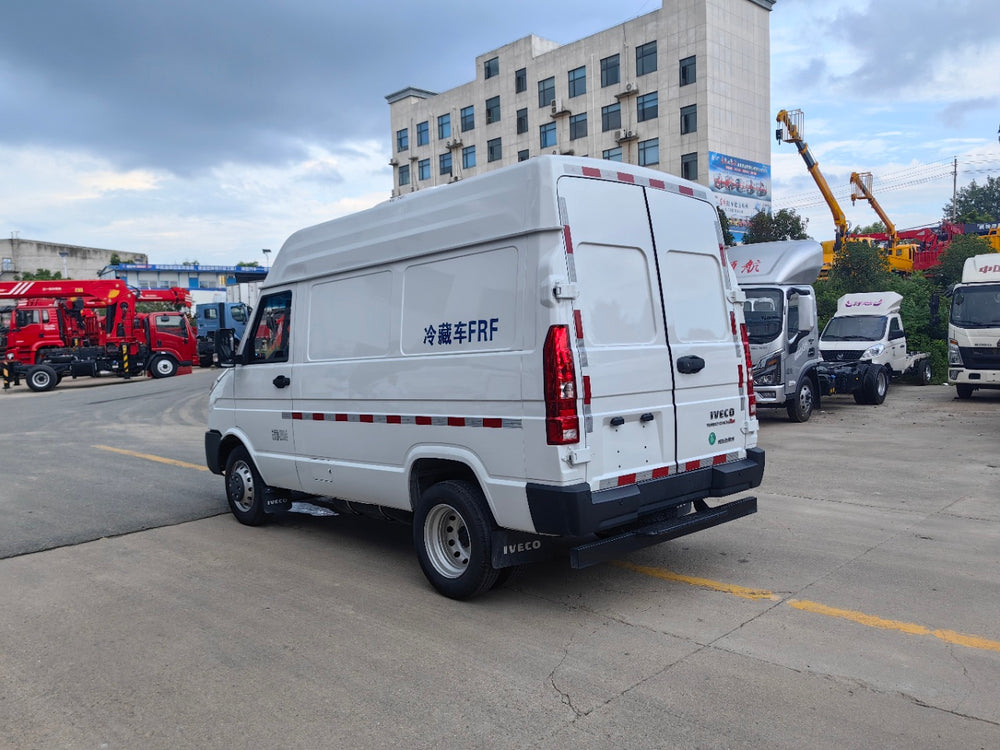

IVECO Short Wheelbase High Roof Refrigerated Van Spec Sheet
| Category | Specification |
|---|---|
| Basic Chassis Info | |
| Chassis Model | IVECO Turbo Daily V35 Short Wheelbase High Roof, Model No.: CLW5040XLCNJ6 |
| Overall Dimension | 4875×2000×2800 mm |
| Inner Cargo Box Size | 2150×1640×1550 mm, Total Volume ≈5.5 CBM |
| Wheelbase | 2800 mm |
| GVW / Curb Weight / Rated Payload | 4280KG / 2460KG / 1625KG |
| Drive Mode | 4×2 RWD, Rear Dual Tires |
| Fuel Type | Diesel |
| Max Speed | 110 km/h |
| Engine Configuration | |
| Engine Model | SOFIM8140.43S6 2.5T Inline 4-Cylinder Turbo Diesel |
| Displacement | 2798 cc |
| Max Power | 95kW(122HP) / Max Torque:320N·m |
| Emission Standard | China National VI (Equivalent Euro 6) with SCR Urea System |
| Fuel Tank / Urea Tank | 70L Aluminum Fuel Tank, 19L Urea Tank |
| Transmission & Chassis Parts | |
| Gearbox | IVECO 2826.5 5-speed Manual Transmission |
| Brake System | Full Disc Brake + ABS + Hydraulic Power Steering |
| Tire Size | 195/75R16LT 6 tires (Rear Double Wheel) |
| Suspension | Front Independent Coil Spring + Rear Leaf Spring |

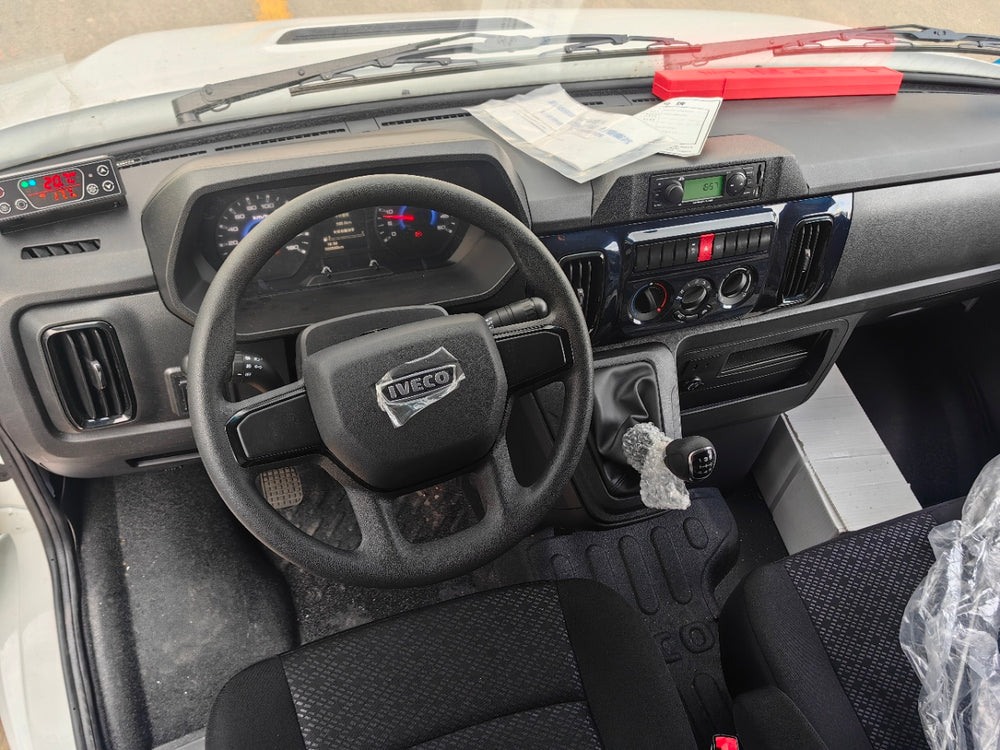

| Cab Standard Equipment | |

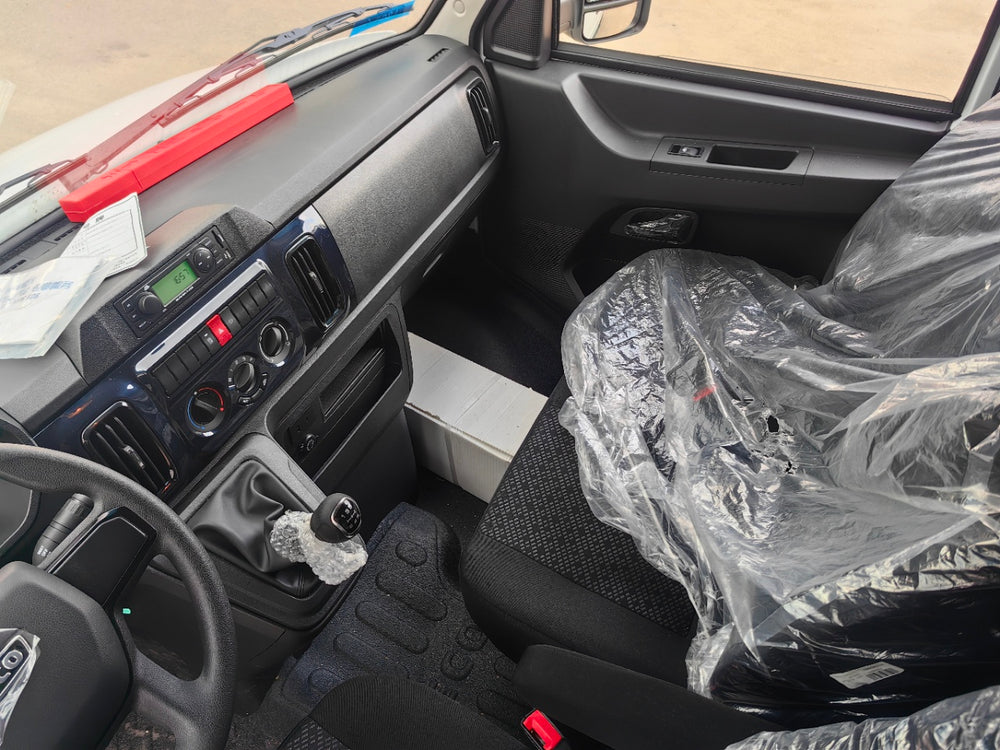

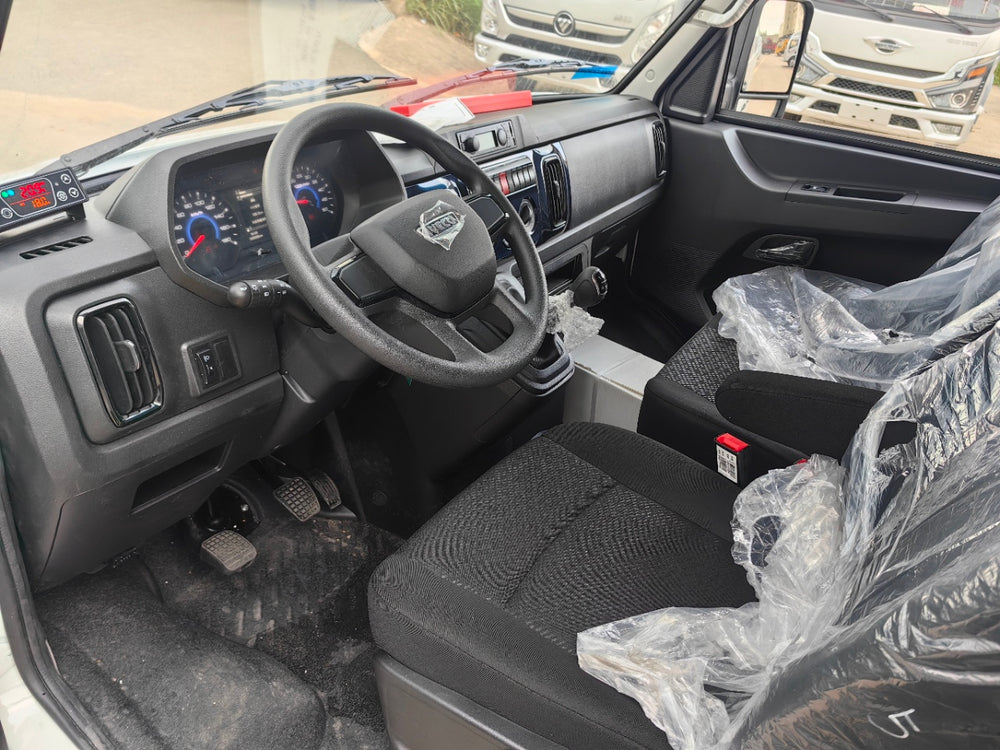

| Cabin Layout | High Roof Single Row Blind Window Cargo Van |
| Standard Fittings | Original Factory Air Conditioner, Power Window, Central Lock & Remote Key, Rear Parking Radar, 140A Alternator |
| Optional Upgrade | Reversing Camera, Multi-function LCD Screen |

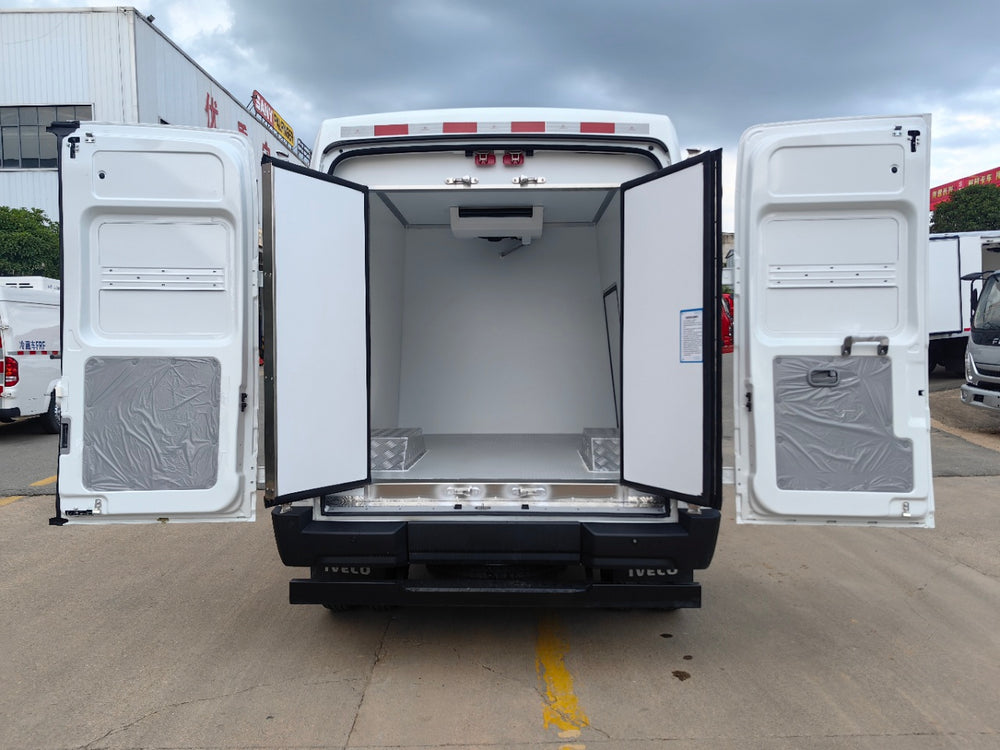

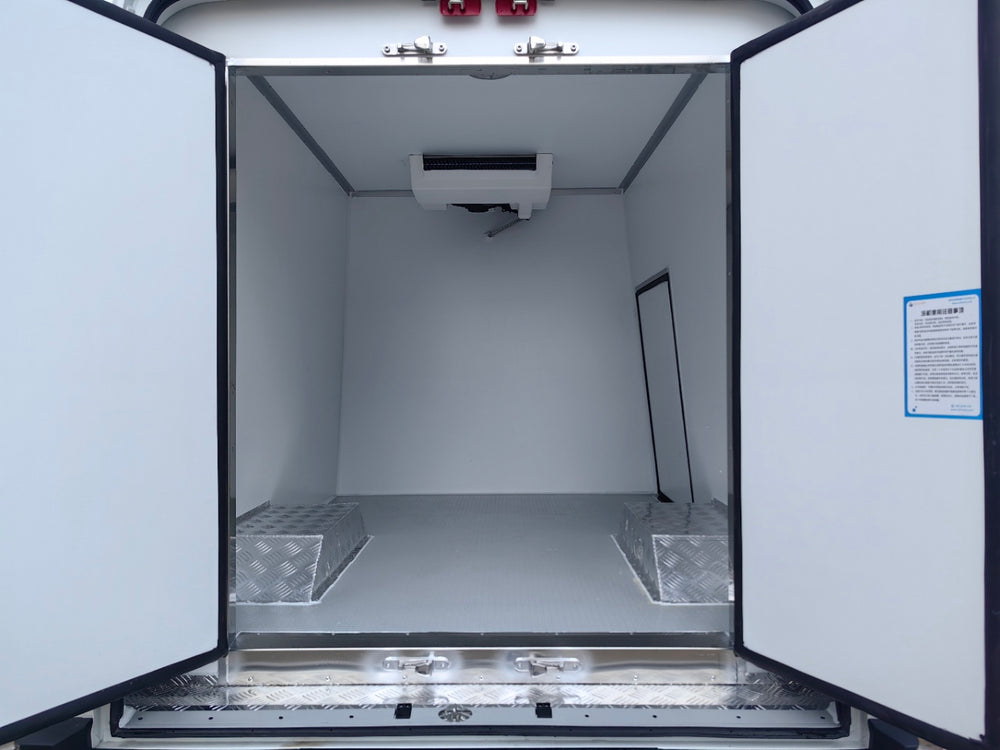

| Insulated Refrigerated Cargo Box | |
| Box Structure | Vacuum Molding Sandwich Insulated Panel, Grade A Thermal Insulation Standard |
| Panel Material | Outer & Inner FRP + 80mm XPS Foam Insulation Layer |
| Floor | Anti-slip Aluminum Pattern Plate |

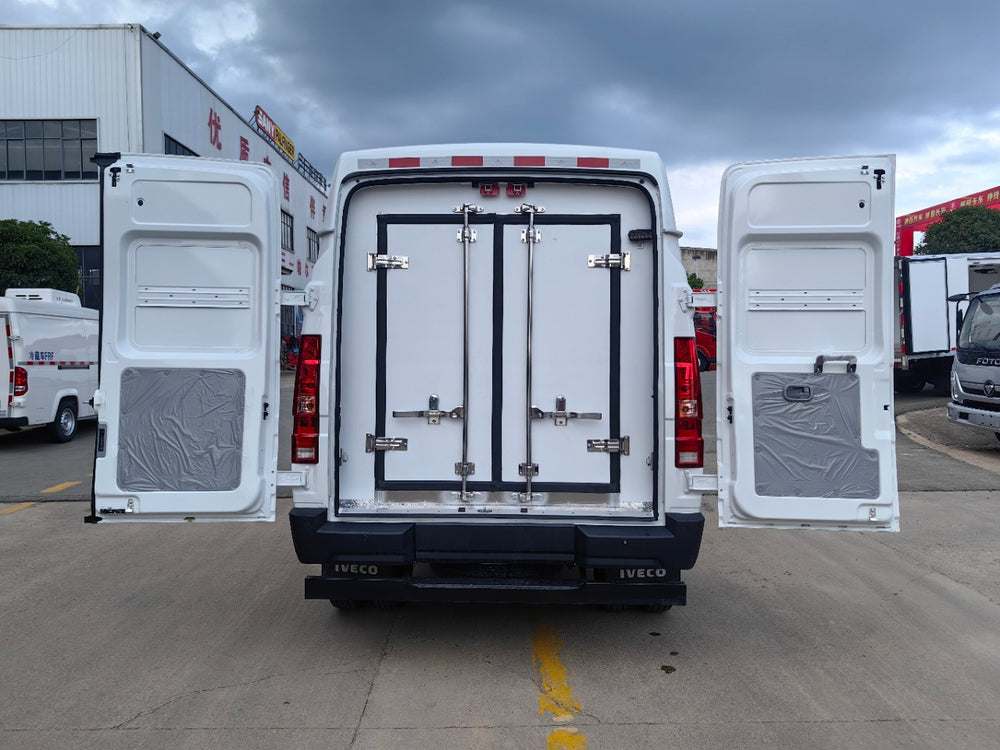

| Accessories | Stainless Steel Door Hinge & Lock, Rubber Labyrinth Sealing Strip, Inner LED Lamp, Rear Double Swing Door |
| Refrigeration Unit System | |
| Standard Unit | Domestic KX / XH Engine-driven Refrigeration Unit |
| Optional Import Unit | Carrier / Thermo King Independent Cooling Unit |
| Adjustable Temp Range | -18℃ ~ +15℃ Precise Temperature Control |
| Refrigerant | Eco-friendly R404A |
