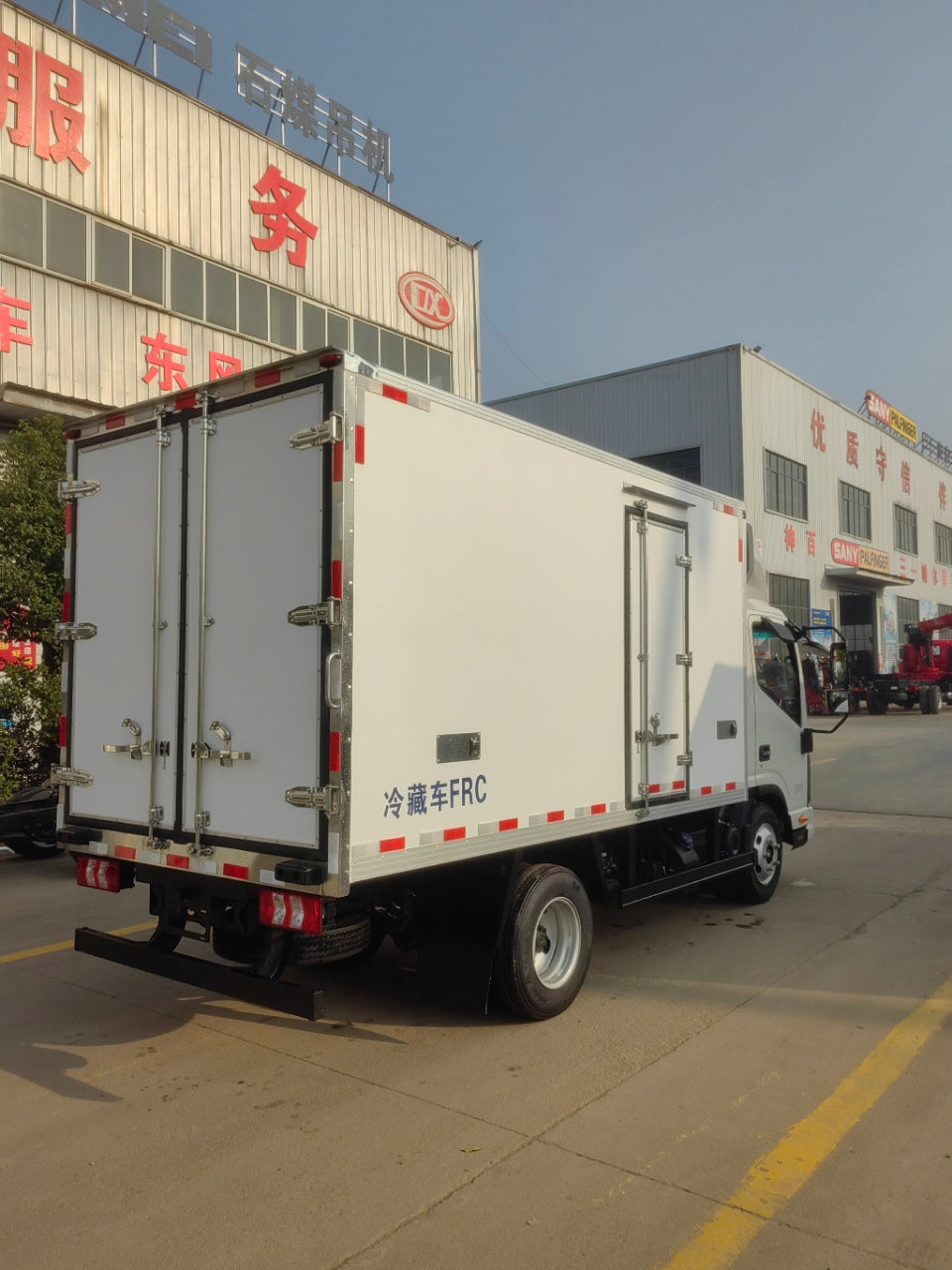

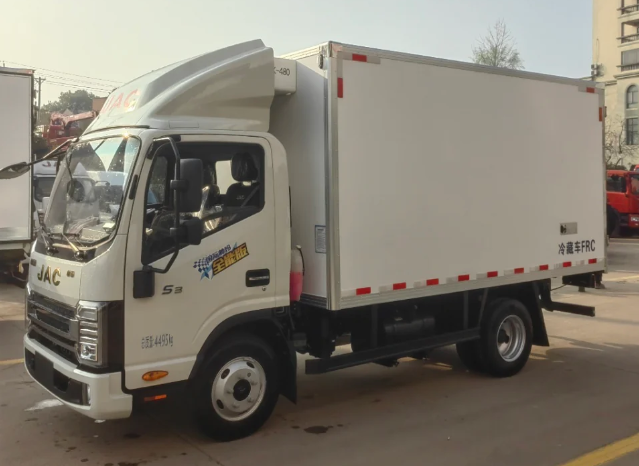

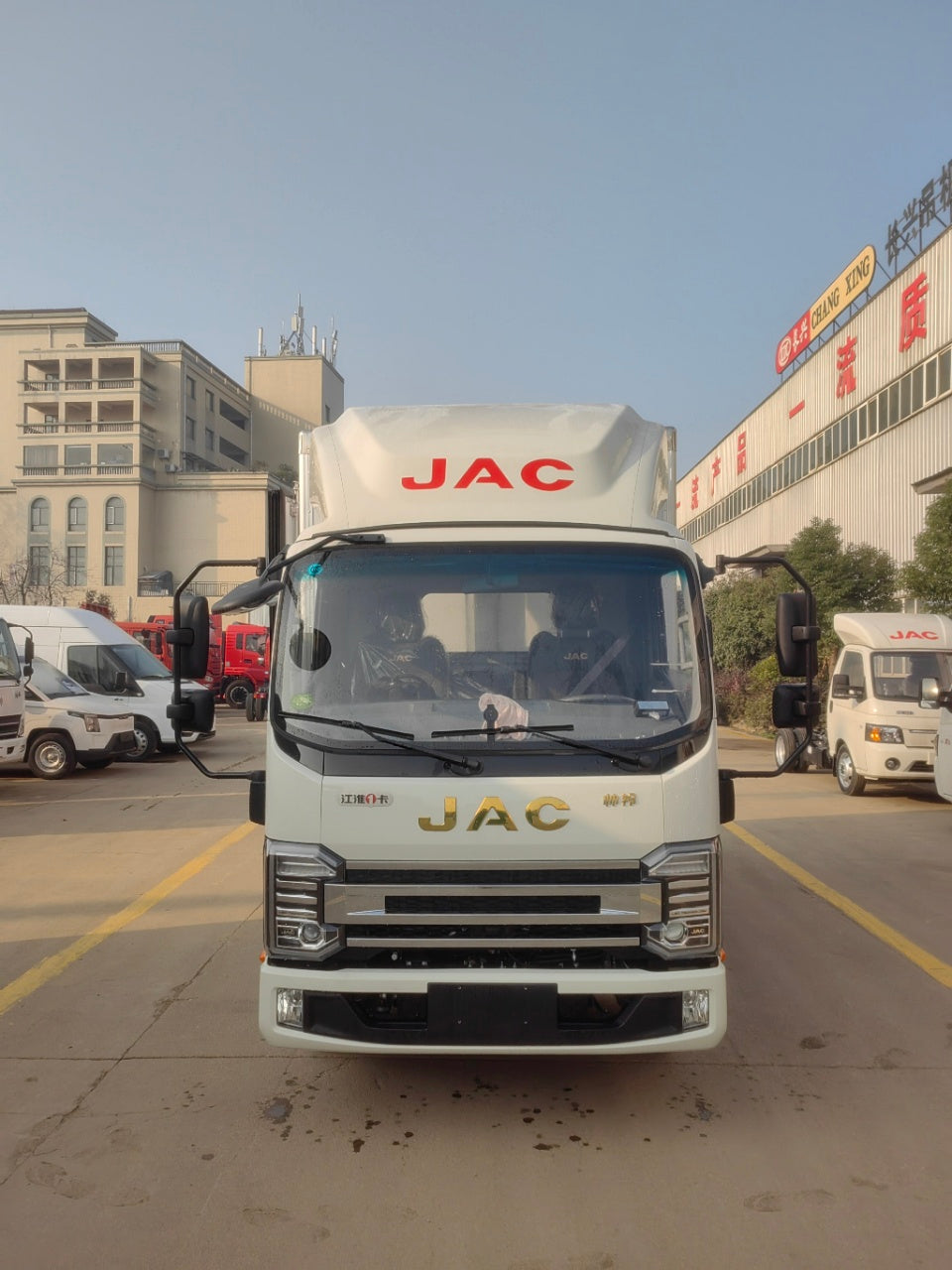

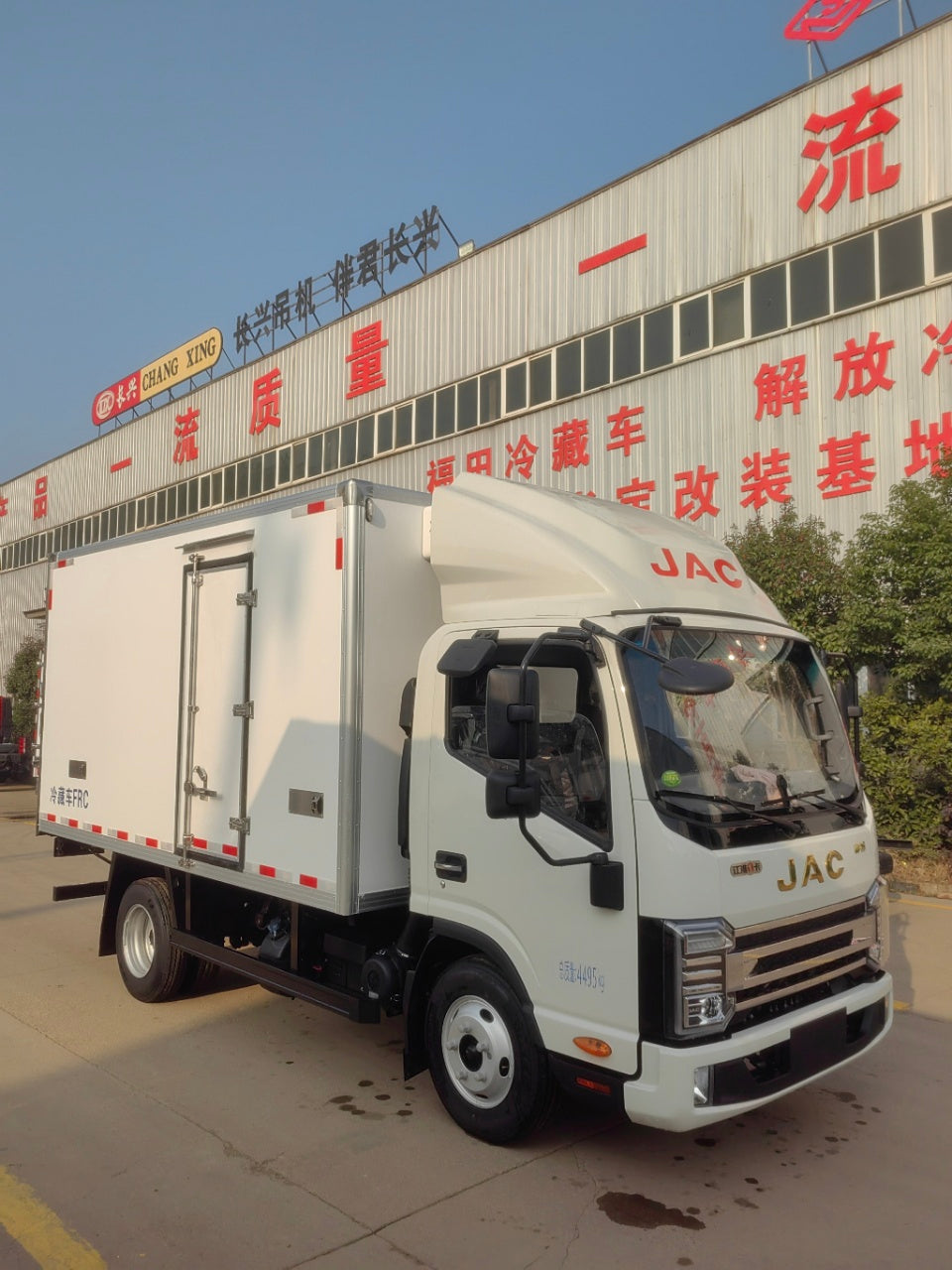

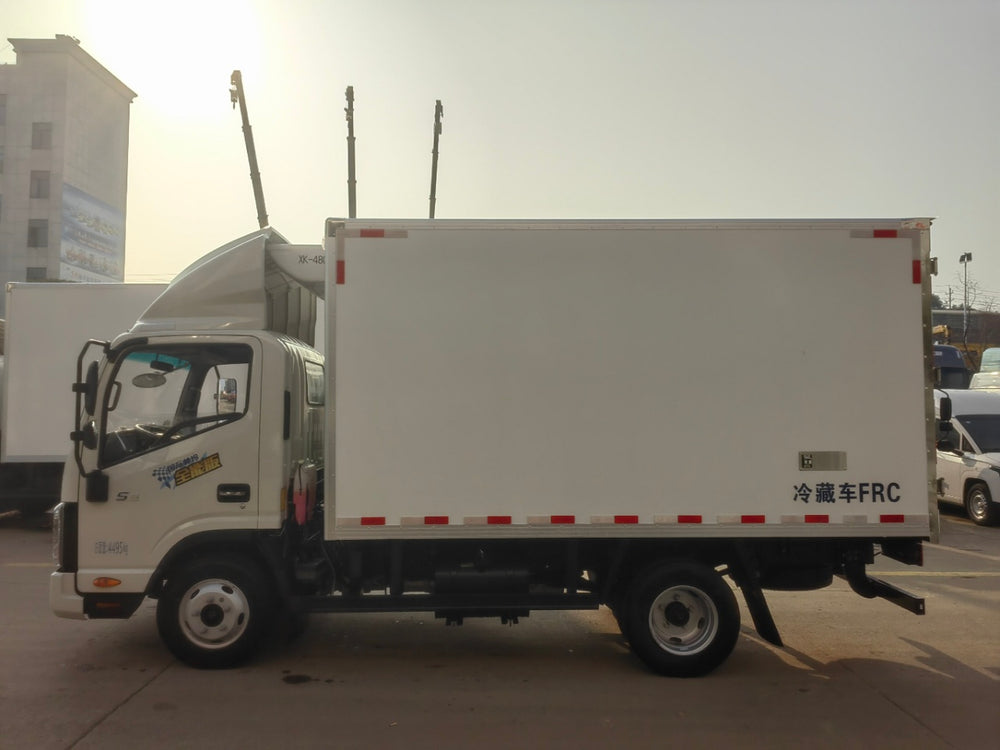

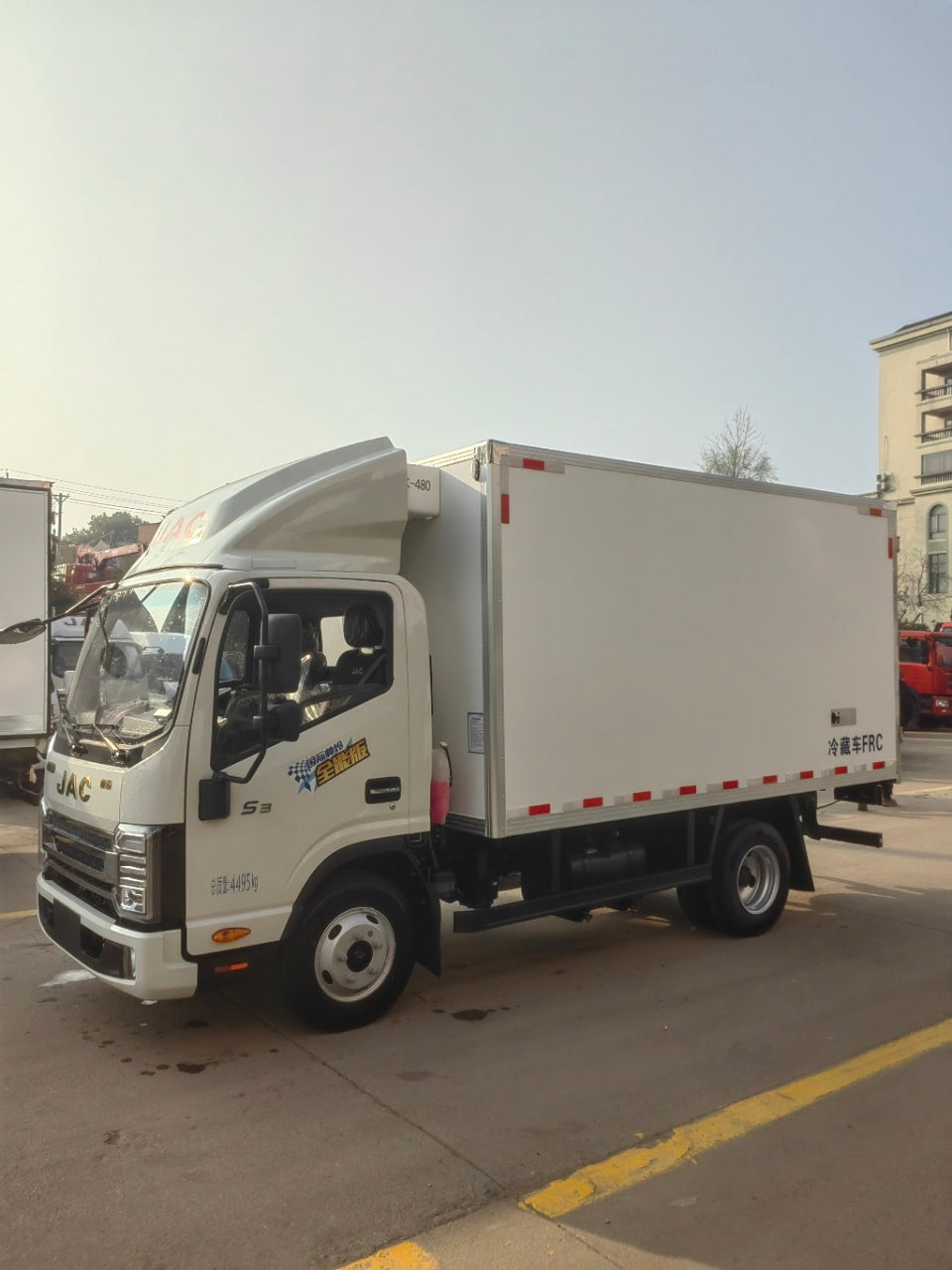

JAC SHUAILING S3 3.7M REFRIGERATED TRUCK FULL SPECIFICATION TABLE
| Category | Item | Specification |
|---|---|---|
| Chassis Basic Info | Complete Vehicle Model | HFC5041XLCP73K1B4S |
| Chassis Basic Info | Chassis Model | HFC1041P73K1B4S |
| Chassis Basic Info | Cabin Type | Single Row 1700mm Wide-body S Series Cabin |
| Chassis Basic Info | Wheelbase | 2850 mm |
| Chassis Basic Info | Overall Dimension (L×W×H) | 5580×2120×3035 mm |
| Chassis Basic Info | GVW / Curb Weight / Rated Payload | 4495kg / 3200kg / 1100kg |
| Chassis Basic Info | Drive Mode | 4×2 Rear Dual Wheel |
| Chassis Basic Info | Front / Rear Axle Load | 2T Front Axle, 4T Rear Axle |
| Chassis Basic Info | Final Drive Ratio | 4.875 |
| Chassis Basic Info | Tire Size | 6.50R16 12PR Vacuum Tire |
| Chassis Basic Info | Fuel Tank | 120L Steel Fuel Tank |
| Chassis Basic Info | Urea Tank | 20L |
| Powertrain System | Engine Model | HFC4DB3-2E5 (JAC Ruijiete) |
| Powertrain System | Displacement | 2.2L / 2183cc Diesel |
| Powertrain System | Max Power / Horsepower | 95kW / 130HP |
| Powertrain System | Max Torque | 320N·m |
| Powertrain System | Emission Standard | China National VI (Euro 6) |
| Powertrain System | Transmission | 5-speed Manual Gearbox |
| Powertrain System | Fuel Type | Diesel |
| Standard Cabin Configuration | Suspension | Leaf Spring Suspension (4/5+6) |
| Standard Cabin Configuration | Steering & Brake | Hydraulic Power Steering + Air Brake with ABS |

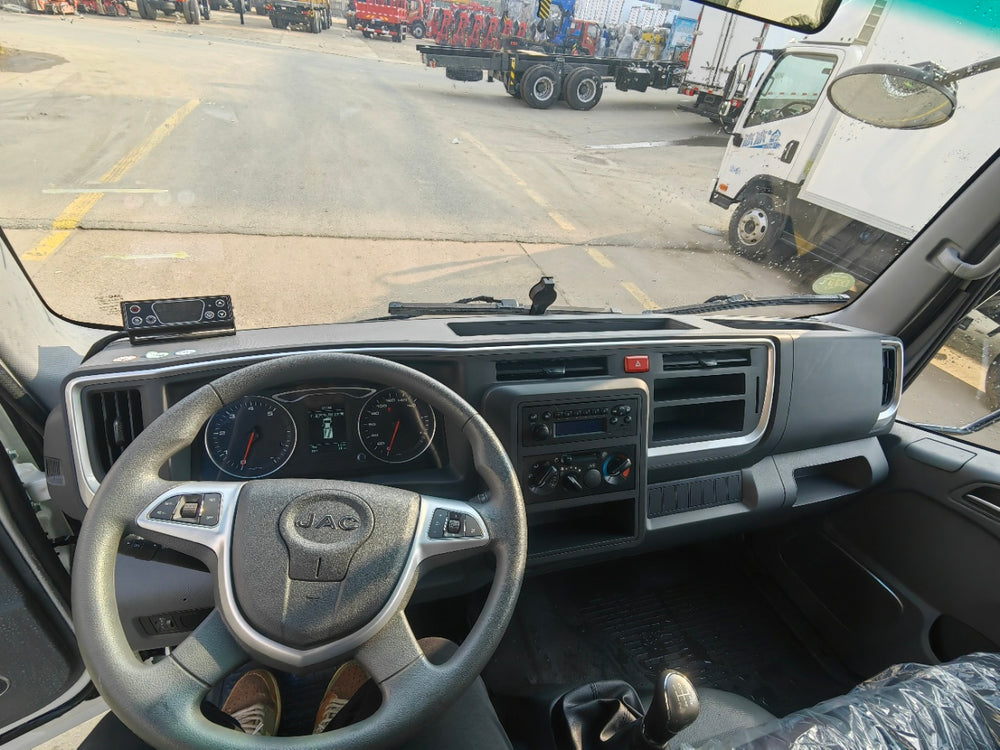

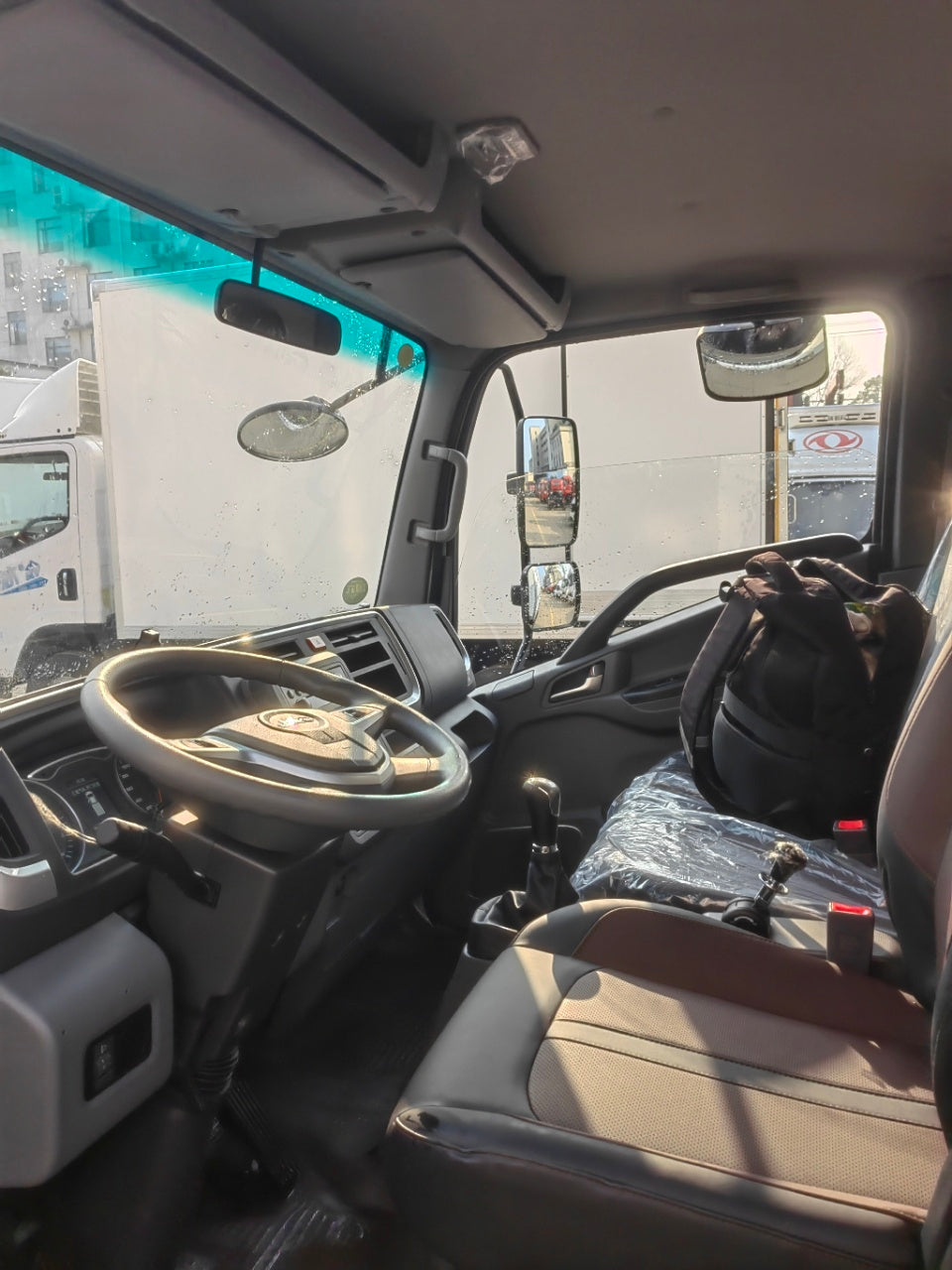

| Standard Cabin Configuration | Aux Equipment | Electric Heated Rearview Mirror, Multifunction Steering Wheel, Cruise Control, Power Window, Central Lock with Remote Key, Factory Original A/C, 24V Dual Battery, Windshield Wiper with Intermittent Function |

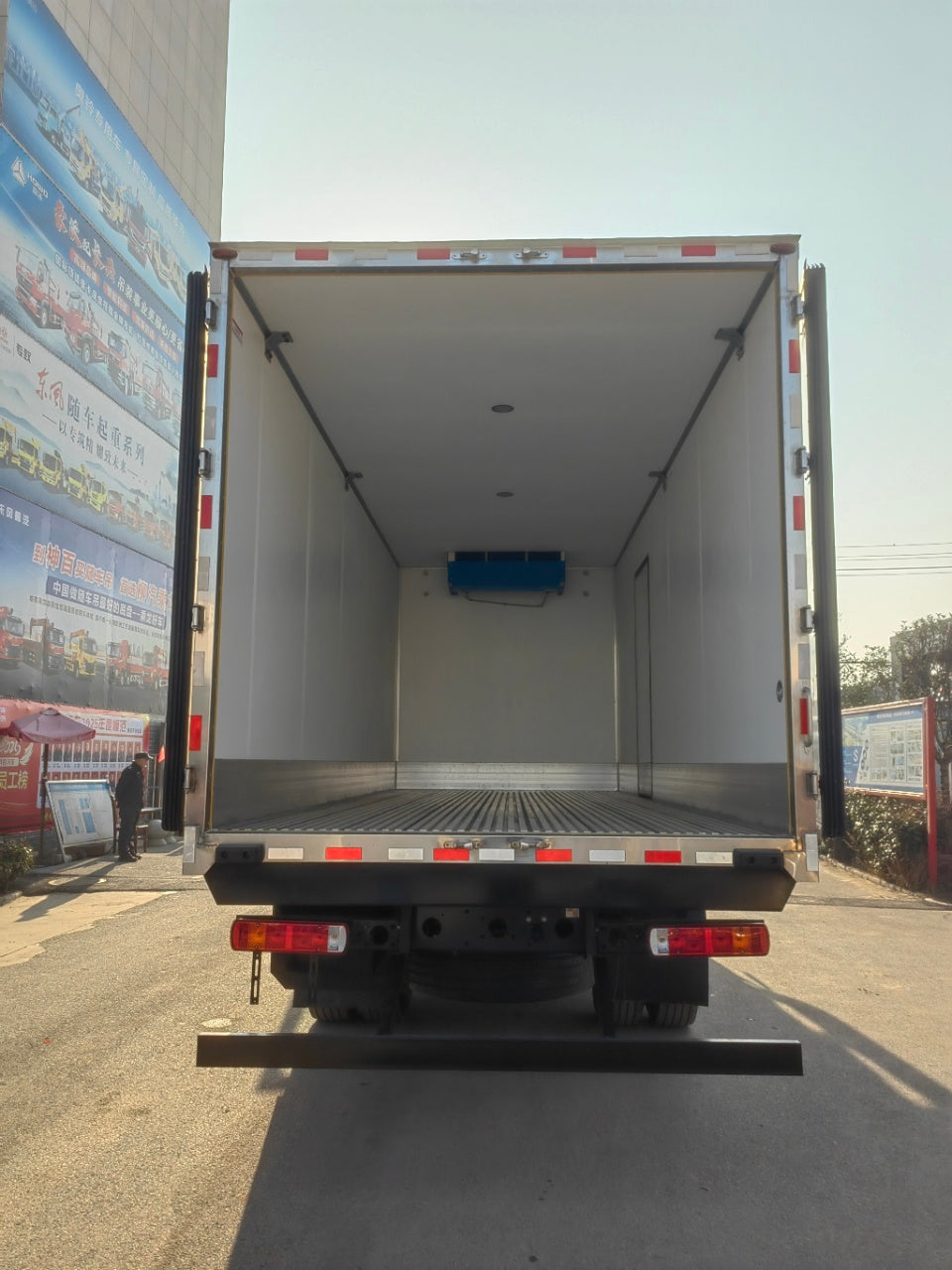

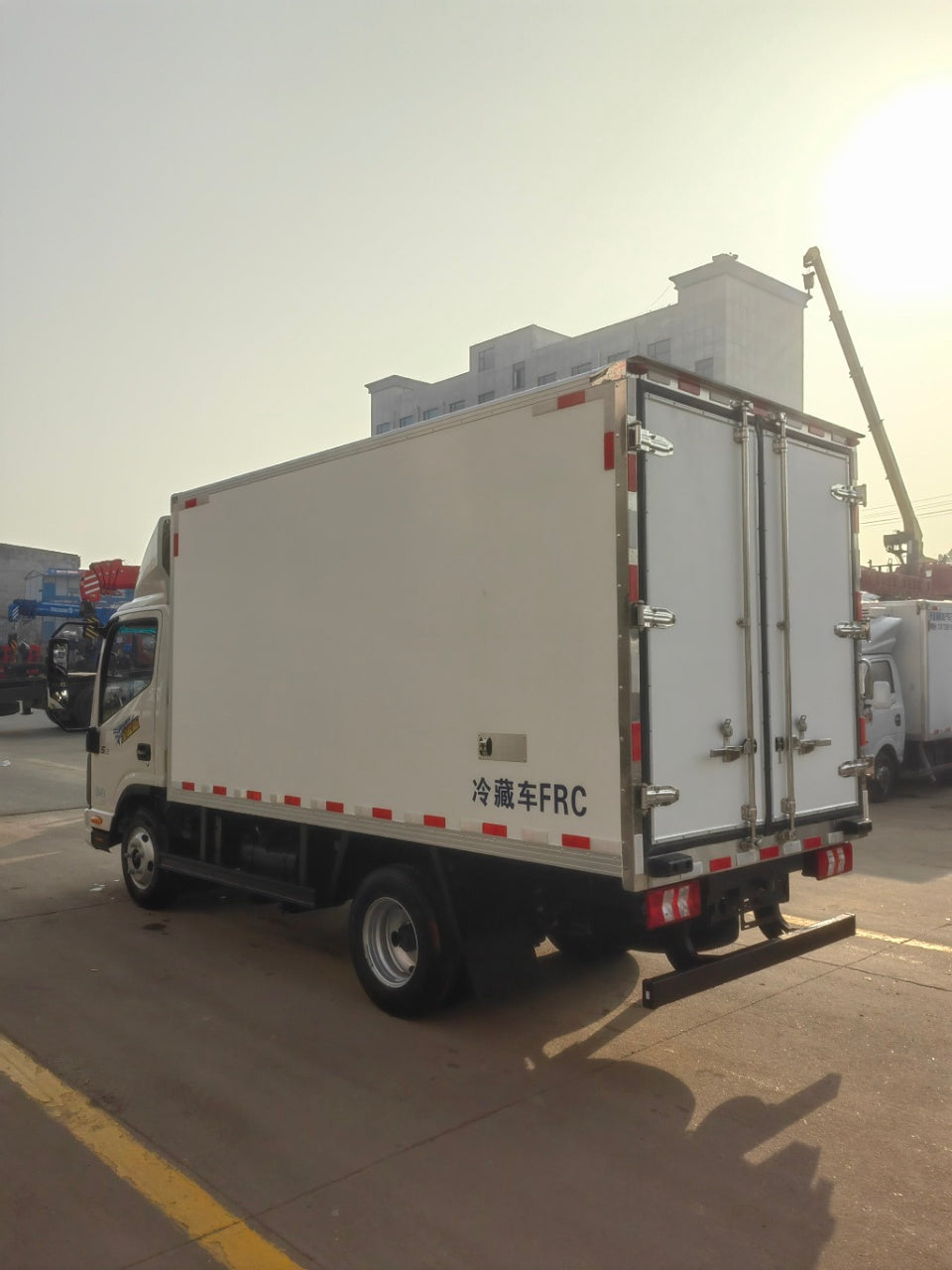

| Insulated Refrigerated Cargo Box | Inner Cargo Dimension (L×W×H) | 3700×2050×2000 mm |
| Insulated Refrigerated Cargo Box | Box Total Volume | ≈15.2 CBM |
| Insulated Refrigerated Cargo Box | Box Construction | Inner & Outer FRP + 80mm High-density PU Sandwich Insulation Panel |
| Insulated Refrigerated Cargo Box | Floor Material | Anti-slip Aluminum Pattern Plate |

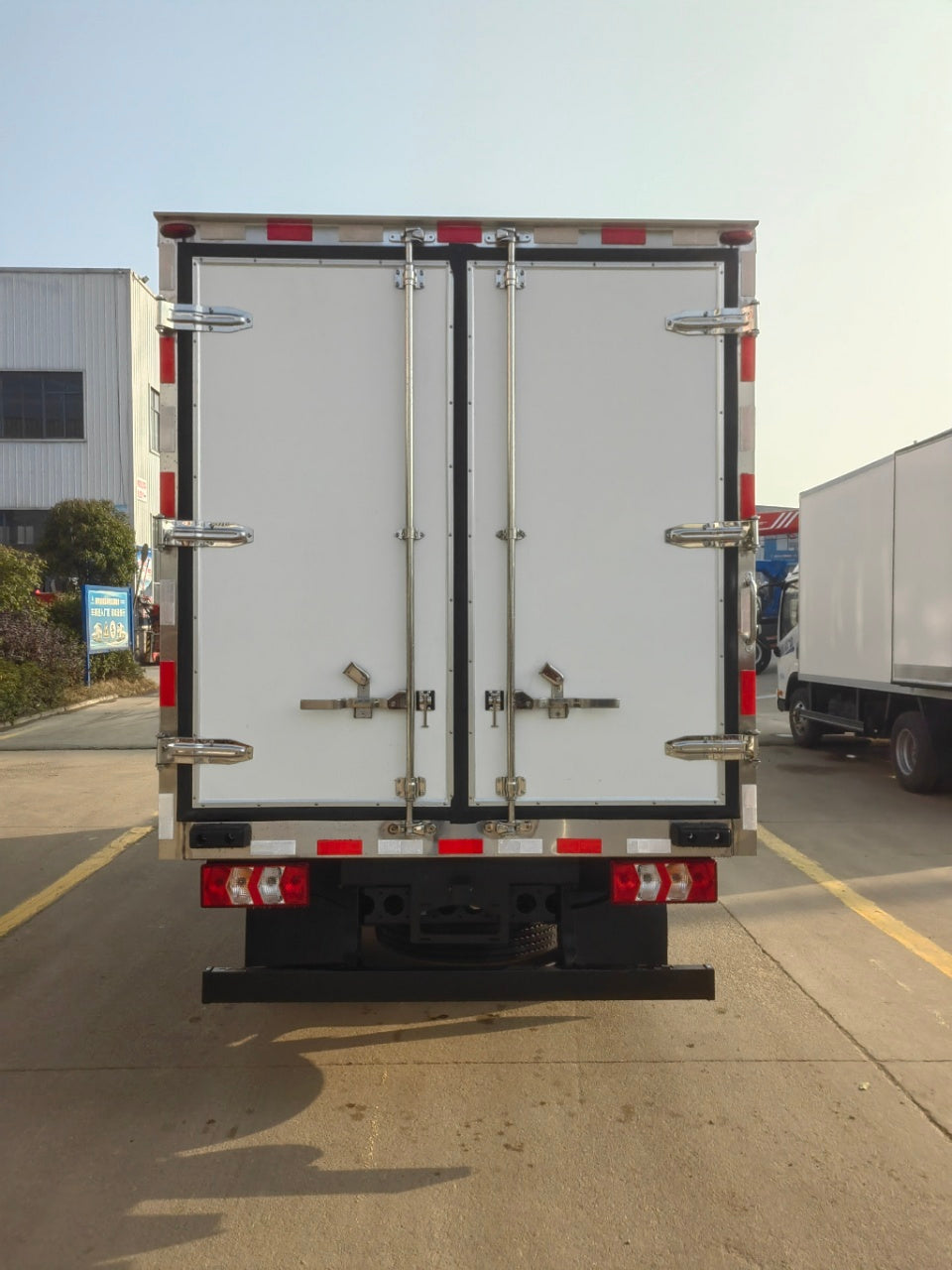

| Insulated Refrigerated Cargo Box | Fittings & Door Design | Aluminum Alloy Edge Wrap, Stainless Steel Hinges & Lock, Rear Double Door, Labyrinth Rubber Sealing Strip |
| Optional Refrigeration Unit | Domestic Economy Unit | Kaixue / Hanxue, Temperature Range: -5℃ ~ -15℃ |
| Optional Refrigeration Unit | Import Premium Unit | Carrier / Thermo King, Temperature Range: -18℃ ~ +25℃ |
| Optional Refrigeration Unit | Dual-temperature Unit (Optional) | Cooling & Heating Available, Temperature Range: +25℃ ~ -20℃ |
| Optional Extra Accessories | Available Optional Fittings | Meat Hanging Rail, Full-air Duct, Digital Temperature Recorder, External 220V Standby Power, Side Opening Door |
